Boulder 1010 Preamplifier - As Traded

Boulder 1010 Preamplifier - As Traded

Condition: Excellent, no obvious damage

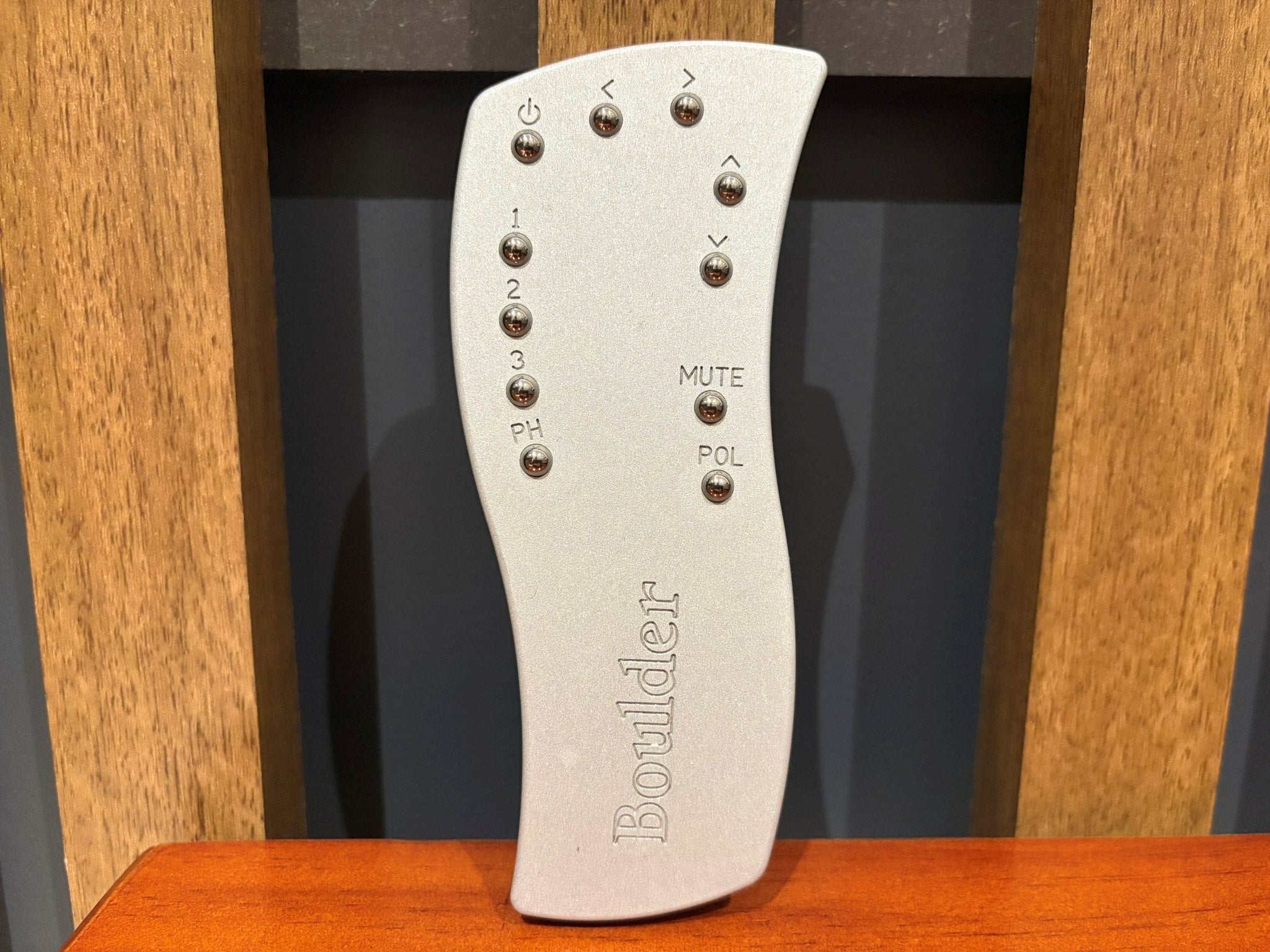

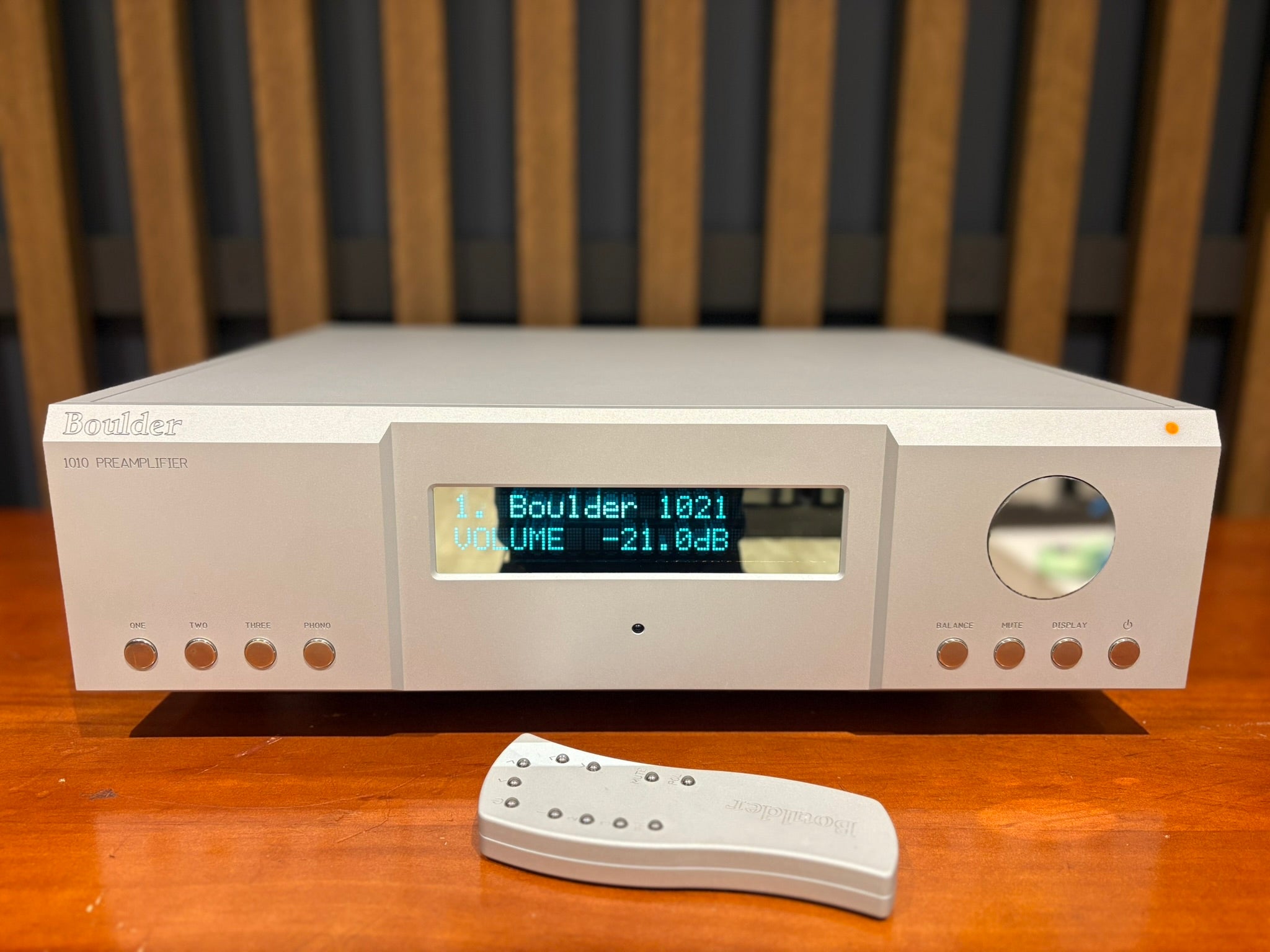

Includes: Remote, Manual and Power Cable (No Box)

SN: SS71

Overview

Boulder 1010 Preamplifier uses the 983 gain stage borrowed from the 1012 DAC Preamplifier. 983's surface mount construction combines discrete and micro-circuitry comparable to the famous 993 from Boulder's 2000 series.

The MM and MC capable phonostage uses four-layer circuit boards, advanced component placement and Boulder’s proprietary multistage design.

The solid-state attenuator borrowed from the 2010 Preamplifier is comprised of discrete resistors and microcircuit switching, avoiding a typical sliding wiper potentiometer. 200 half-dB steps allow a 100 dB total range. Both the microprocessor and analog sections have separate power supplies and transformers. Control commands sent to the analog section are relayed via optocouplers, providing complete isolation.

Input renaming and a home theatre bypass are included, and each input can store preset levels to match different sources.

The chassis, made of interlocking, fully machines pieces, has been designed to reduce resonances.

Specification

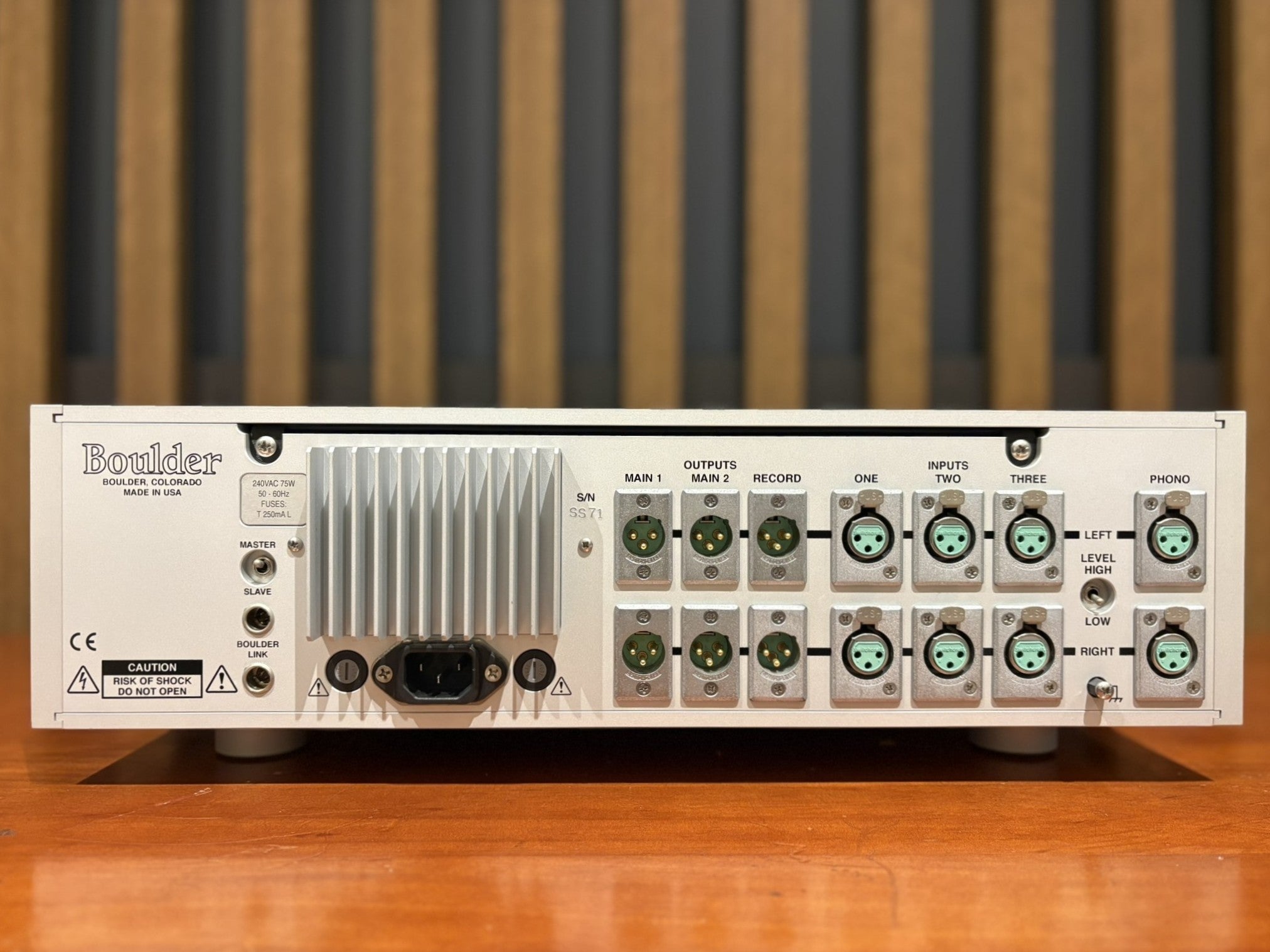

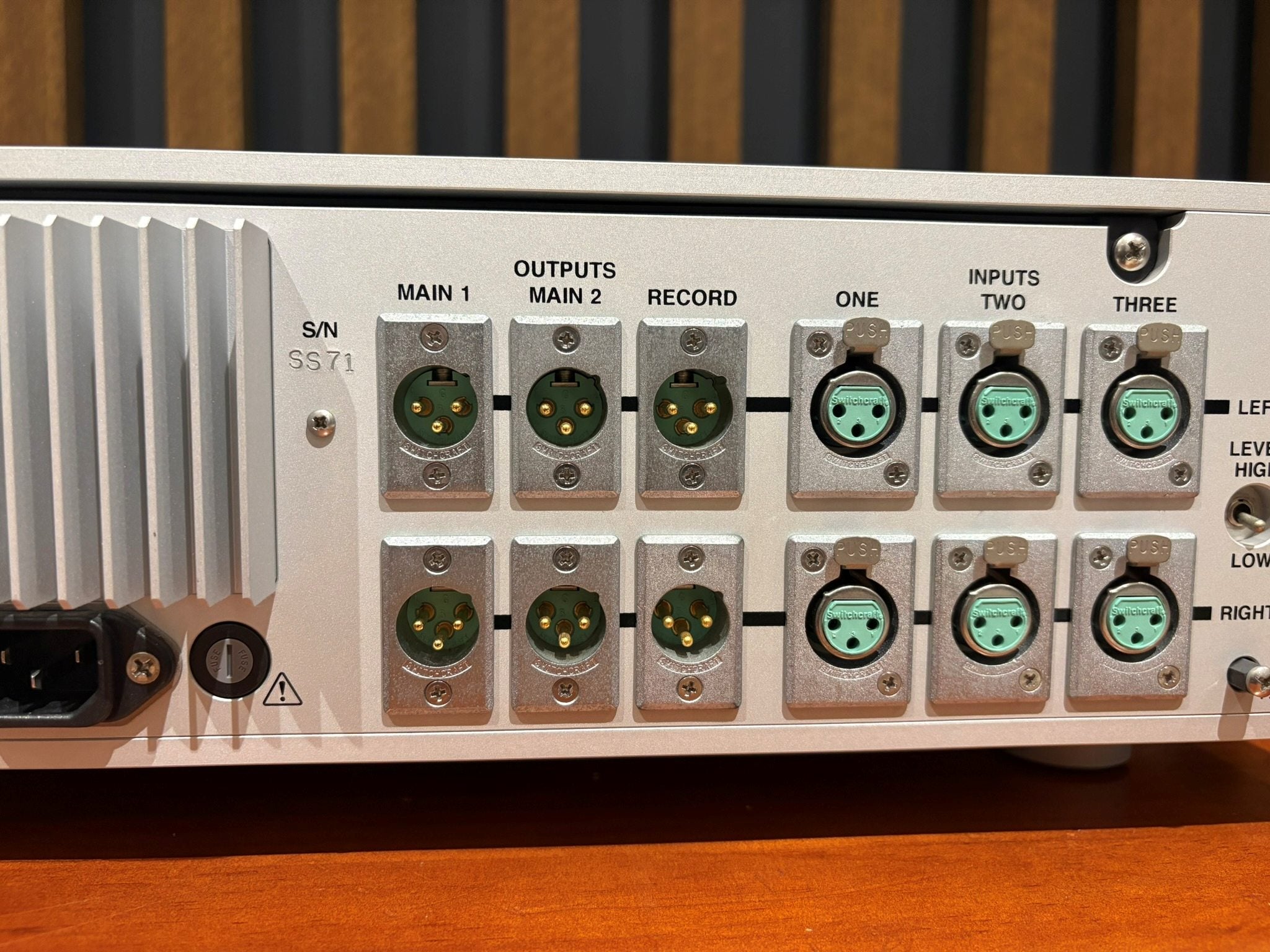

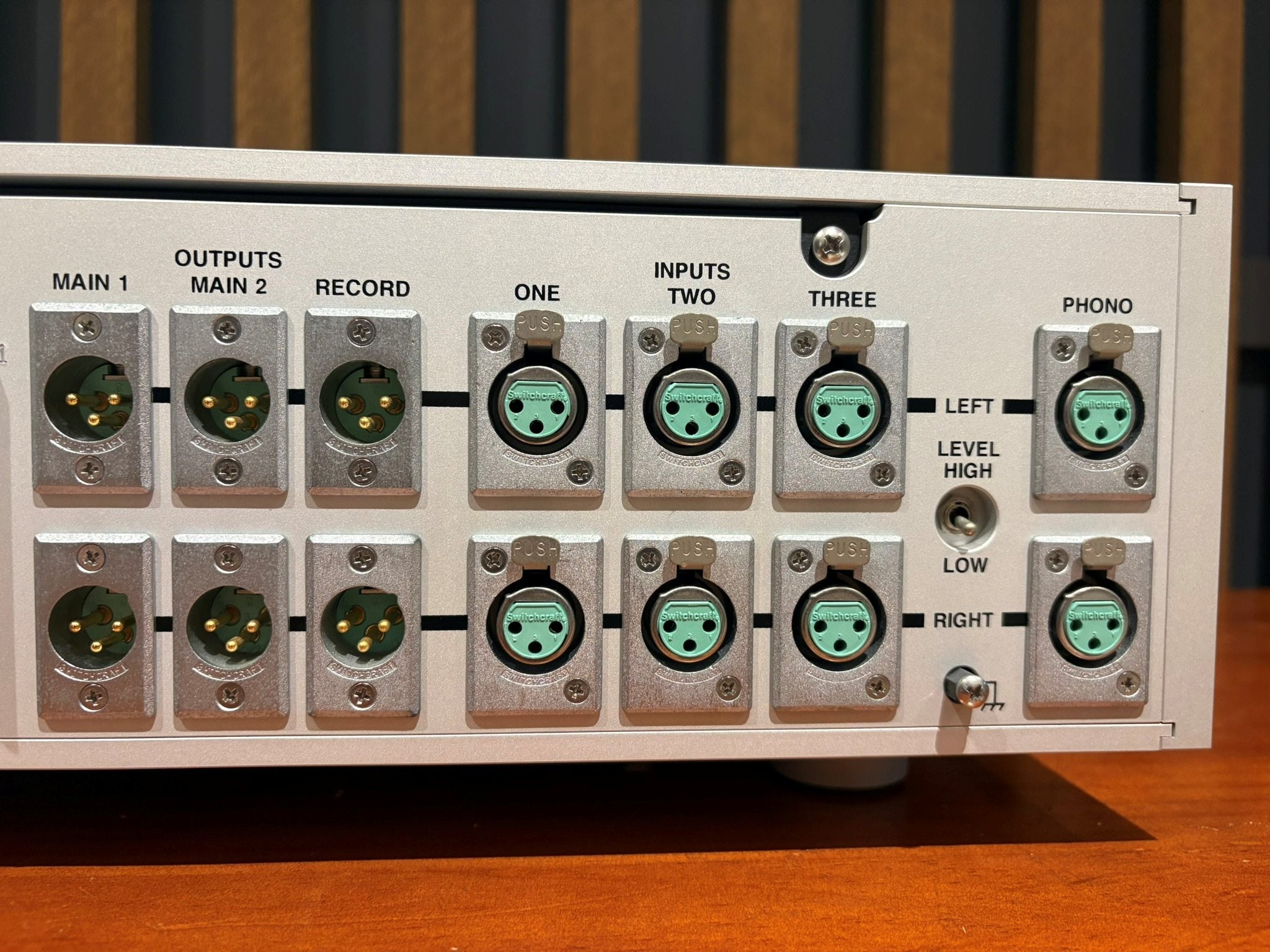

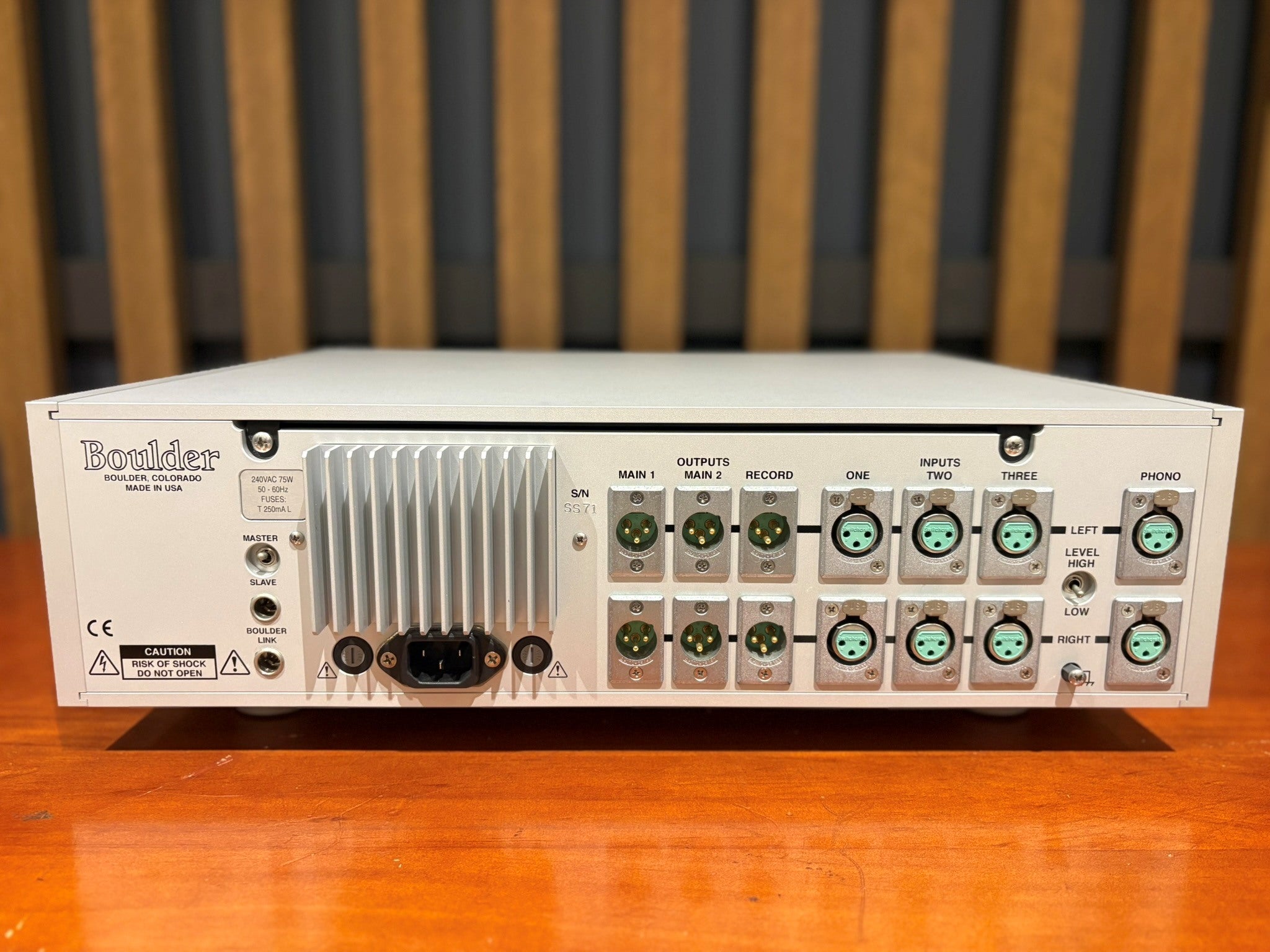

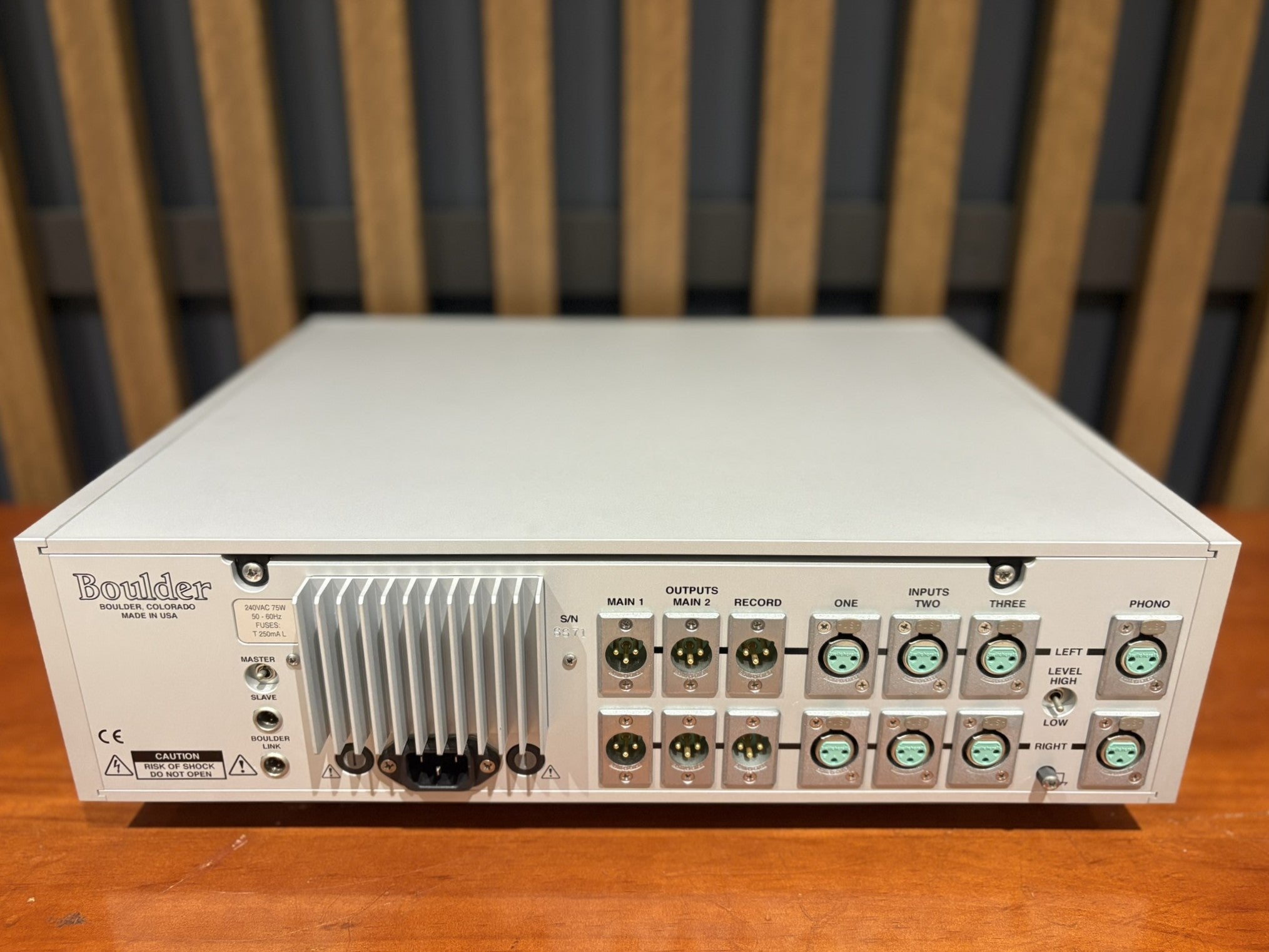

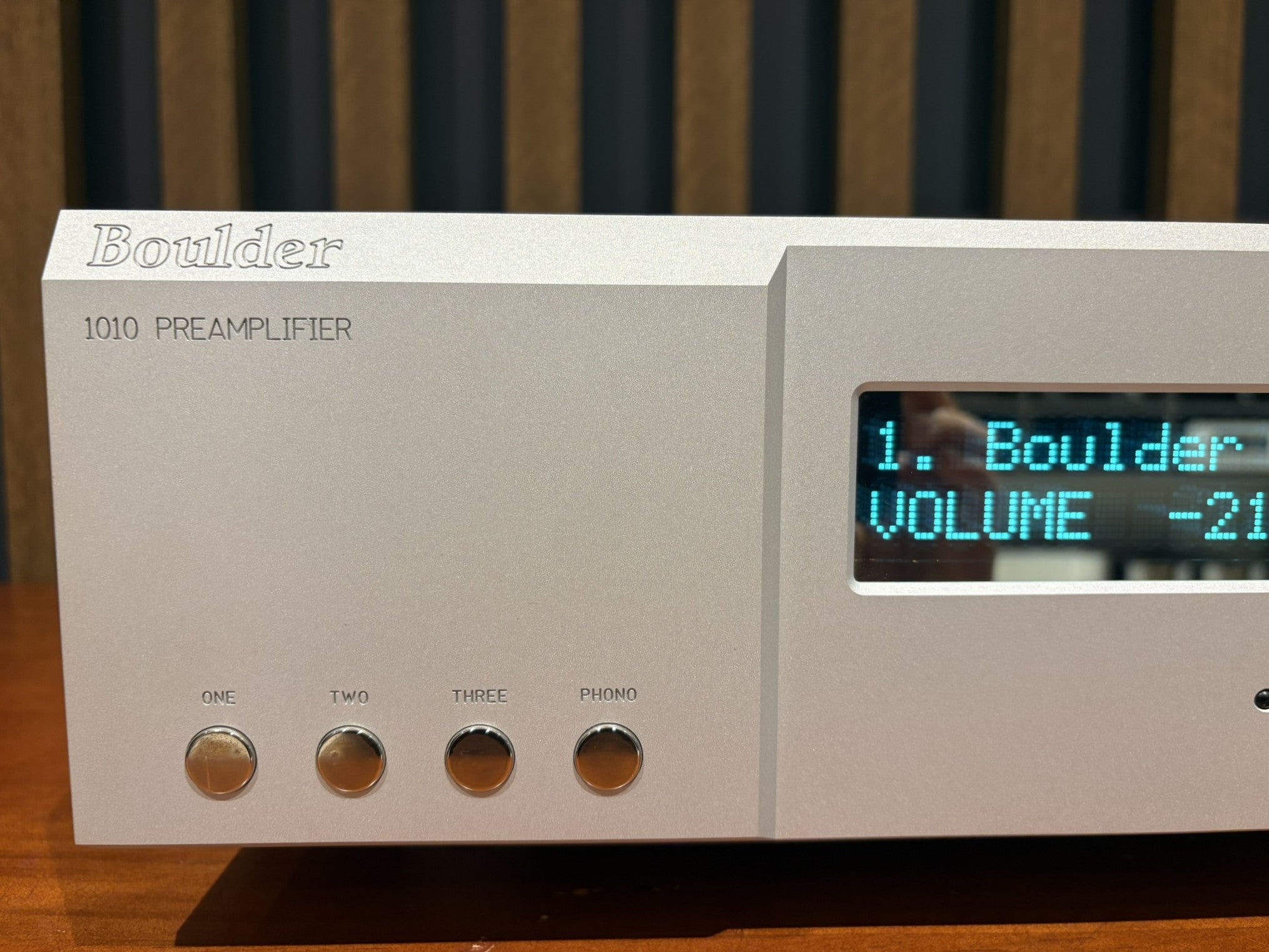

Inputs: 3 balanced line, 1 MC/MM phono
Outputs: 2 balanced main, 1 record
Phono: HI (MC) / LO (MM) gain selection

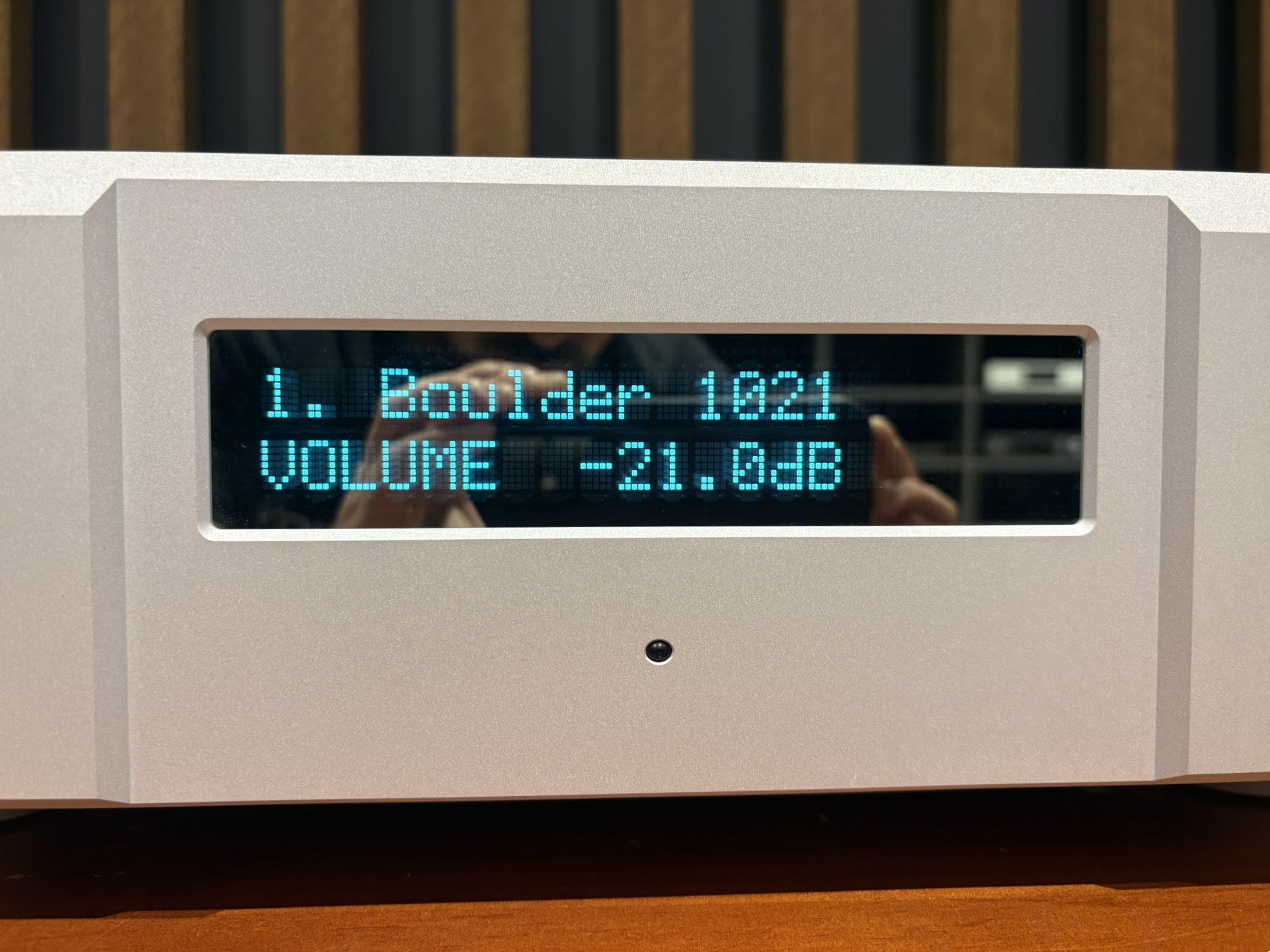

Volume: 100 db range in 0.5 db steps
Max gain: 20 db line, 80 db mc phono
Max output: 14.0 vrms
Clip to noise: 118 db
Freq response: +0, -0.03 db, 20 hz to 20 khz
THD+N, 2v out: 0.0015%, 20 hz to 20 khz

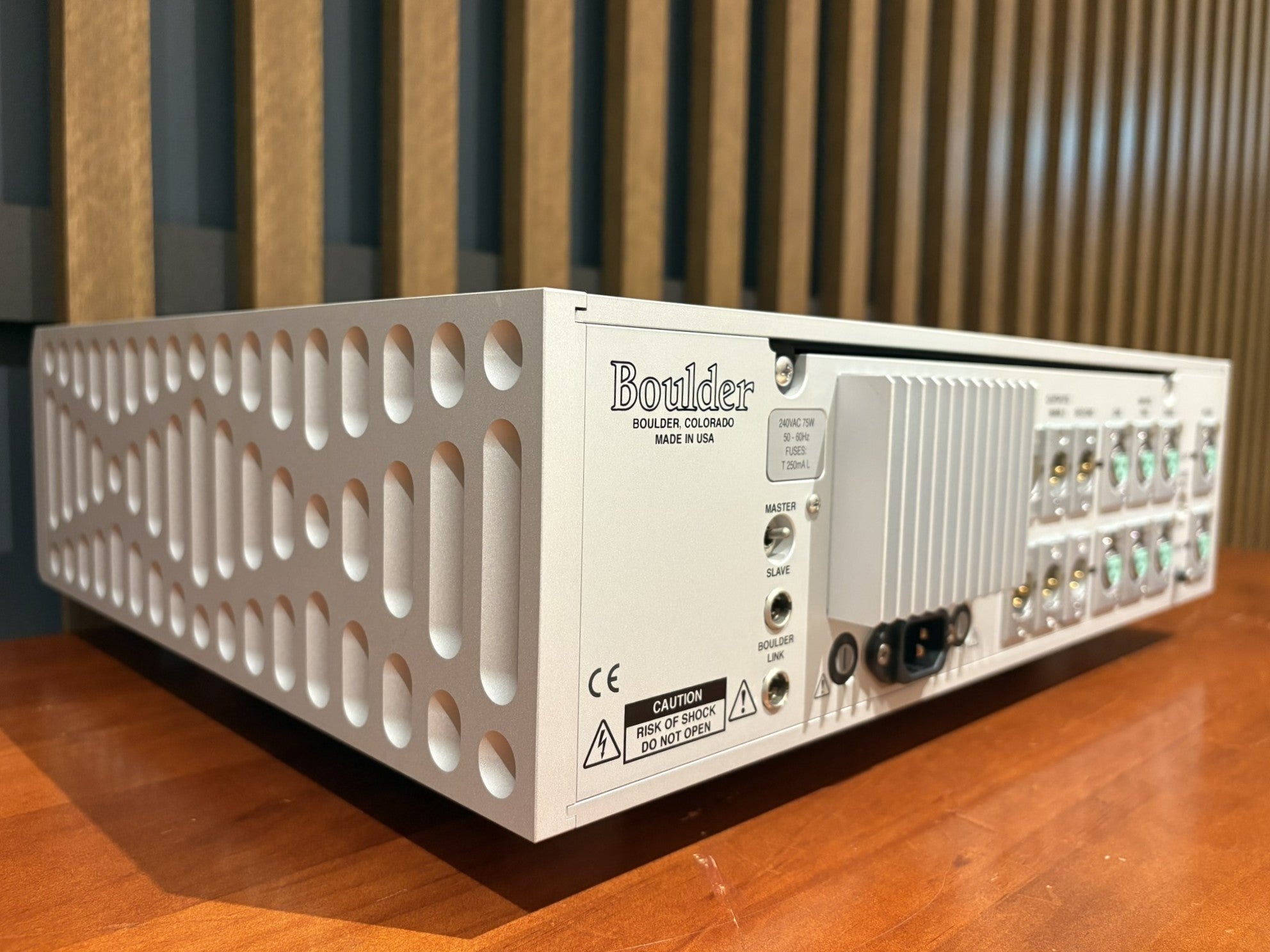

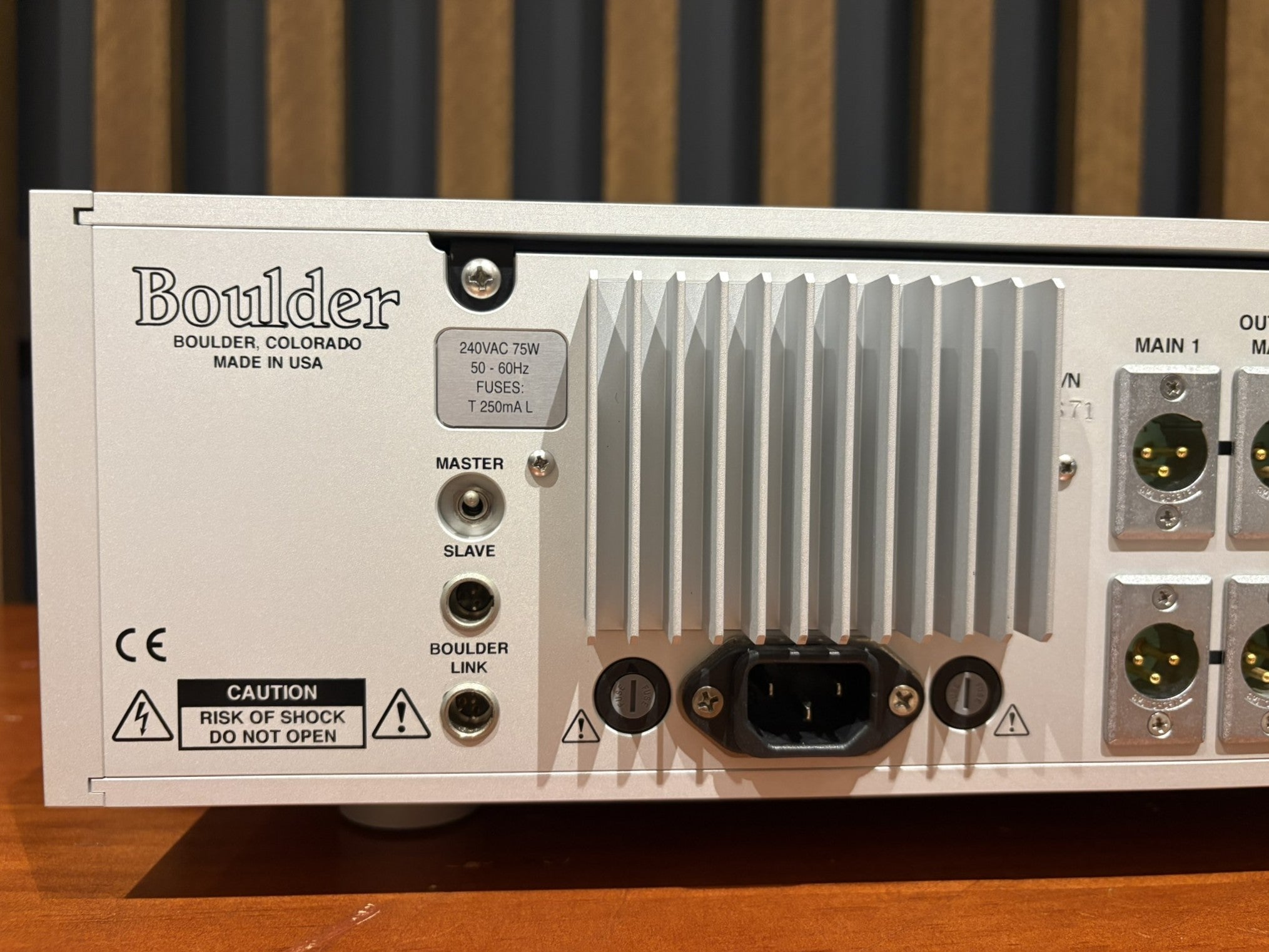

System: boulderlink to power amps
Size Width: 45.72cm, Height:14.61cm, Depth:40.26cm
Weight: 15.88kg

AUDIO CONNECTION QUALITY GUARANTEE

✔️Comprehensive three month warranty on Trade In's*
✔️Passed our checks for functionality
✔️A full inspection noting for any defects
✔️A full completeness check for all included parts and accessories
