PS Audio DirectStream PowerPlant P20 AC Power Regenerator - Consignment

PS Audio DirectStream PowerPlant P20 AC Power Regenerator - Consignment

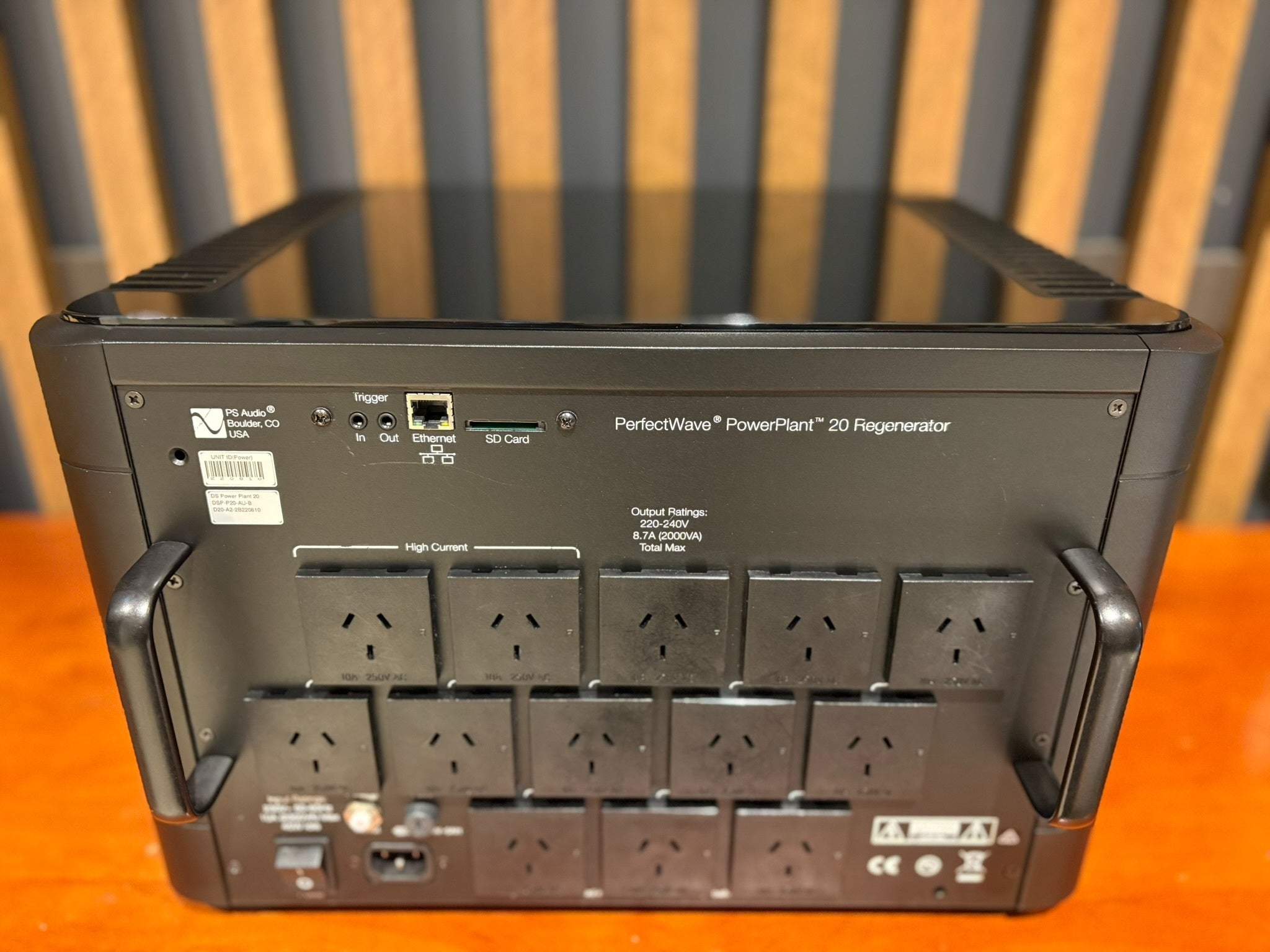

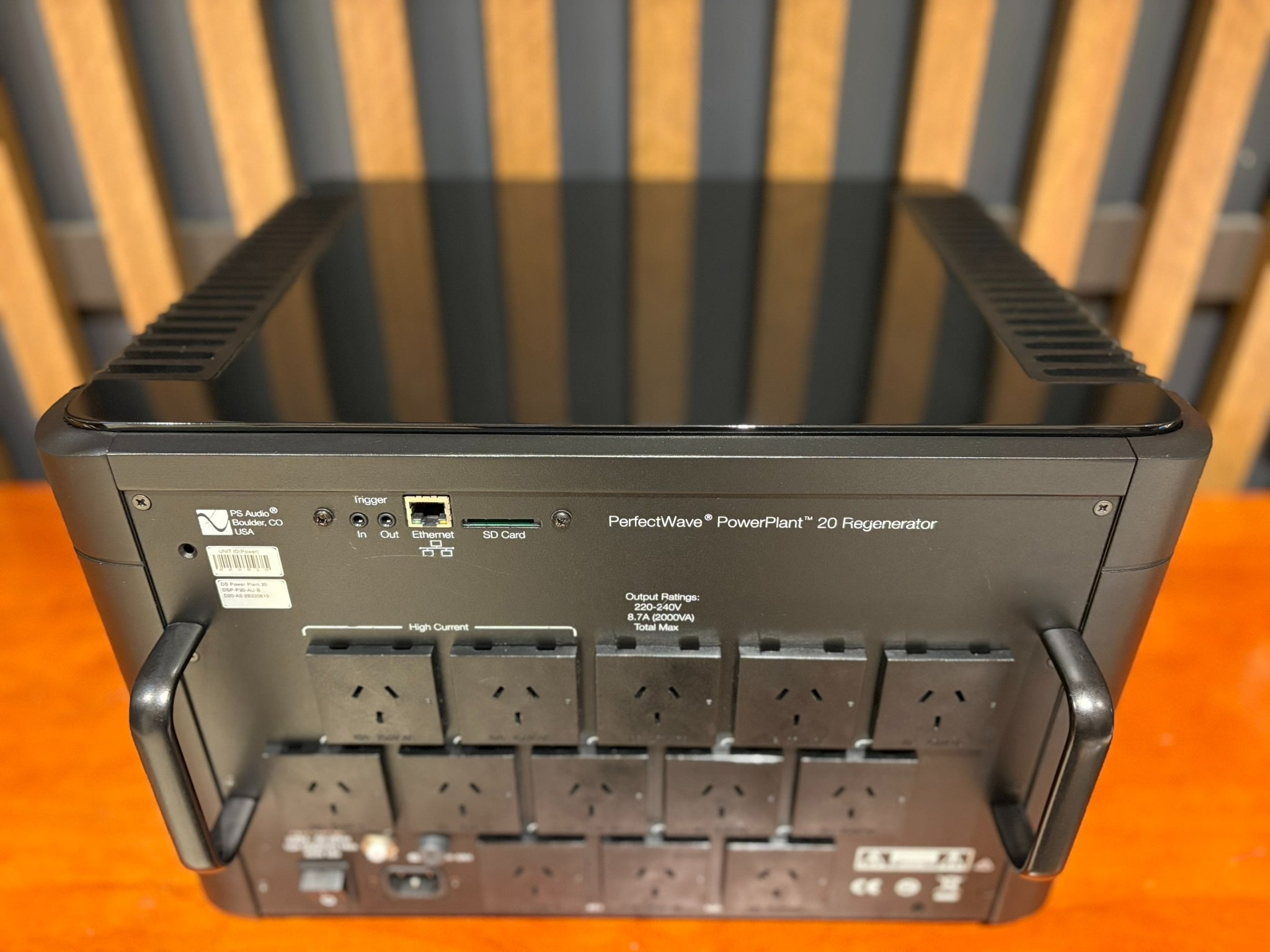

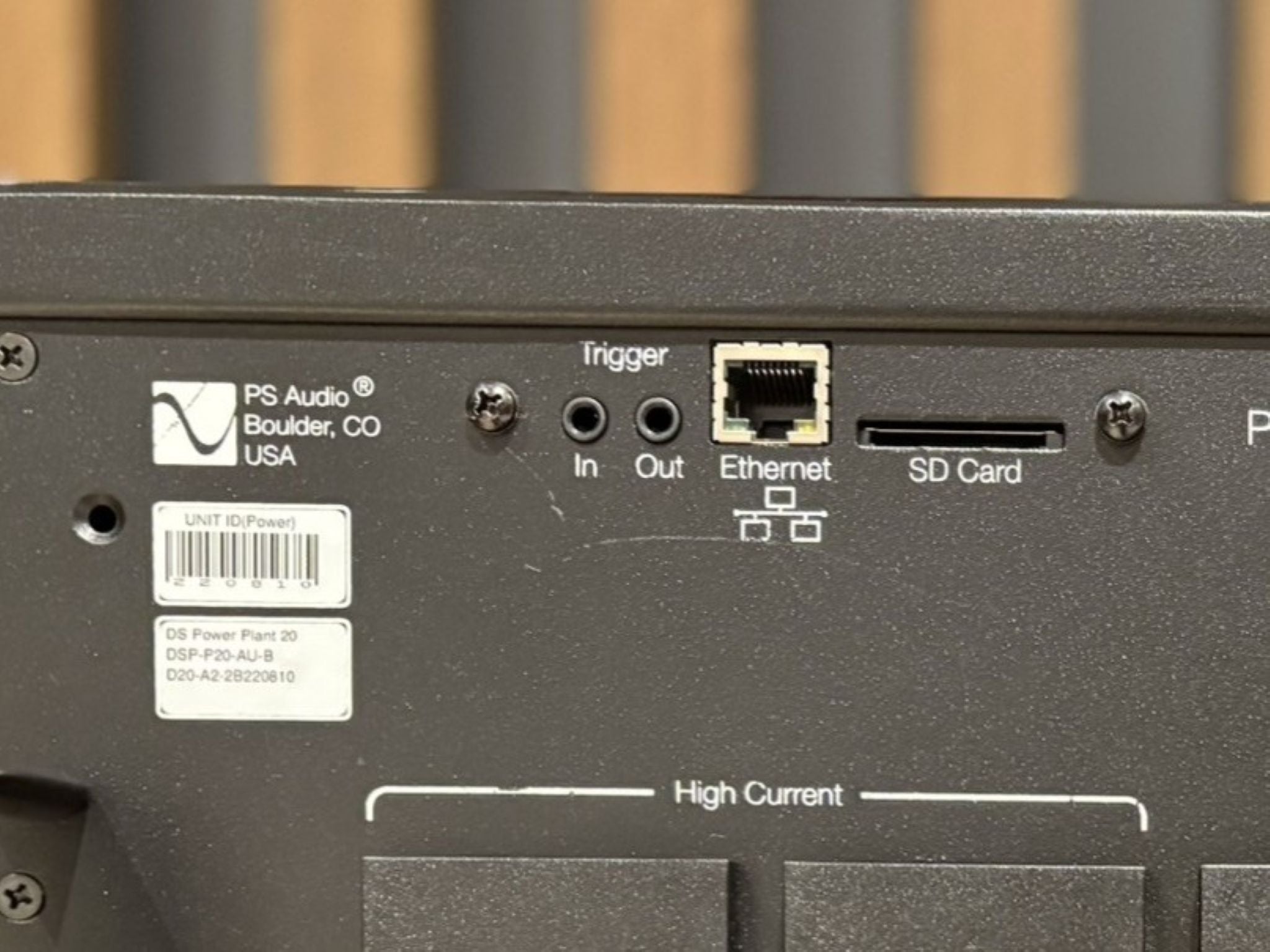

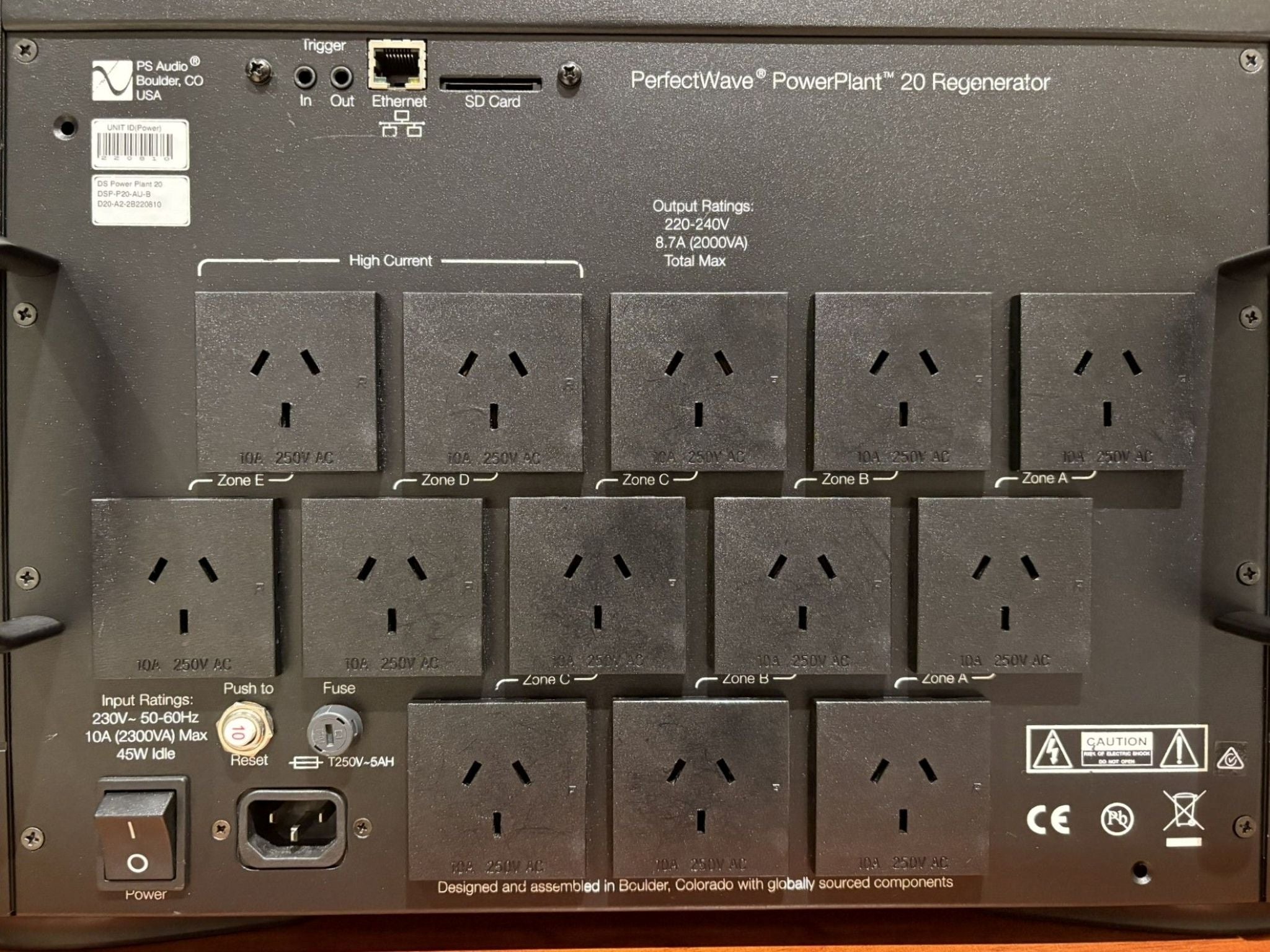

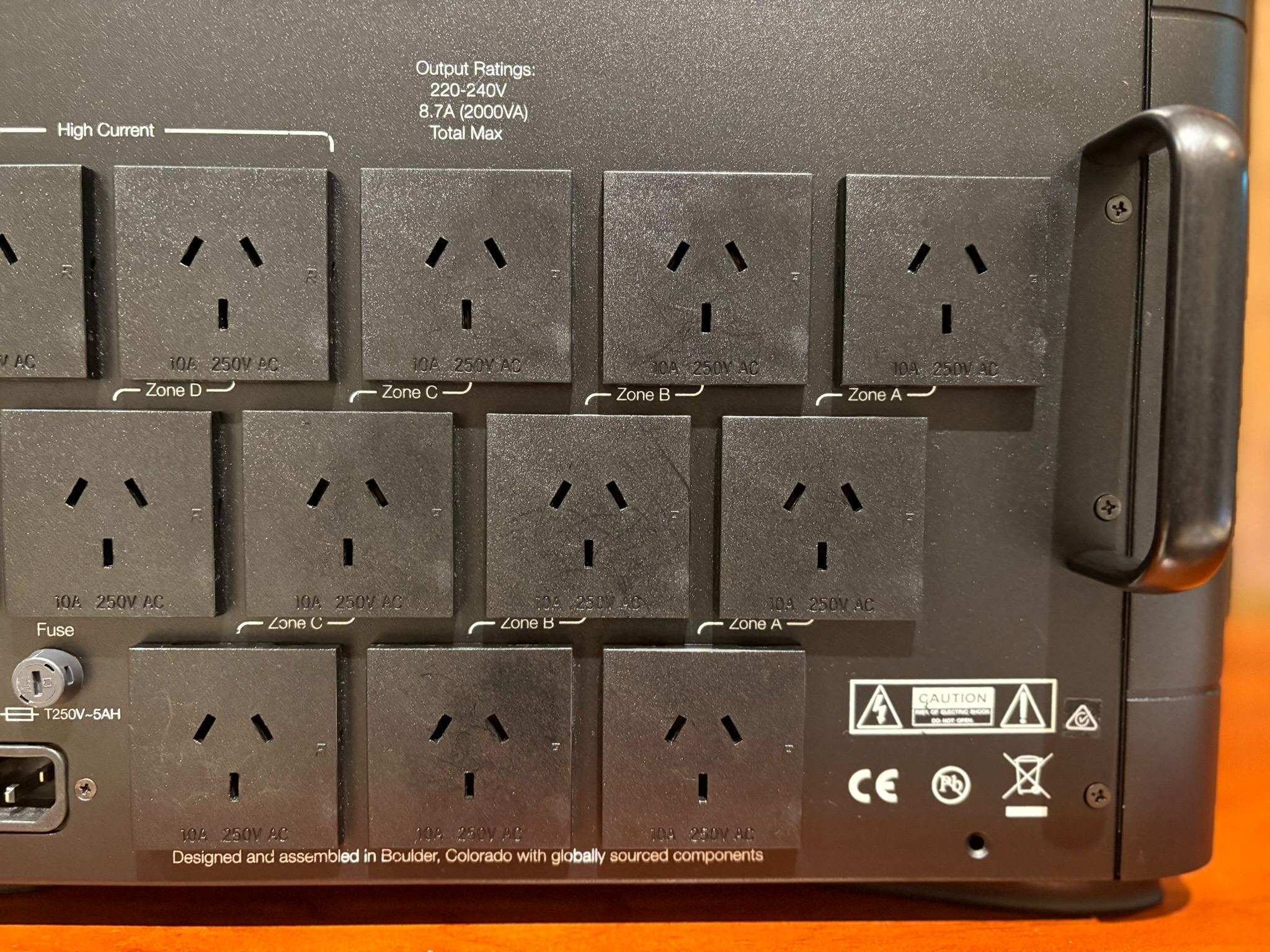

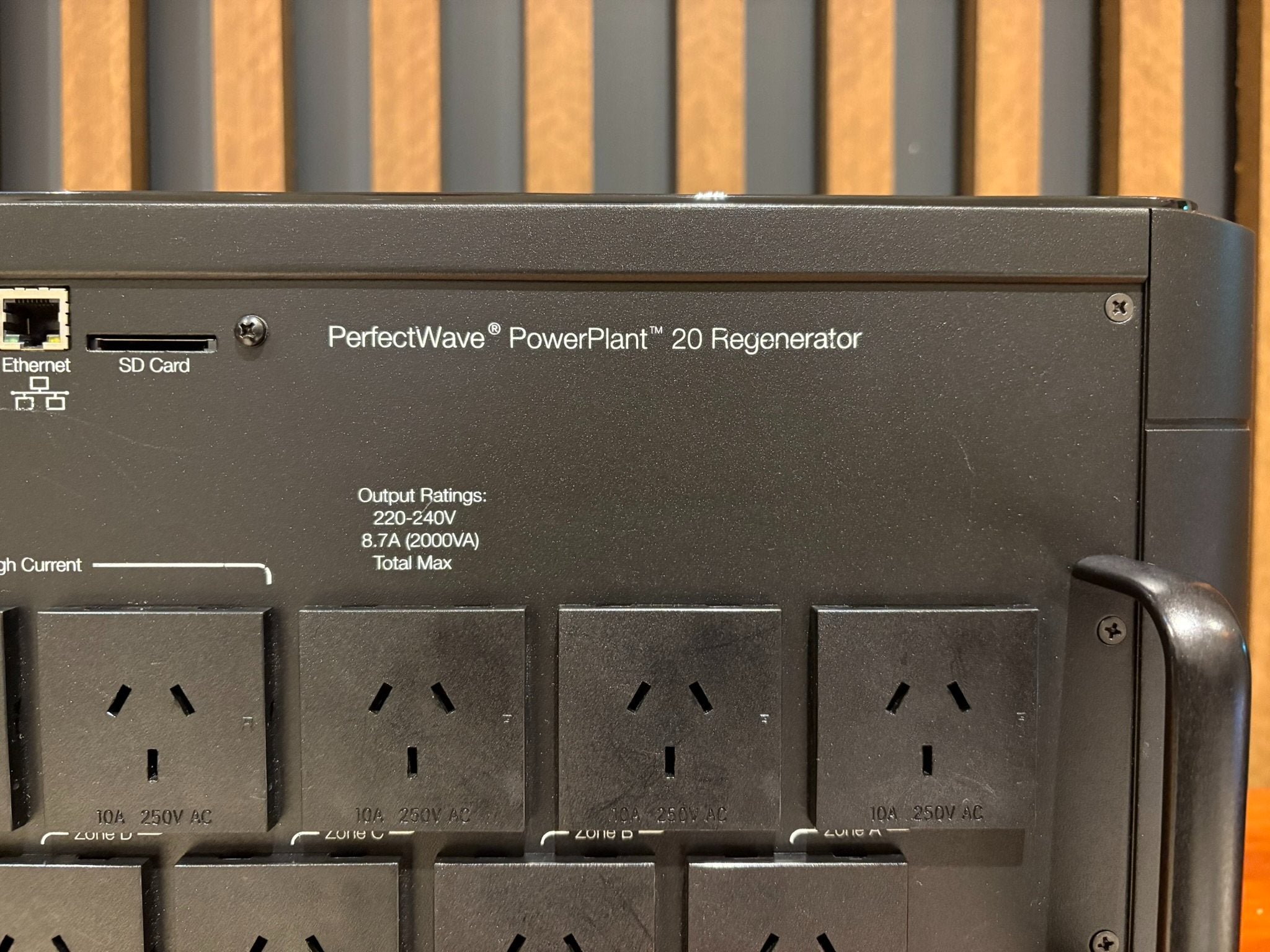

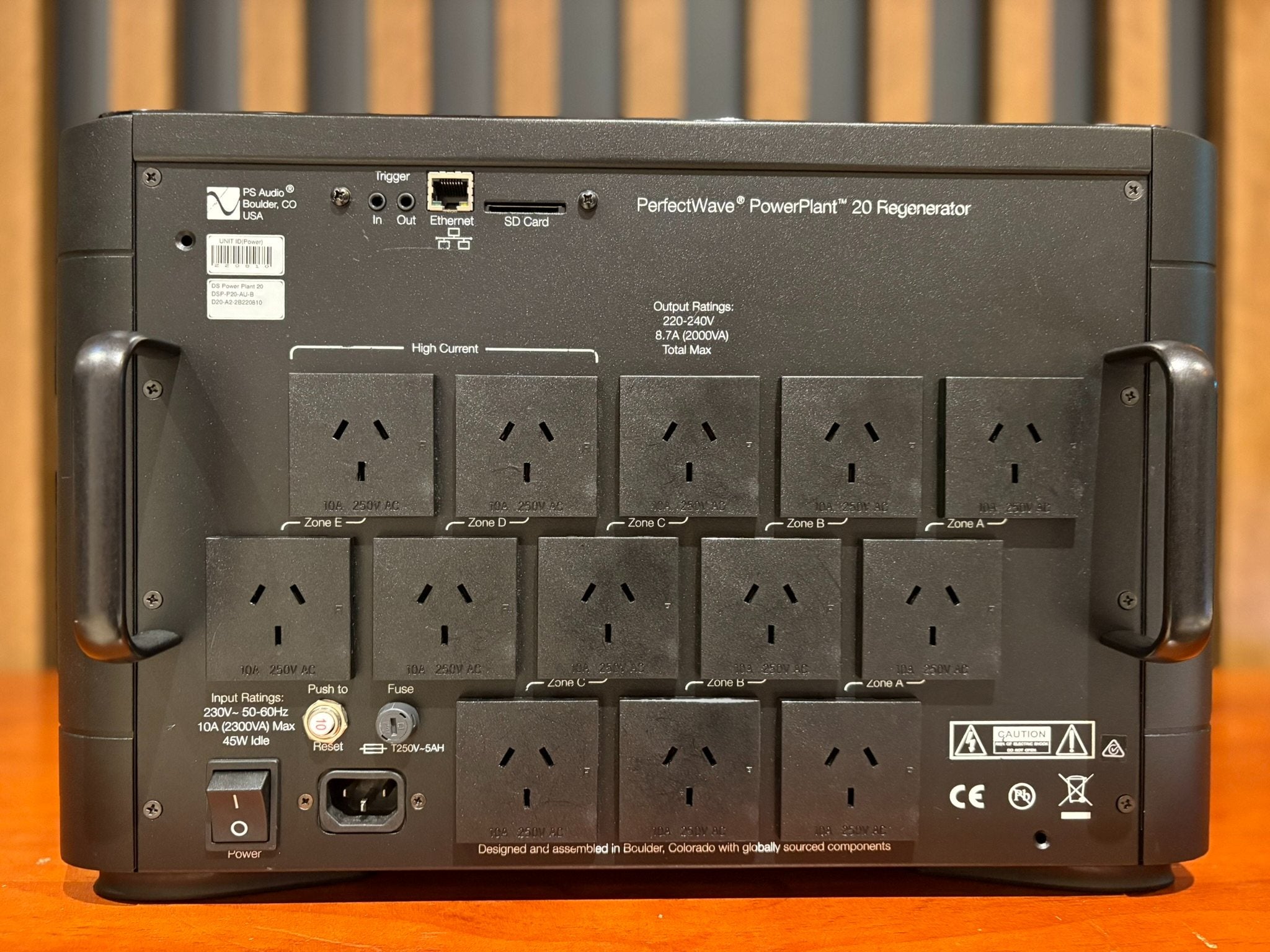

Condition: Very good, small scratch on chassis rear only (See photos)

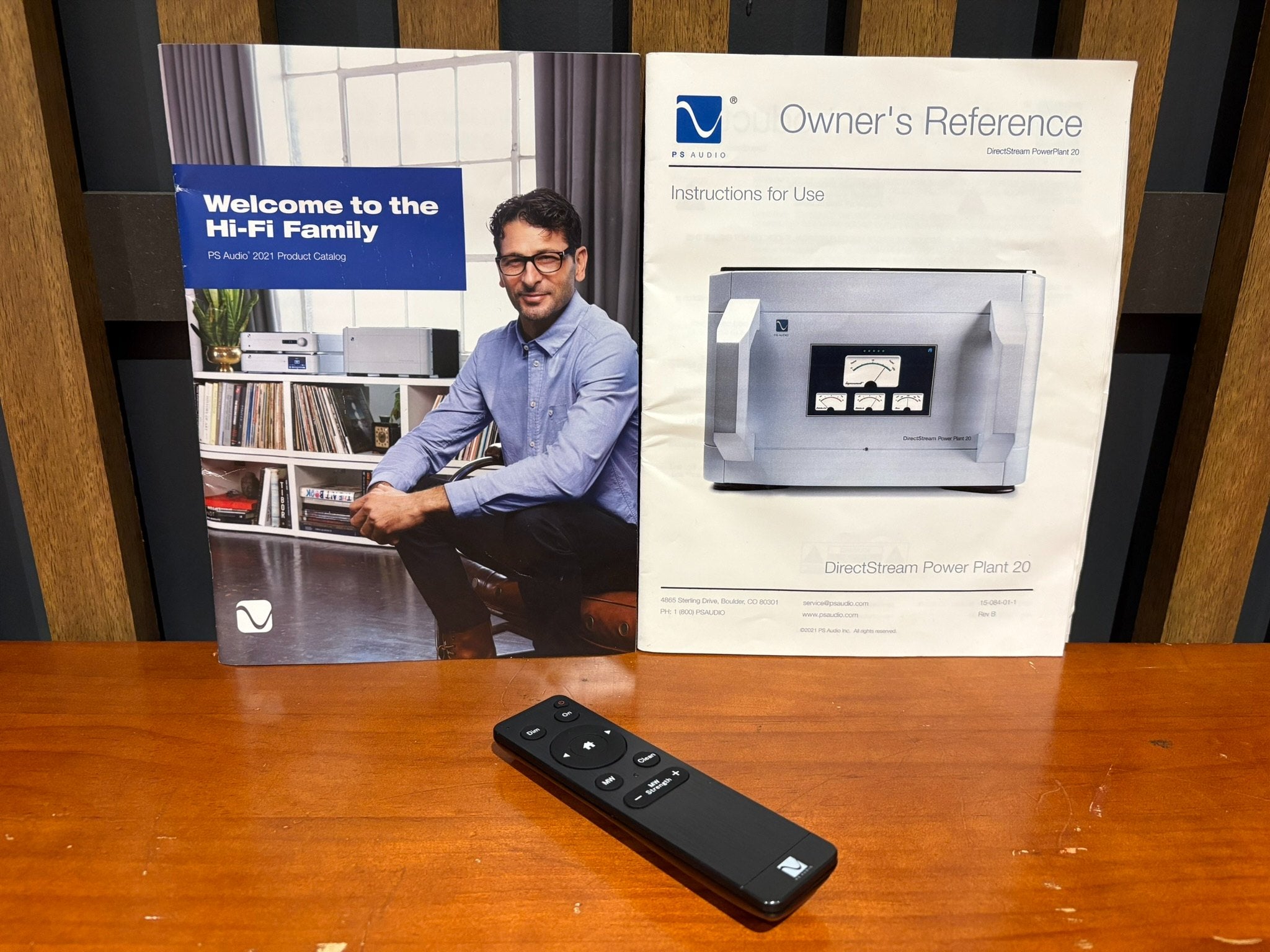

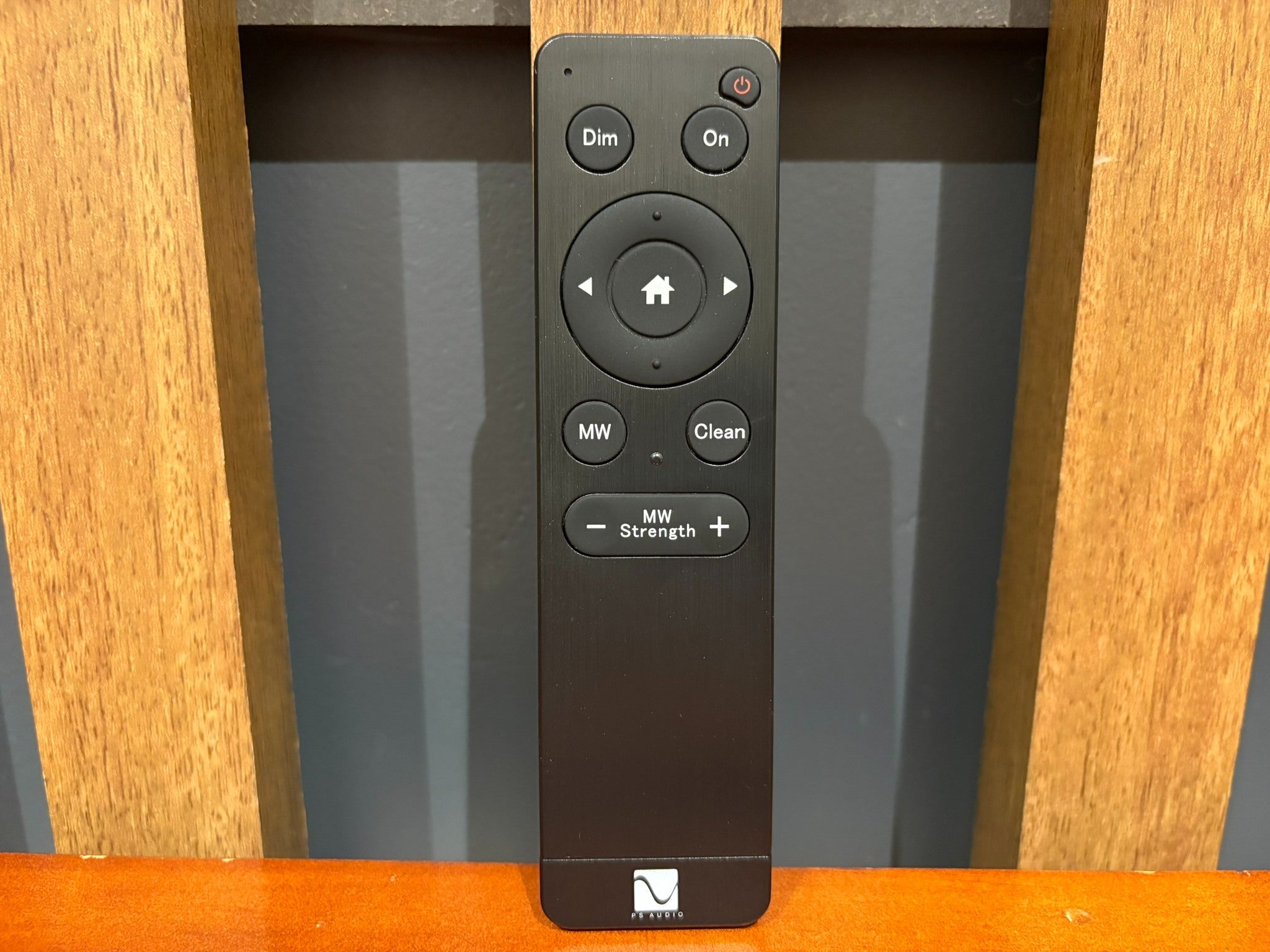

Includes: Remote, Manual and Power Cable (No Box)

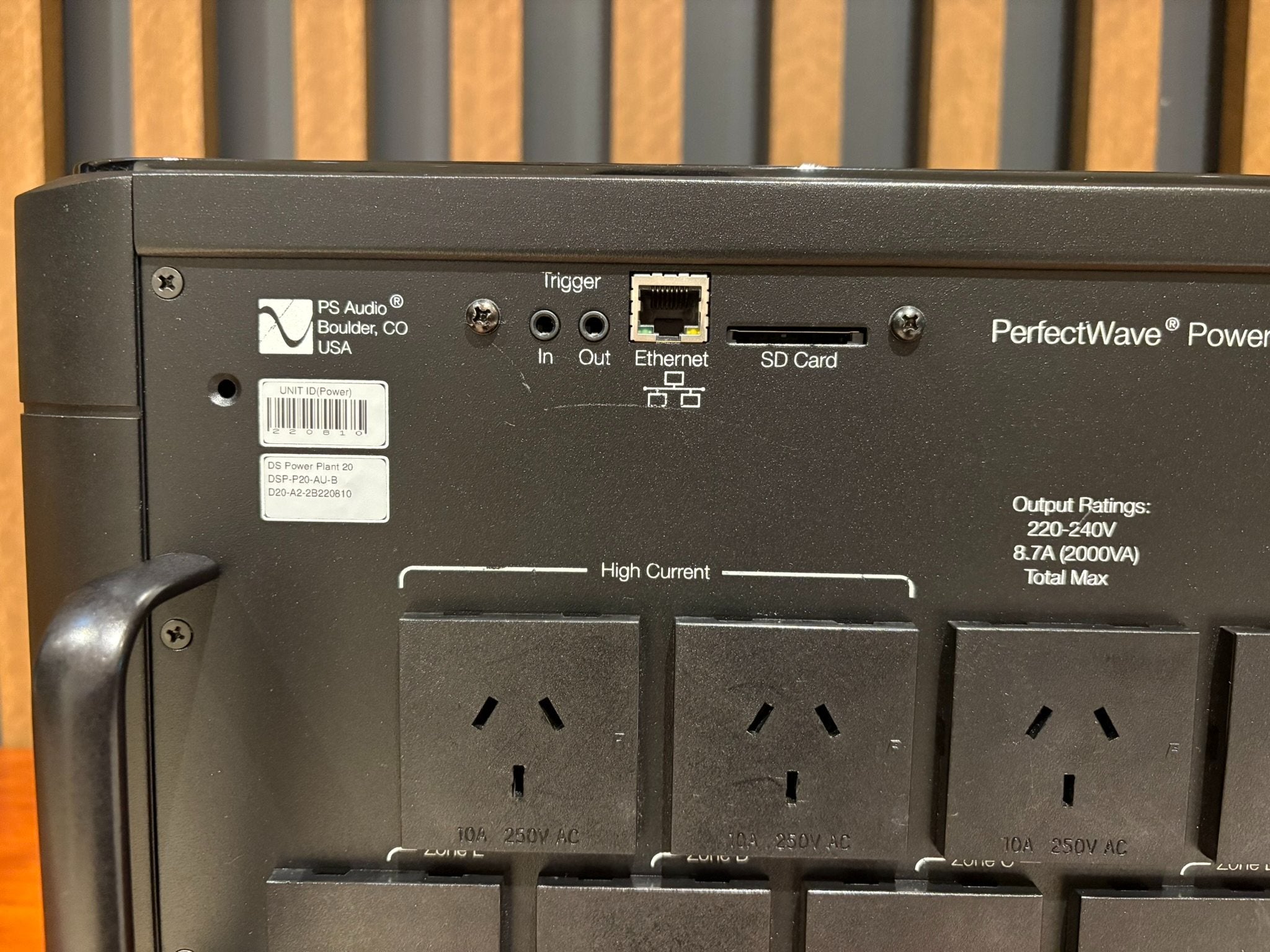

SN: D20-A2-2B220610

Made in USA

Overview

For those with fluctuating AC power, the PS Audio DirectStream PowerPlant P20 is a fantastic solution for reference level audio and home cinema systems, providing a steady AC supply to sensitive instruments.

Unlike passive conditioning, the P20 rebuilds the incoming mains by converting compromised AC into DC and then regenerating a perfectly regulated waveform with 2000 VA continuous output and peaks of 3600 VA, ensuring enough supply for high-powered amplifiers.

A low-impedance analog power amplifier is driven by a sophisticated FPGA-based DSD sine wave generator, with the output impedance measuring less than 0.005 ohms.

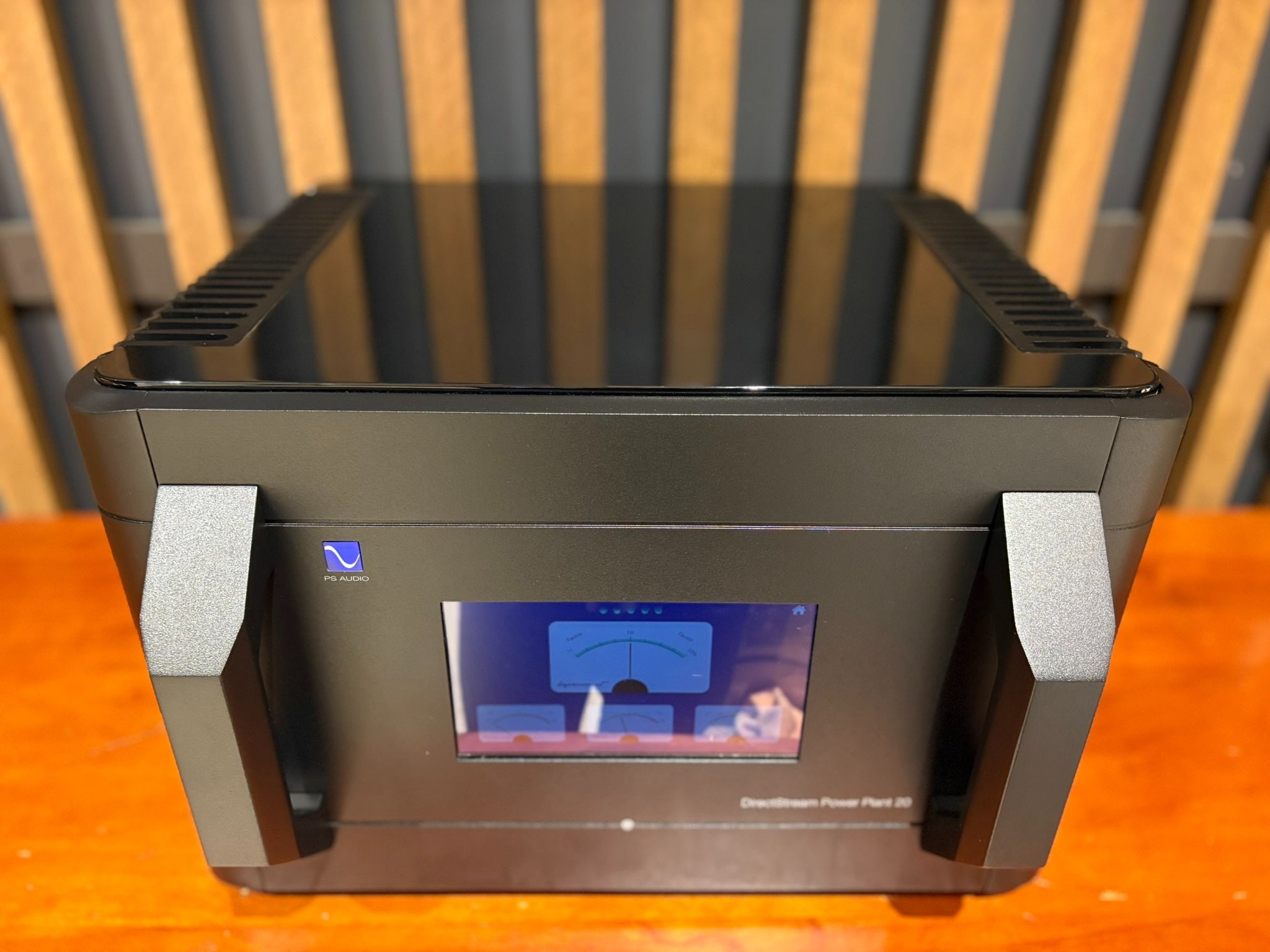

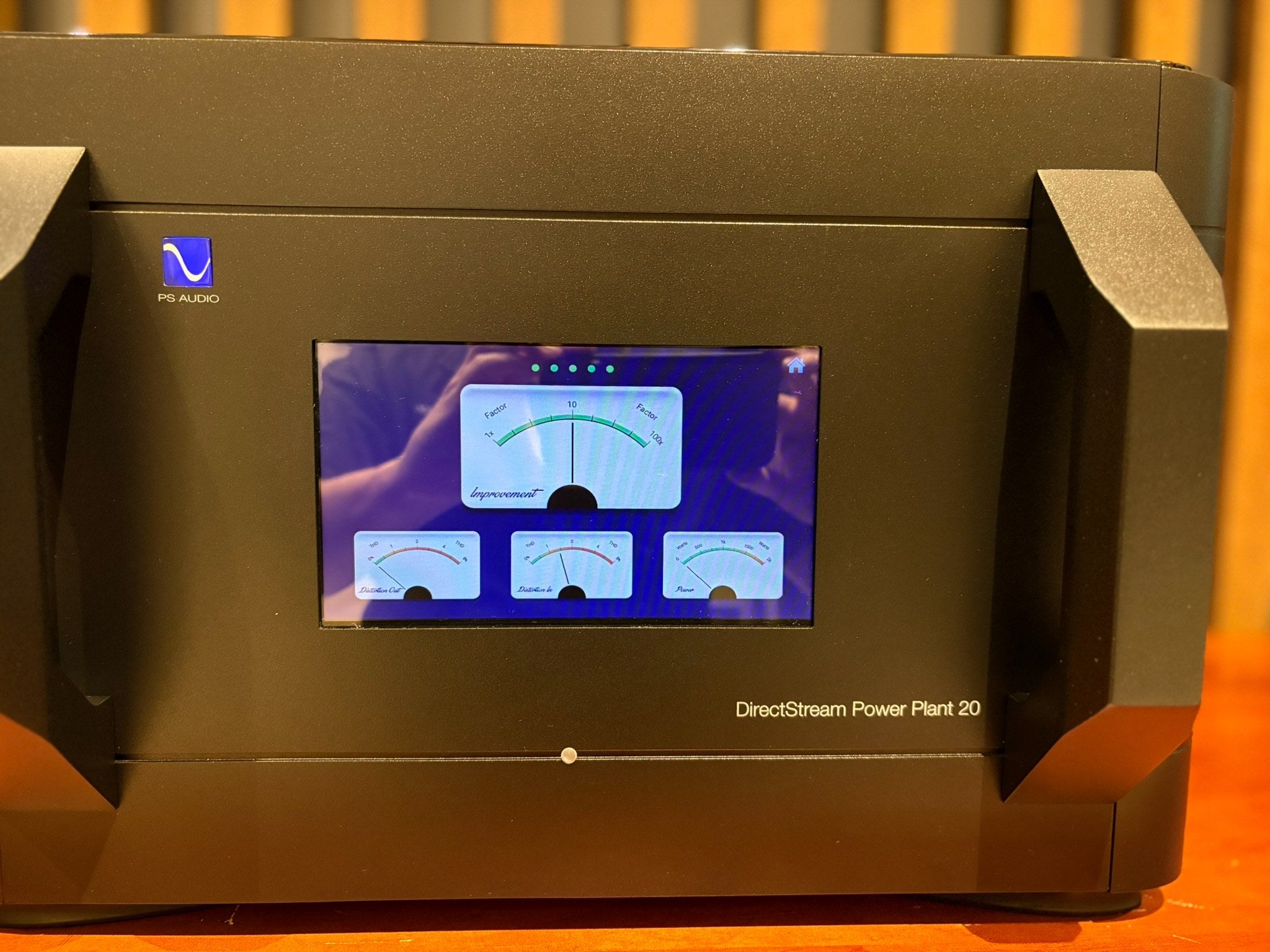

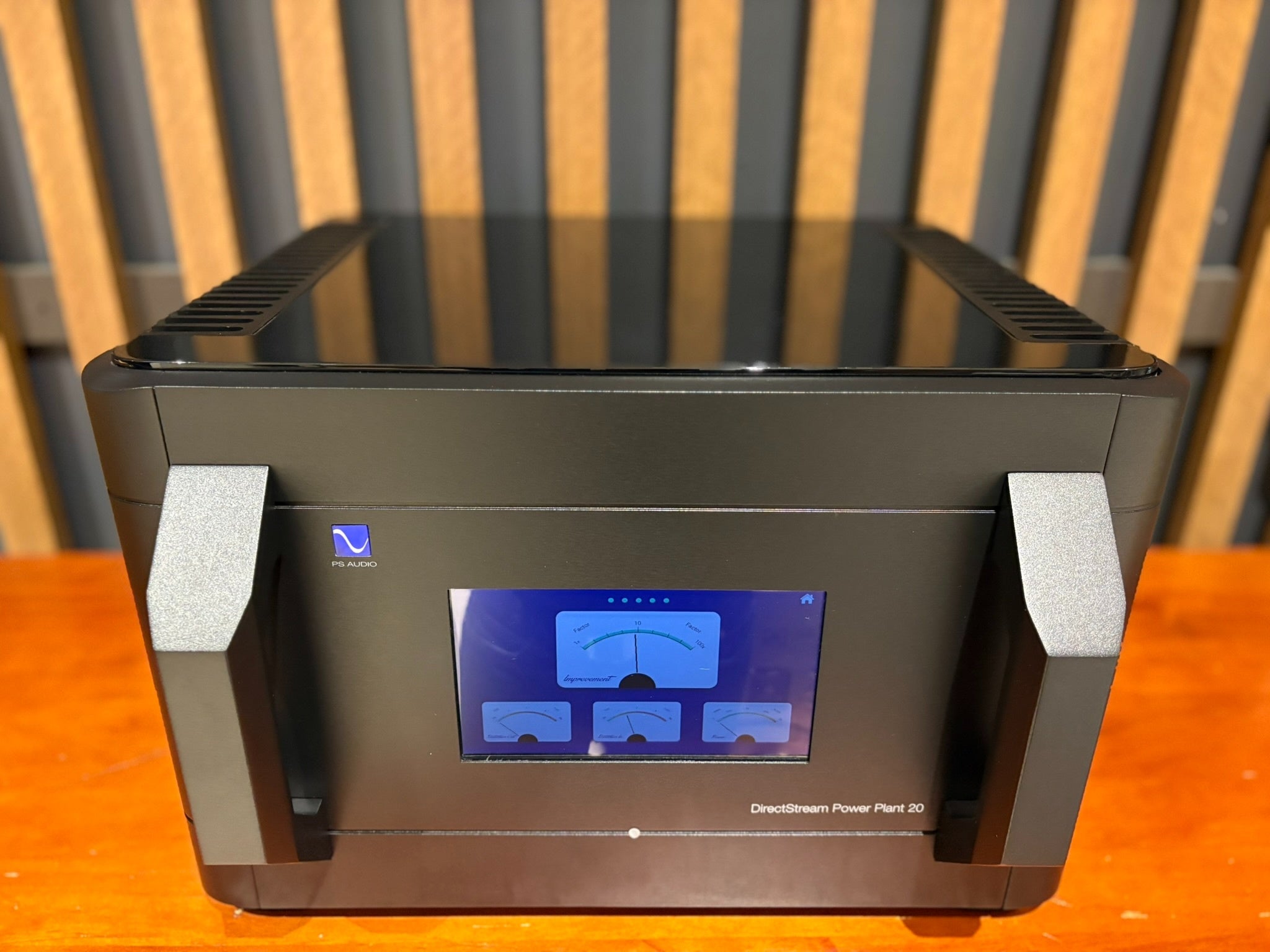

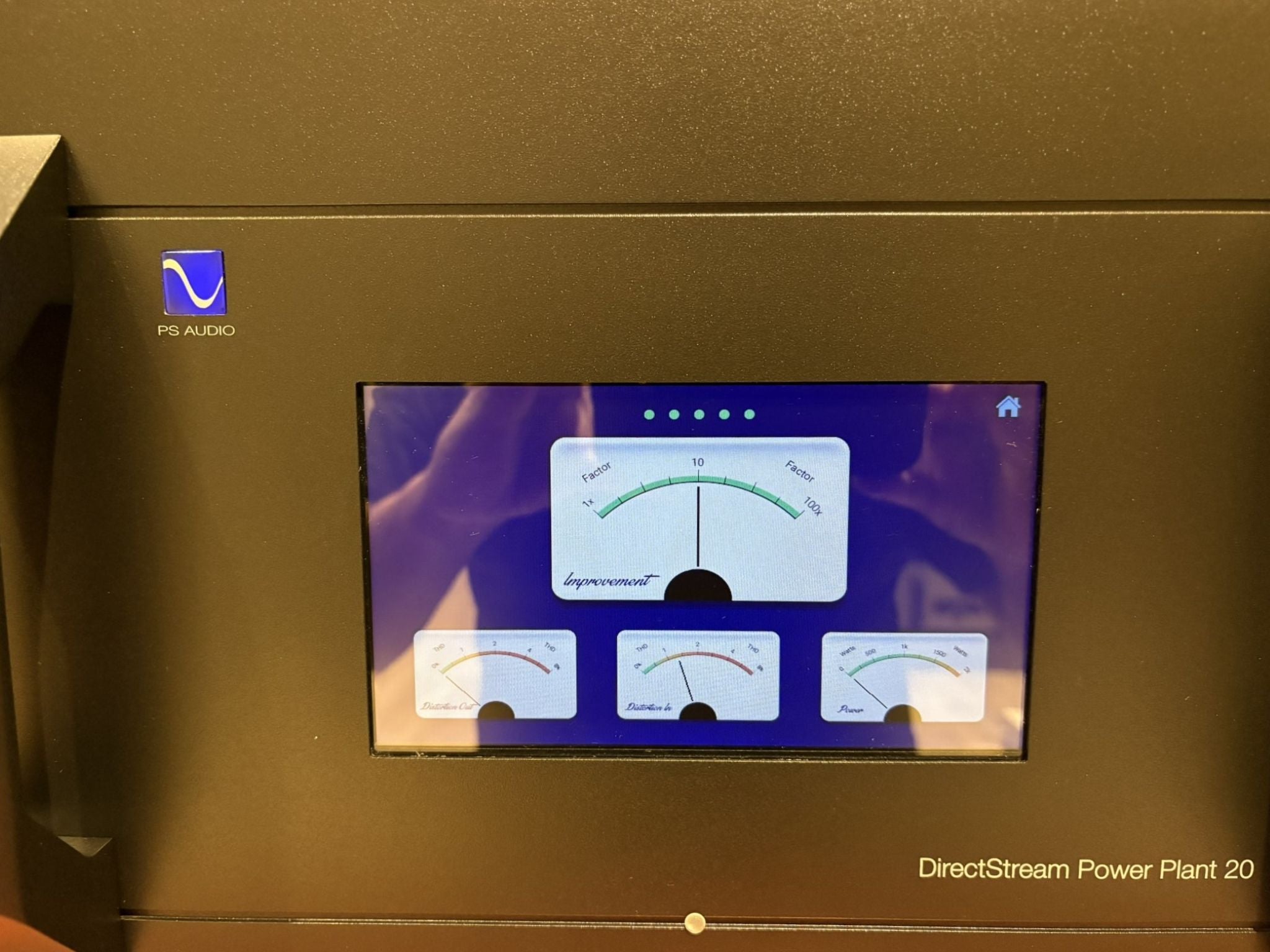

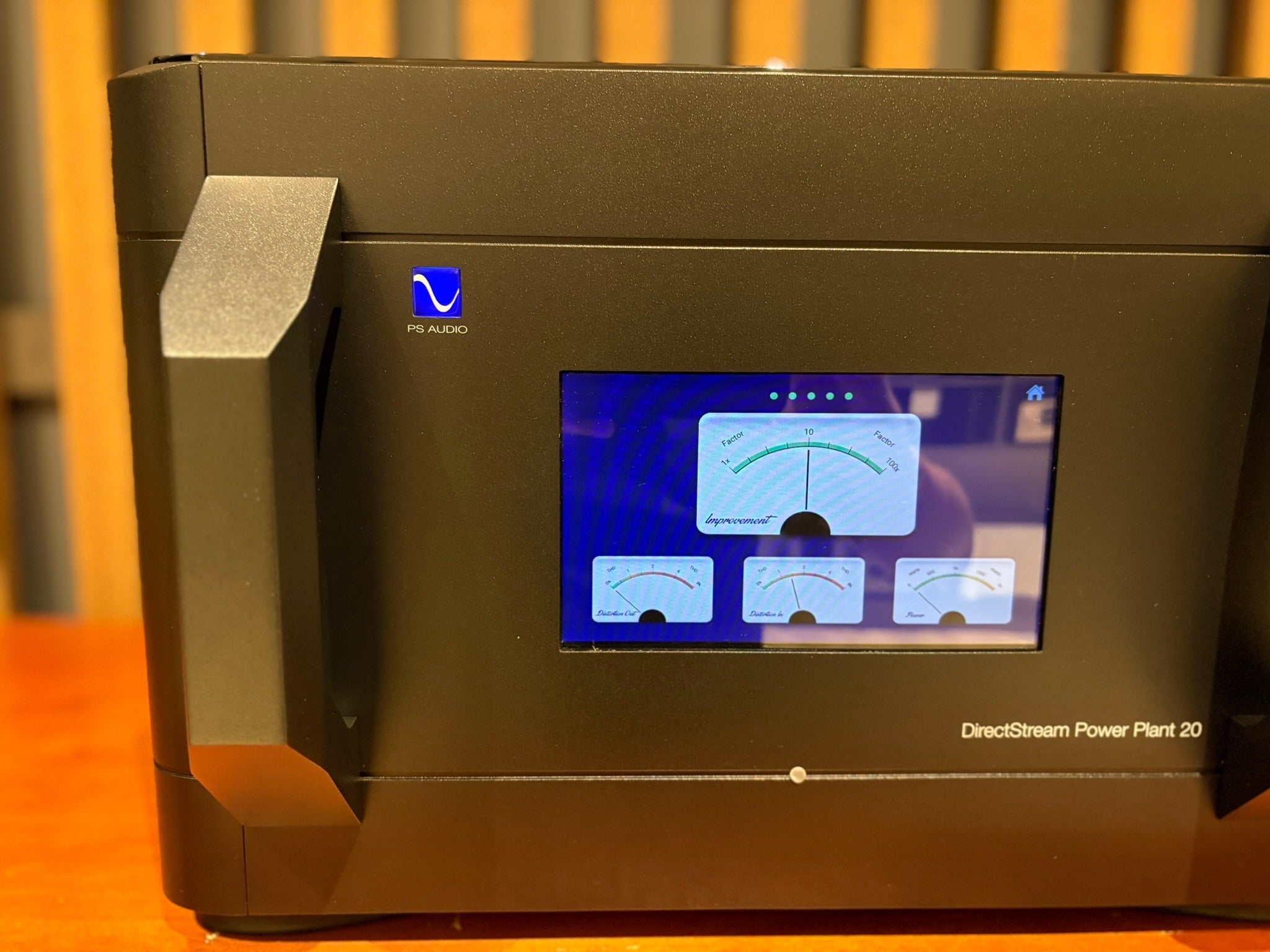

The P20 includes a full-colour 7-inch touchscreen with integrated oscilloscope, THD analyser, and power meters, offering real-time insight into both incoming and regenerated power quality. Five programmable independently controlled regenerated zones allow sensitive components to be isolated.

The PowerPlant P20 also provides protection for connected equipment. Its clamping and regulation circuitry safeguards against over- and under-voltage events, spikes and transients that can damage sensitive electronics.

The P20 is hand-crafted in Boulder, USA.

Specification

Duty Cycle  Suitable for continuous operation
Moisture Sensitivity    Not sealed against moisture
Operating Humidity <80%rh
Storage Temperature  -40C to +40C
Operating Temperature 0C to 40C
Max Operating Altitude 12,000’ (3500m)
Electrical Supply Nominal Rating 230V 10A 50/60Hz  
     
Unit Dimensions 43cm W x 36cm D x 27.9 cm H
Unit Weight 43.5kg
Shipping Dimensions 58cm x 55.8cm x 43cm
Shipping Weight 47kg
Nominal Input Voltage 200 –285VAC
Maximum Continuous Load 2000VA
Maximum Peak Load 3600VA
Voltage Regulation >1V
Output Distortion (Resistive Load)  <0.5%
Output Distortion (Reactive Load)  <0.5%, 0.1% typical
Output Impedance <0.005 ohm
Noise Reduction 100kHz – 2MHz >80dB
Efficiency @1500 VA  >85%
Standby Power Consumption     
Input Frequency 45 – 65 Hz
Under Voltage Limit Continuous -10% of setting 15 sec duration -15% of setting
Over Voltage Limit Continuous 5% of setting 15 sec duration 10% of setting
Energy Dissipation 5040J
Peak Current Surge 180,000A
Clamp Level 775V
DC Trigger Configuration Tip Positive
DC Trigger Voltage 5 – 15Vdc
