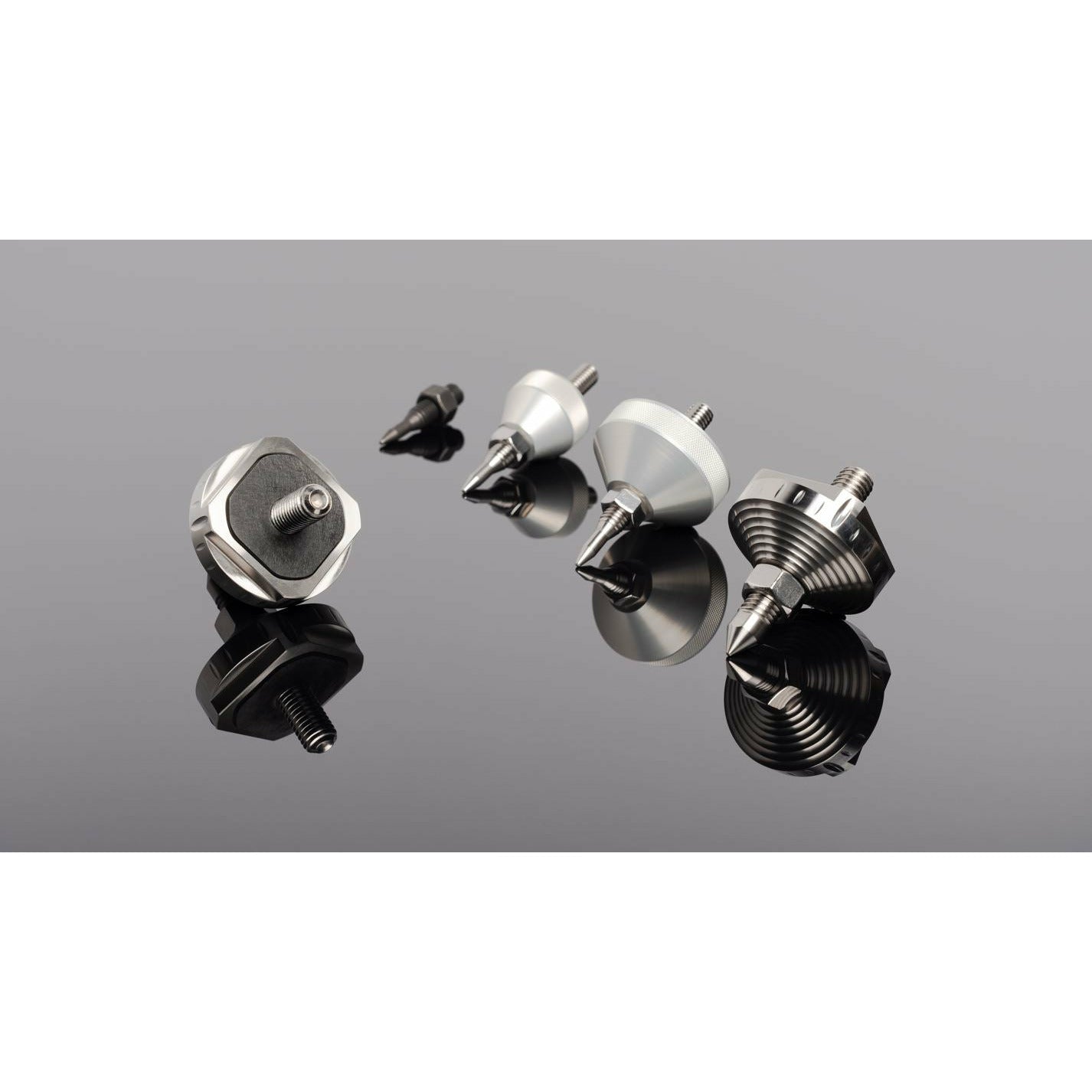

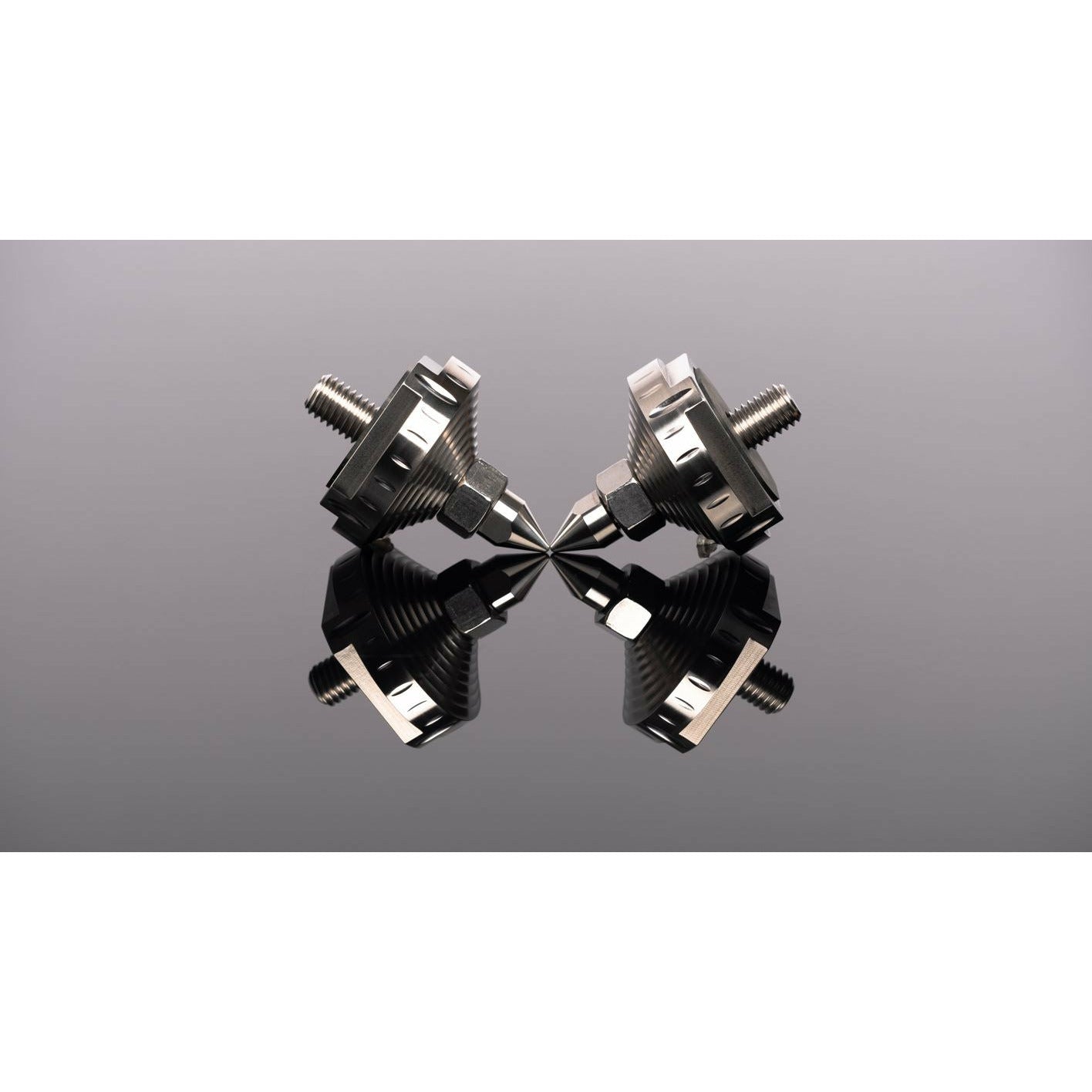

Building upon the research and development of Pedestal, the Special Applications Engineering Team is excited to announce the Wilson Audio Acoustic Diode™ (AD Spike for short). At the heart of the Acoustic Diode is our proprietary “V-Material.” This superior constrained layer damping composite is unsurpassed in vibration absorption and resonance control.
Energy from the enclosure migrates into the V-Material where it is faced with the effective damping properties of this efficient material. The mass of the loudspeaker concentrated onto the very small ends of the spike tips results in significant levels of PSI that prevent detrimental vibrations from traveling upward into the footer. Those vibrations that do travel up the spike are absorbed by the mass of the Acoustic Diode and have to travel through the V-Material to have a chance to influence the enclosure.
Keeping the spike and threaded post separate prevent a direct path for vibrations to travel, or interplay, and are therefore dissipated and absorbed in either the V-Material or the footer housing. This distinctive design, combined with advanced vibration-mitigating materials, provides the best of both worlds; a solid base from which the drivers can launch as well as preventing the transmission of energy from the floor to the loudspeakers.
Specifications
Materials
Proprietary "V-Material” & Austenitic Stainless Steel
Dimensions
Height = 2 1/32" – 2 17/32” (5.16 cm - 6.43 cm)
Diameter = 2 5/16" (5.87 cm)
Weight Per Unit
12 oz (0.34 kg)
8 Units / Box
Available Thread Sizes
Standard
1/2"-13
Additional Sizes Available Upon Request:
3/8"-16
5/16"-18
1/4"-20
M6
M8
M10
M12
M14
Available Color Options
Natural Stainless Steel
Carbon Black
