Vitus Audio RI-101 Mk2 Integrated Streaming Amplifier - Consignment

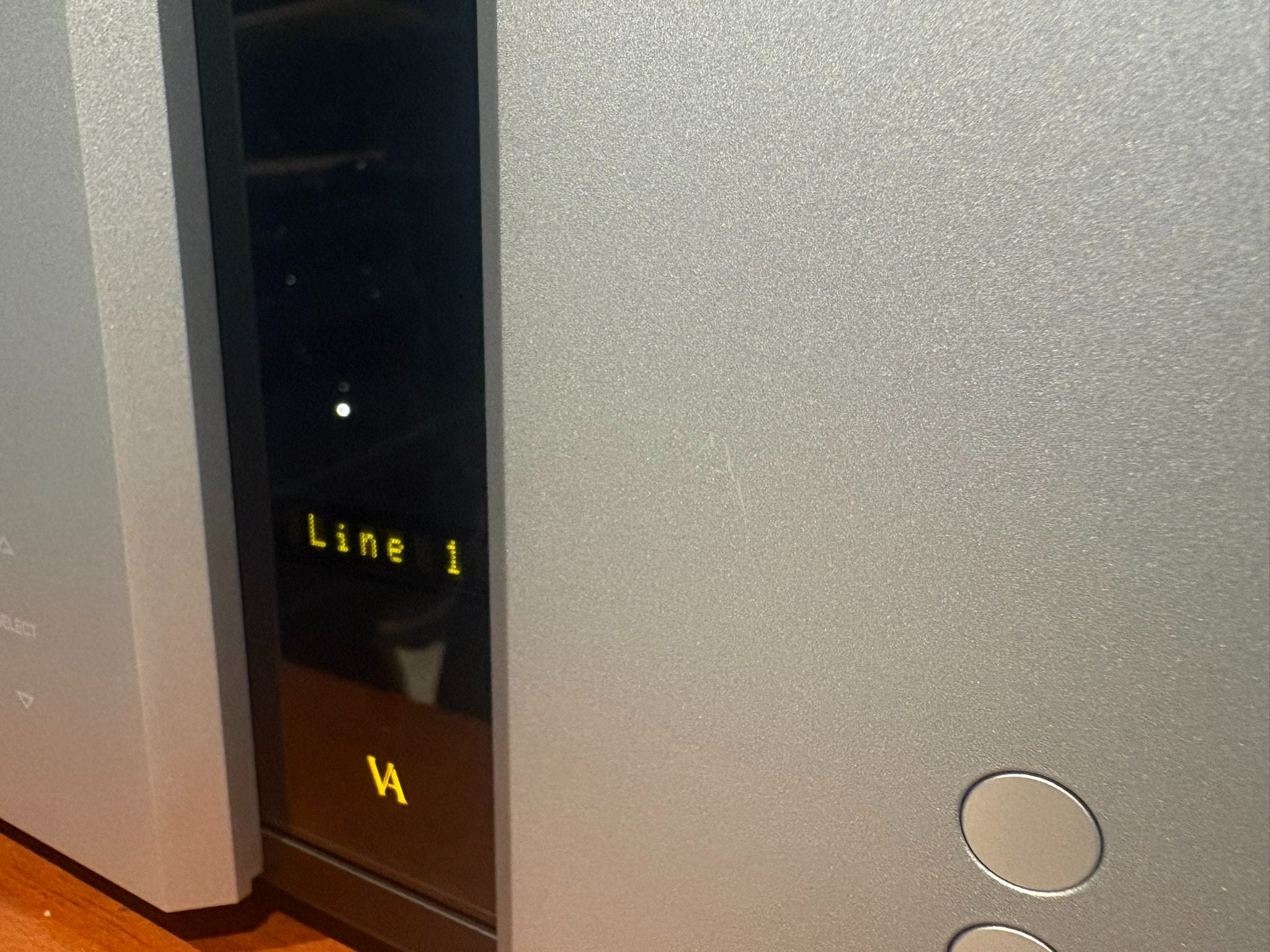

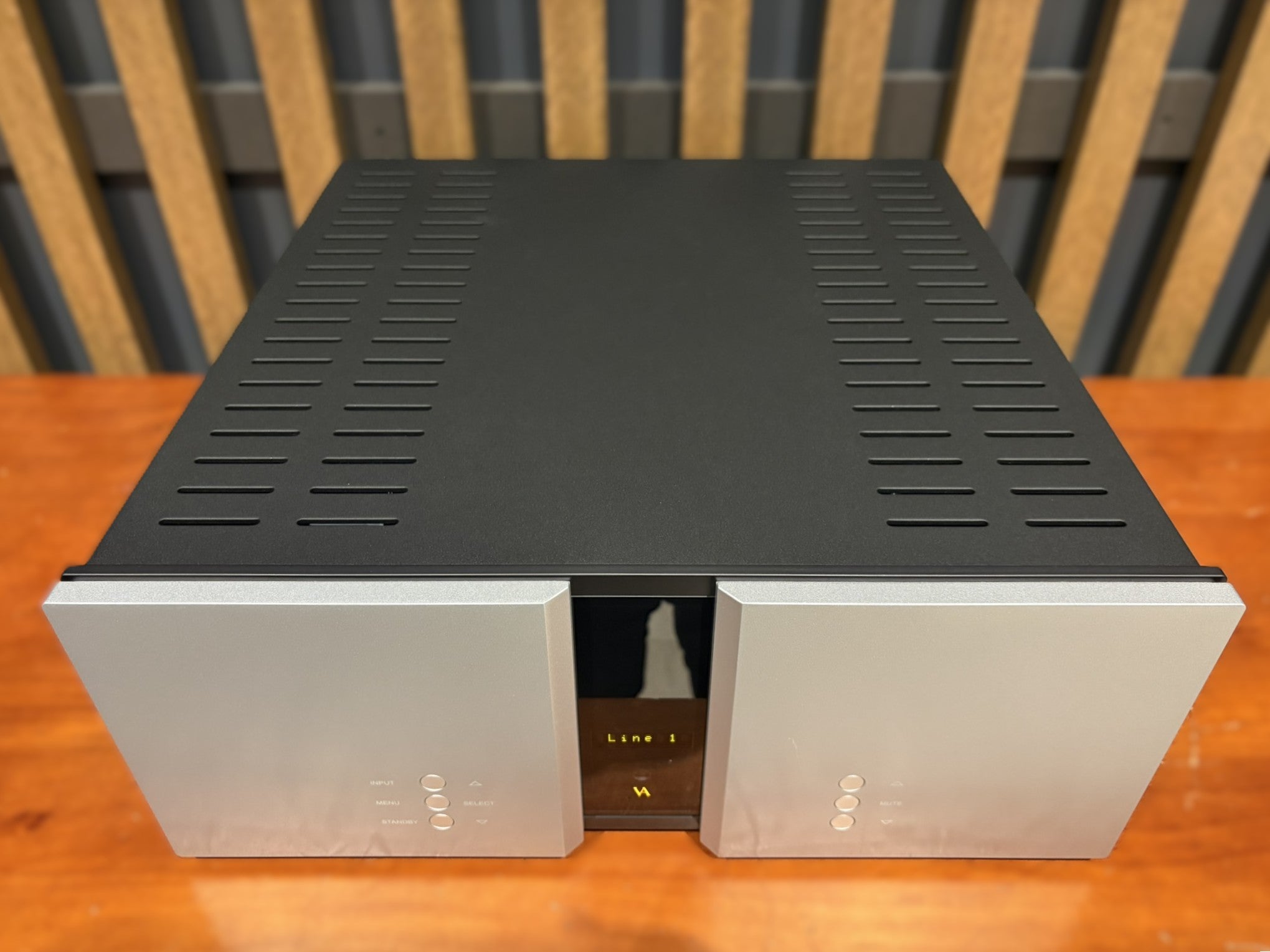

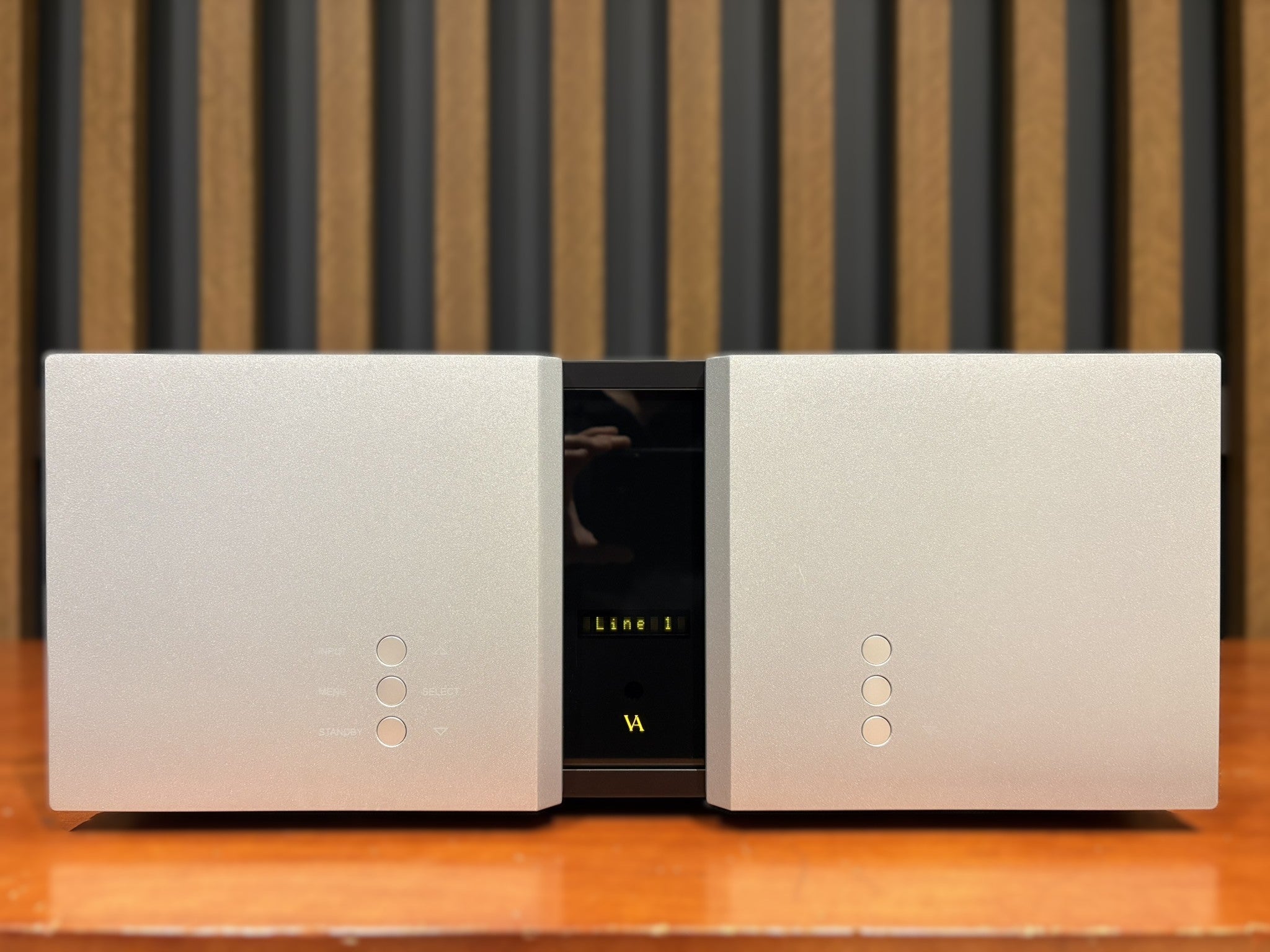

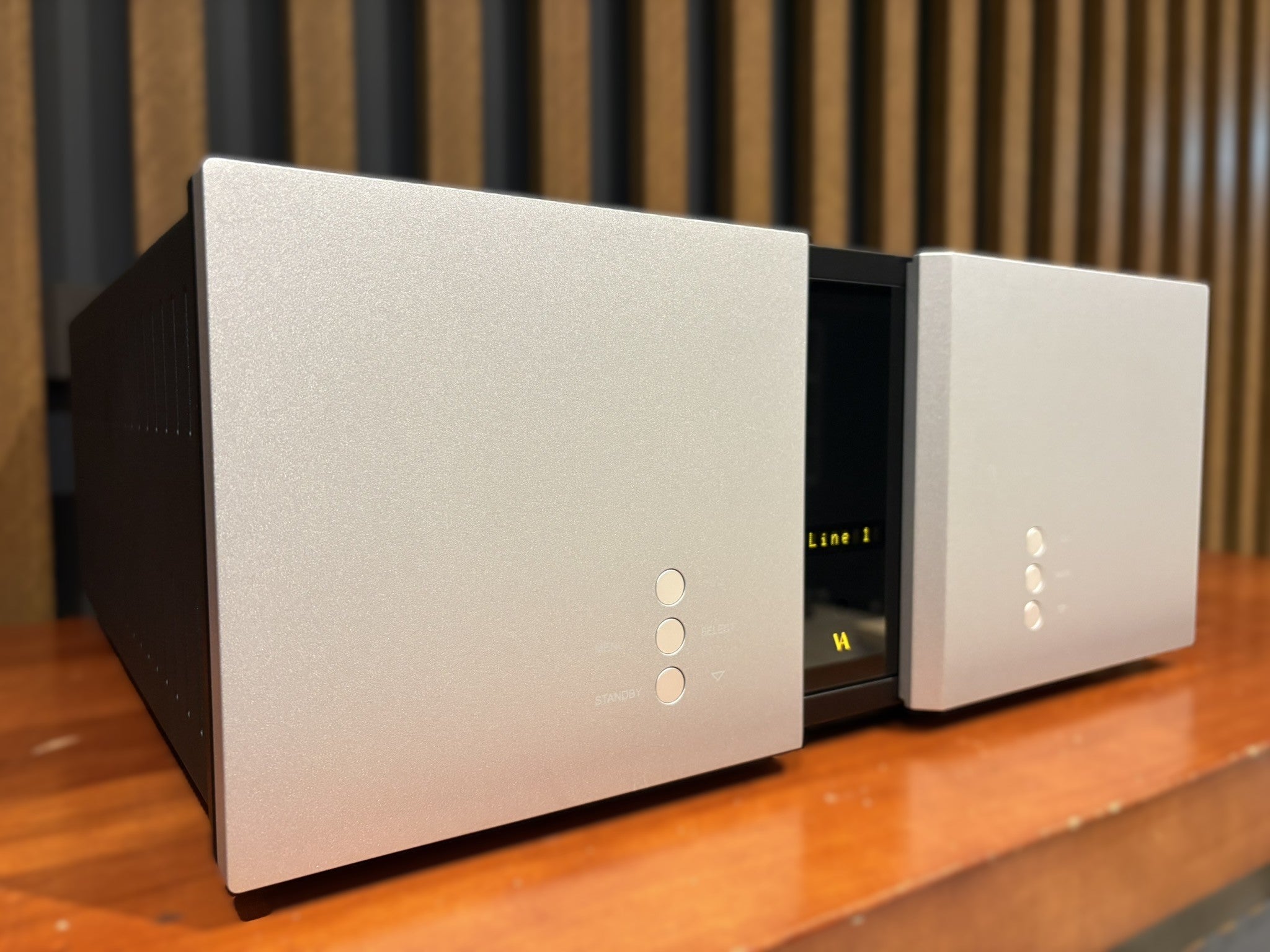

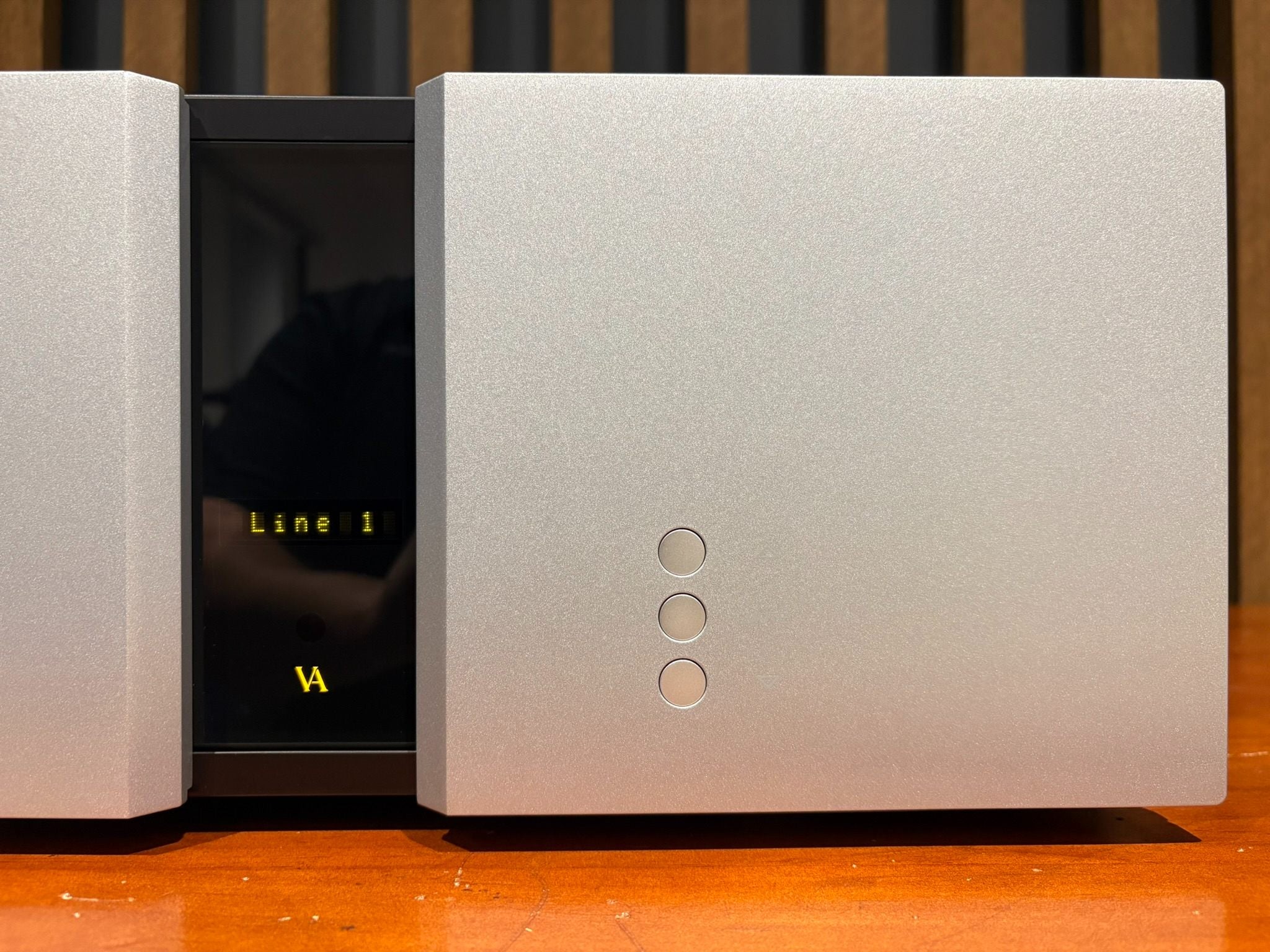

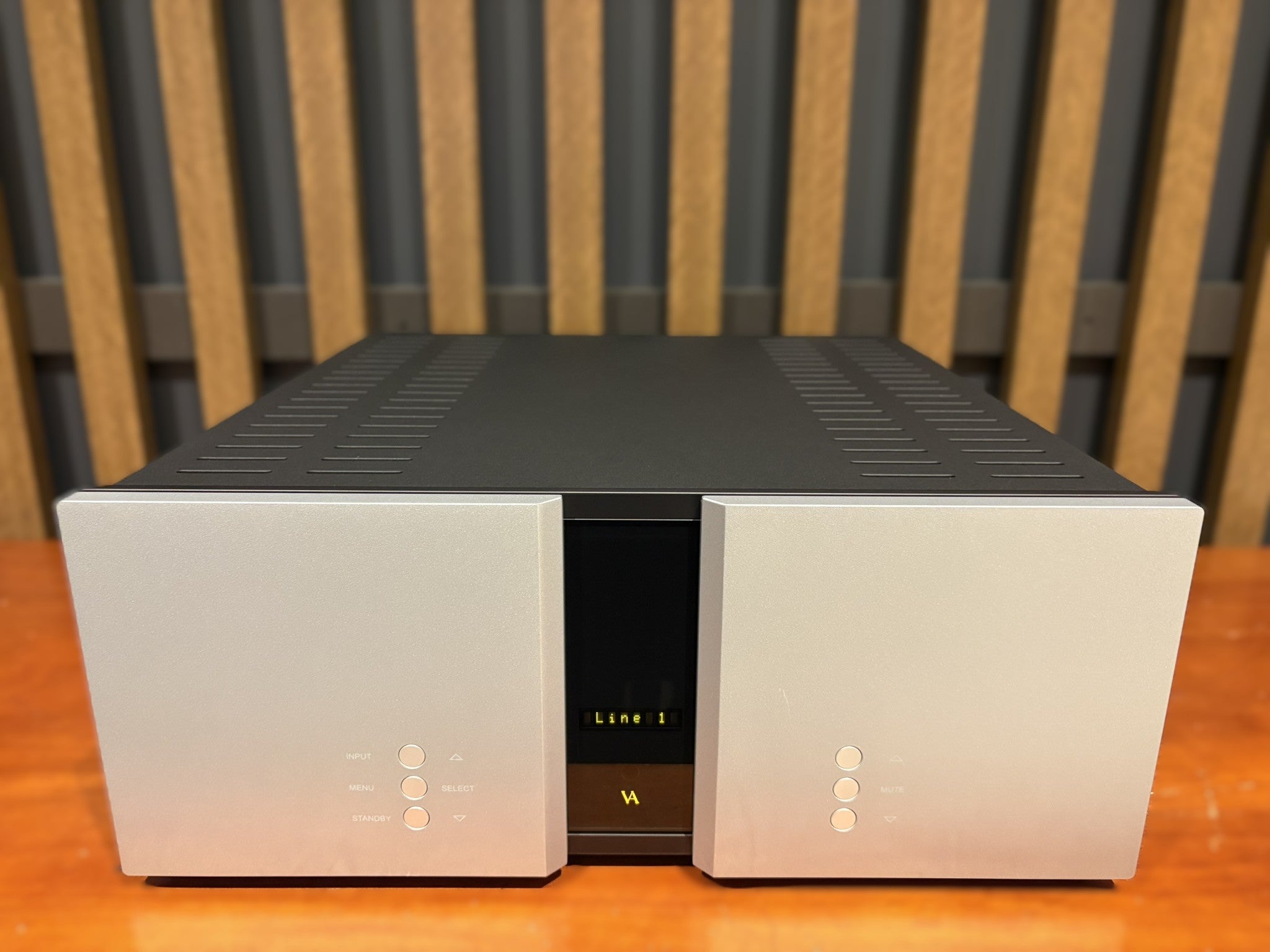

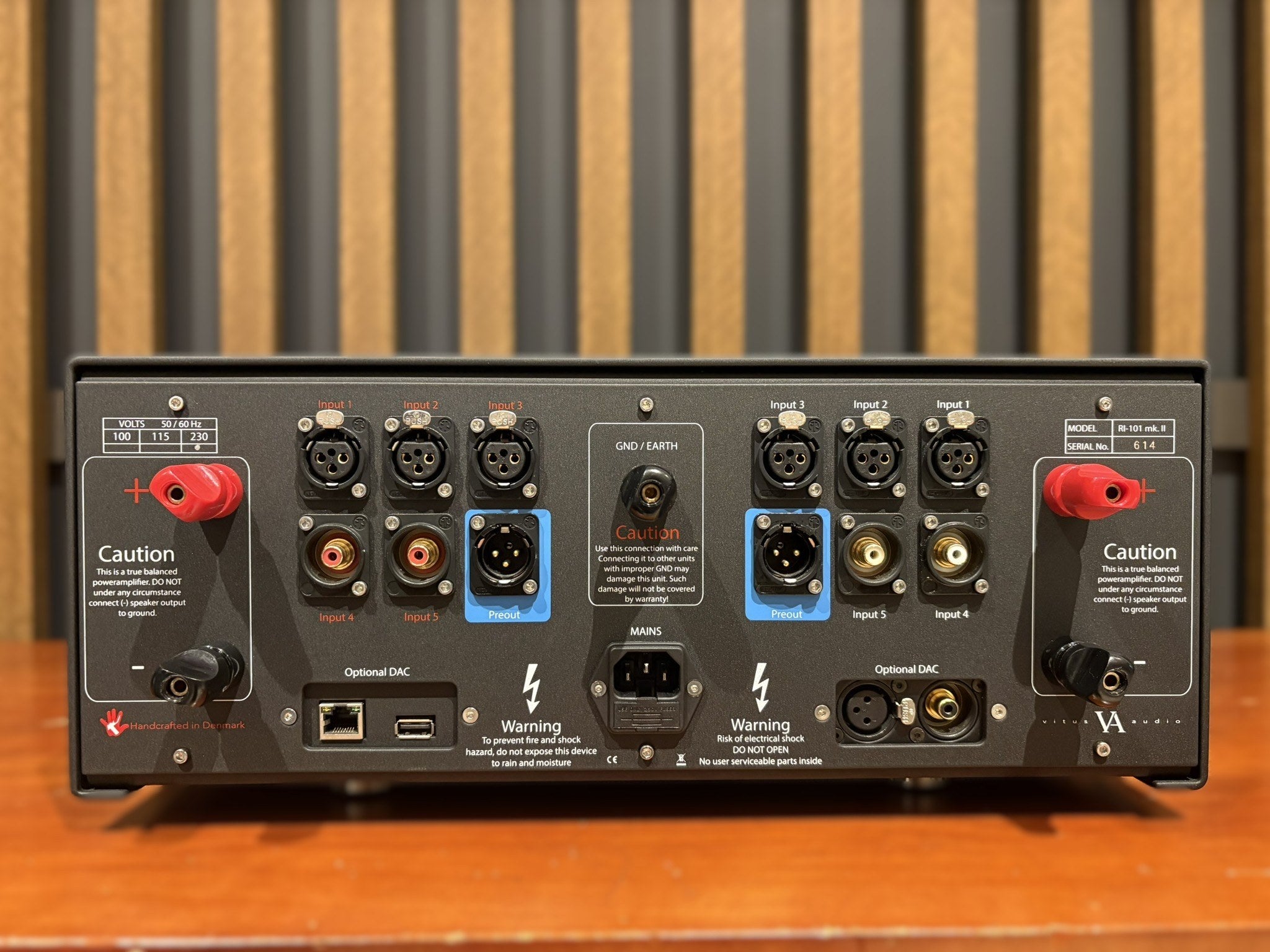

Condition: Used. Very good, small scratch on chassis front only (See photos)

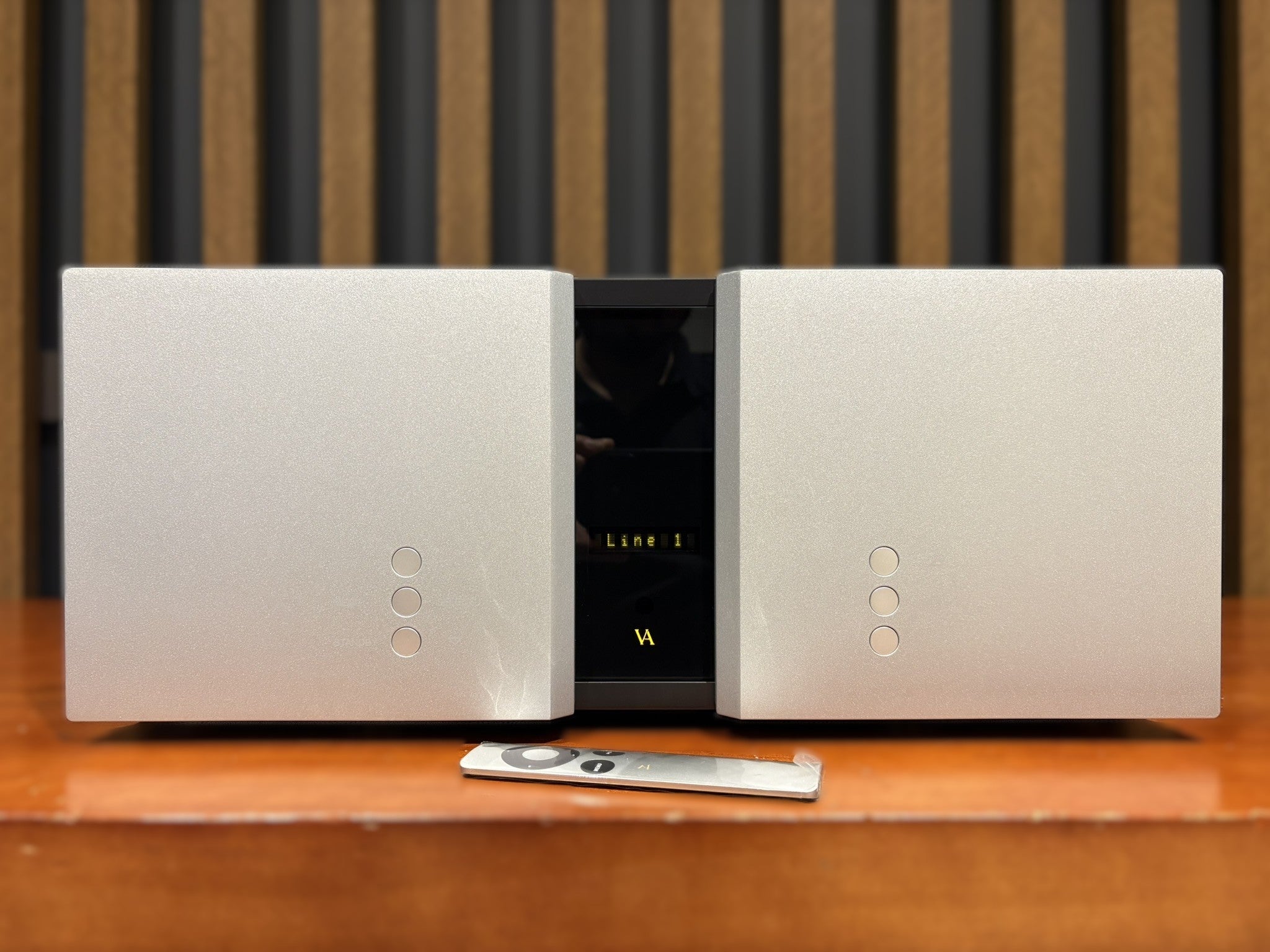

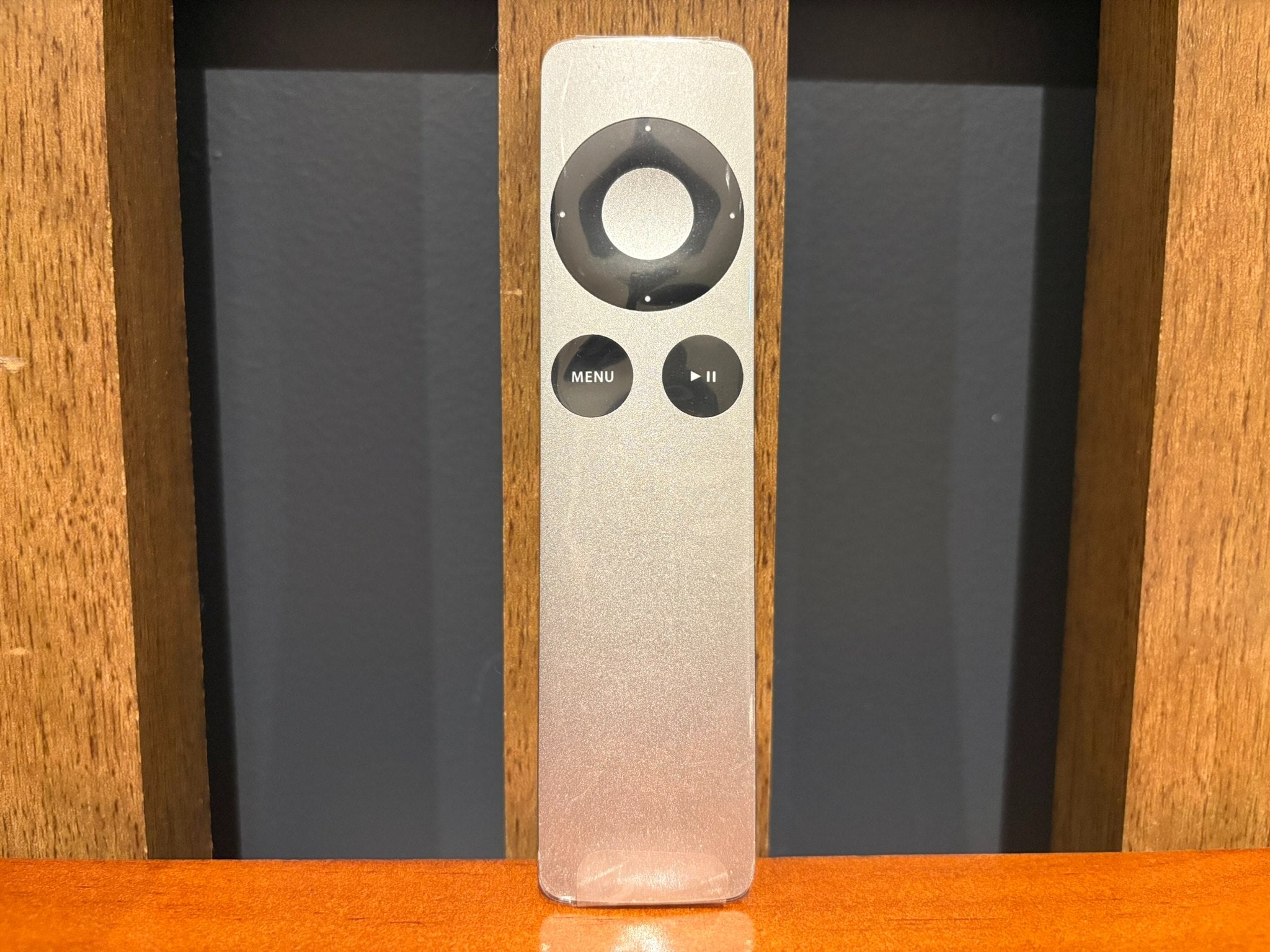

Includes: Remote control and power cable (No box)
SN: 614
Made in Denmark
Includes 7 day warranty
Overview
RI-101 Mk.II incorporates technology developed for the company's Masterpiece and Signature Series components. With a dual-mono topology, separate amplification stages for each channel, and a custom linear power supply.
The high-current output stage is capable of delivering 300 watts per channel into 8 ohms and doubles to 600 watts into 4 ohms. The RI-101 is switchable between Normal Mode and Class A Mode, allowing the output stage to operate with increased bias.
A large custom transformer, substantial capacitor bank, and carefully regulated supply rails ensure rapid current delivery and stable operation.
This particular unit includes the optional DAC and streaming modules, with streaming accessible via mConnect.
Please note: This 2021 model uses the original microprocessor and does not include Tidal Connect or Roon
Specification
|

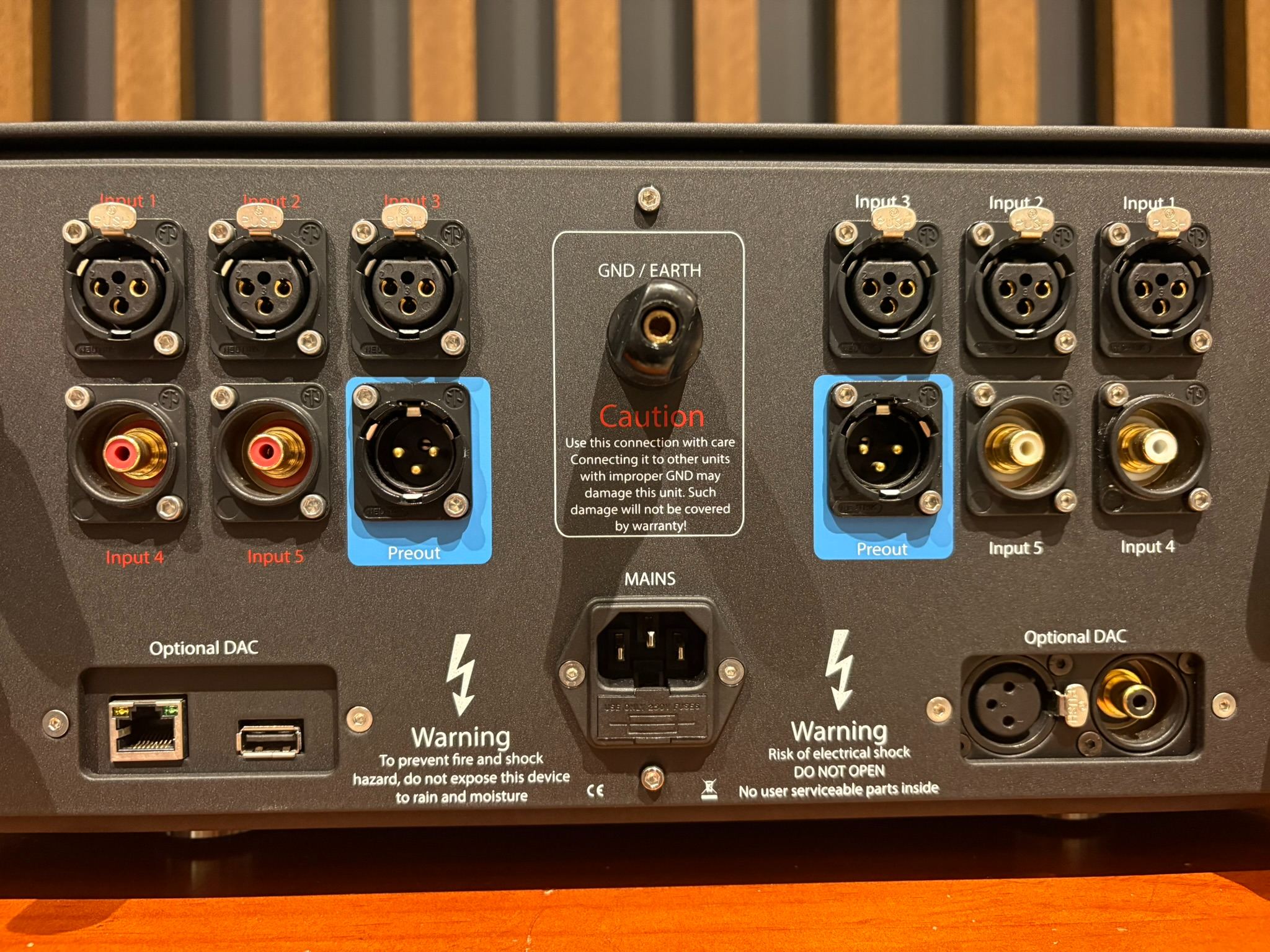

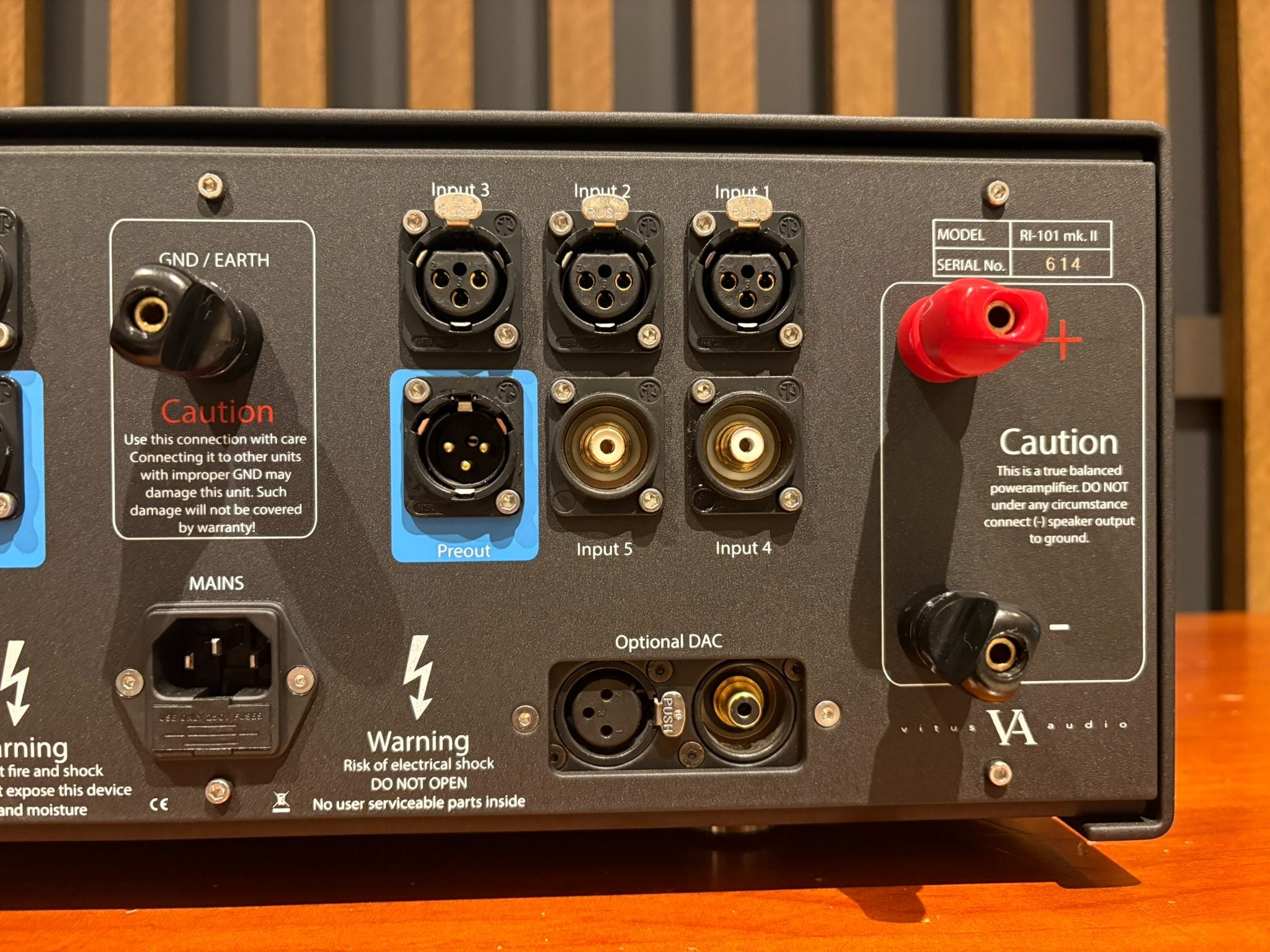

Input
|
XLR analogue
|
RCA analogue
|
|
|
|
Available
|
3 (L+R)
|
2 (L+R)
|
|
|
|
Sensitivity
|
2 VRMS
|
2 VRMS
|
|
|
|
Impedance
|
16kΩ
|
16kΩ
|
|
|
|
OUTPUT (Each Ch.)
|
Speaker
|
Pre/Tape out
|
|
|
|
Available
|
1 set balanced
|
1(XLR)
|
|
|
|
Impedance
|
0.075Ω
|
33Ω
|
|
|
|
Power WRMS (8Ω)
|
~8W Class A / ~300W Class AB
|
|
|
|
|
Power WRMS (4Ω)
|
~16W Class A / ~600W Class AB
|
|
|
|
|
Bandwidth
|
+800kHz
|
|
|
|
|
Signal to noise ratio
|
>100dB @ 1kHz
|
|
|
|
|
THD + noise
|
0.04% @ 100W / 1kHz
|
|
|
|
|
Volume Control
|
|
|
|
|
|
Type
|
Relay controlled fixed resistor network
|
|
|
|
|
Steps
|
-80dB to +8dB in 1dB steps
|
|
|
|
|
POWER CONSUMPTION
|
|
|
|
|
|
Standby
|
<1W
|
|
|
|
|
Operation
|
90W (no load)
|
|
|
|
|
Operation with DAC Streamer
|
120W (no load)
|
|
|
|
|
Operation with USB DAC
|
120W (no load)
|
|
|
|
|
Dimensions
|
|
|
|
|
|
Height
|
182mm including feet
|
|
|
|
|
Width
|
435mm
|
|
|
|
|
Depth
|
470mm (with connectors)
|
|
|
|
|
Weight
|
38kg (w/o DAC/Streamer)
|
|
|
|
|
Material
|
Aluminium for body parts and hidden heat sinks
|
|
|
|
|
DAC / Streamer Board
|
|
|||
|
Inputs
|
Streamer
|
S/PDIF
|
AES/EBU
|
|
|
Connector
|
1 x RJ45
|
1 x RCA
|
1 x XLR\
|
|
|
Impedance
|
|
75Ω
|
110Ω
|
|
|
Max S/Rate
|
384kHz + DSD128**
|
192kHz
|
192kHz
|
|
|
Resolution
|
32bit
|
24bit
|
24bit
|
|
|
|
||||
|
|
|
|
|
|
