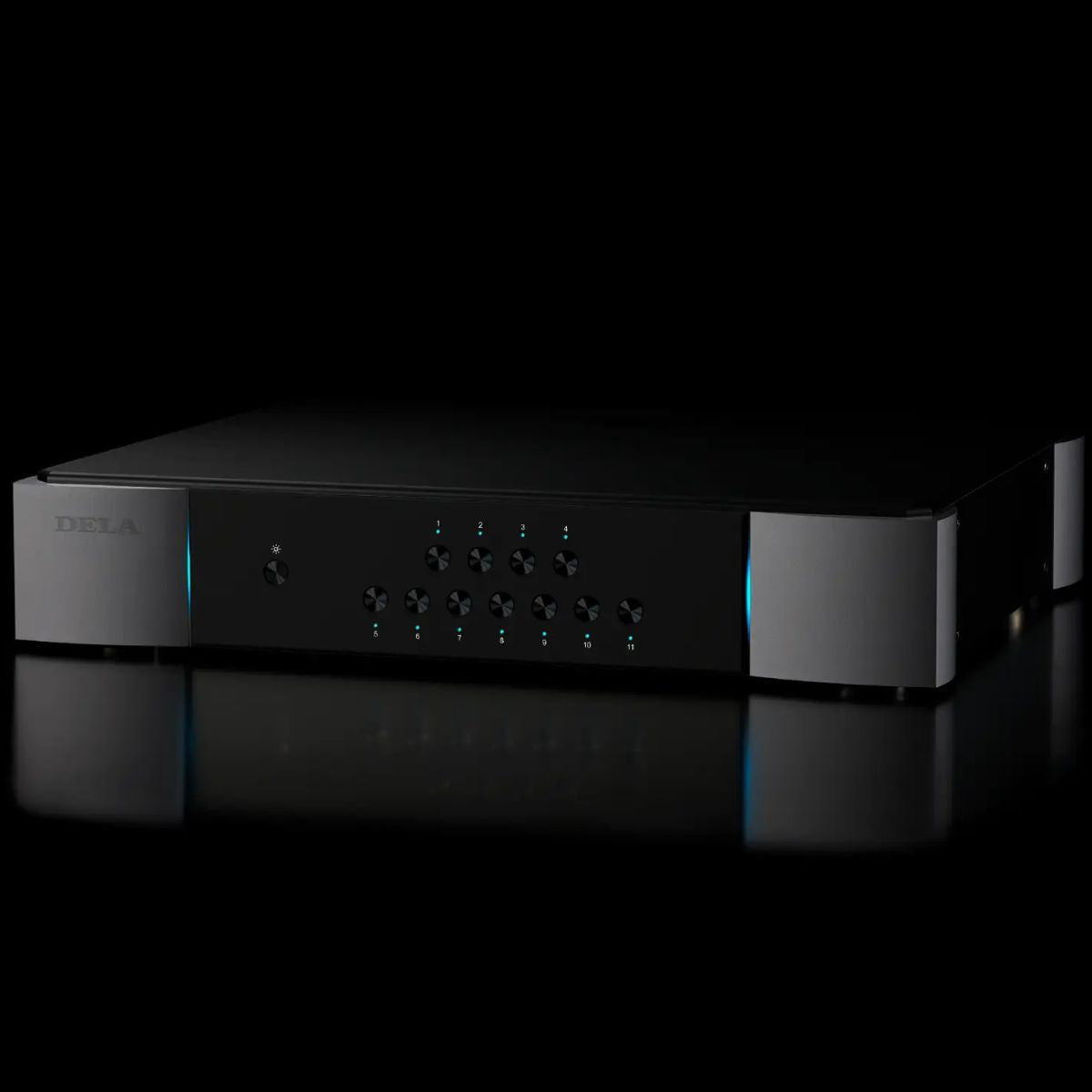

Dela (Formerly Melco) S1 Network Switch

Dela (Formerly Melco) S1 Network Switch

For over 10 years, DELA has been shaping the audio network switch market. Now,  we have developed the high-end model ‘S1’ as a culmination.

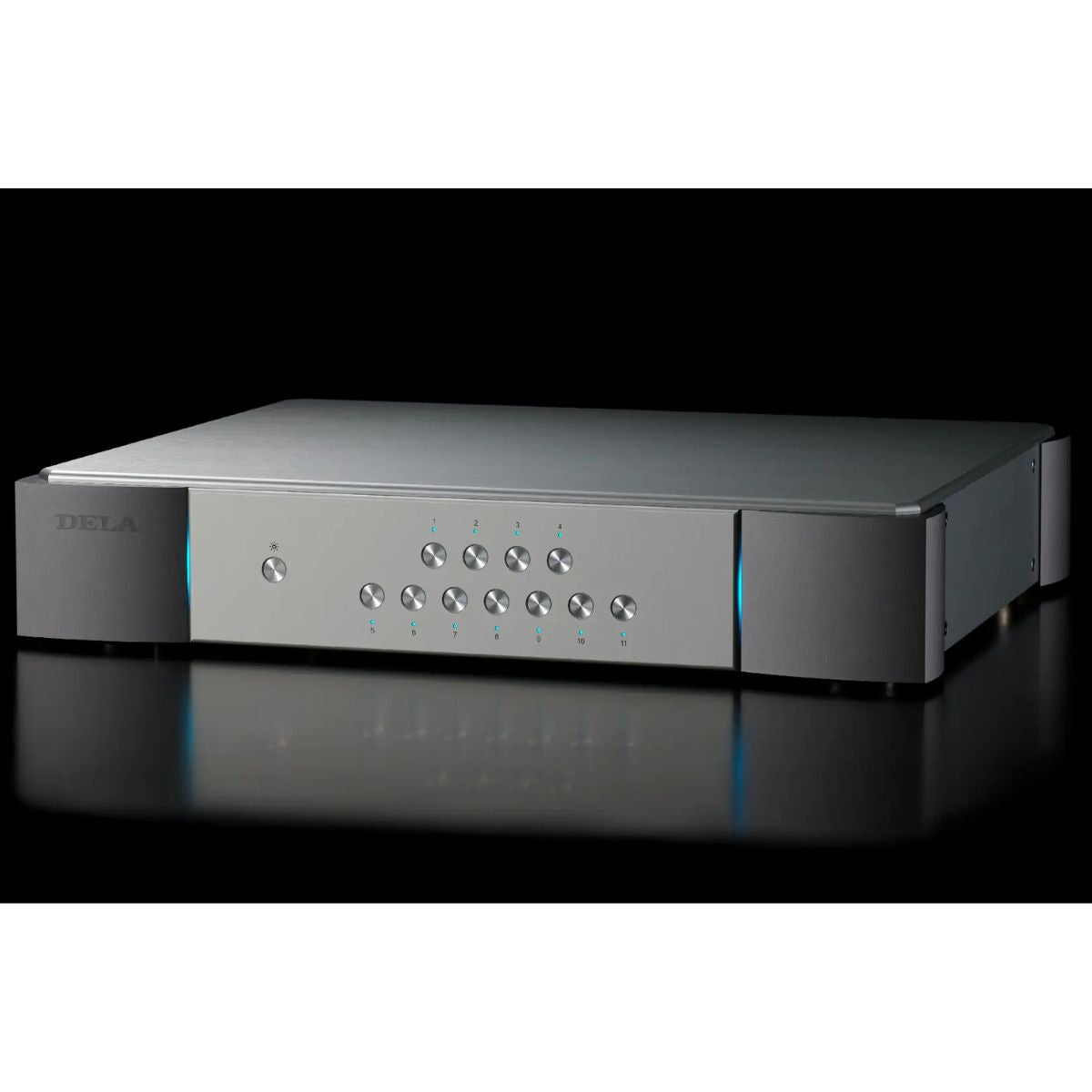

Full-size Chassis
The S1 features a robust 3mm stainless steel chassis with thick aluminum panels for enhanced durability and vibration resistance.

Power Supply
It includes a large transformer and  capacitor bank.

Ultra-Low Jitter Clock
Utilizes an NDK ultra-low jitter clock and supports 10MHz external clock input.

Connectivity
Equipped with x4 SFP+ compatible ports*1 and x7 Neutrik RJ45 LAN ports. The increasingly important SFP+ ports support 10Gbps SFP+ modules and DELA SFP direct attach cable ‘C1.’ The RJ45 ports use Neutrik ports, known for their high mating accuracy and robustness.

Link speed selector
DELA S1 features a front button that allows variable speed adjustment for all ports. The RJ45 LAN ports can be set to 1Gbps, 100Mbps, or 10Mbps, and the SFP+ ports can switch from 1Gbps to 10Gbps.*2

Disabling unused ports
Not only can the speed be changed, but unused ports can be electrically completely shut down. This allows you to optimize the network according to the usage status of the connected devices.

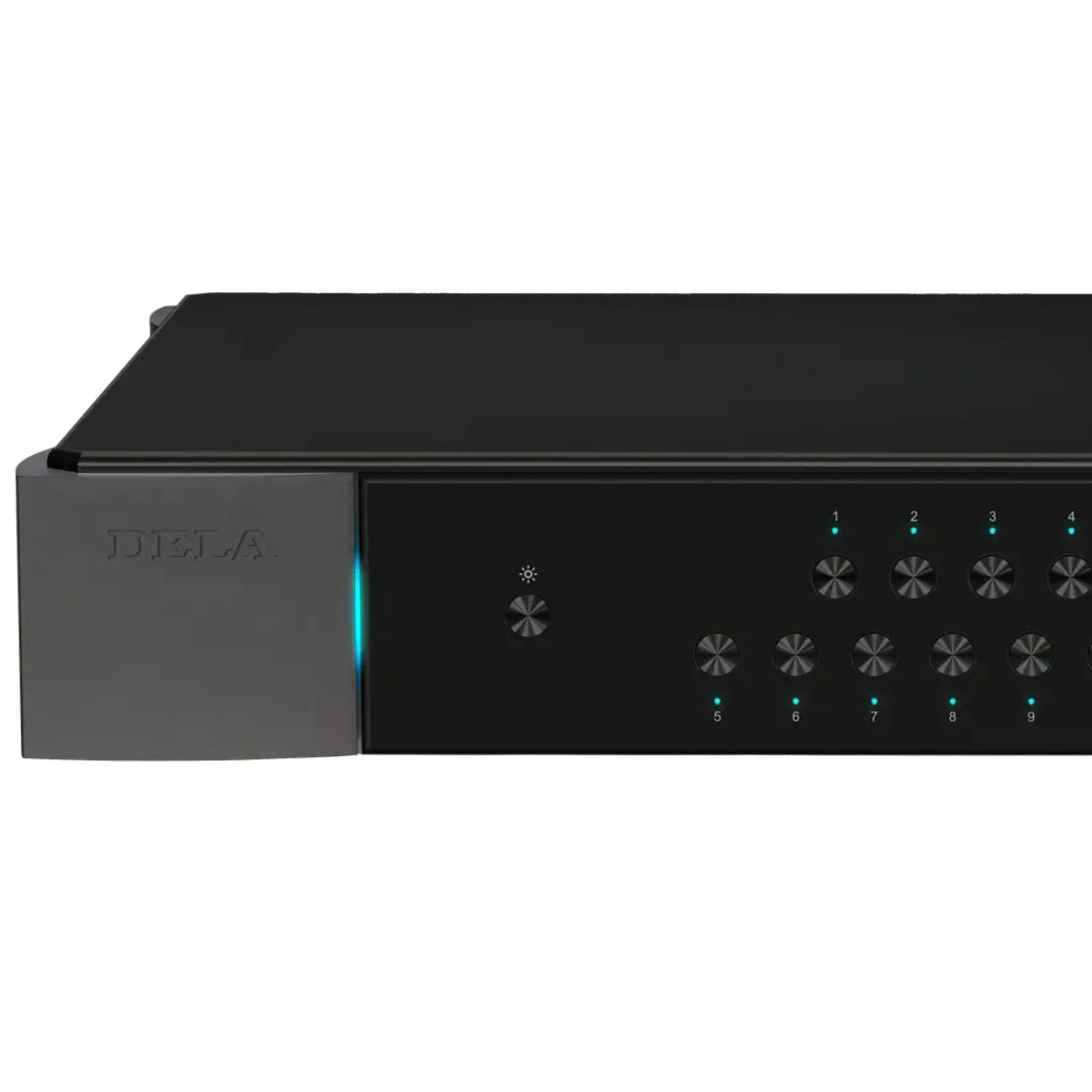

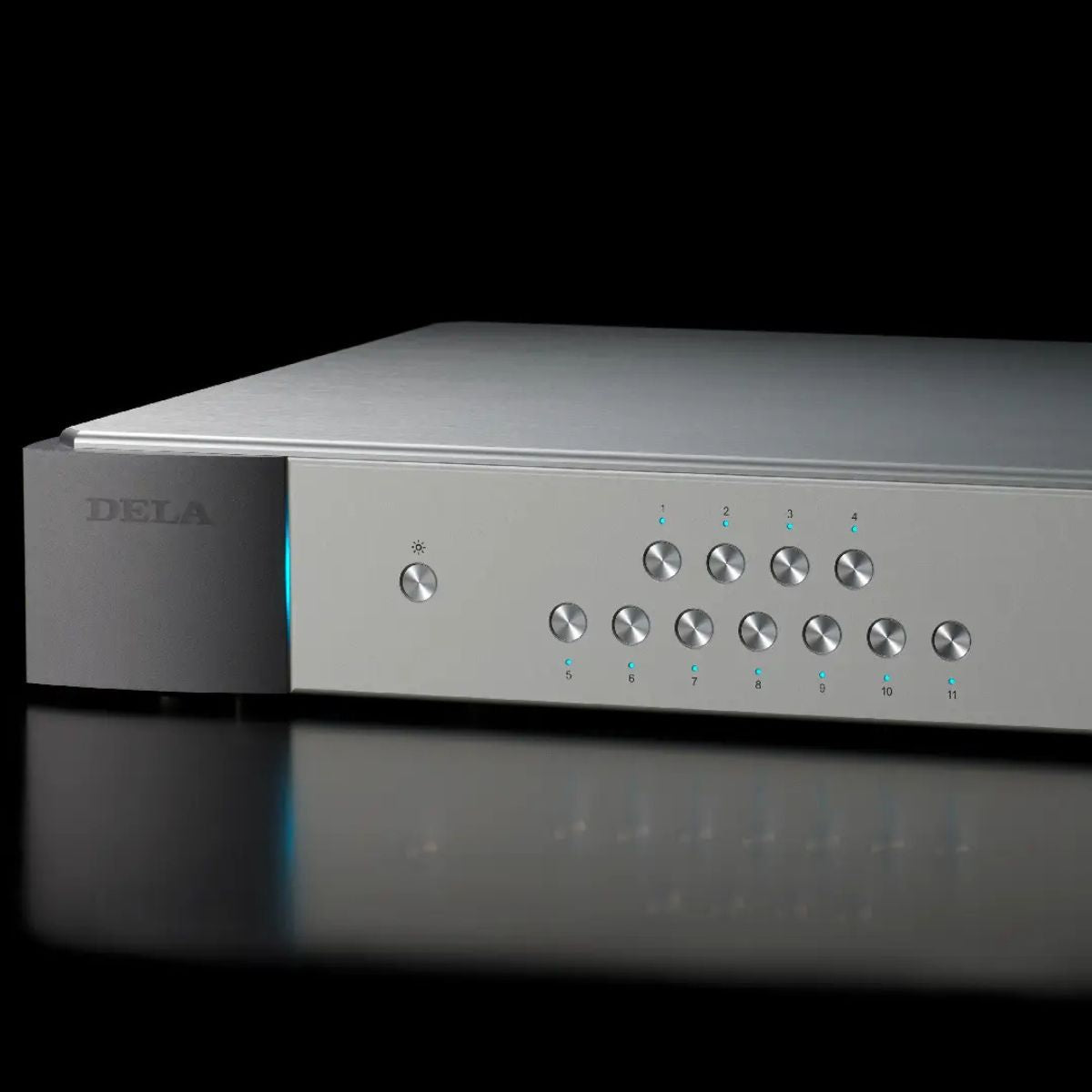

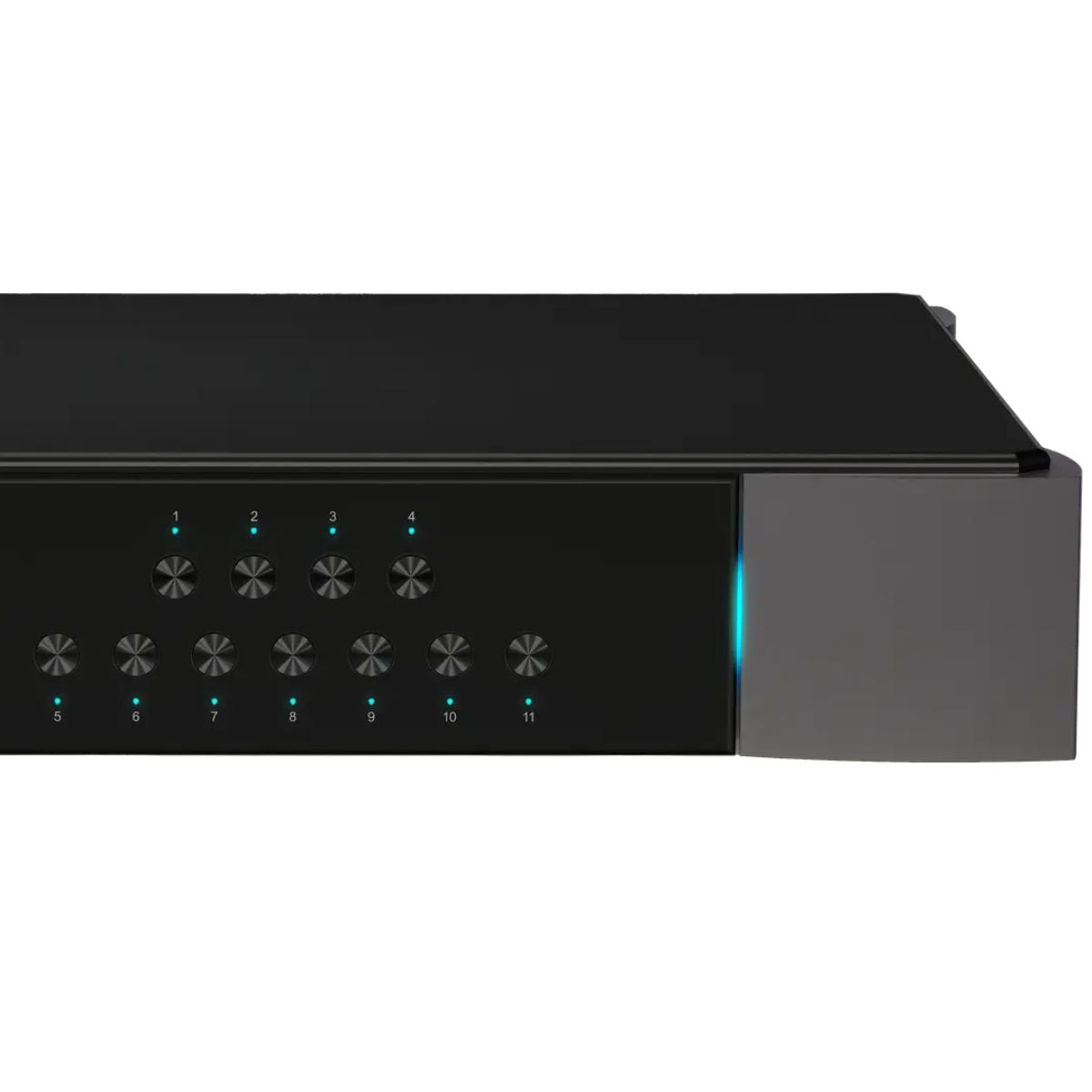

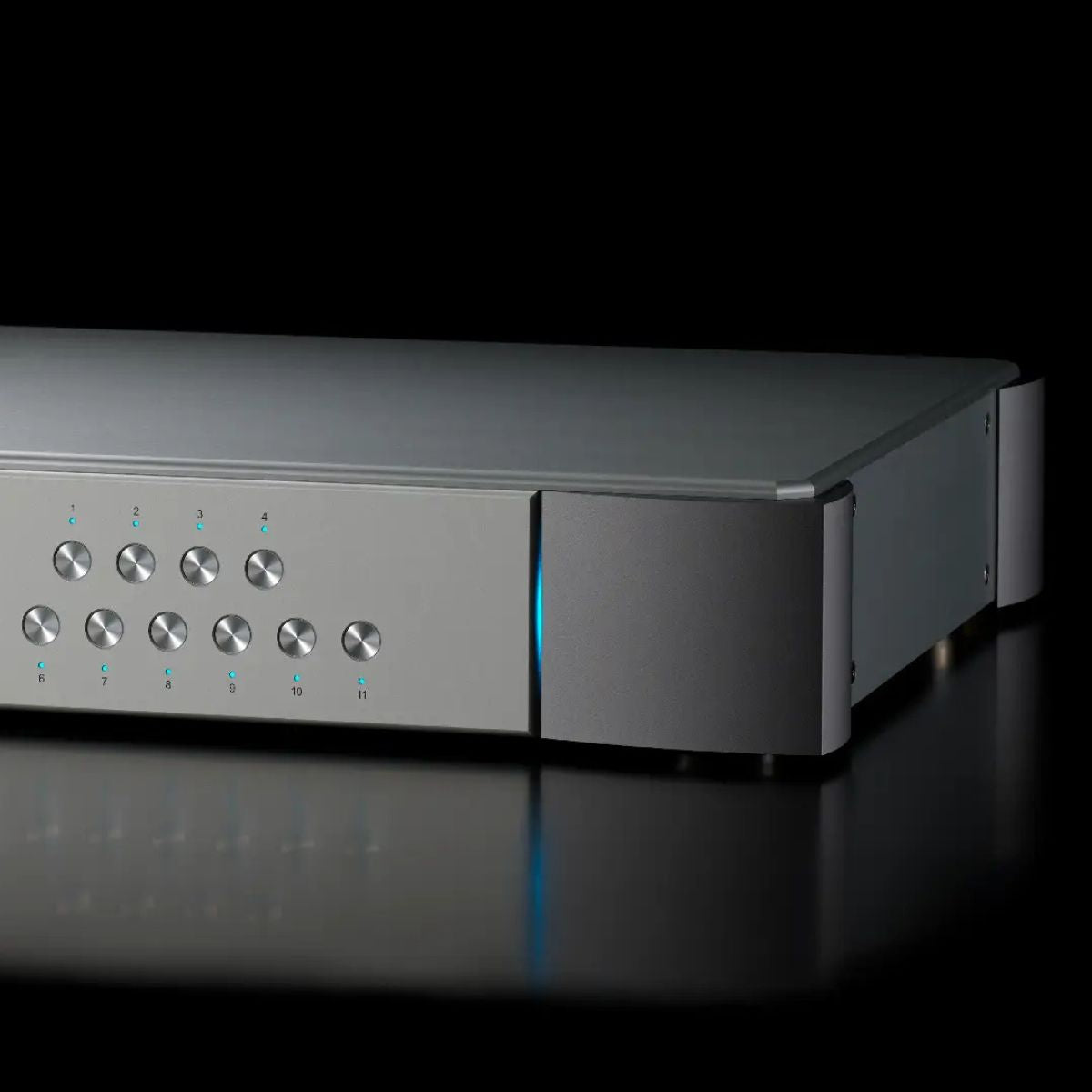

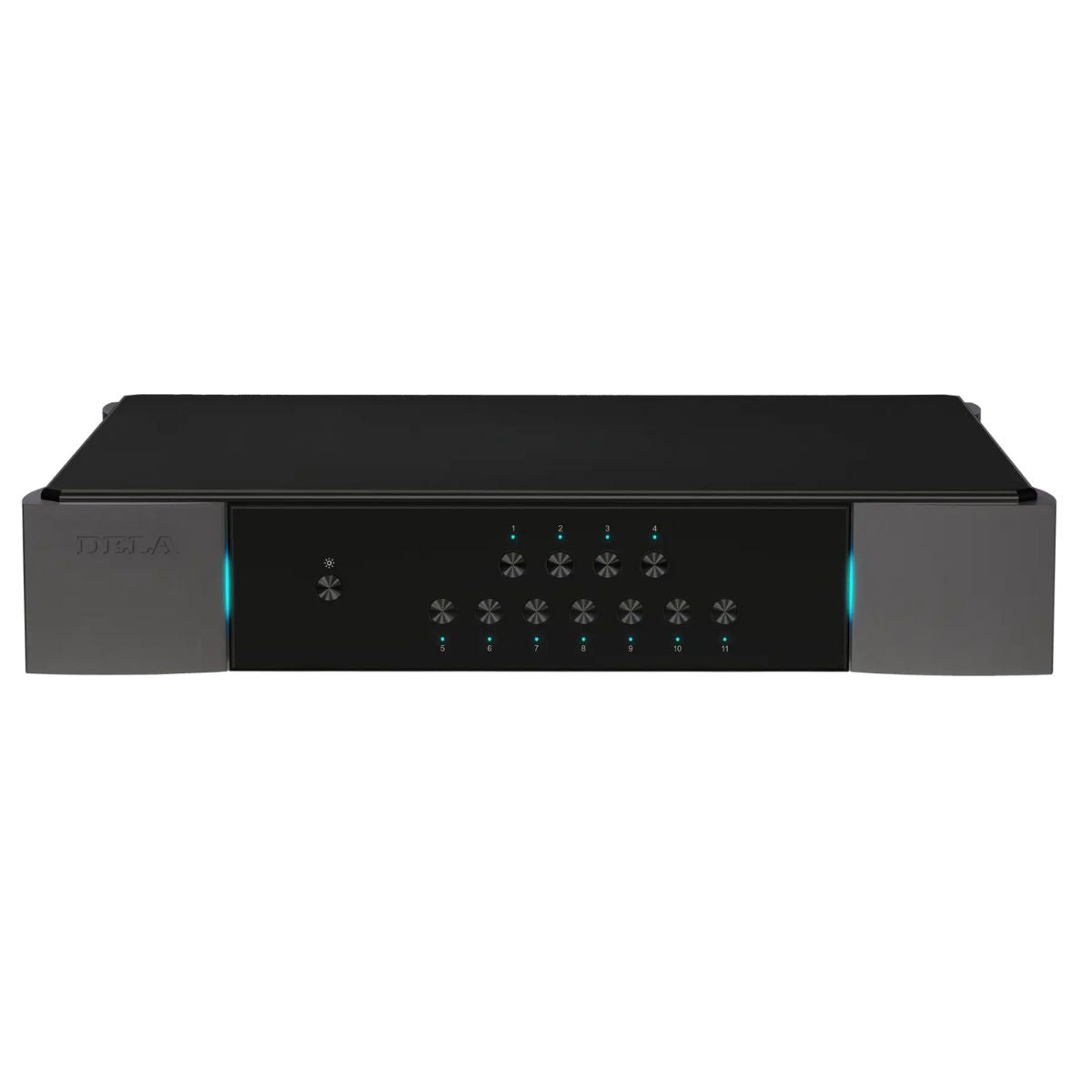

Front color LED indicators
The communication speed of each port is displayed using color LEDs, with 1Gbps (light blue) as the standard, allowing for easy visual confirmation of speed changes. Front-mounted dimmer button is to adjust LED brightness. The LEDs indicating operational status on the left and right sides of the front panel, as well as the color LEDs on the button section, can be dimmed using the dimmer buttons. (The LEDs on the button section can be turned off.)

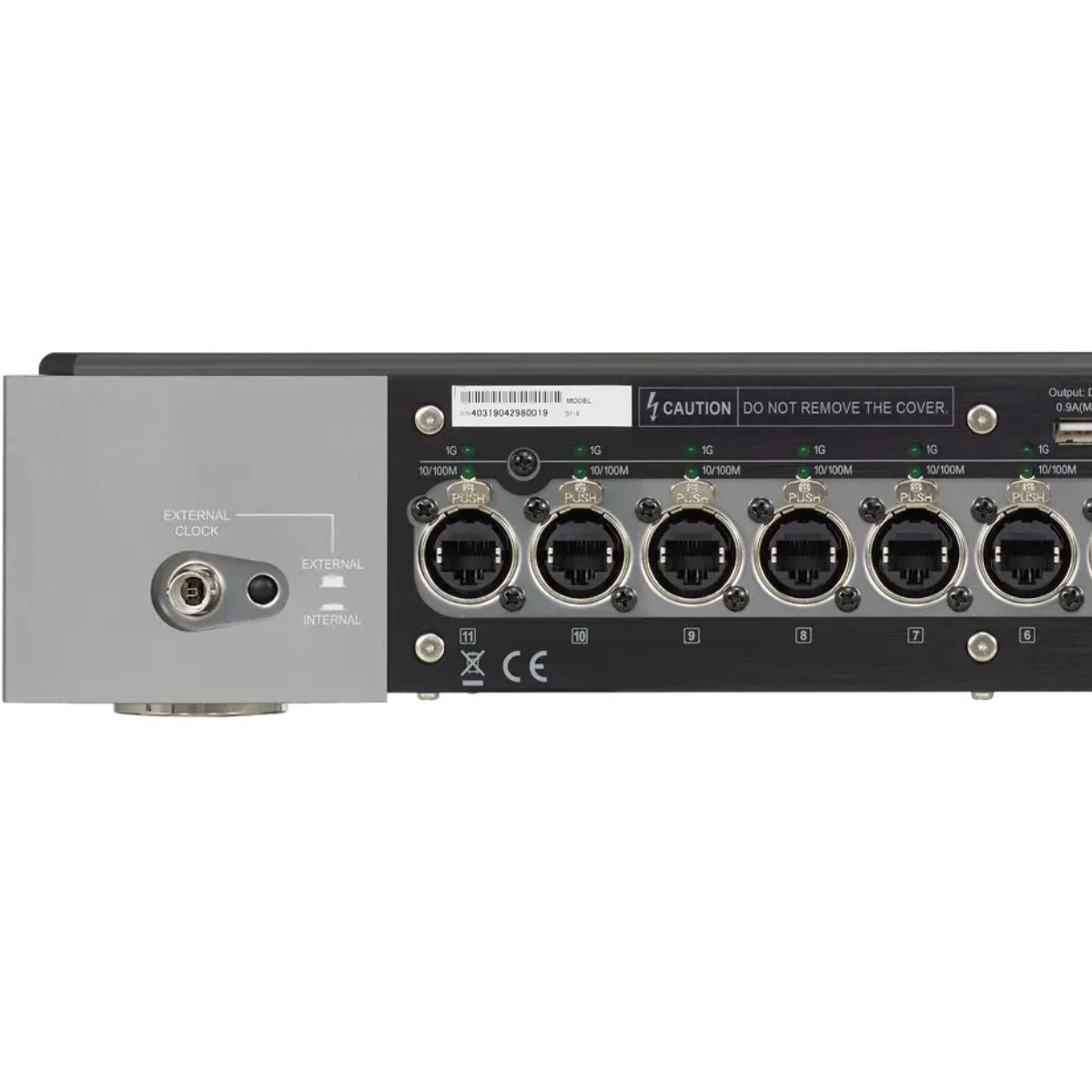

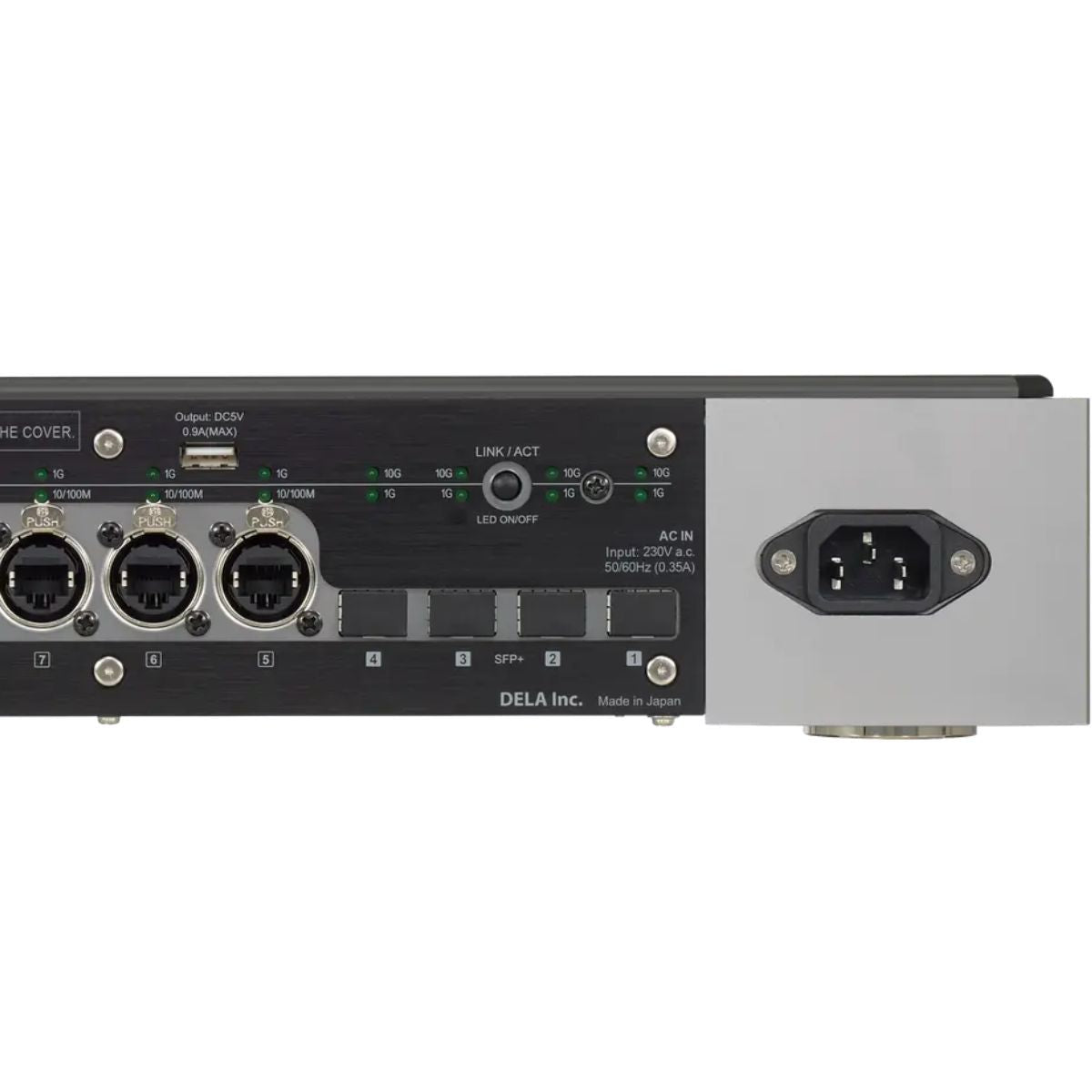

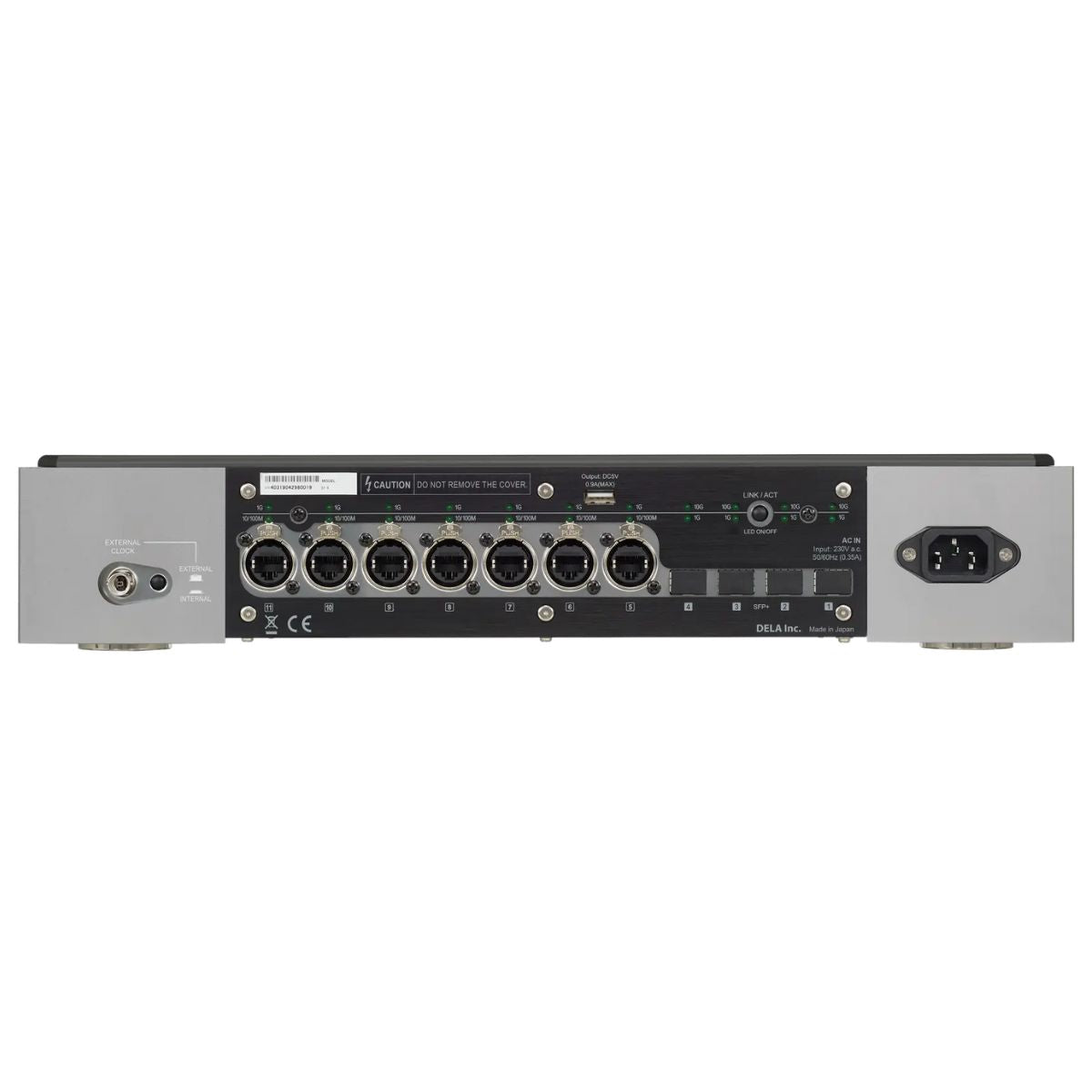

Rear panel LED indicators
The rear panel, where the LED port connectors are lined up, is also equipped with LEDs that are convenient for checking connections and communication speeds. After confirming the connections, you can turn off the LEDs by pressing a button, eliminating the influence of LED control.

Made in Japan
S1 is made by the “master” who is well trained to build the product. The factory is located in Nagoya, Aich Prefecture, which has historically been renowned for its manufacturing industry.

*1: The number of usable ports may be limited depending on the module used. The total maximum supply current for the S1’s x4 SFP+ ports is 1.8A (DC 3.3V). Please check the specifications of the modules. Additionally, our SFP Direct Attach Cable “C1” can be connected simultaneously to all four ports.

*2: There are combinations that cannot be switched due to the specifications of the SFP modules or cables. For example, if the module and cable connected to the S1 are 1Gbps compatible and the speed setting is 1Gbps, but the module used in the connected device is 10Gbps compatible, communication will not be possible.
