Arcam & KEF Home Cinema Bundle

Sale price$29,995.00

Pickup available at Audio Connection

Usually ready in 5+ days

Arcam & KEF Home Cinema Bundle

Arcam & KEF Home Cinema Bundle

Audio Connection

Pickup available, usually ready in 5+ days

515 Parramatta Road
Leichhardt NSW 2040

  • Live Chat Support (8am - 8pm)
  • Free Australia Wide Shipping
  • 02 9561 0788. We speak English, Mandarin, Cantonese, Vietnamese


  • Split your payments over 2, 6, 12 or 18 months.
  • 0% on your purchase, zero fees.
  • No minimum spend.
  • All you need is a valid credit card (Visa, Mastercard, Amex).
  • Choose "More Payment Options" below and choose "Monthly credit card payments" on the checkout screen.

Need Help?

If you have any questions or need advice - give us a call on 02 9561 0788 during business hours or use our live chat service AEST 8am - 8pm everyday (you'll chat with a real person, not a bot!).

Krisflyer members earn 3 Krisflyer miles with every $1 spent at Audio Connection and 10% off. Checkout via the Kris+ App Only. Click here for more details.

Arcam & KEF Home Cinema Bundle

Arcam AVR31 Class G AV Receiver

KEF Ci3160REFM-THX In-Wall Speaker (each)

Kef Ci4100QL-THX In-Wall Speaker (each)

KEF KF92 Subwoofer

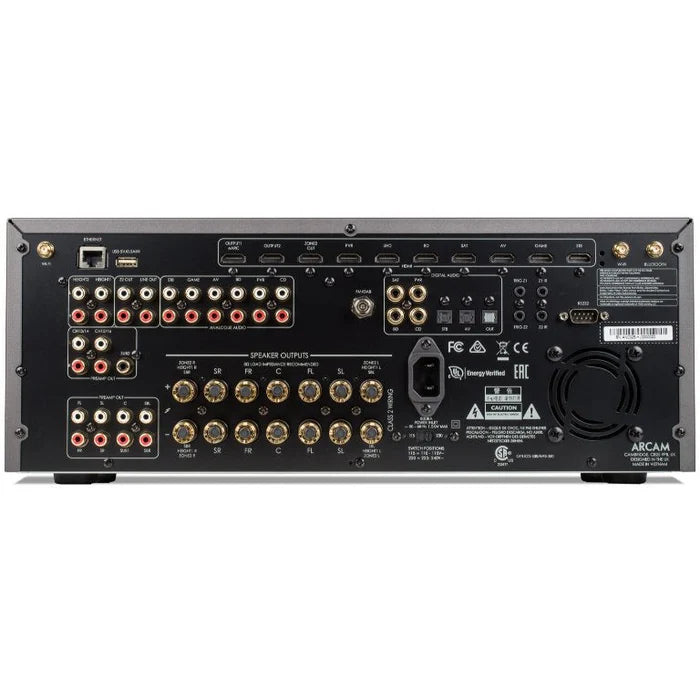

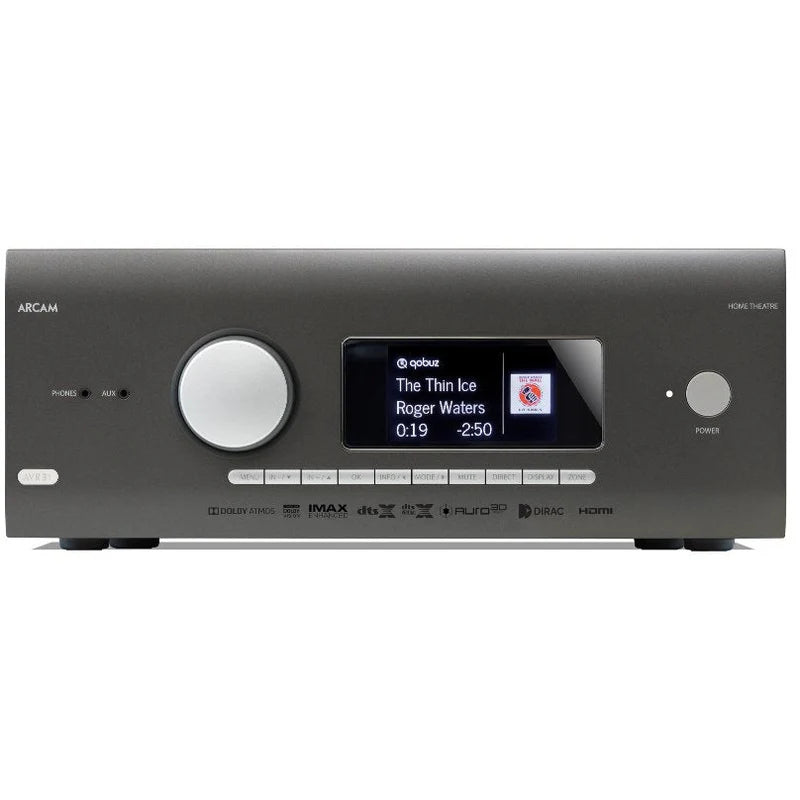

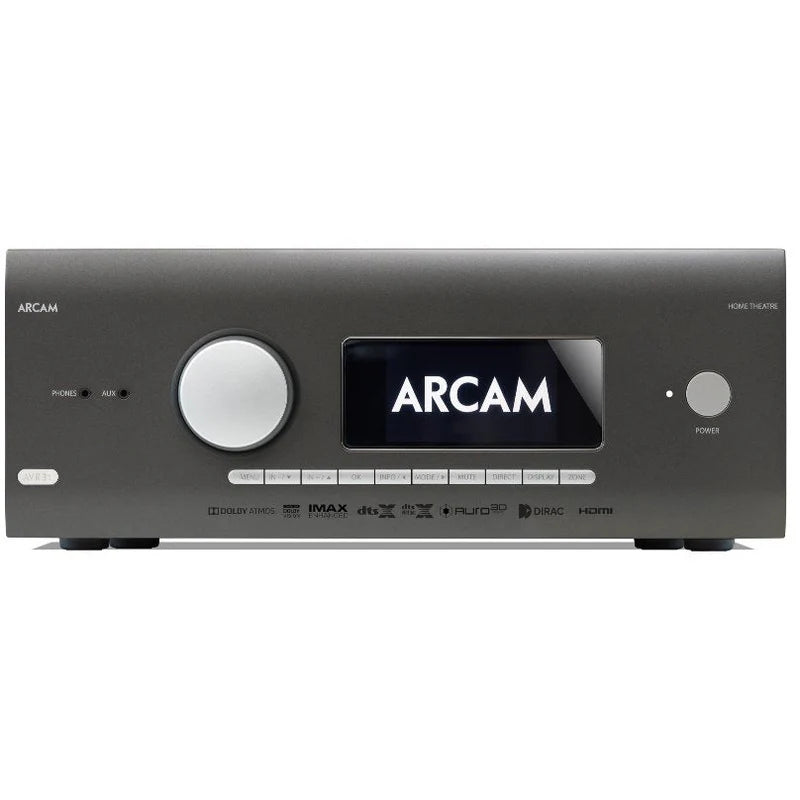

Arcam AVR31 Class G AV Receiver

Rich Musicality + Immersive Sound = Stunning Realism

The AVR31 is a high-power, audio/visual receiver that delivers stunning realism for the ultimate home cinema experience. With native 16-channel decoding of immersive audio from Dolby Atmos, DTS:X and Auro-3D, the AVR31 can deliver incredible theatre experiences.

The Arcam AVR31 is designed with a passion for music and movies, bringing both to life with high fidelity and dynamics. The AVR31 features an over engineered toroidal transformer for real world power with low noise. The 7 channels of Class G amplification are based upon those in Arcam stereo amplifiers, guaranteeing musicality otherwise not heard from other AV receivers.

The performance and musicality can be assured with Dirac Live® room optimisation included, and accessed instantly with integrated streaming using Apple®Airplay2, Google Chromecast®, Bluetooth with aptX®HD, Spotify Connect, Tidal Connect and UPnP with the MusicLife app.

Dirac Live® Bass Control is available at an additional cost via the Dirac website:

Dirac Live® Bass Control aggregates measurement and location data from each subwoofer as well as the main speakers to determine how a system’s bass is distributed throughout the room.


  • 16 Channels of Dolby Atmos, DTS:X & AURO-3D decoding
  • 7 HDMI inputs, 3 HDMI outputs inc Zone 2, eARC compatible
  • HDMI 2.1 with HDCP2.3
  • All inputs support 8K@60fps and 4K@120fps
  • Supports Dolby Vision, HDR10+, HDR10 and HLG
  • Includes Dirac Live® room correction
  • Ready for Dirac Live Bass Control*
  • Dual ESS 9026PRO audiophile DACs with ESS reference voltage regulators
  • 7 Channels of high power Class G amplification
  • Wi-Fi / Ethernet, RS232 and IR control
  • Google Chromecast® built-in for streaming audio
  • Apple® Airplay2
  • Bluetooth aptX®HD
  • Free MusicLife iOS and Android UPnP app
  • Supports MQA
  • Roon Ready

Continuous power output, per channel, 8Ω/4Ω
2 channels driven, 20Hz - 20kHz, <0.02% THD 120W/200W
2 channels driven, 1kHz, 0.2% THD 140W/220W
7 channels driven, 1kHz, 0.2% THD 100W/180W
Residual noise & hum (A-wtd) <0.15mV
Stereo Line Inputs Maximum input 4.5V rms
Nominal sensitivity 1V, 2V, 4V (user adjustable)
Input impedance 47kΩ
Signal/noise ratio (A-wtd ref 100W) normal/stereo direct 100dB/110dB
Frequency response 20Hz—20kHz ± 0.2dB
Preamplifier Outputs Nominal output level 1V RMS (max. 5V RMS)
Output impedance 560Ω THD+N (20Hz—20kHz) –100dB
Headphone Output Maximum output level into 32Ω 5Vrms
Output impedance <100Ω

Mains voltage 110–120V or 220–240V, 50–60Hz
Power consumption (maximum) 1.5kW (Thermal dissipation approx. 5200 BTU/hour)
Power consumption (idle, typical) 100W (Thermal dissipation approx. 350 BTU/hour)
Power consumption (standby) <0.5W
Dimensions W x D (including speaker terminals) x H (including feet) 433 x 425 x 171mm
Weight (net) 18.1kg
Weight (packed) 21.4kg

Supplied accessories
Mains lead Remote control with 2 x AAA batteries
Quick Start Guide (full manual online)
DAB/FM aerial
3 x Wi-Fi/Bluetooth antennas
Calibration microphone

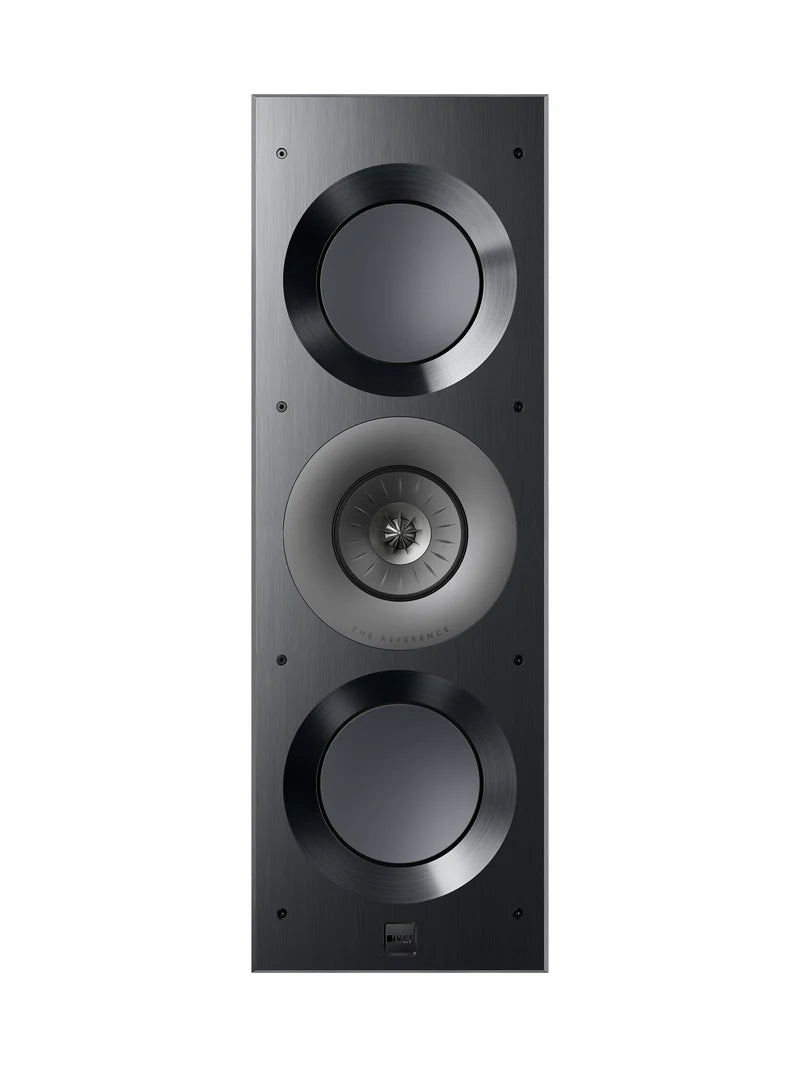

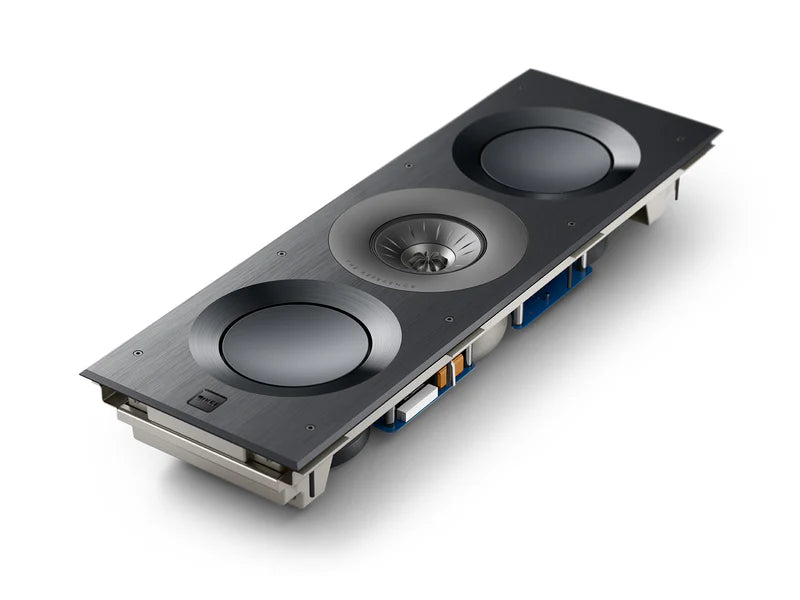

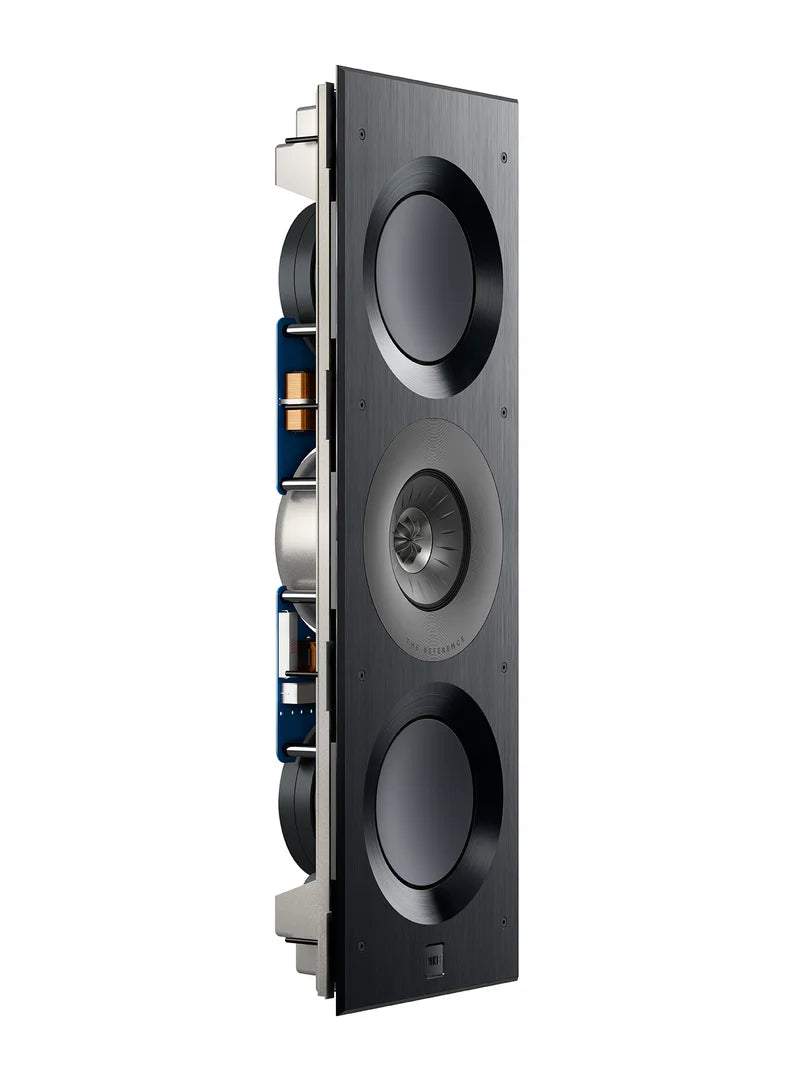

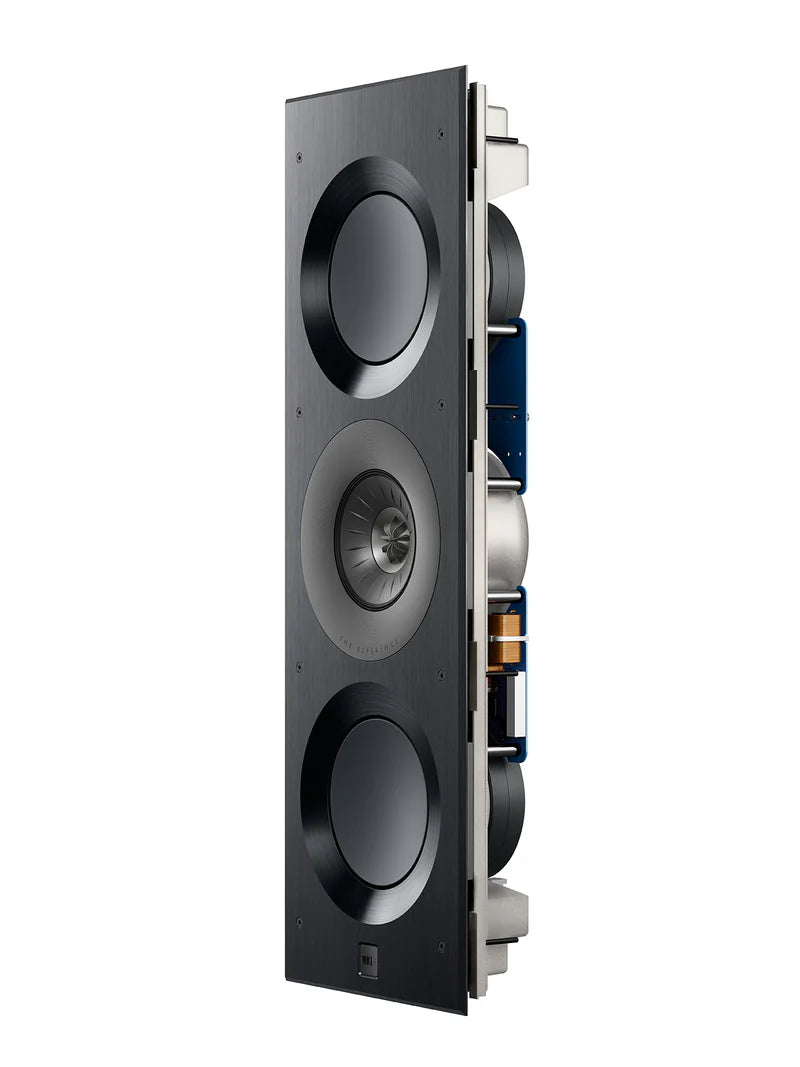

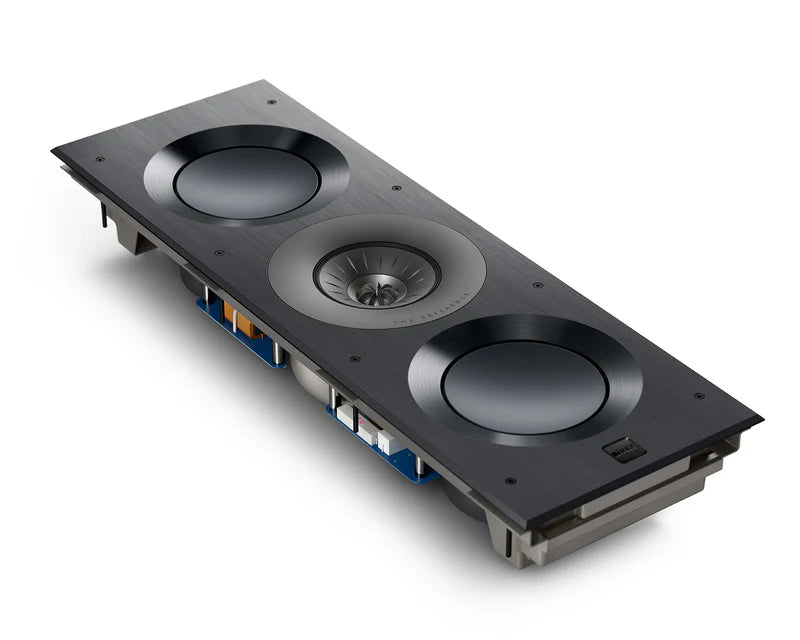

KEF Ci3160REFM-THX In-Wall Speaker (each)

THX® Certified Ultra Speaker with MAT

The in-wall Ci-Reference architectural speaker Ci3160REFM-THX is a world-class speaker that is handcrafted by the KEF engineers in Maidstone, UK. It does not only meet the standards set by The Reference, but also one of the highest THX® performance classes – THX® Certified Ultra. Together with the 12th generation Uni-Q driver array with Metamaterial Absorption Technology (MAT), Ci3160REFM-THX delivers an immersive, high-fidelity soundstage with unmatched sonic excellence even for large home theatres and living rooms.

Key features

Realistic, high-fidelity sound  Featuring two 160mm (6.5in.) bass drivers, Ci3160REFM-THX delivers a clean, rich and highly articulate bass down to 35Hz. Together with the massive, vented motor system that was designed specifically for an in-wall environment, making Ci3160REFM-THX disappear into the room to leave an awe-inspiring, immersive experience.

THX® Certified  Ci3160REFM-THX delivers ultra-high performance with true theatre sound quality for large theatres and living rooms and it is THX® Certified Ultra.

Metamaterial Absorption Technology

Absorbs 99% of the unwanted sound

Handcrafted in UK  As our high-end speakers, Ci-Reference is designed, engineered, and hand-built in Maidstone, UK

Uni-Q®  Acts as a single point source to enlarge the 'sweet spot' and disperse sound more evenly.

Finished to perfection  Available in Aluminium Black/Grey, a hairline finished aluminium baffle in black, with the Uni-Q driver array in grey.

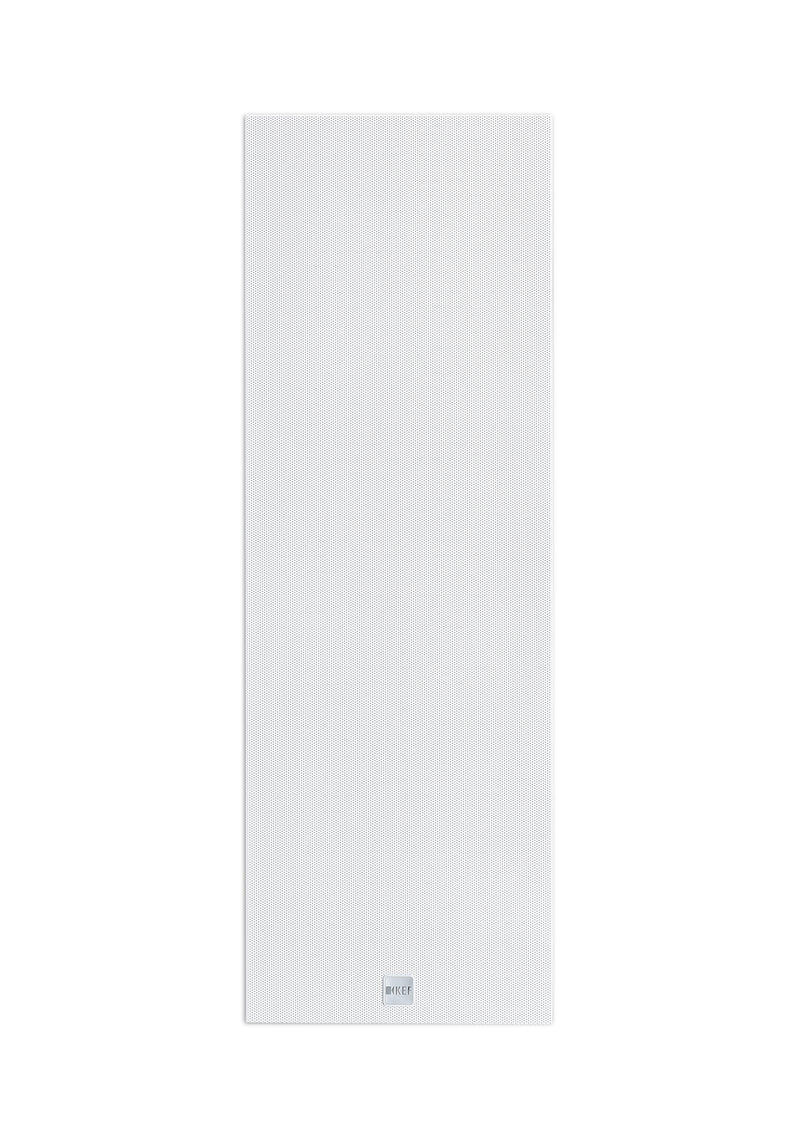

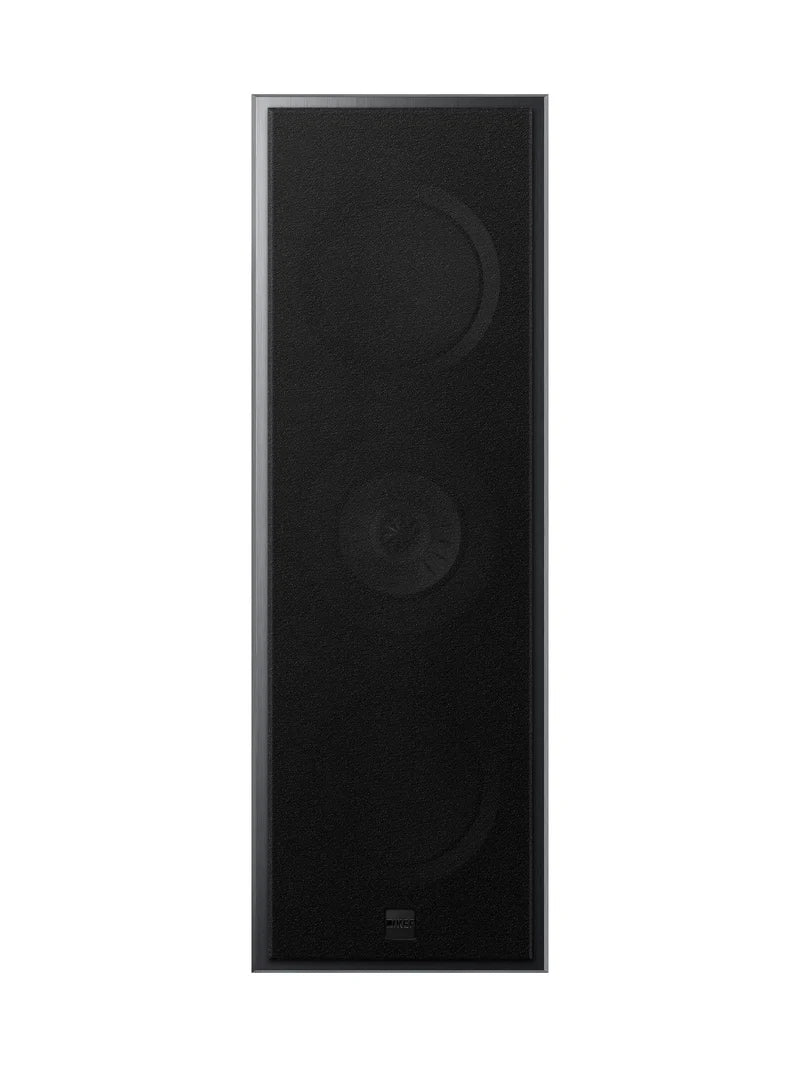

Hide your speakers, not your sound  The paintable magnetic metal grille and optional black cloth grille ensure the speaker seamlessly blends into the environment.

Total attention to detail  The 11mm thick precision-machined aluminium baffle is engineered to eliminate vibration and provides a stoic platform for the powerful drivers to perform at their best.


Nominal Impedance  4Ω
Sensitivity (2.83V/1m)  89dB
Frequency Response (±6 dB) open-backed  40 - 28kHz
Frequency Range (-10 dB)
32 - 45kHz
Nominal Coverage (degrees)
Crossover Frequency
600Hz, 3000Hz
Drive Units
LF: 2 x 160mm (6.5in.)
MF: 125mm (5.25in.) Uni-Q
HF: 25mm (1in.) vented aluminium dome with Metamaterial Absorption Technology
Recommended Amplifier Power  50 - 350 W
Recommended High-pass Filter (Hz)  35Hz - 80Hz
Product External Dimensions (H X W X D)  680 x 230 x 105.7mm (26.77 x 9.06 x 4.16in.)
Cut-out Dimensions (H X W) 660 x 209mm (25.98 x 8.23in.)
Net Weight 13.6kg (29.92lbs.)
Mounting Depth From Surface  99mm (3.9in.)
Optional Rough In Frame  RIF3160L
Ideal Rear Volume (L)  60
Minimum Rear Volume (L)  30
Max SPL (dB)  110dB
Certification  THX Certified Ultra
Wall Thickness (Maximum)  40mm (1.58in.)
Wall Thickness (Minimum)  6mm (0.24in.)

*This product may take 12 -14 weeks for delivery.

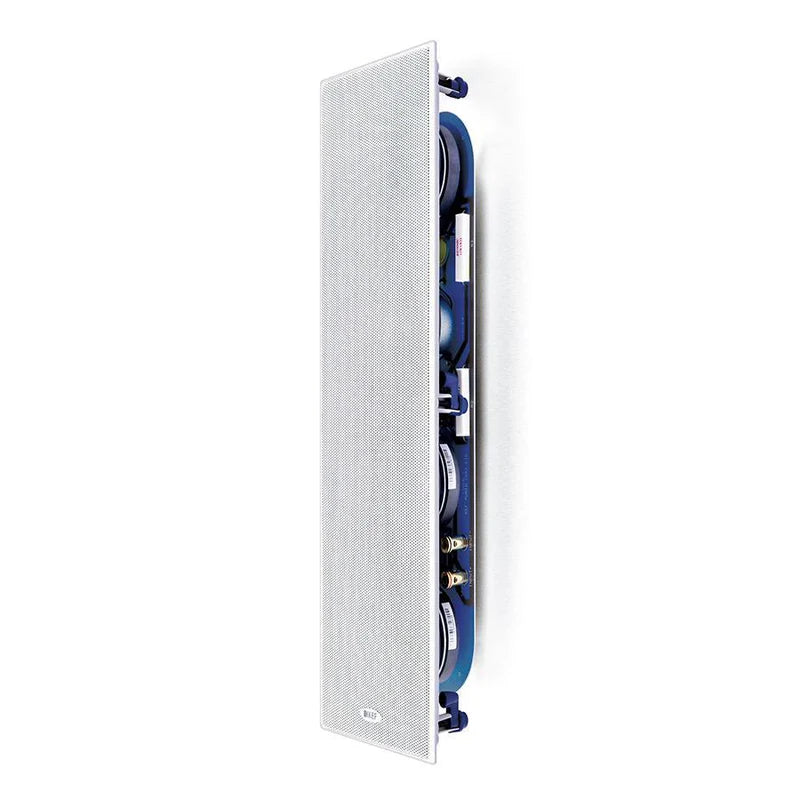

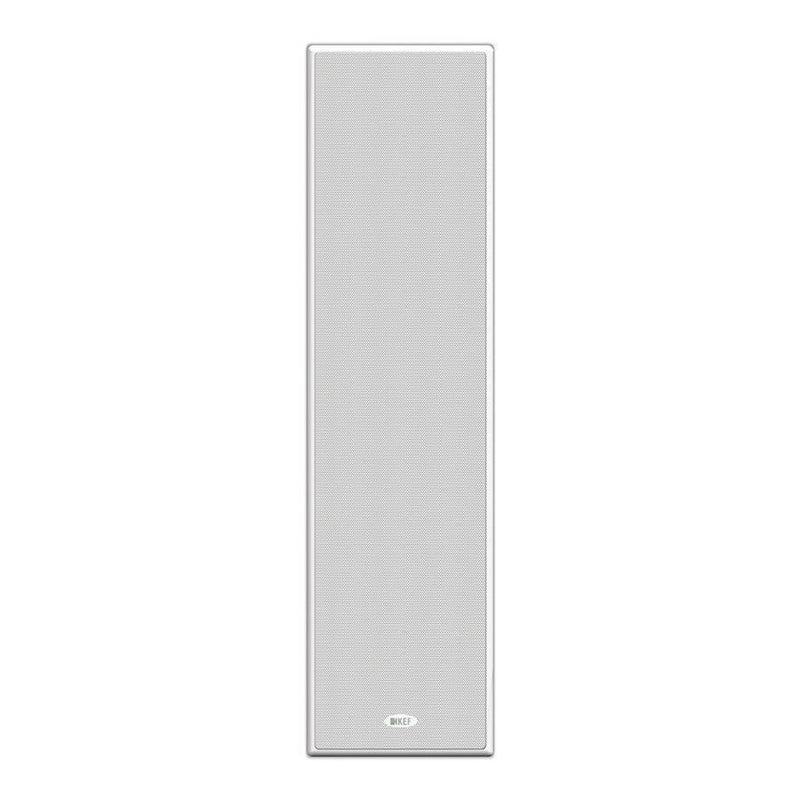

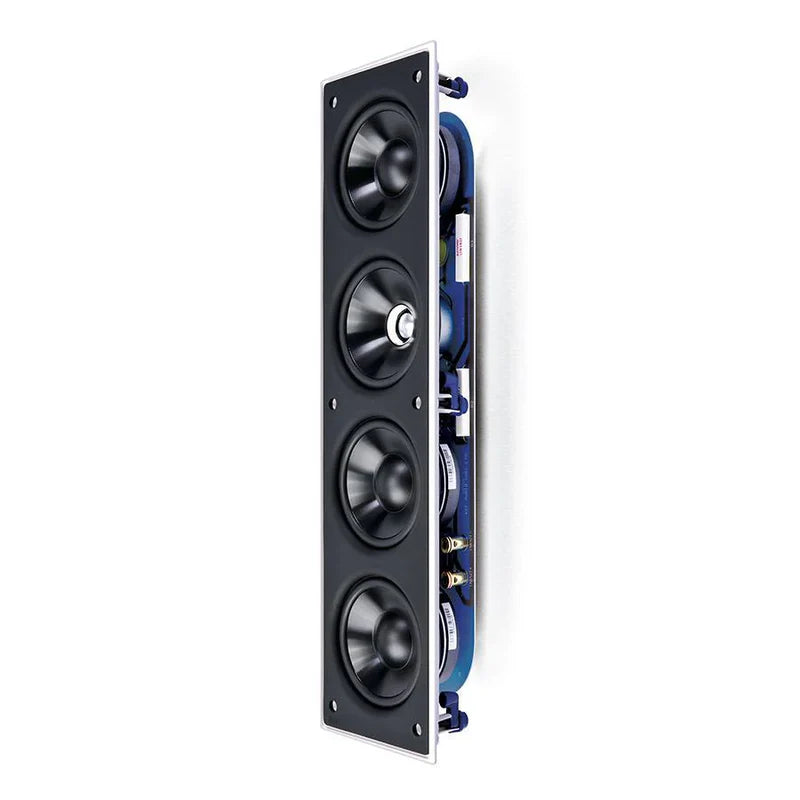

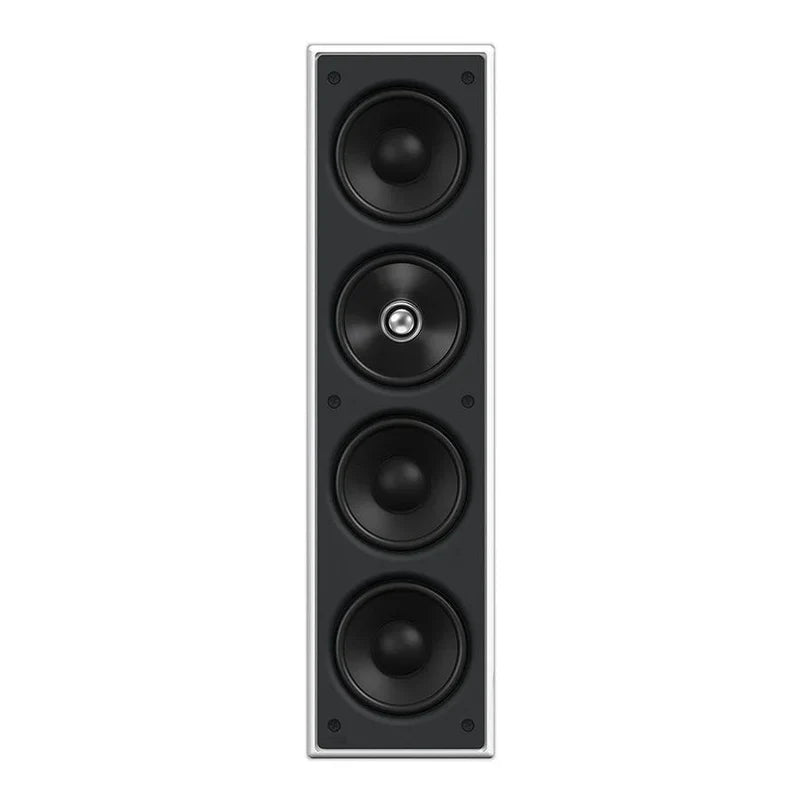

Kef Ci4100QL-THX In-Wall Speaker (each)

The Ci4100QL-THX stands as a testament to superior quality, bearing the esteemed THX Certified Select badge as an in-wall speaker. Within every THX certified 2.1, 5.1, and 7.1 speaker system lies a profound comprehension of the cinematic craft and the essence of surround sound.

With KEF’s innovative 'sit anywhere' Uni-Q driver array, the tweeter is precisely positioned at the acoustic center of the bass/midrange cone. This unique setup enables both tweeter and woofer to function as a unified point source, evenly distributing sound throughout the room. Coupled with the sleek Ultra Thin Bezel (UTB) design, which minimizes visible rim size, the Ci-Q Series provides unparalleled flexibility in speaker placement, empowering you to position them according to your preference.

Extended Warranty Available

Register your products with myKEF to extend the warranty by one year.
Total warranty following registration is 6 years (5 years + 1 extended year)


Nominal Impedance: 4 Ohm
Sensitivity: 89dB (2.83V/ 1m)
Crossover Response: 2.2kHz
Frequency Response: 55Hz - 28kHz (±6dB) open backed
Drive Units:
LF: 3 x 100mm (4 in.)
MF: 100mm (4 in.)
HF: 19mm (0.75 in.) Uni-Q
Recommended Amplifier Power: 10 - 150W
Product External Dimension (H X W X D): 490 x 128 x 81 mm
Cut-Out Dimensions (H X W): 476 x 114mm
Wall Thickness (Maximum): 24mm
Wall Thickness (Minimum): 6mm
Mounting Depth From Surface: 76mm
Optional Rough In Frame: RIF4100L

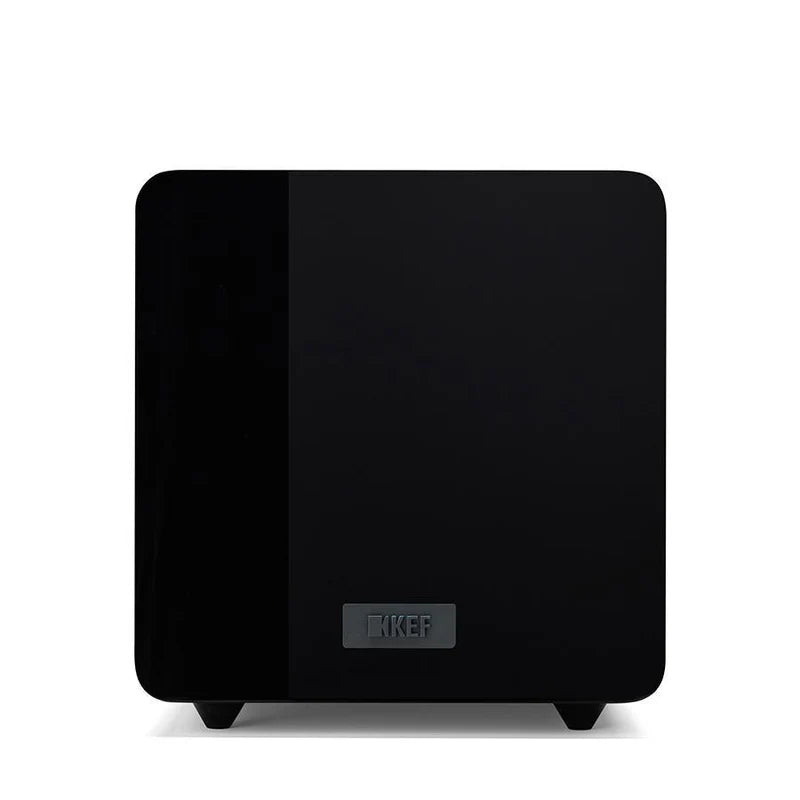

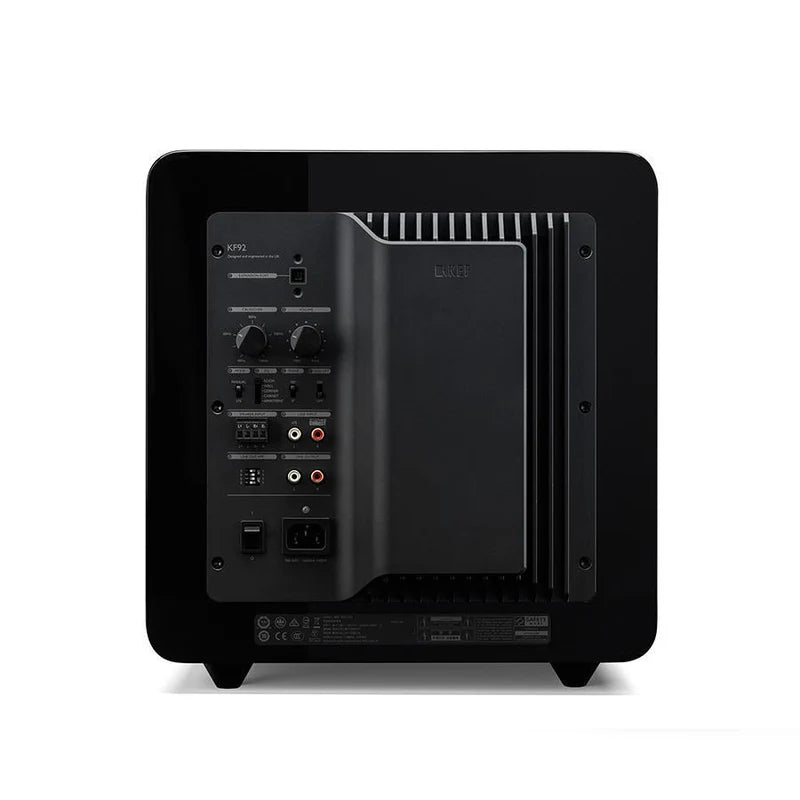

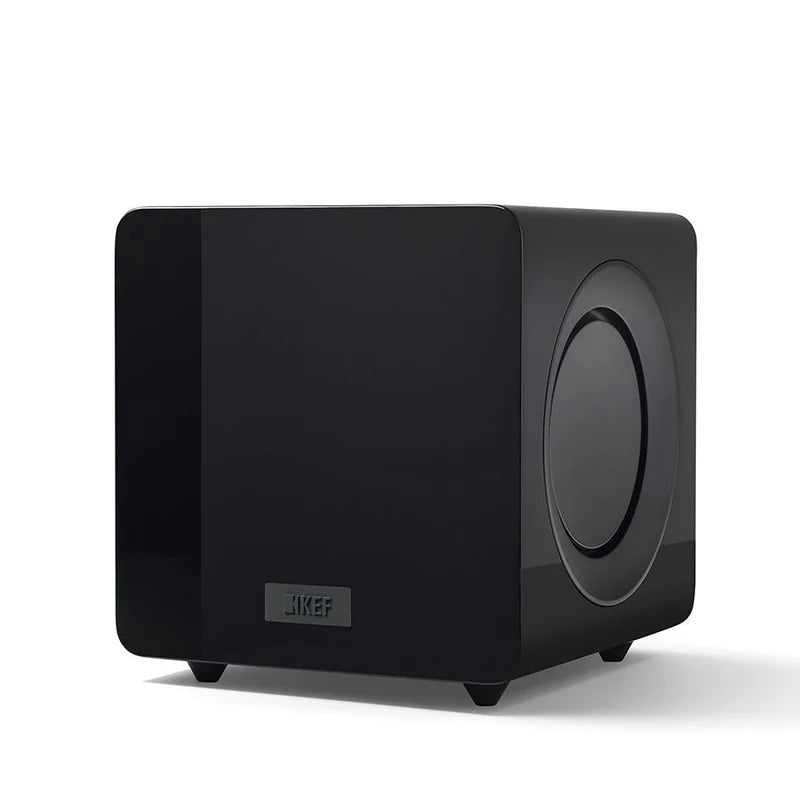

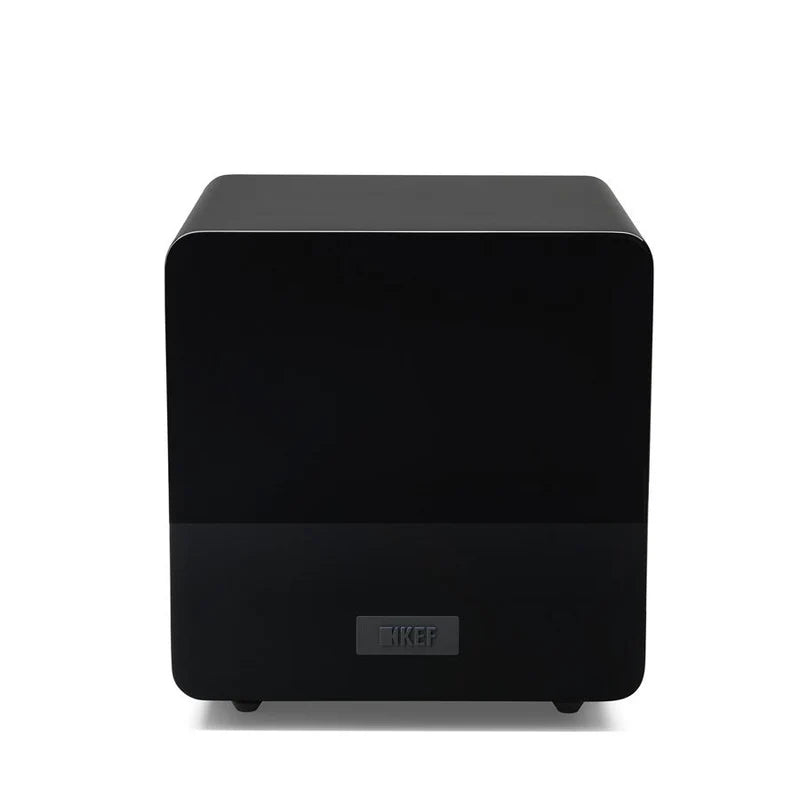

KEF KF92 Subwoofer

Twin 9-inch driver 'force-cancelling' subwoofer

KF92 is a compact, room-friendly subwoofer engineered to deepen every listening experience. Two massive 9-inch drivers in a force-cancelling configuration are powered by an immense 1000 Watts (RMS) of power. Optimised with KEF's Music Integrity Engine™, KF92 delivers astonishing levels of deep and controlled bass.

Discover The Detail In The Deep

To reproduce serious bass you need a completely different kind of loudspeaker, one which can cope with huge pressure. KF92 is engineered to blast out huge chunks of lower frequency energy, yet is subtle enough to pick out the delicate details of a double bass. KF92 ensures you don't just feel the air move - you feel the sound move you.

Perfect balance

Two 9-inch drivers are positioned back to back in a force-cancelling design which cancels out the reactive forces which stress conventional subwoofers. This configuration keeps KF92 perfectly balanced so all you'll hear is deep and clean bass at sound pressure levels of up to 110db.

Bespoke bass

Two 9-inch KEF transducers were conceived specifically for the KF92. They feature a hybrid aluminium/paper cone and an oversized motor system and voice coil. They offer vanishingly low distortion and precision, so every bass moment is uncovered even when they are working at extremes.

Music Integrity Engine

KEF's research into digital sound processing - Music Integrity Engine - is the brains behind KF92. Intelligent Bass Extension optimises the relationship between the amplifier, drivers and cabinet, while placement-dependant EQ allows for seamless integration into any room.

Turn up the power

KF92’s 1000W (RMS) of Class D amplification (500W RMS per driver) creates immense power., delivering incredible levels of control. This improves timing accuracy and dynamic response, producing a more detailed sound closer to that in the studio.

More bass, less space

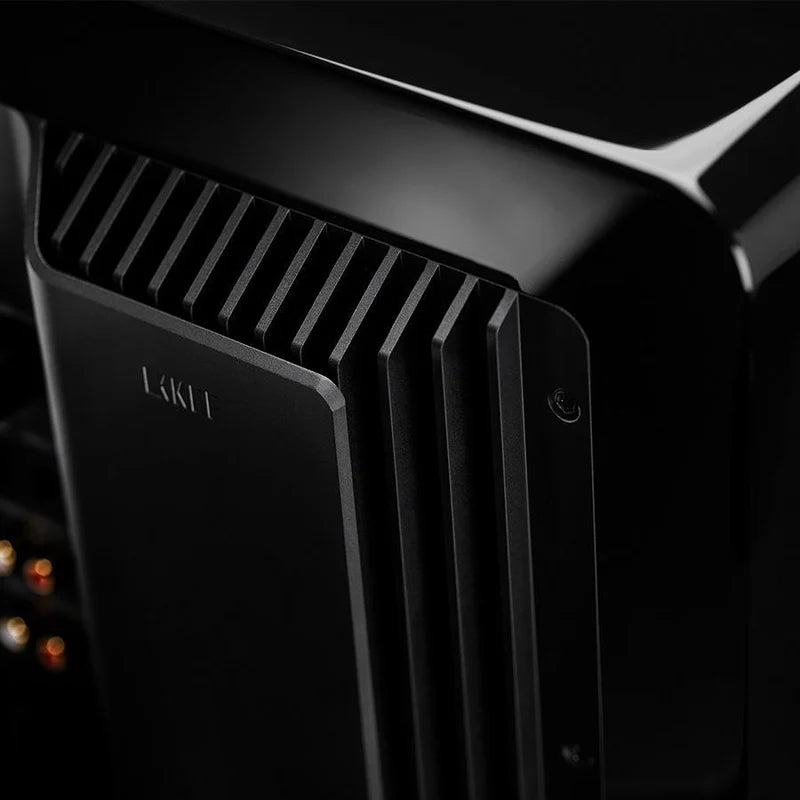

The compact, sealed box construction improves flexibility of positioning as well as the speed and clarity of performance. The beautiful low profile heatsink ensures that the hard working electronics are kept in an optimum thermal condition.


Dimension (H x W x D) With Rear Panel and Feet 352.5 x 330 x 360.5mm
Weight 20 Kg
Design Force cancellation
Drive Units 2x9" drivers
Variable Low Pass Filter 40Hz – 140Hz, LFE
Input RCA phono sockets, Speaker level inputs
Power Consumption 1000W
Power Requirements 100-240 V, 50/60 Hz
Maximum Output 110dB
Frequency Response (-3db) 11Hz - 200Hz
Amplifier Type Built-in Class D
Amplifier Power 1000W RMS (2 x 500W RMS)
