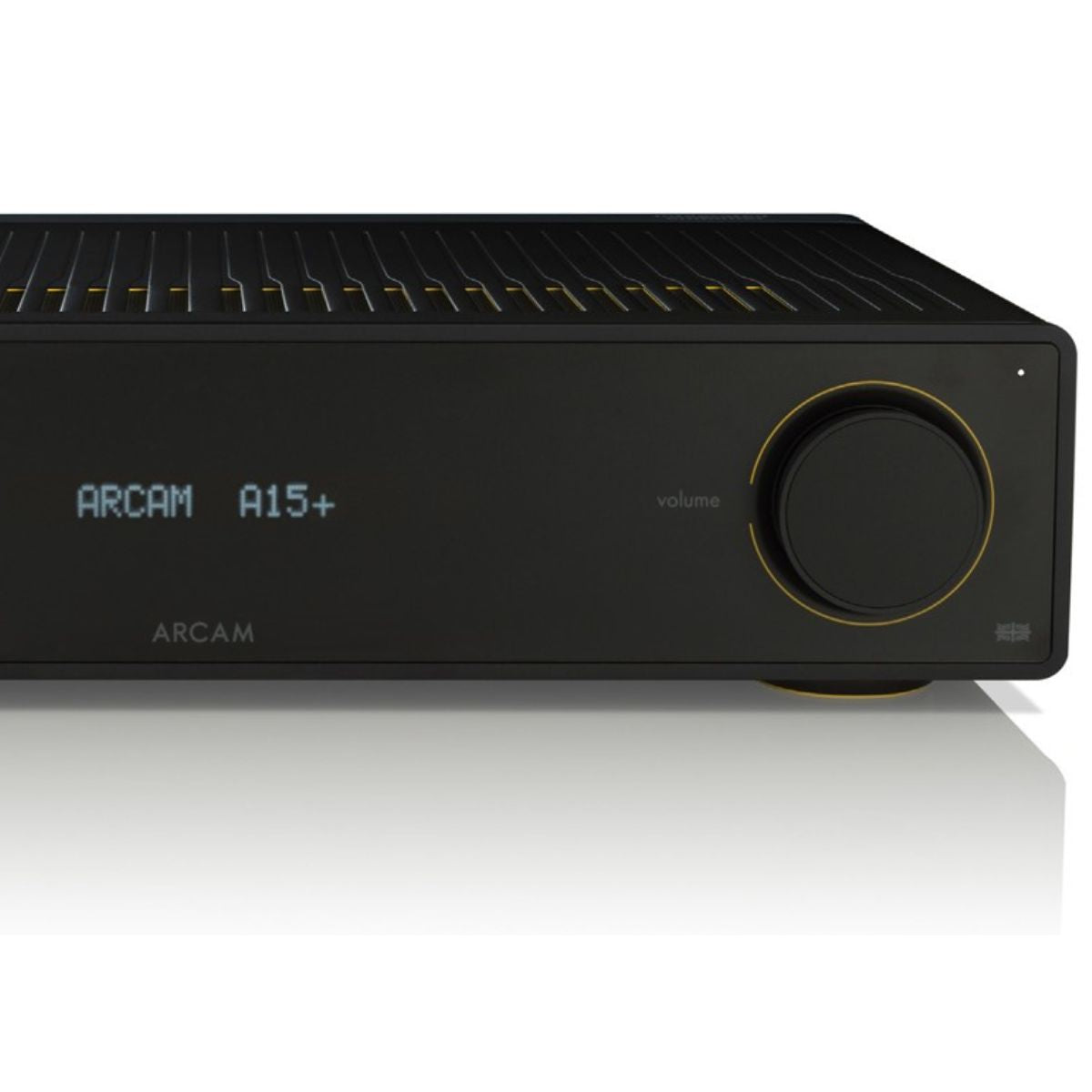

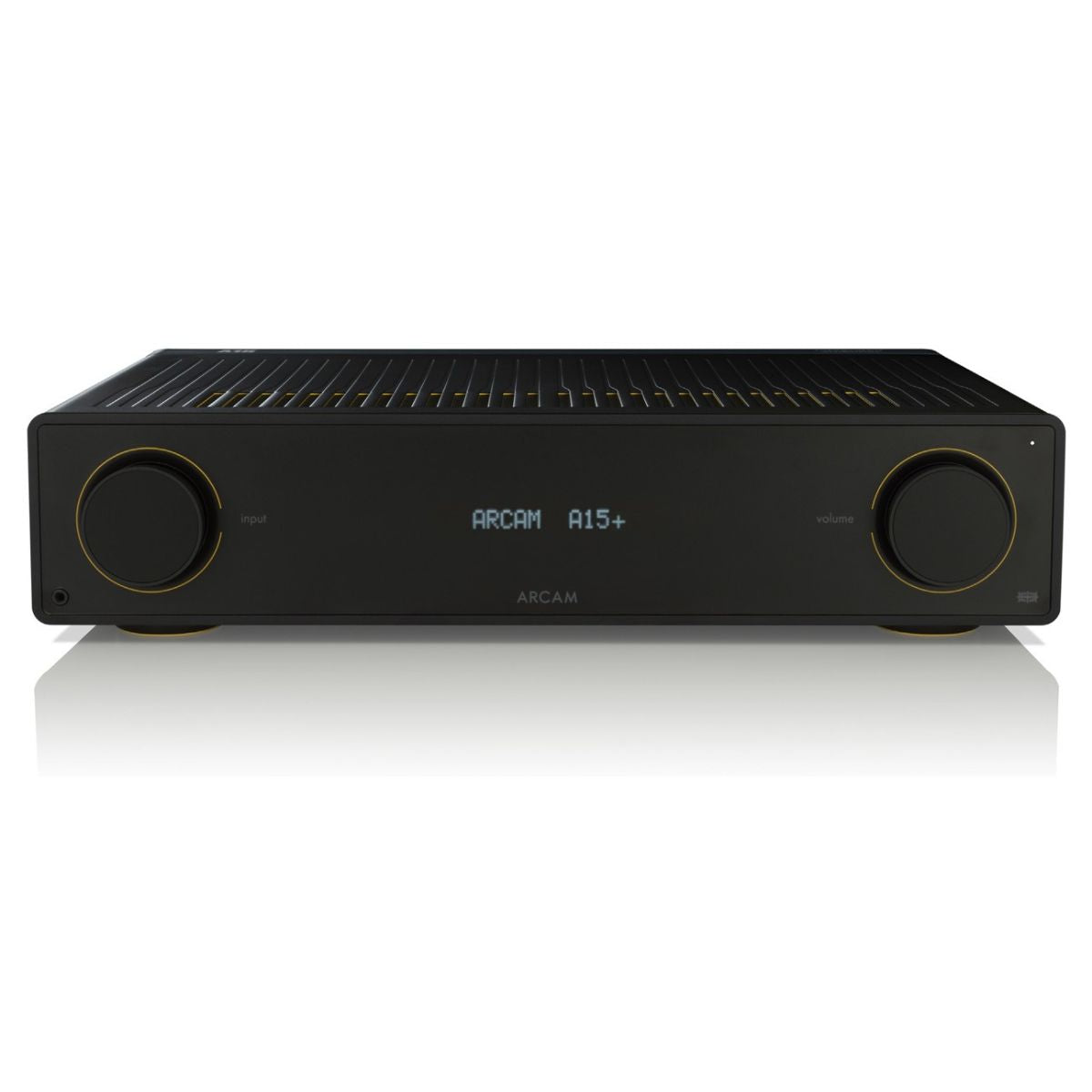

Arcam A15+ Integrated Amplifier
With a wide array of analogue inputs, including a meticulously tuned phono stage, and digital inputs including HDMI eARC, the A15+ provides an impact for everything from vinyl to TV.
The A15+ features an enhanced power supply design and cutting edge wireless capabilities straight out of the box. Snapdragon Sound delivers uncompressed digital audio via Bluetooth, while Auracast enables multiple compatible headphones or speakers to
share music wirelessly, with no pairing required.
- Wireless audio with Bluetooth 5.4
- Featuring Snapdragon Sound for wireless lossless audio
- Featuring Auracast for connecting wireless headphones or speakers to play music in multiple spaces.
- HDMI eARC input
- Hi-res audio ESS ES9018 DAC
- Meticulously tuned phono stage
- Class AB amplification
- 2x 80 Watts (8Ω) Power Output
- Compact remote control
- Solid aluminium dials
- Aluminium front, top, sides and rear panels
Specification
Continuous power output (0.5% THD) 2 channels driven
8Ω, 20Hz ‑ 20kHz 80W
4Ω, 1kHz, 120W
Harmonic distortion, 80% power, 8Ω at 1kHz 0.002%
Analogue Inputs
Number of inputs 3 (RCA pairs)
Signal/noise ratio (A‑wtd, ref. 50W, 1V input) 106dB
Frequency response 20Hz—20kHz ± 0.2dB
Phono (MM) Input
Input impedance 47kΩ + 100pF
Frequency response (ref. RIAA curve) 20Hz—20kHz ± 1dB
Digital Inputs
Supported Sample Rates (kHz) 192, 176.4, 96, 88.2, 48, 44.1
Bit depths (bit) 24, 16
Frequency response (filter 1) 20Hz—20kHz ± 0.2dB
Signal/noise ratio (A‑wtd, ref. 50W, 0dBFS) 109dB
Headphone Output
Maximum output level (RMS) into 32Ω/300Ω 2.5V/5V
Load range 16Ω ‑ 2kΩ
Wireless Specifications
Bluetooth Version 5.4; A2DP Sink/Source, AVRCP, BLE, Snapdragon Sound,
AAC, LE Audio, Auracast
Bluetooth Transmitter Frequency and Power 2,400 MHz to 2,483.5 MHz: <20dBm
General
Mains voltage 100V or 110–120V or 220–240V, 50–60Hz
Power consumption (maximum) 500W
Power consumption (standby) <0.5W
Dimensions W x D (including speaker terminals) x H (including feet) 431 x 344 x 98mm
Weight (net) 10 kg
Weight (packed) 13kg
Supplied accessories Mains lead(s)
Remote control with 2 x AAA batteries
Quick Start Guide
Important Safety Instructions
