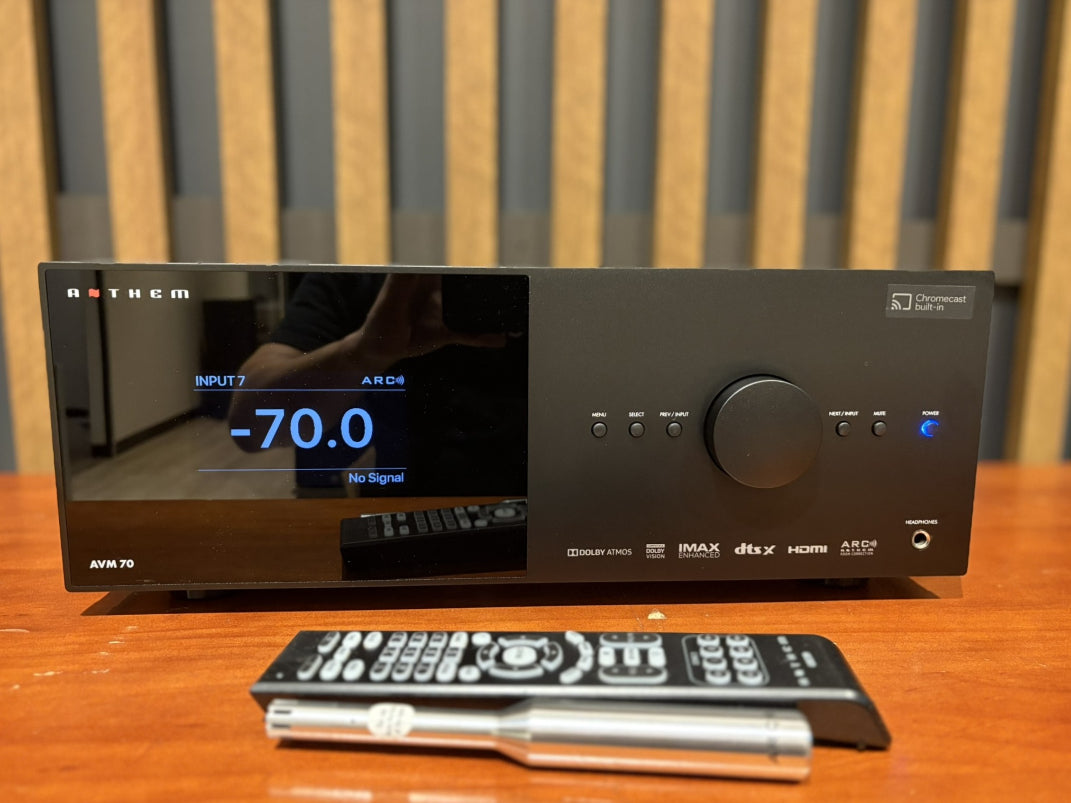

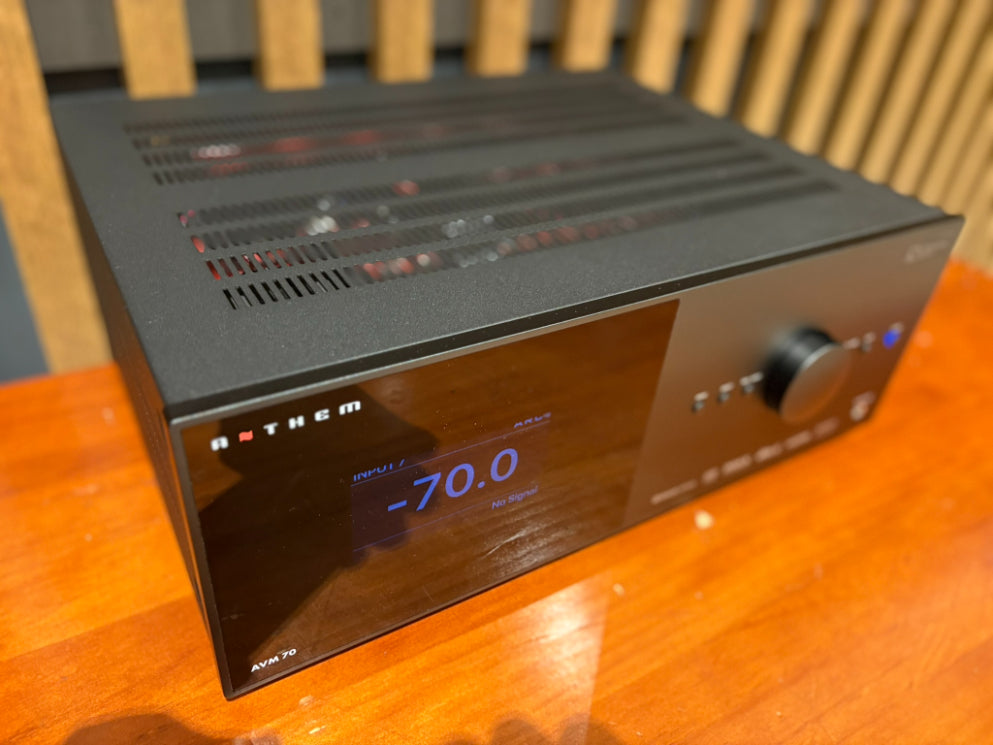

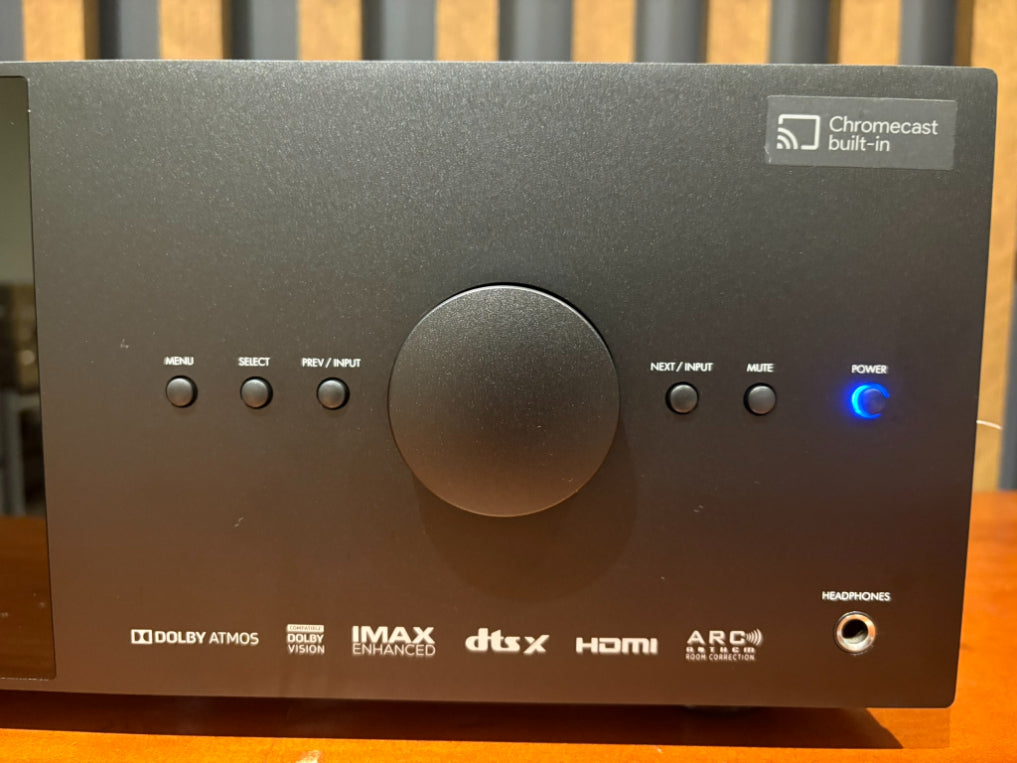

Anthem AVM70 8K 15.2Ch Pre-Amplifier / Processor - As Traded

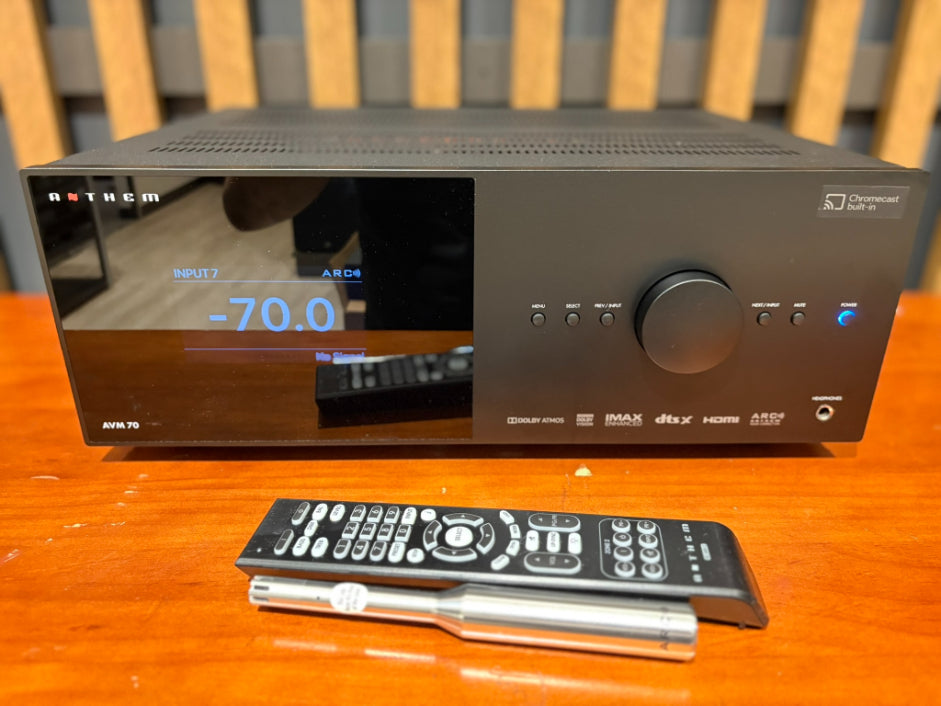

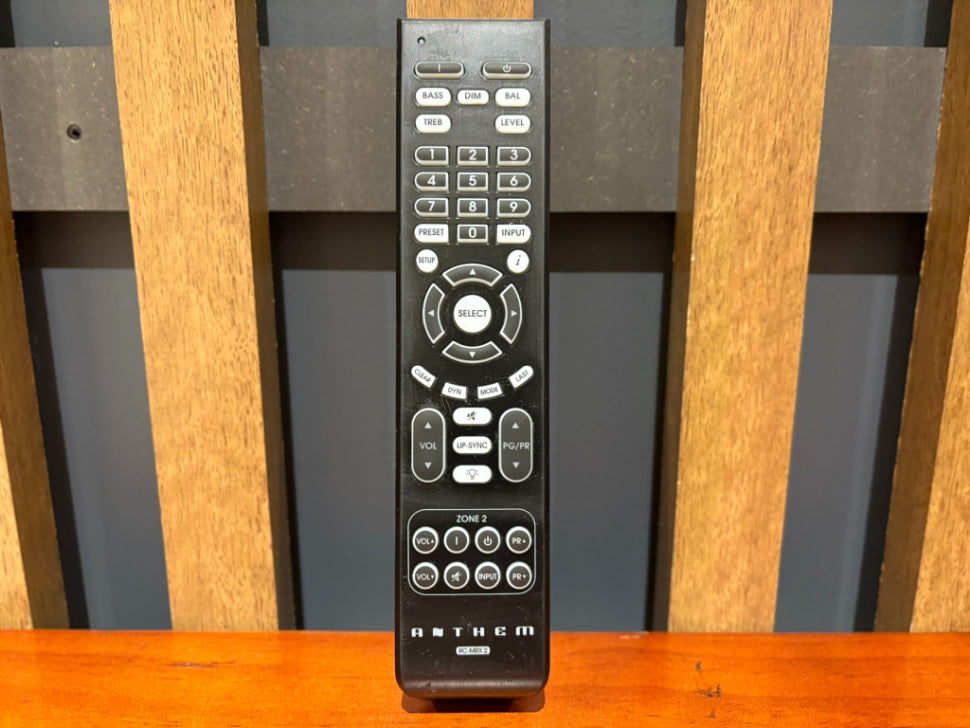

Condition: Very good, some scratches on remote (see photos)

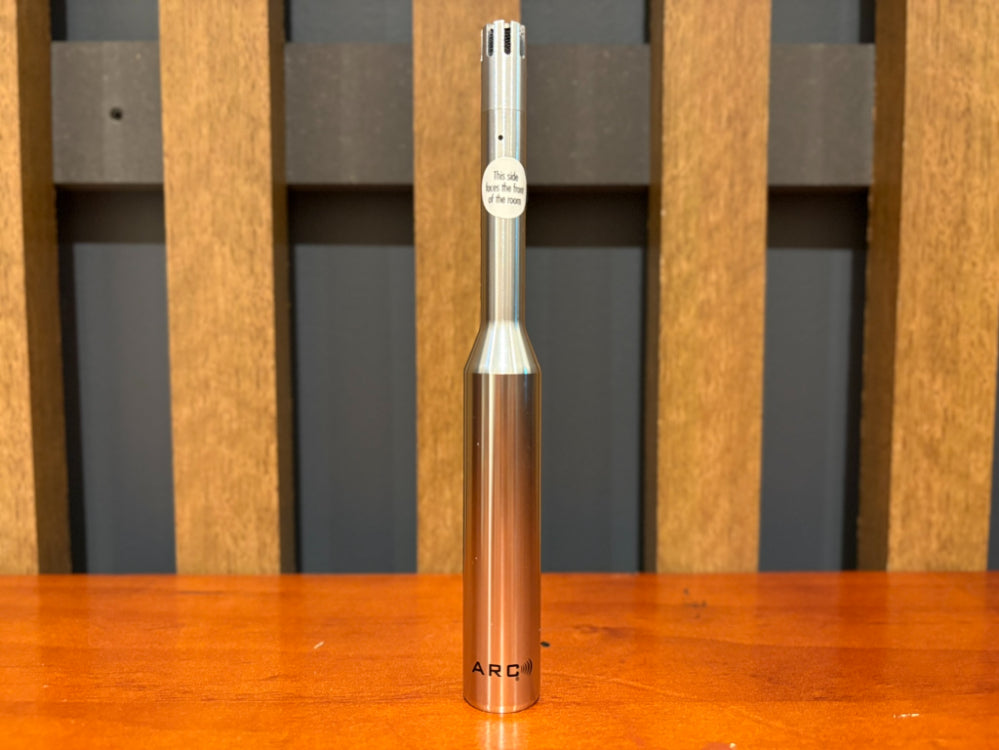

Includes: Remote, Calibration Mic, Power Cable (No Box, No Mic Stand)
SN: ALP2A00370N201
Overview
Those on the hunt for a dedicated AV multichannel preamplifier processor will no doubt be aware of Anthem's AVM range. Anthem's receivers are a step up from the likes of Denon, Marantz and Yamaha and the AVM70 is no exception in the pre-pro world, although it is narrower market. Providing a higher level of clarity and detail and cleaner object-tracking for Atmos and DTS-X formats, the AVM70 is a trustworthy and reliable heart of your home cinema audio.
With the latest version of ARC Genesis Room Correction, a redesigned and more accurate calibration microphone, Anthem Web User Interface, an all-new electronics platform and a new modernized design; the new AVM A/V Processors bring all of today’s technologies into a single component.
Object-oriented audio codecs have been updated with support for up to 15.2 channels; as well as built-in streaming support for Apple AirPlay2, Google Chromecast, Bluetooth, and Spotify Connect.

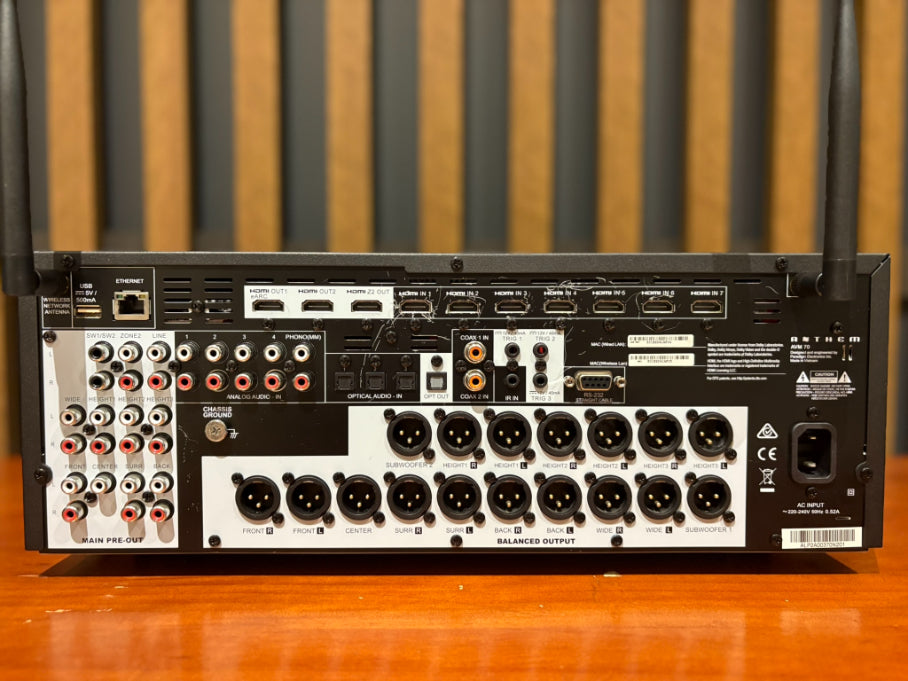

Video support includes 7 HDMI 2.0 inputs with 2 outputs, plus eARC for seamless integration with smart TVs. Perfect passthrough of Ultra HD signals at up to 18.2 Gbps with Dolby Vision, HDR or Hybrid Log Gamma ensures optimal presentation of your visual media.
Specification
Preamplifier (measured at XLR output)
Maximum Output (<0.01% THD) 10.7 VRMS, Subwoofer 11 VRMS
Frequency Response 20 Hz — 35 kHz (+/-0.2dB)
Frequency Response, Analog-Direct 20 Hz — 80 kHz (+0, -2 dB)
THD+N (4 Vrms output) -100 dB
S/N Ratio (4 Vrms output, IEC-A filter) 110 dB

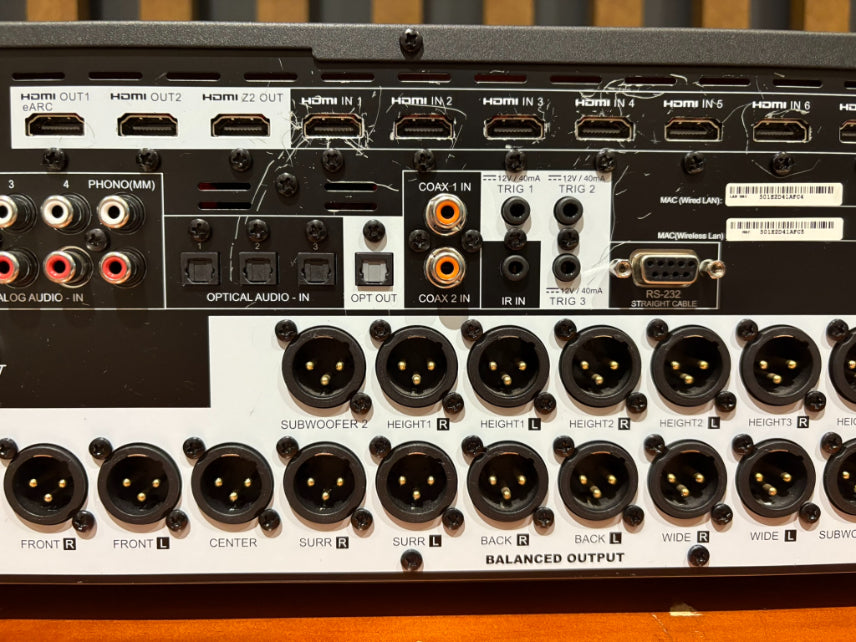

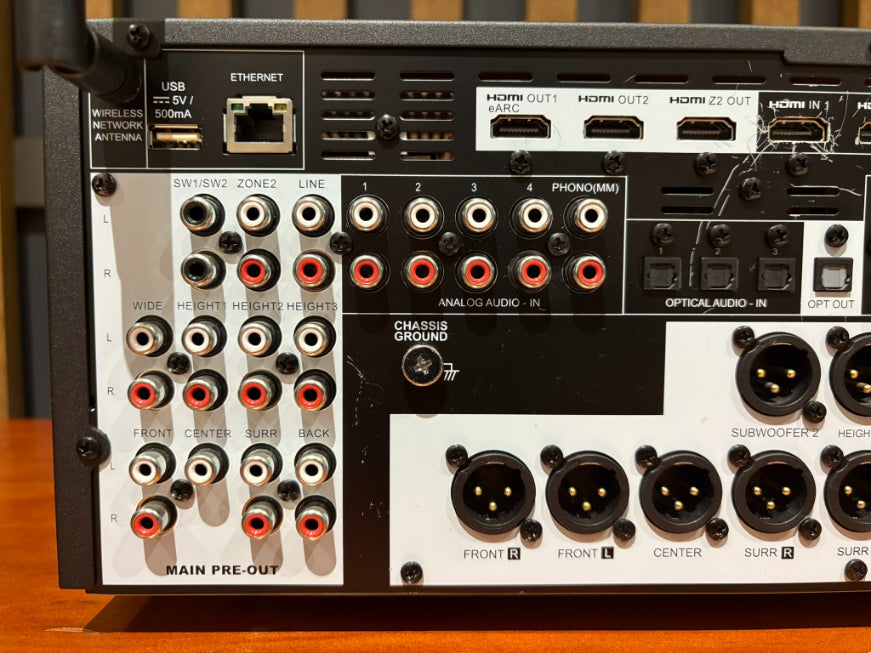

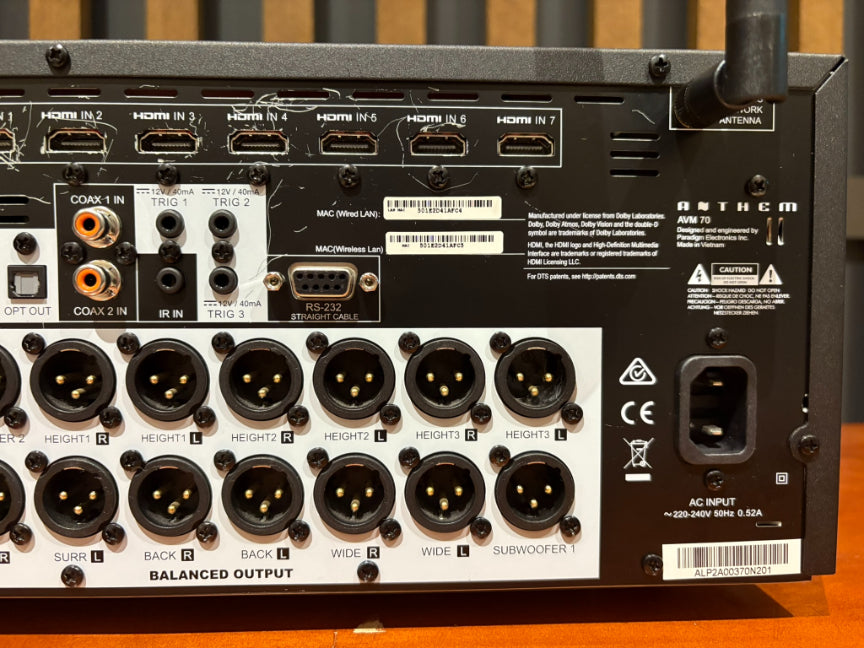

XLR Configuration Pin 1: Ground, Pin 2: Positive, Pin 3: Negative
Power Consumption
Typical Load 60 W
Standby 0.3 W
Standby IP Control Enabled 1.8 W
Standby HDMI Bypass Enabled 4.9 W
Dimensions
Height (without feet) 15.24 cm
Height with Rackmount Kit 4U
Width 43.18 cm
Depth (including wifi ant not power cord) 36.4 cm
Weight 10.1 Kg
