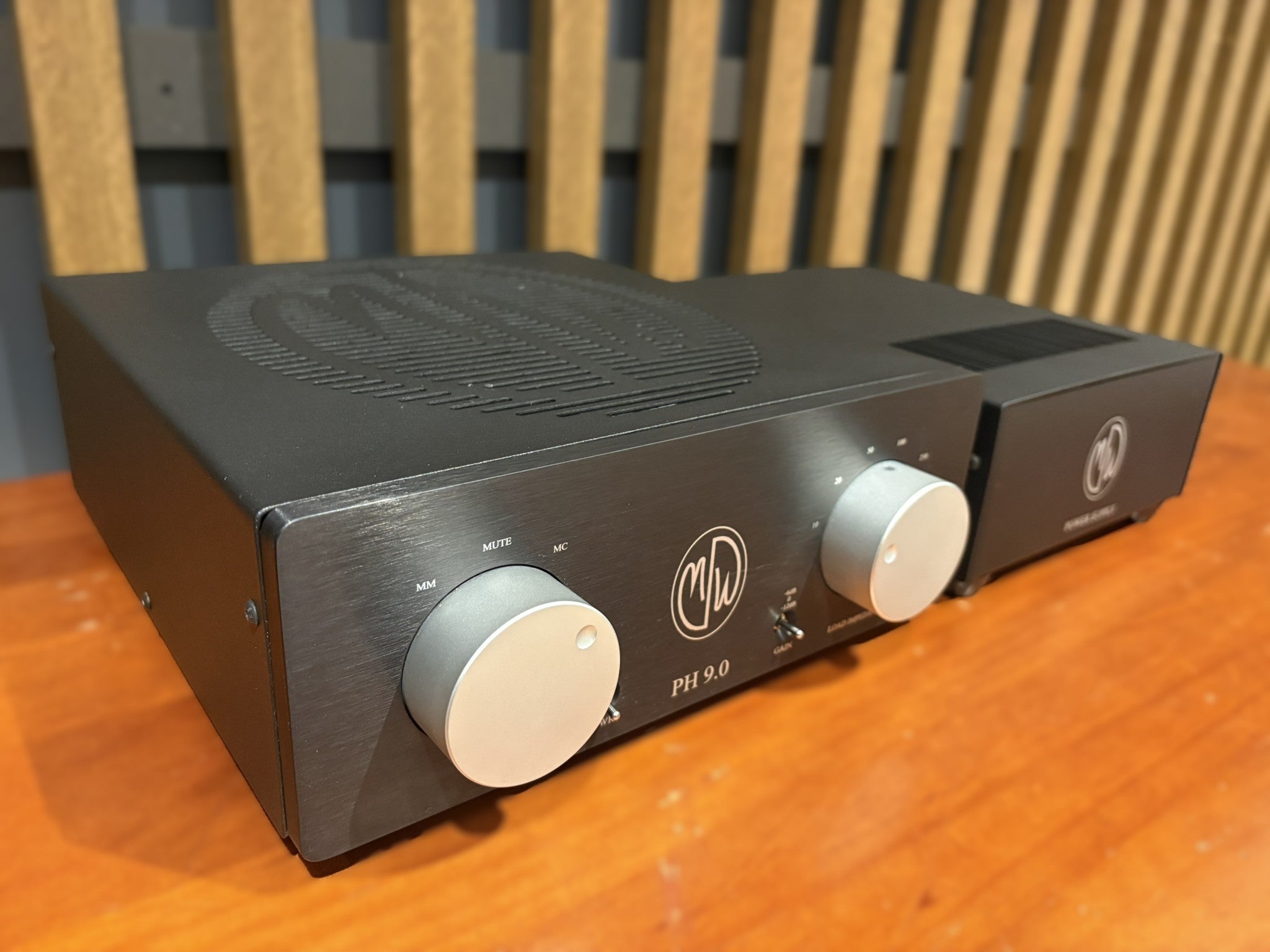

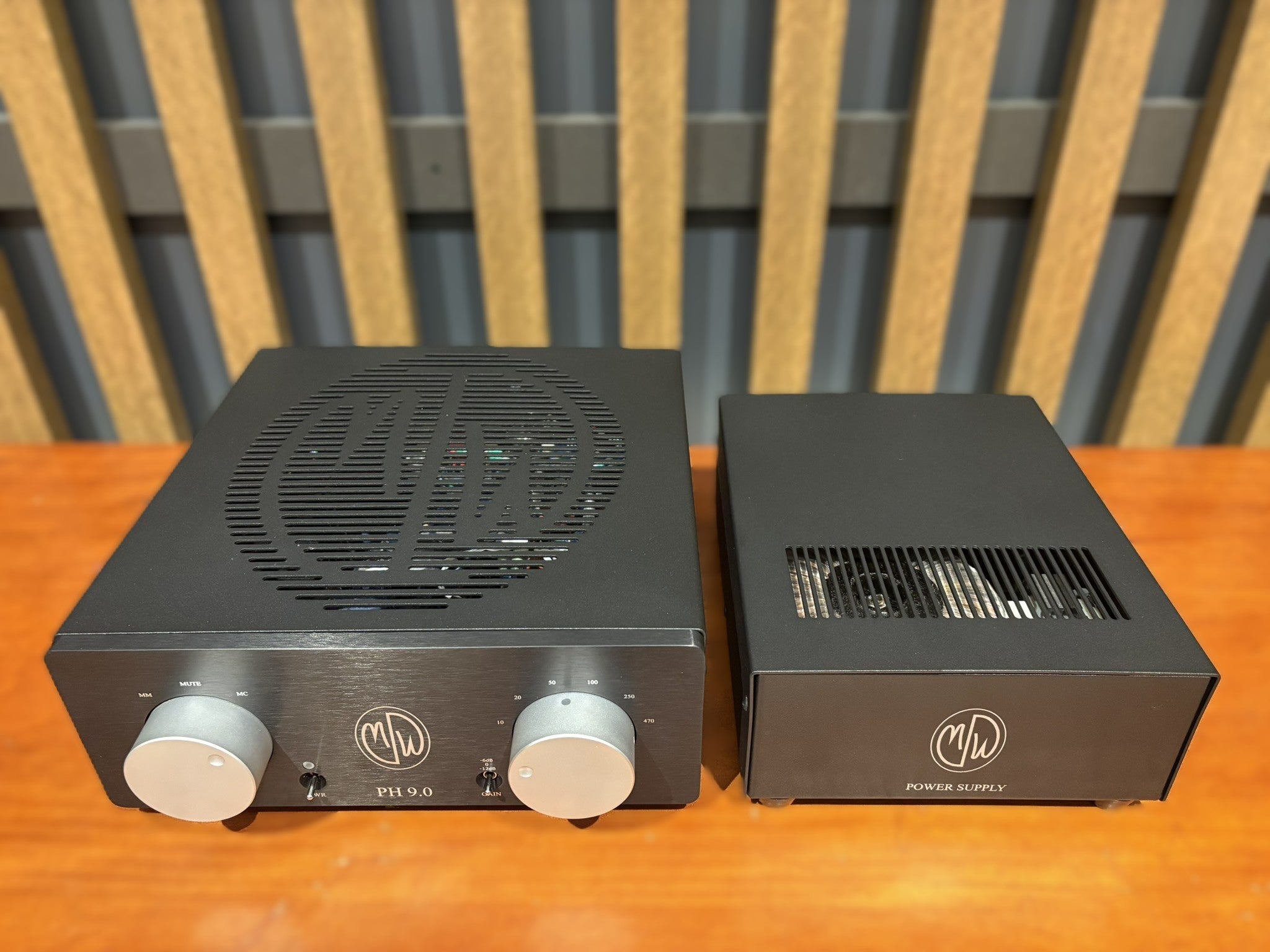

Modwright PH 9.0 Tube Phonostage - As Traded

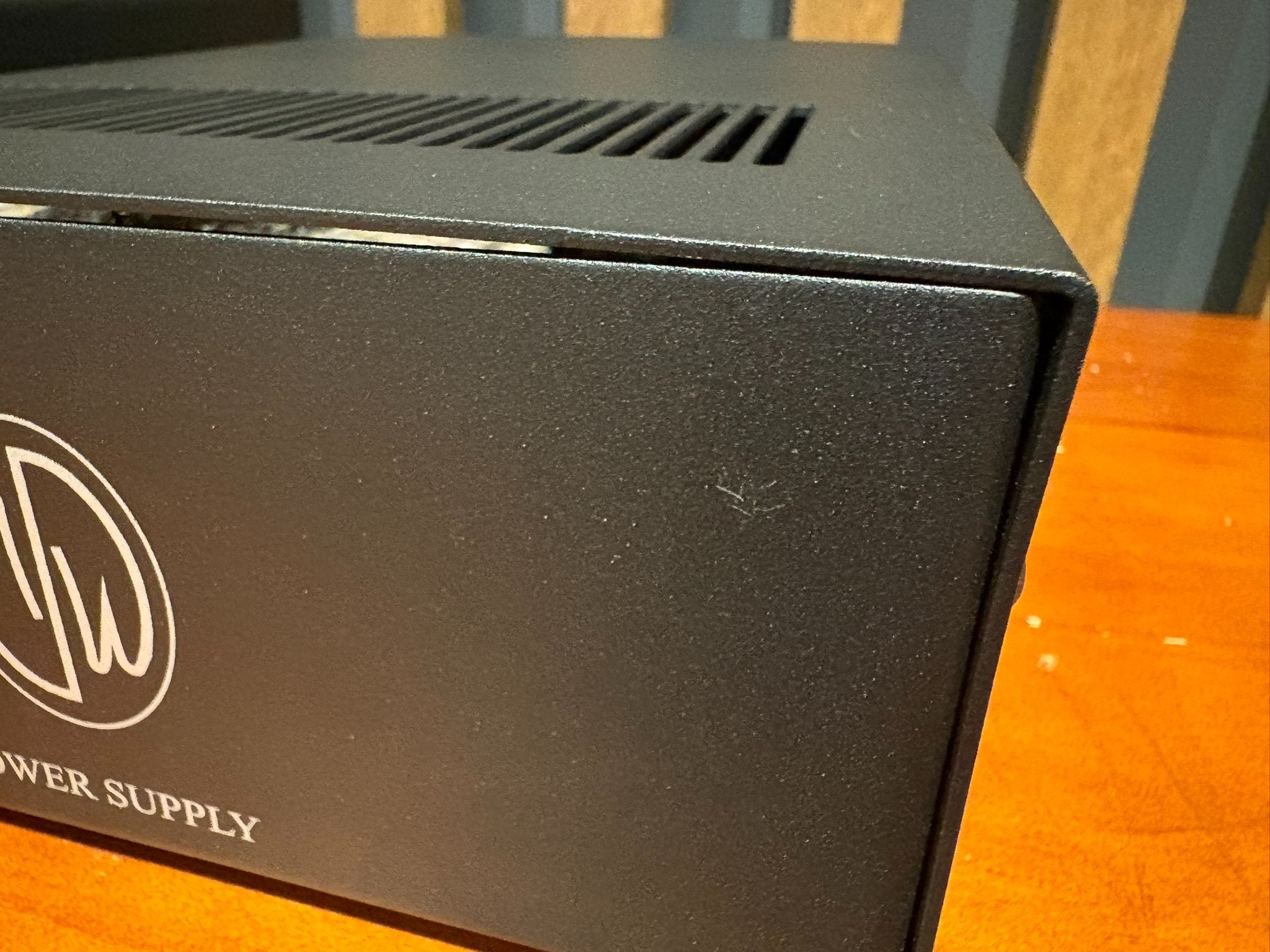

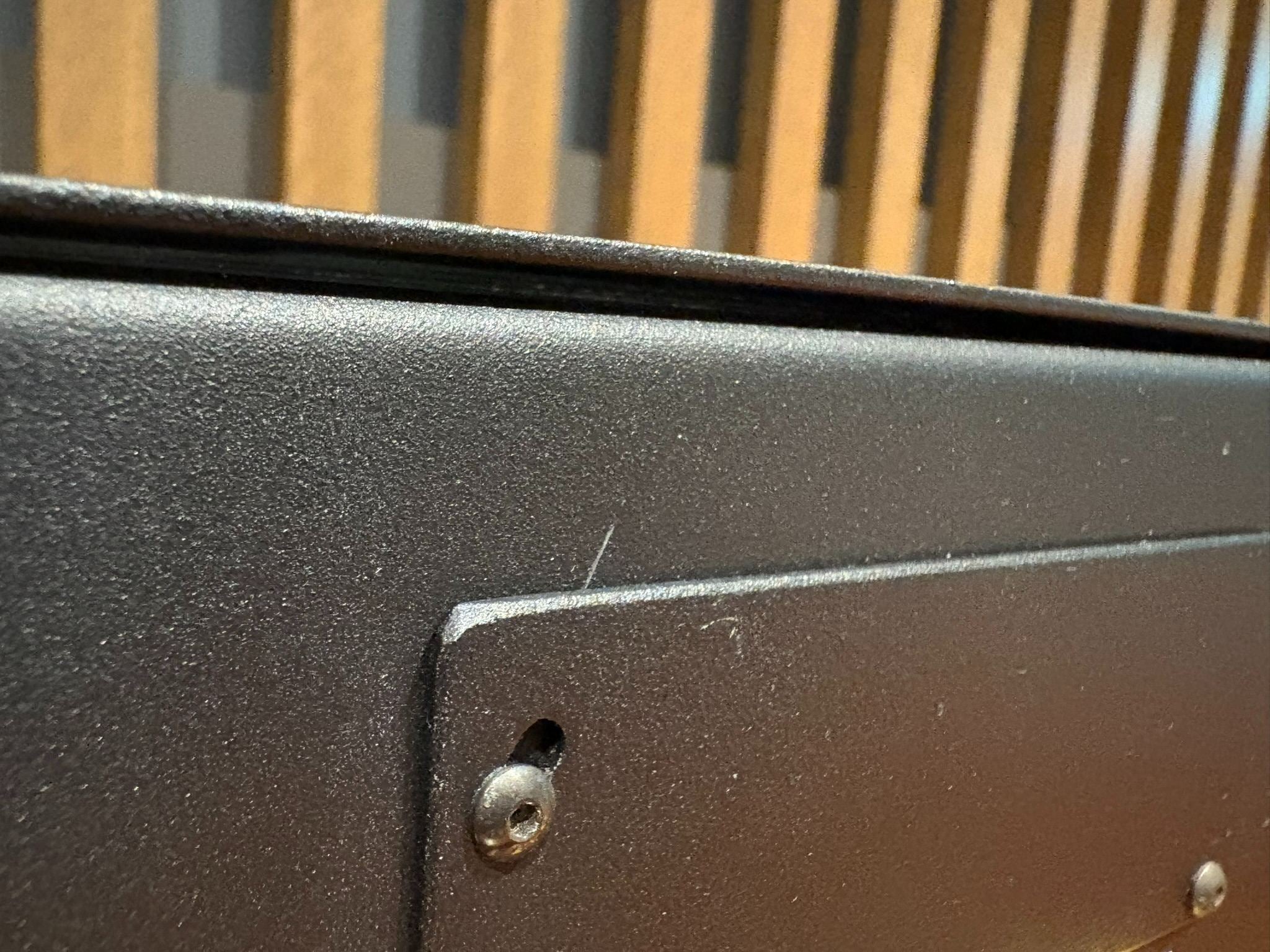

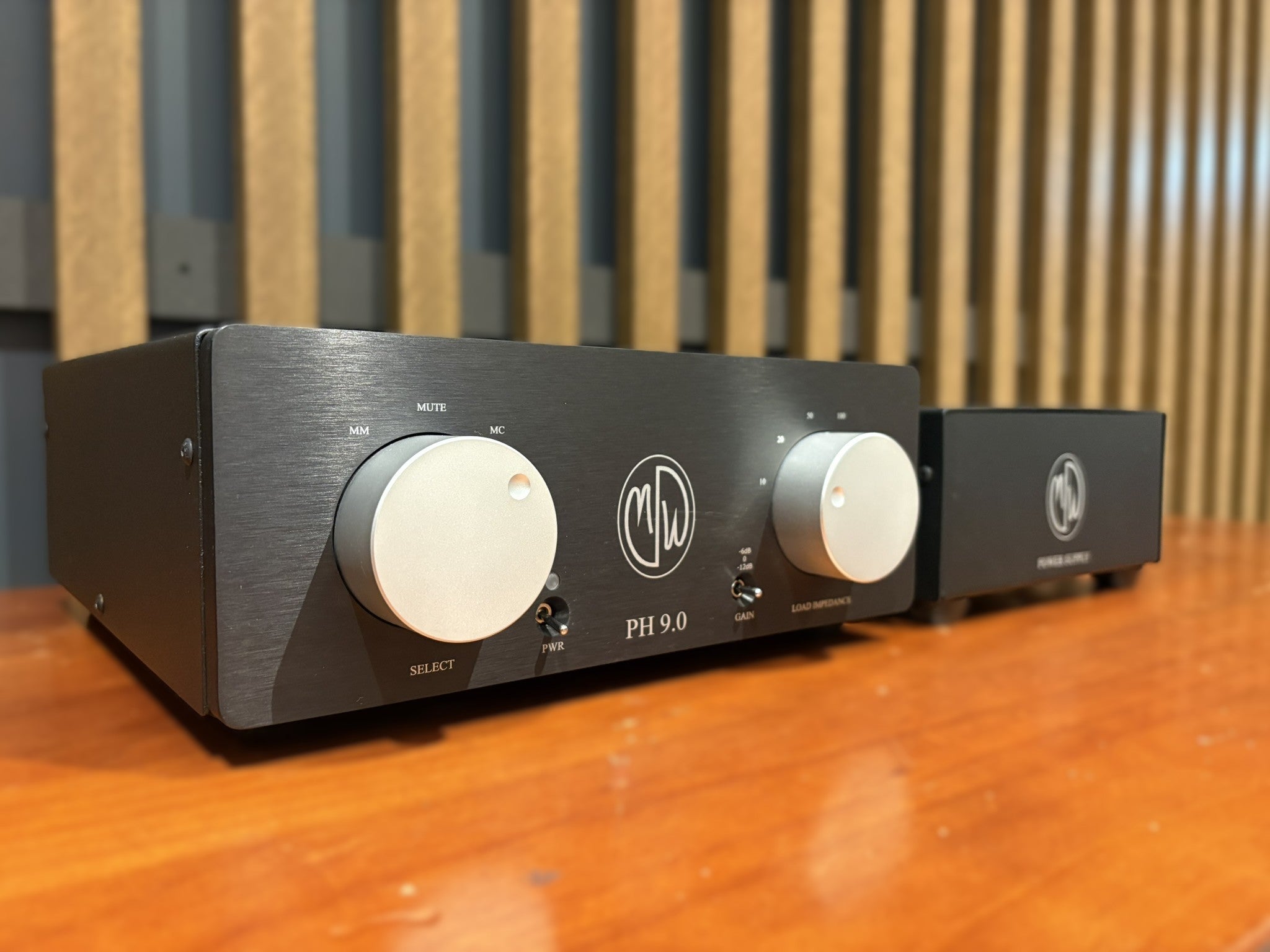

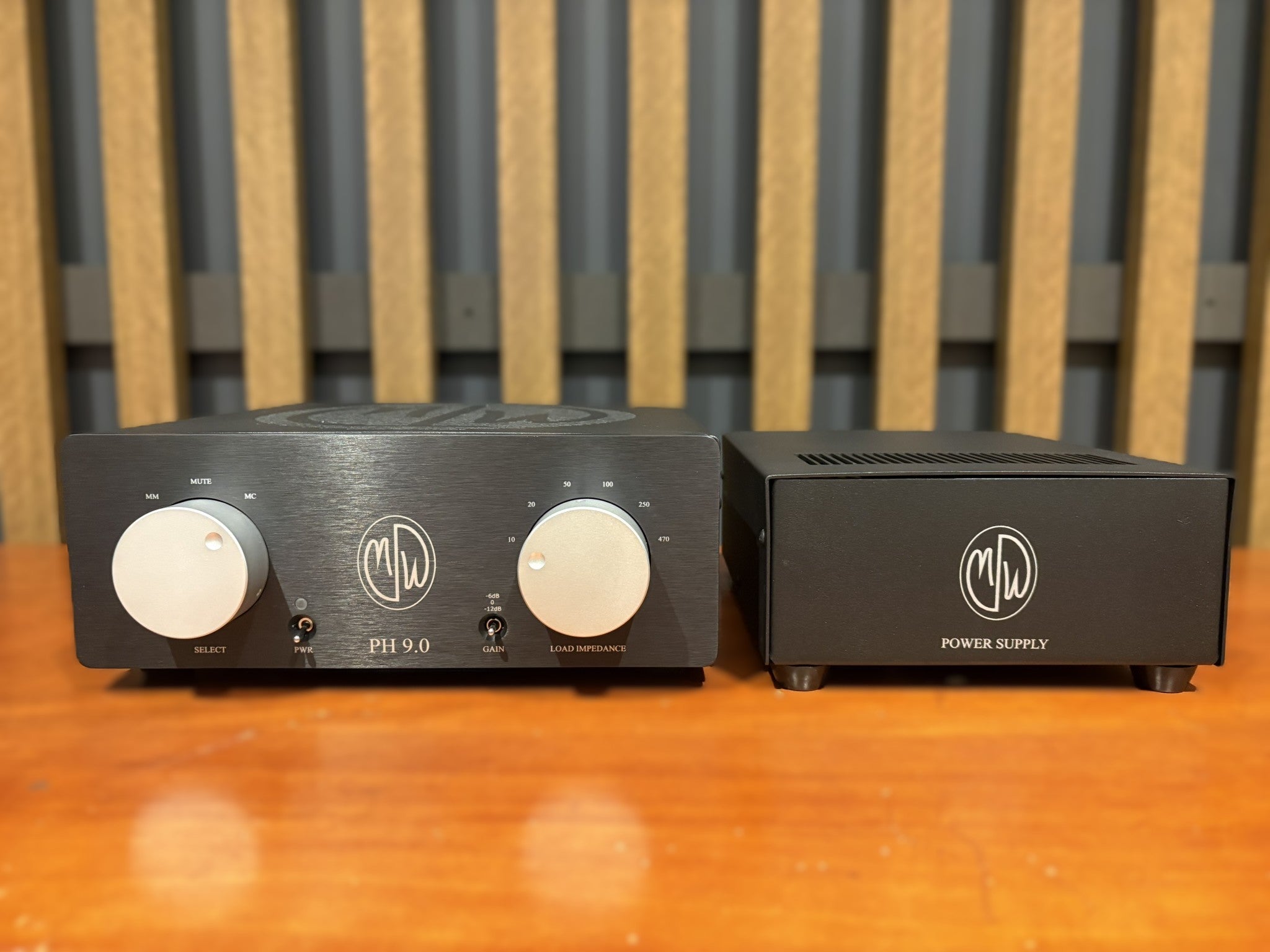

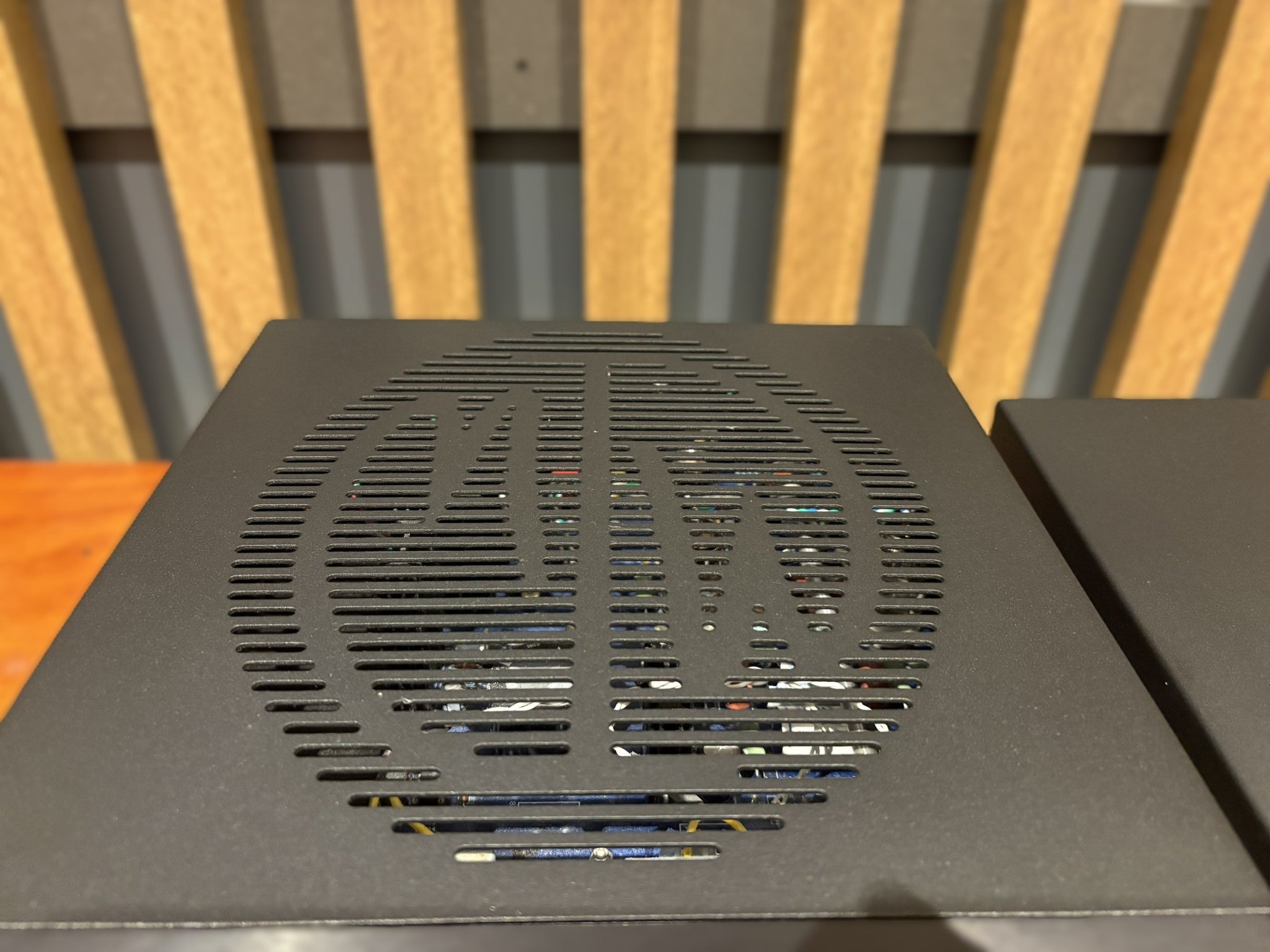

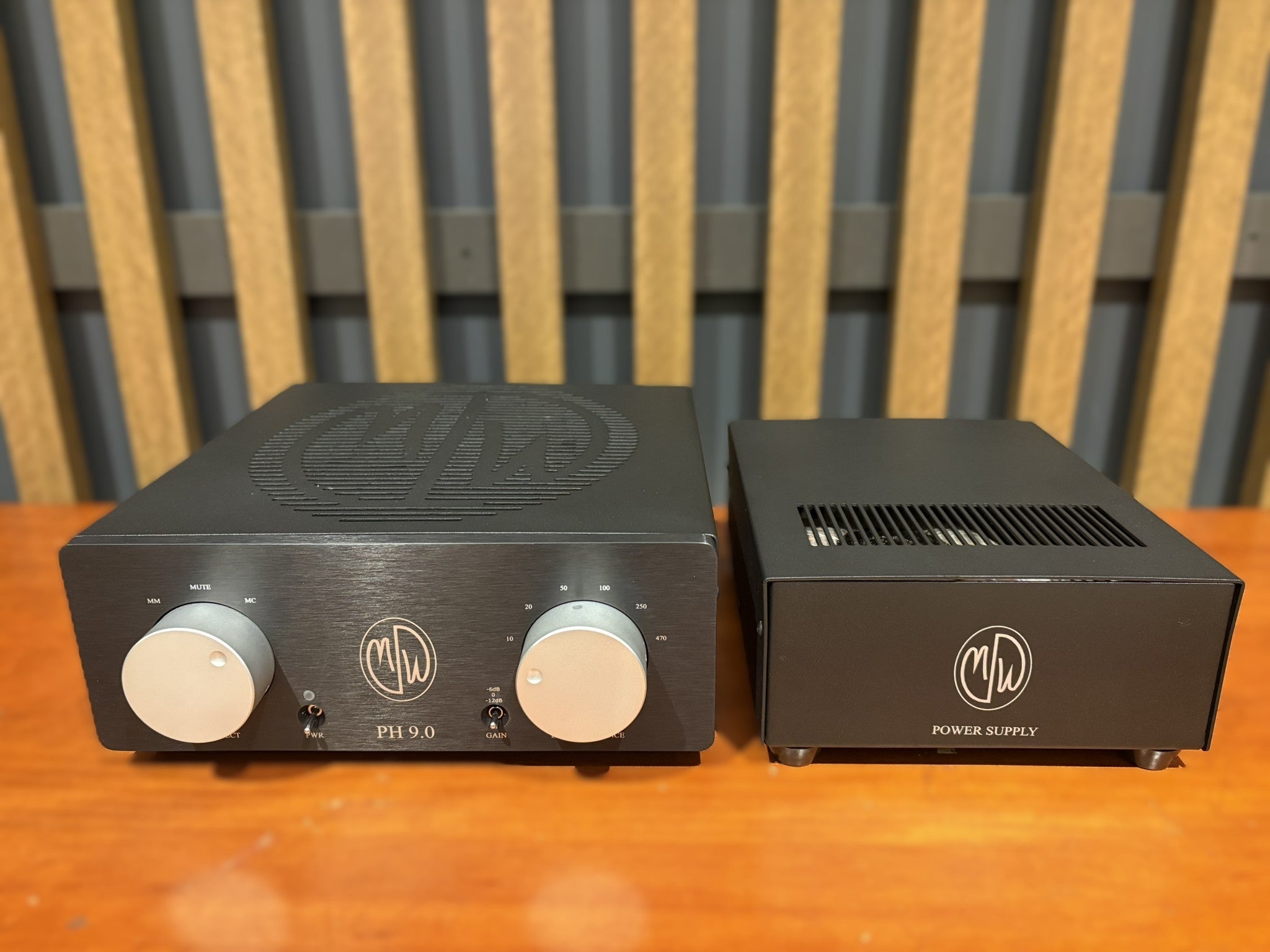

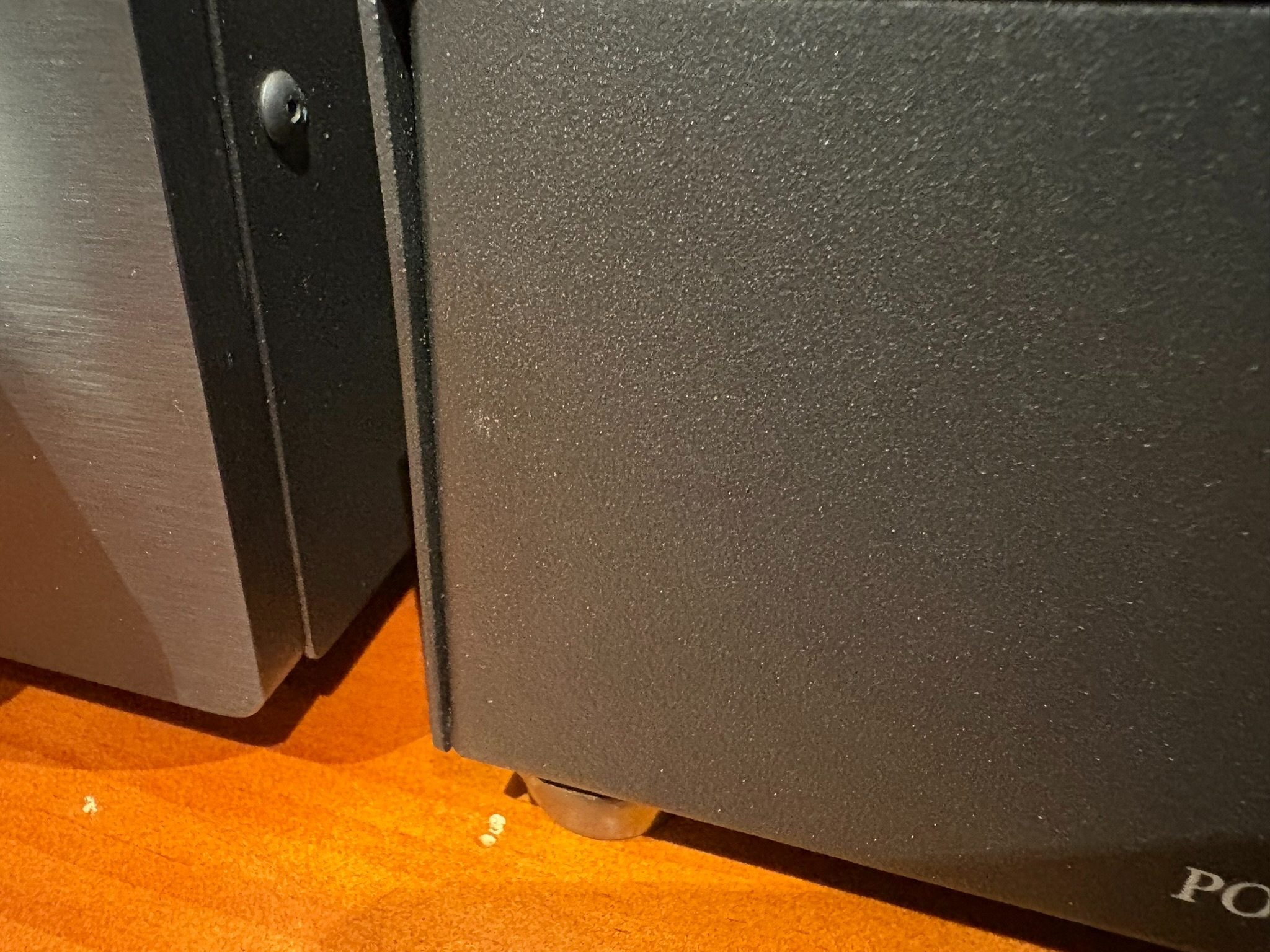

Condition: Used. Good, some scratches (See photos)

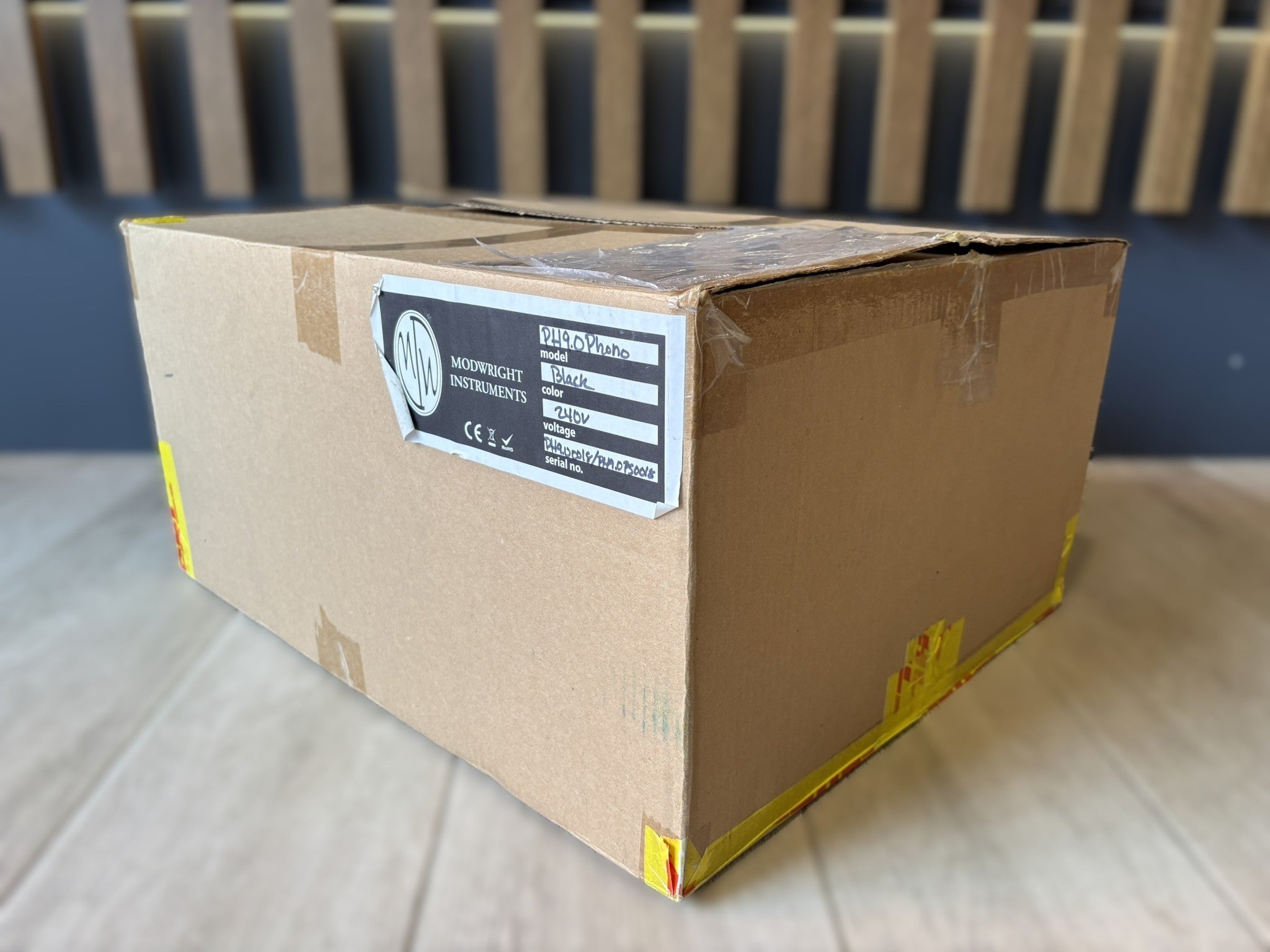

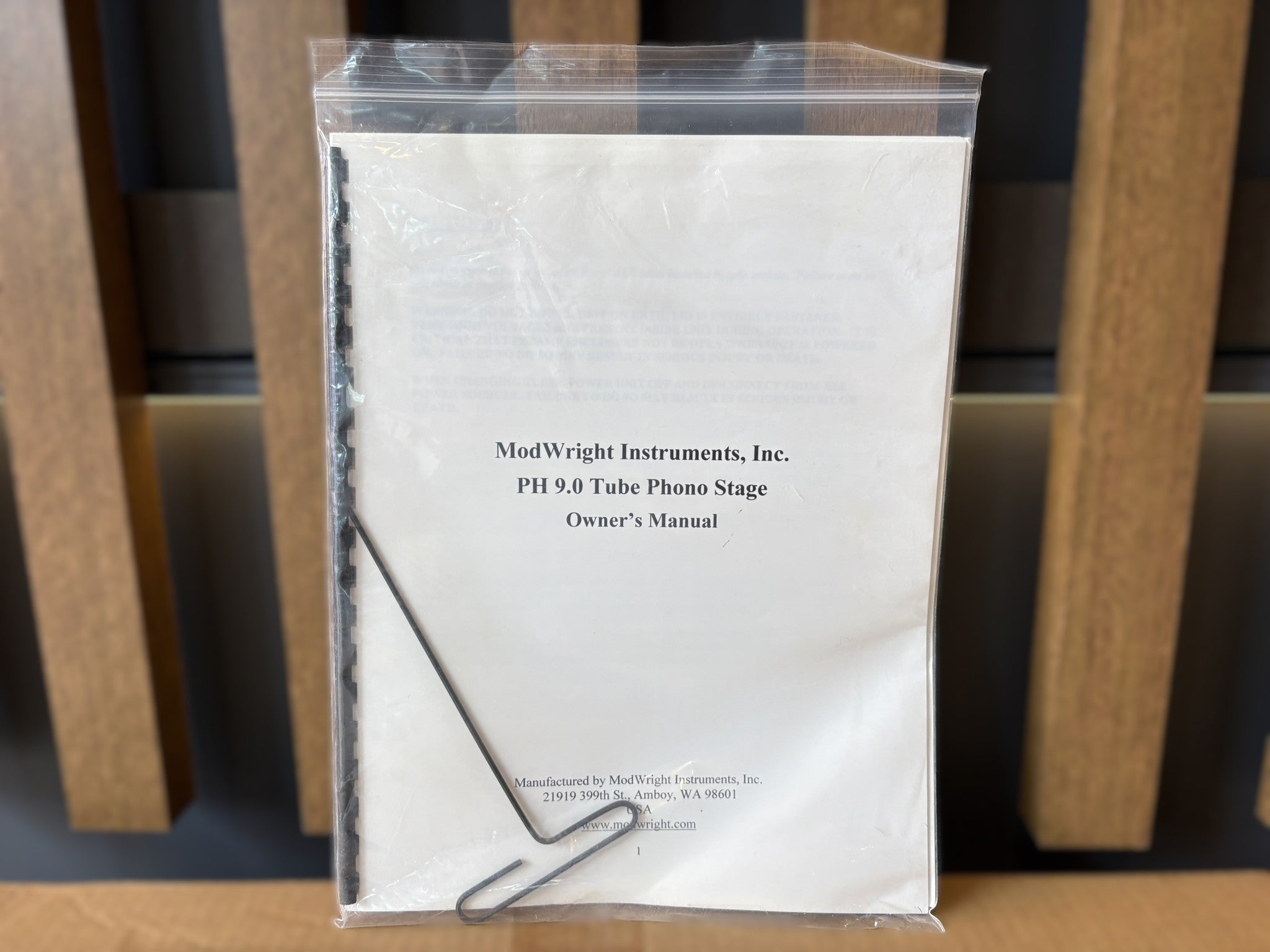

Includes: Original Box, Manual, Tool, Power Cable
SN: 00018
Warranty: 90 days (3 months)
Overview
ModWright's PH9.0 tube phonostage offer facility for both MM and MC cartridges, with on-the-fly loading and attenuation controls for fine tuning.
Lundahl MC step-up transformers are managed by a compact external power supply.
The vacuum tube compliment is 2 x 6C45, and 2 x 6922/6dj8/7308.

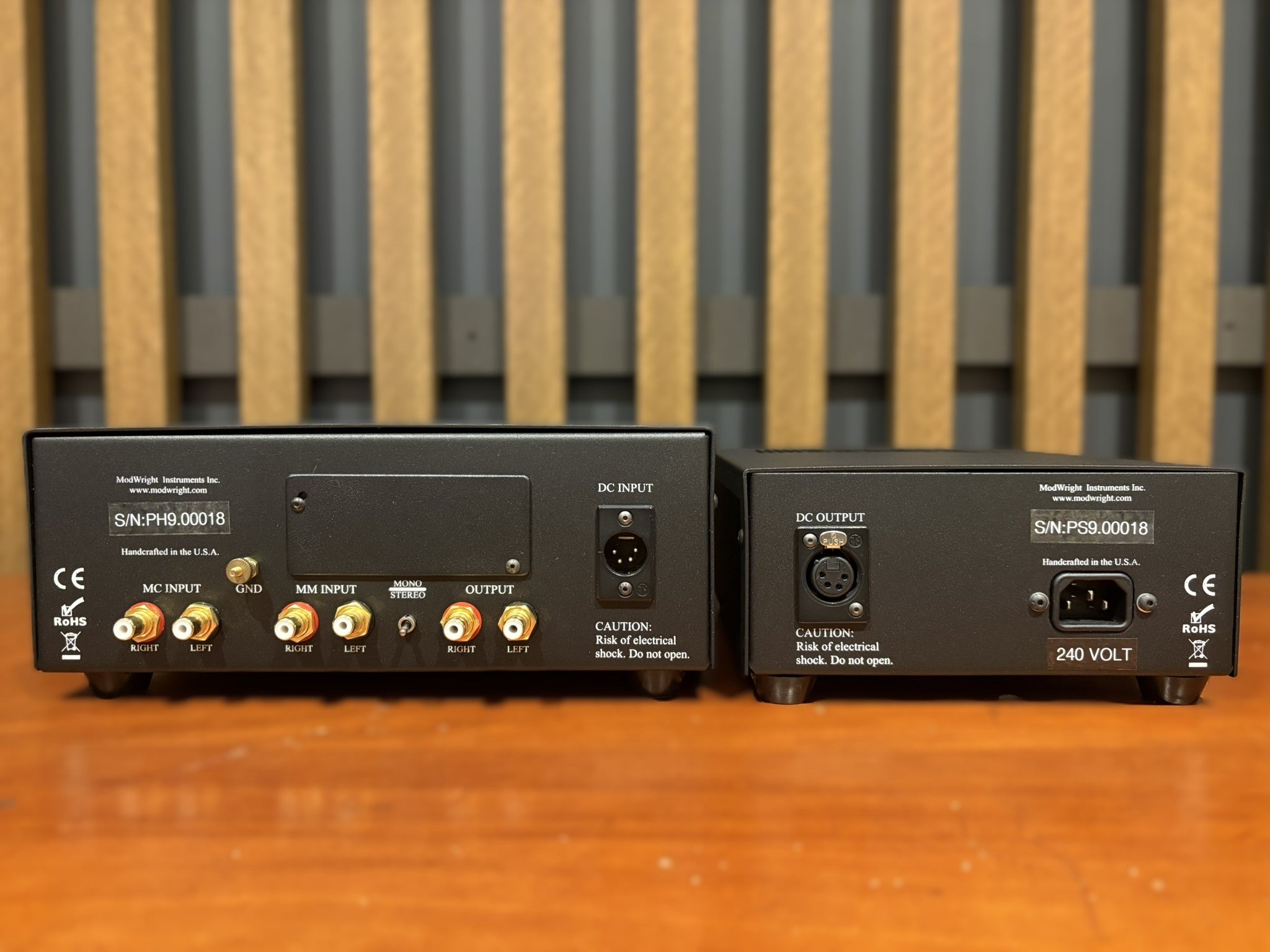

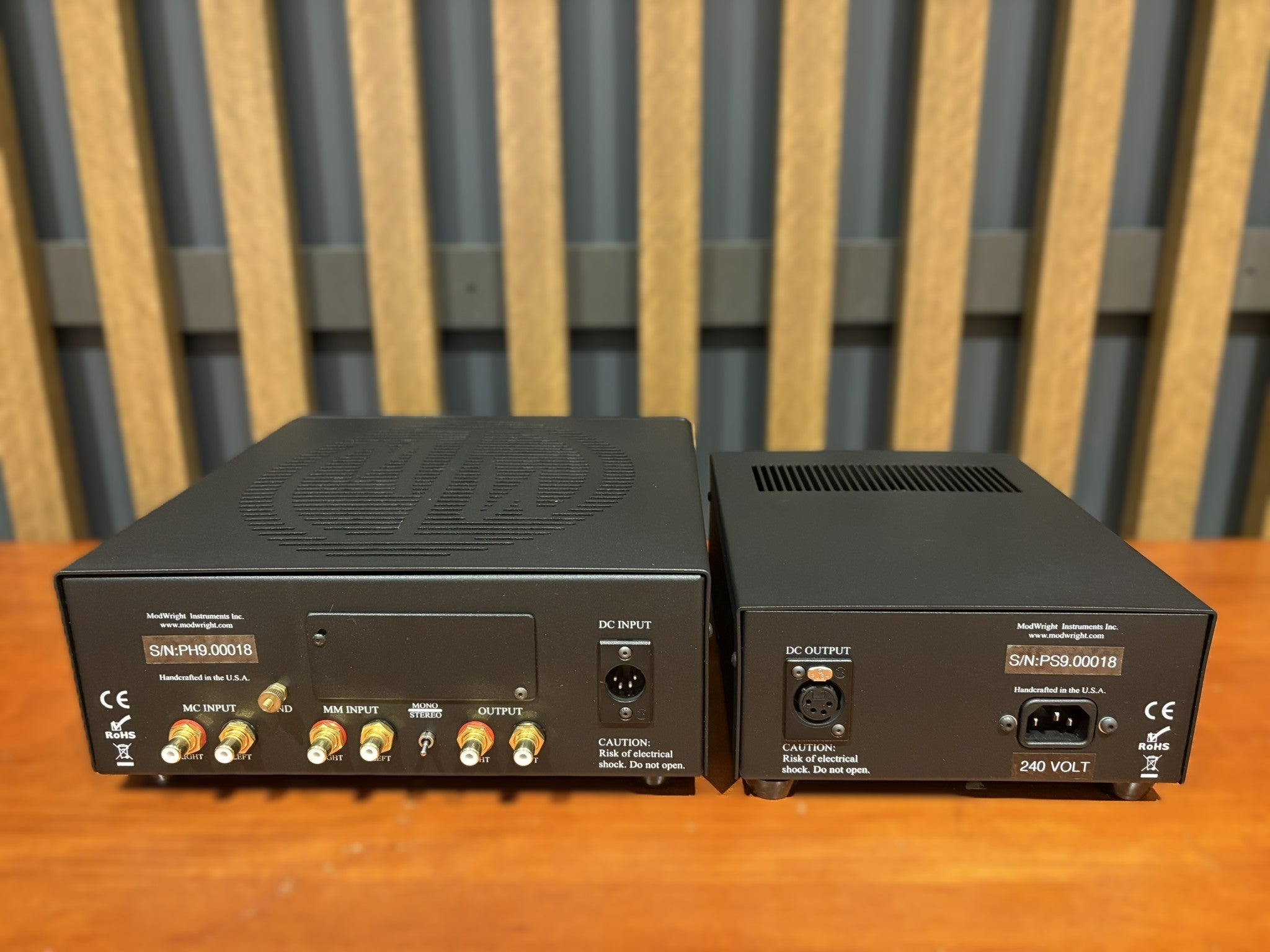

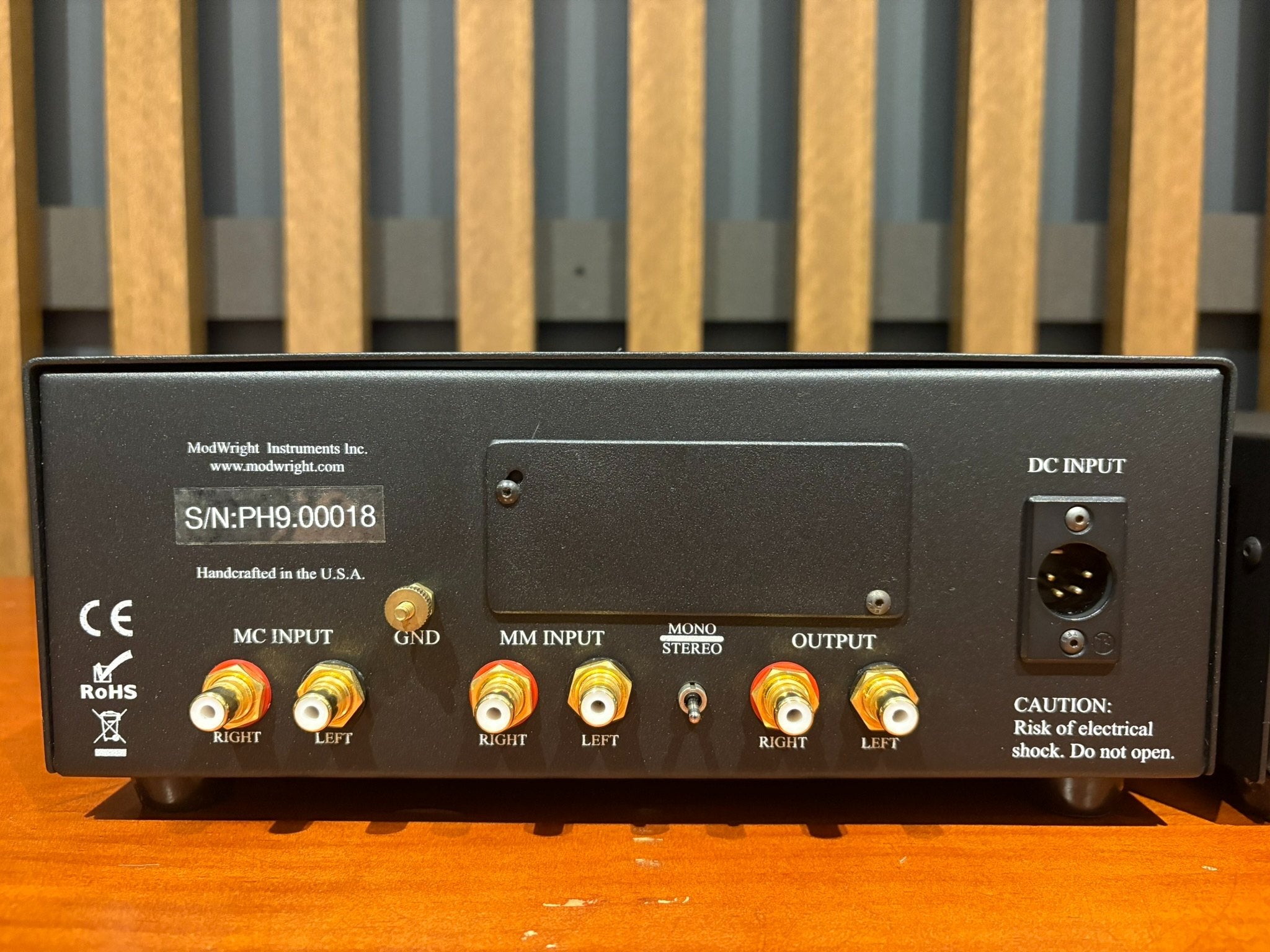

A rear toggle offers phase-corrected playback of mono records.
Specification
MC Gain: 64dB (58dB, 52dB)
MM Gain: 52dB (46dB, 40dB)

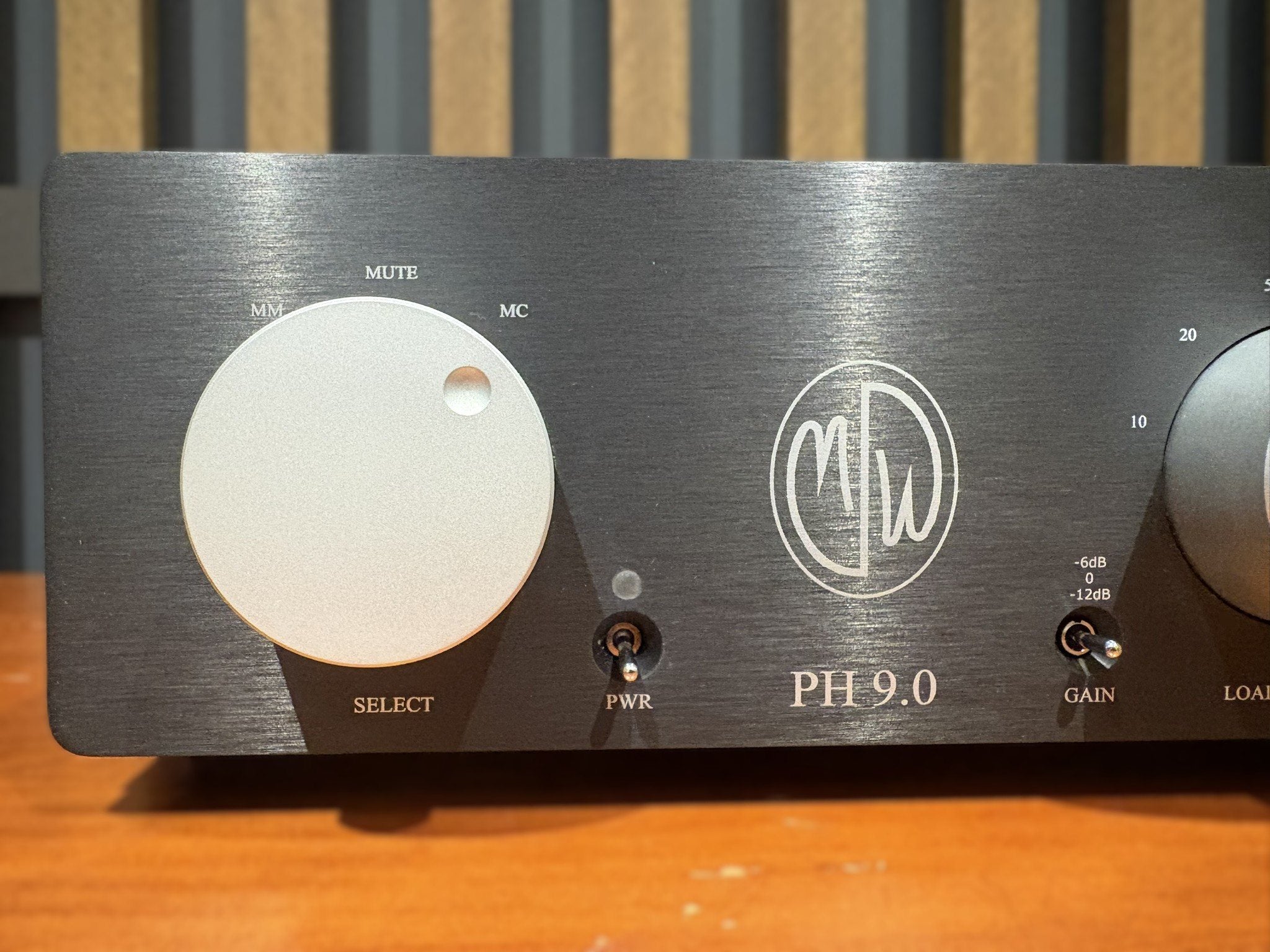

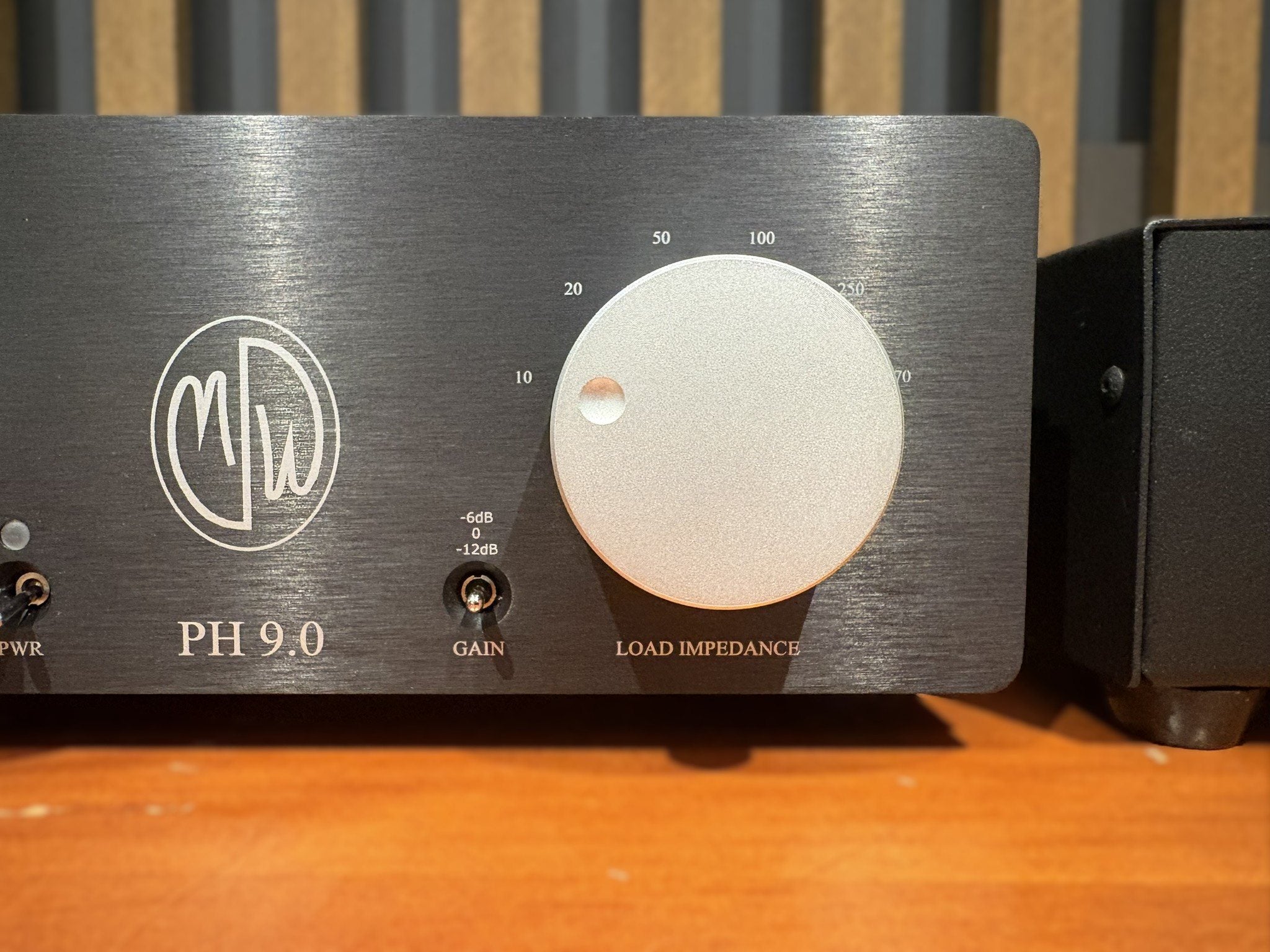

Gain Adjust: 0, -6dB, -12dB
Inputs: MM & MC
MC Loading: 10-20-50-100-250-470
MM Loading: 47K fixed.
Stereo/Mono: Rear Toggle.
Frequency: 20Hz – 50Khz (+/-.2dB)
Tubes: (2)6C45, (2)6922/6dj8/7308

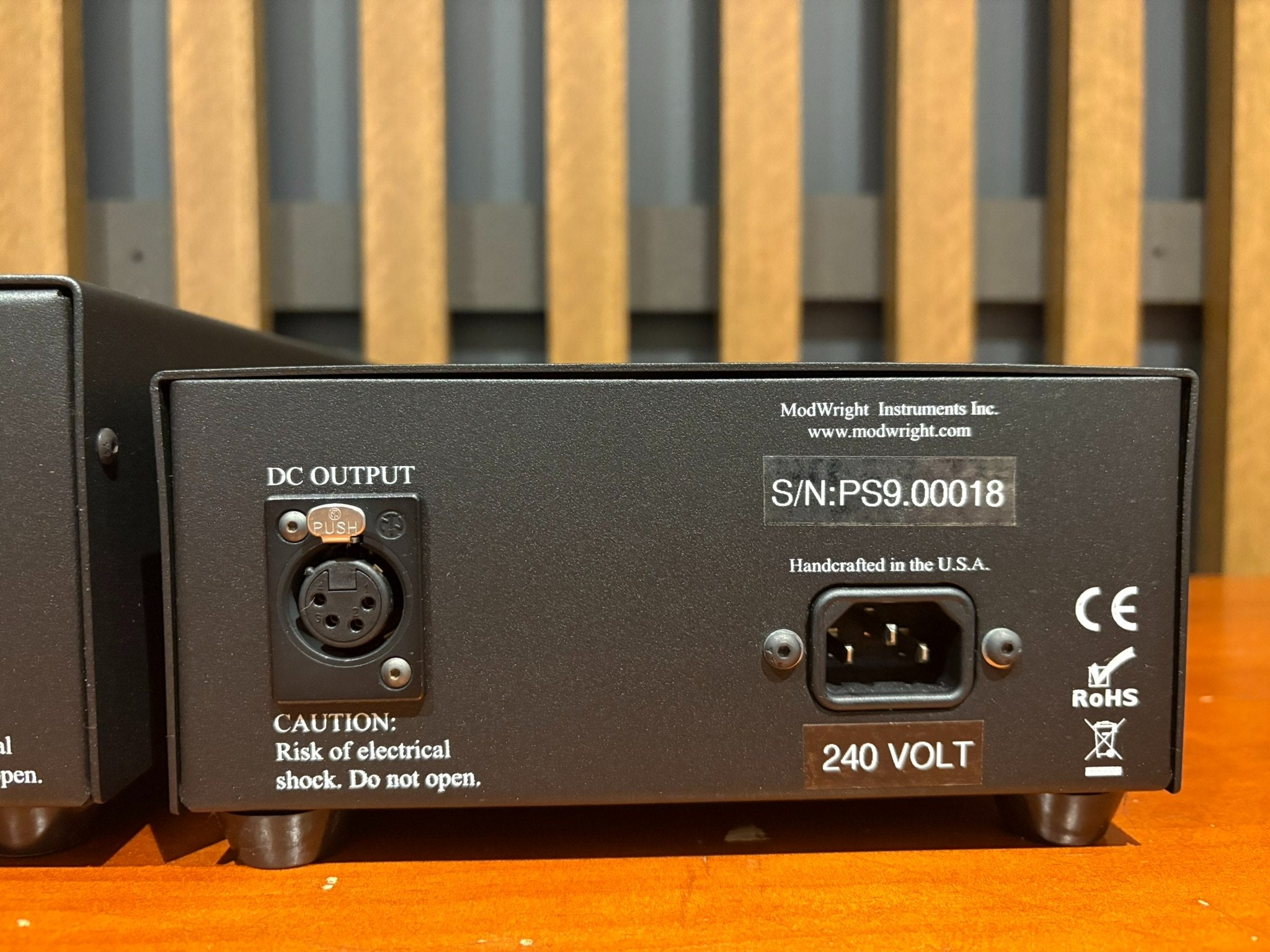

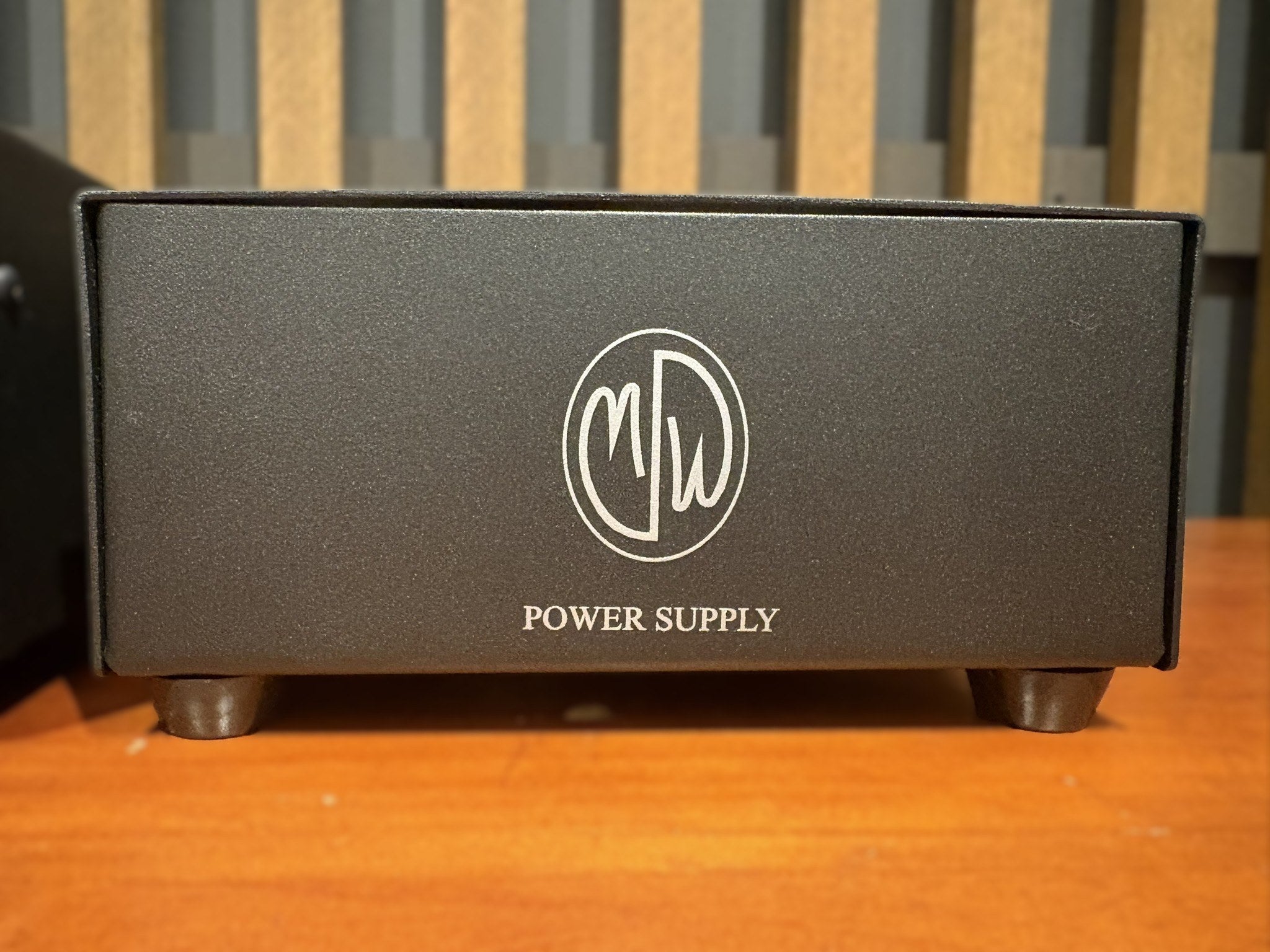

Power Supply: External, solid state
Phono Dimensions: 25.4cm W x 25.4cm D x 10.2cm H
Power Supply Dimensions: 17.8cm W x 22.9cm D x 7.6cm H
