Wilson Benesch Chimera Speakers - Consignment

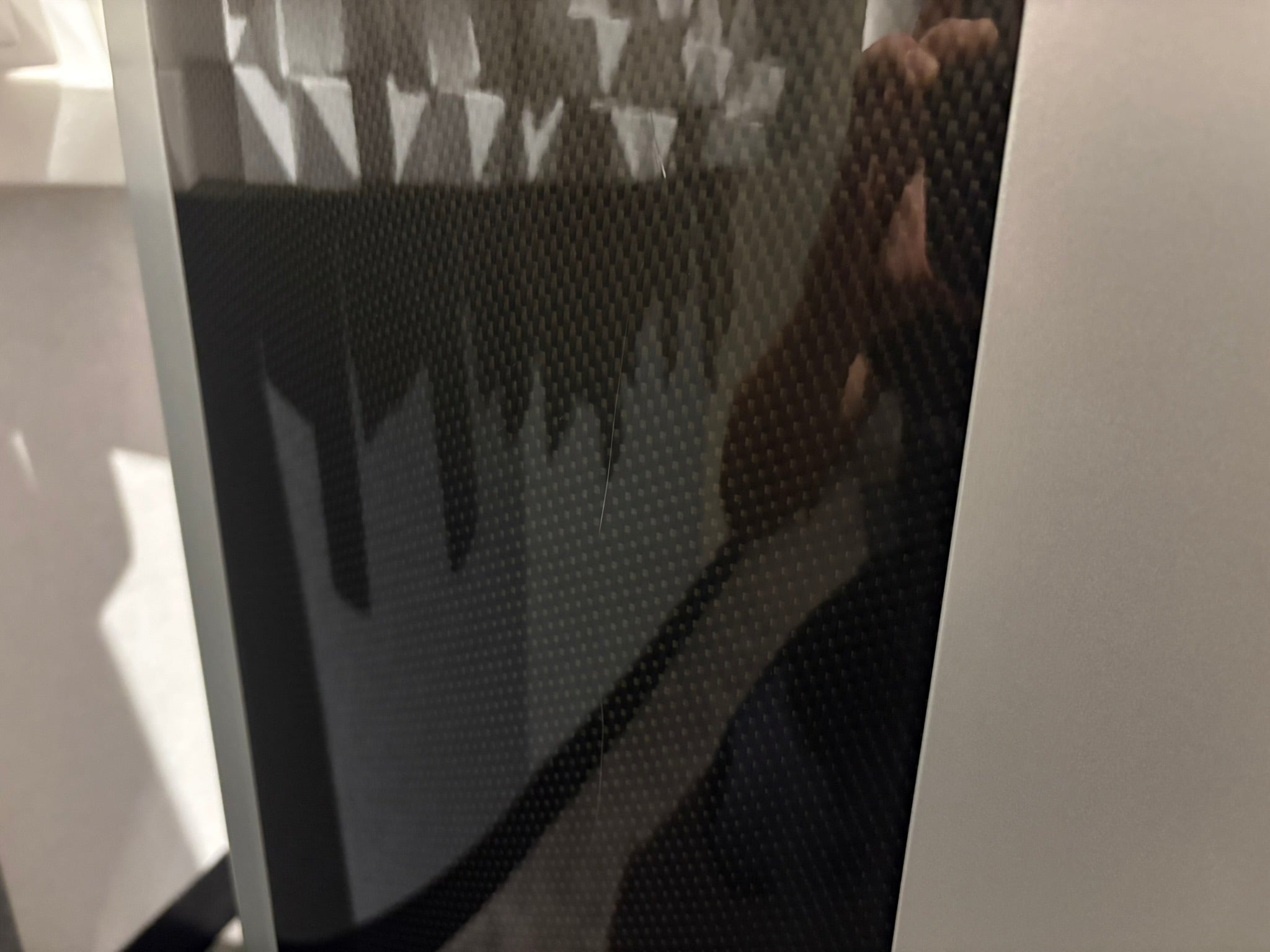

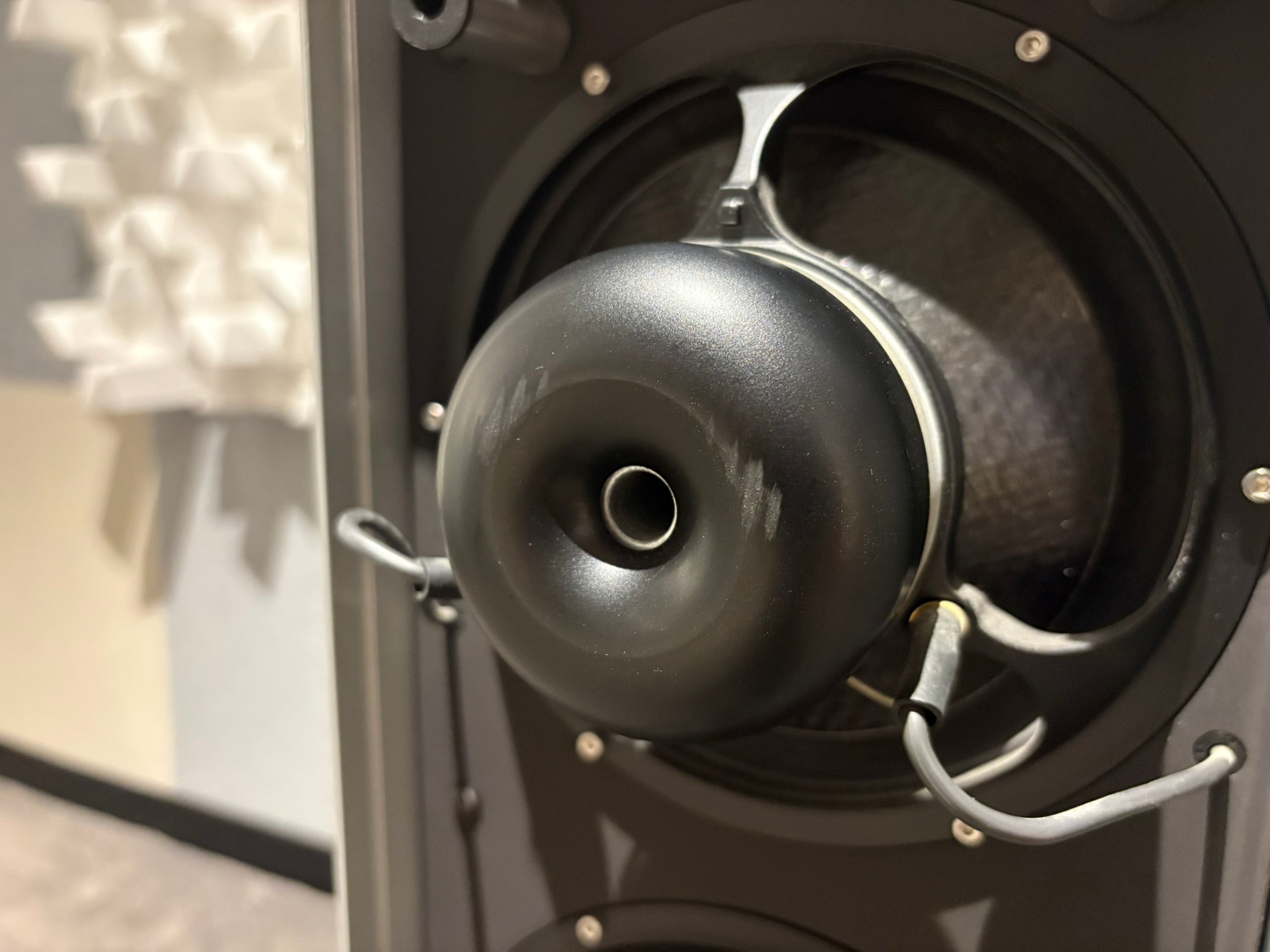

Condition: Used. Very good, scratch on one bass driver magnet cover and on cabinet side (See photos)
Includes: Speakers only (No boxes, no grilles)
SN: J13RG08A / J13RG08B
Local Sydney Metro Delivery Only
Includes 7 day warranty
Made In England
Overview

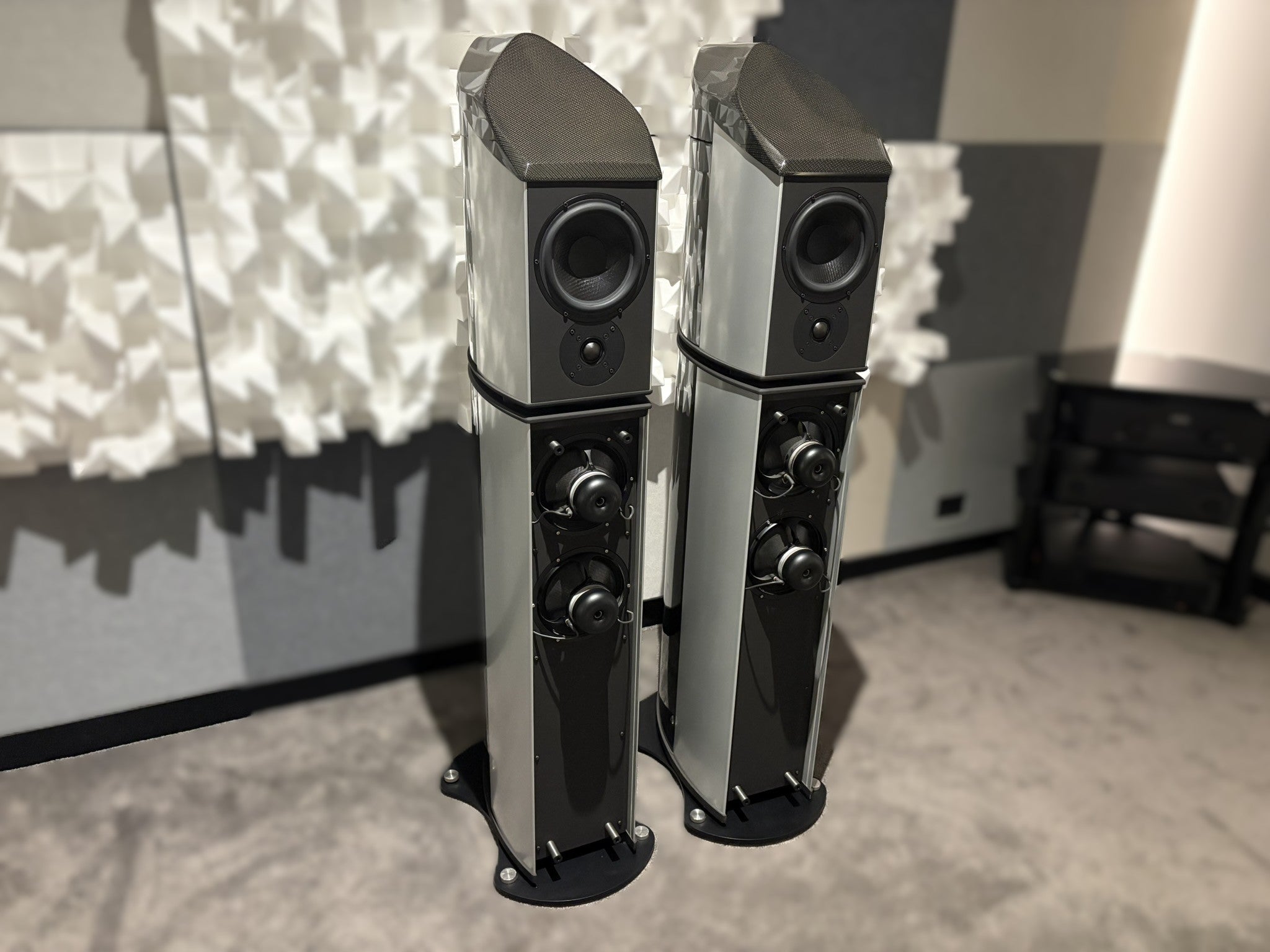

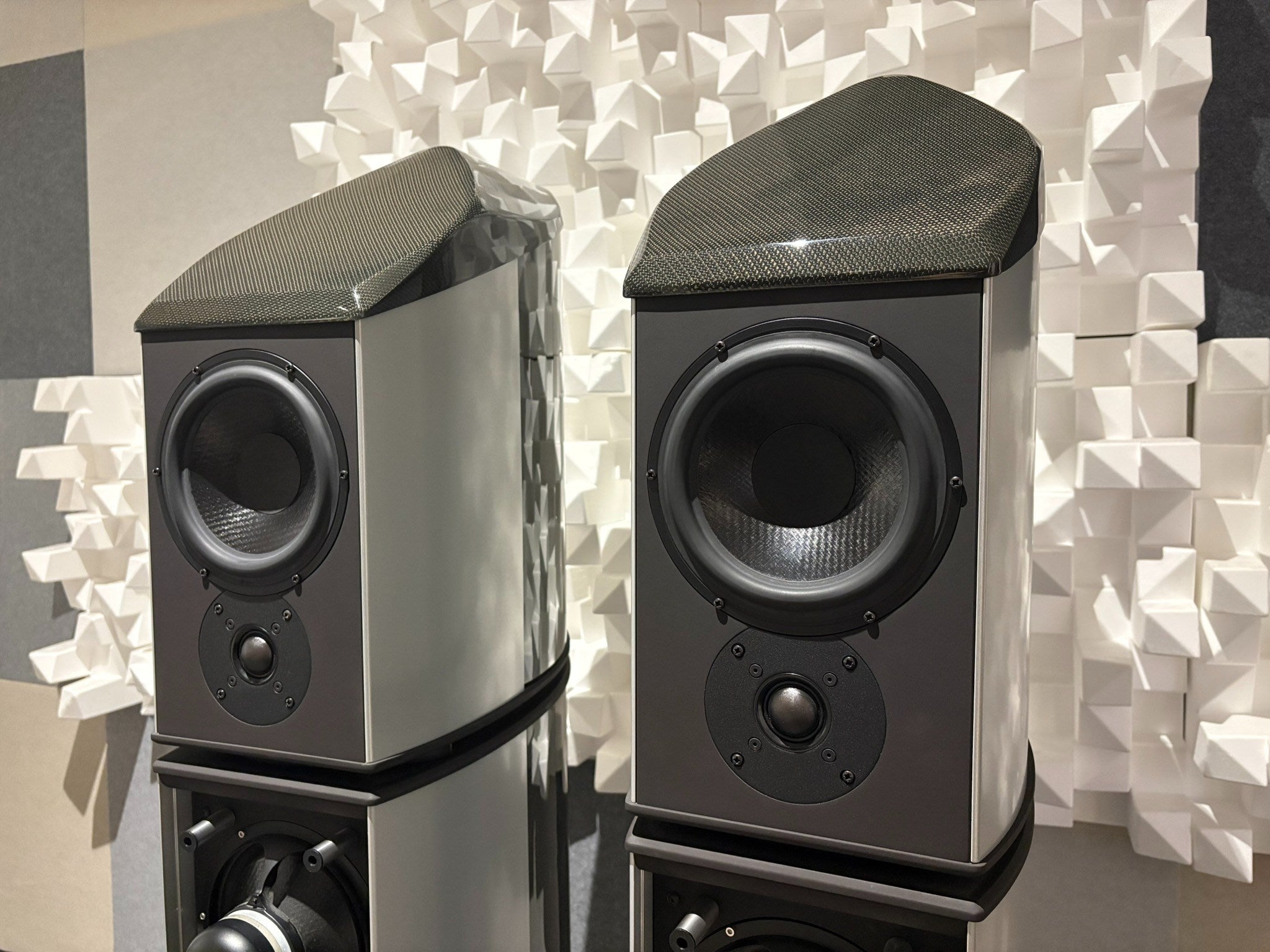

Designed and manufactured in Sheffield, England, the Chimera employs Wilson Benesch's proprietary Tactic drive units, using isotactic polypropylene diaphragms, and Semisphere tweeter in a 2.5 way arrangement.

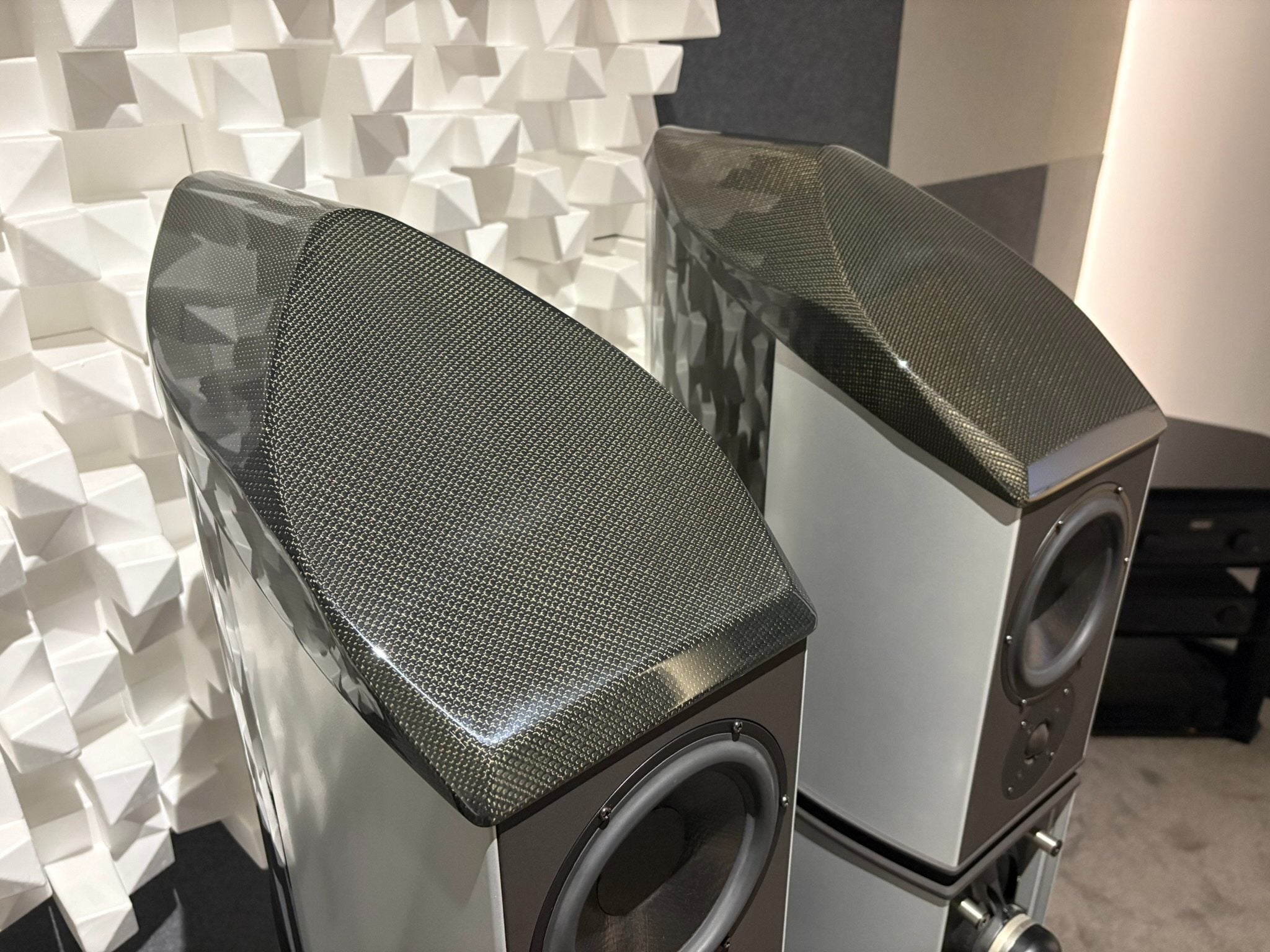

The proprietary monocoque carbon fibre cabinet provides exceptional stiffness while minimising stored energy and cabinet-induced resonance.
The soundstage is wide and deep, with nice imaging and tight, controlled bass output. Despite the 88db rated efficiency, we found they do need a robust high current amplifier to really open up.
Specification

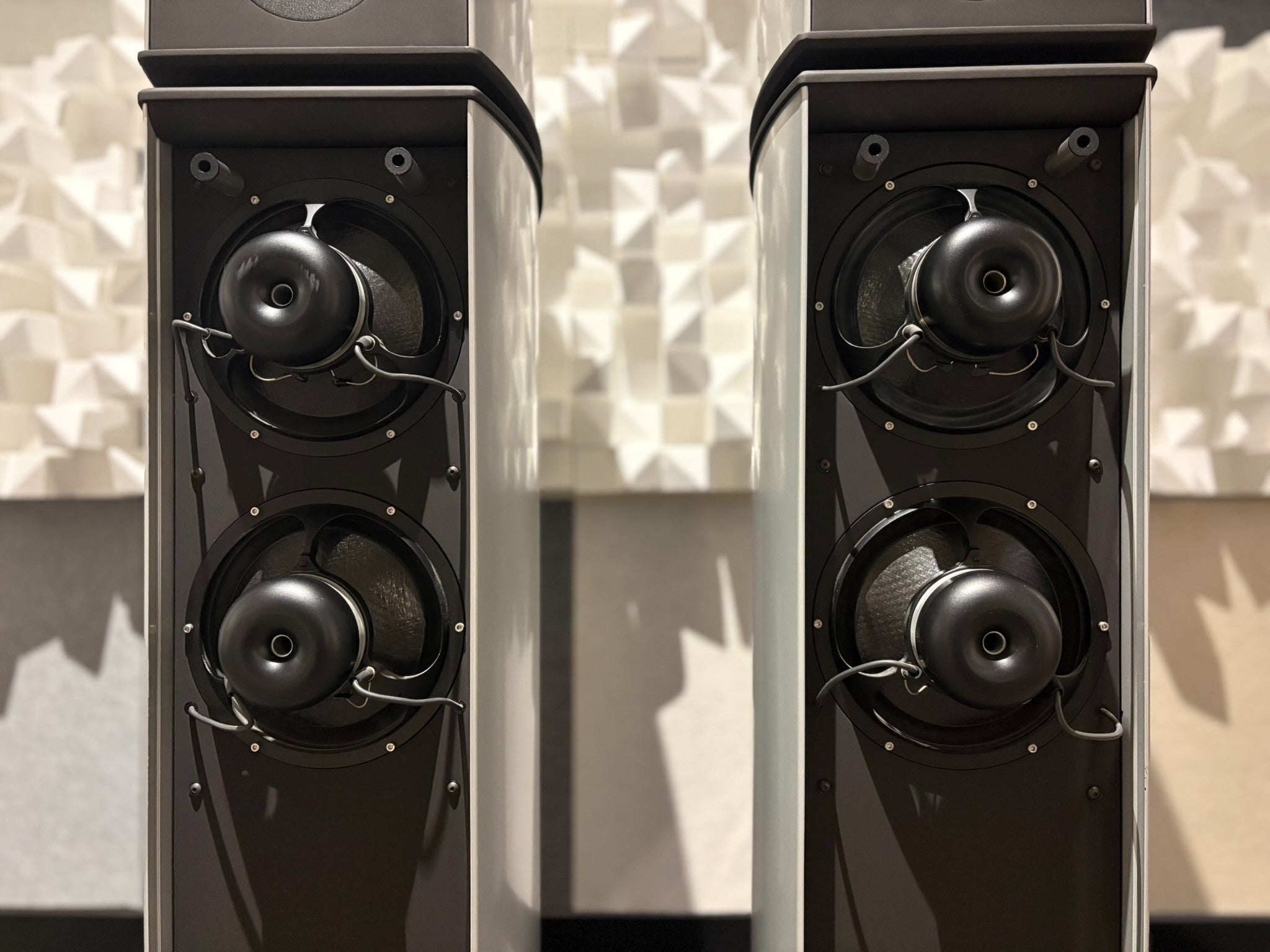

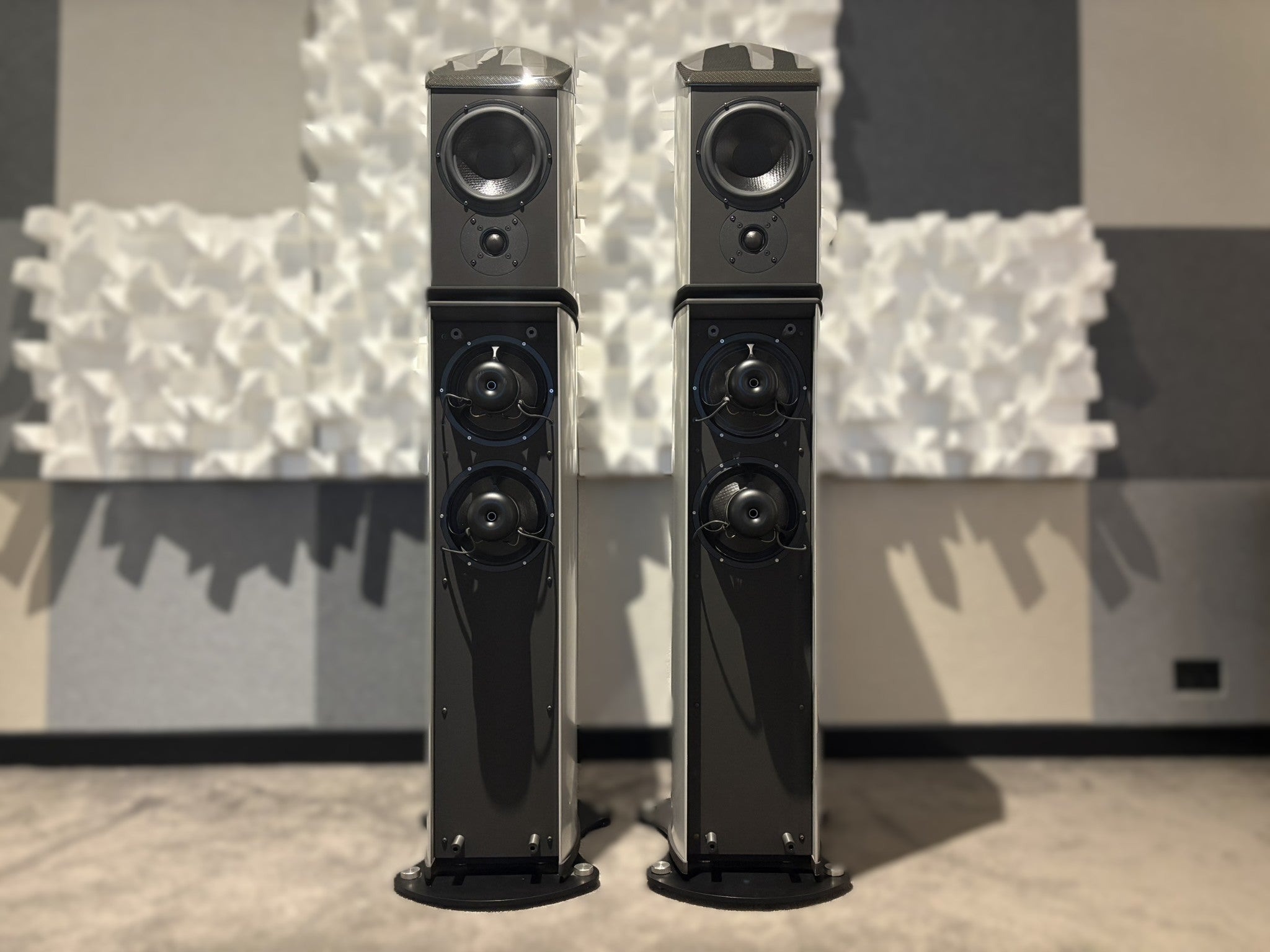

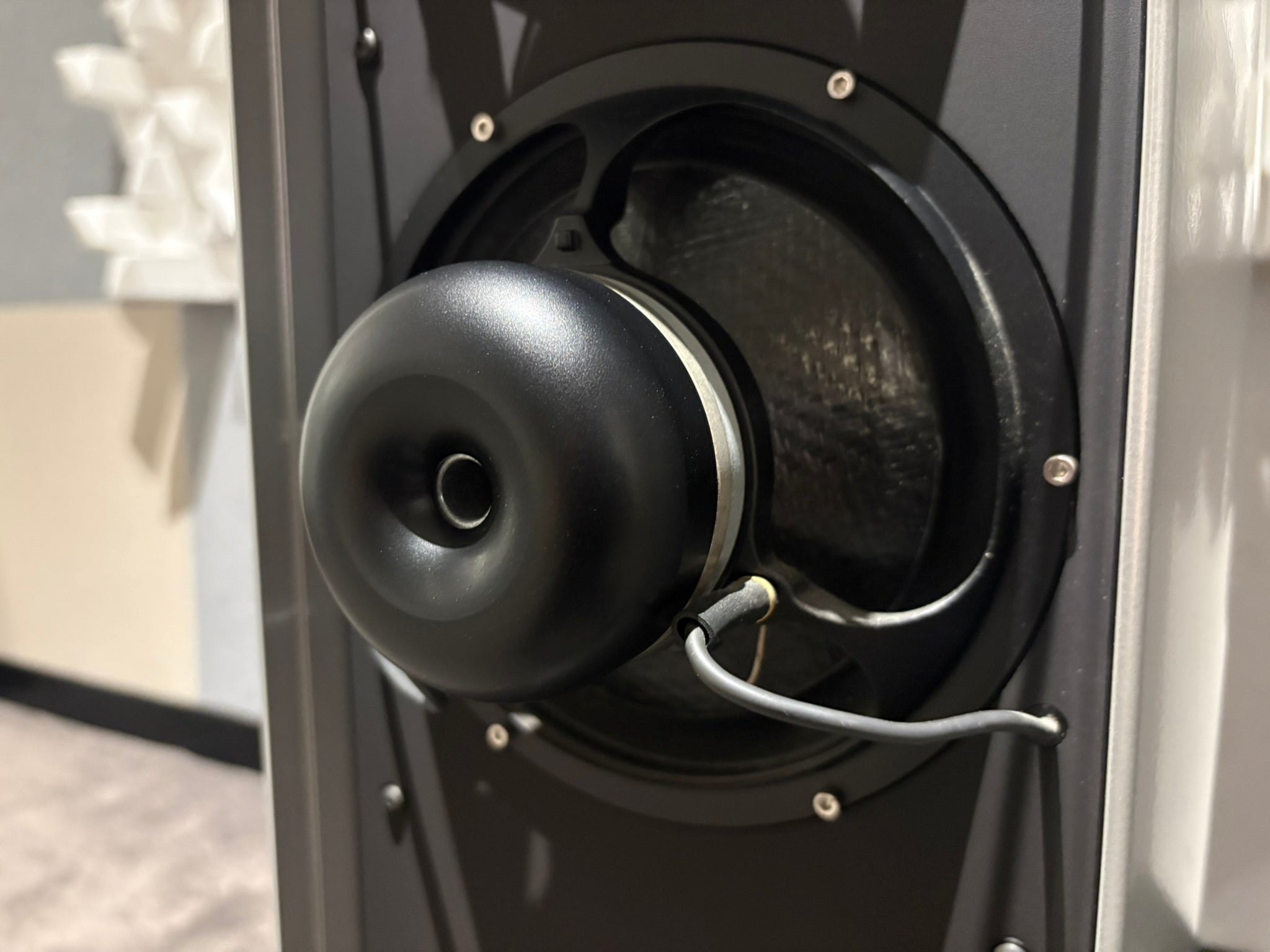

Drive units: 4x 170mm (7 in) Wilson Benesch Tactic Isobaric bass units

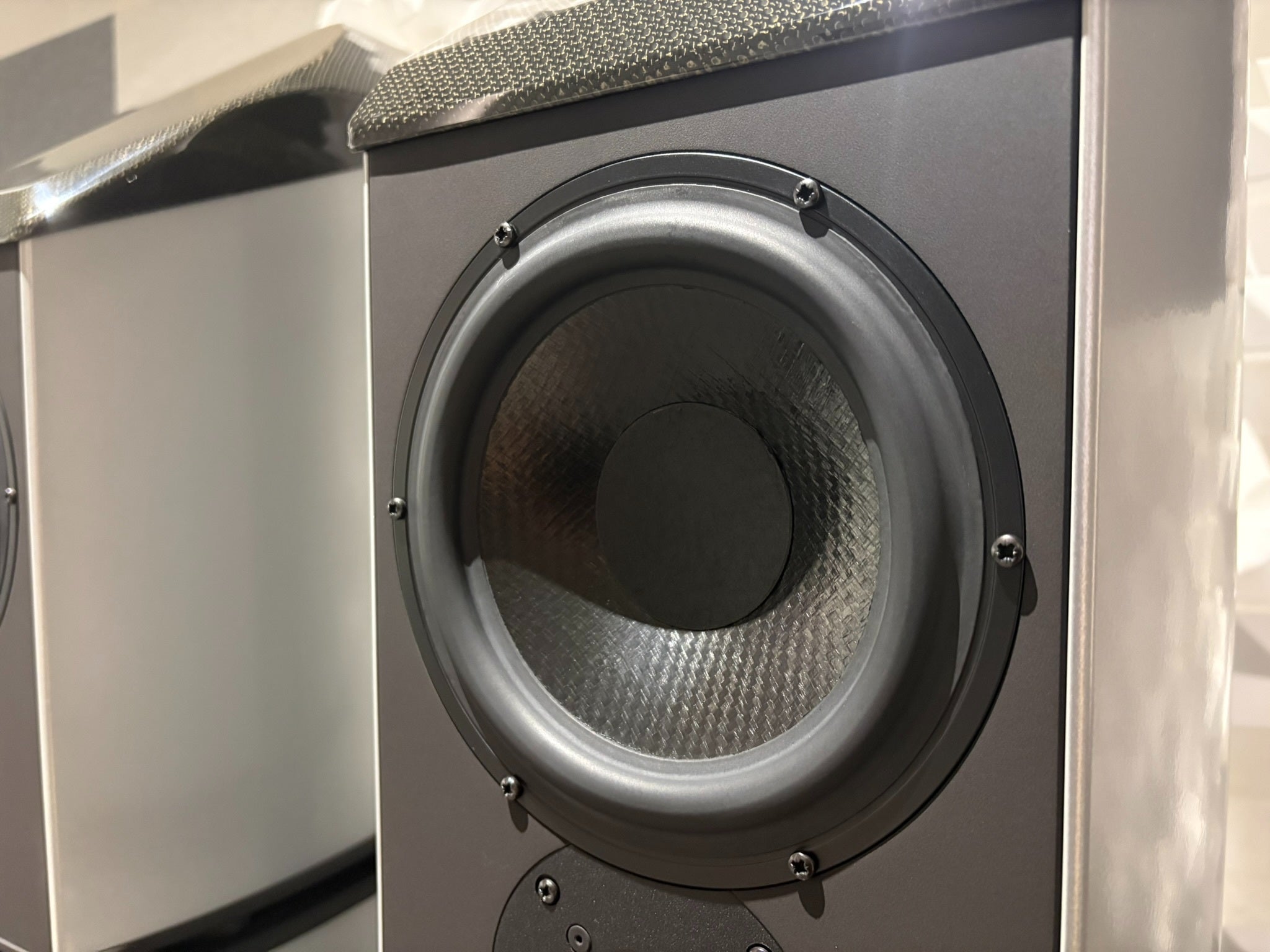

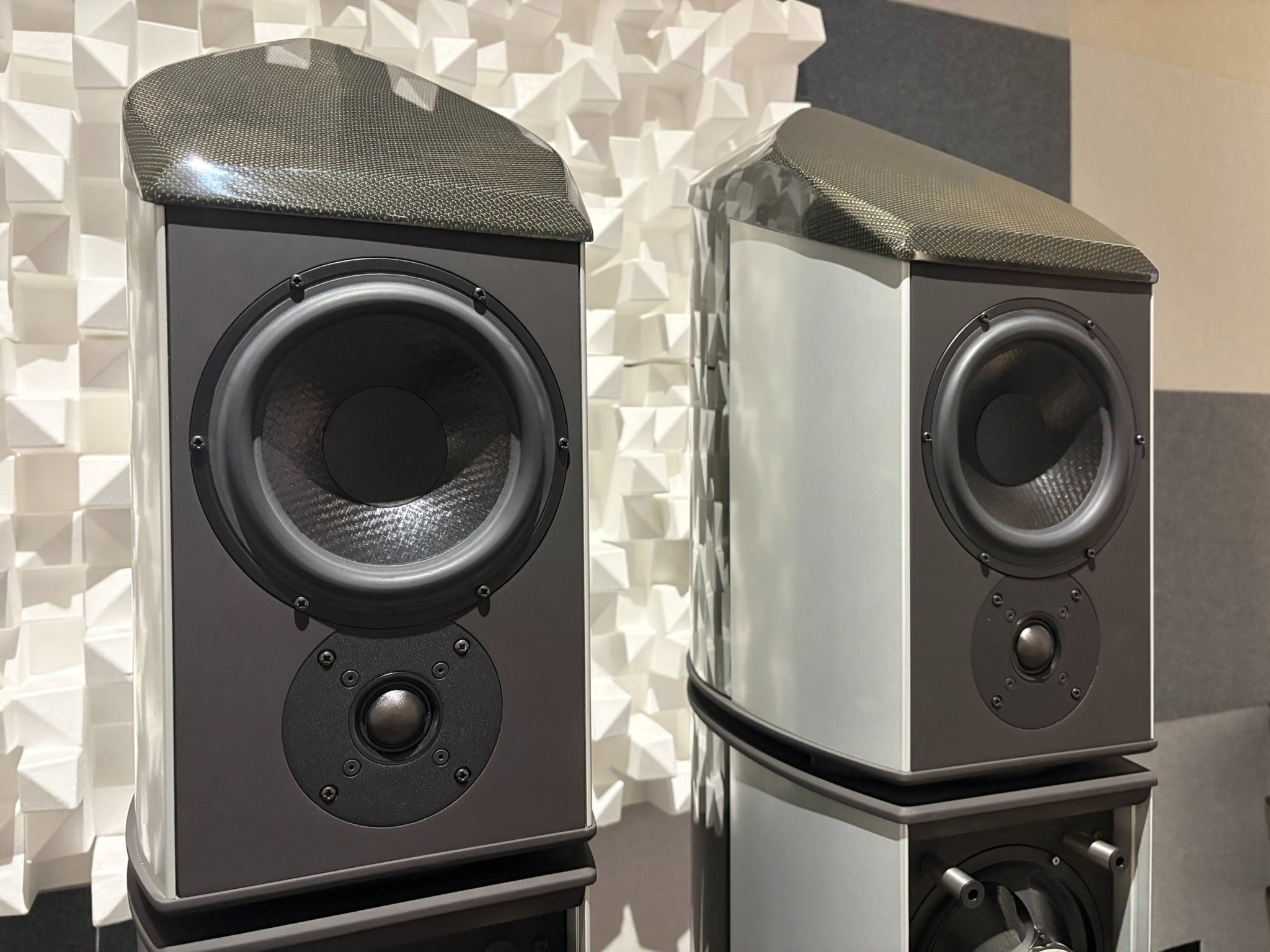

1 x 170mm (7 in) Wilson Benesch Tactic bass / mid range unit
1 x 170mm (7 in) Wilson Benesch Tactic ABR unit

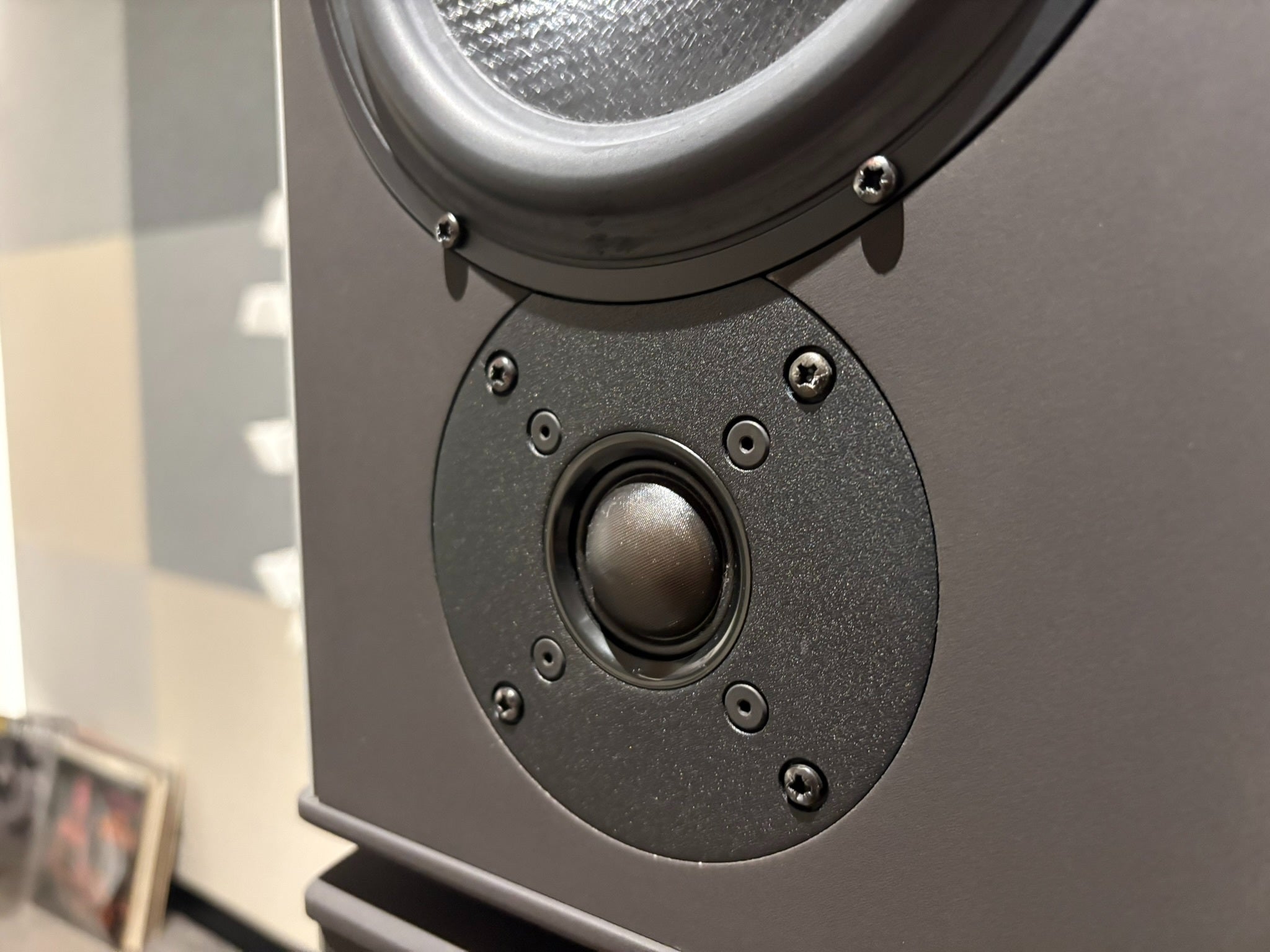

1 x 25mm (1 in) Soft dome, hand painted silk, ultra linear Wilson Benesch specification tweeter
Low frequency loading: Double chamber, ABR tuning of conventional drivers
Frequency range: -6dB at 25Hz and 30kHz
-3dB at 34Hz and 25kHz
Frequency response: 36Hz to 24kHz +- 2dB on axis
Sensitivity: 88dB spl at 1metre on axis. 2.83V input
Impedance: 4 Ohms nominal, 2.5 ohms minimum
Crossover: First order bass roll-off
First order mid range crossover
Second order tweeter crossover
Selected polypropylene capacitors and air cored inductors are used throughout
Crossover frequencies: Bass 500Hz, Mid 5kHz, Tweeter 5kHz
Internal wiring: Multi stranded, silver plated copper, PTFE jacketed cable harnesses
Soldered connections throughout
Shortpath P.C.B. design
Links supplied for single or bi-wire applications

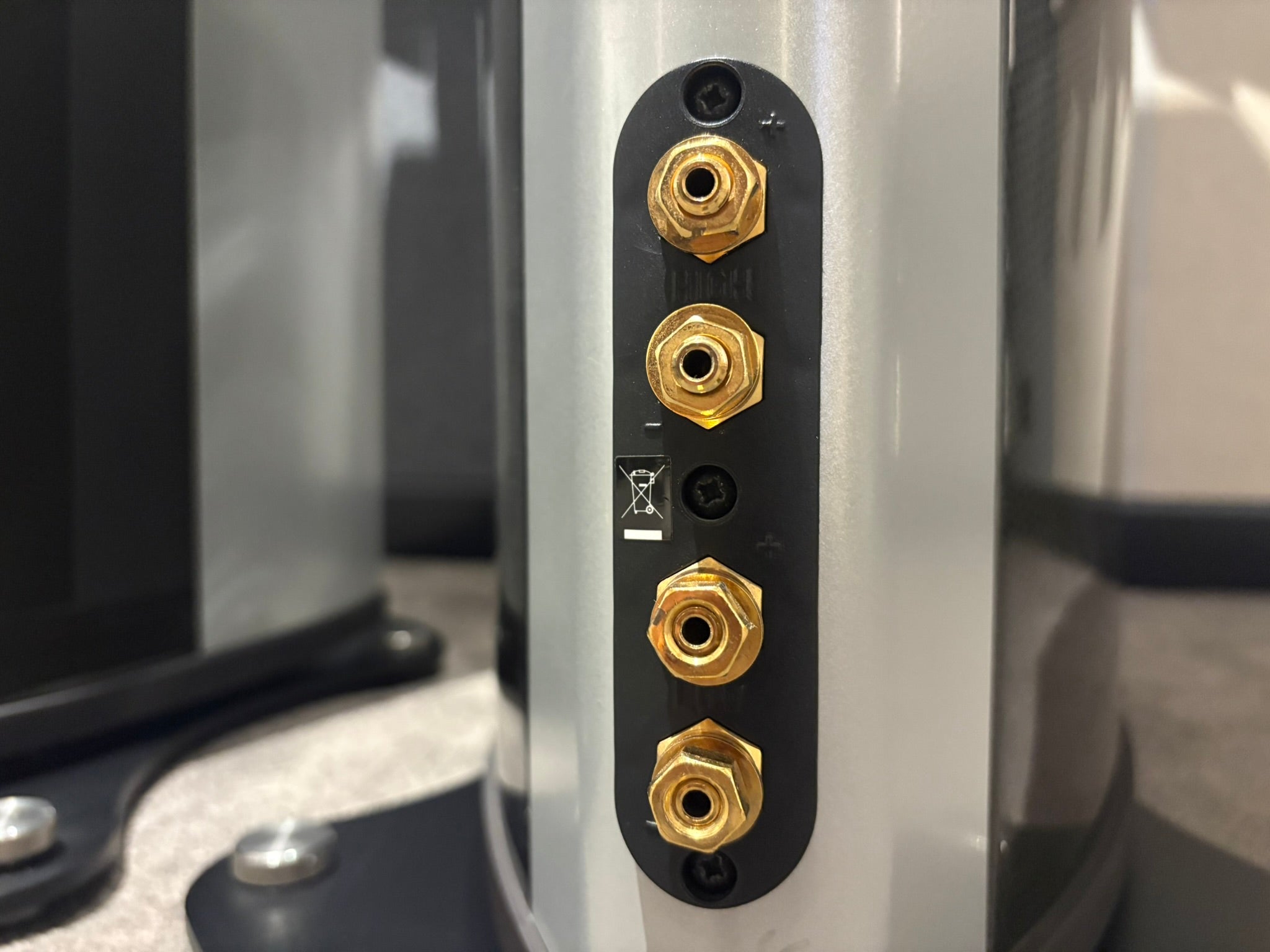

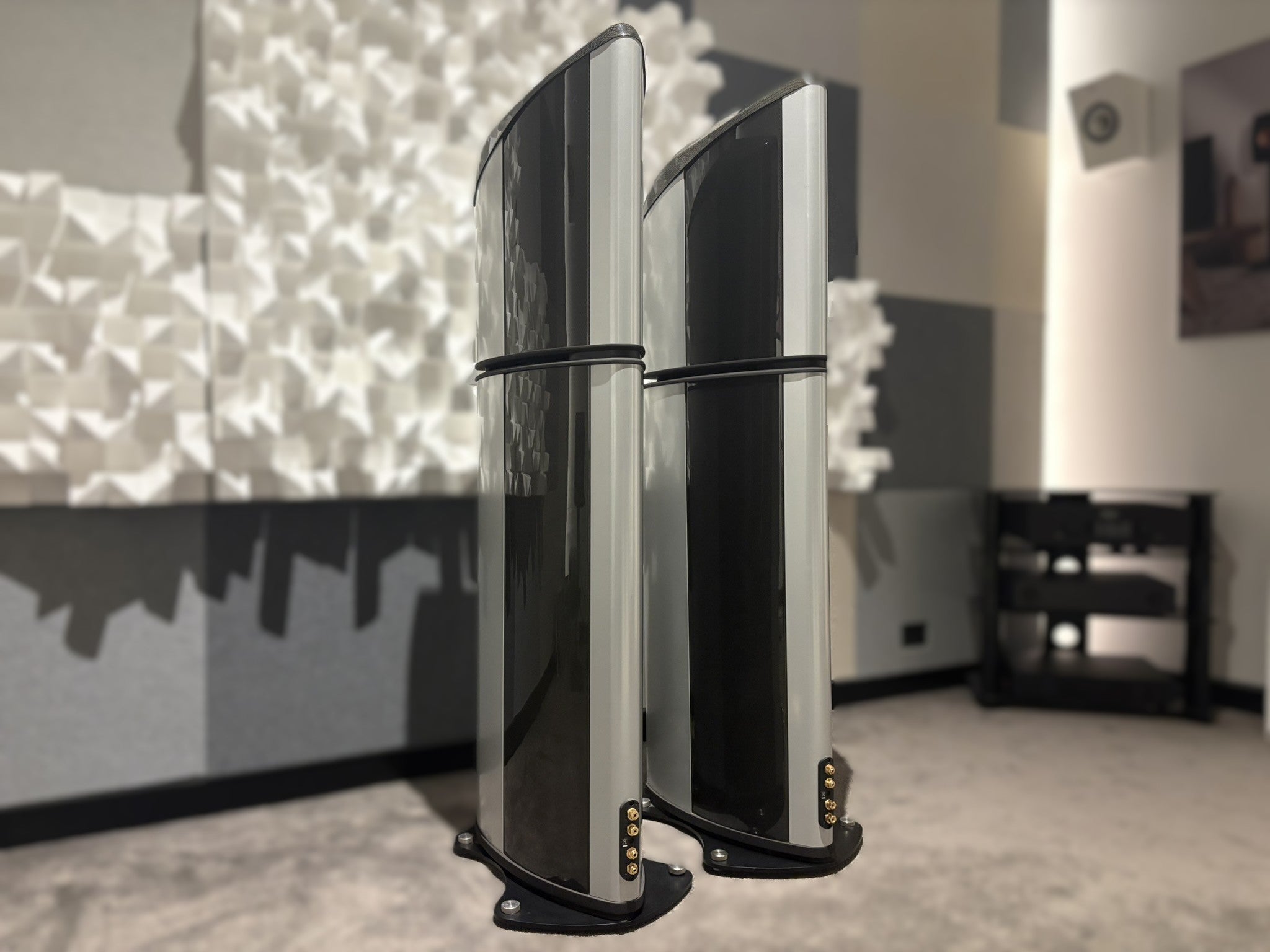

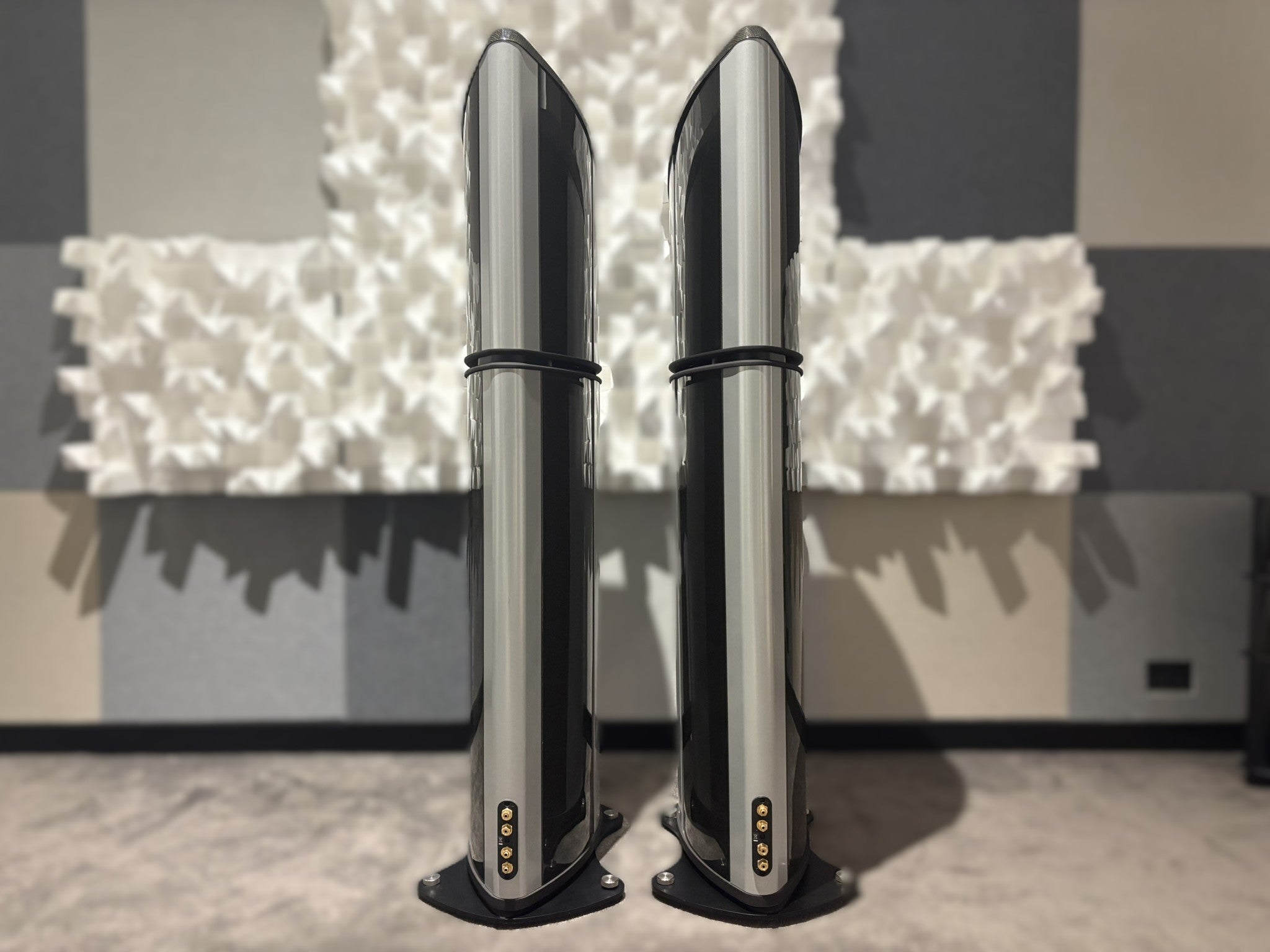

Input connections: Bi-wireable, in-house machined gold plated copper alloy terminals
Power handling: 200W peak unclipped programme
Maximum spl: 111dB at 1 metre
Dimensions: Height 1420mm
Width 230mm
Depth 470mm
Internal volume: 75 litres
Net weight: 70kg
