Convergence of Nature, Science and Art

The original Alexx loudspeaker, launched in 2016, quickly gained critical acclaim throughout the industry. Alexx benefited from several elements developed during the five years Wilson Audio’s founder David A. Wilson, and his unwavering R&D team, brought to life his magnum opus: the WAMM Master Chronosonic. Now, five years after the monumental accomplishment of the WAMM, Alexx V builds upon the original Alexx’s success by offering a completely re-engineered performance envelope without greatly increasing the footprint. Comparing the overall size of Alexx V to the original, Alexx V is only 1” deeper and 1” taller while maintaining the same width.


Alexx V Elements

Our engineering team went through each of the critical sub-systems found in the Alexx® and upgraded, or re-engineered, many of its components. Here are some highlights:

  • All X-Material enclosures with V-Material nested in strategic locations (top of the woofer, in gantry cross-brace, and in the new Wilson Audio Acoustic Diode™ Spike). Vibration control and upper module isolation akin to what is found in the Chronosonic XVX provides amazing settling between the notes.
  • There have been several crossover changes. With fewer components now in the signal path we fine-tuned and modified the system for better Impedance and Sensitivity measurements— From a minimum impedance measurement of 1.5 ohms (Alexx) to 2.0 ohms (Alexx V) and +1dB more sensitive than Alexx Series 1.

Difference Between Alexx & Alexx V

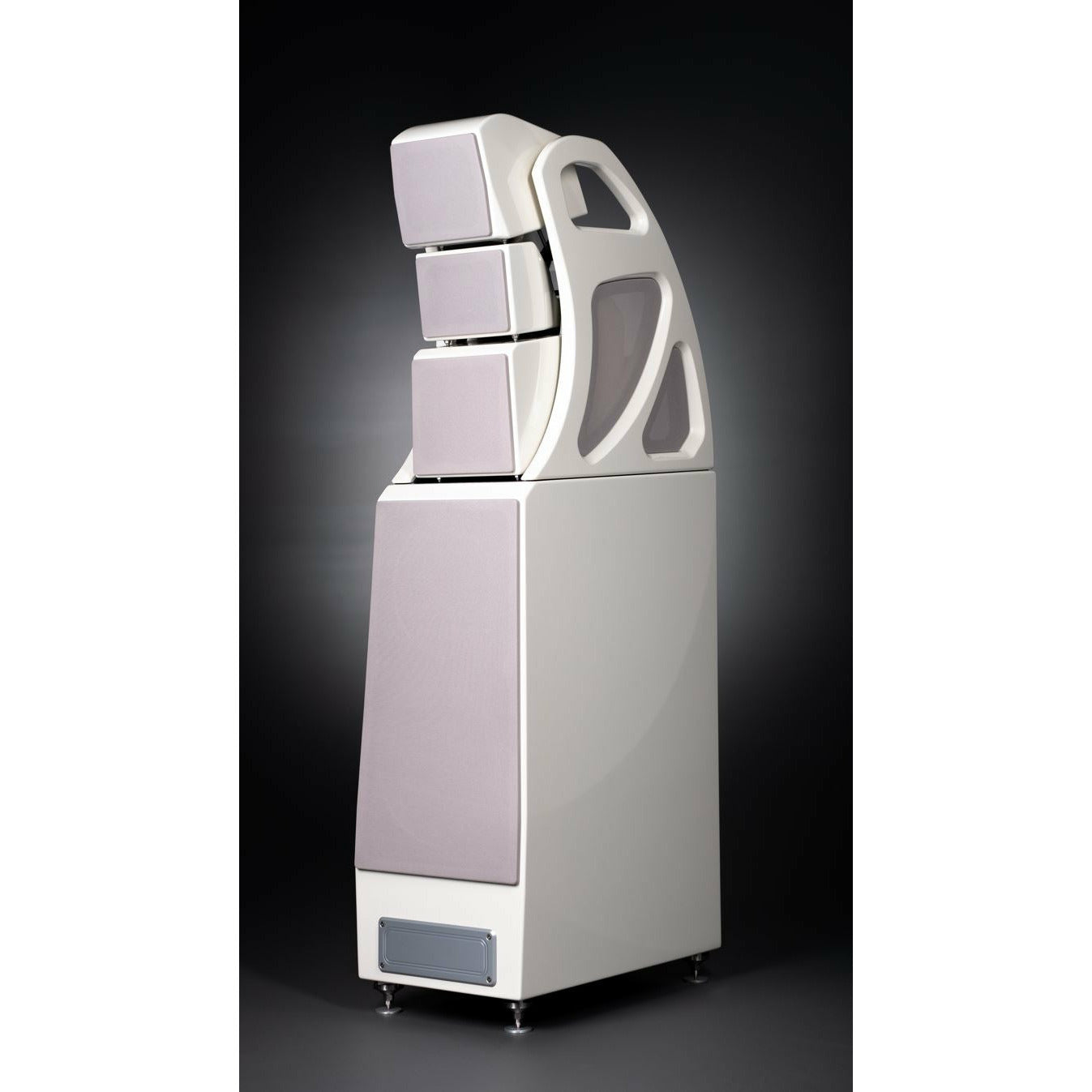

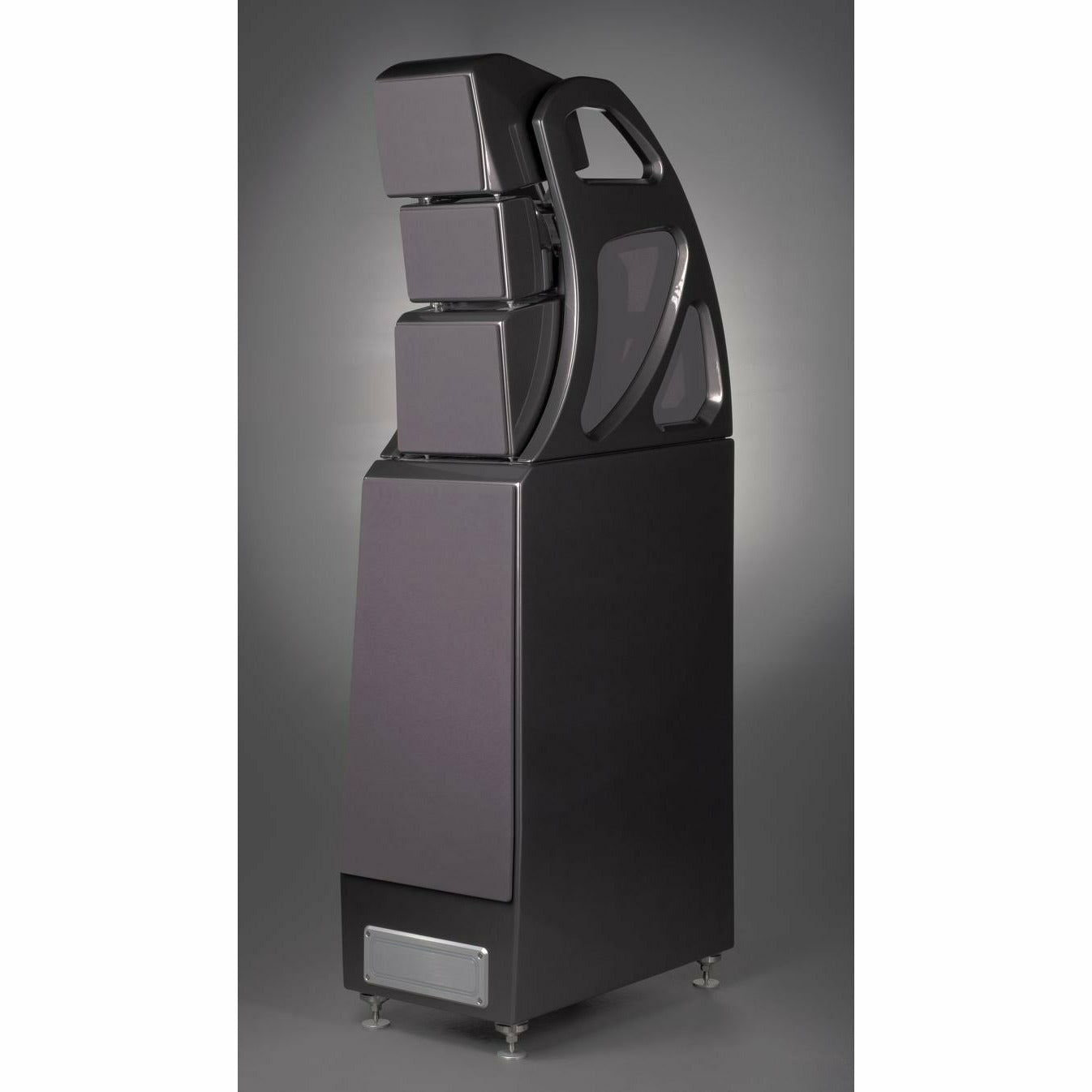

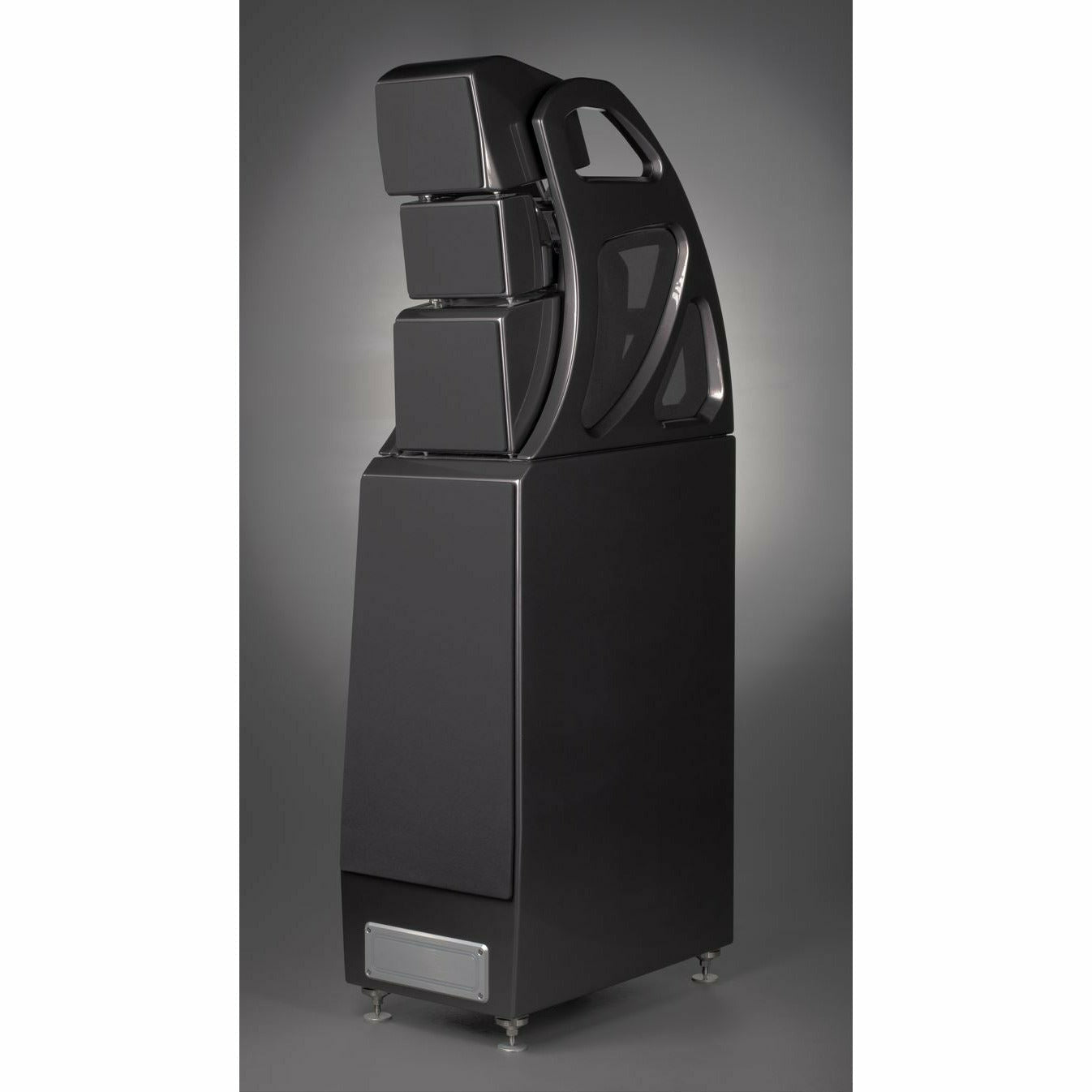

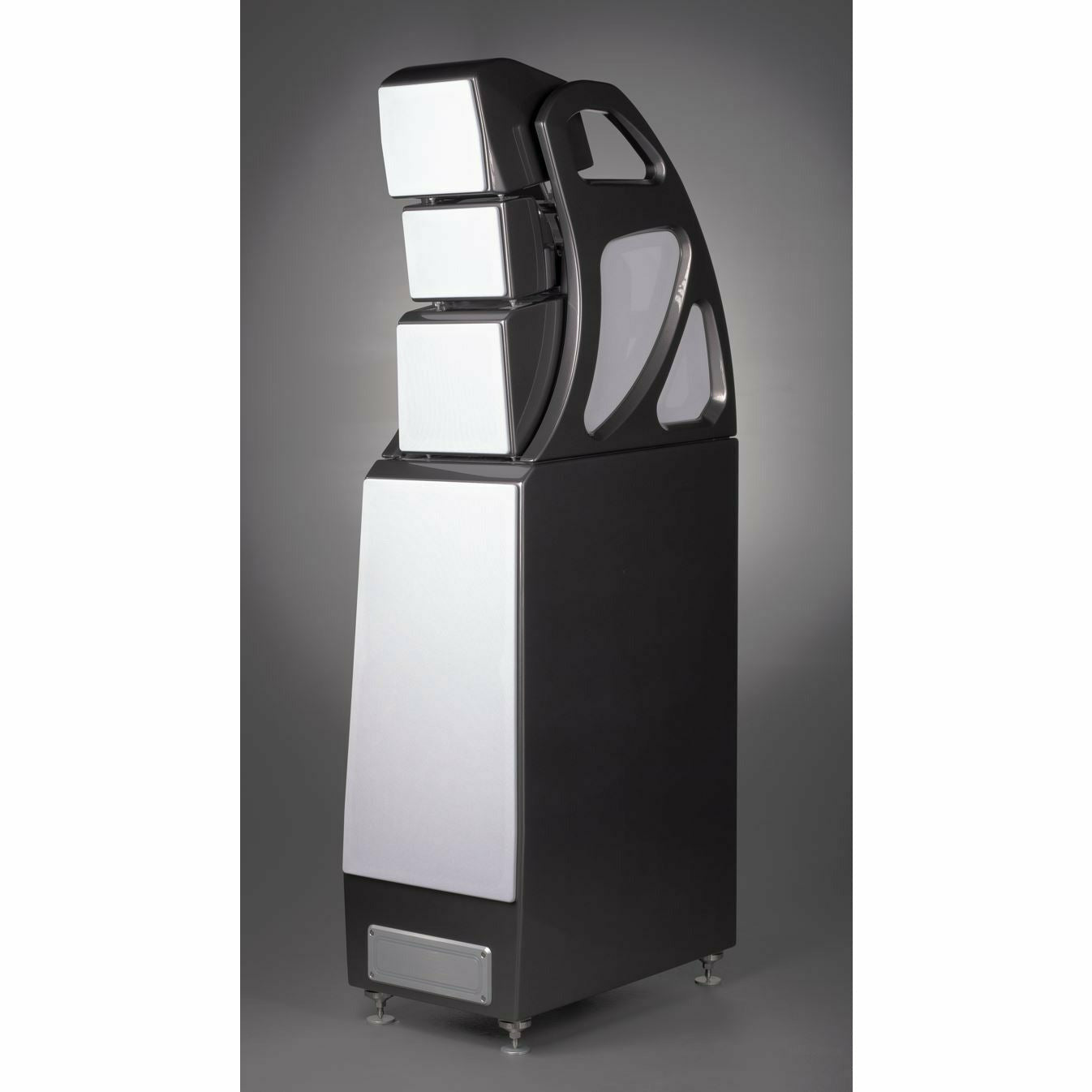

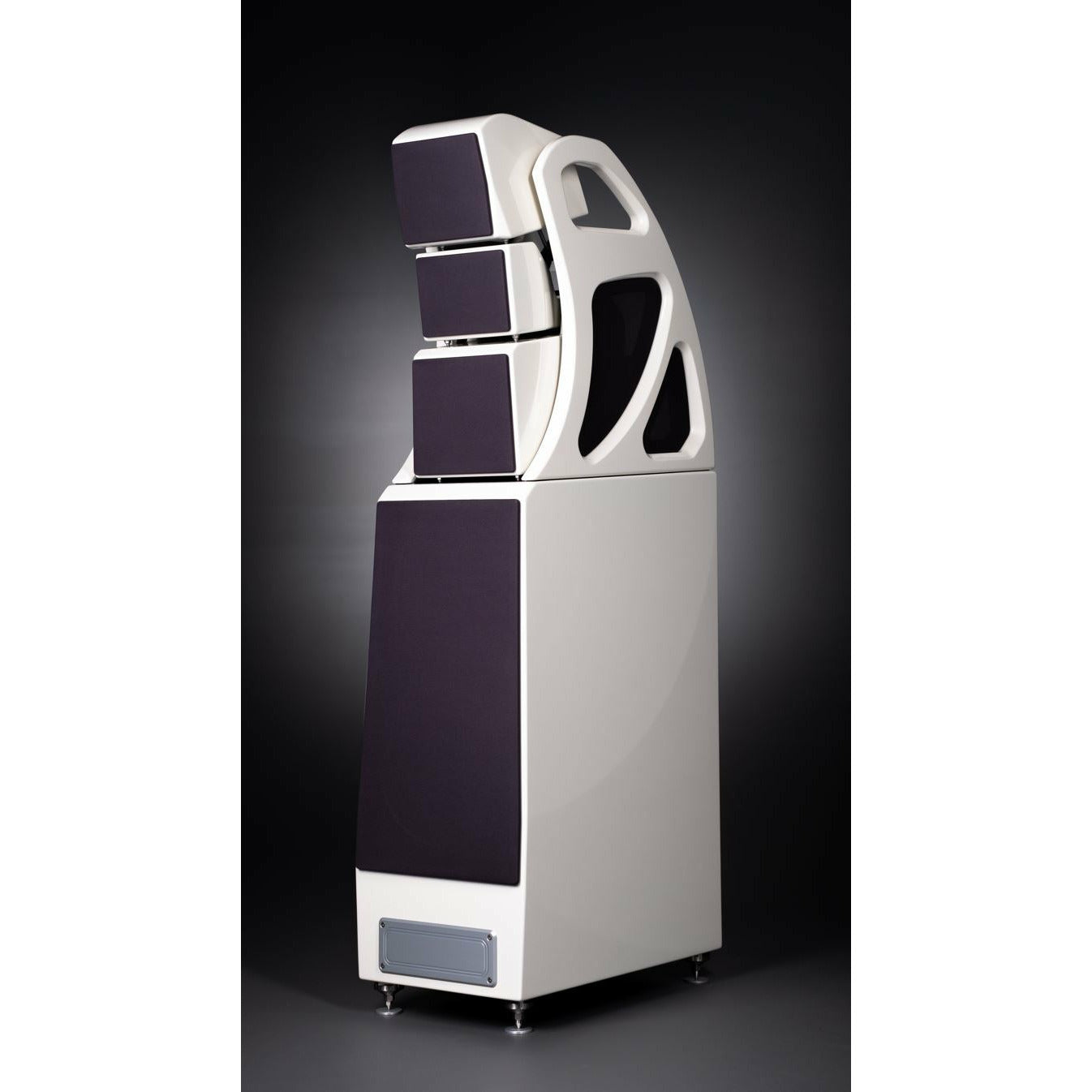

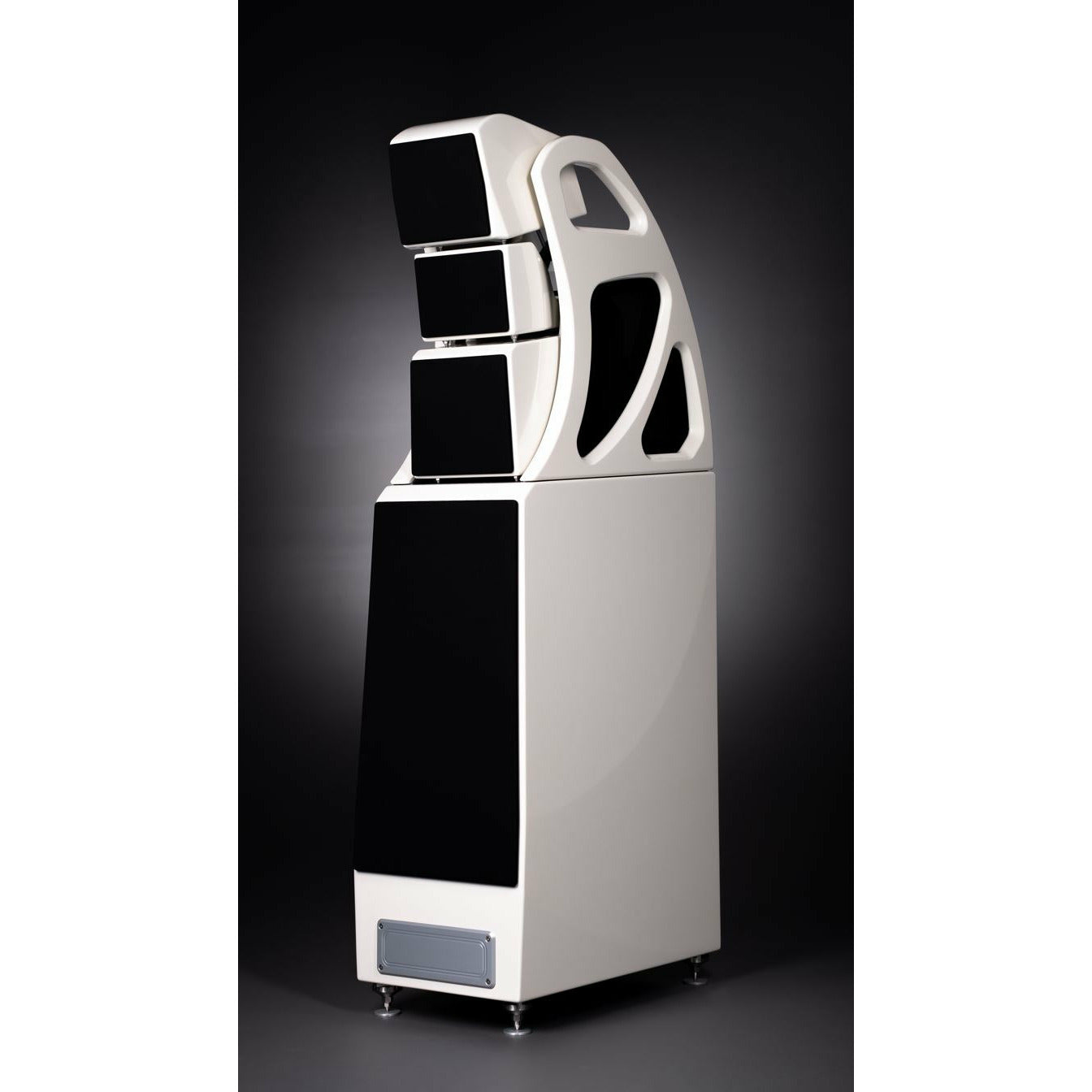

Open Gantry - Inspired by natural elements found in Utah one quickly sees more svelte lines in the Alexx V™ like the XVX. The exposed “skeletonized” architecture allows an airy and openness currently only found with the WAMM Master Chronosonic® and the Chronosonic XVX®. Given the open architecture gantry design, the gantry grilles are seamlessly attached via embedded magnets, allowing for quick and simple installation and removal. Alexx V's overall size is only 1” deeper and 1” taller than Alexx Series 1.

QuadraMag 7" Midrange - The new 7” Alnico QuadraMag® developed for XVX finds its way into the Alexx V. This driver is tonally rich and musically exquisite.

New Capacitors - New AudioCapX®-WA capacitors are now used throughout Alexx V crossover and are uniquely wound at Wilson Audio® to our extremely tight tolerances. These custom capacitors now add a new dimension of low-level resolution.

CSC Tweeter - All new Convergent Synergy® Carbon (CSC) Tweeter rear-wave chamber is 3D printed in-house with carbon fiber. The development of this unique design is greater high-frequency extension, more linear frequency response, and better harmonic detail.

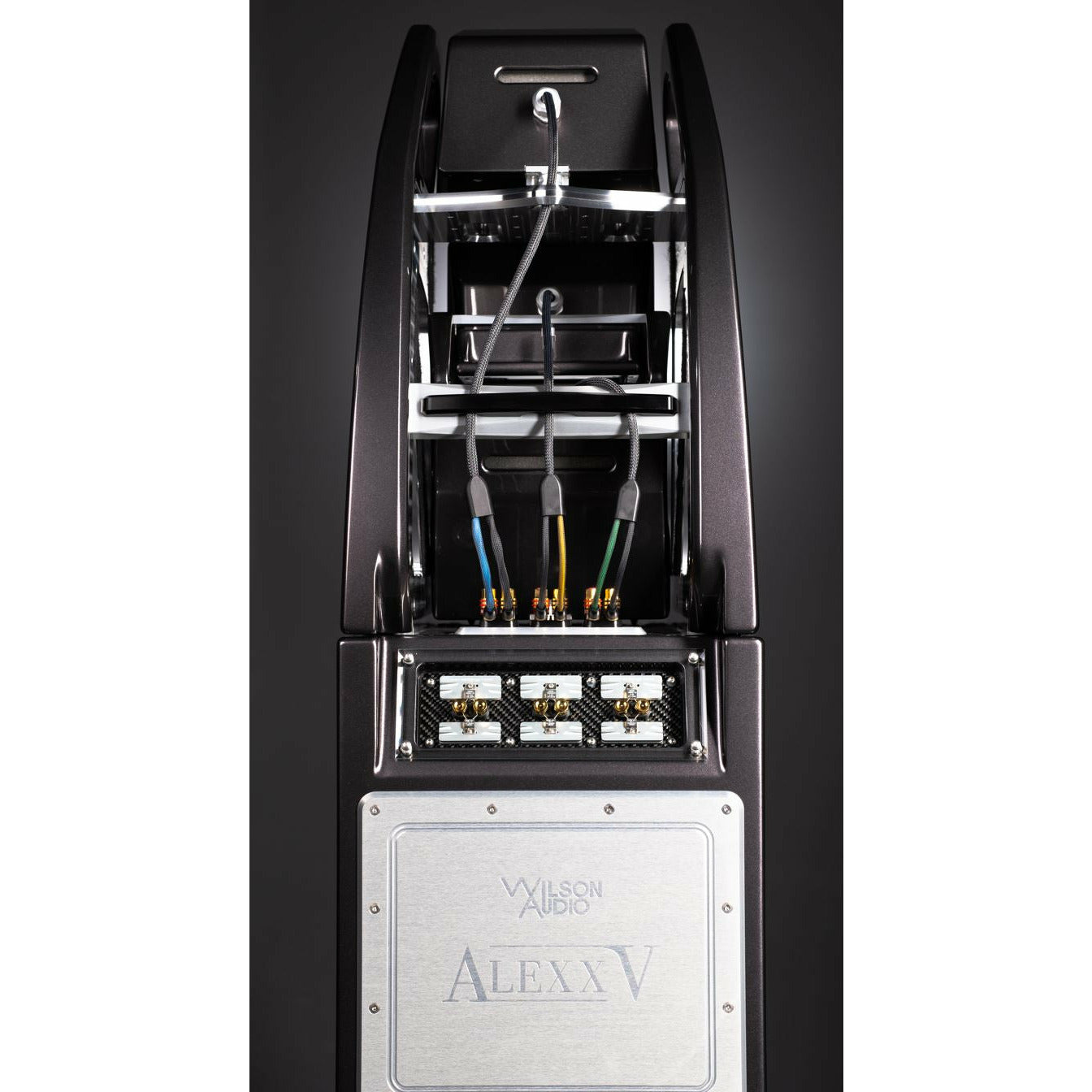

Crossbrace - First pioneered with WAMM Master Chronosonic, Alexx V features our latest cable management system. Aiding not only the overall visual aesthetic of the speaker’s rearward look, this cable management system offers an altogether superior solution to achieving the perfect length of speaker cable for each of the upper modules as they are adjusted for correct time-alignment. Included in this refined design is the illumination cross-brace with a custom made Sono 1 Coolfall® light for ease of installation in dark environments.

Woofer - Alexx V is an extraordinarily adaptable design, including the XLF reversible woofer port and independently adjustable upper modules. Greater ease of installation into a wider variety of listening spaces allows music lovers to truly experience the ability of this system. Every driver is now better aligned and more on-axis with the listener which provides outstanding micro-detail and the time alignment accuracy is tighter at all listening positions.

Acoustic Diodes - Introducing the Wilson Audio Acoustic Diode. An all-new spike system launched with Alexx V, which has been completely upgraded from our standard spike system, and features a novel combination of austenitic stainless steel and V-Material. This coupling system was created by Wilson Audio’s Special Applications Engineering® (WASAE) division and has superlative vibration management that reveals far greater dynamic nuances across the entire frequency spectrum.

Binding PostsThe custom built Wilson Audio binding posts, first appearing in Sasha DAW®, have now also been integrated into Alexx V. Both banana plug termination and traditional spade connections can be used with this binding post. This premier binding post offers a clean signal path with an upgraded and larger contact surface area.

Gold lugs, which are a superior electrical conductor, are featured throughout the entire product. Some places they can be found are within the crossover, connector plate contact points, and resistor connections.

Process of Handcrafting Alexx V Gantry

Alexx V is an extraordinarily adaptable design. Carrying over elements from its larger siblings, such as the XLF reversible woofer port and independently adjustable modules, allow this system to be elegantly tailored to your listening room. These tools built into the DNA of Alexx V allow for greater ease of installation into a wider variety of listening spaces, thus permitting the listener to truly experience the depth and ability of this system.


Specifications

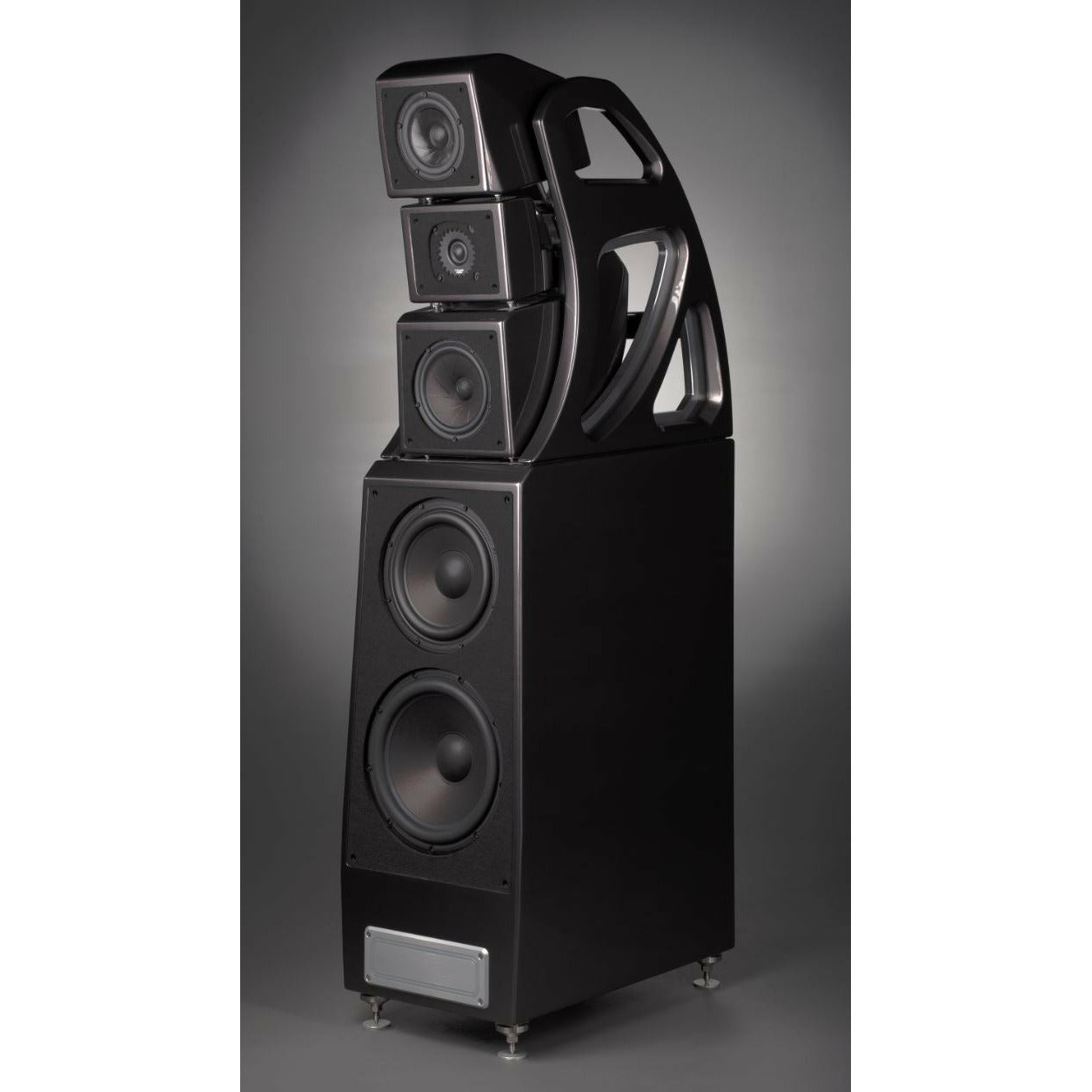

Drivers

Woofers One—10 1/2 inch (26.67 cm), One—12 1/2 inch (31.75 cm)
Midrange Two—7 inch (17.78 cm) / 5 3/4 inch (14.61 cm)
Tweeter One—1 inch (2.54 cm)

Enclosures & Materials

Enclosure Type Woofer XLF port, adjustable Rear or Front firing
Enclosure Type Midrange Lower: Rear Vented / Upper: Rear Vented
Enclosure Type Tweeter Sealed

Measurements

Sensitivity 92 dB @ 1W @ 1 meter @1 kHz
Nominal Impedance 4 ohms, 2.0 ohms minimal @ 250 Hz
Minimum Amplifier Power 50 Watts per channel
Frequency Response +/- 3 dB 20 Hz - 32 kHz

Dimensions

Height 63 5/16 inches (161 cm)
Width 15 3/4 inches (40 cm)
Depth 27 29/32 inches (68 cm)
System Weight (Per Channel) 500 lbs each (226.80 kg)
Total System Shipping Weight (approx) 1,400 lbs pair (635.03 kg)
