Wilson Audio ActivXO Sub Controller

Wilson Audio ActivXO Sub Controller

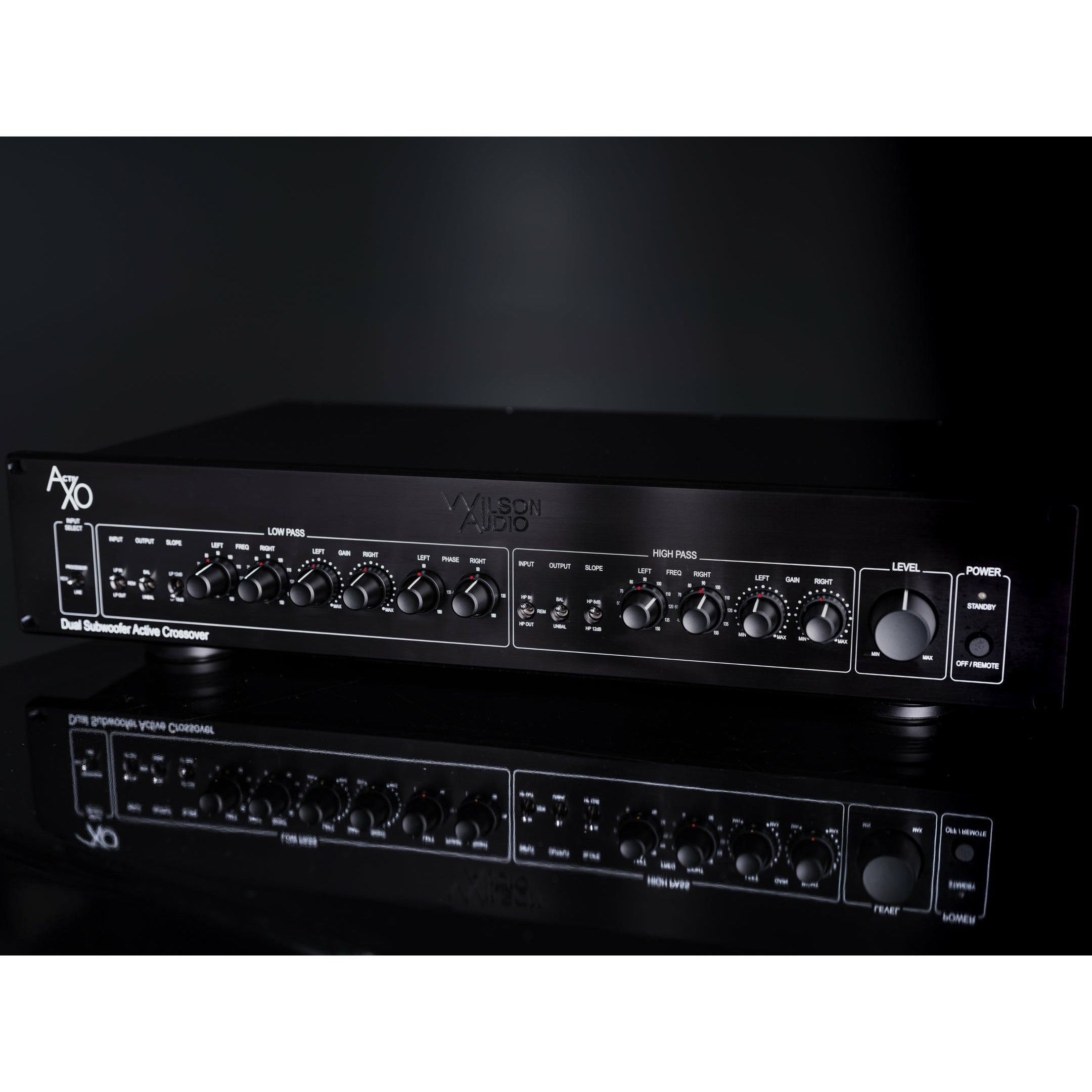

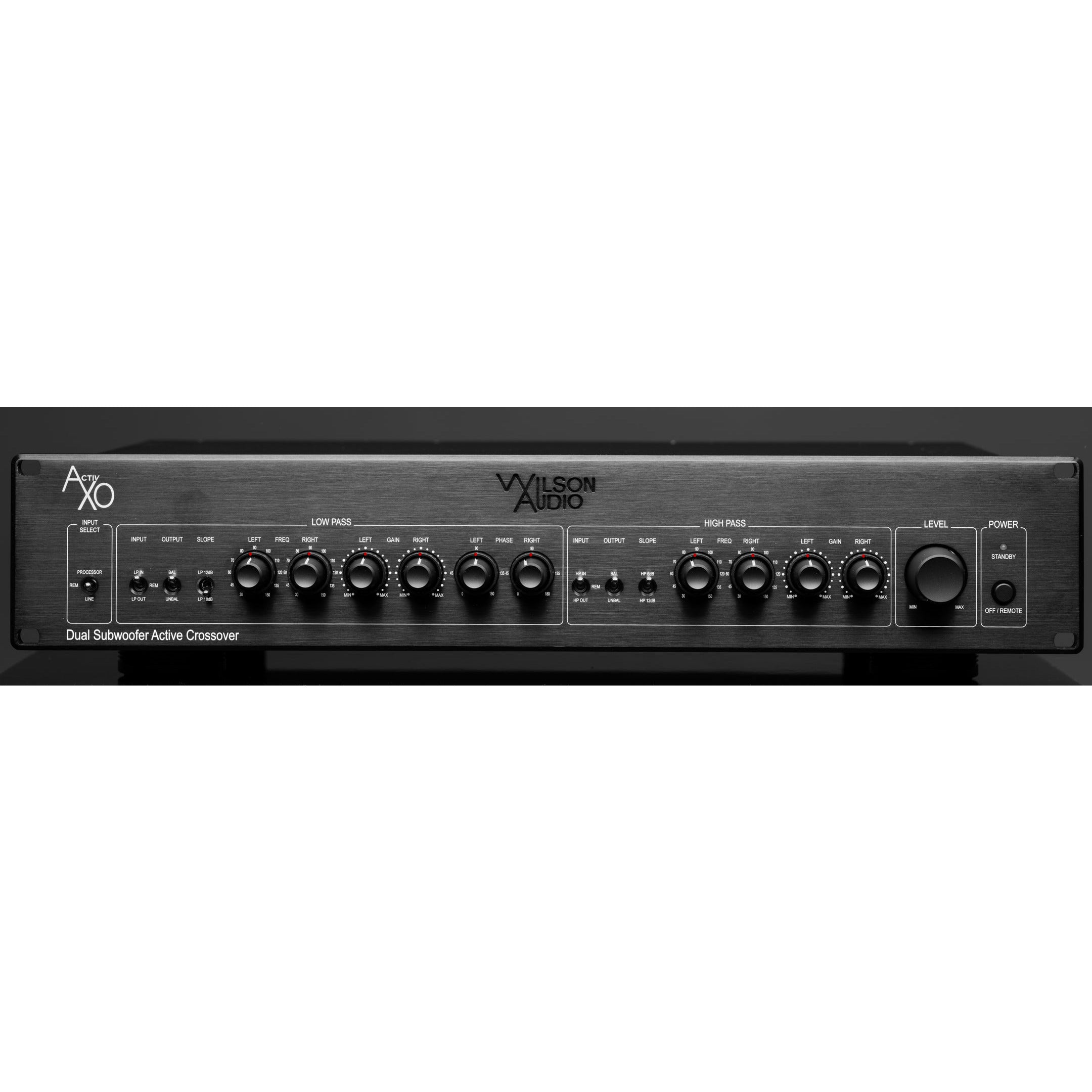

The ActivXO is the long-awaited and thoroughly updated replacement for Wilson’s revolutionary Controller. It is a two-channel, fully analogue electronic crossover with an array of features. It can be used in conjunction with a dedicated music system, or as the subwoofer control unit in a home theater system. In systems used for enjoyment of music and surround film, the ActivXO is configurable to accommodate both —optimally and simultaneously.

The ActivXo accepts both single-ended and balanced inputs, and can output to one or a stereo pair of subwoofers for the most demanding applications. It can be used with any of Wilson’s subwoofers, and is included with the purchase of the WAMM Master Chronosonic.

Specifications

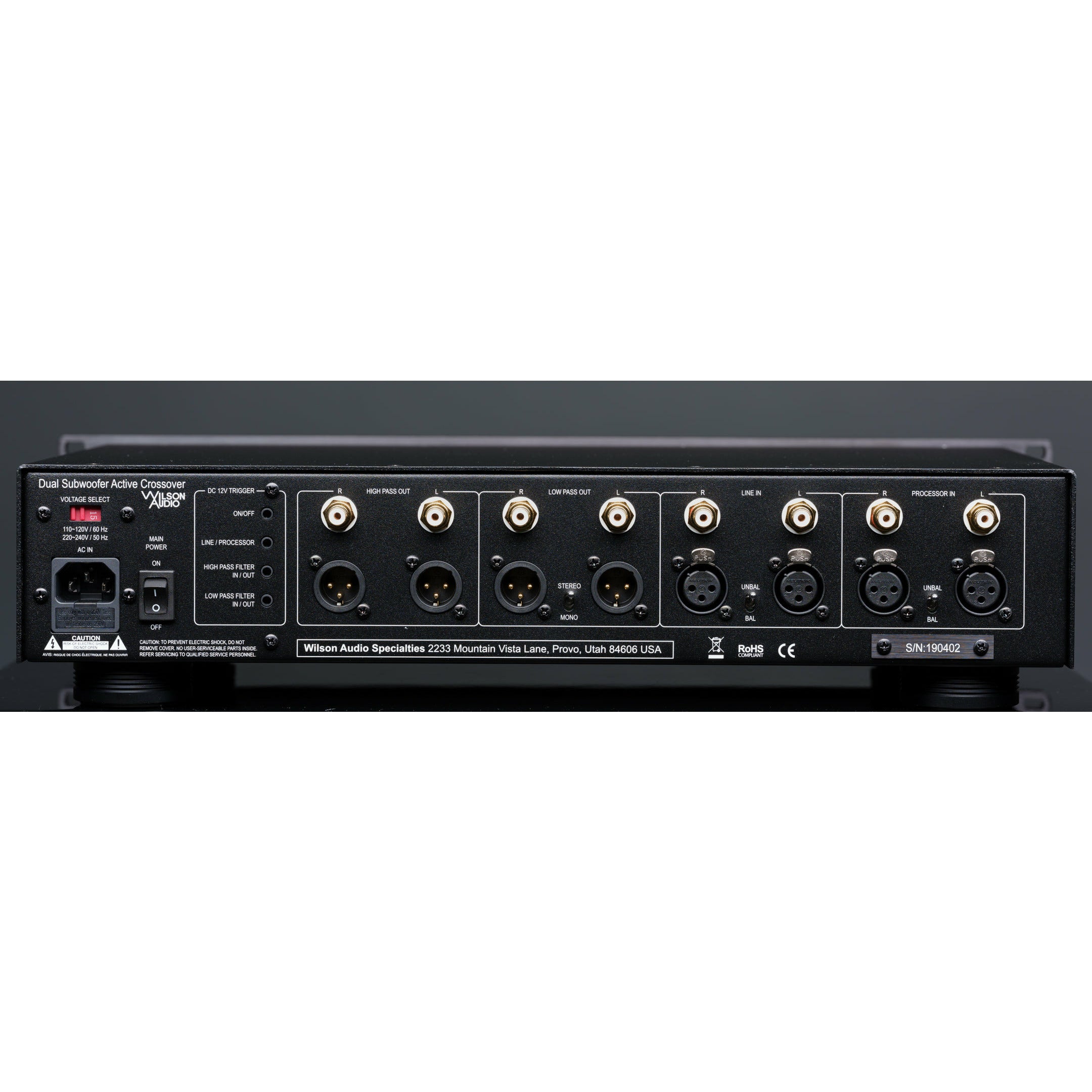

Connections

Inputs Balanced and single-ended, Processor
Outputs High-pass, balanced and single-endaacced, 2 stereo Low-pass, balanced and single-ended, 2 mono

Measurements

Input Impedance 22k ohms single-ended, 50k ohms bal.
Low Pass Filter Level & Frequency (30 to 150 Hz) Adjustable, 12 dB or 18 dB/Octave
High Pass Filter Level & Frequency (30 to 150 Hz) Adjustable, 6 dB or 12 dB/Octave
Phase 0 - 180 degrees, continuously variable

Overall Dimensions

Width 18.8 in. (482mm)
Height 4.5 in (155.4mm) - Includes feet
Depth 11.5 in. (287.4mm) - Includes knobs
Weight 16.75 lbs (7.6 kg)
Shipping approx. 2 lbs. (10 kg)
