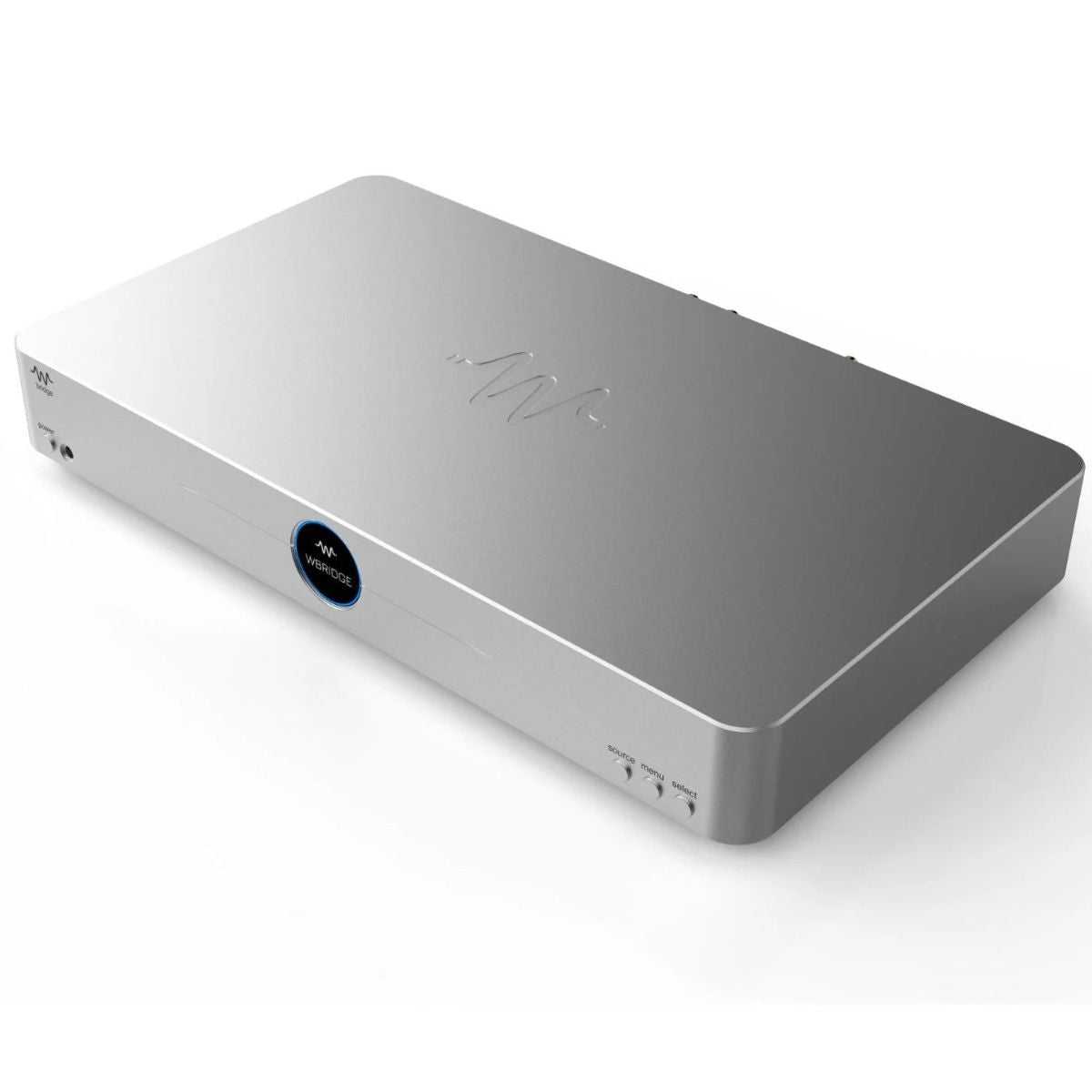

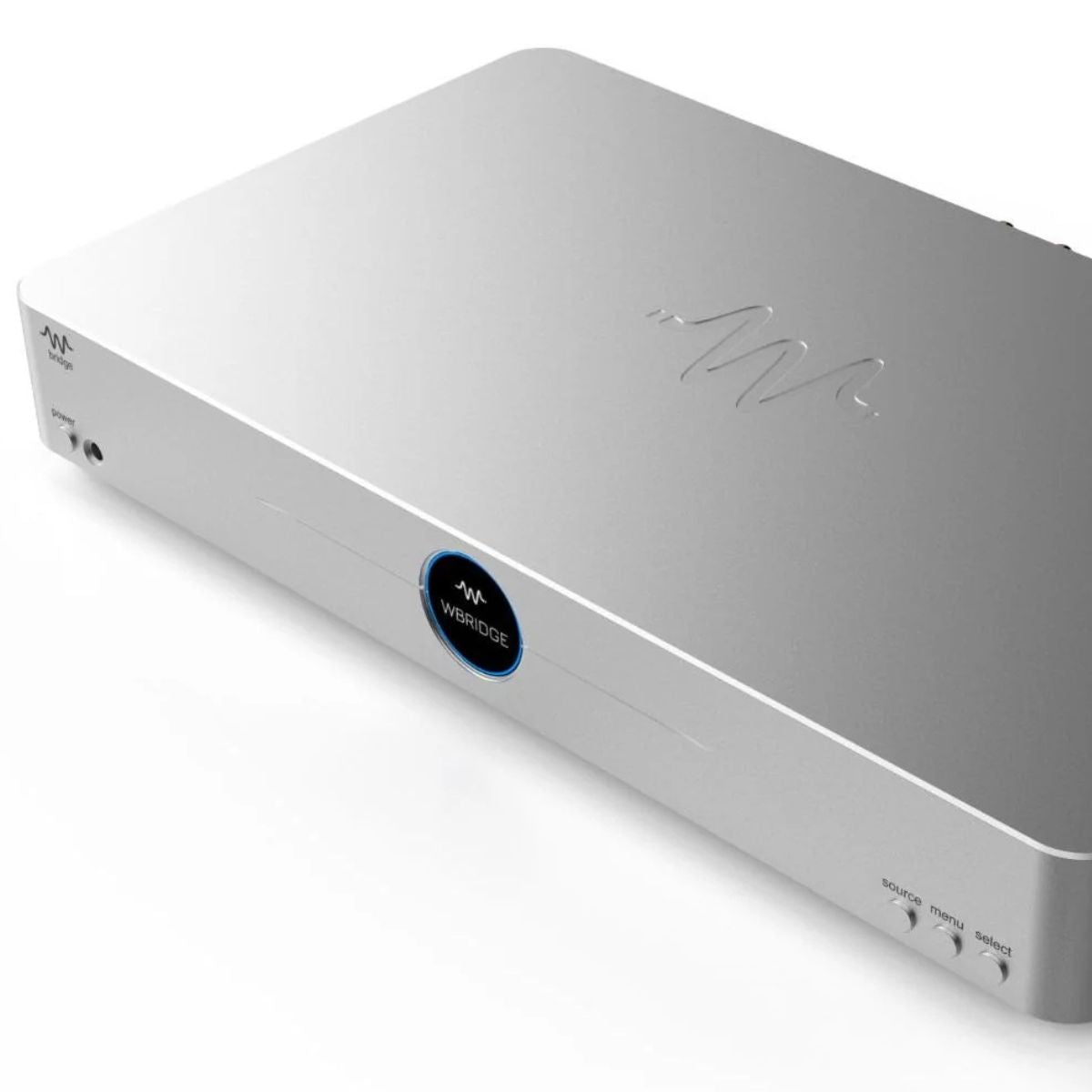

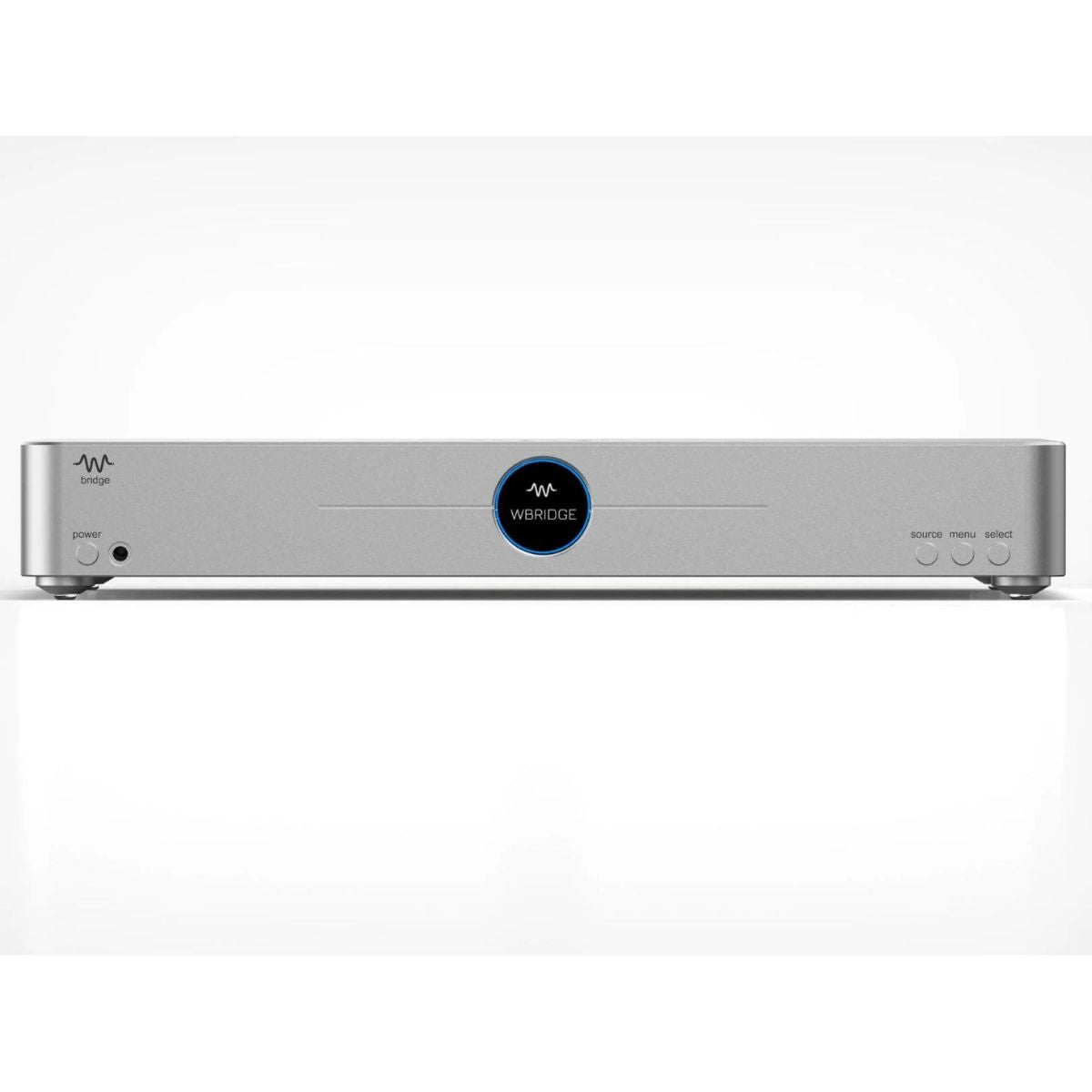

Waversa WBridge Standard Digital Hub

The Waversa Systems WBridge Standard Digital Hub offers a comprehensive solution for connecting all digital sources seamlessly, serving as a unified interface for both input and output. Its versatile design allows for the transfer of digital signals via WNDR to other Waversa devices, ensuring optimal performance and compatibility. Equipped with Battery Power and full reclocking featuring a high-quality OCXO Clock, the WBridge guarantees the purest digital path, minimising interference and preserving signal integrity.

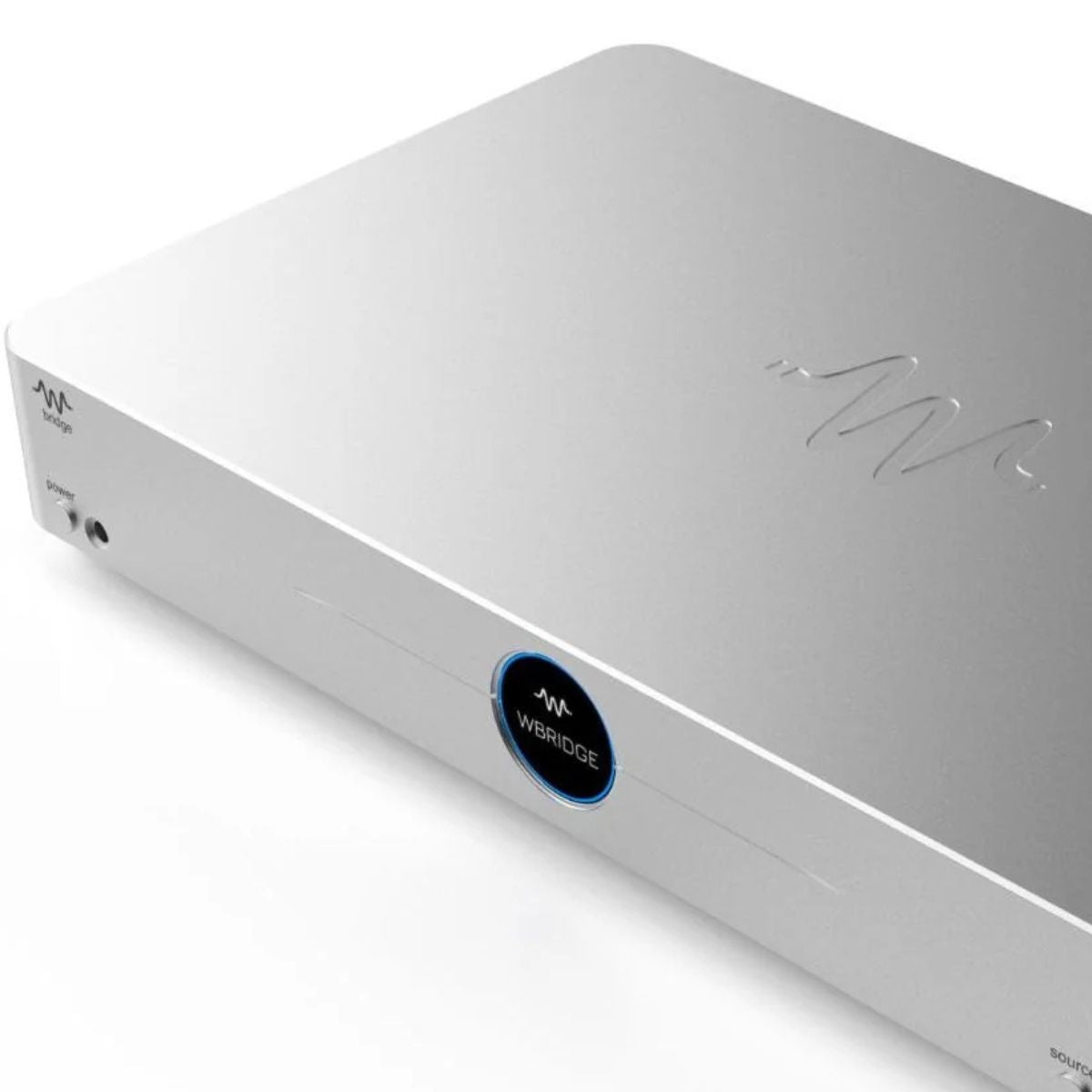

Featuring a wide array of supported interfaces including Ethernet, USB, Coaxial, Optical, AES/EBU, and HDMI, the WBridge provides excellent usability and expansion options for various devices and systems. Its Unibody Housing crafted from high-quality aluminium chassis ensures protection from external noise and vibration, maximising audio performance.

With exclusive technologies like WNDR for direct rendering, WAP for system processing, and WAP/X for harmonic component recovery, the WBridge elevates audio quality by eliminating errors in digital audio sources and enhancing the harmonic frequency range for natural timbre and soundstaging. HDMI 2.0 / HDMI ARC support further enhances connectivity for seamless integration between video and audio components.

With complete noise-protected hardware construction, cross-conversion of all audio interfaces, and exclusive technologies like WAP and WAP/X, the Waversa Systems WBridge offers unparalleled versatility, performance, and connectivity for high-end audio systems.

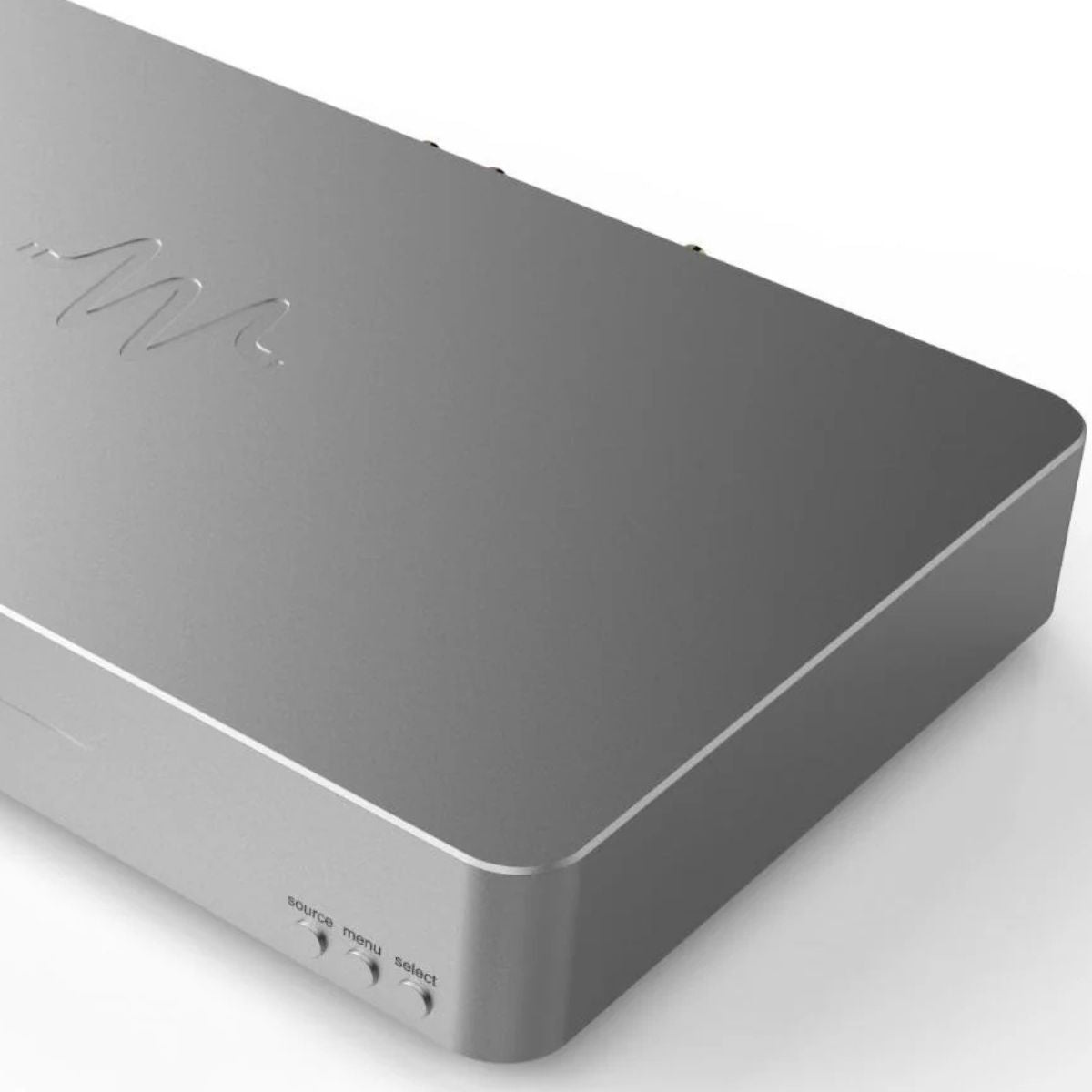

Chassis: Aluminium

Colour: Silver

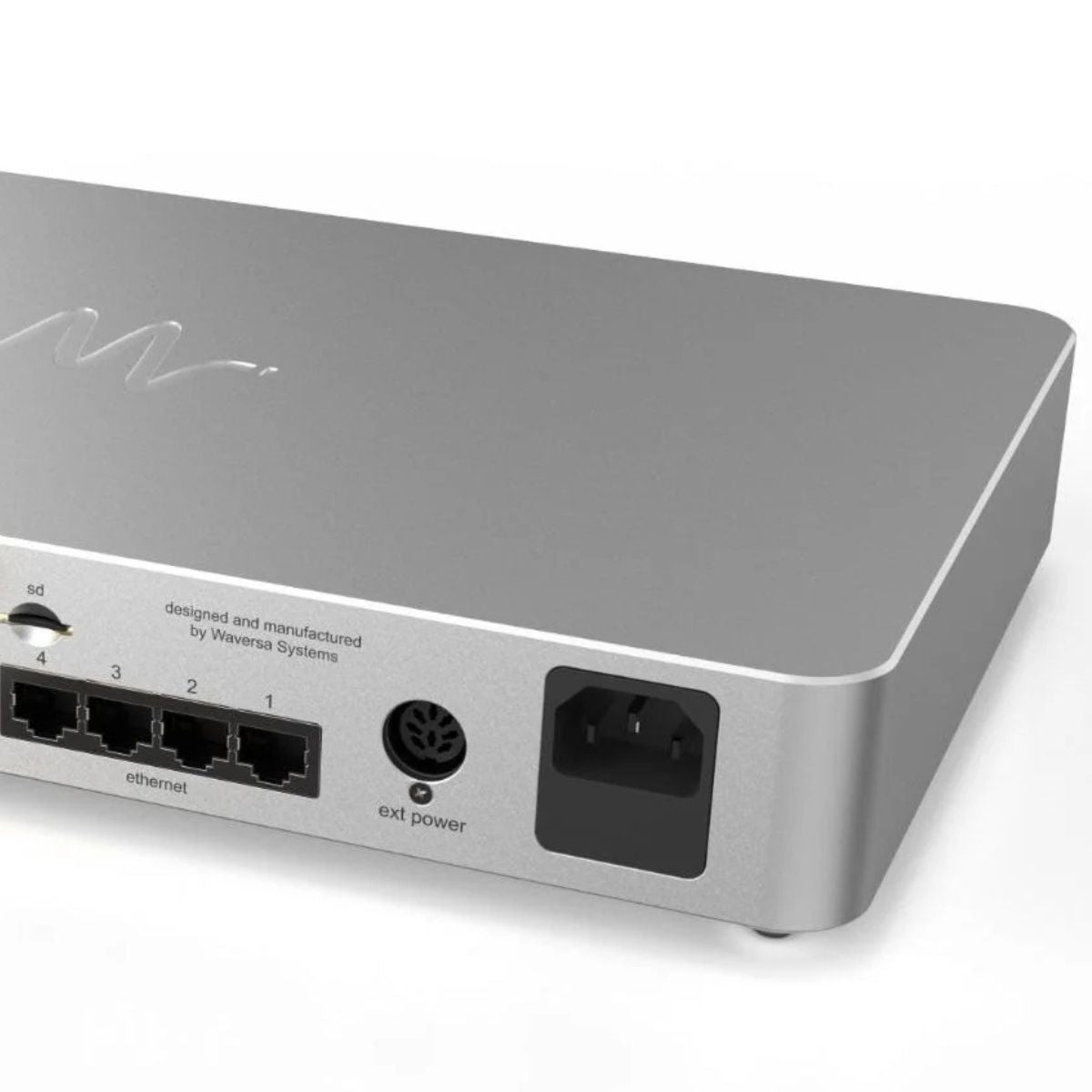

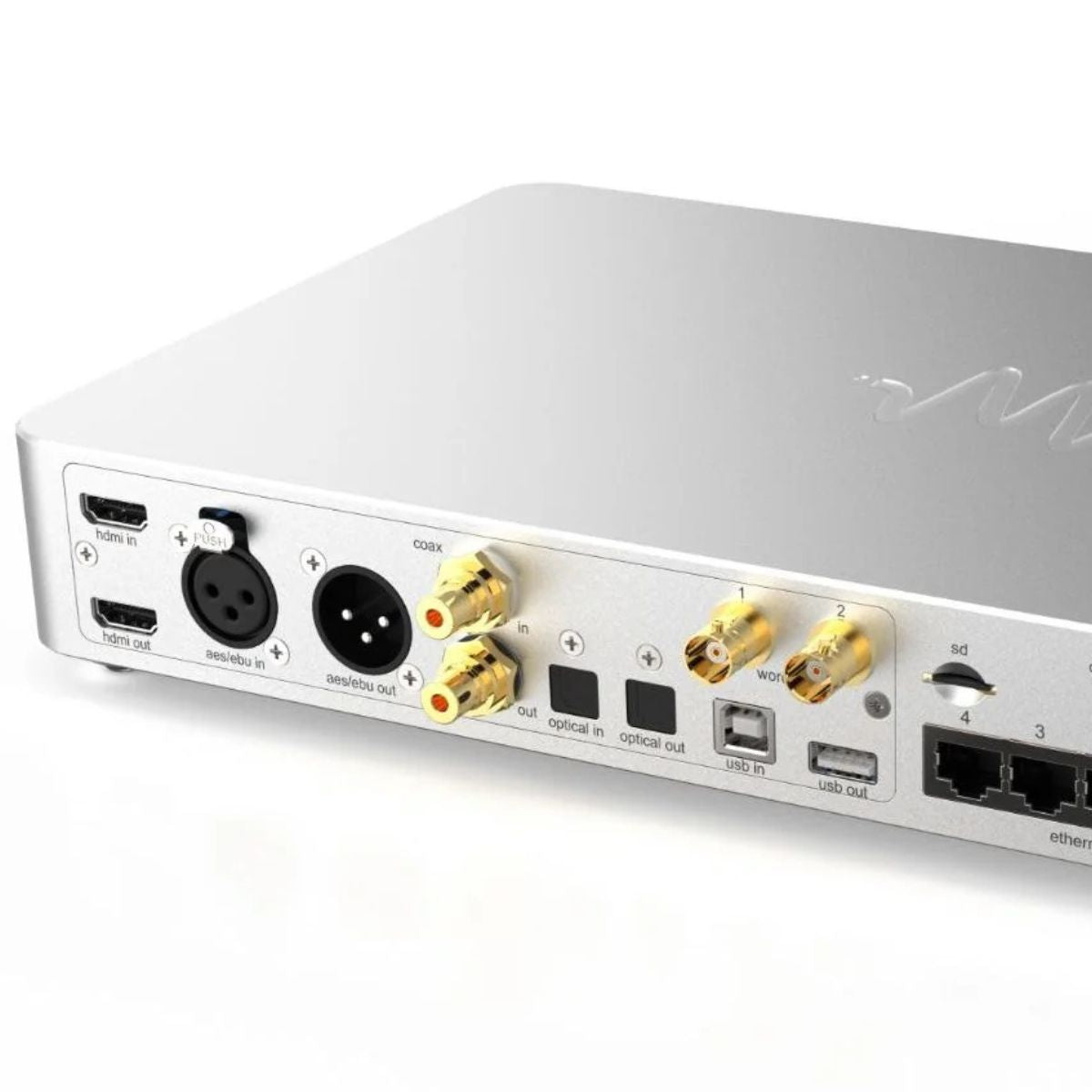

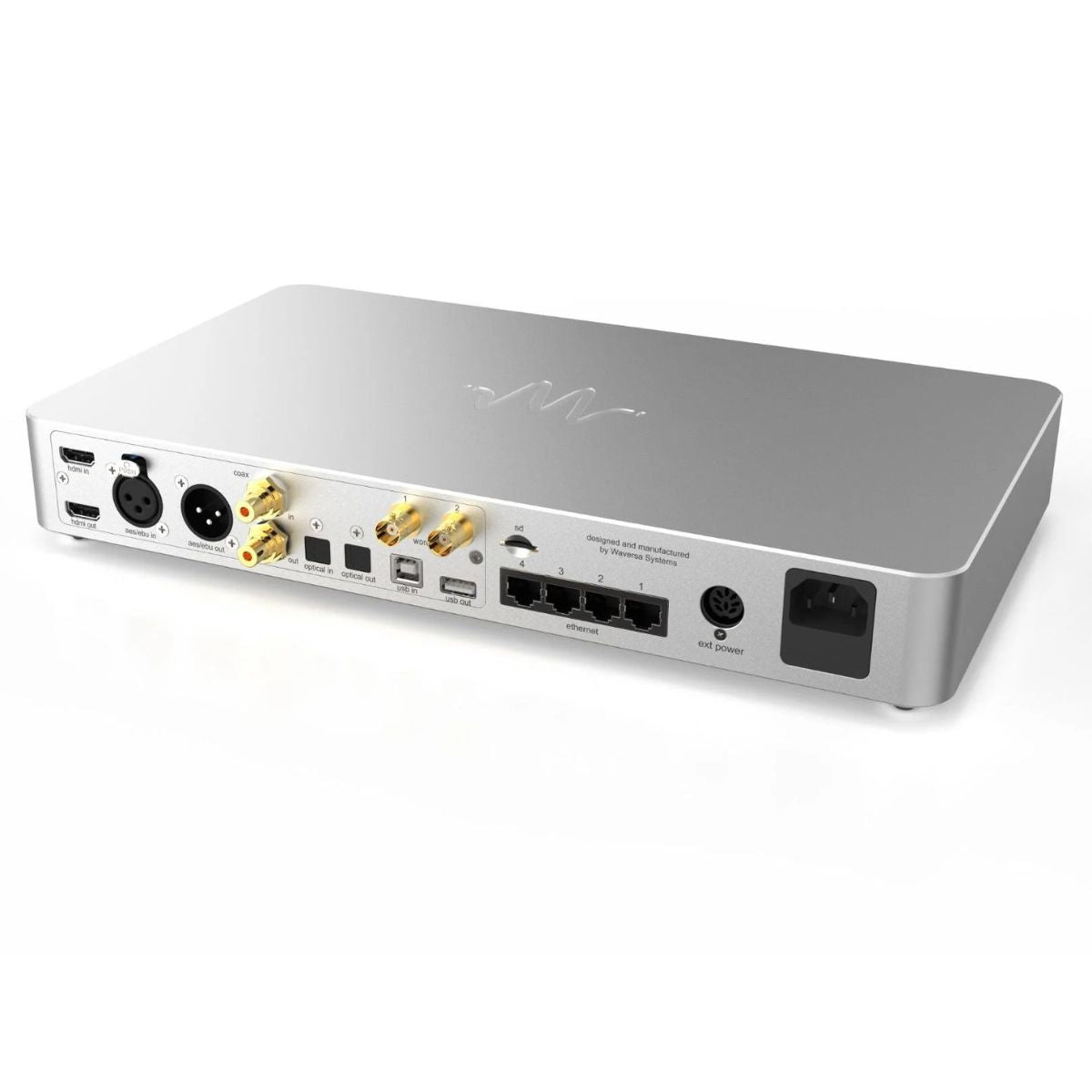

I/O: 4 x Audio Grade Ethernet ports (with Native DSD), Digital Coaxial input/output, AES/EBU input/output, USB-B input, USB-A output, Toslink input/output, HDMI input/output (up to 4K pass through, ARC), Micro SD (Updates only)

Dimension: W350xD200xH45mm

Weight: 4.0 kg

Power supply: 90~120 VAC/180~240 VAC@50~60Hz

Supported Audio/Video Formats

COAX: up to 192KHz

USB/NET: PCM 32 Bit 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz, DSD64, DSD128, DSD256

ROON: FLAC, WAV, DSF, DFF, AIFF, ALAC, AAC, MQA

UPnP/DLNA Renderer: WAV, AIFF, OGG, FLAC up to 24 bits / 192 kHz

AM3358 with TI OMAP 1GHz ARM Cortex A8

OCXO Clock (Upgradable through external sync clock)

Built-in Linear Power Supply
