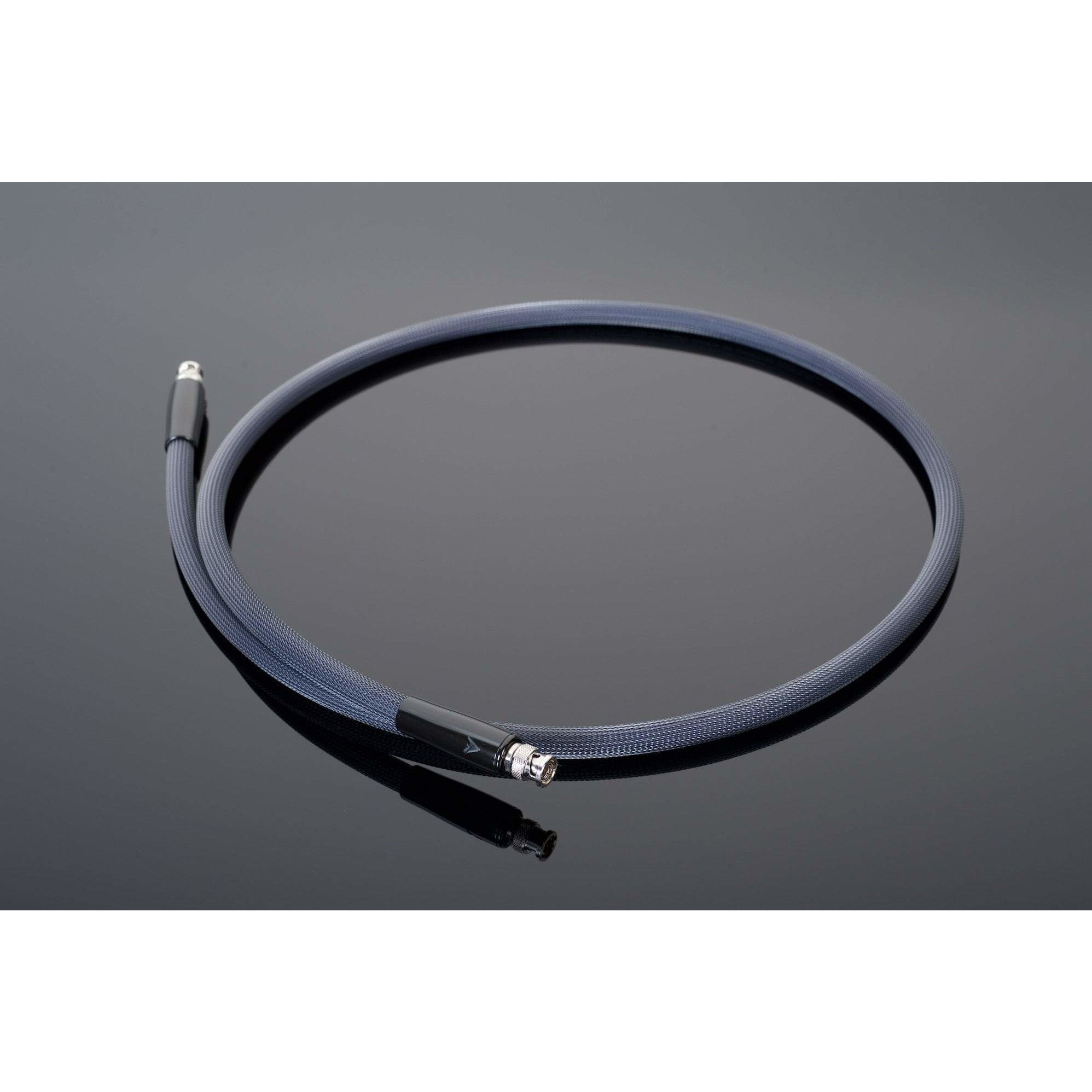

Transparent XL Gen 6 75-Ohm Digital Audio Interconnect
Transparent XL Gen 6 75-Ohm Digital Audio Interconnect

Transparent XL Gen 6 75-Ohm Digital Audio Interconnect

$6,020.00

XL 75-Ohm Digital Link is a great addition to any well-established Connoisseur Level music or film system that has a top-quality digital source. It works well with other ULTIMATE and TRANSCENDENT Transparent System Companions to create a solid and refined foundation for even closer connections to the music because it frees digital sources to reveal harmonic and spatial details with more tonal richness and dynamics.

XL 75-Ohm Digital Link is handcrafted in the USA. It has a larger, solid-core OFHC centre conductor for more foundation than REFERENCE 75-Ohm Digital Link. It too has super quiet, precision-extruded Teflon dielectric with Advanced Expanded Foam Technology for superior 75-ohm impedance stability. Robust, custom- designed, gold-plated RCAs make 360-degree contact with inner shield to combat both noise and jitter. Two OFHC braided shields separated by a Mylar coated foil shield block noise interference. It’s designed from the ground-up with its hefty, precision construction to transfer audio signals efficiently and quietly for better than reference-quality musical impact.

MUSICALITY

FEATURES

  • Heavy, polished, solid core OFHC centre conductor
  • Super quiet Advanced Expanded Foam Technology ensures superior 75-ohm impedance stability
  • Two high coverage OFHC braided shields separated by a Mylar coated foil shield keep noise out

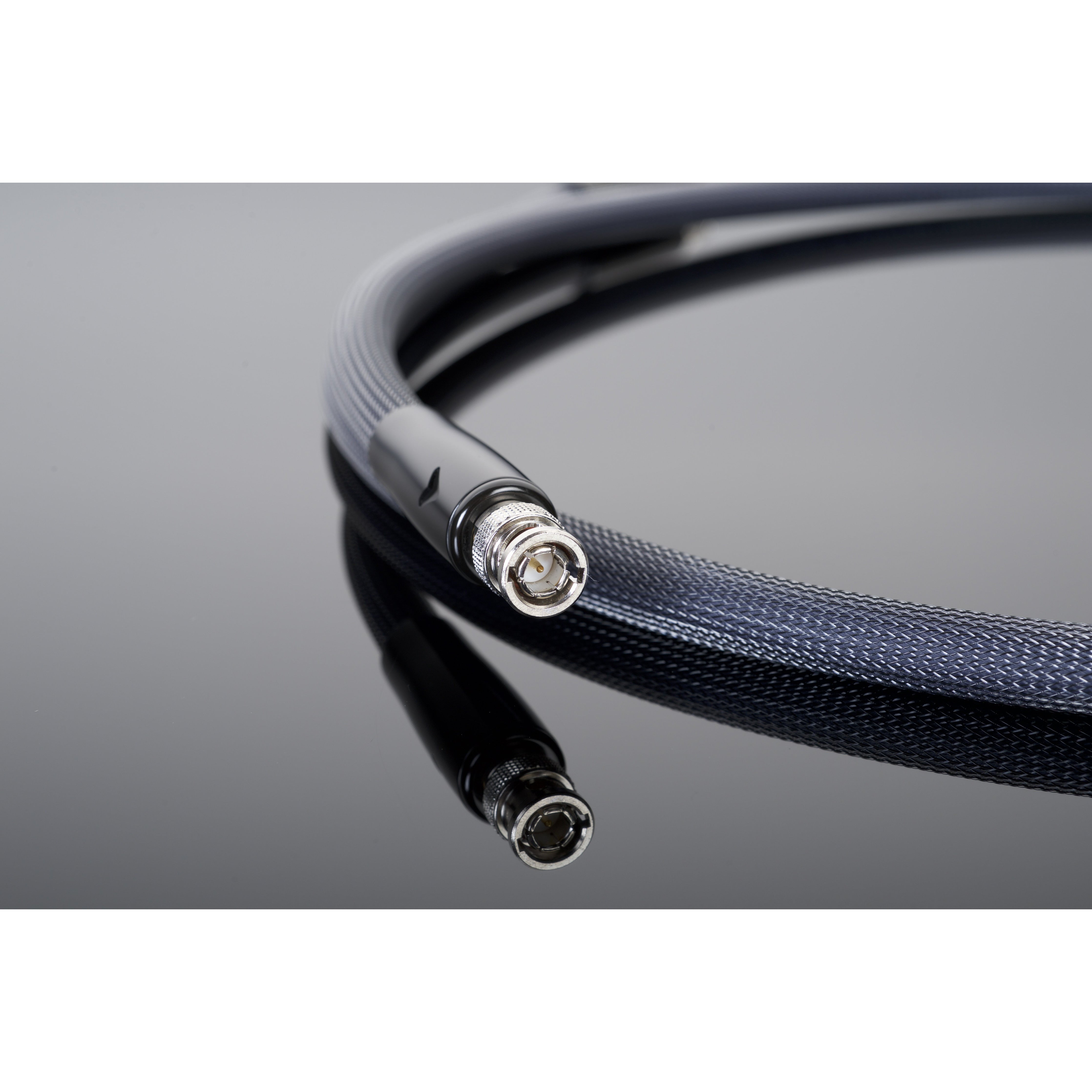

  • Coaxial RCAs that make 360-degree contact with the inner shield maintain the impedance of the cable at the termination point, thereby reducing jitter
SPECIFICATIONS
  • Standard termination: RCA > RCA
  • Optional termination: RCA > BNC, BNC > RCA, BNC > BNC
  • Lengths: .5 meter, 1 meter, 1.5 meter, 2 meter, 10 feet, 15 feet, 20 feet
  • Custom lengths always available
  • Adapters: 75-Ohm Female BNC > 110-Ohm Male XLR 75-Ohm Female BNC > 110-Ohm Female XLR Female BNC > Female BNC Male BNC > Male BNC Female RCA > Female RCA Female BNC > Male BNC 90-Degree Female RCA > Male BNC Female BNC > Male RCA Male BNC > Male RCA Male BNC > Female RCA
