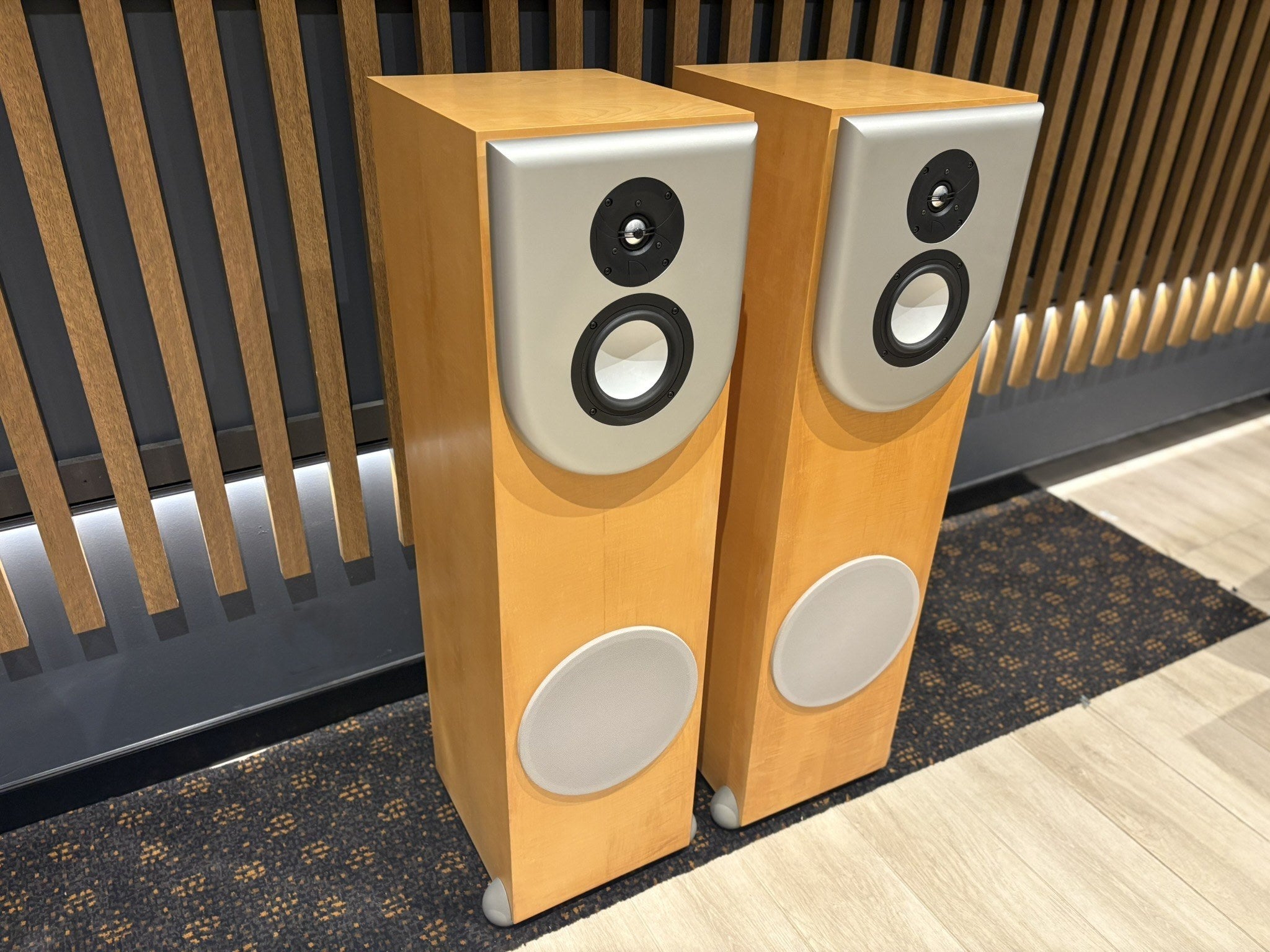

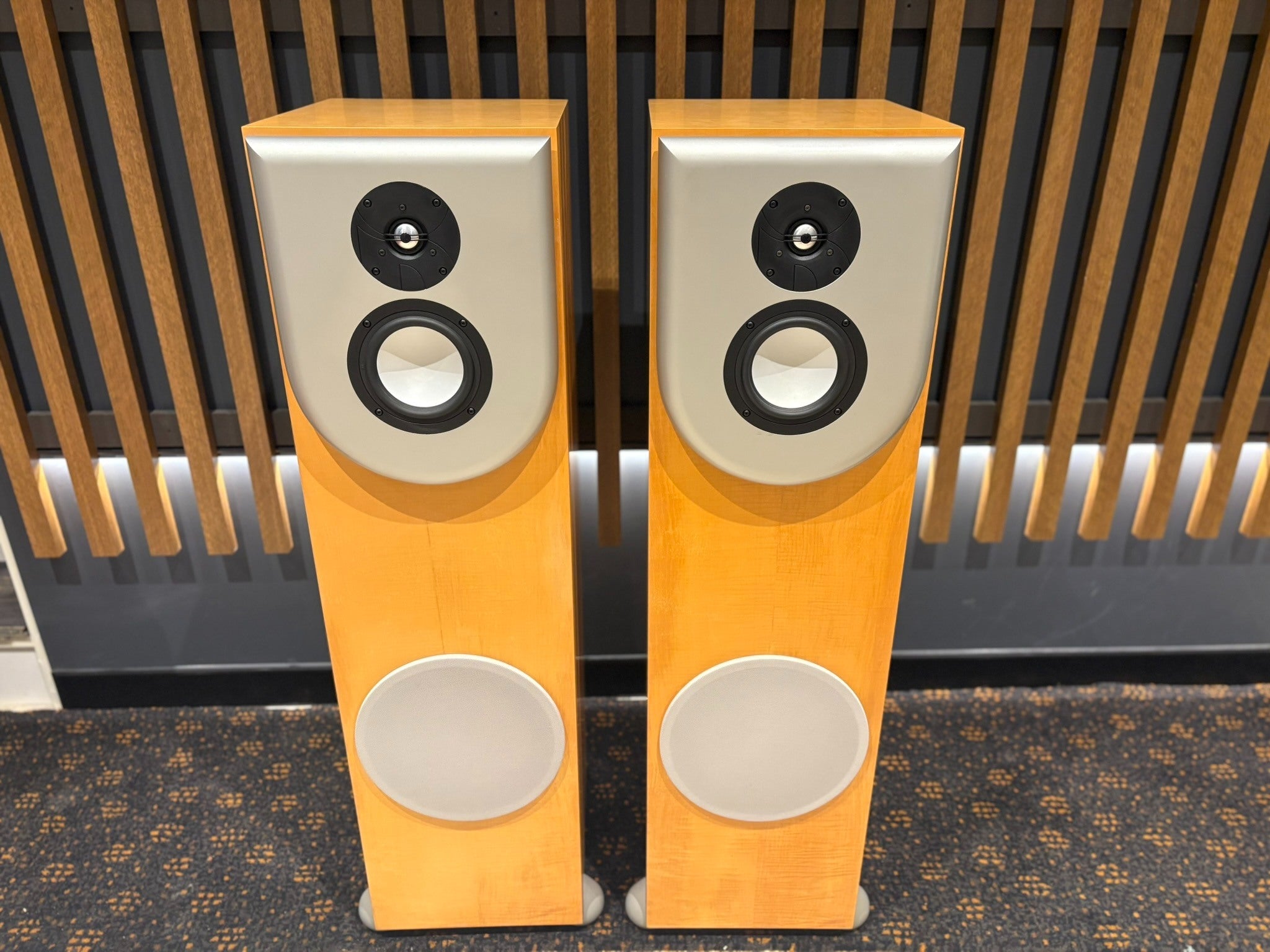

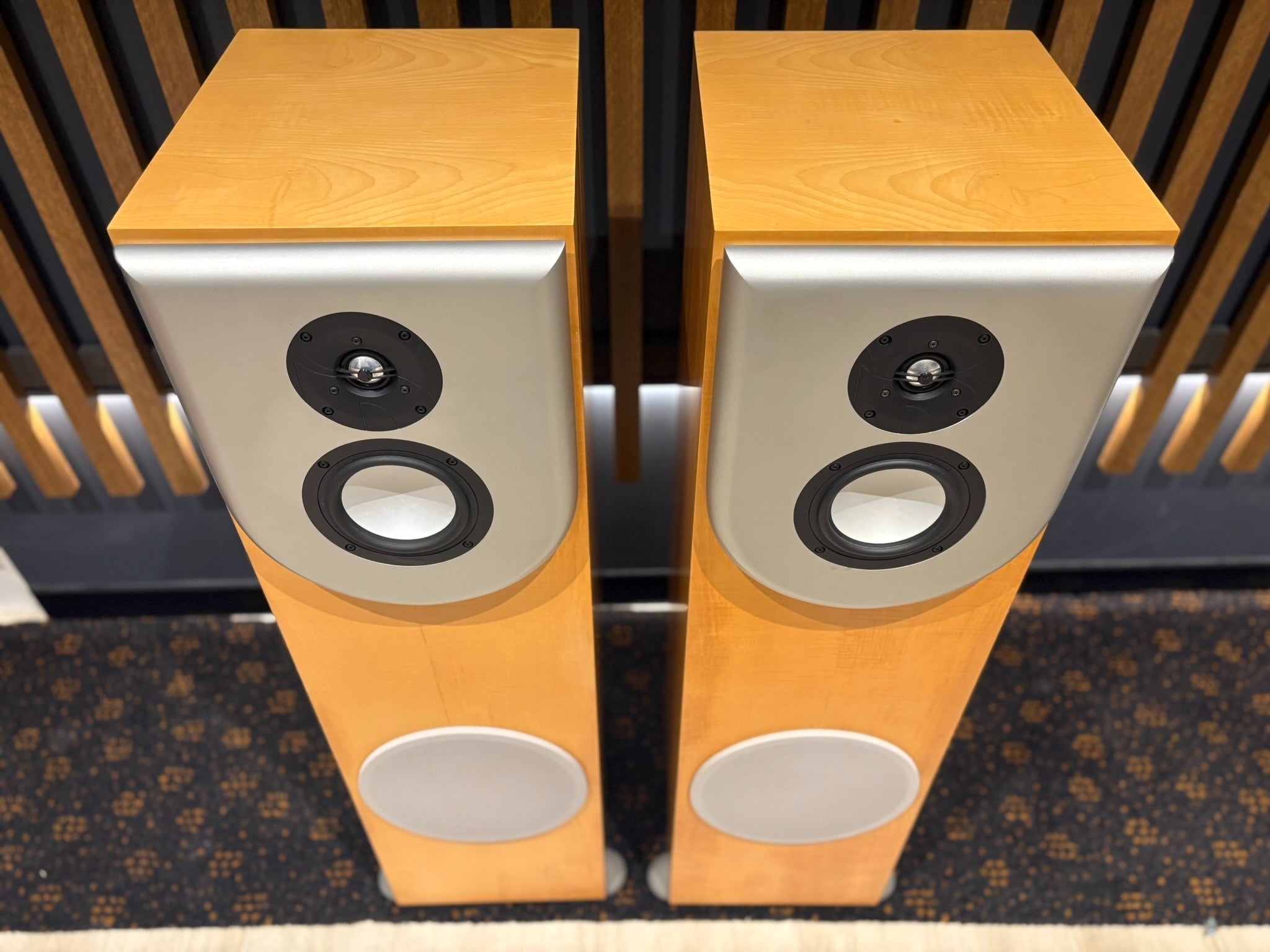

Revel Performa F30 Floorstanding Speakers, Maple - Consignment

Revel Performa F30 Floorstanding Speakers, Maple - Consignment

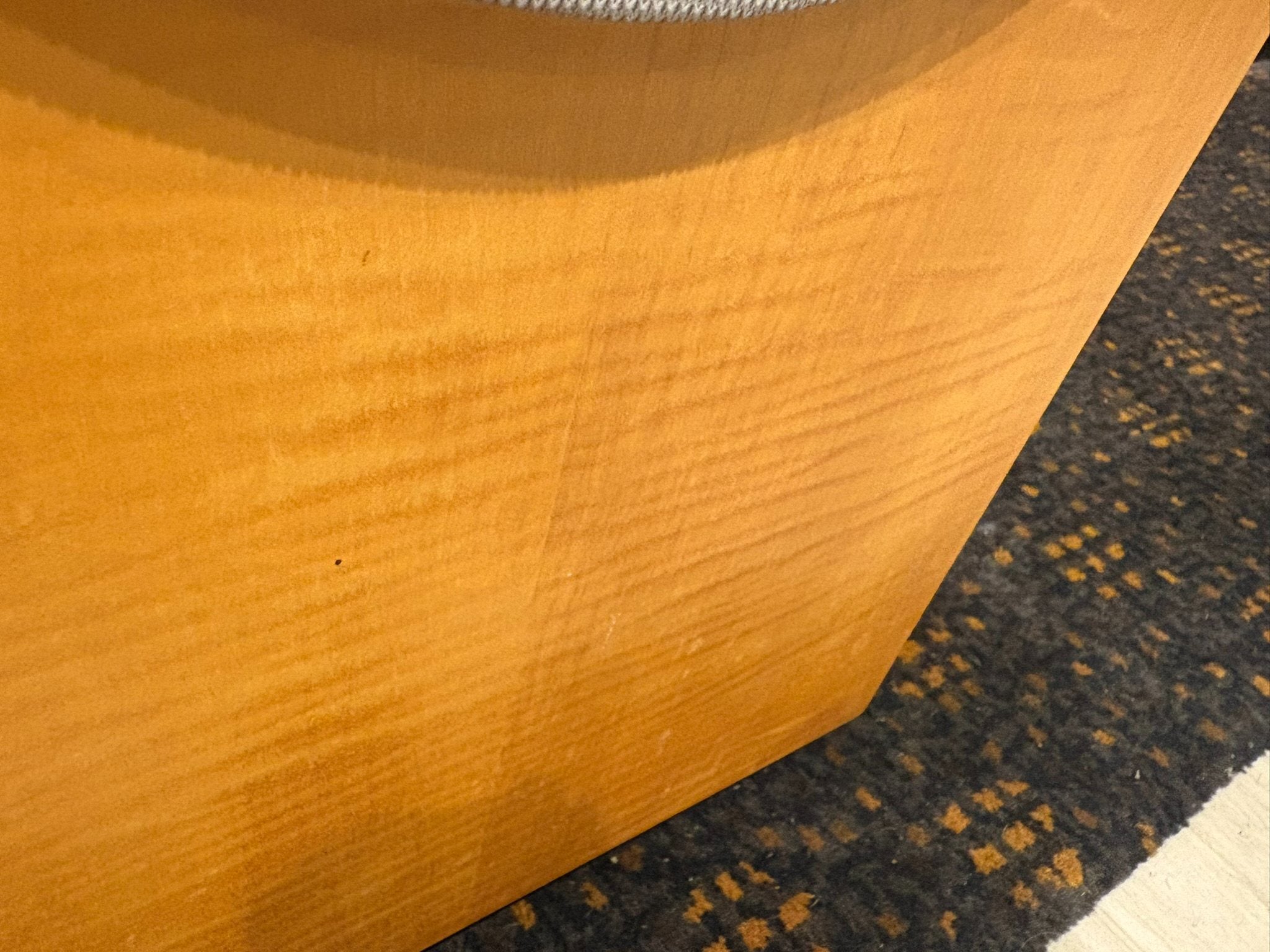

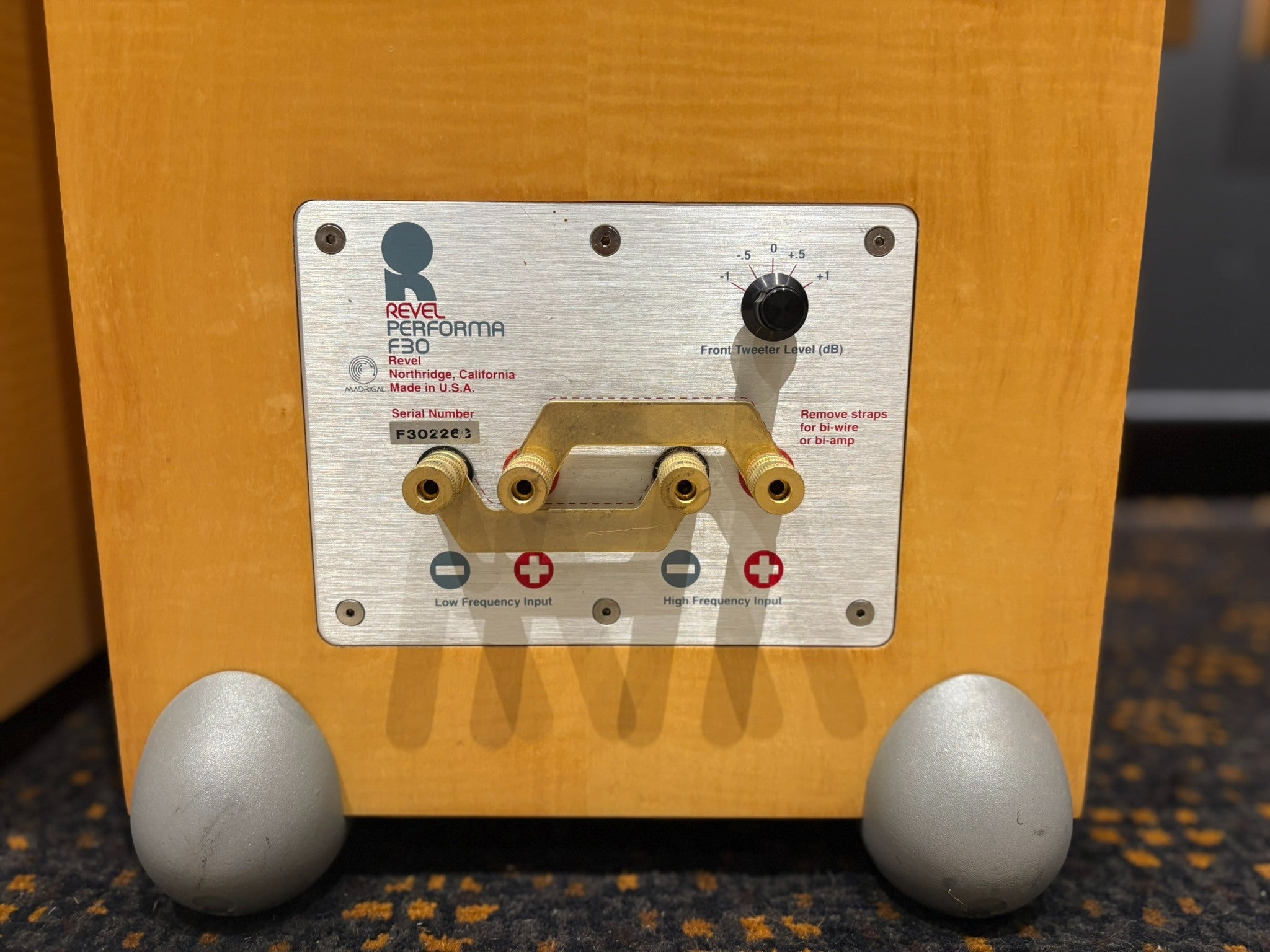

Condition: Very good, minor scratches on one speaker side, marks to floor spikes (See photos)

Includes: Original Packaging, Jumper Plates

SN: F302263 / F302264

Overview

Maple real wood veneer.

With a unique and somewhat polarising design, Revel's Performa F30 speaker will impress sonically. With trickle-down technology from Revel's renowned Ultima loudspeakers, F30 features an inverted magnesium/aluminum-alloy dome woofer and midrange, along with an aluminum dome tweeter.

Woofer
The 10-inch inverted aluminum-dome woofer features:

• True pistonic operation for reduced coloration
• Optimized and shielded magnetic circuits to minimize harmonic distortion and prevent video monitor interference
• Butyl rubber surround for large, linear excursion capabilities
• CCA flat-wire voice coil on a 2-inch fiberglass bobbin for low mass and high power handling
• Vented center-pole piece for enhanced cooling and reduced compression

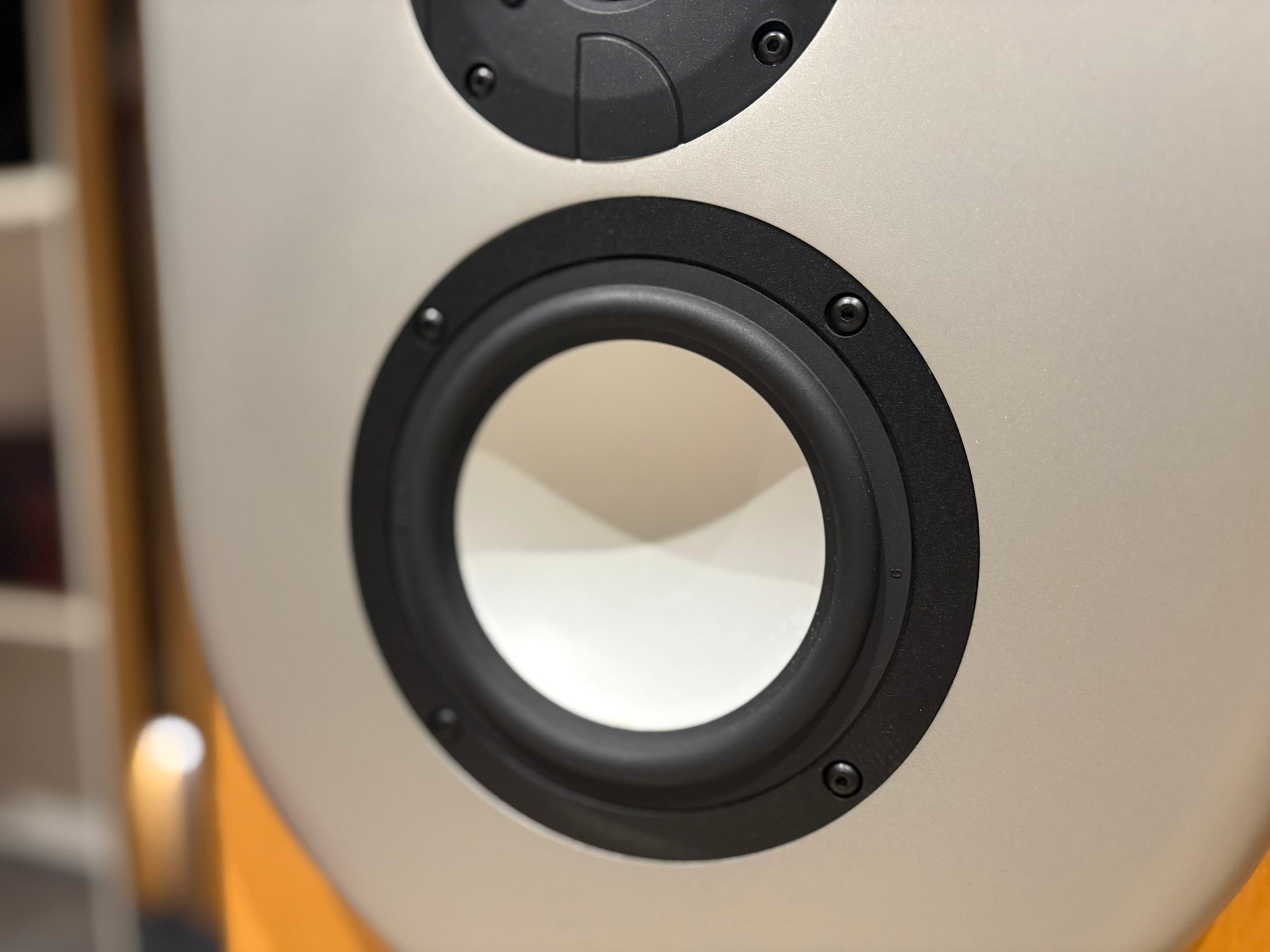

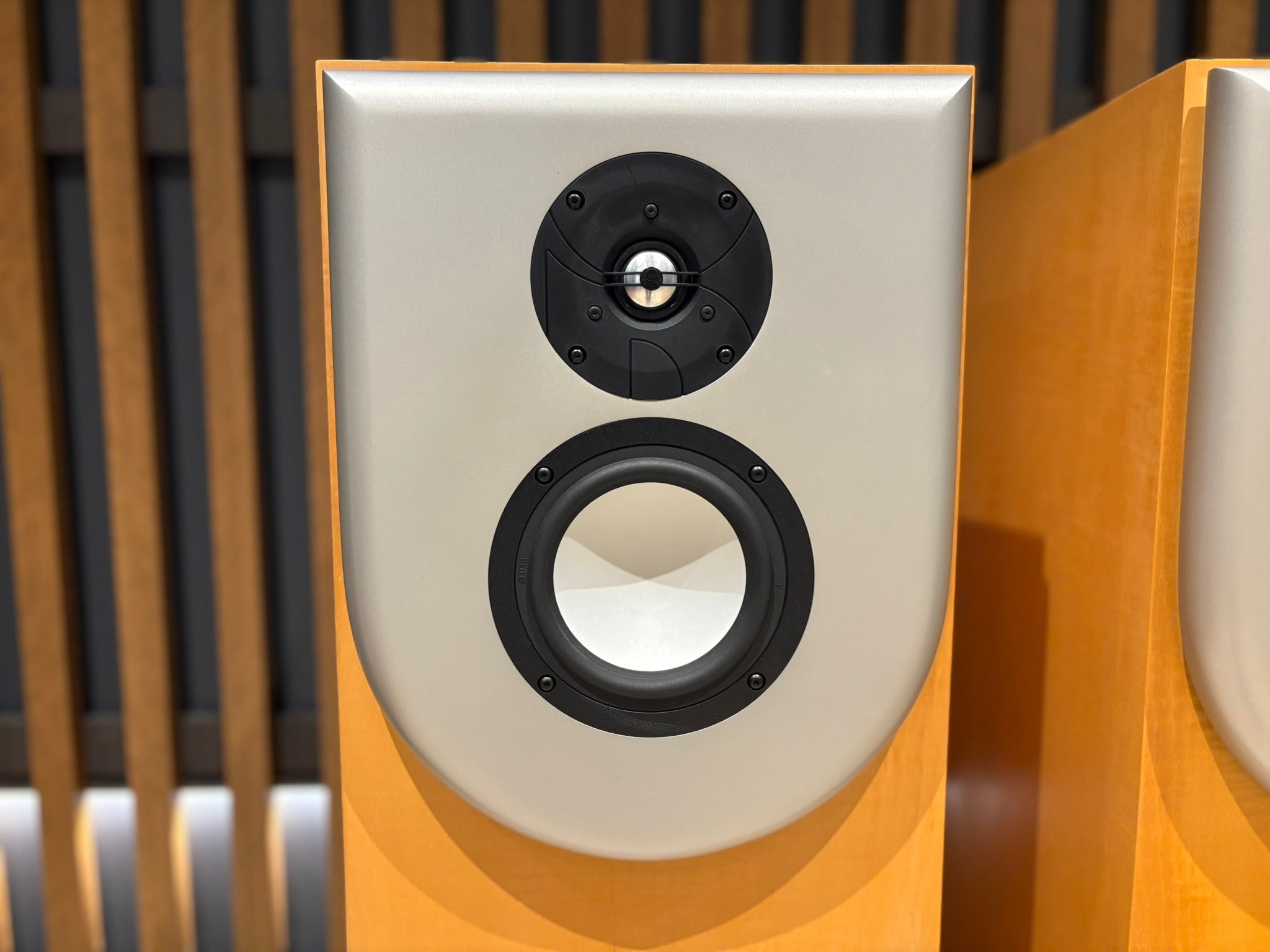

Midrange
The 5.25-inch inverted magnesium-dome midrange transducer features:

• True pistonic operation for reduced coloration
• Optimized and shielded magnetic circuits to minimize harmonic distortion and prevent video monitor interference
• Butyl rubber surround for large, linear excursion capabilities
• Oversized 1.5-inch voice coil wire on a Kapton bobbin for low mass and increased strength

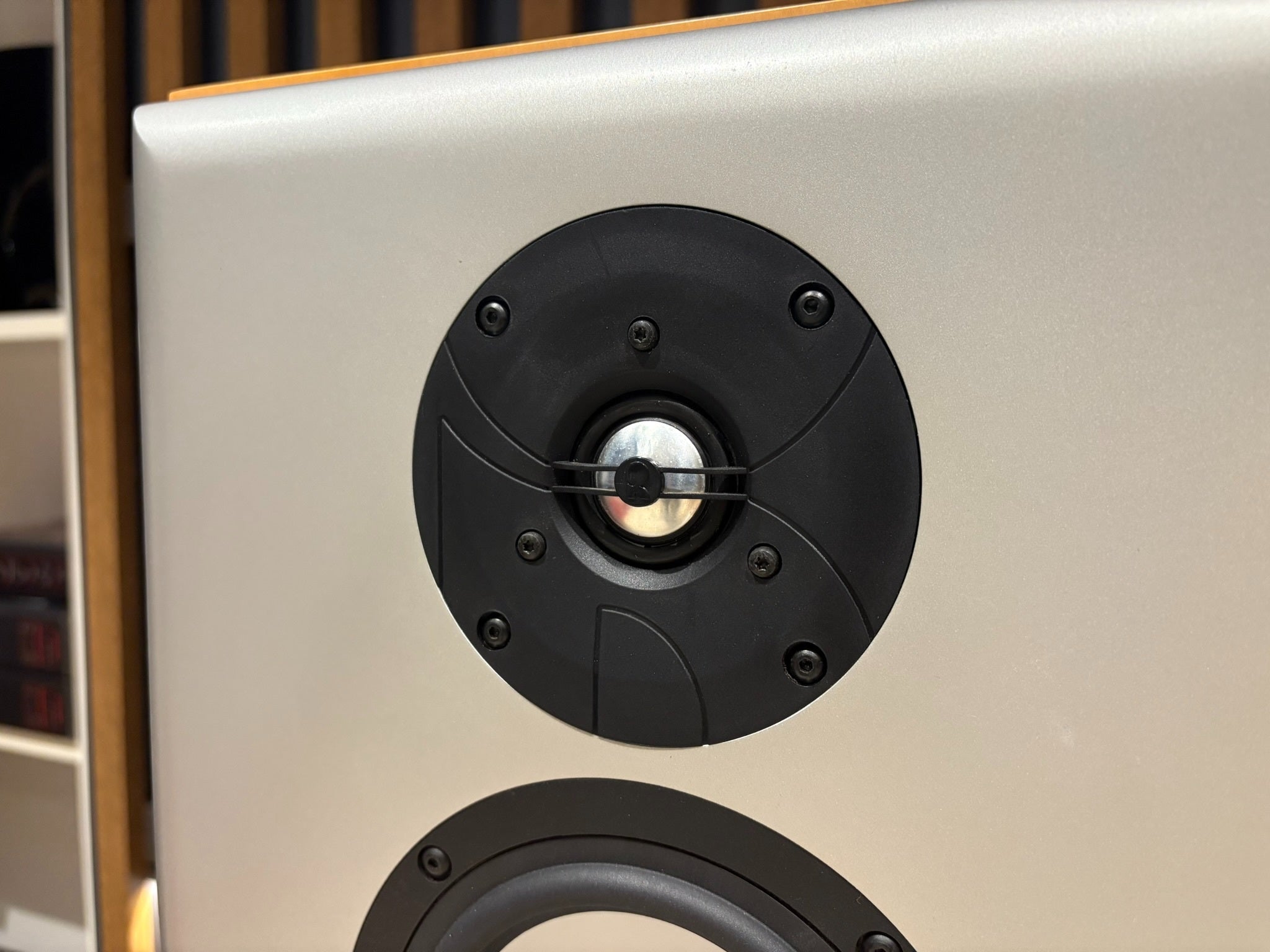

Tweeter
The 1-inch aluminum-alloy dome tweeter features:

• True pistonic operation for reduced coloration
• Underhung with copper-clad aluminum wire for low distortion
• Ferrofluid for improved power handling and reduced compression
• Magnetic shielding to prevent interference with video monitors

Crossover Network
Each REVEL PERFORMA F30 loudspeaker includes an individually optimized crossover network with:

• High-order crossovers at 220 Hz and 2.8 kHz to optimize on- and off-axis response
• Filter networks with carefully selected components for optimal performance and low distortion across a wide dynamic range

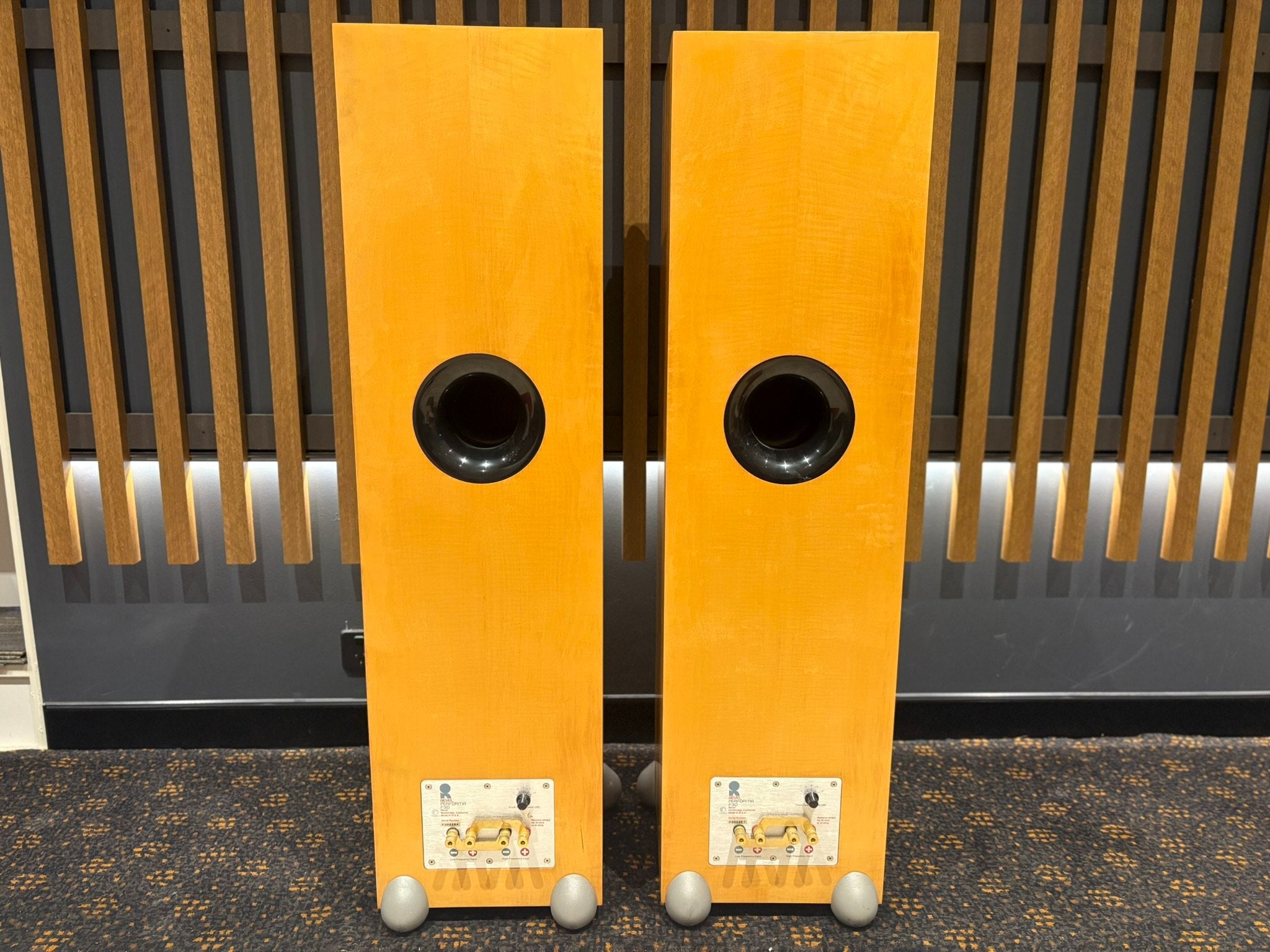

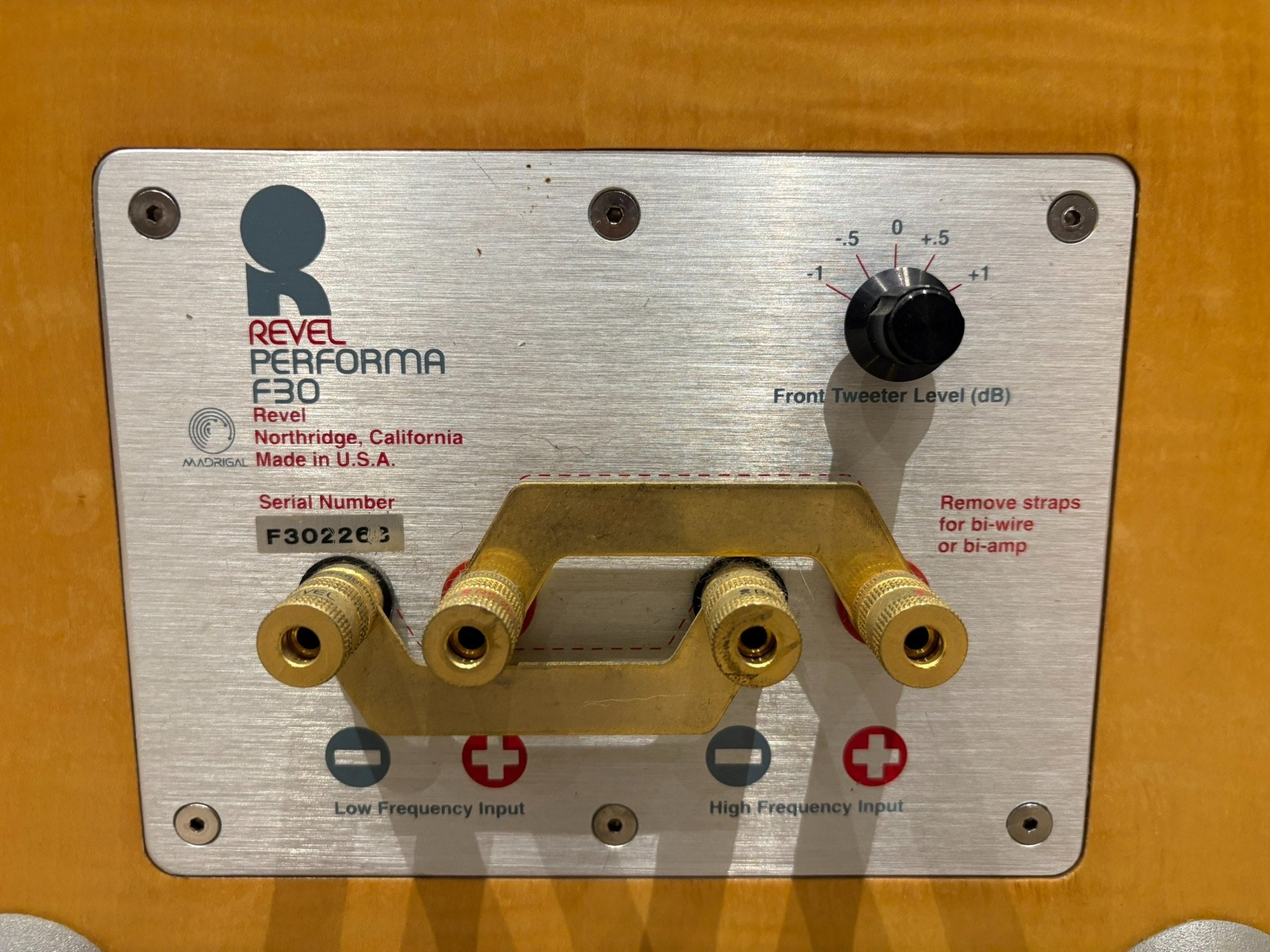

• Bi-amplification capability via removable external shorting straps on gold-plated binding posts

Cabinet

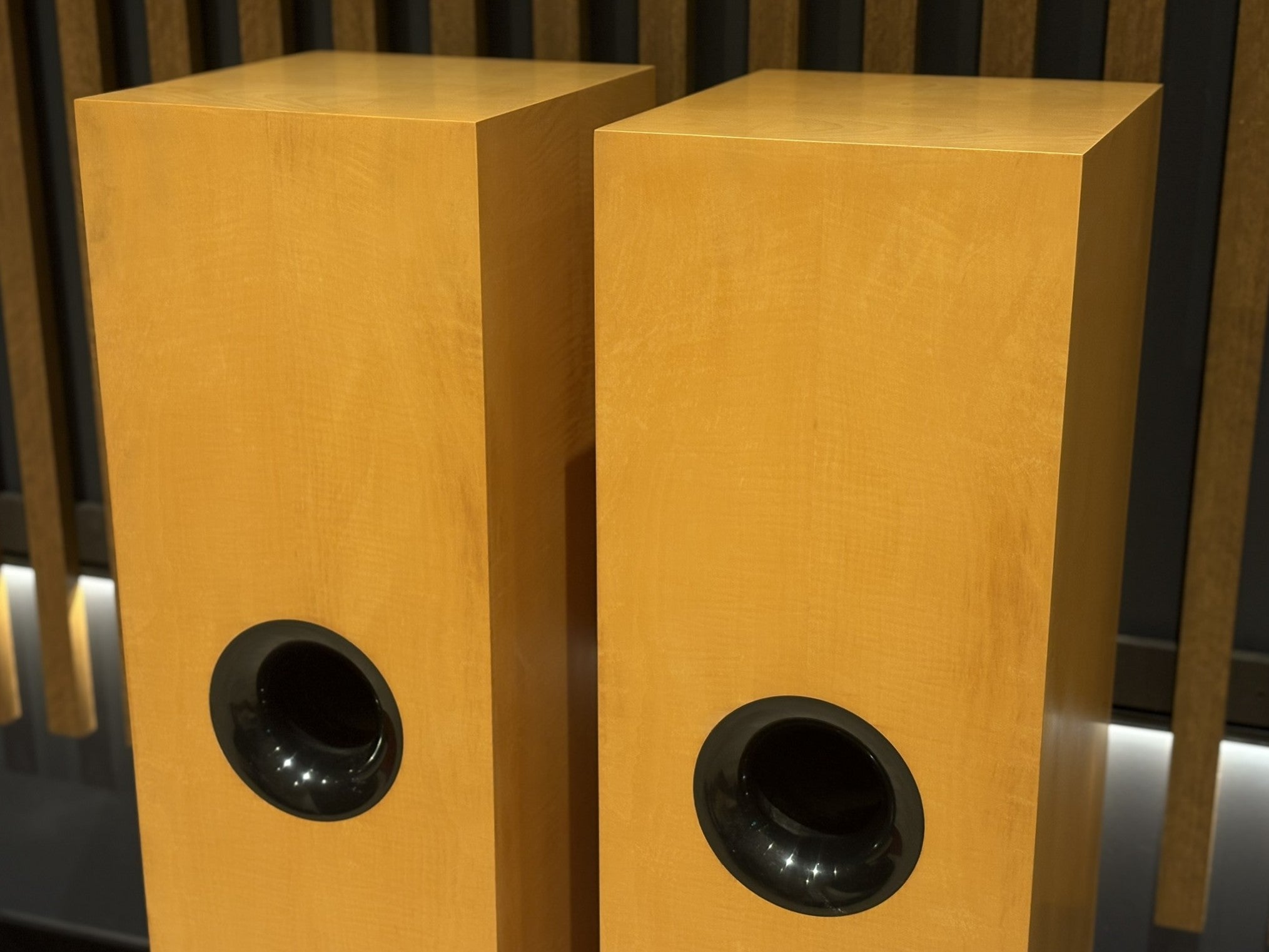

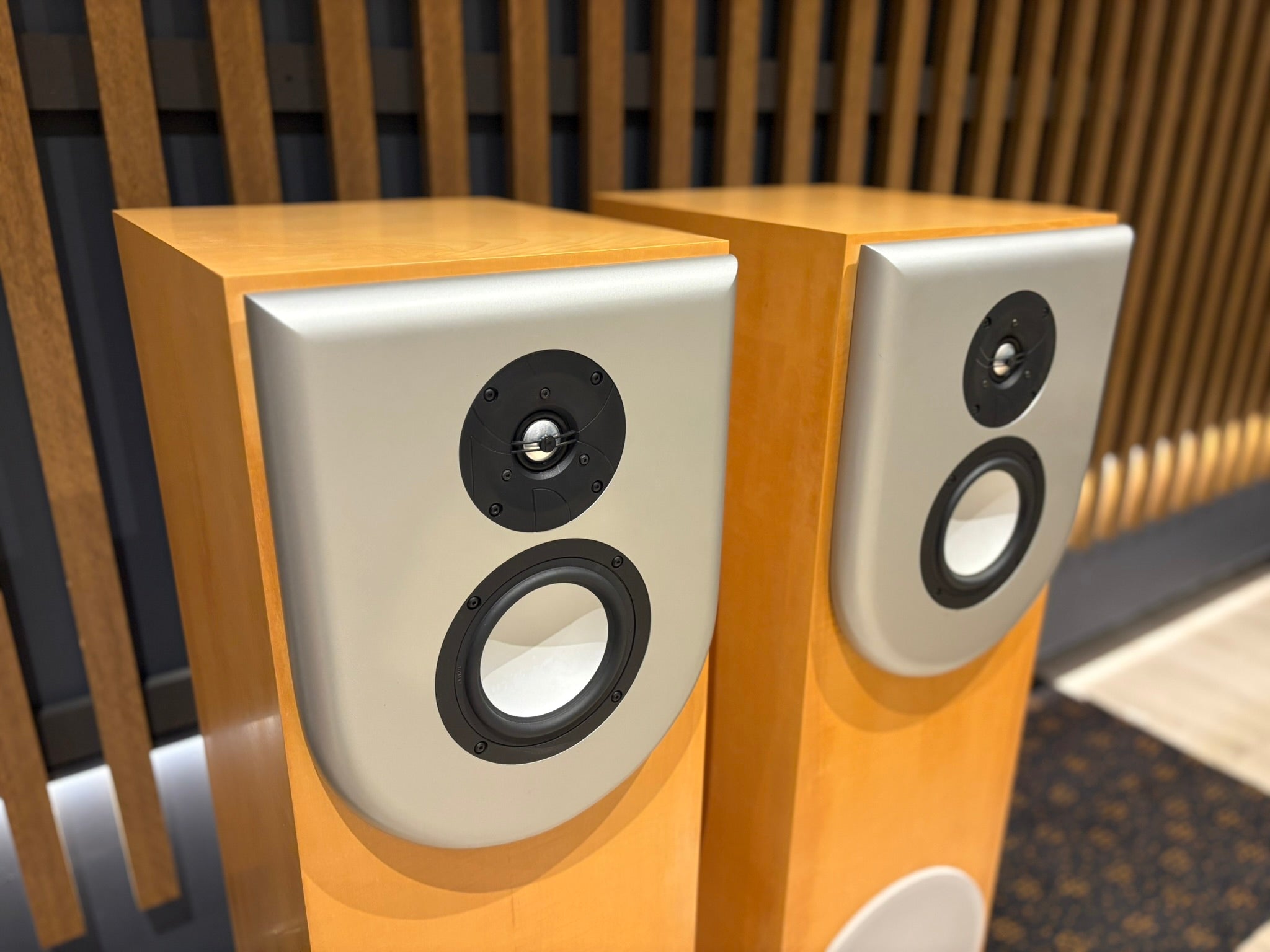

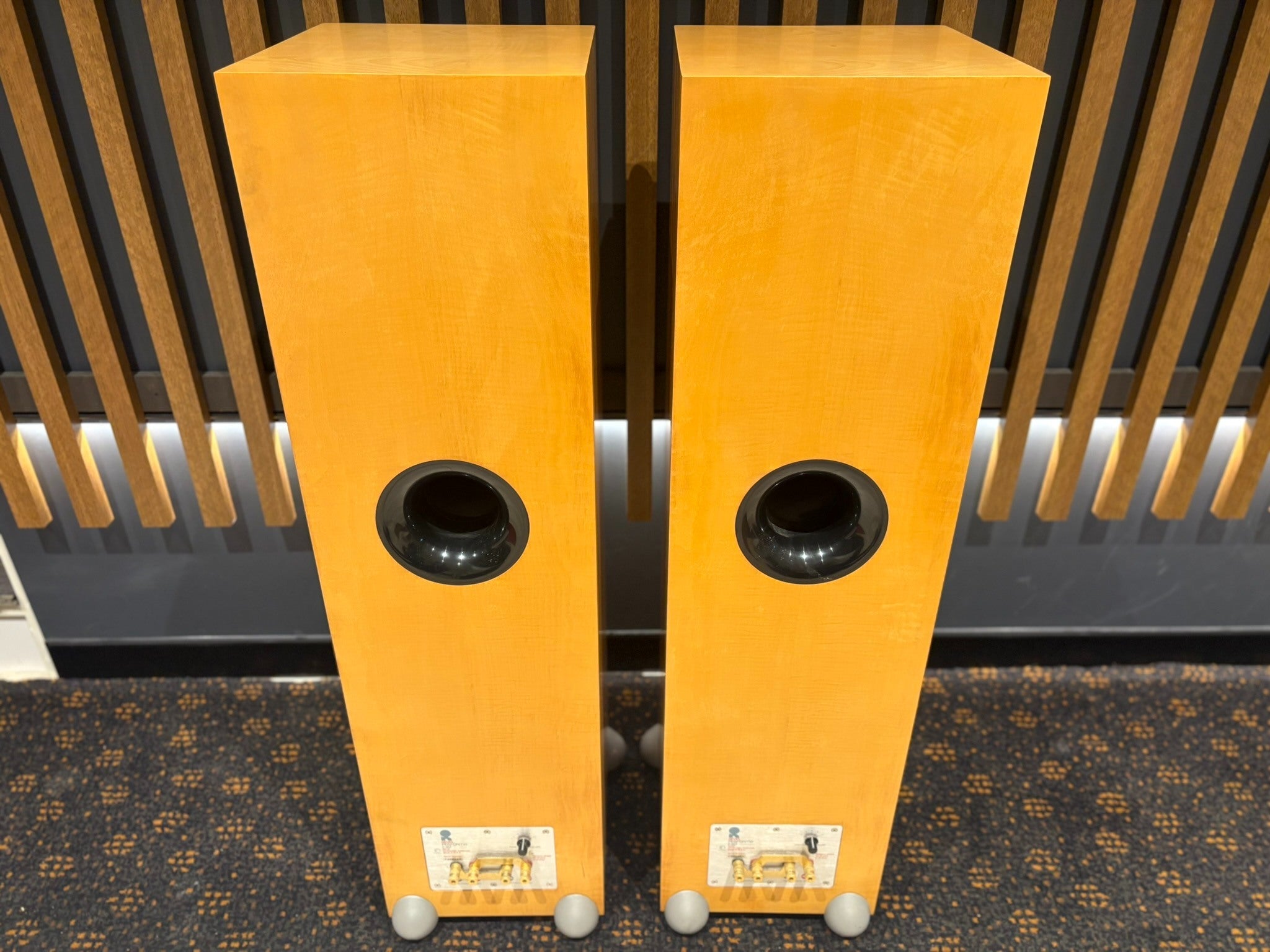

The cabinet is constructed with 1-inch thick MDF walls and extensive internal bracing for unshakable performance. A rounded front baffle reduces diffraction, and four cast aluminum feet ensure superior floor coupling.
