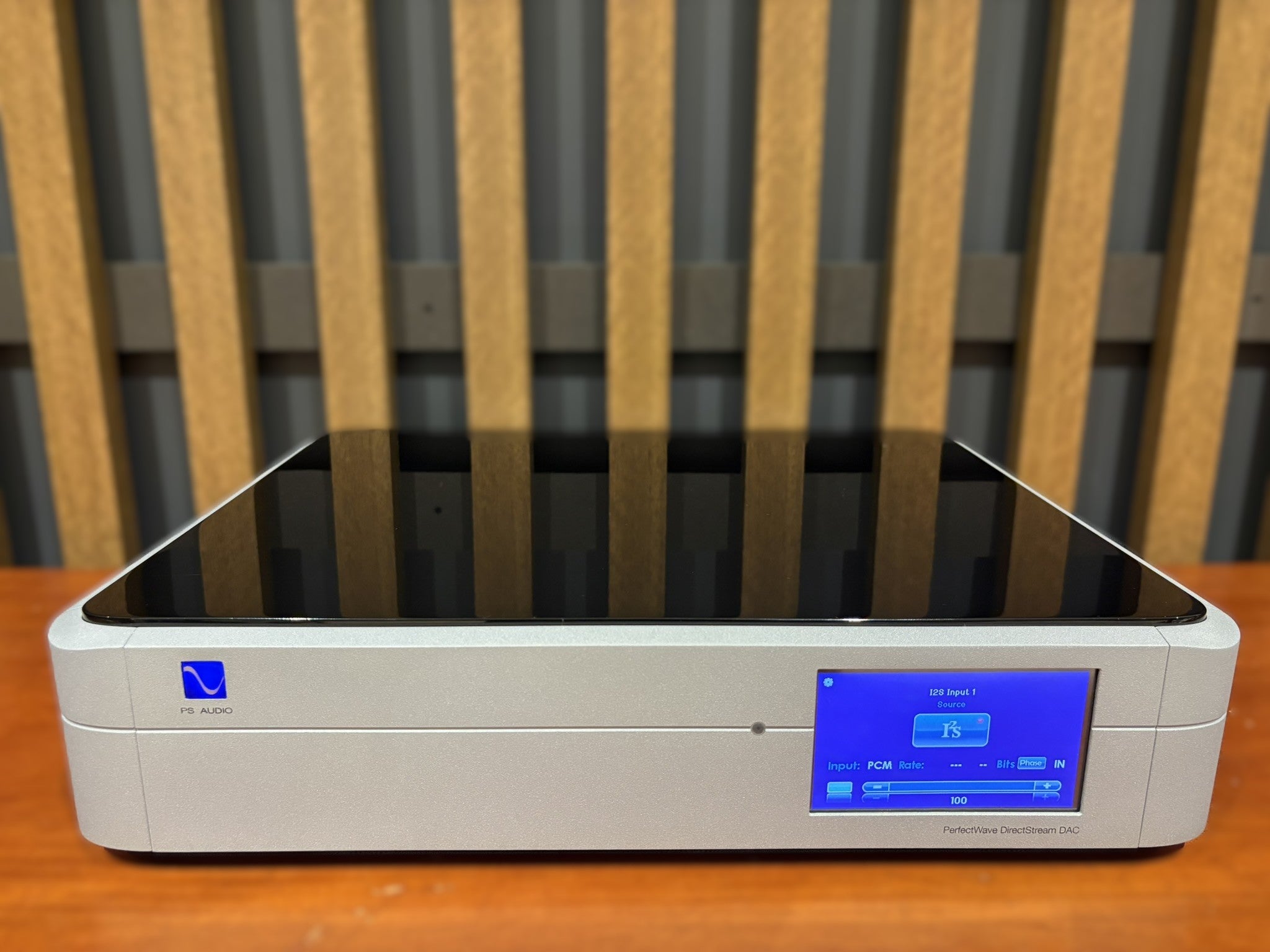

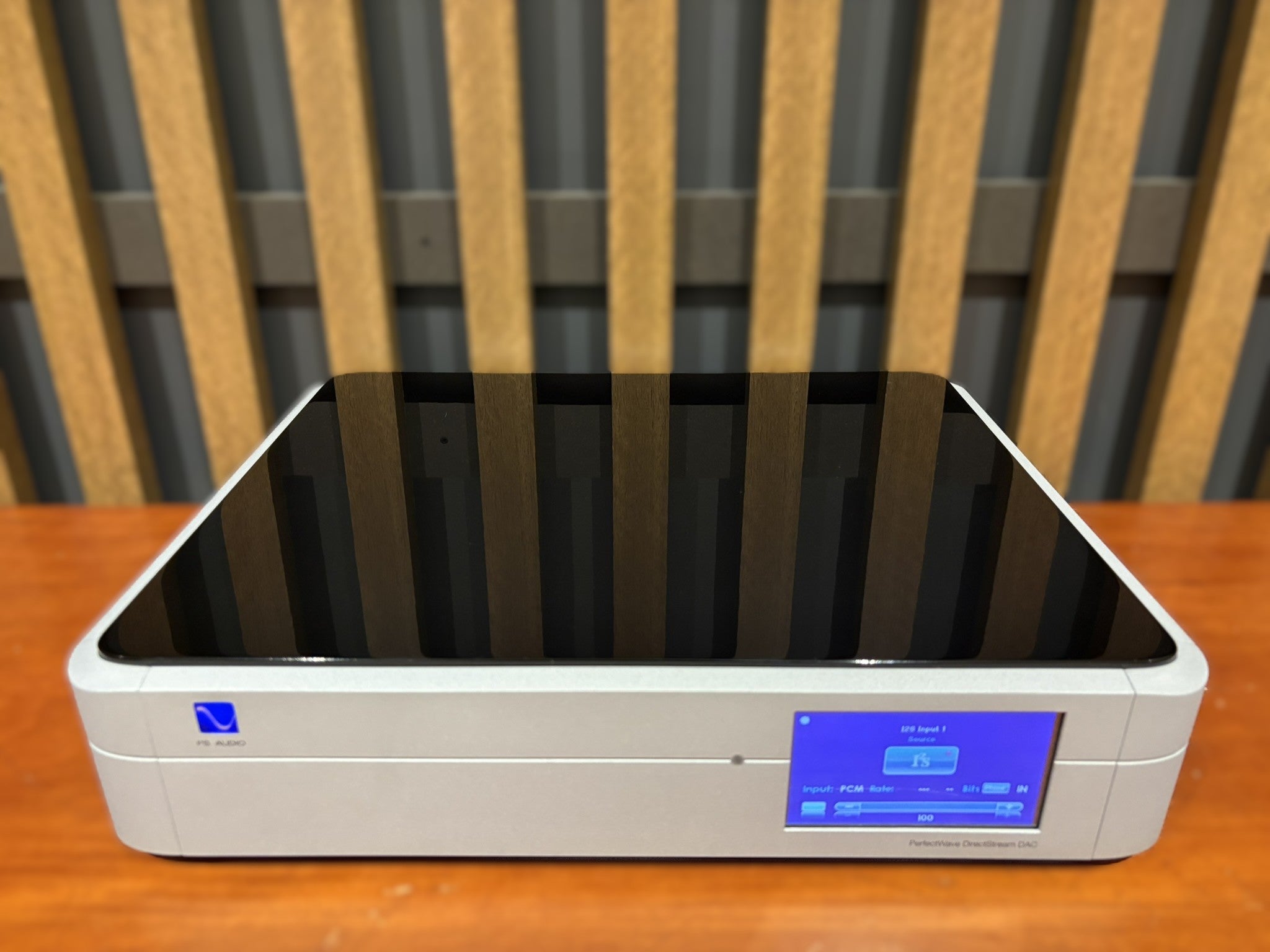

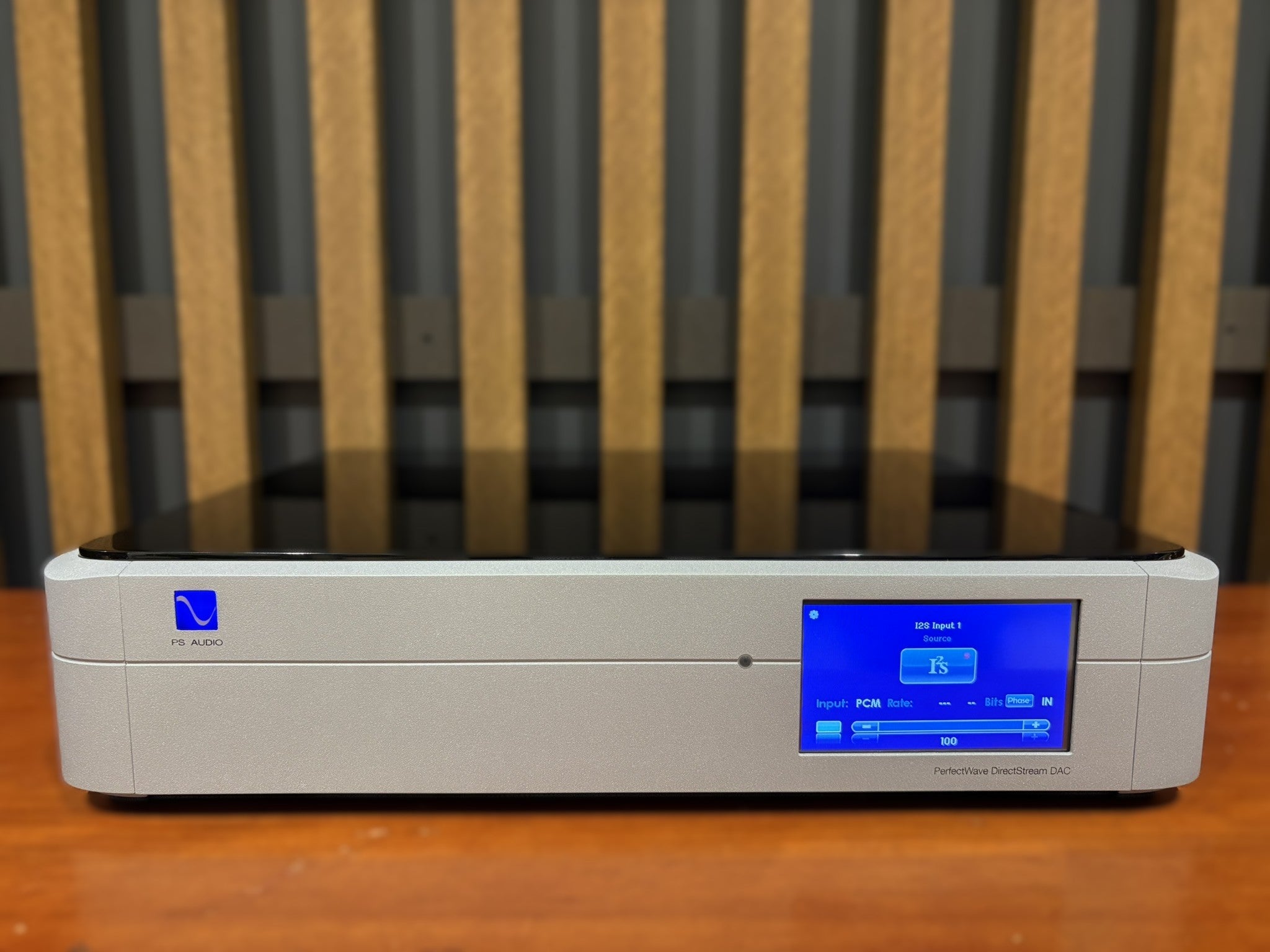

PS Audio Directstream Mk1 DAC - As Traded

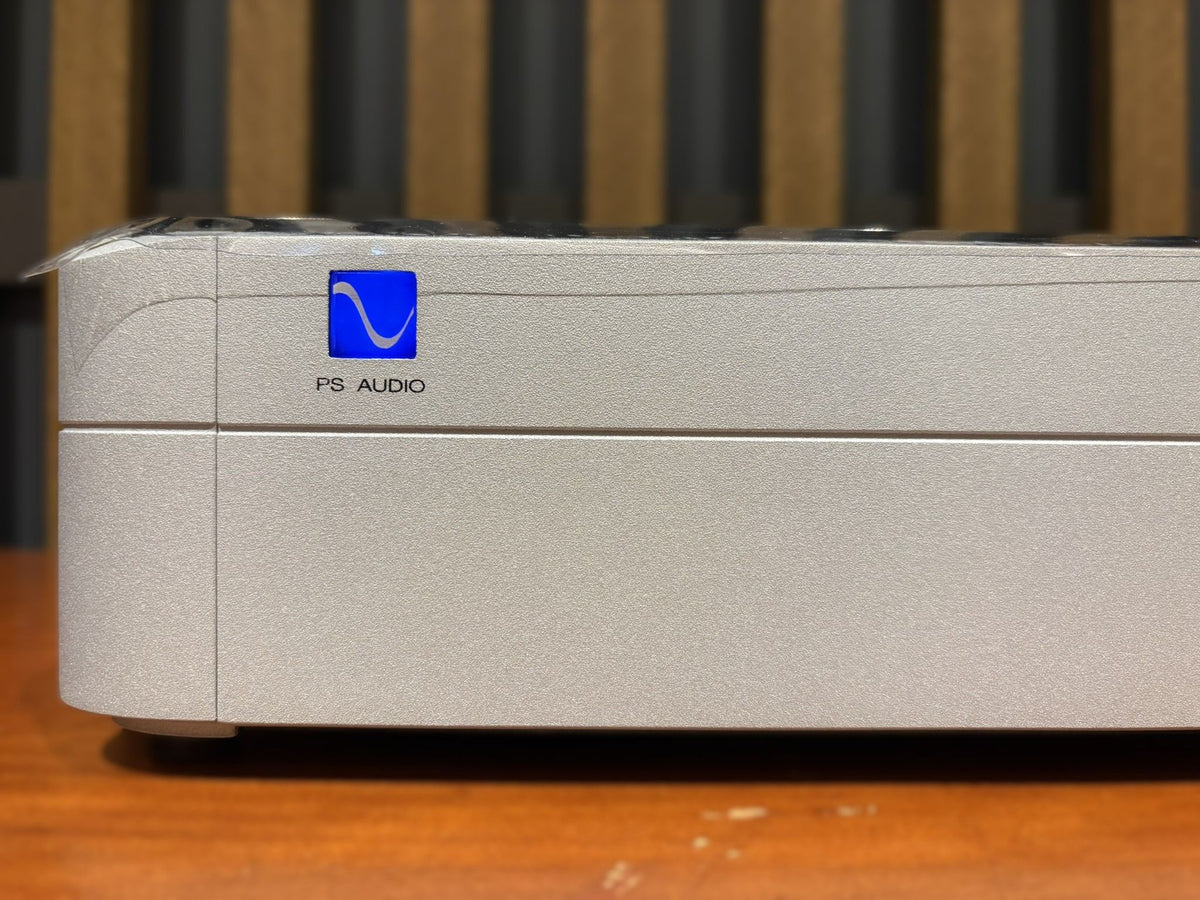

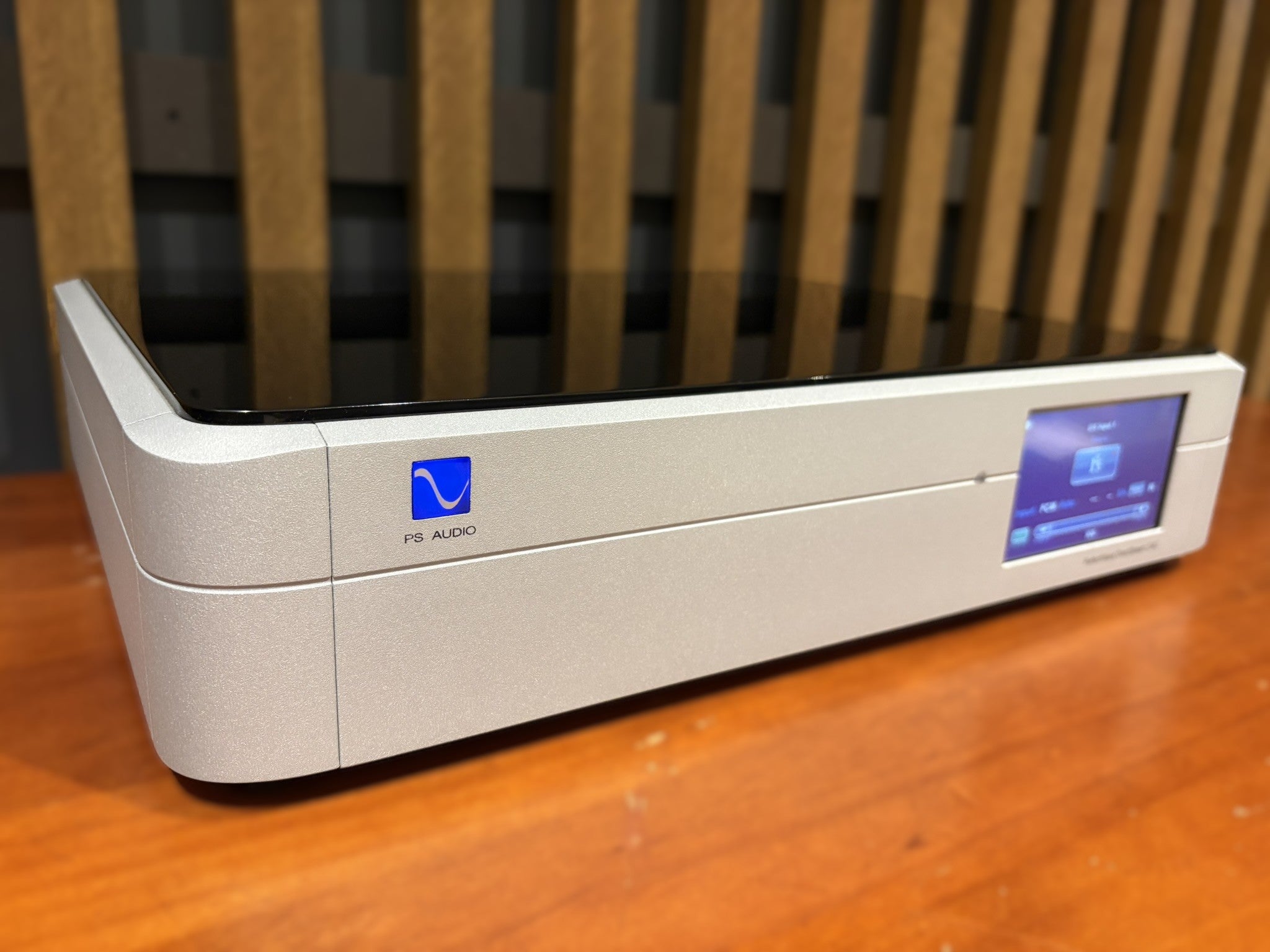

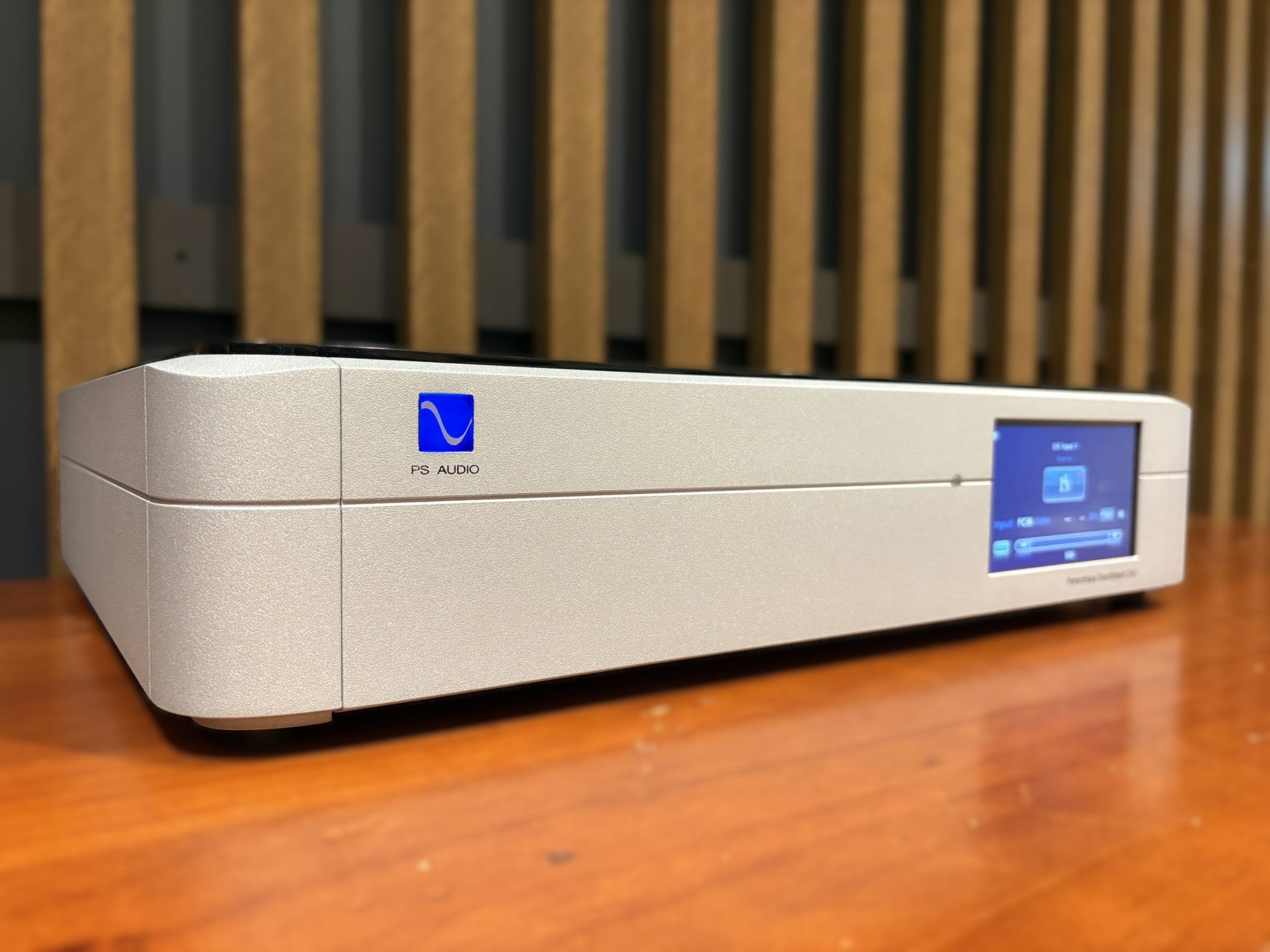

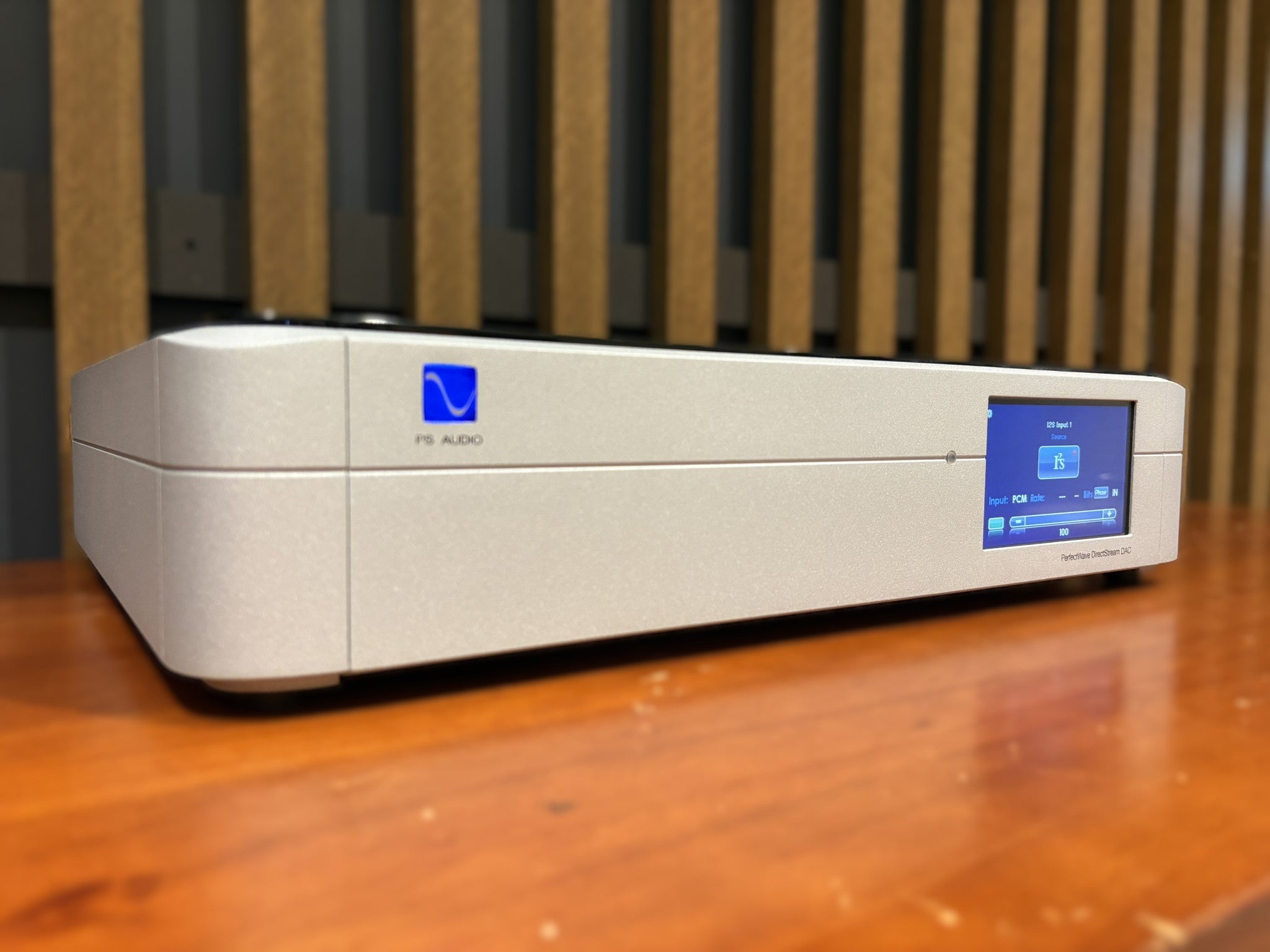

Condition: Used. Excellent, no obvious marks or scratches

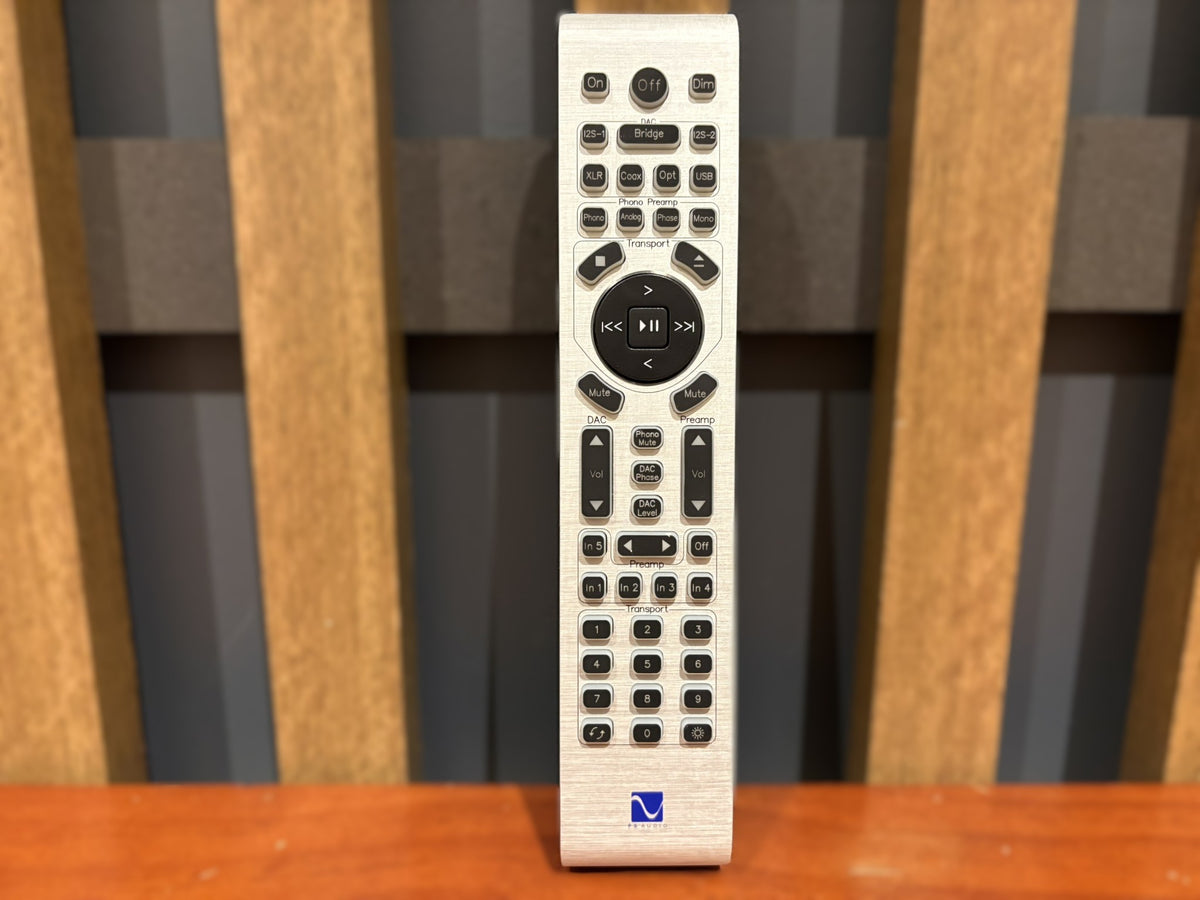

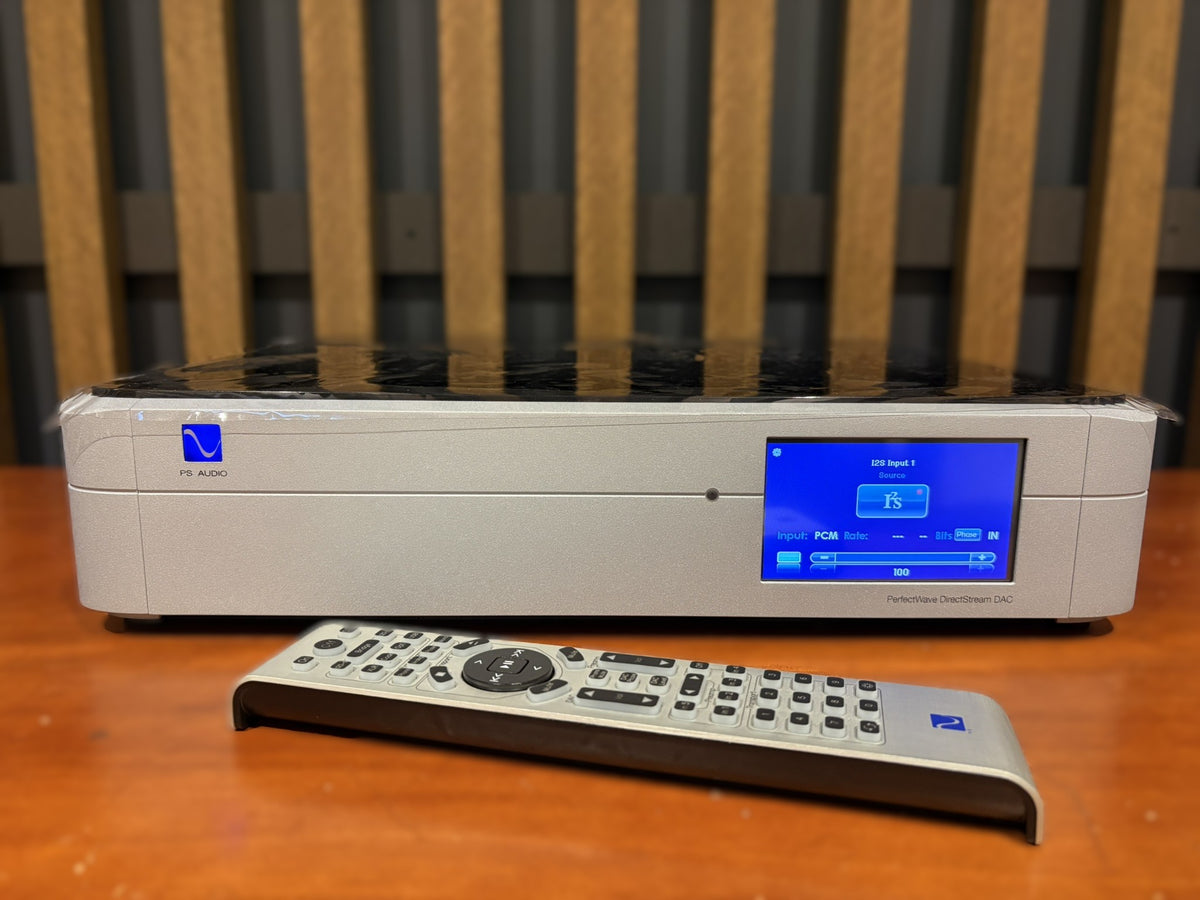

Includes: Remote, manual, power cable, original inner and outer carton

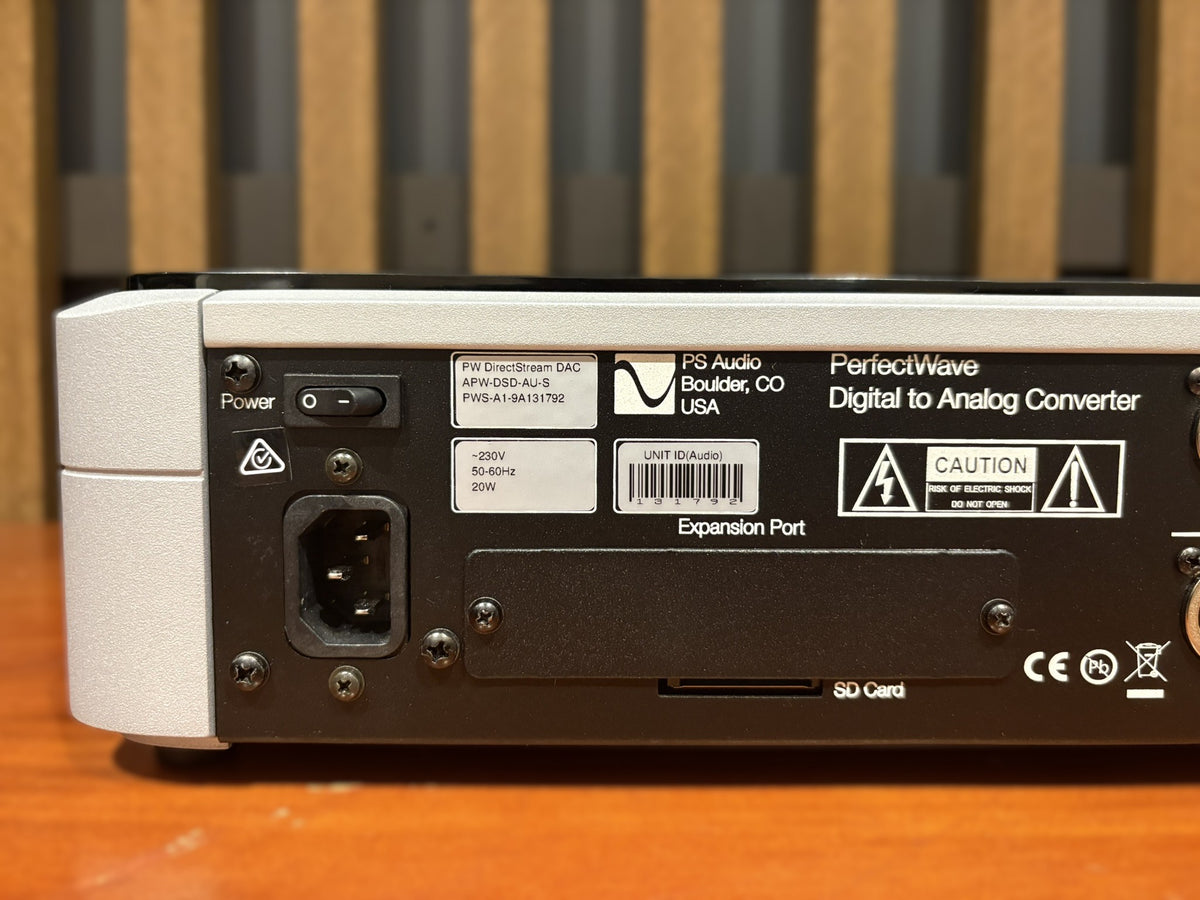

SN: 9A131792
Includes 90 day (3 month) warranty
Overview

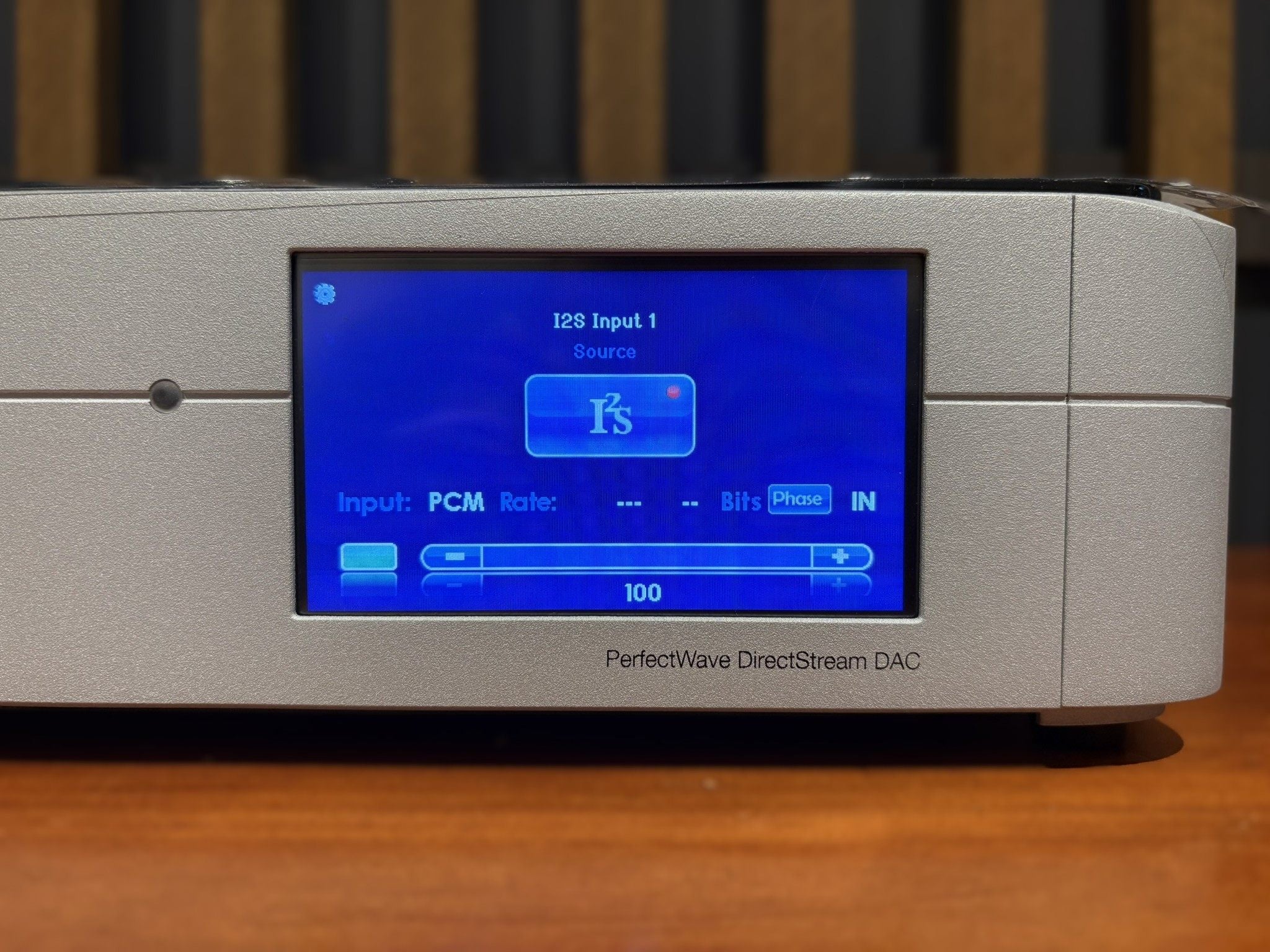

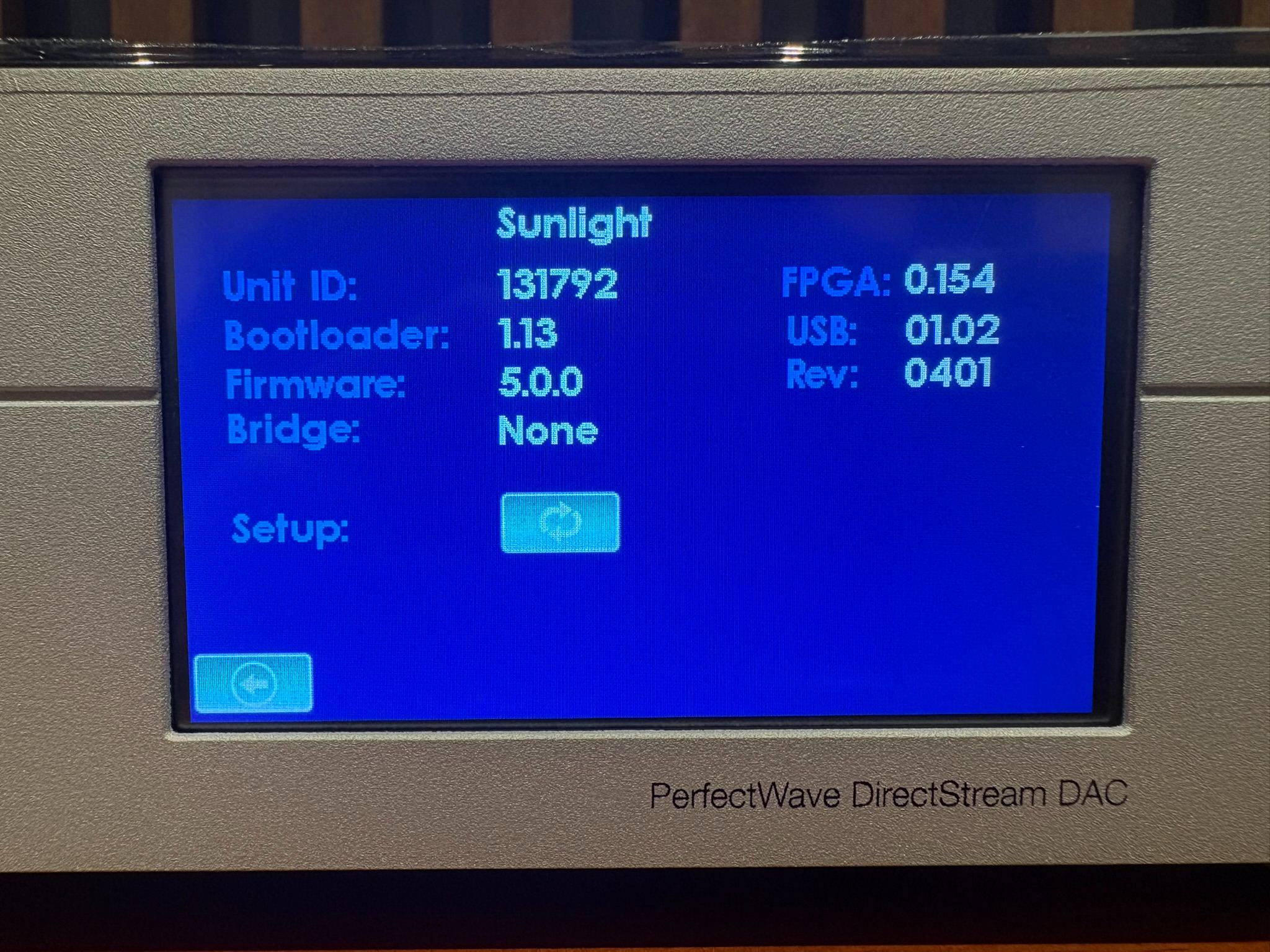

Running Sunlight (5.0.0) firmware, DAC only - no Bridge network bridge included.
Featuring a custom FPGA DAC chip from the mind of Ted Smith, and a design honed and refined by Ted, Paul McGowan and Arnie Nudell.
Directstream upsamples all incoming data streams to 10xDSD, and a custom-wound transformer outputs analogue via XLR or single ended RCA.
The digital volume control is bit-perfect, with no loss of resolution at any volume setting.
Aficionado's of I2S will be pleased to see not one - but two, inputs, along with the typical AES/EBU, digital coax, optical and USB-B.
Specification
Unit Weight 13.5 kg
Unit Dimensions 36cm x 43cm x 10cm
Shipping Weight 19 kg
Shipping Dimensions 52cm x 61cm x 25cm
Power requirements
Input Power Model specific 100VAC, 120VAC, or 230VAC 50 or 60Hz
Power Consumption 30W

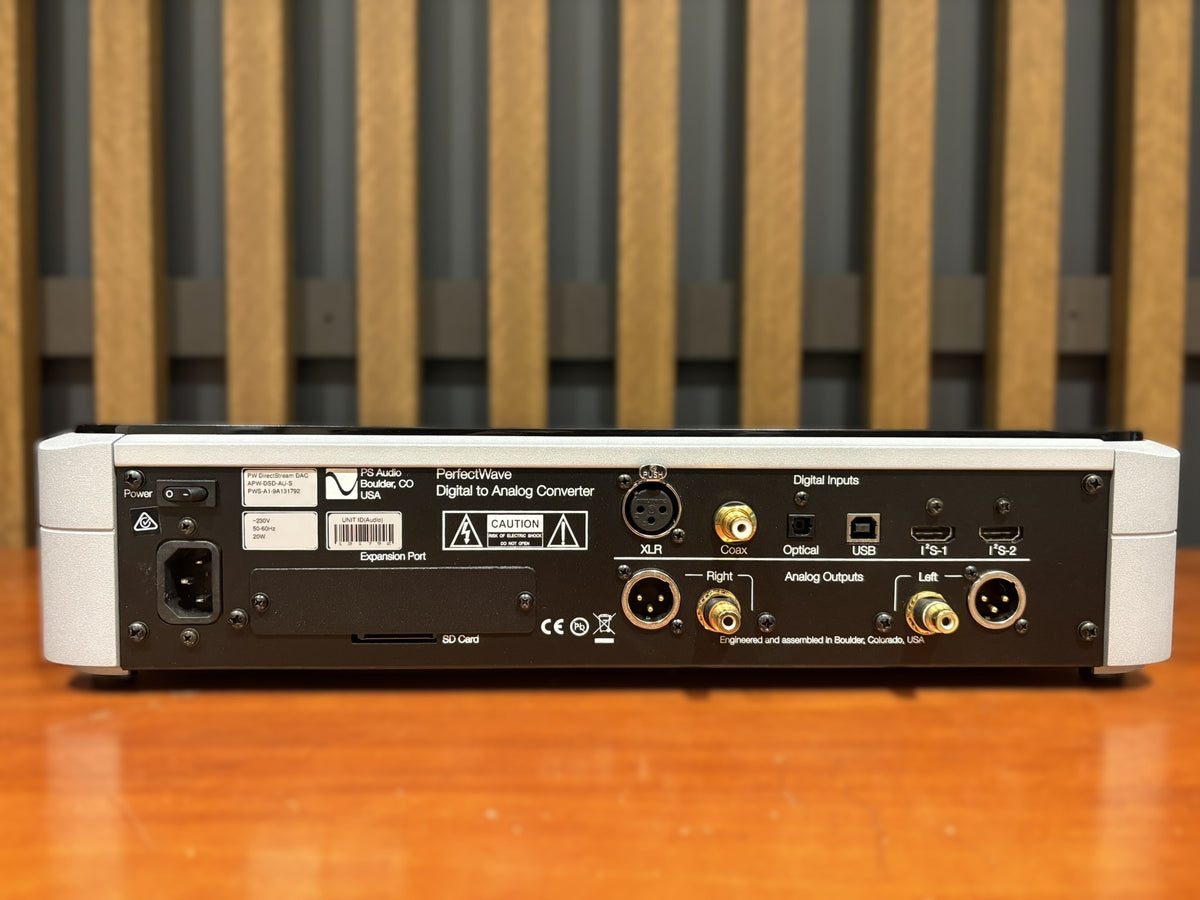

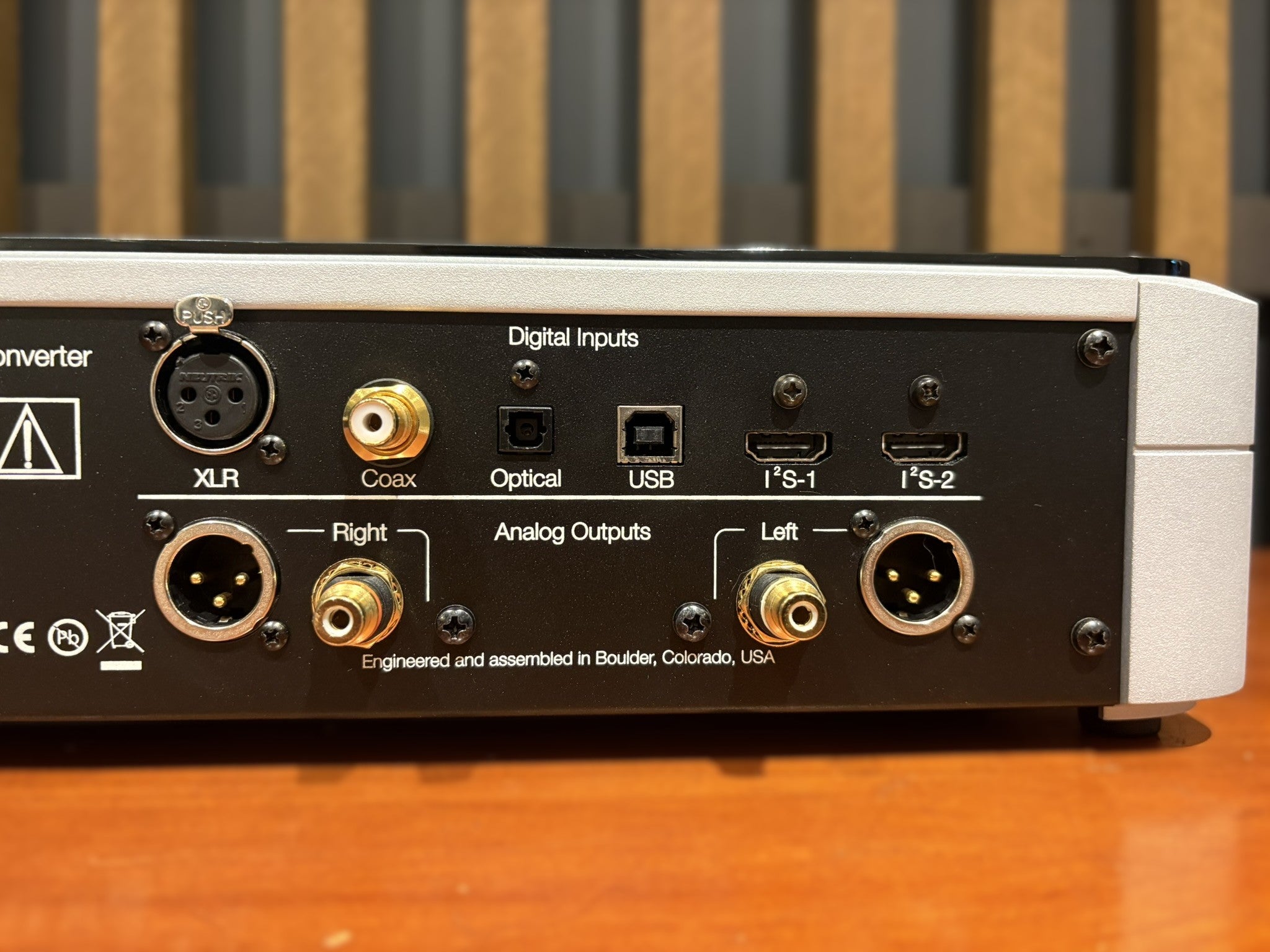

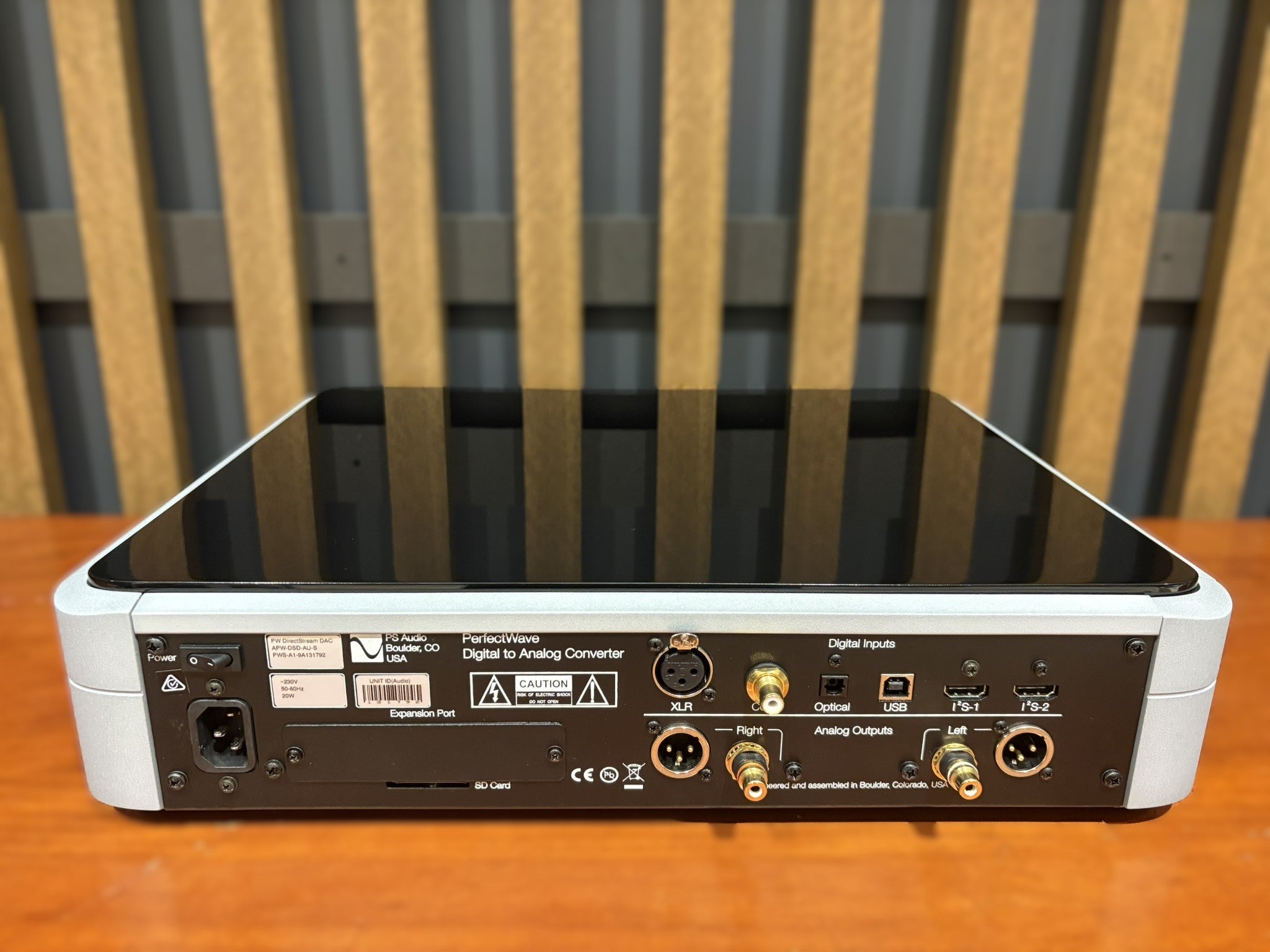

Digtial audio inputs: I2S(2), Coax, XLR Balanced, TOSLINK, USB, Network Bridge slot
Sample Rates: I2S,S/PDIF, and USB — 44.1kHz to 192kHz 16bit, 24bit, DSD 64, DSD 128
TOSLINK – 44.1kHz to 96kHz 16bit, 24bit
Analog Audio Output
Connector RCA/XLR Unbalanced /Balanced (X2)
Output level, low 1.41 Vrms(+5BV)/3.15
Output level high, maximum 2.81 Vrms (+8dBV)/5.3 Vrms (+12dBV)
Output Impedance 100Ω/200Ω
Frequency Response 20-20KHz +/- 0.25dB
THD+N @ 1KHz (full scale) <0.03%
Output Stage: Passive audio transformer, fed by high current, high speed analog amps producing double rate DSD.
Data Handling
Format PCM or DSD
Sample rate (PCM) 44.1kHz, 48.0kHz, 88.2kHz, 96.0kHz, 176.4kHz, 192kHz
Word length (PCM) 16b, 18b, 20b, 24b
Data rate (DSD) Standard (2.8MHz) or Double (5.6MHz) DoP on all inputs as well as raw DSD on I2S inputs
Input jitter reduction effectively 100%, residual immeasurable. No input PLLs, FLLs.
Input Processing 170MHz
Signal Processing 50MHz
Synchronous Upsampling, all inputs 28.224MHz
Digital Processing S/N ration >146 dB
Digital Volume Control Zero loss of precision
Analog Conversion method Delta Sigma (DSD) Single-bit double rate
I2S Digital Input
Connector HDMI
Format PCM or DSD.
DoP on all inputs as well as raw DSD on I2S inputs
USB Digital Input
Connector USB “B” Type
Format PCM or DoP v1.1 (DSD over PCM)
Transfer mode Asynchronous
✔️Comprehensive three month warranty on Trade In's*
✔️Passed our checks for functionality
✔️A full inspection noting for any defects
✔️A full completeness check for all included parts and accessories
