Playback Designs MPD-3 DAC - Consignment

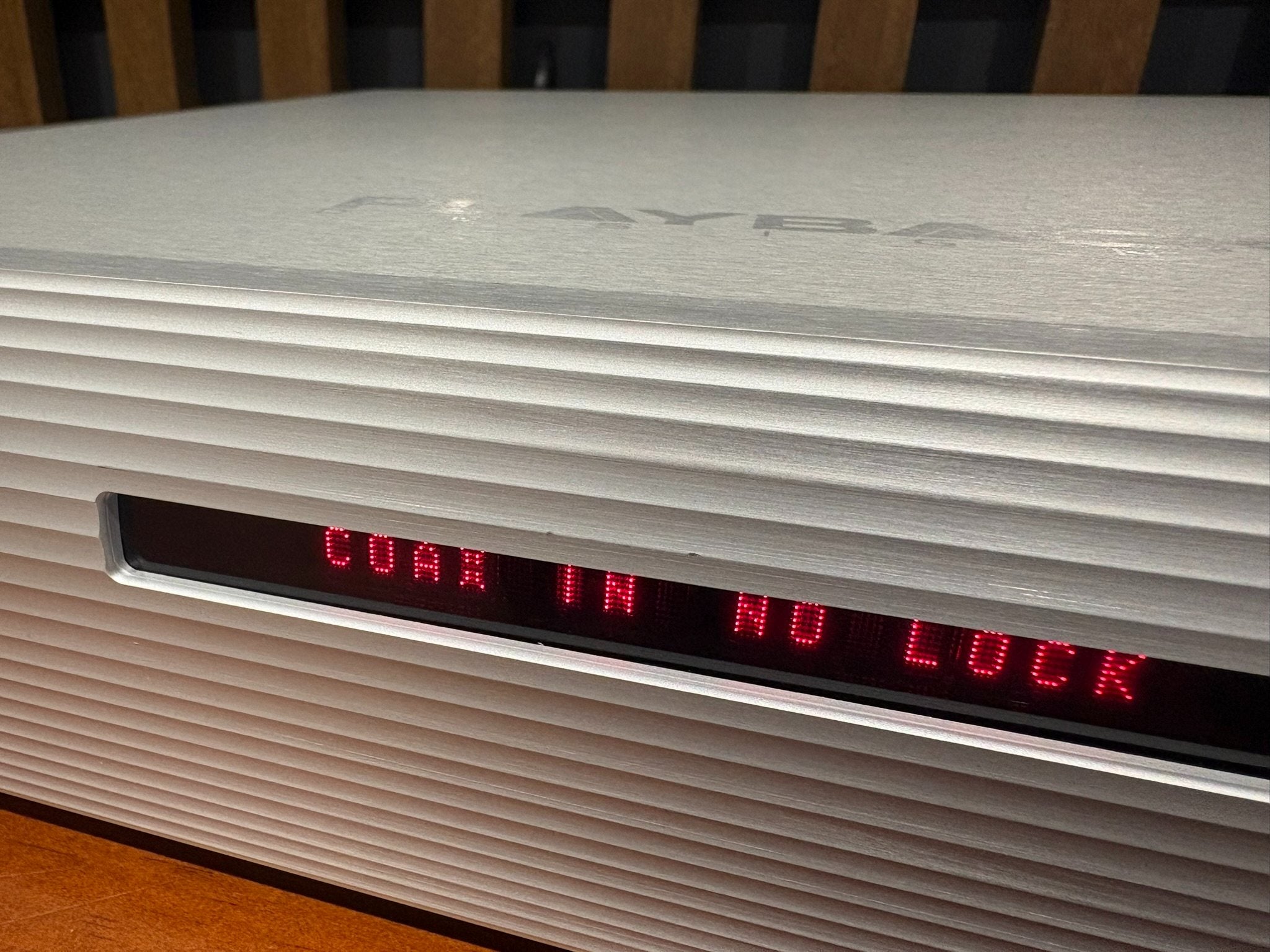

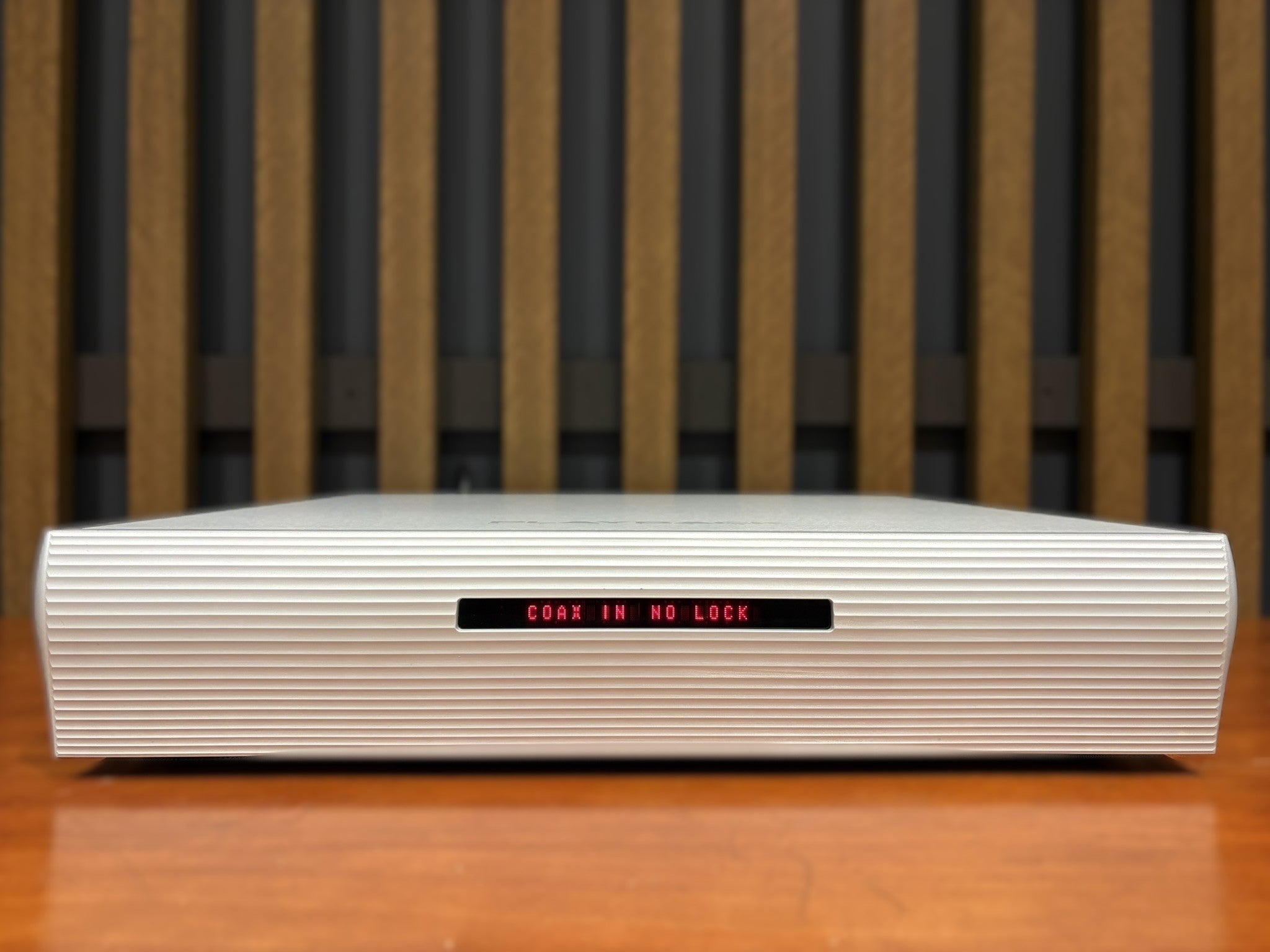

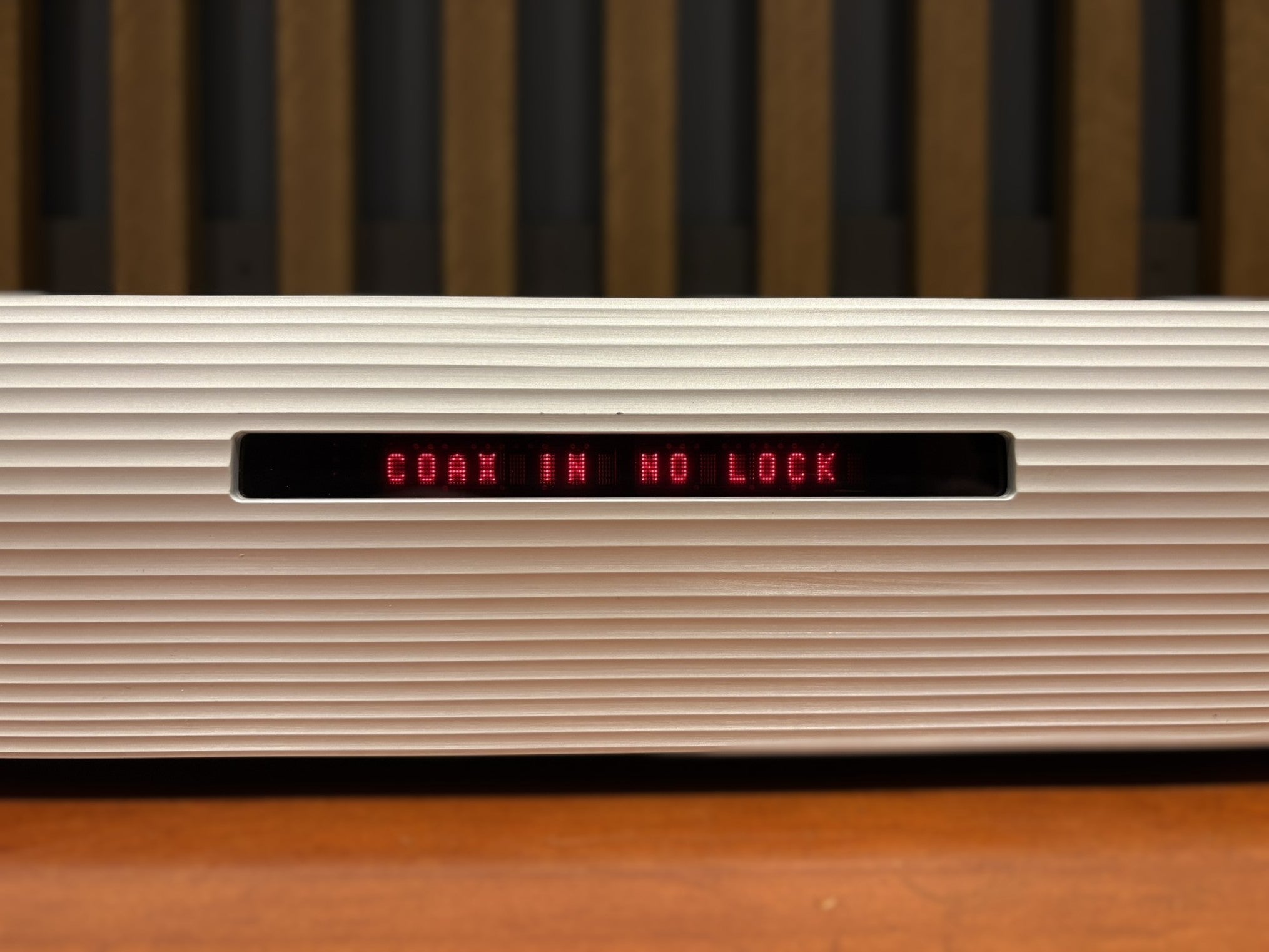

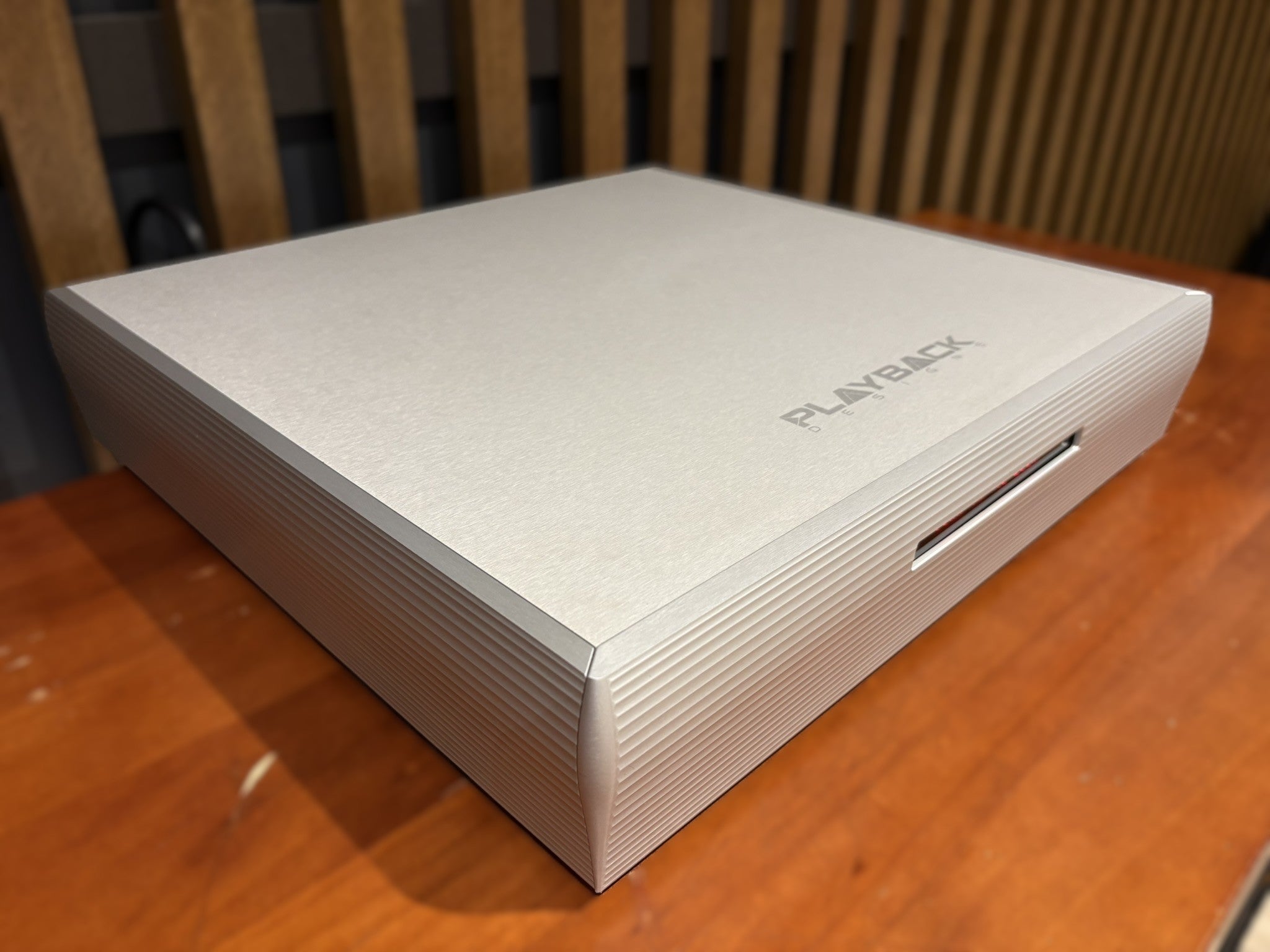

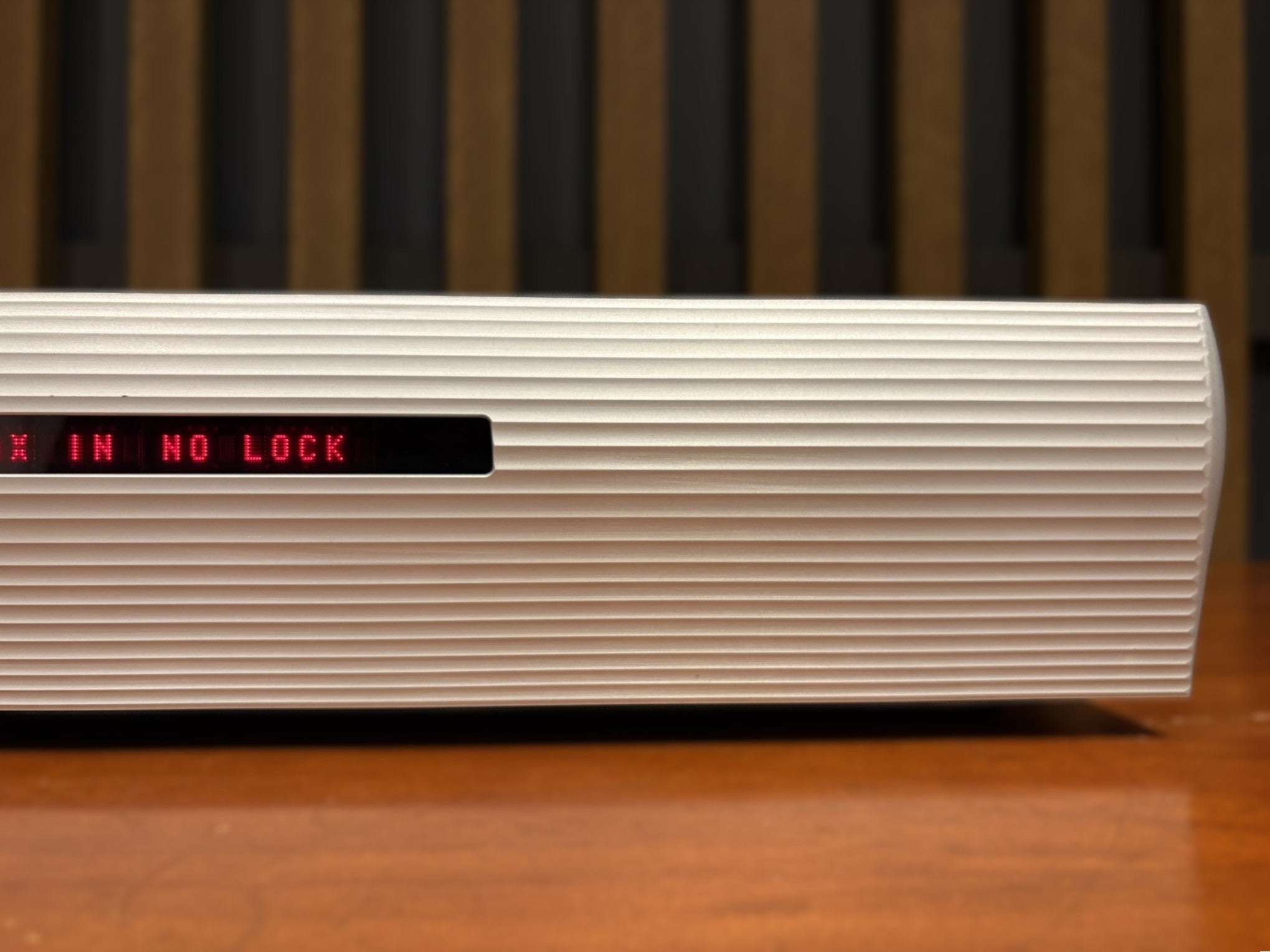

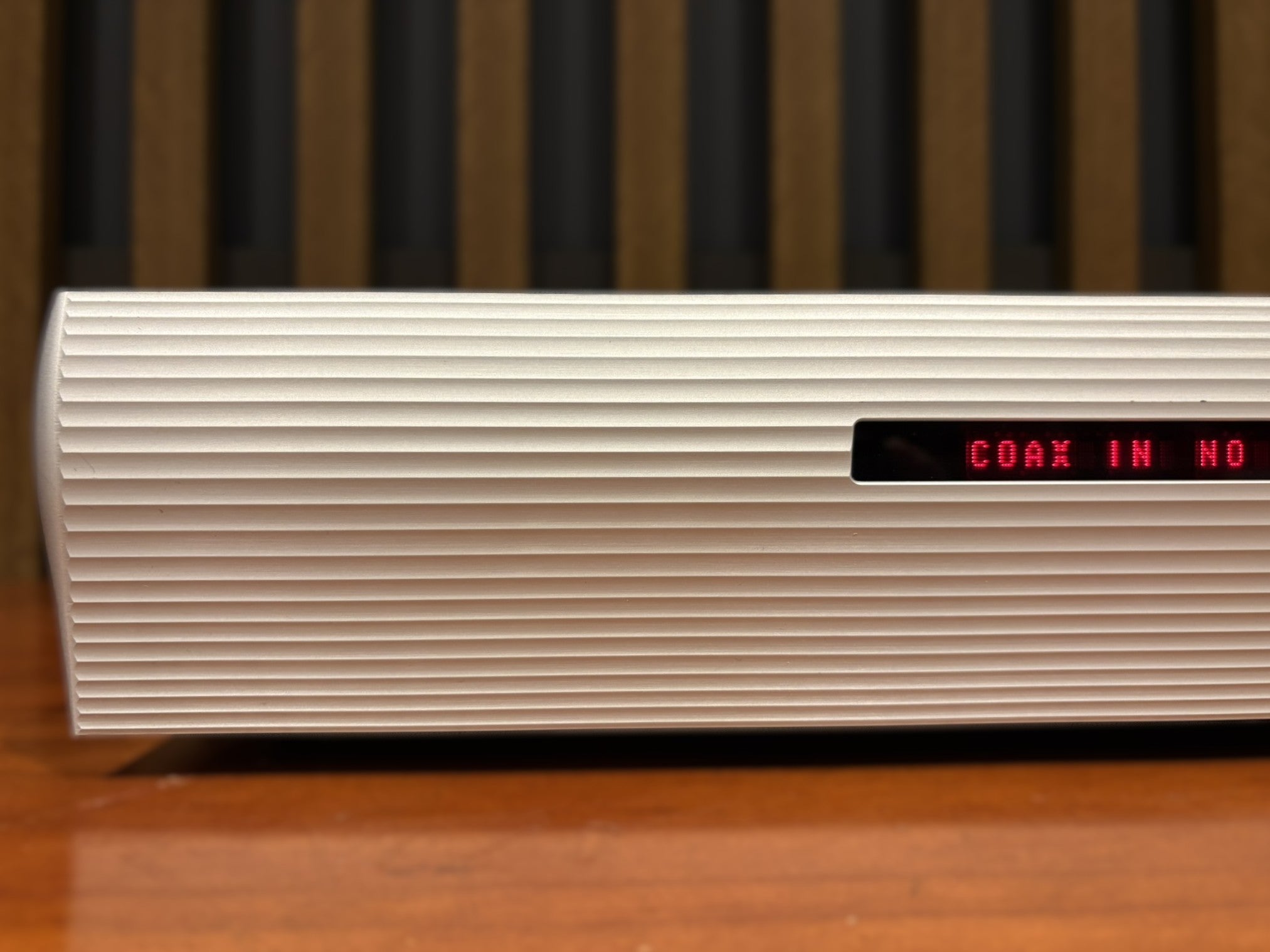

Condition: Used. Very good, small chips on front panel only (See photos)

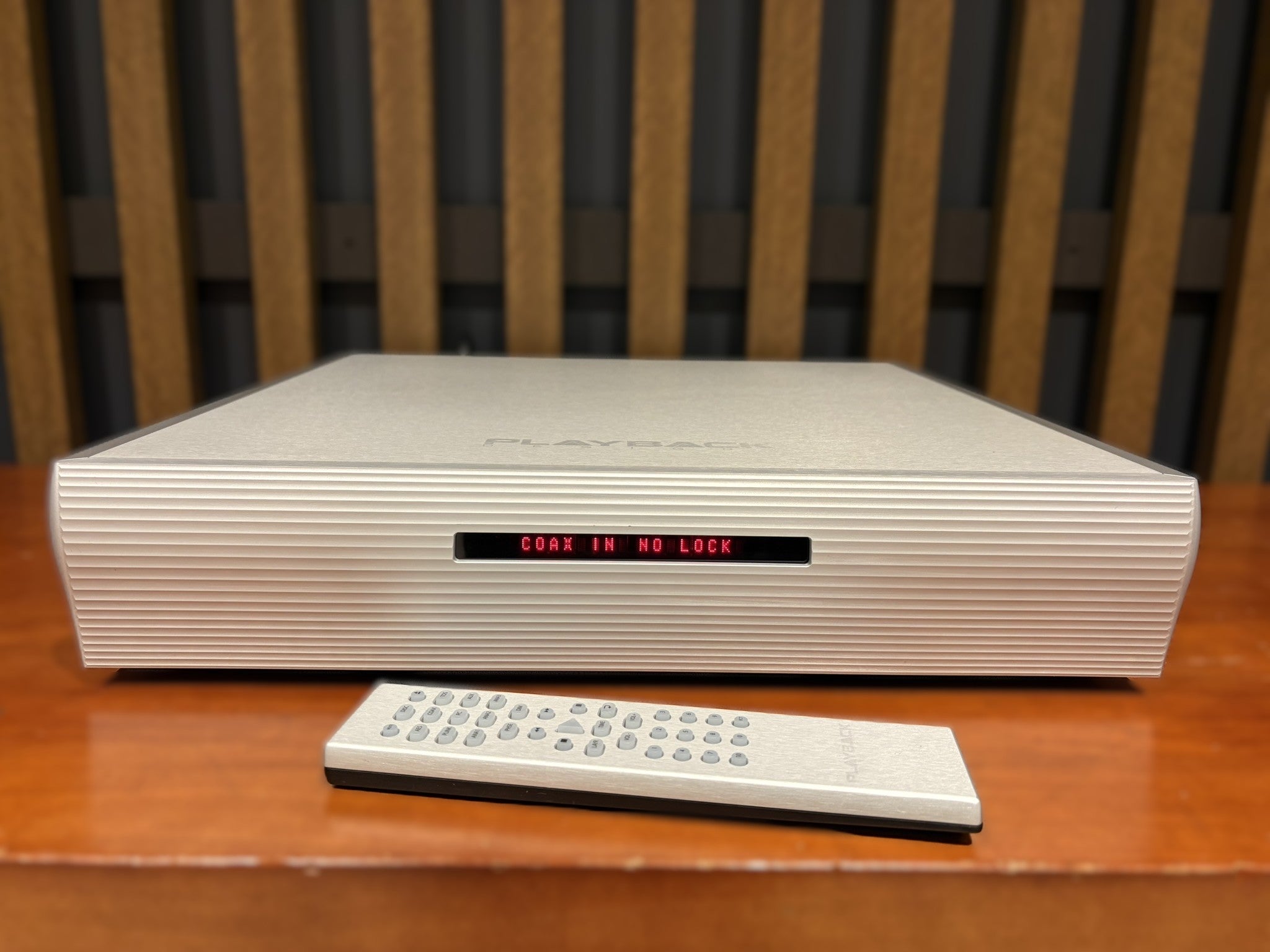

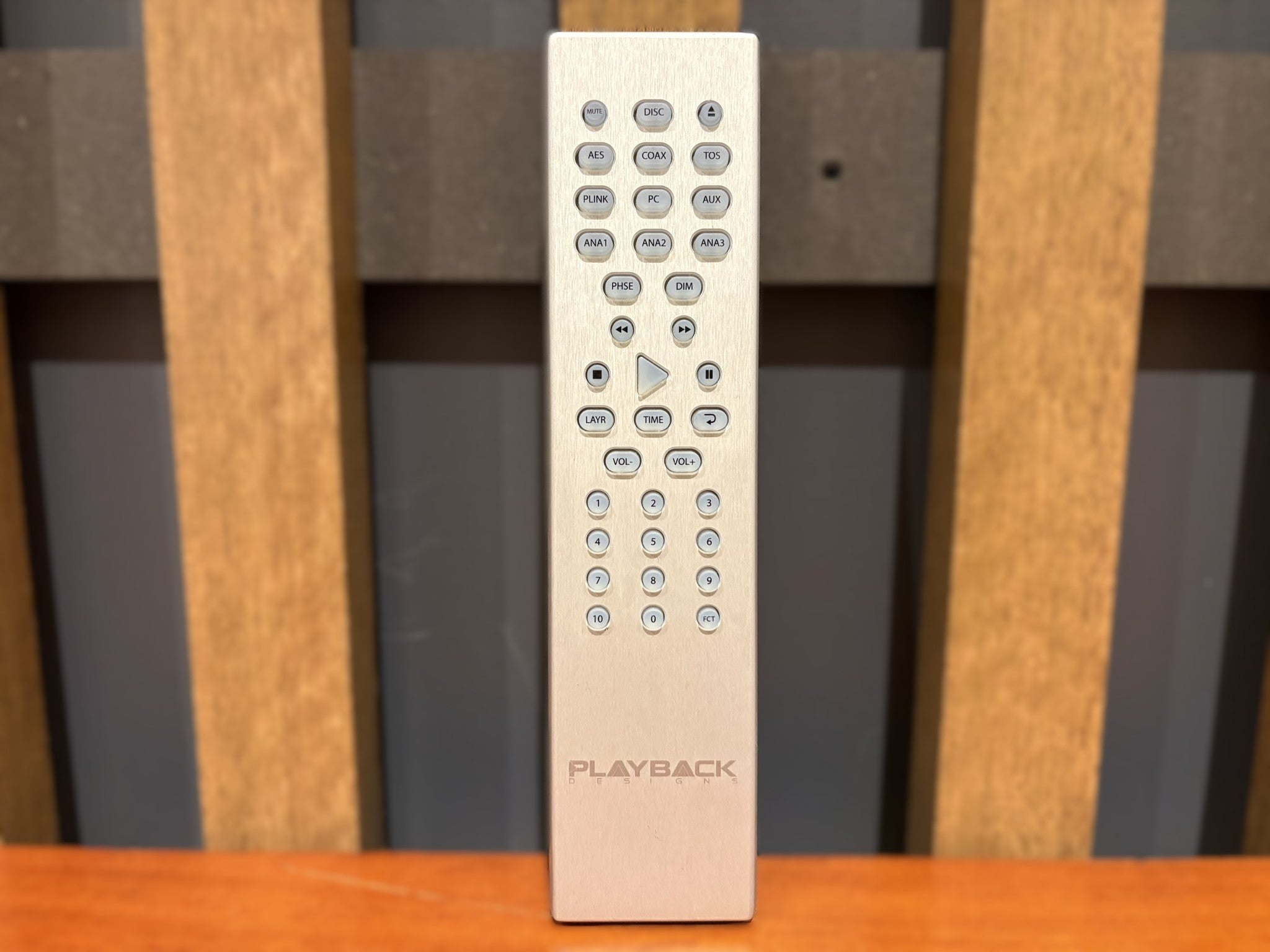

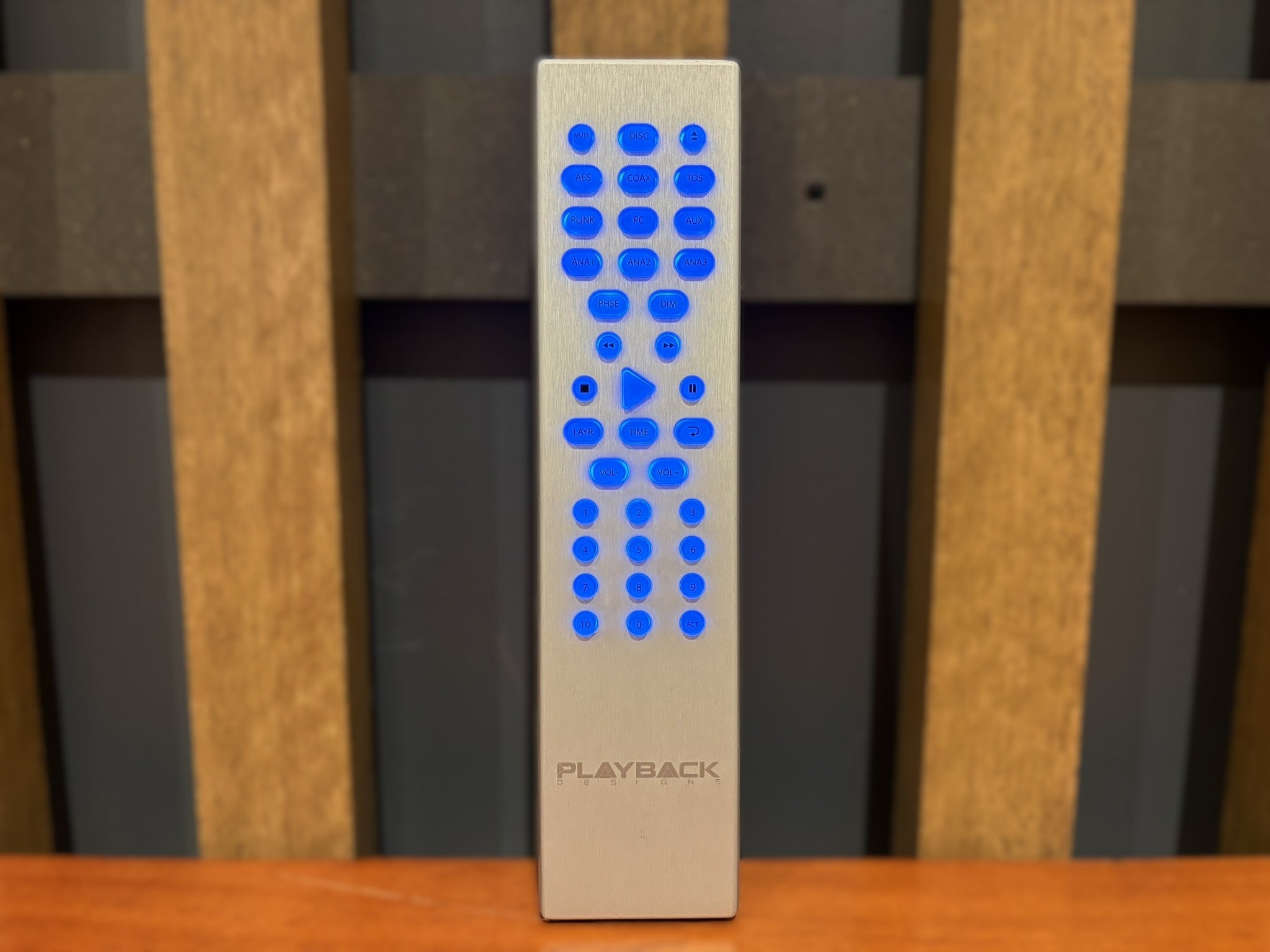

Includes: Remote, Power Cable (No Box)
SN: 36183
Includes 7 day warranty
Overview
Playback Designs' MPD-3 DAC is the same construction internally as the popular MPS-3 CD Player, but without a disc transport.
Designed by Andreas Koch, a discrete digital circuit performs the D/A conversion using an FPGA with an original algorithm.
The MPD-3 achieves it's "analogue sound" by converting all incoming PCM signals, including USB signals, to a 5.8/6.1MHz DSD format before outputting them as analog signals.
An apodizing upsampling filter for 44.1 and 48kHz sample rates helps compensate for some of the ringing effects caused by brickwall filters in the Analog to Digital Converters used during recording.
AES/EBU for PCM up to 24 / 192kHz
S/PDIF for PCM up to 24 / 192kHz
USB for PCM up to 24 / 384kHz
USB for DSD up to 6.1MHz
Specification

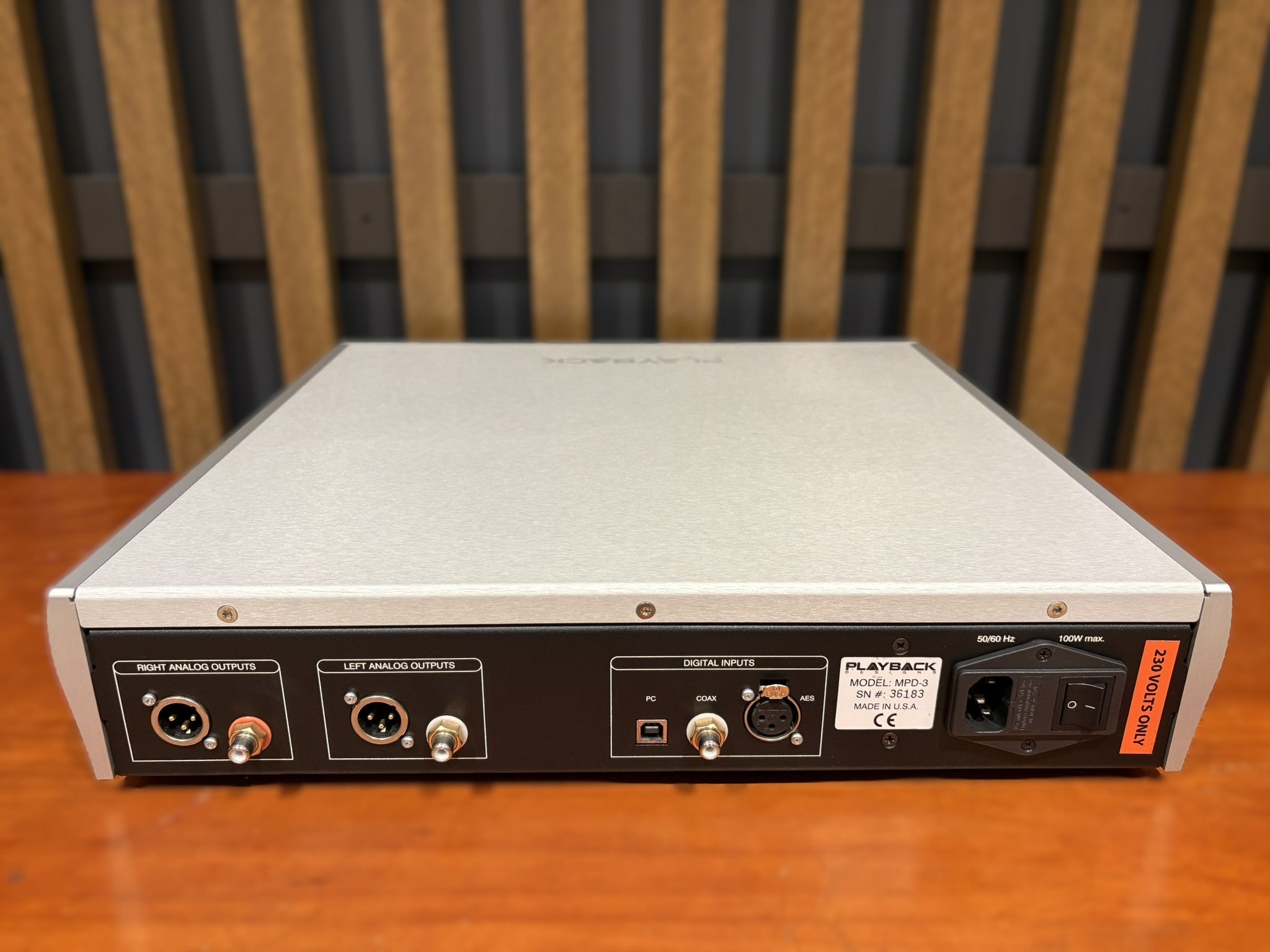

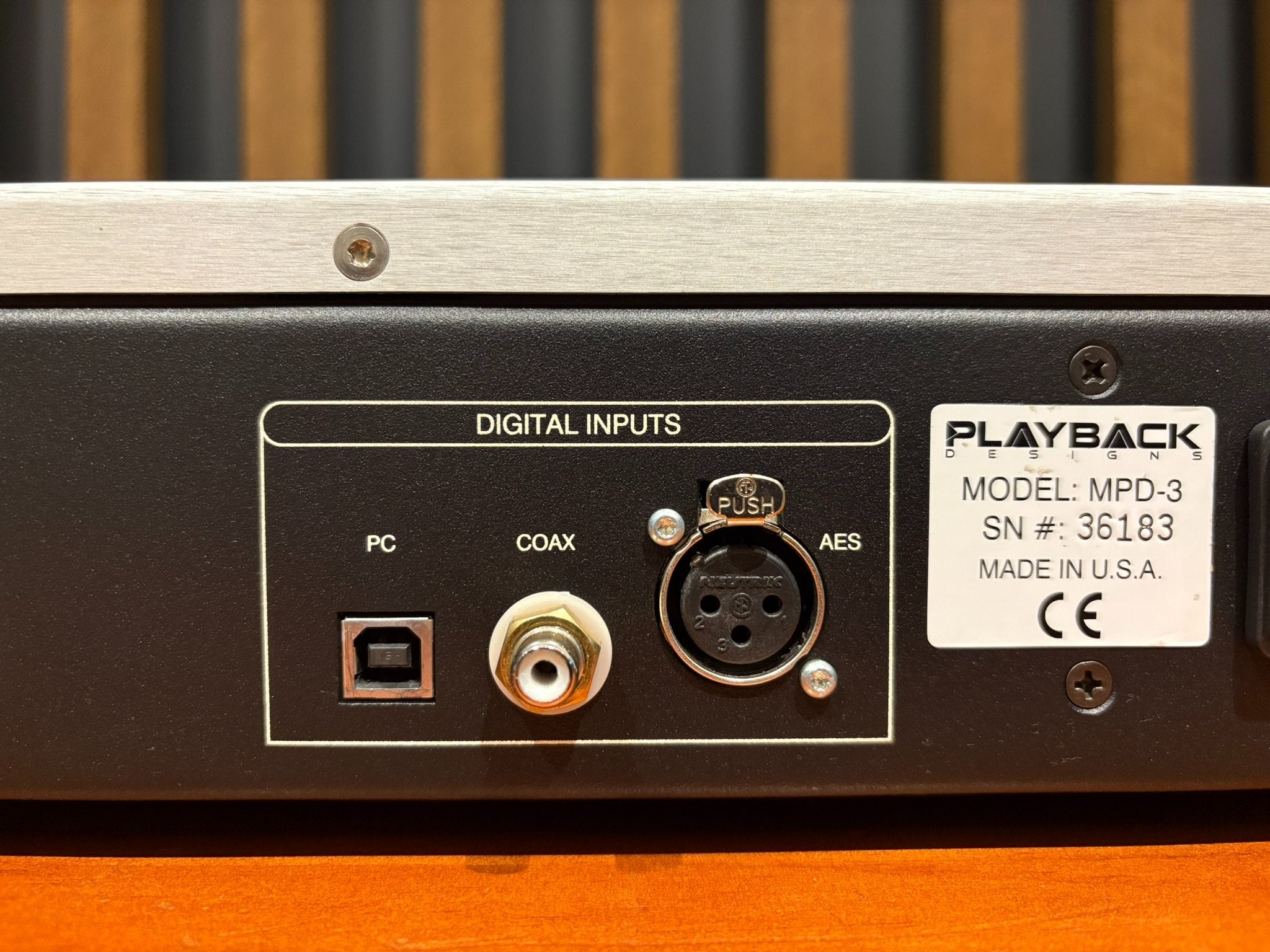

SPDIF (RCA) x 1 (Supports Stereo PCM up to 192kHz/24bit)
PC (USB) x 1 (Supports PCM up to 384kHz/24bit, DSD up to 6.1MHz)
*Driver installation is required on your computer to use the USB input.
Supported OS: Windows 7 or later, Mac OS X v10.6.6 or later

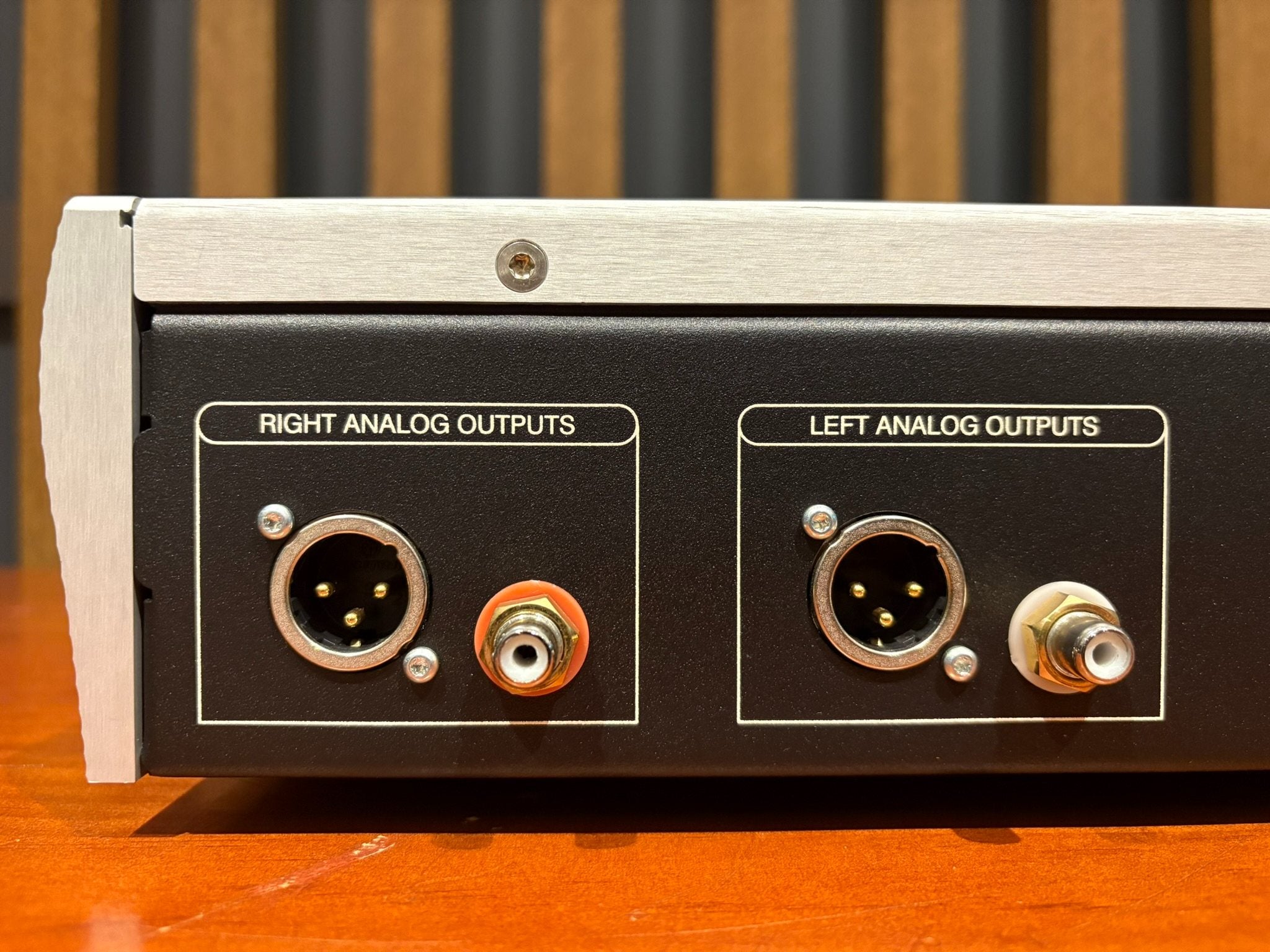

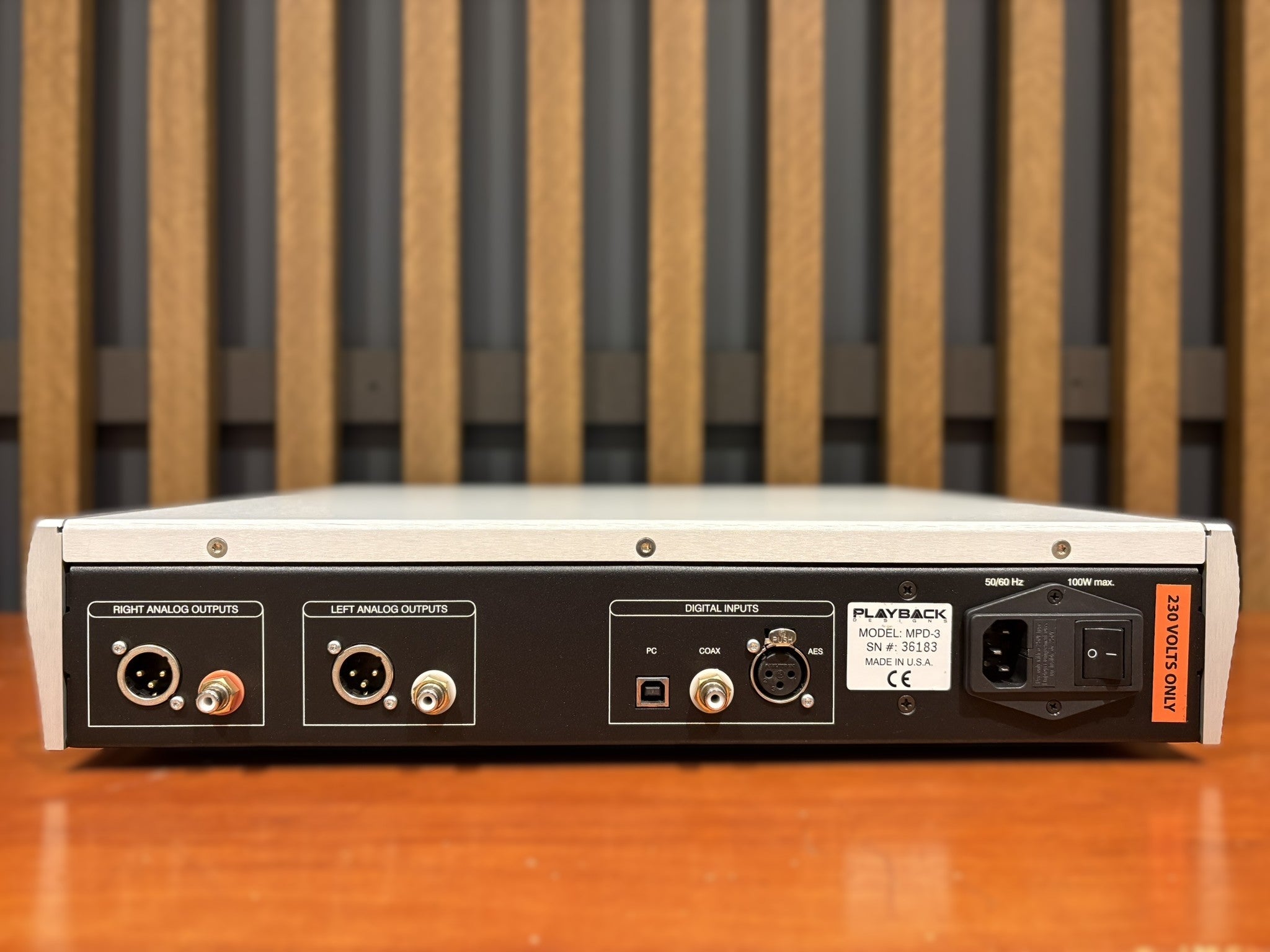

Output terminal (analog): Balanced (XLR) x 1 (Pin 2 Hot) 4.6Vrms 1kHz Maximum Level
Unbalanced (RCA) x 1 2.3Vrms 1kHz Maximum Level

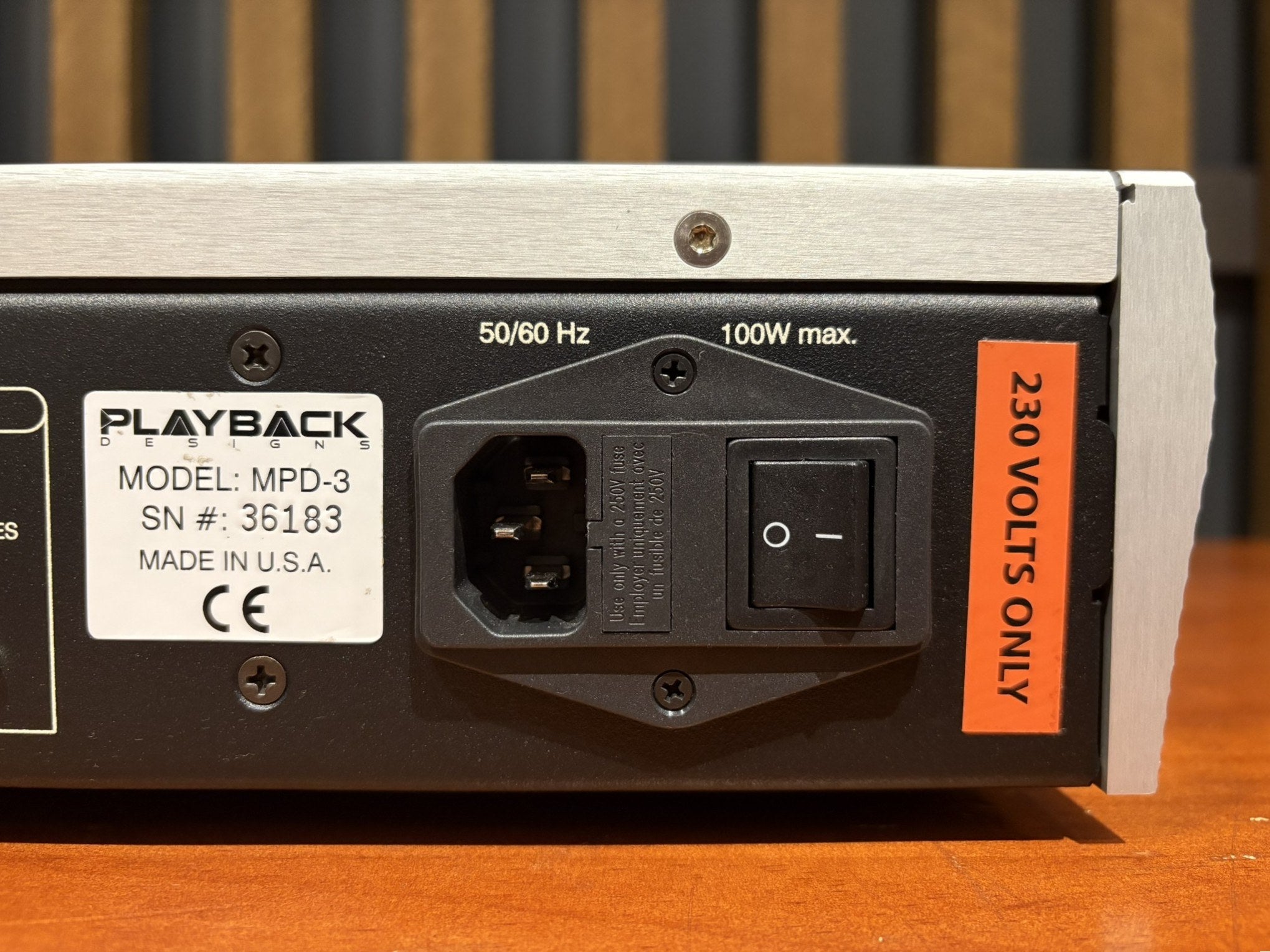

Power consumption 100W (max)
Dimensions (mm): 435(W) × 405(D) × 95(H)
Weight: 10.0kg
Function: Phase switching: 0°/-180°
Mute/Dim function
