Pass Labs XP-30 Line Preamplifier - As Traded

Pass Labs XP-30 Line Preamplifier - As Traded

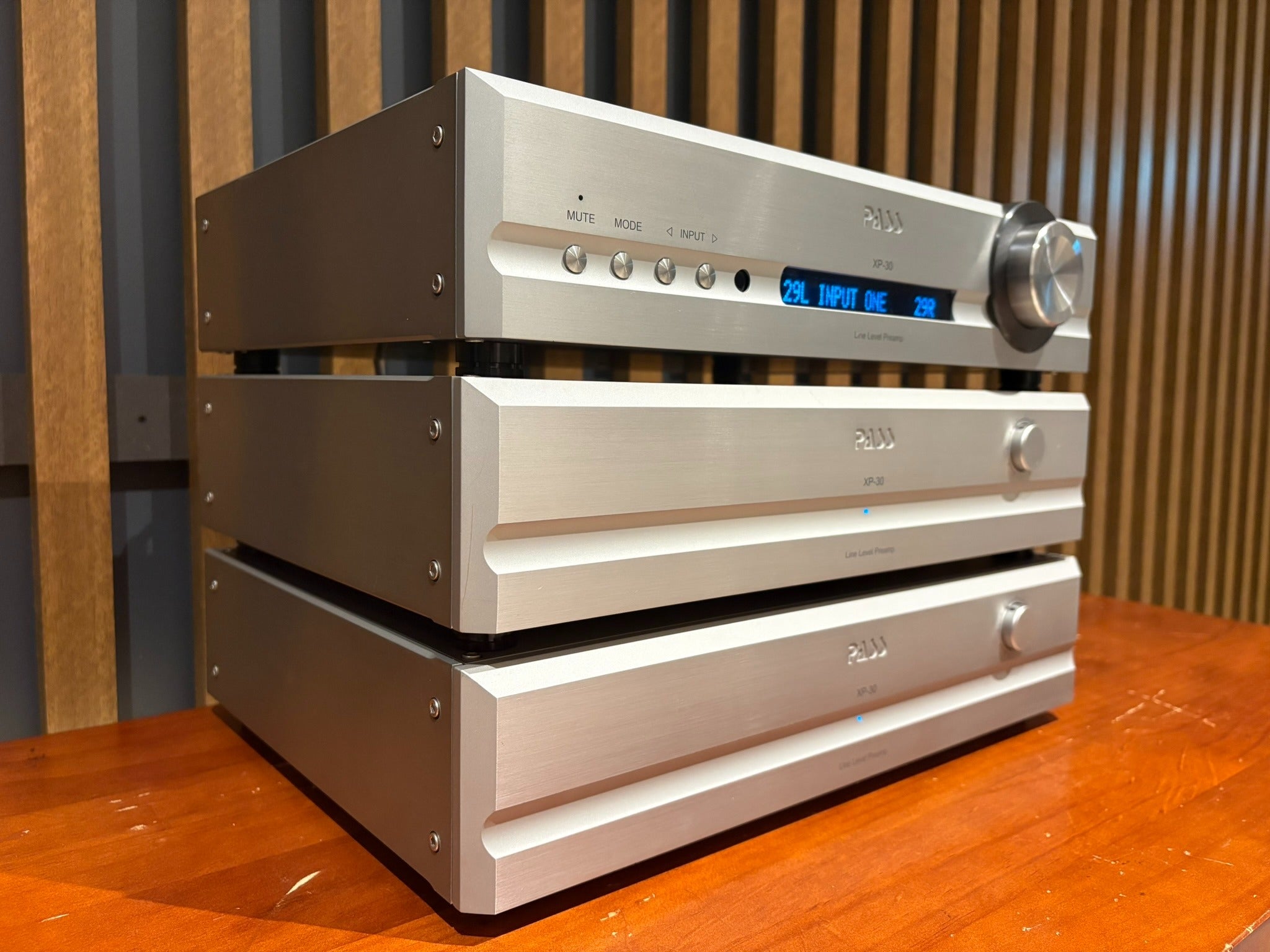

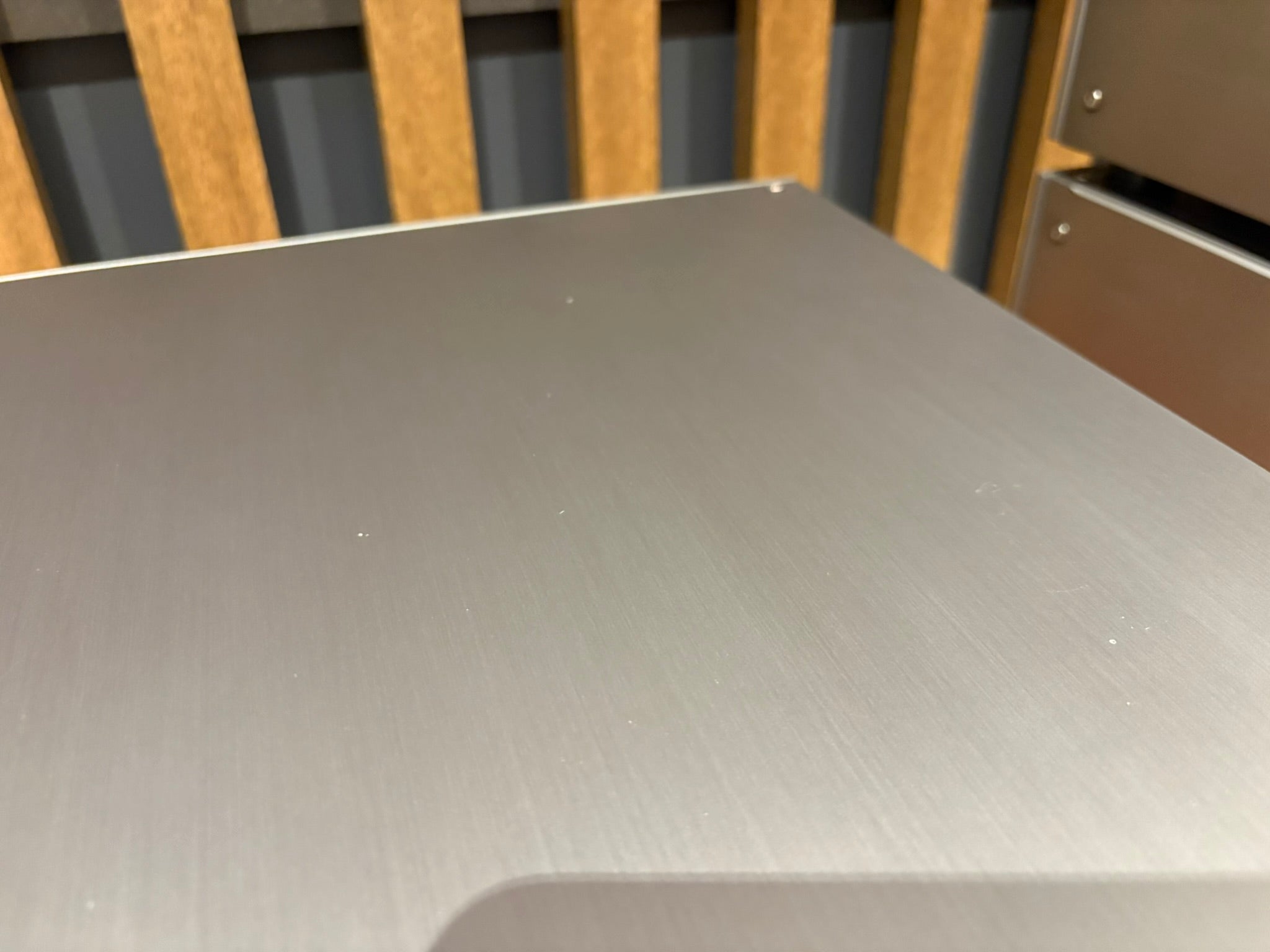

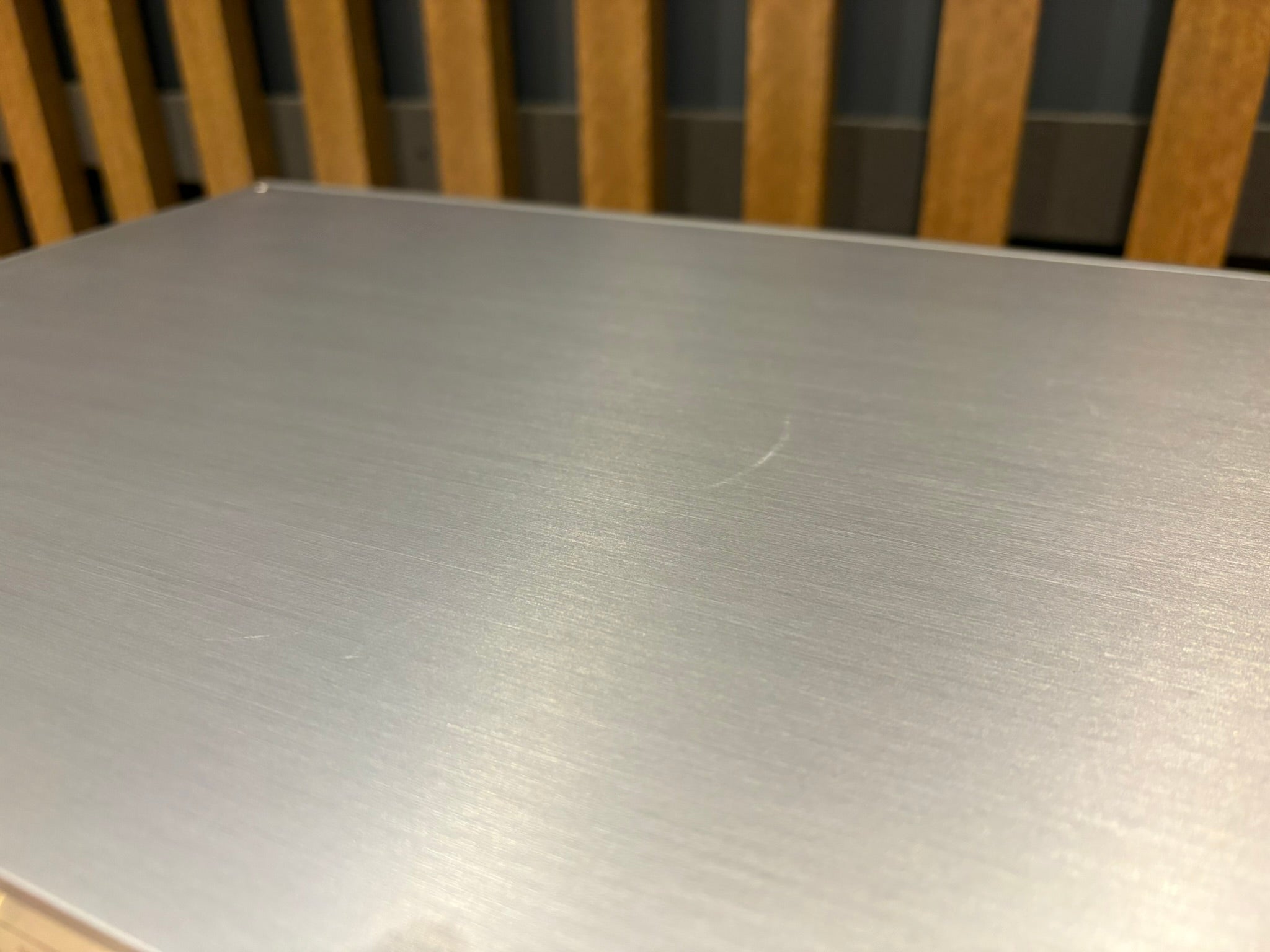

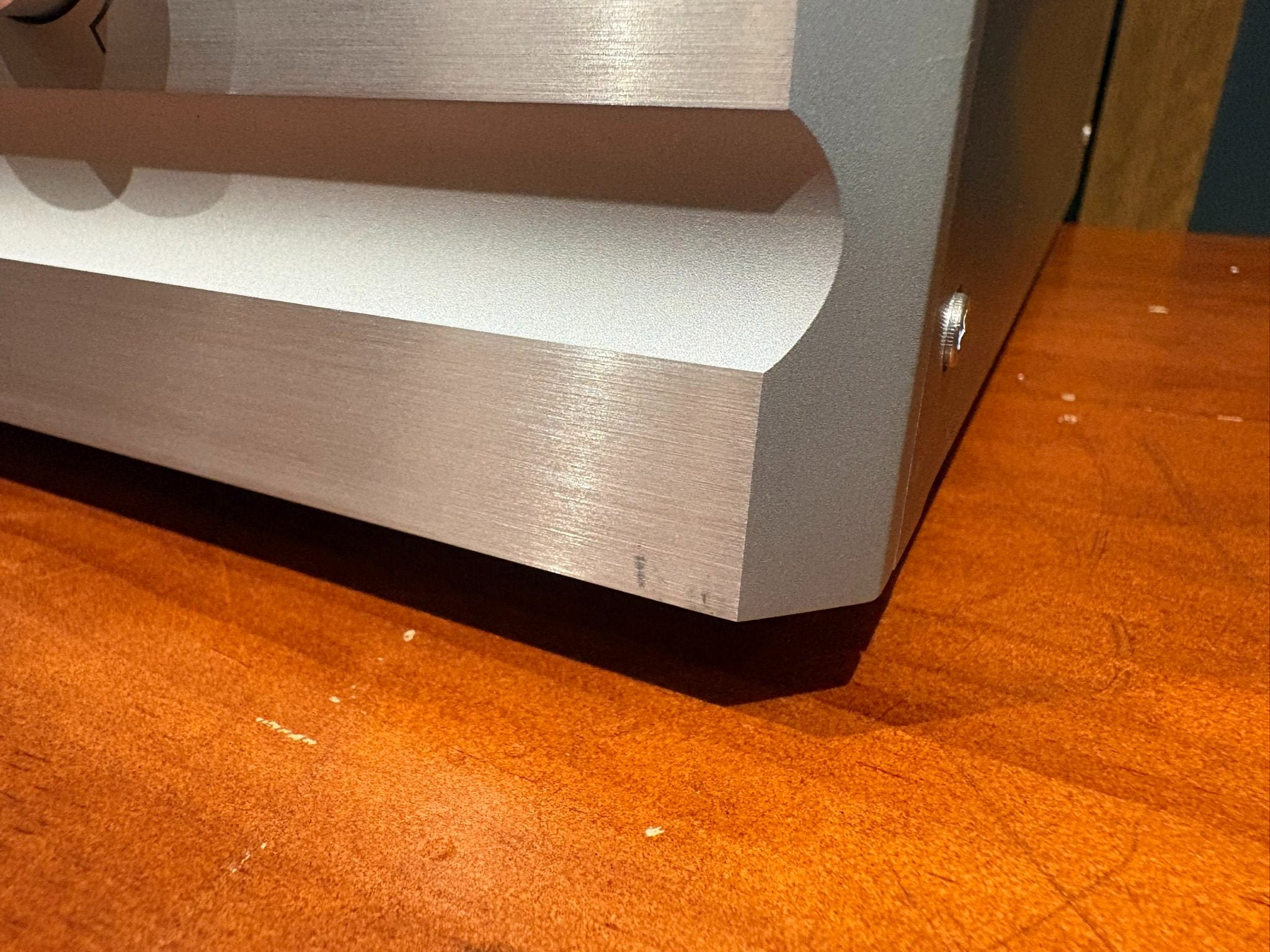

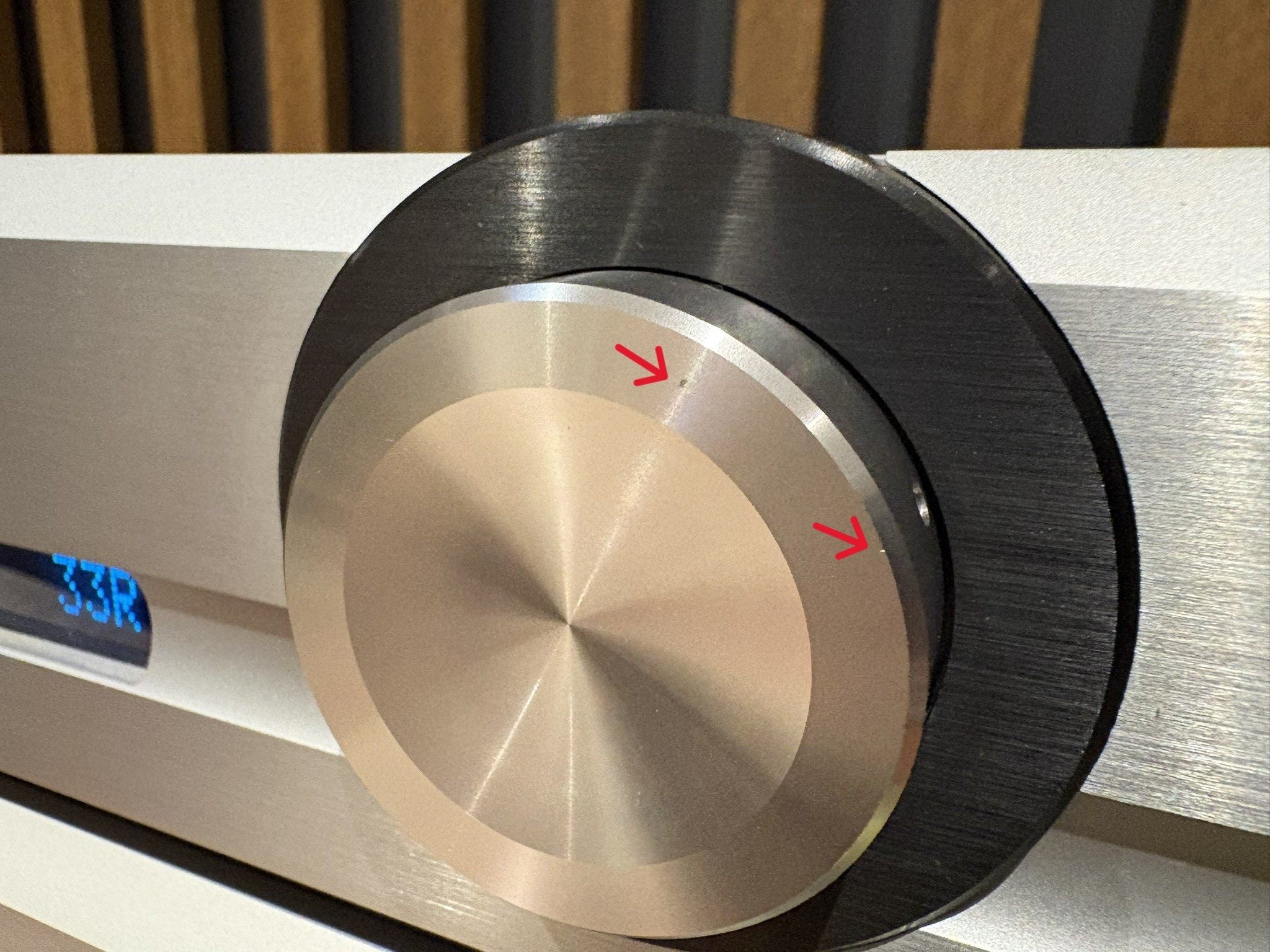

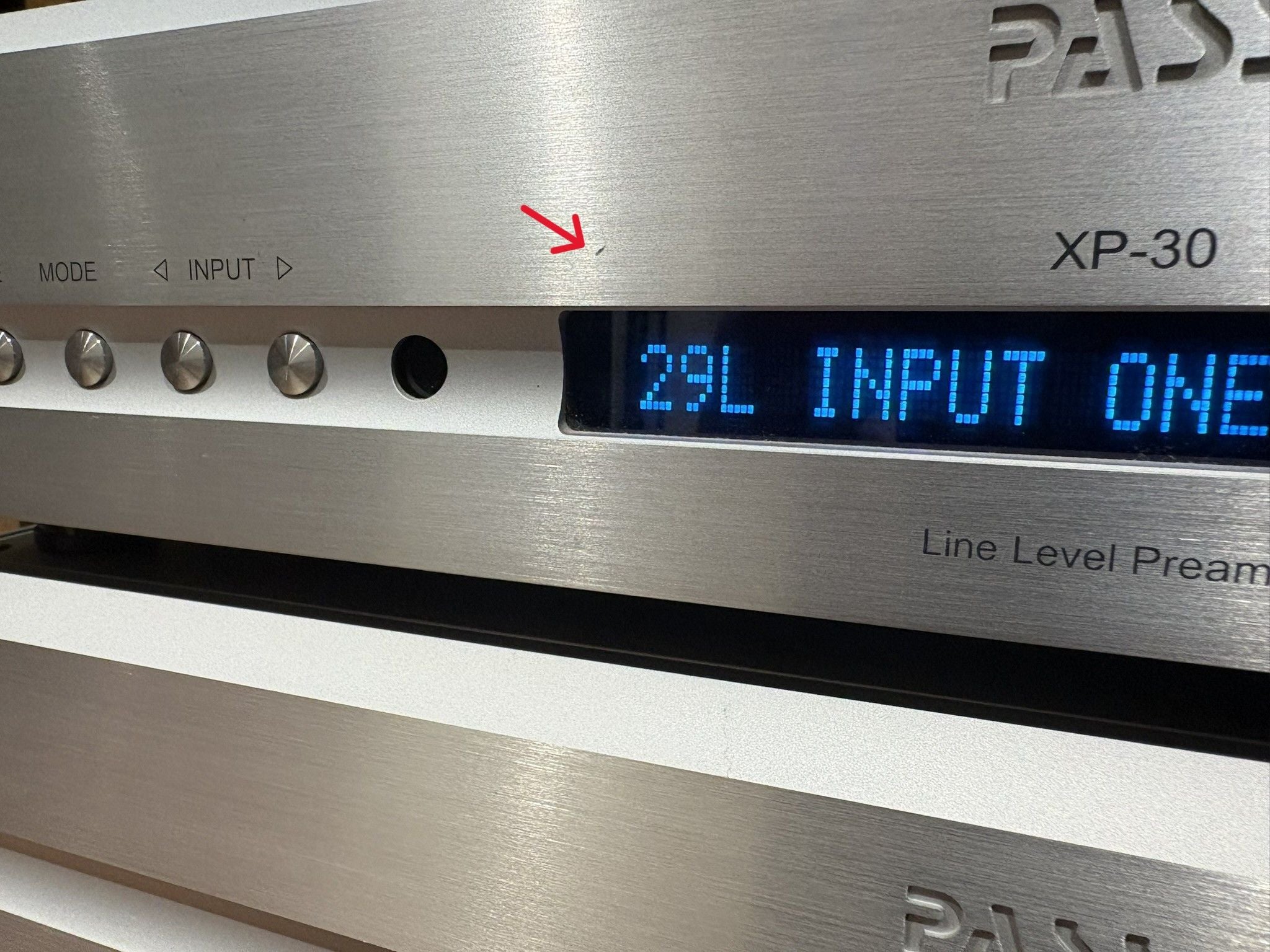

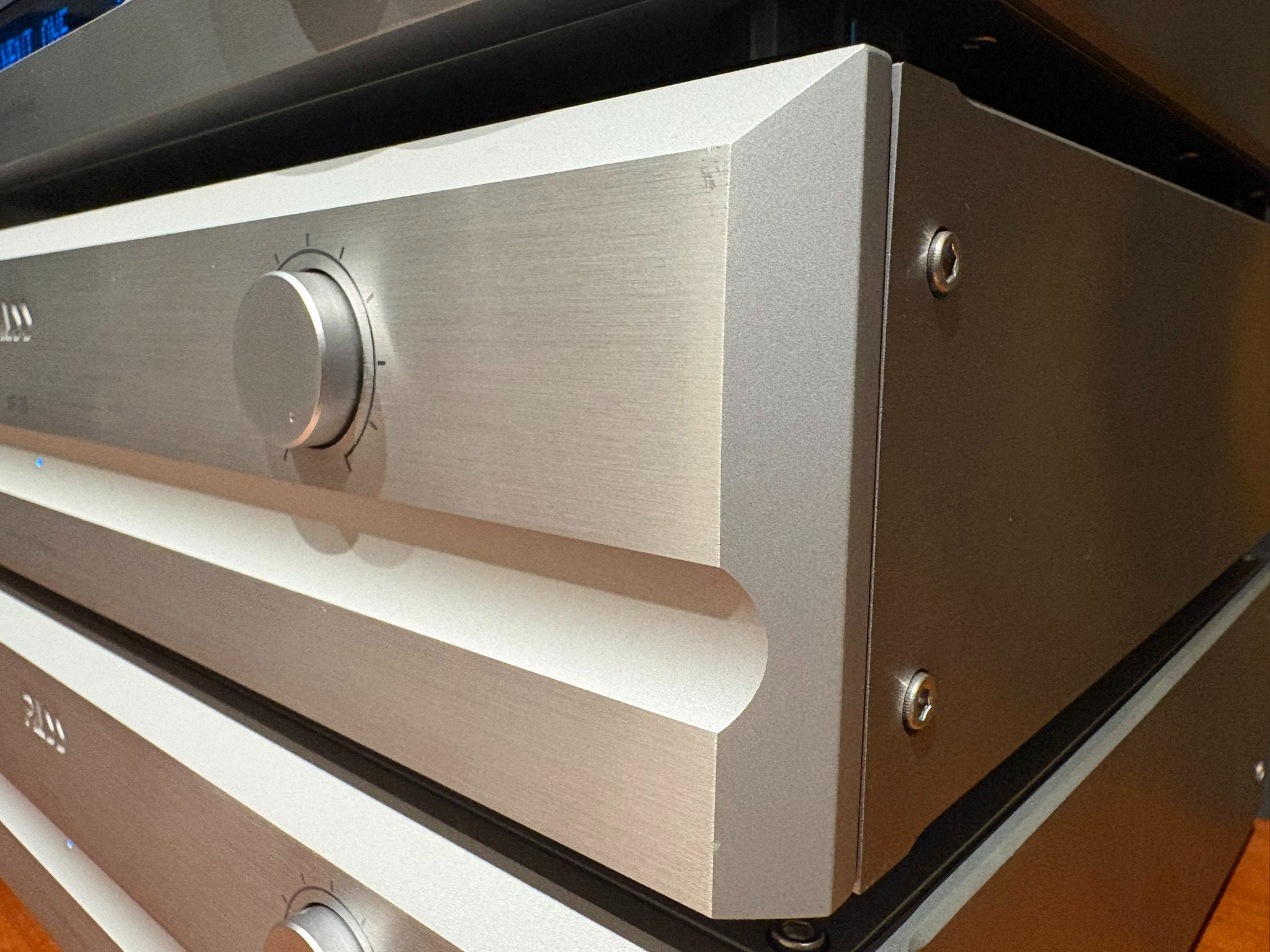

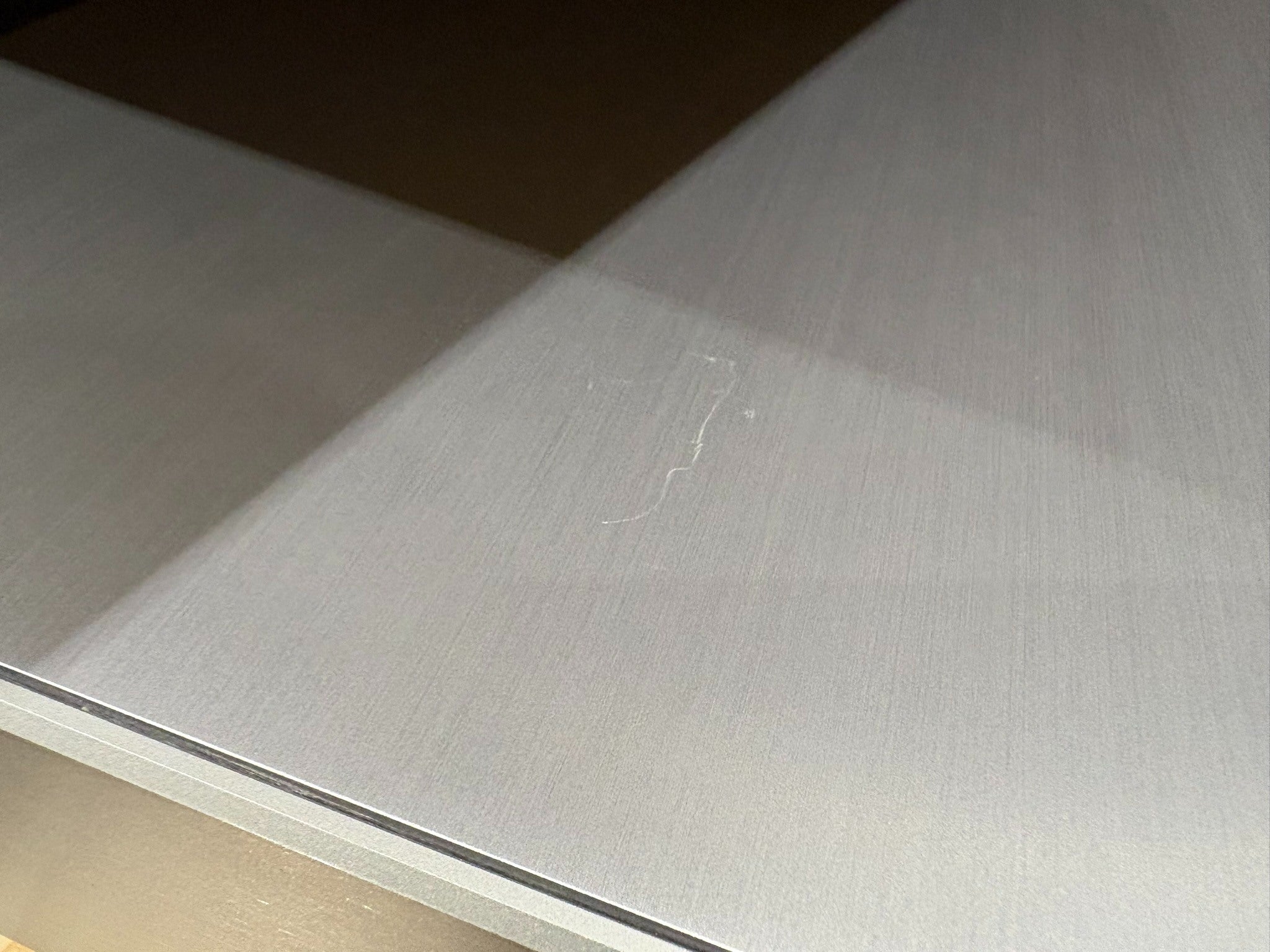

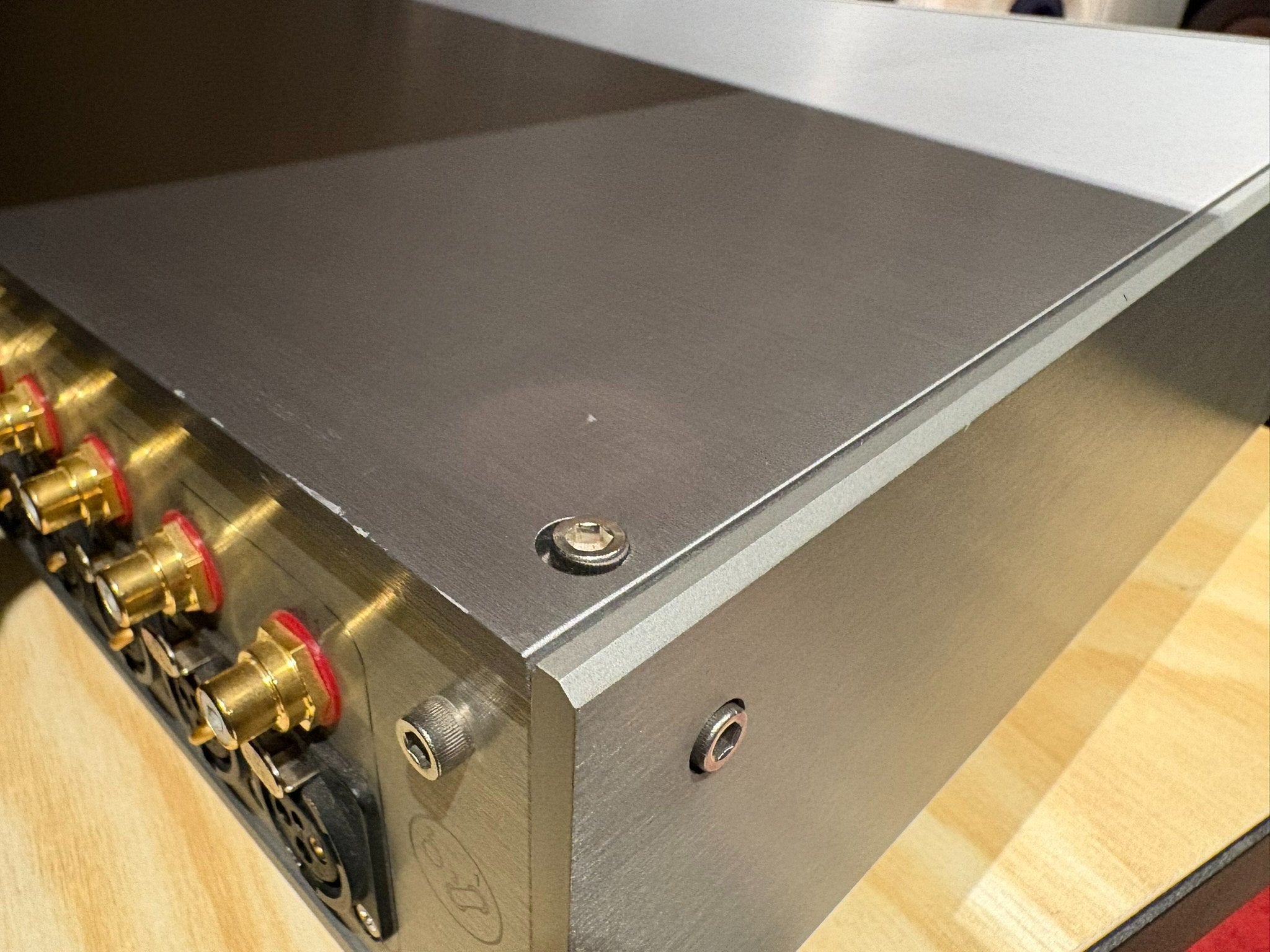

Condition: Used. Very good, some minor chips and scratches from stacking (See photos)

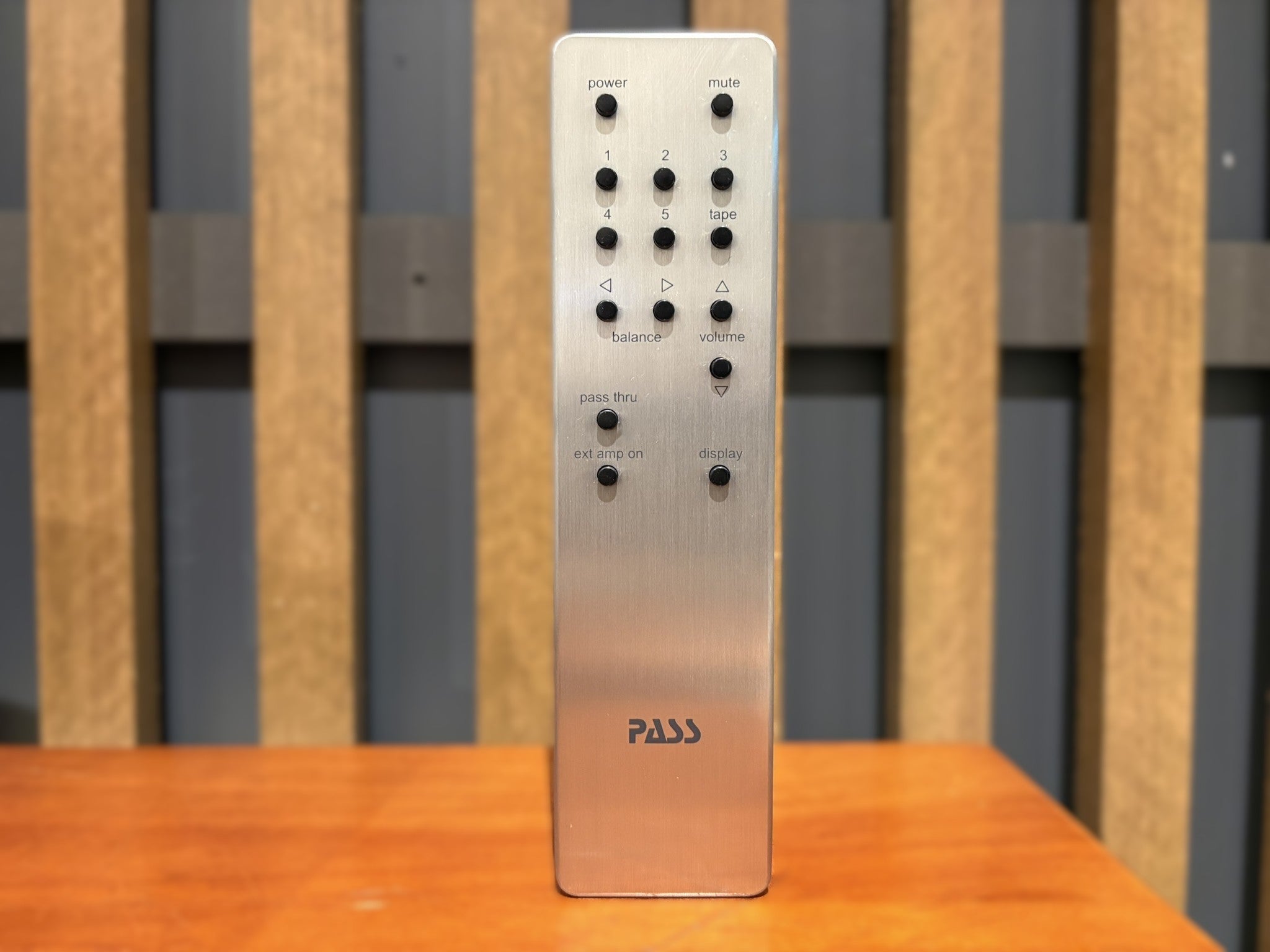

Includes: Remote control and power cable (No box)

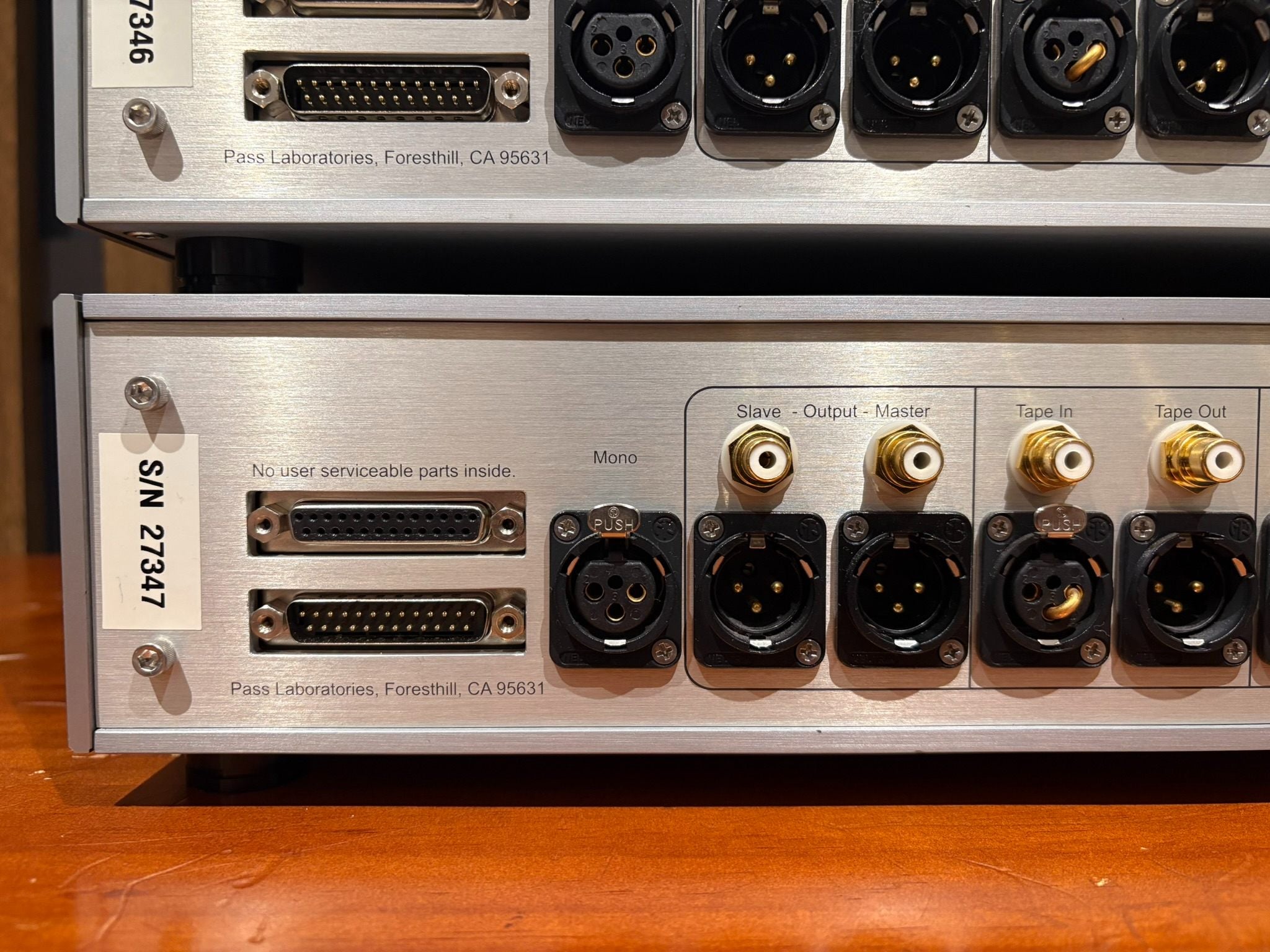

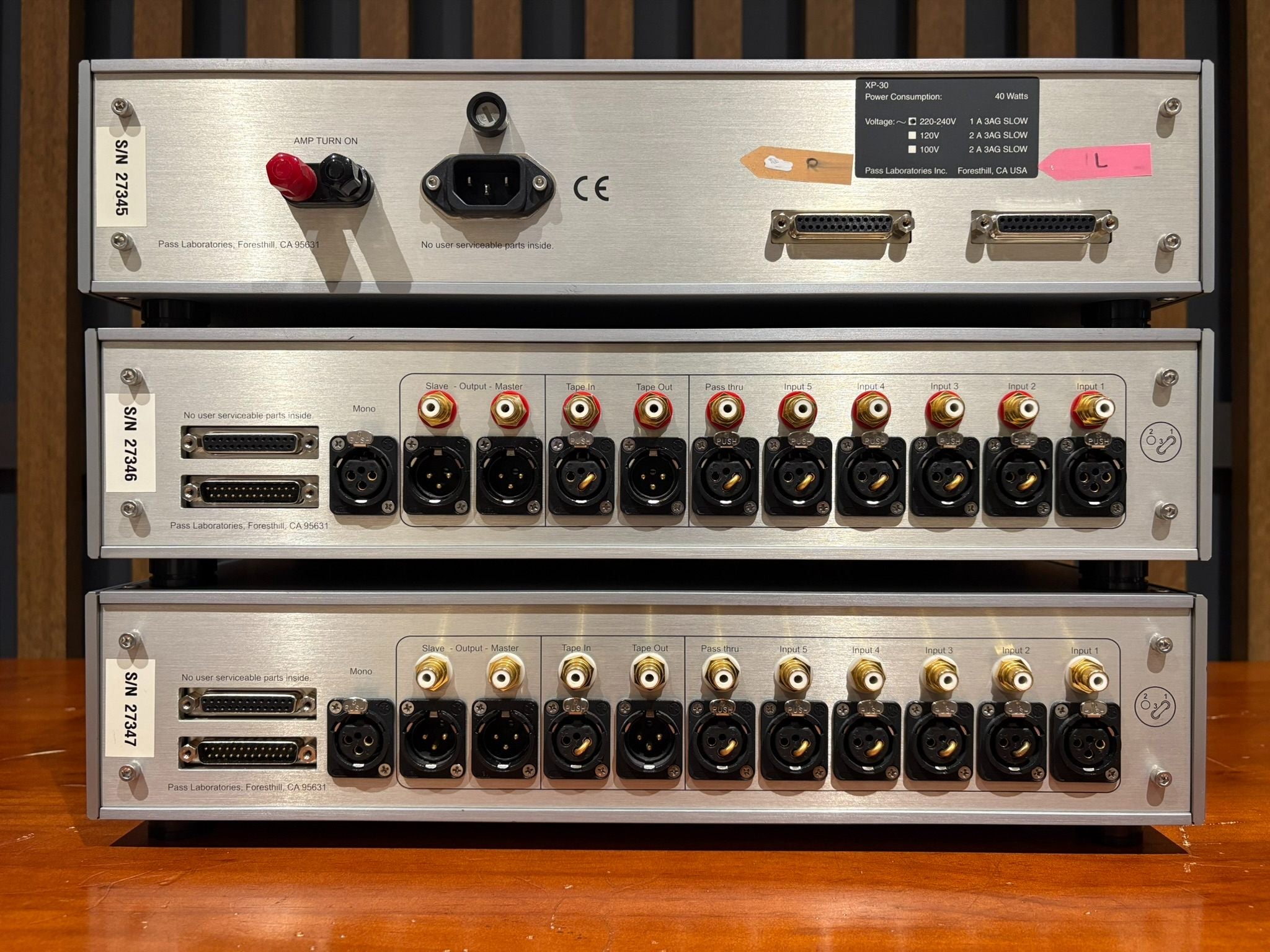

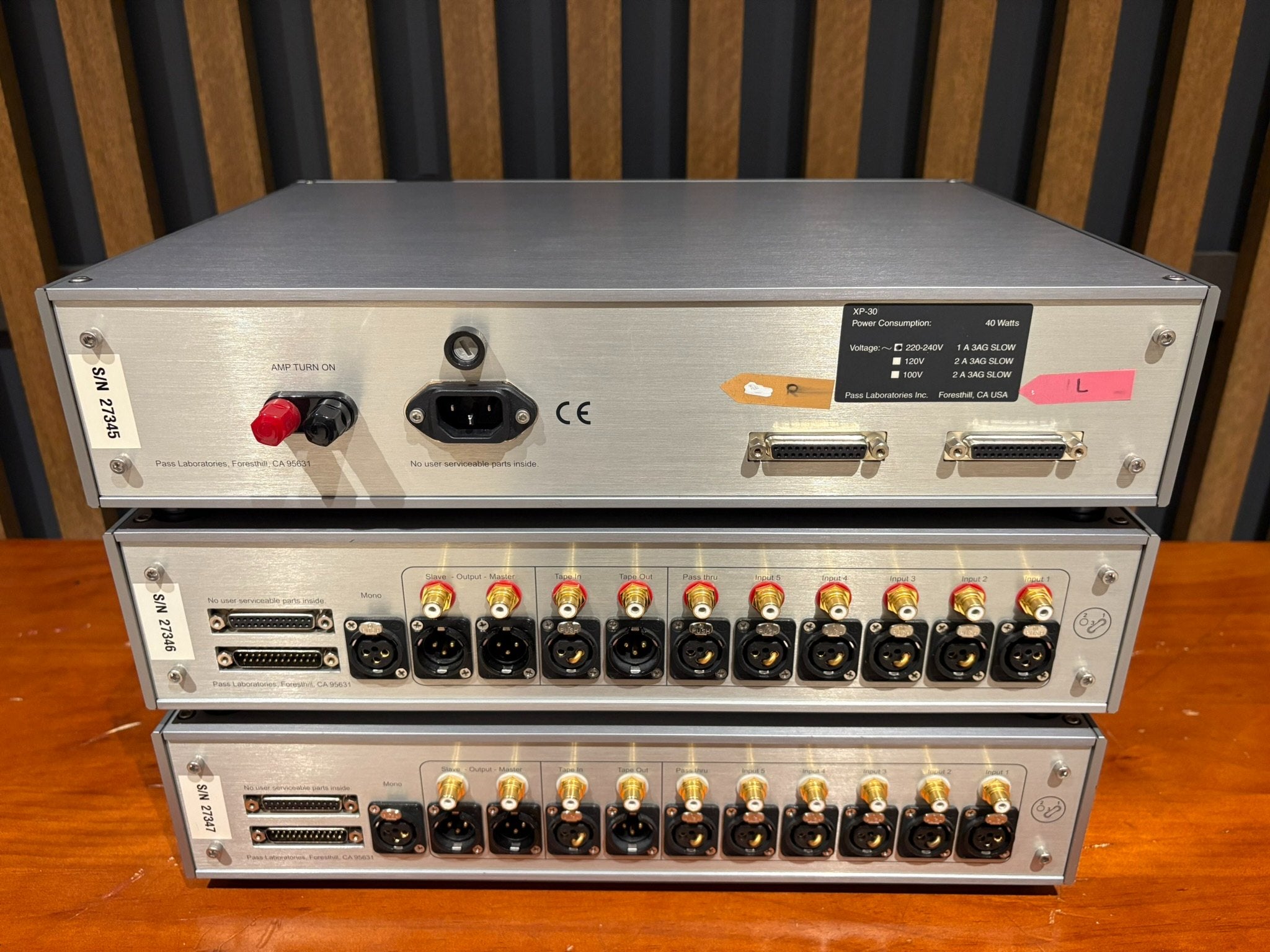

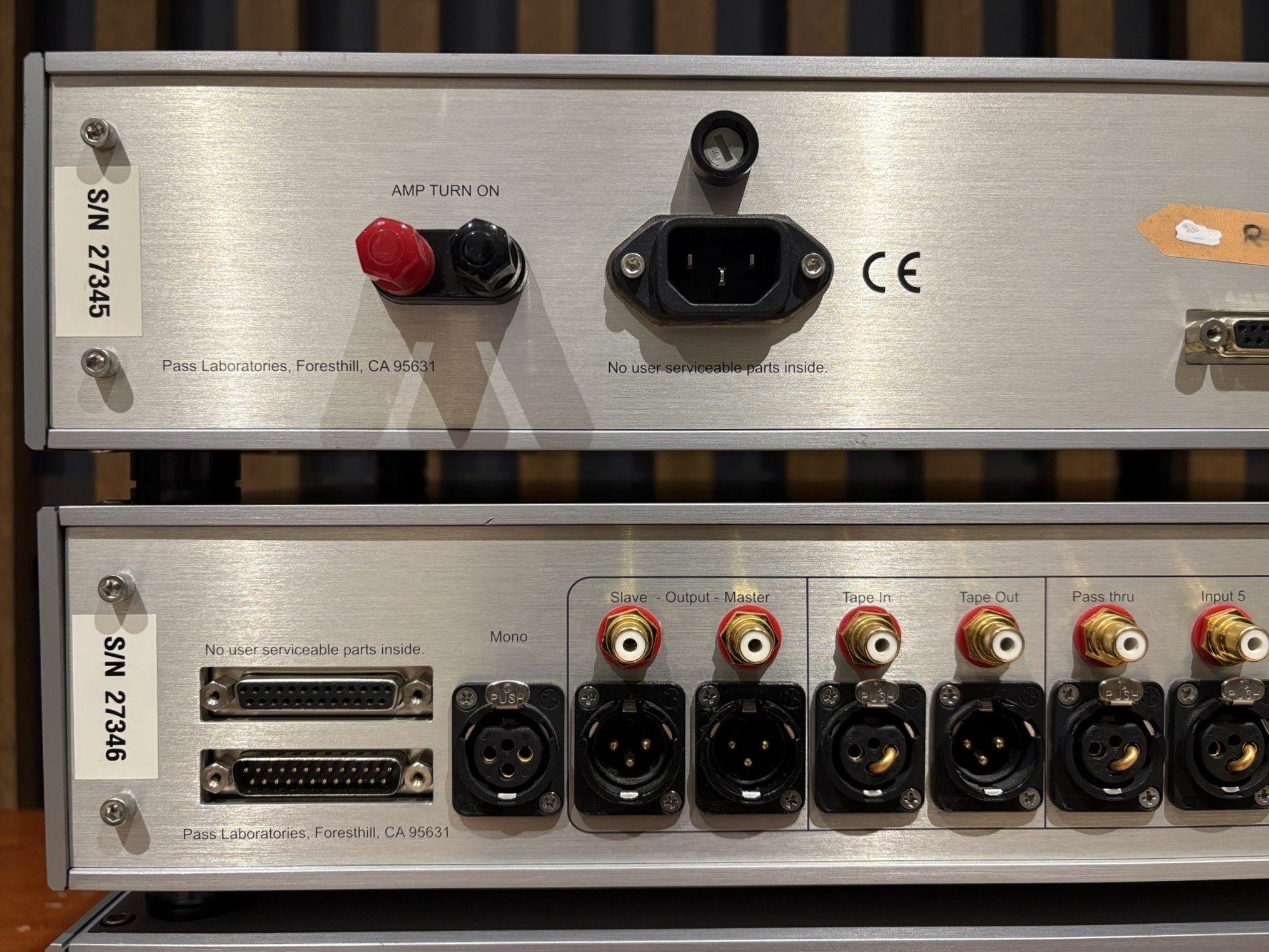

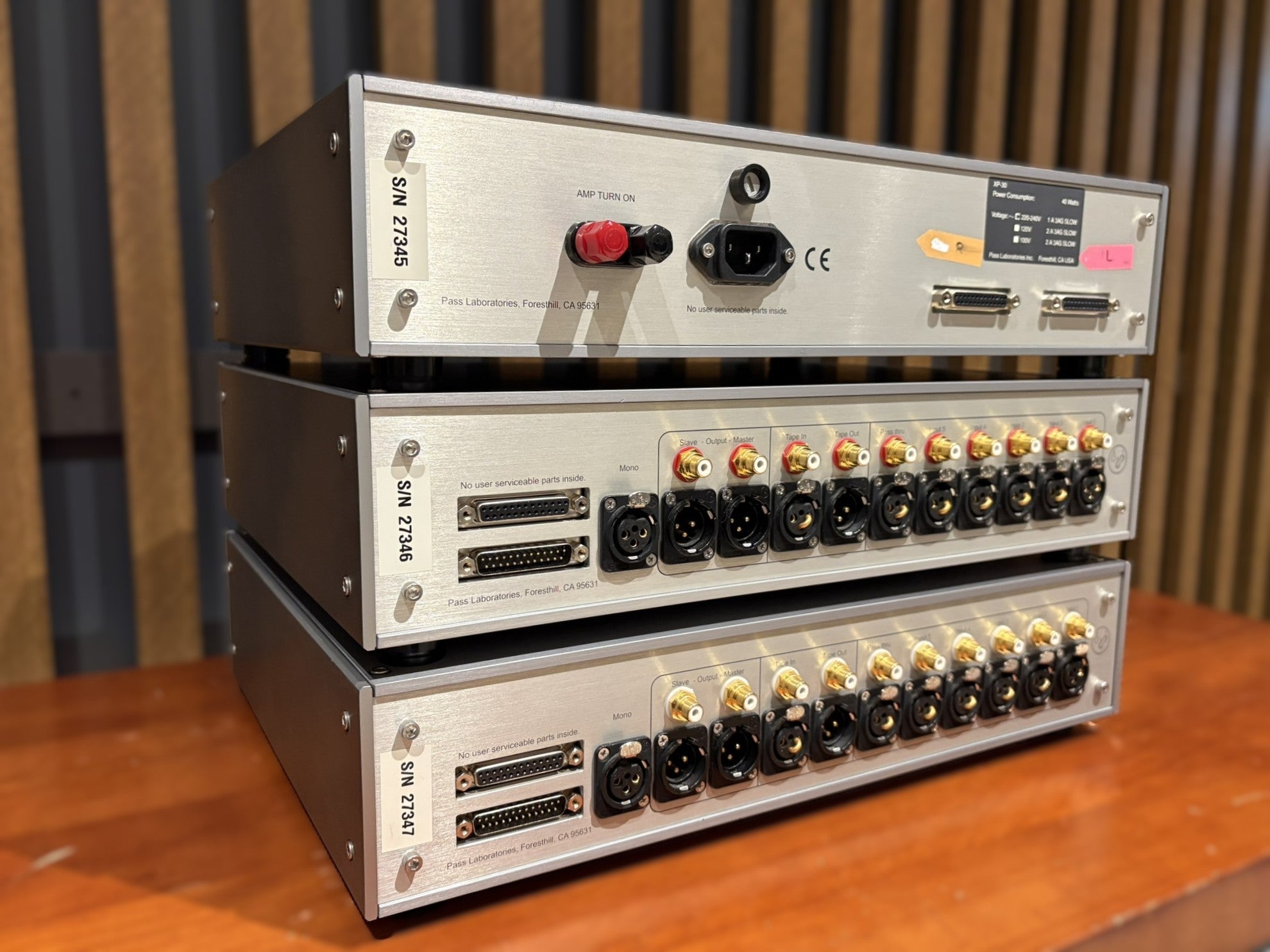

SN: 27345 / 27346 / 27347

Warranty: 90 days (3 months)

Overview

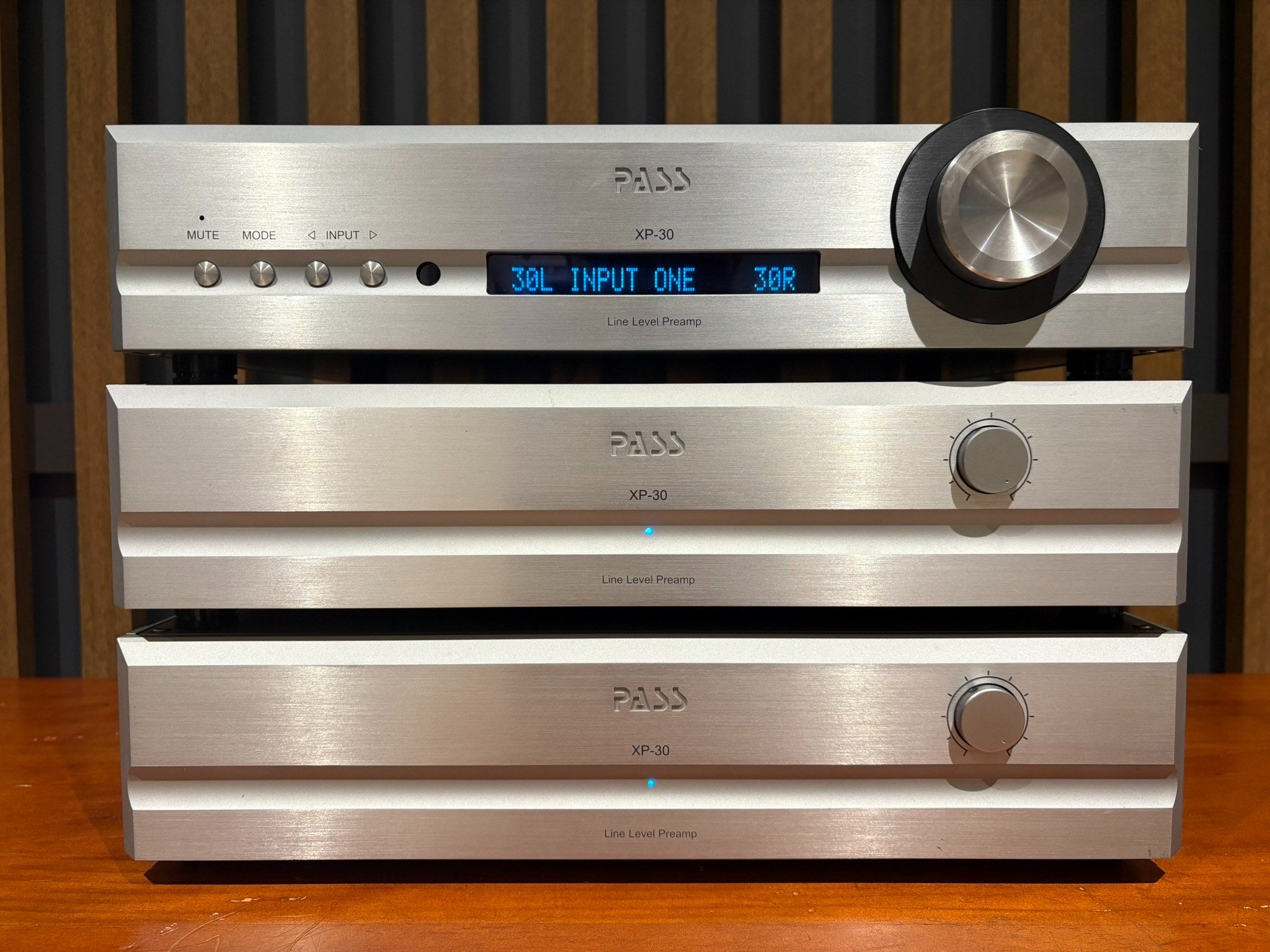

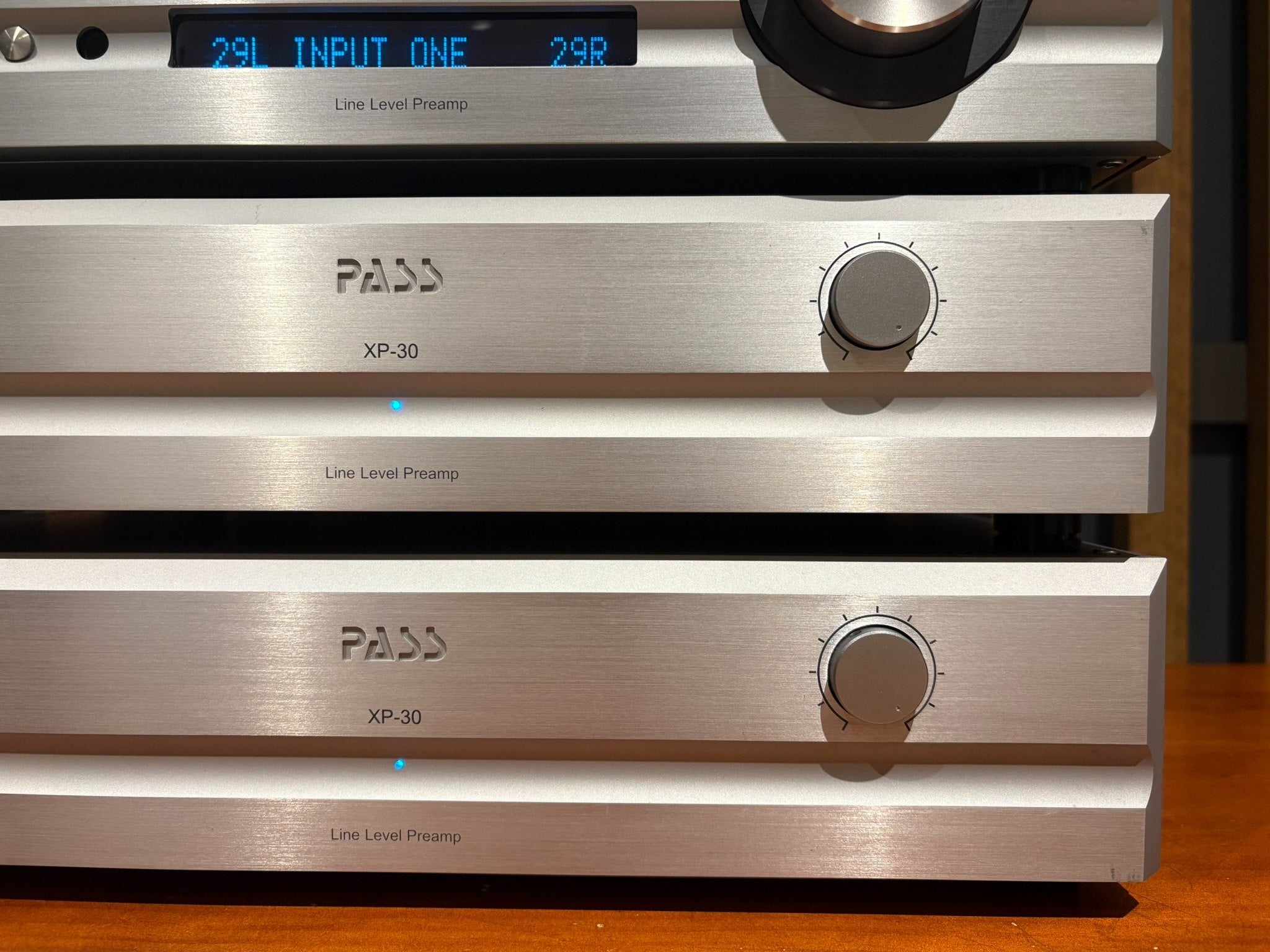

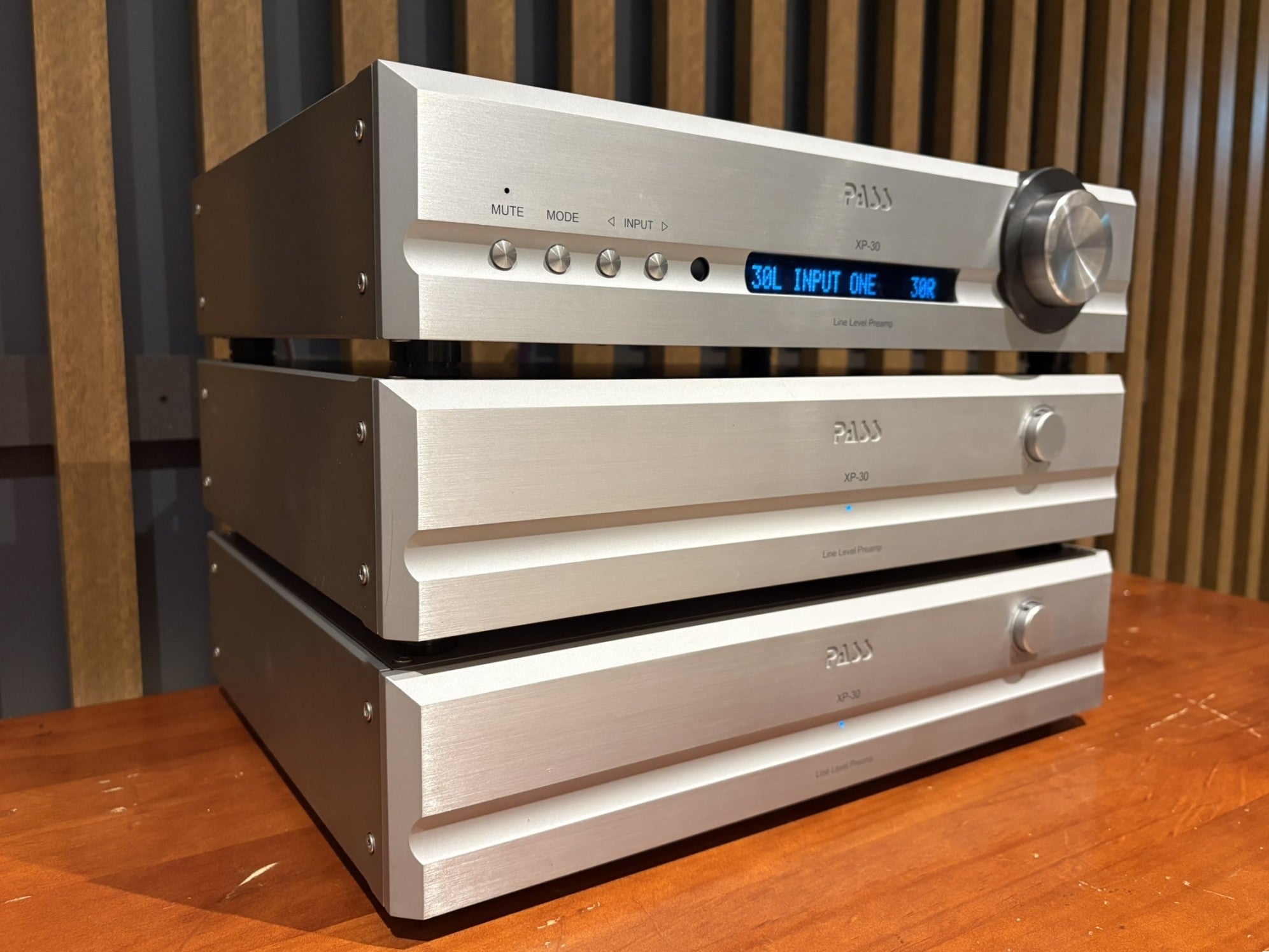

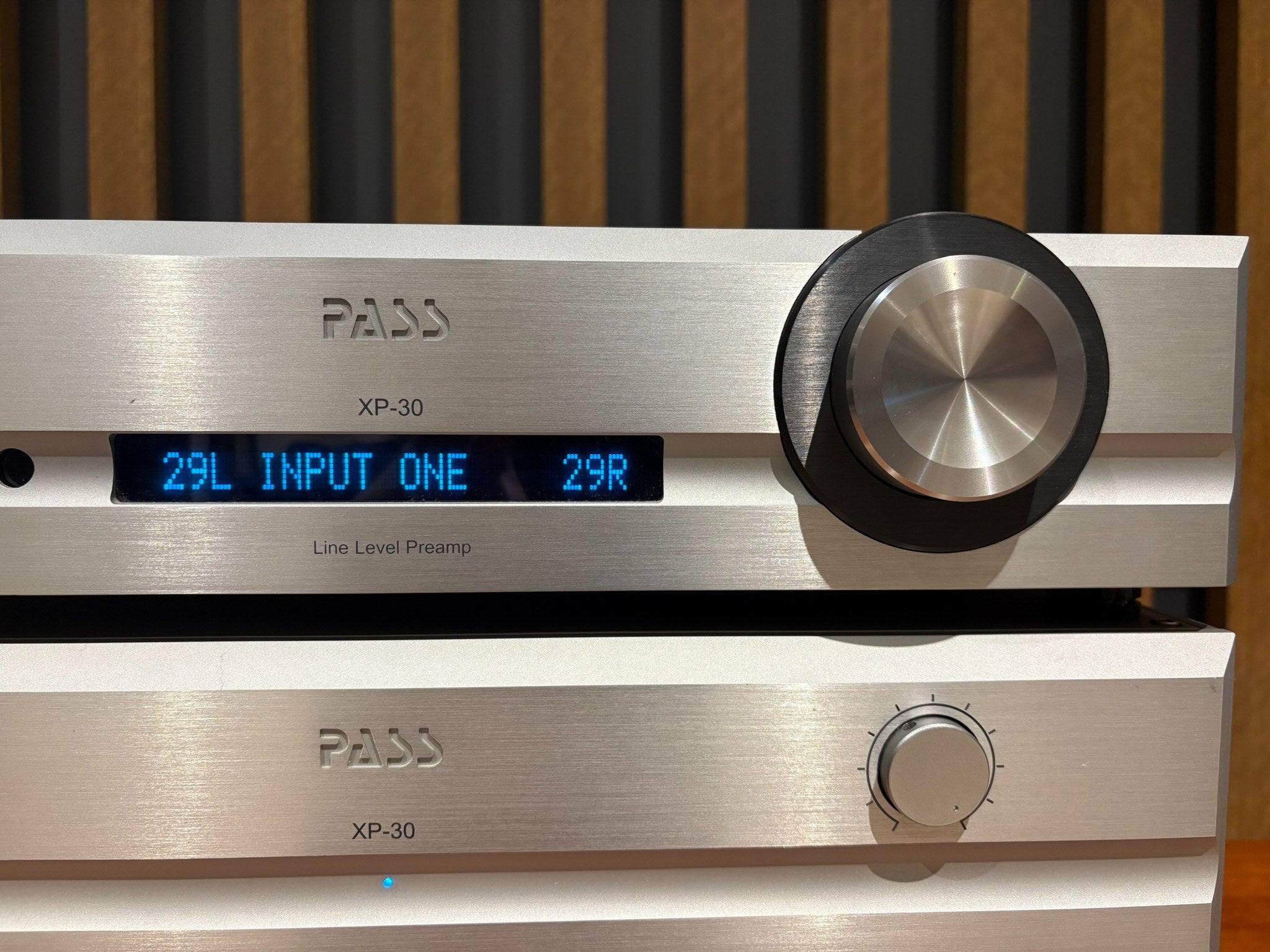

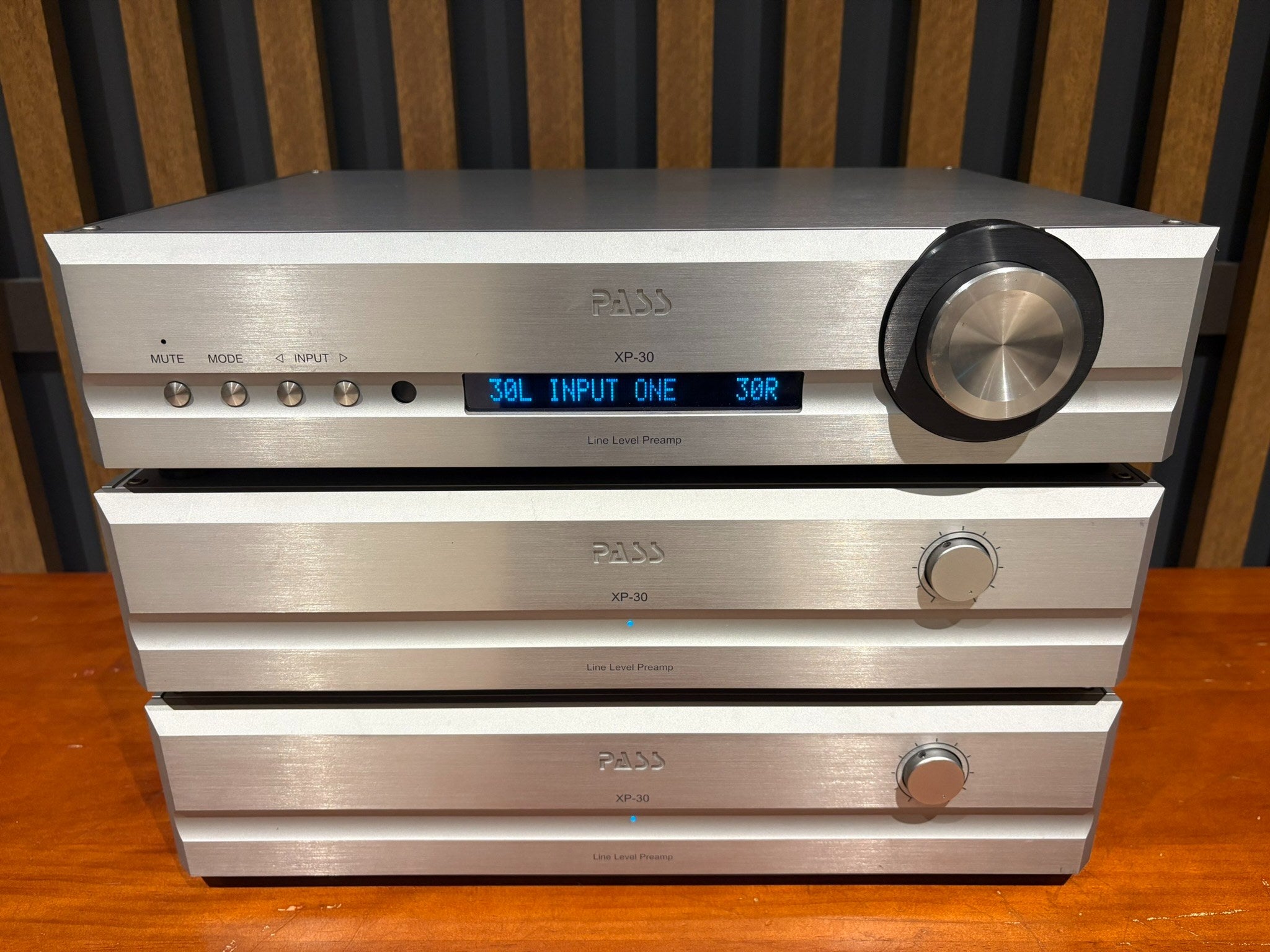

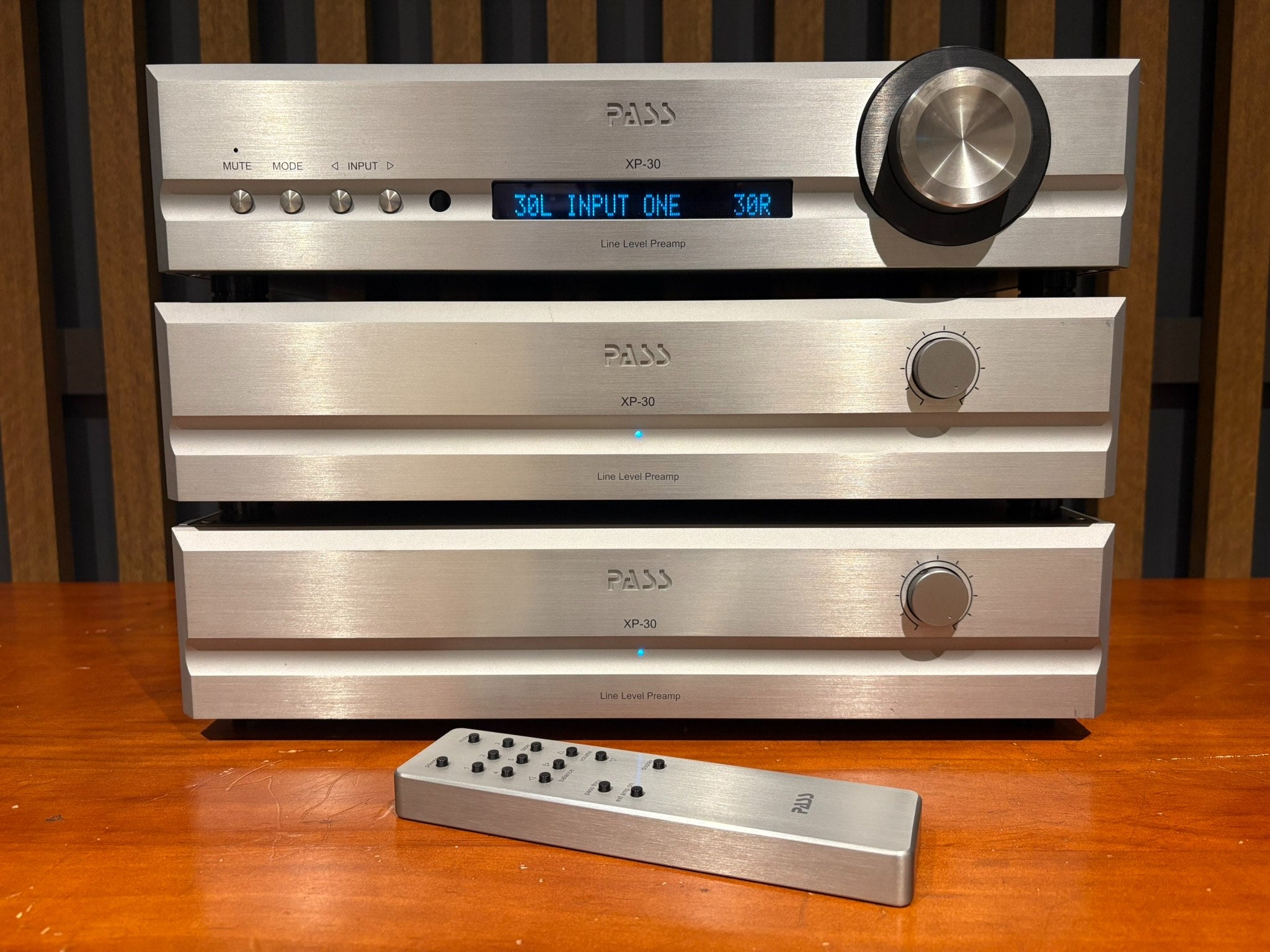

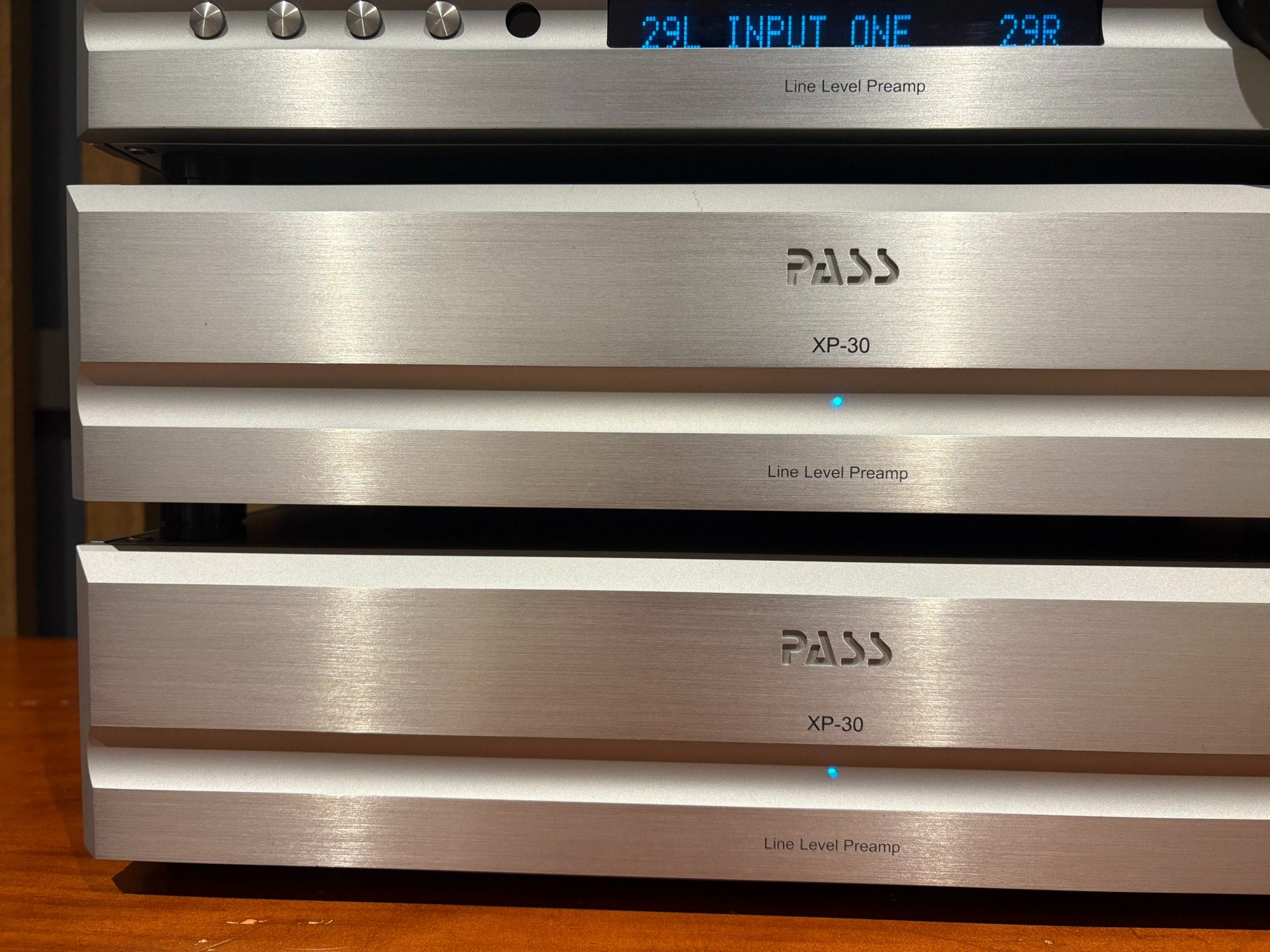

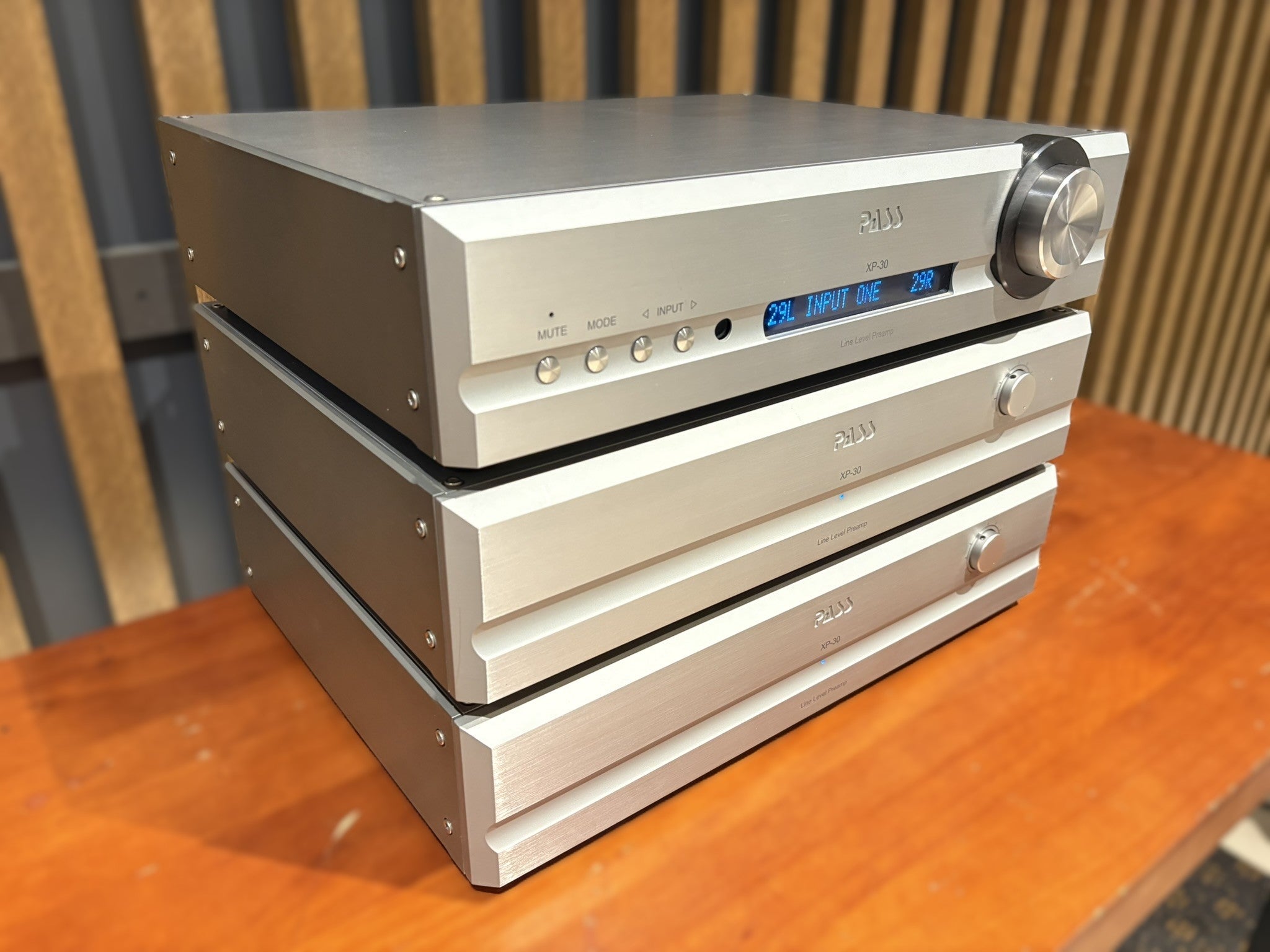

Pass Labs XP-30 is a reference three-chassis dual-mono line preamplifier that offers Pass' signature clean sound. Each channel is housed in its own dedicated chassis to minimises crosstalk, while a third enclosure contains the power supply and control electronics.

The analogue circuitry is fully balanced from input to output, employing discrete Class A gain stages with extremely short signal paths. High-input impedance and very low output impedance help match with a wide range of source components and power amplifiers.

The external power supply includes multiple stages of regulation to provide isolated, low-noise DC rails for each audio chassis.

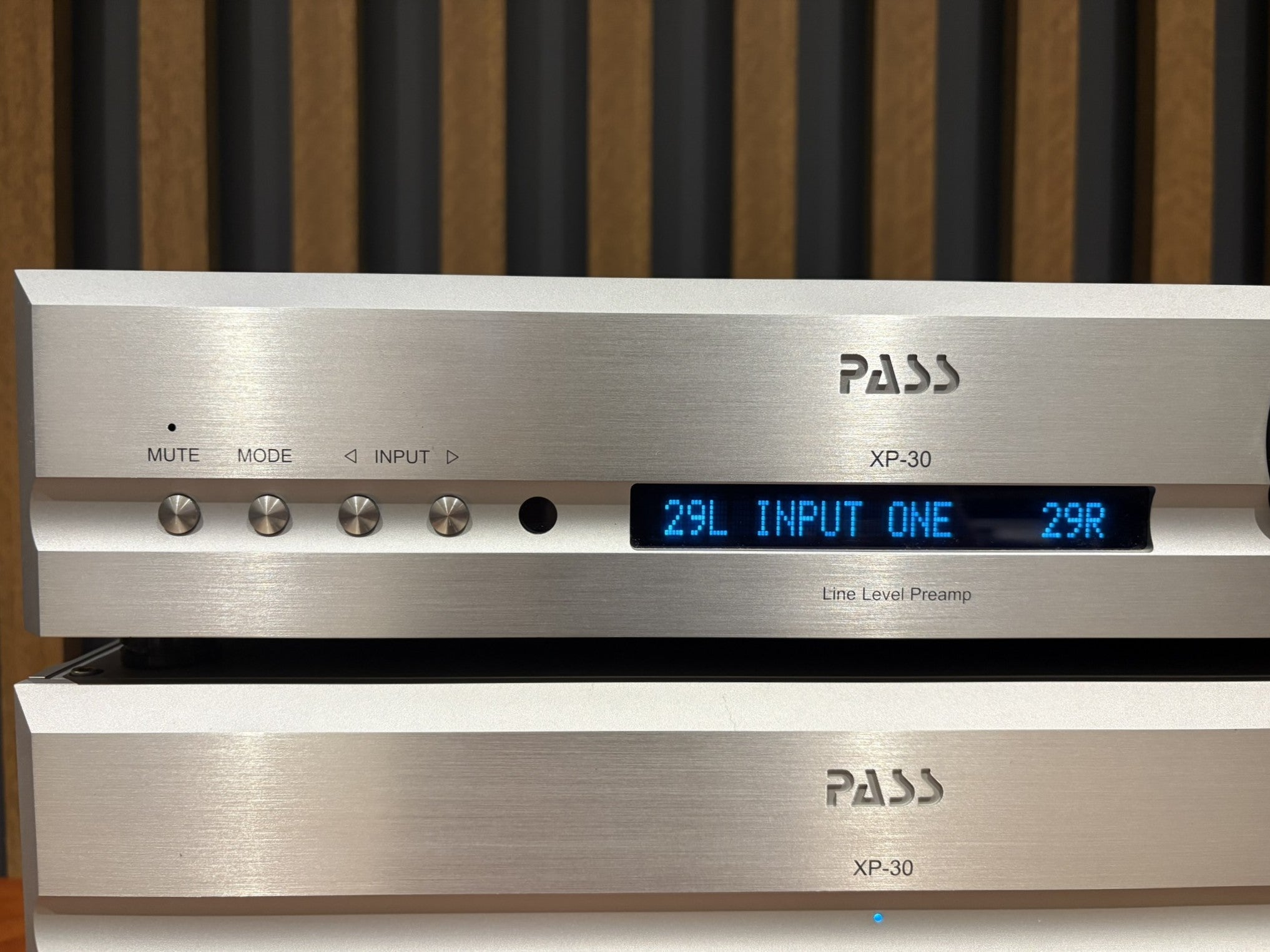

Input switching and volume attenuation are relay-controlled, rather than using a traditional potentiometer.

Specification

Overall Gain: -90 dB to +10 dB  
Cross-talk: -100 dB, 1kHz Ref 1V
Volume Steps: 99    
Signal to Noise Ratio: < -110 dB, Ref 5V
CMRR: -60 dB, 1 kHz
Input Impedance: 42k balanced      
Output Impedance: 120 Ohm bal, 120 Ohm SE 
Frequency Response: -3dB @ 2 Hz and 60 kHz
Remote: Yes   
Power Consumption (Watts): 45

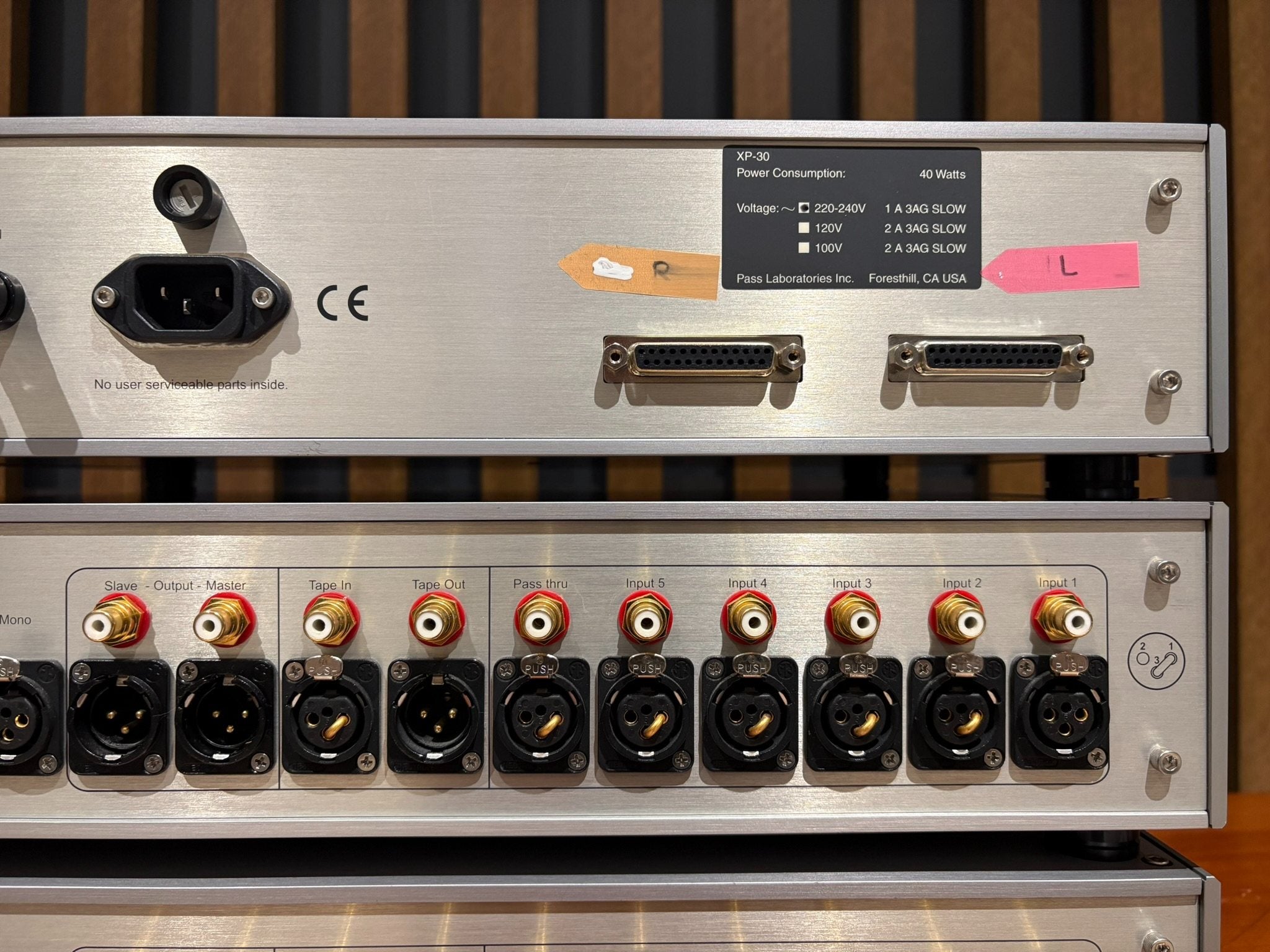

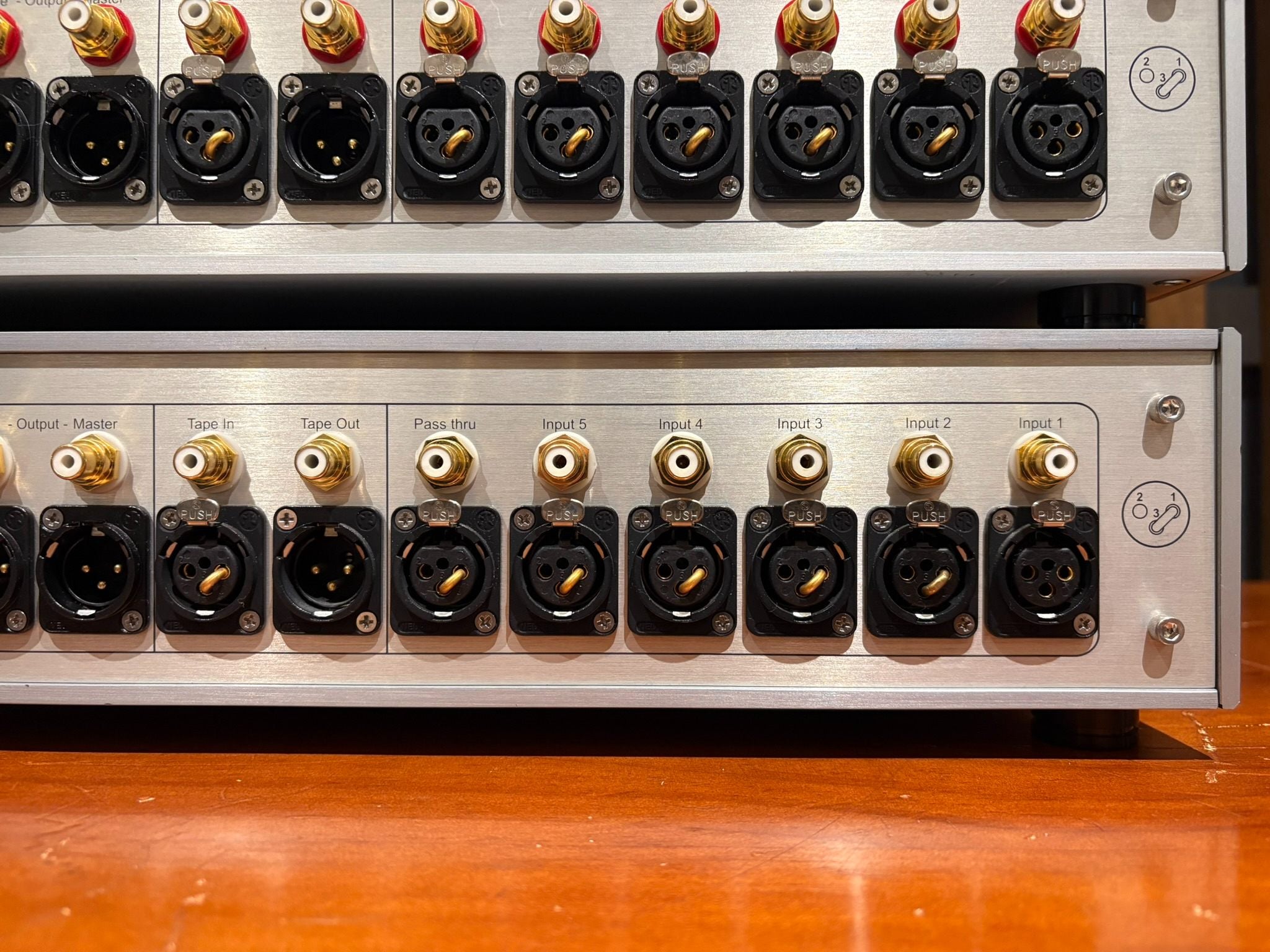

Inputs: 6     
Number of Chassis 3
Outputs: 4     
Dimensions, Each Chassis: 43.18 cm W × 30.48 cm D × 10.16 cm H 
Weight 26.08 kg
