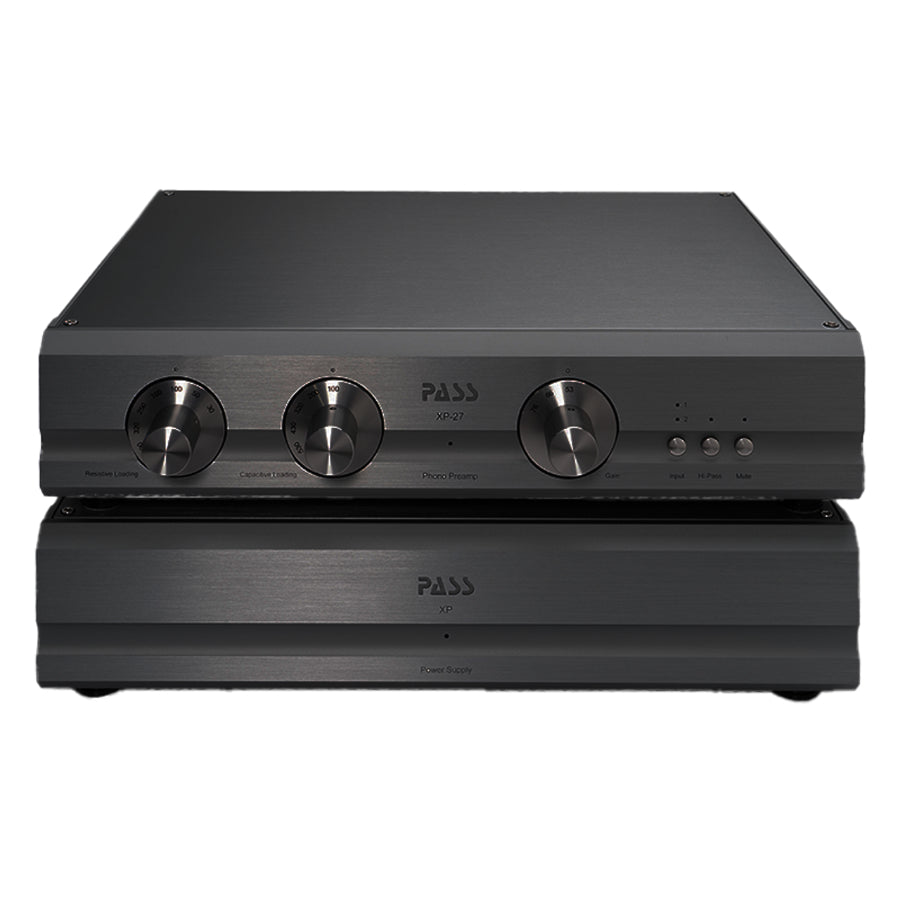

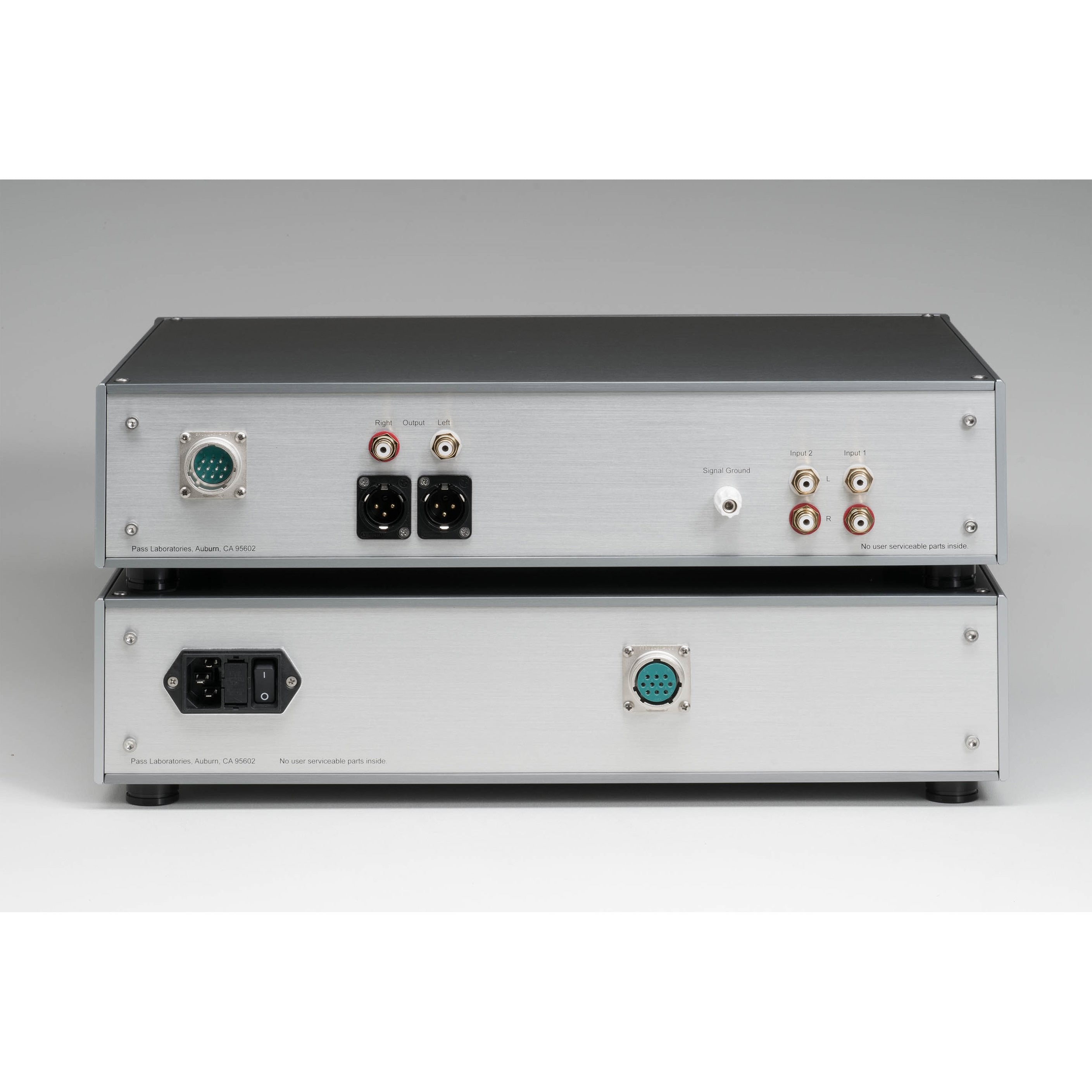

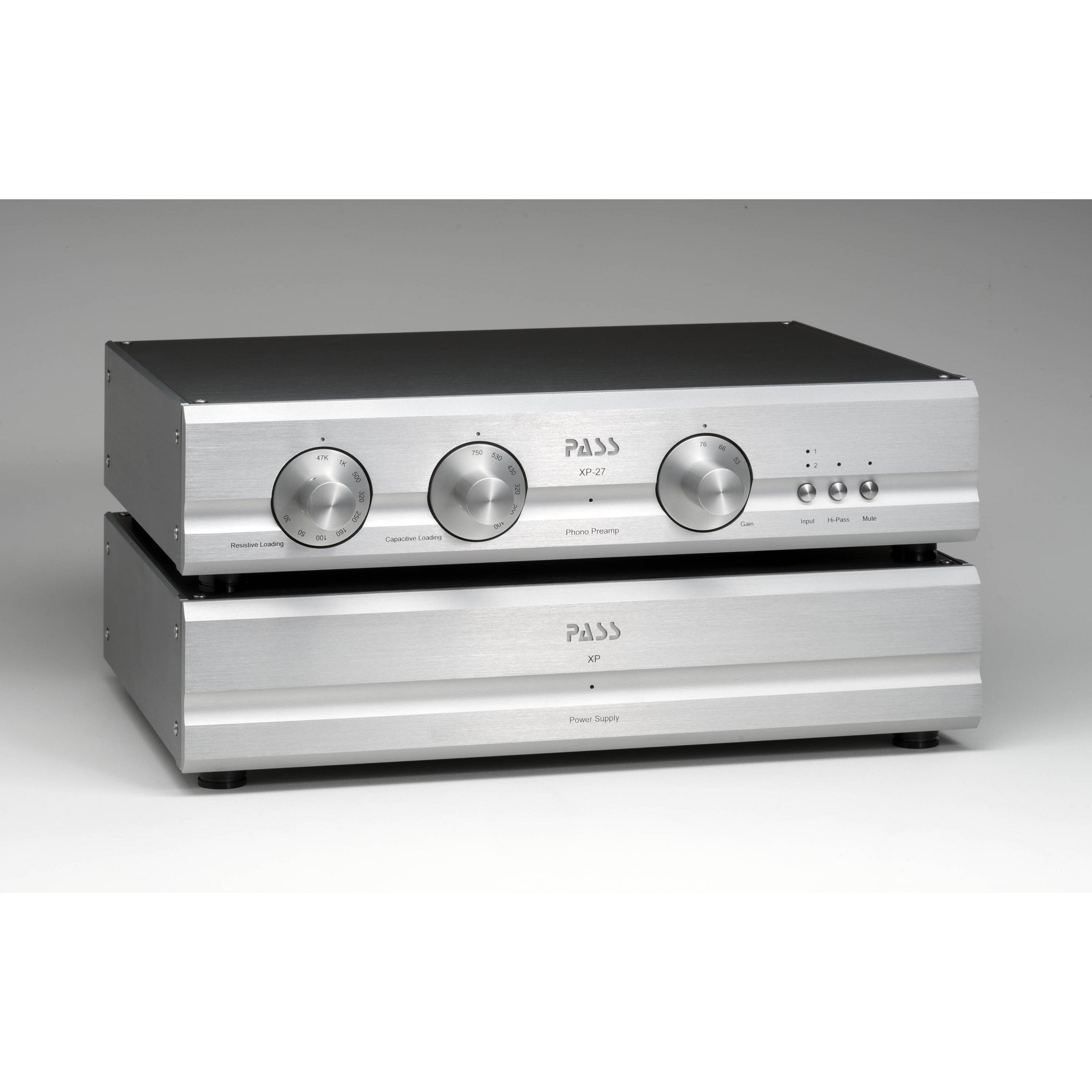

The twin chassis XP-27 eclipses the already exceptional performance of the well-reviewed and well-received XP-15, XP-25 & XP-17: delivering enhanced RIAA performance at a fraction of the previous distortion. The new design uses double shielded low noise toroidal transformers in external supply connected via aviation grade circular connectors using silver over oxygen free copper. The power supply is dual mono with two transformers with lower radiated and mechanical noise. Noise is the most prominent part of THD+N at low levels, so by lowering noise we get better resolution and dynamics.The XP-27 input and gain circuitry are similar to that found in the Xs Phono. This means switching and loading is done at higher signal levels, minimizing noise and improving low level performance.

Technical specifications

Gain 53dB, 66dB, 76dB
RIAA response +/- 0.1 dB 20-20KHz
Distortion < 0.005 % @ 1mV MC input <0.002 % @ 10mV MM input
Max out 22V RMS
Output Impedance 200 ohms
Input Impedance 100pF – 750pF on any input 30 ohm – 47K ohm on any input
Unweighted Noise -93 dB ref 10mV (MM) -85 dB ref 1mV (MC)
Power consumption 50 watts
Dimensions 17”w x 12.5”d x 4”h each chassis
Weight 55LBS
