Class A

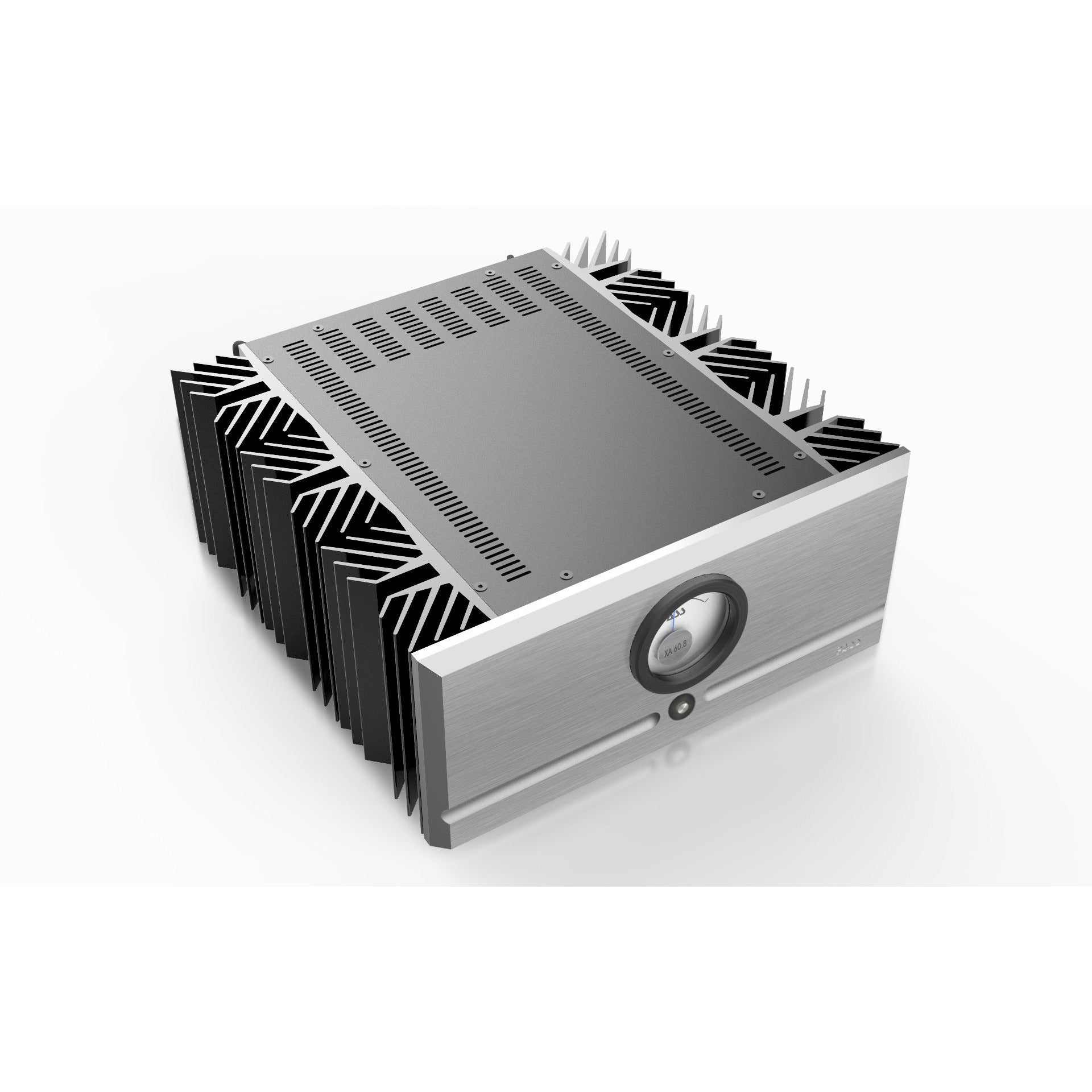

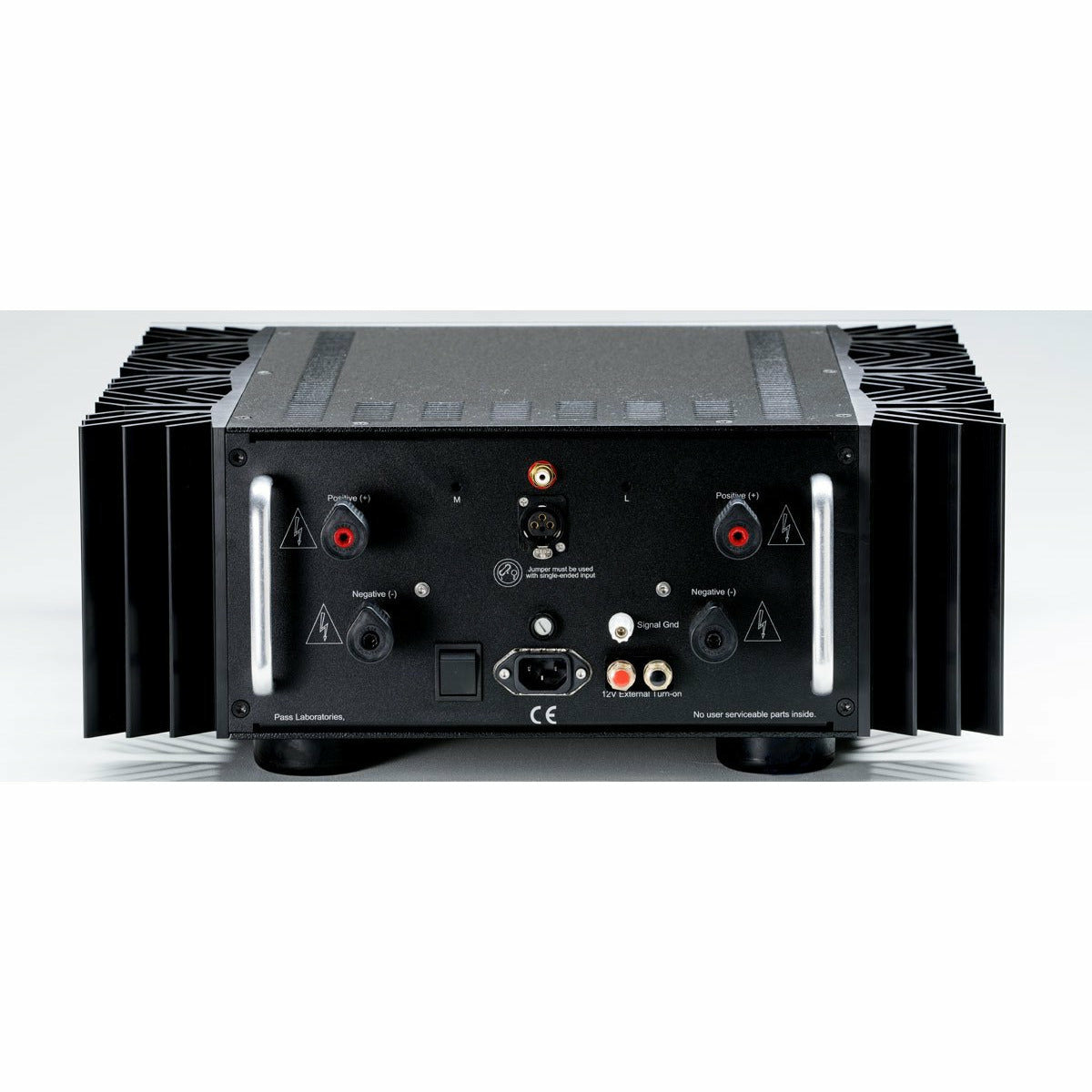

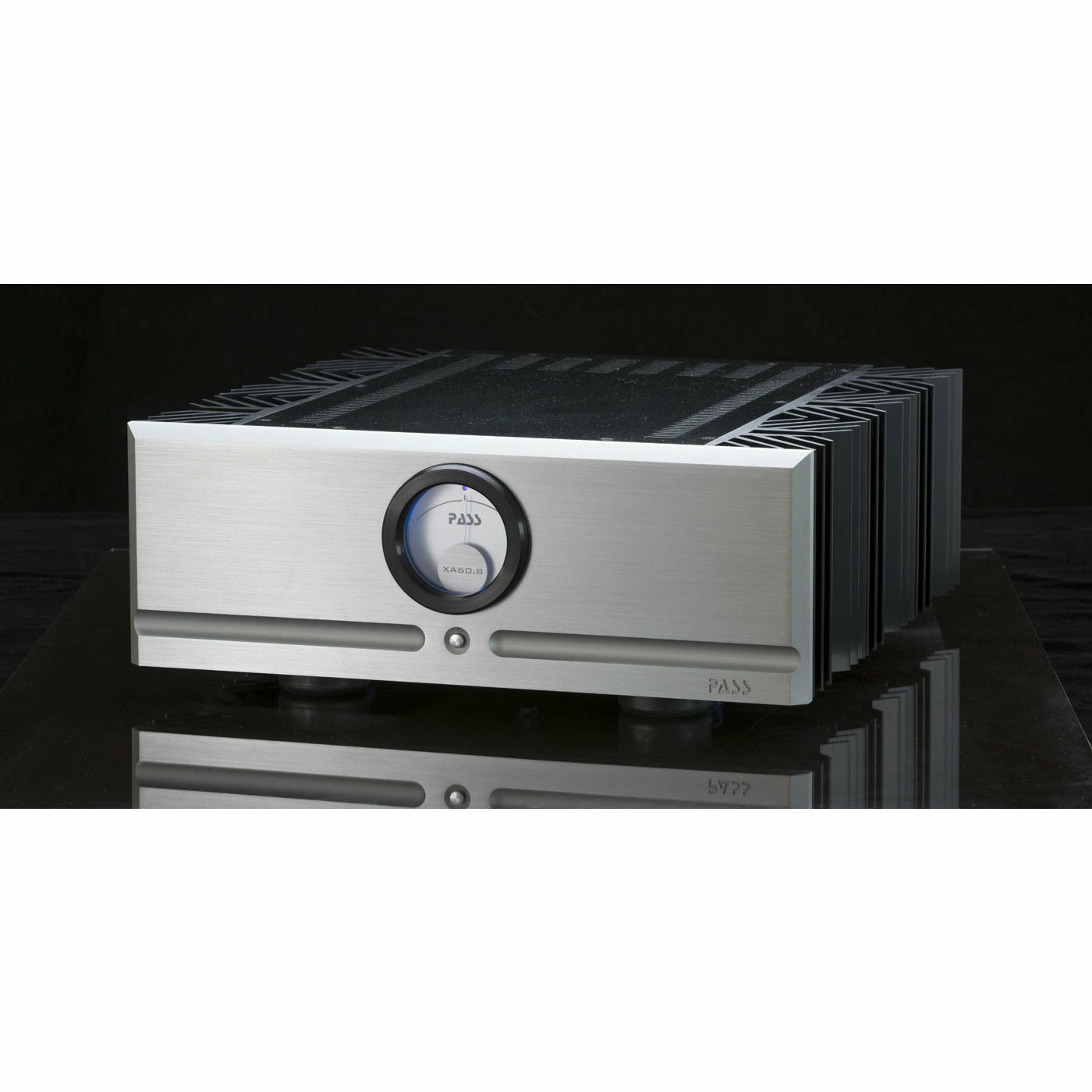

Pass Labs XA60.8 Amplifier
Pickup available at Audio Connection
Usually ready in 5+ days
Pass Labs XA60.8 Amplifier
Silver
Audio Connection
515 Parramatta Road
Leichhardt NSW 2040
Australia
Live Chat Support
8am–8pm, or call 02 9561 0788 during business hours
Free Australia Wide Shipping
We Speak Your Language
English, Mandarin, Cantonese & Vietnamese
Earn 9 KrisFlyer Miles
per $1 spent with Kris+ by Singapore Airlines
BUY NOW, PAY LATER
Split your payments over 2, 6, 12 or 18 months with 0% interest and zero fees.
Choose "More Payment Options" below and select "Monthly credit card payments" at checkout.
Pass Labs XA60.8 Amplifier - Pair
Offering all the sonic benefits of the .8 amplifier line, a pair of XA60.8's also grace the listener with mono-block performance: dedicated power supplies for each channel, dedicated circuitry for each channel and dedicated chassis' for each channel offer a cleaner, better defined image and soundstage. Beautiful to the ears and eyes, this model achieves levels of focus and intimacy normally associated with the finest tube amplifiers. The XA60.8's do all of this while providing greater control and power.
SPECIFICATIONS
Type Mono
Gain (dB) 26
Full Power @ 26 dB gain (V) 1.10
Low Frequency Response 1.5 Hz
High Frequency Response 100 KHz
Power Output /ch (8 ohm) 60
Distortion (1 KHz, full power) 1%
Input Impedance (SE & BAL Kohms) 50/100
Damping Factor 150
Output Noise (uV) 200
Current Draw @ Idle (Amps) 3.3
Power Consumption (Watts) 400
Temperature (deg C.) 53
Number of Chassis 1
Unit Dimensions (W x D x H) (In.) 19 x 21.25 x 7.5
Unit Weight (LBS) 88
Pass Labs XA60.8 Amplifier
Sale price$29,995.00
Regular price (/)
