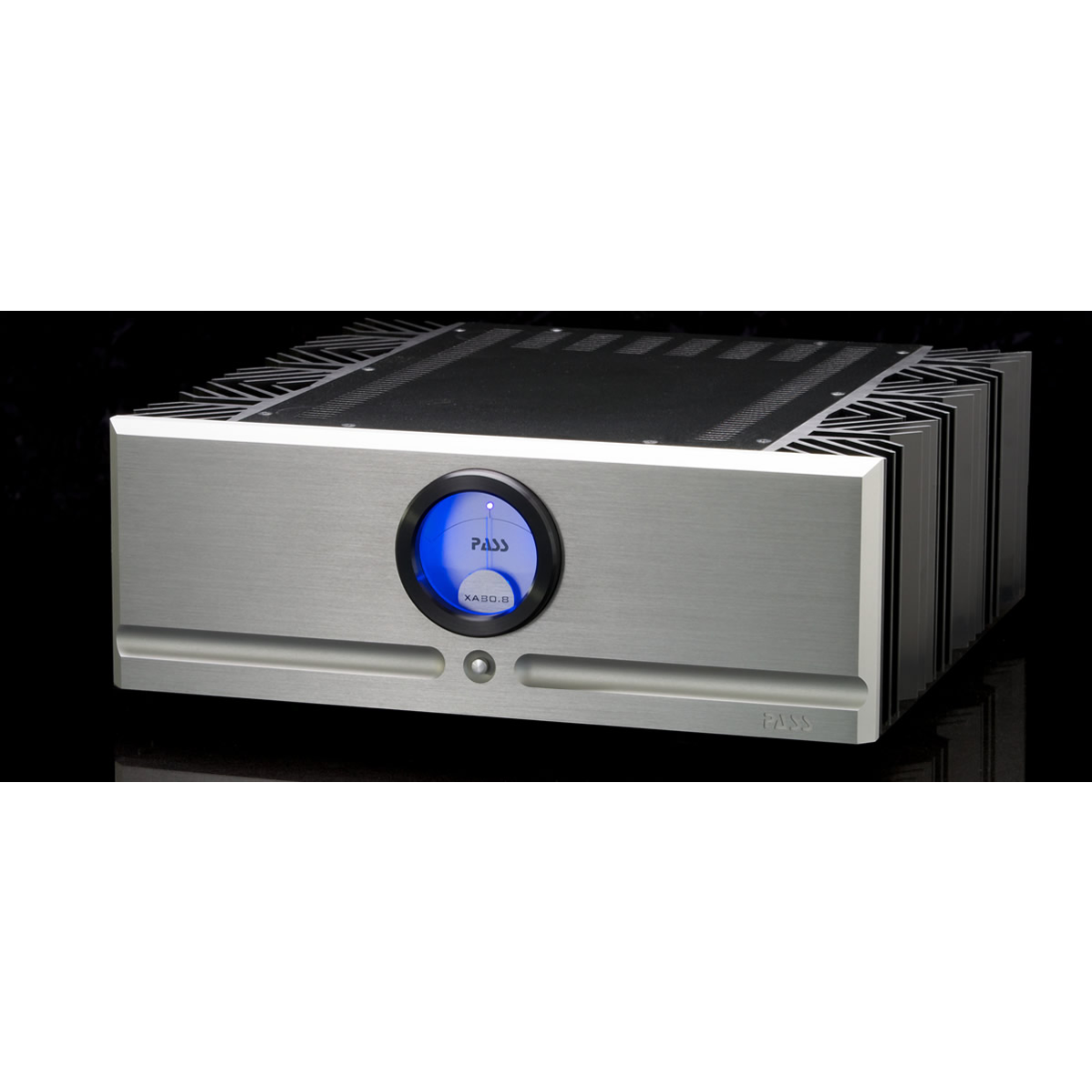

Pass Labs XA30.8 Amplifier
An exceptional stereo power amplifier on many levels -- high-biased MOSFETs providing higher-power class A operation, direct-coupled front-end circuitry for exceptionally high stability and larger, more robust heats sinks similar to those of the larger .8 amplifiers. The list goes on, but listening may tell you the XA30.8 represents a value high-point -- quite possibly your particular optimal balance between performance and cost.
SPECIFICATIONS
Type Stereo
Gain (dB) 26
Full Power @ 26 dB gain (V) 0.77
Low Frequency Response 1.5 Hz
High Frequency Response 100 KHz
Power Output /ch (8 ohm) 30
Distortion (1 KHz, full power) 1%
Distortion (1 KHz, full power) 1%
Input Impedance (SE & BAL Kohms) 50/100
Damping Factor 150
Output Noise (uV) 200
Current Draw @ Idle (Amps) 3.3
Power Consumption (Watts) 400
Temperature (deg C.) 53
Number of Chassis 1
Unit Dimensions (W x D x H) (In.) 19 x 21.25 x 7.5
Unit Weight (LBS) 88
Pass Labs XA30.8 Amplifier
Sale price$13,995.00
Regular price (/)
