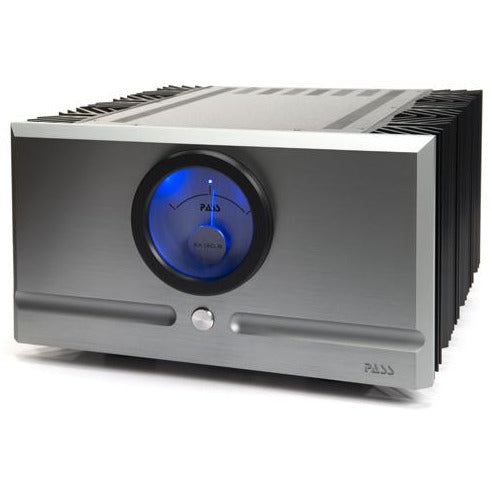

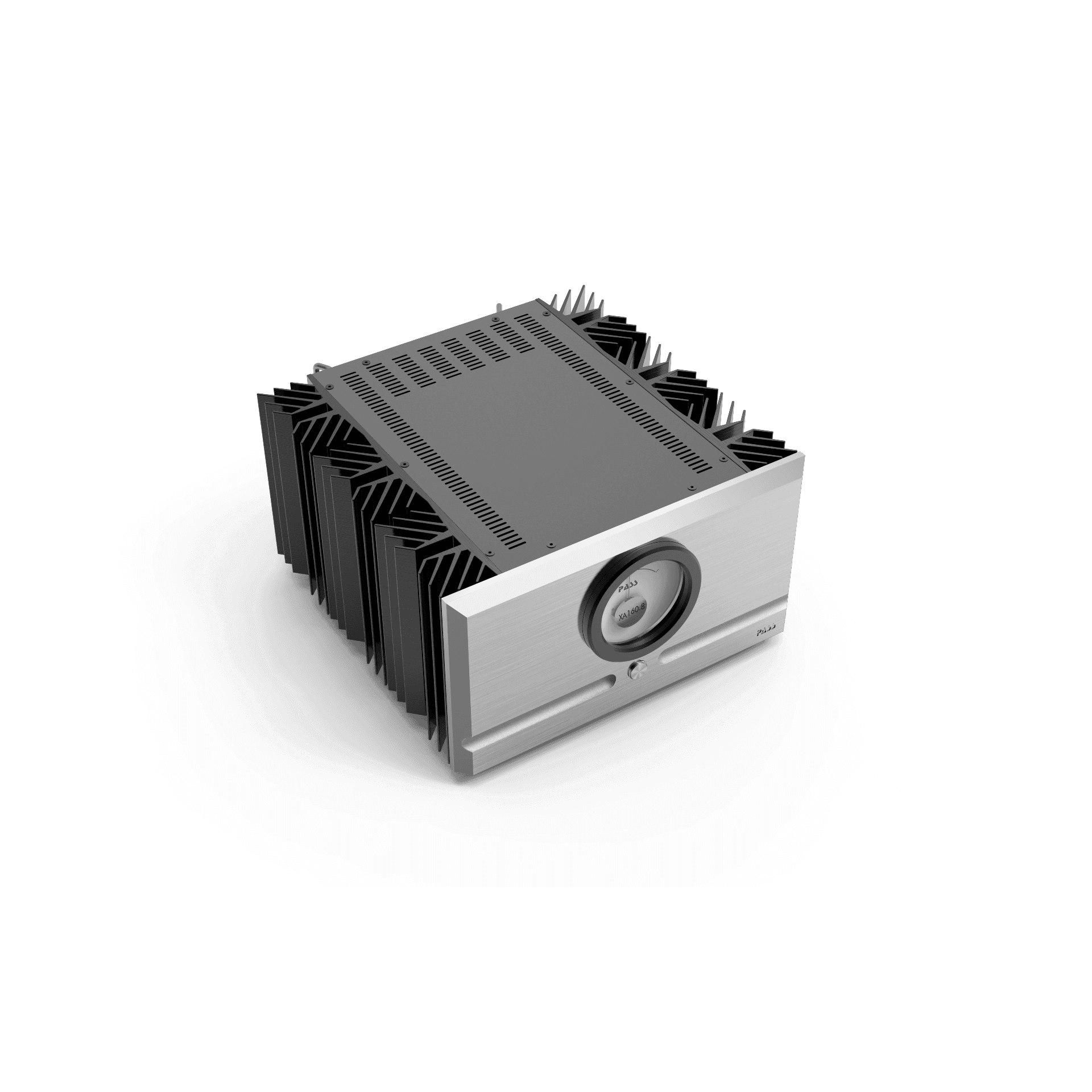

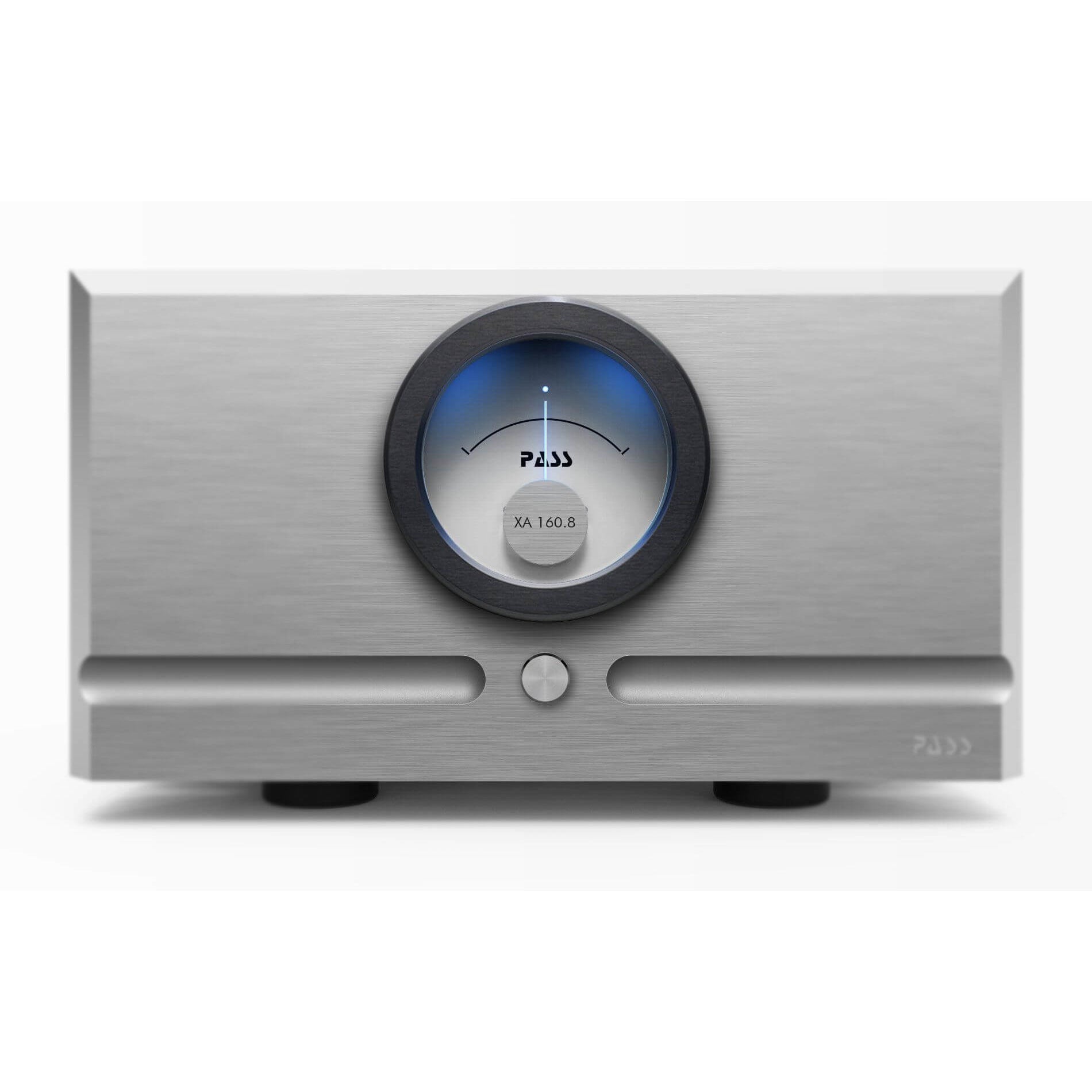

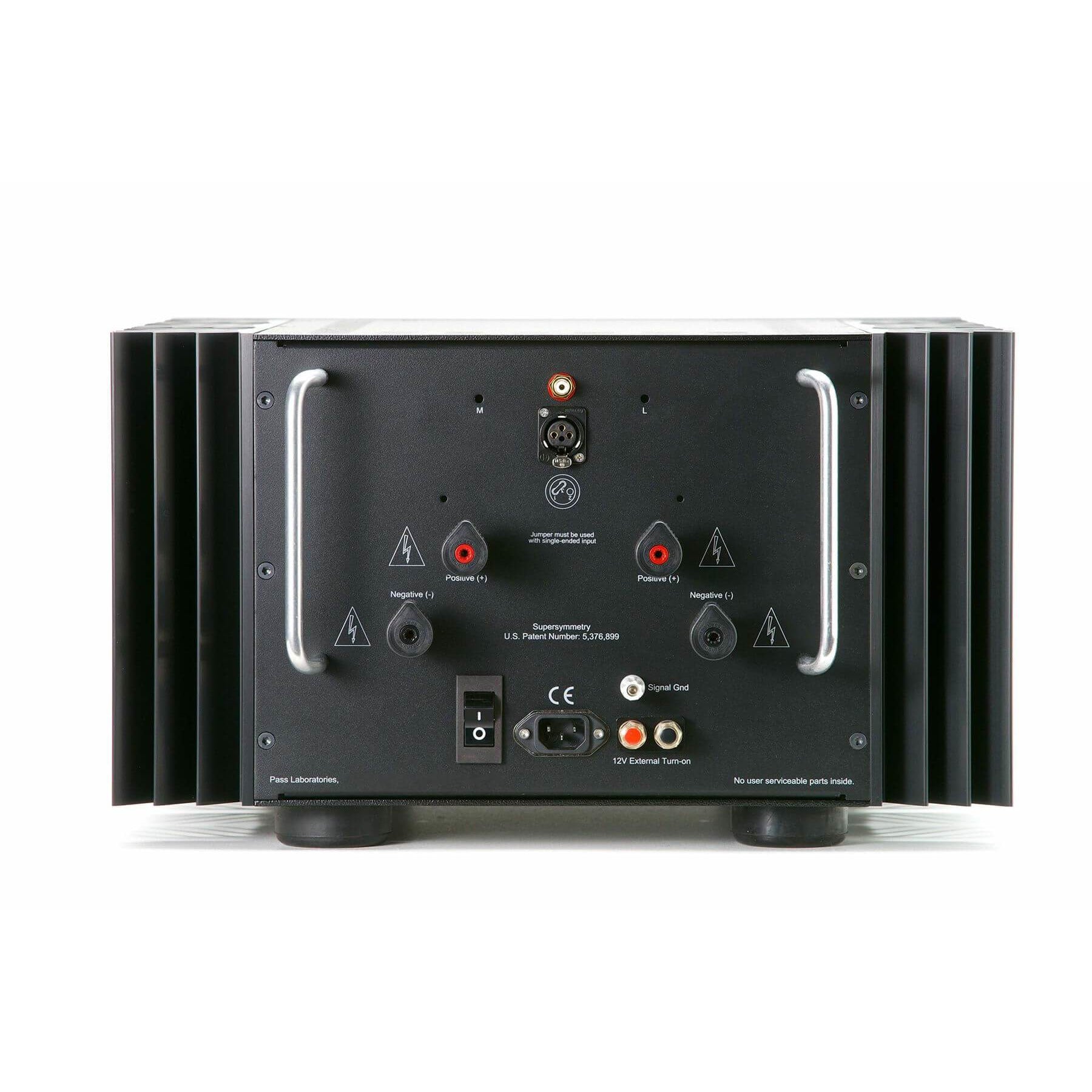

Pass Labs XA160.8 Monoblock Amplifier - Pair
More of just about everything: 72 output power-MOSFETs, higher input impedance, higher capacity power supply and the ability to deliver over 320 watts per channel in class A with greater dampening. The 160.8's deliver power and finesse in spades. Voices take on shape and depth, piano notes arrive with full acoustic integrity and the rest of the rhythm section is delivered with both powerful attack and holographic sustain. The effortless conveyance of musicality and realism must be heard to be believed.
SPECIFICATIONS
Type Mono
Gain (dB) 26
Full Power @ 26 dB gain (V) 1.79
Low Frequency Response 1.5 Hz
High Frequency Response 100 KHz
Power Output /ch (8 ohm) 160
Distortion (1 KHz, full power) 1%
Input Impedance (SE & BAL Kohms) 50/100
Damping Factor 200
Output Noise (uV) 200
Current Draw @ Idle (Amps) 4.8
Power Consumption (Watts) 580
Temperature (deg C.) 53
Number of Chassis 1
Unit Dimensions (W x D x H) (In.) 19 x 21.5 x 11
Unit Weight (LBS) 123
Pass Labs XA160.8 Monoblock Amplifier
Sale price$49,995.00
