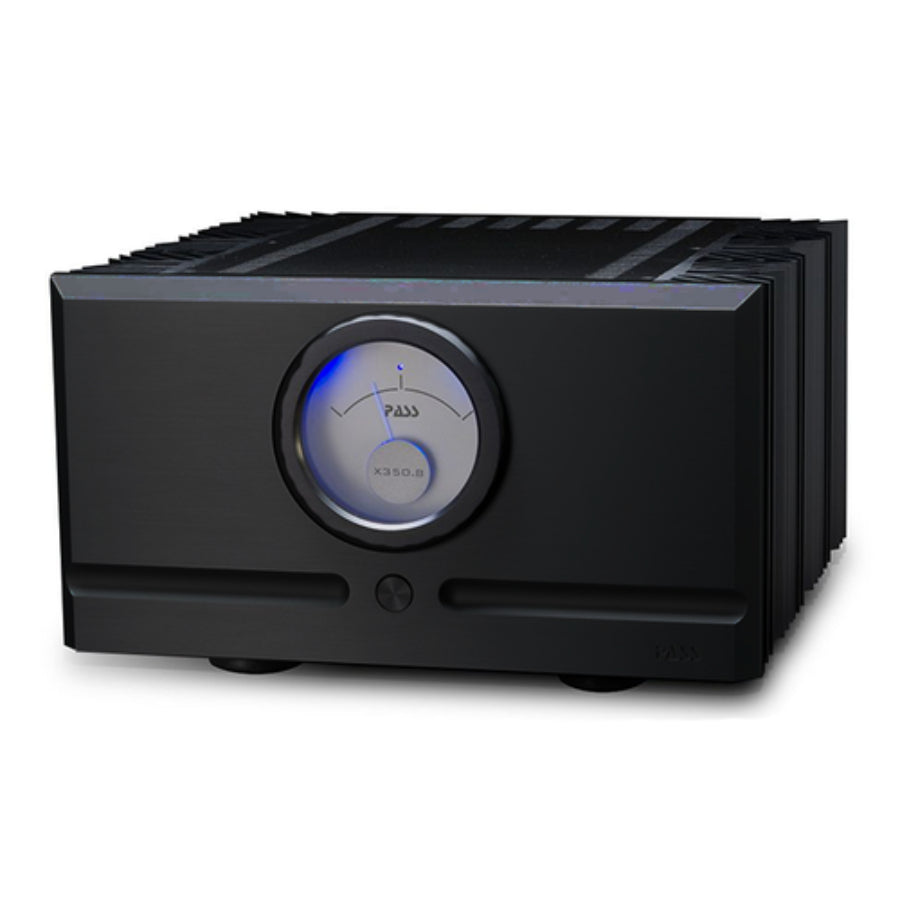

Pass Labs X350.8 Amplifier
Pass Labs X350.8 Amplifier

Pass Labs X350.8 Amplifier


At 350 watts per channel class A/B, the X350.8 is the largest and most powerful stereo power amplifier of Pass Labs line-up. Because we care more about how holistic design affects the musical experience and relatively less about how parts affect specifications, you can expect superb and accurate representation of the recording performance and venue, as well as the distinctive layering of instruments captured faithfully.


Class  AB
Type  Stereo
Gain (dB)  26
Full Power @ 26 dB gain (V)  2.65
Low Frequency Response  1.5 Hz
High Frequency Response  100 KHz
Power Output /ch (8 ohm)  350
Distortion (1 KHz, full power)  1%
Input Impedance (SE & BAL Kohms)  50/100
Damping Factor  150
Output Noise (uV)  200
Current Draw @ Idle (Amps)  4.6
Power Consumption (Watts)  550
Temperature (deg C.)  53
Number of Chassis  1
Unit Dimensions (W x D x H) (In.)  19 x 21.5 x 11
Unit Weight (LBS)  127
