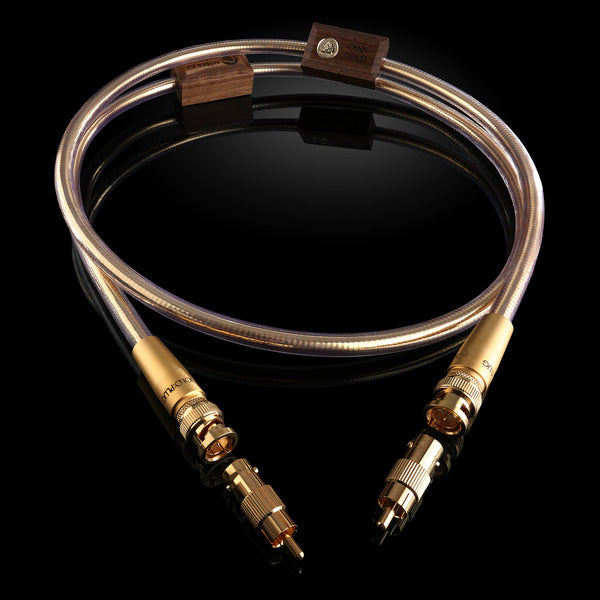

Nordost Odin Gold Digital Interconnect

Nordost Odin Gold Digital Interconnect

Nordost’s Odin Gold Digital Interconnects deliver exacting impedance, minimal capacitance, impeccable shielding, and rapid transmission—qualities that many cable manufacturers can only dream of achieving.

Thanks to state-of-the-art, proprietary technology and high-quality materials, the Odin Gold S/PDIF and AES/EBU digital cables exceed all transmission standards. Nordost’s patented Dual Mono-Filament technology is employed in both cables, ensuring superior dielectric performance and mechanical damping. Delicate signals are safeguarded by gold-plated TSC technology, creating a virtual solid shield that both protects the necessary RF signals within the cables and blocks harmful external EMI and RFI signals. The result is a set of cables that extract the highest fidelity, dynamics, tonality, and timing from digitally-driven, reference systems.

Specification :

75 Ohm Specifications

Insulation: High purity class 1.003 extruded Fluorinated Ethylene Propylene (FEP)
Construction: Mechanically tuned length and Dual Mono-Filament, TSC and Co-axial design
Conductors: 1 x 14 AWG
Material: Gold-plated 99.999999% solid core OFC
Capacitance: 15.3pF/ft
Impedance: 75 Ohm
Overall Shield Coverage: 100% total coverage
Velocity of Propagation: 90%
Termination: HOLO® gold-plated BNC. Gold-plated BNC to RCA adaptor included
Available Connectors: Odin 2 Digital Interconnect Connectors

110 Ohm Specifications

Insulation: High purity class 1.003 extruded Fluorinated Ethylene Propylene (FEP)
Construction: Mechanically tuned lay, length and Dual Mono-Filament, TSC and Twin-axial design
Conductors: 2 x 18 AWG
Material: Gold-plated 99.999999% solid core OFC
Capacitance: 10.5pF/ft
Impedance: 110 Ohm
Overall Shield Coverage: 100% total coverage
Velocity of Propagation: 90%
Termination: HOLO® gold-plated XLR
