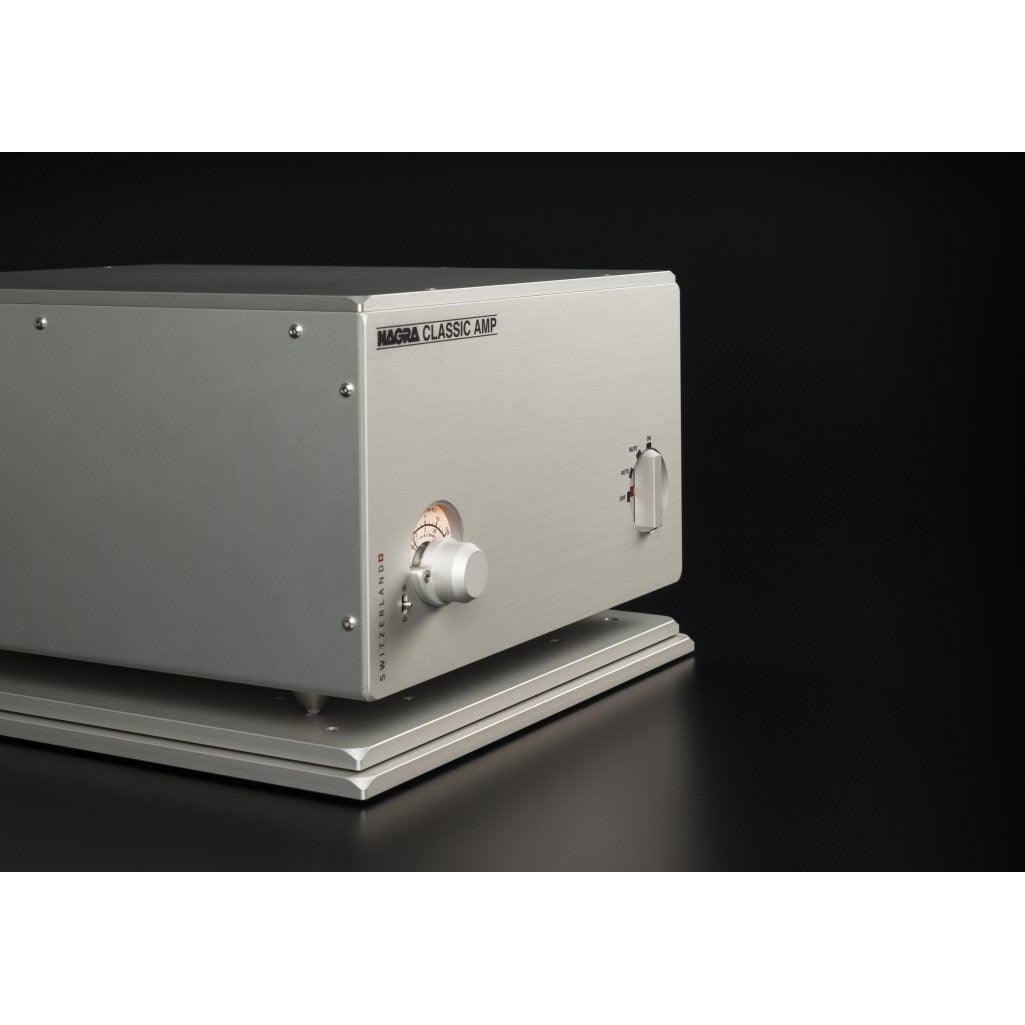

NAGRA CLASSIC AMP High power solid-state stereo amplifier
The Nagra CLASSIC AMP was designed for extremely high quality installations, which require high power while maintaining a perfect musical delivery of the Watts.
The unit operates in pure class A over a very large power band and beyond in class AB. Each of the output stages is based on tandem MOSFET transistors of exceptional characteristics.
Electronics |
||
| Power | 100 W RMS per channel into 8 Ω | |
| Sensitivity | 1 V or 2 V RMS | |
| Bandwidth | 10 Hz to 80 KHz, +0/-3 dB | |
| Crosstalk | >70 dB | |
| Signal-to-noise ratio | Typically 110 dB | |
| ASA “A” weighted | ||
| THD+N | < 0.05% | |
| Input impedance | >100 KΩ | |
| Automatic start | For input level >10 mV | |
| Protection, | Overheating > +60° C (140° F) | |
| deactivates the amplifier | DC speaker protection above ± 2.5 VDC |
