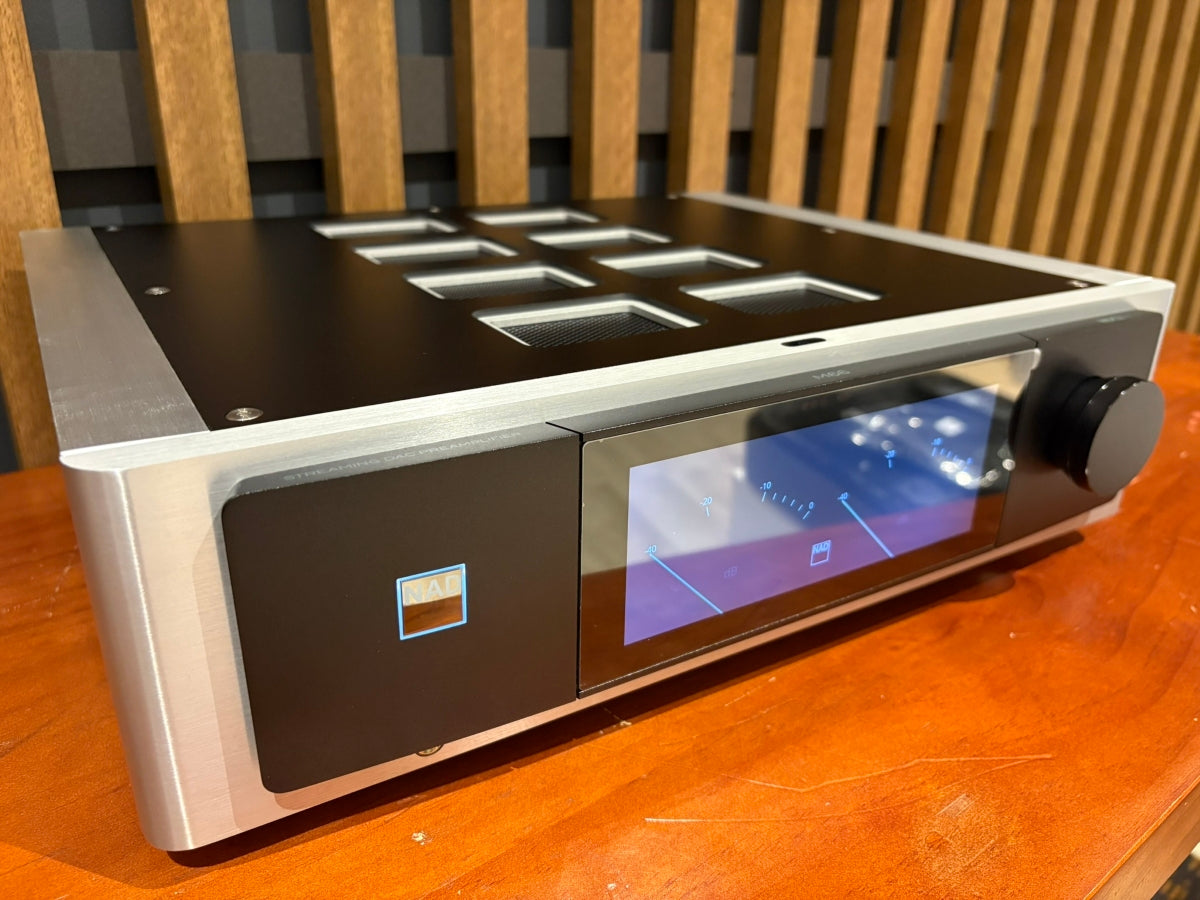

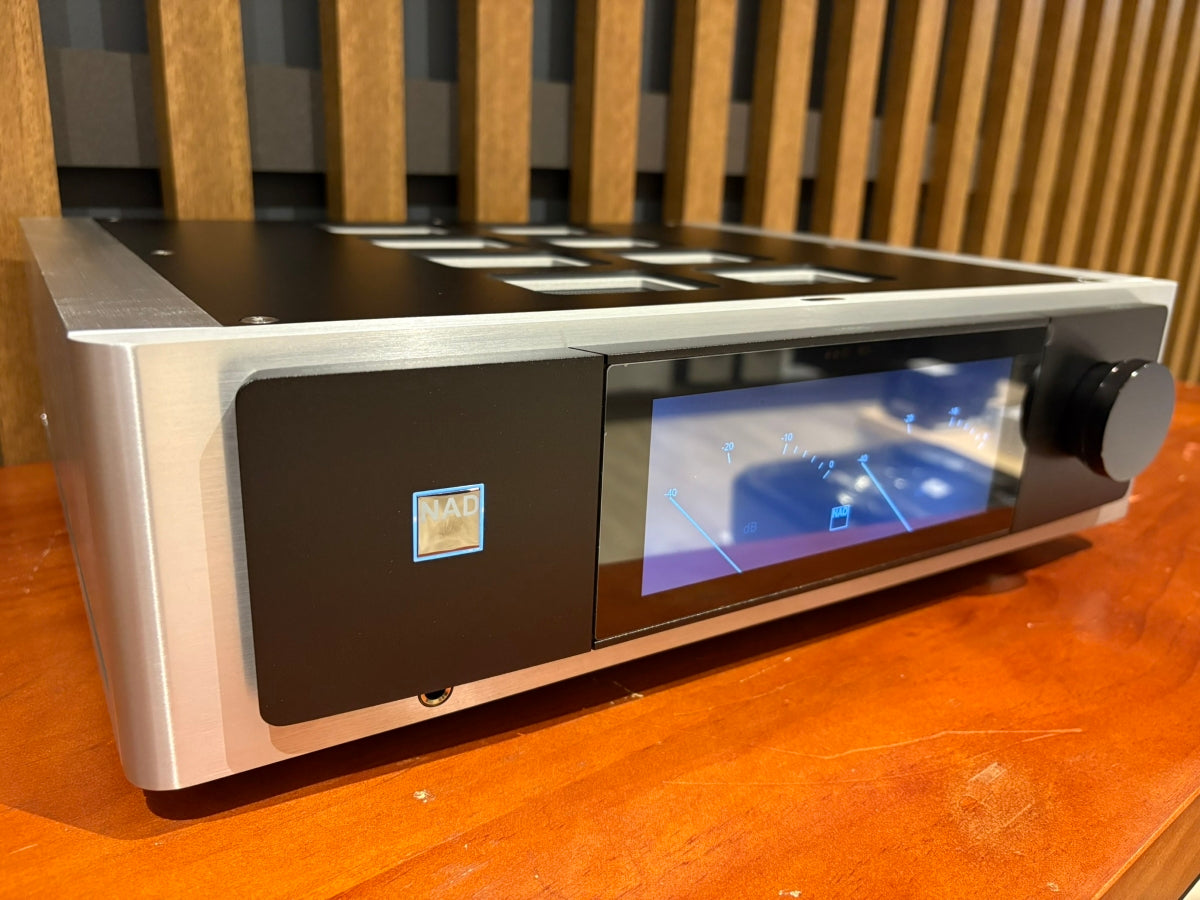

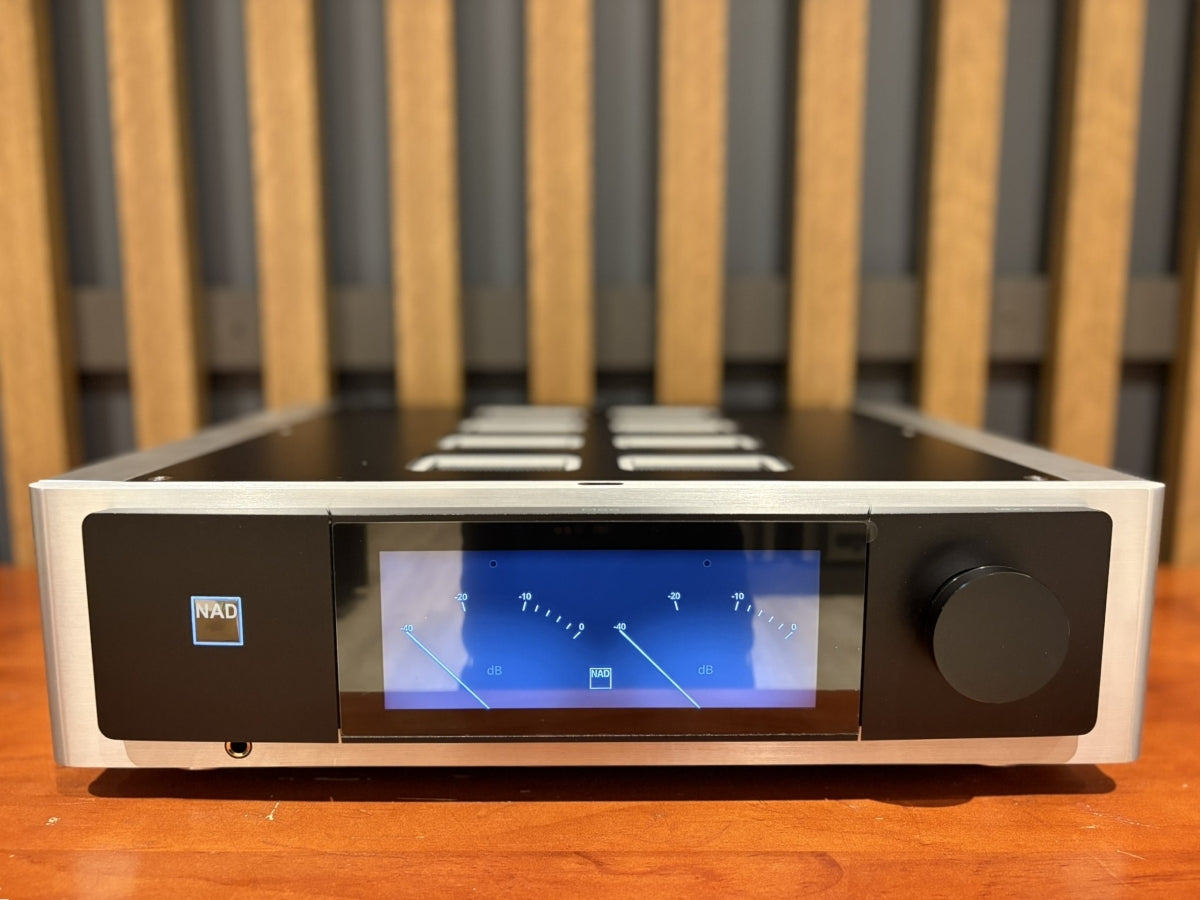

NAD Masters M66 Streaming DAC-Preamplifier - Consignment

NAD Masters M66 Streaming DAC-Preamplifier - Consignment

Condition: Excellent, presents as new with screen protector still fixed

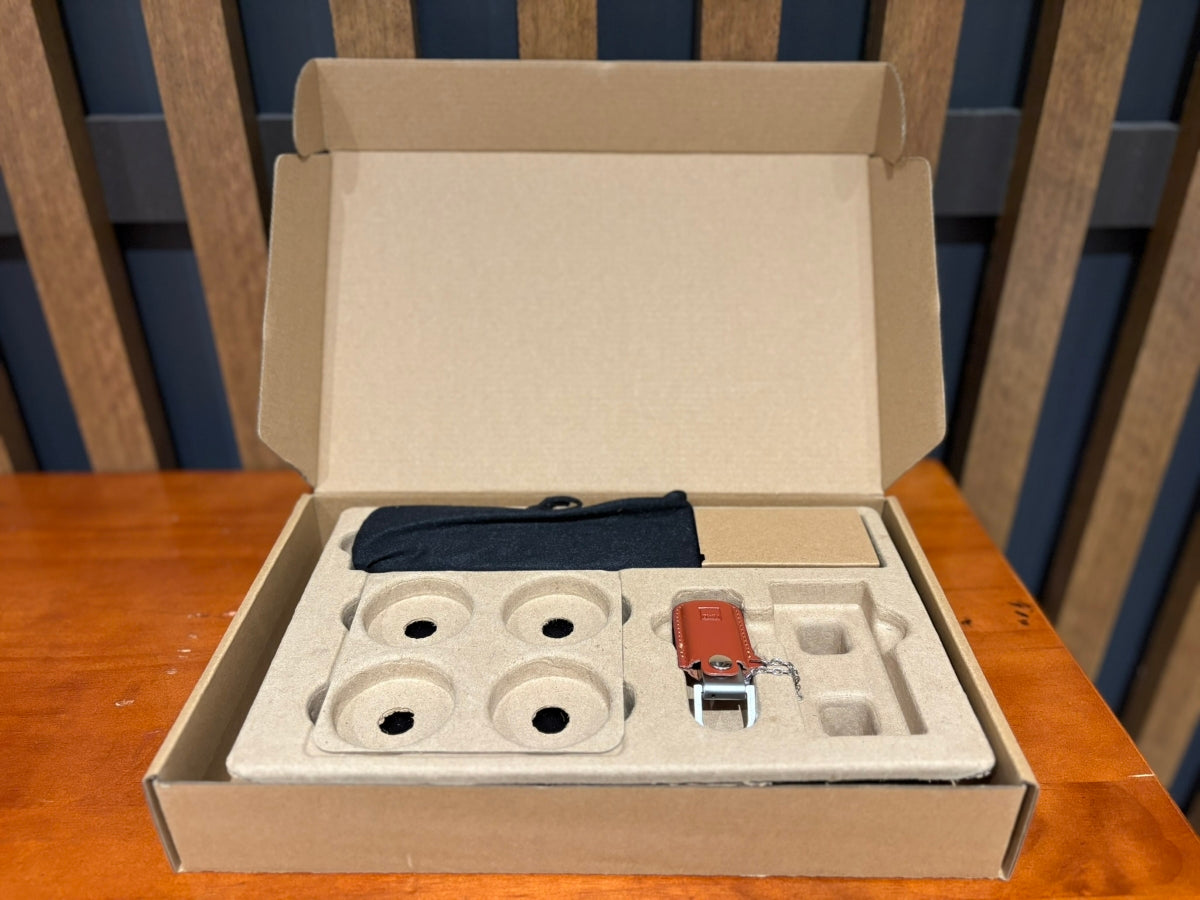

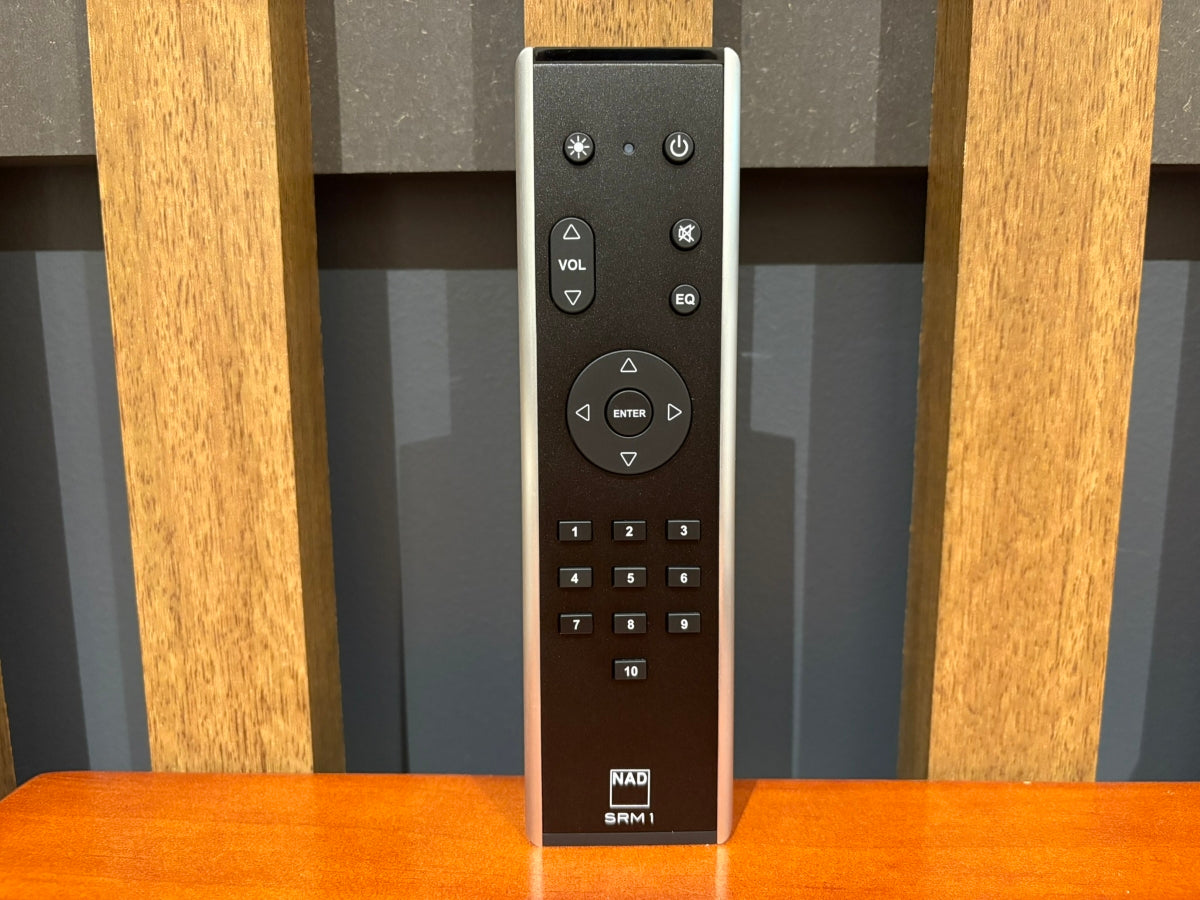

Includes: Original Packaging and all accessories

SN: 523YM6601189

Overview

A versatile hifi system heart with onboard streaming from BluOS, analogue inputs including XLR, and a built-in MM and MC capable phonostage, NAD's M66 can be integrated to work with a range of smart home systems including Crestron, Control4, ELAN, RTI and URC. eARC even allows for seamless connect to your TV or projector.

Dirac Live Room Correction helps manage your in-room experience and can act as a digital crossover between your speakers and subwoofer/s.

The inclusion of a powerful headphone amplifier means that the M66 can be used into late night listening sessions.

Whether fully realised in a smart home environment, or used as a stand alone preamplifier with an external source, the M66 is true to NAD's house sound and provides dynamic, quick and colourless attenuation for your power amplifier.

• BluOS network streamer
• Flagship ESS Sabre ES9038PRO DAC and ES9822PRO ADC chips
• Innovative Dynamic Digital Headroom (DDH) circuit eliminates digital intersample peak clipping distortion
• Full MQA hardware decoding and rendering
• Support for audio casting technologies like Apple Airplay 2, Tidal Connect, etc.
• Seamless integration with smart home control systems such as Crestron, Control4, ELAN, RTI, URC, etc
• Dirac Live Room Correction full frequency version

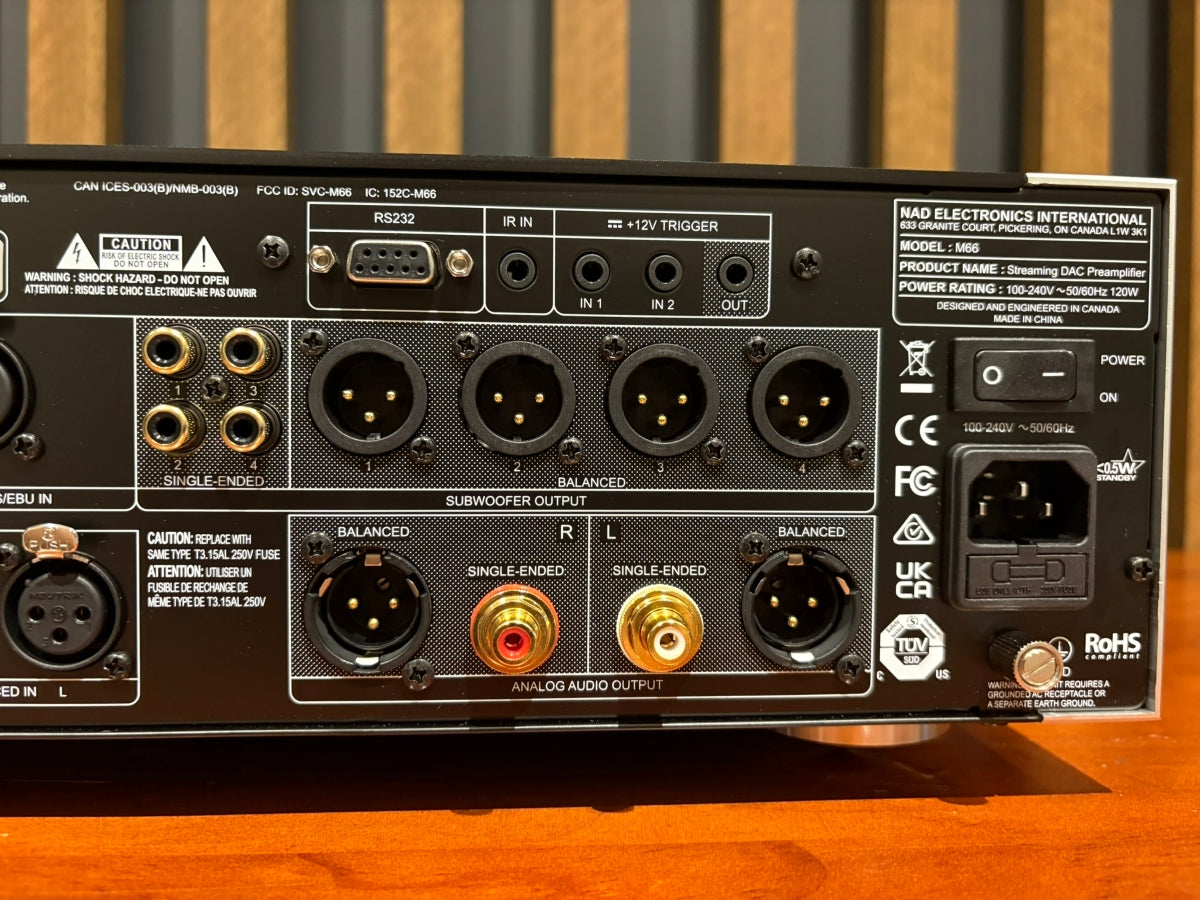

• Four balanced and four unbalanced subwoofer outputs
• Dirac Live Bass Control enables seamless blend between the subwoofer(s) and main speakers
• Ultra-quiet MM/MC phono stage with precise RIAA equalization, high overload margins, and infrasonic filter
• HDMI port with ARC and eARC support

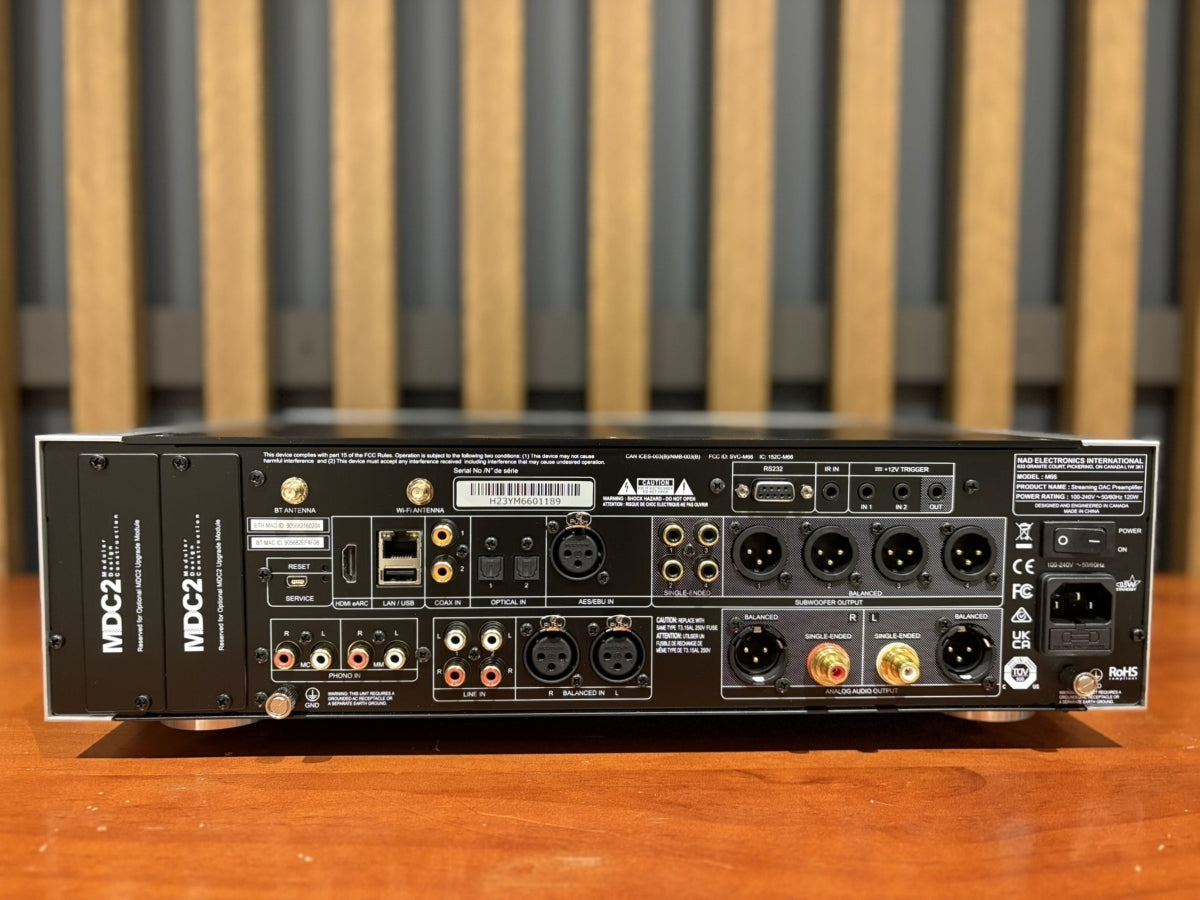

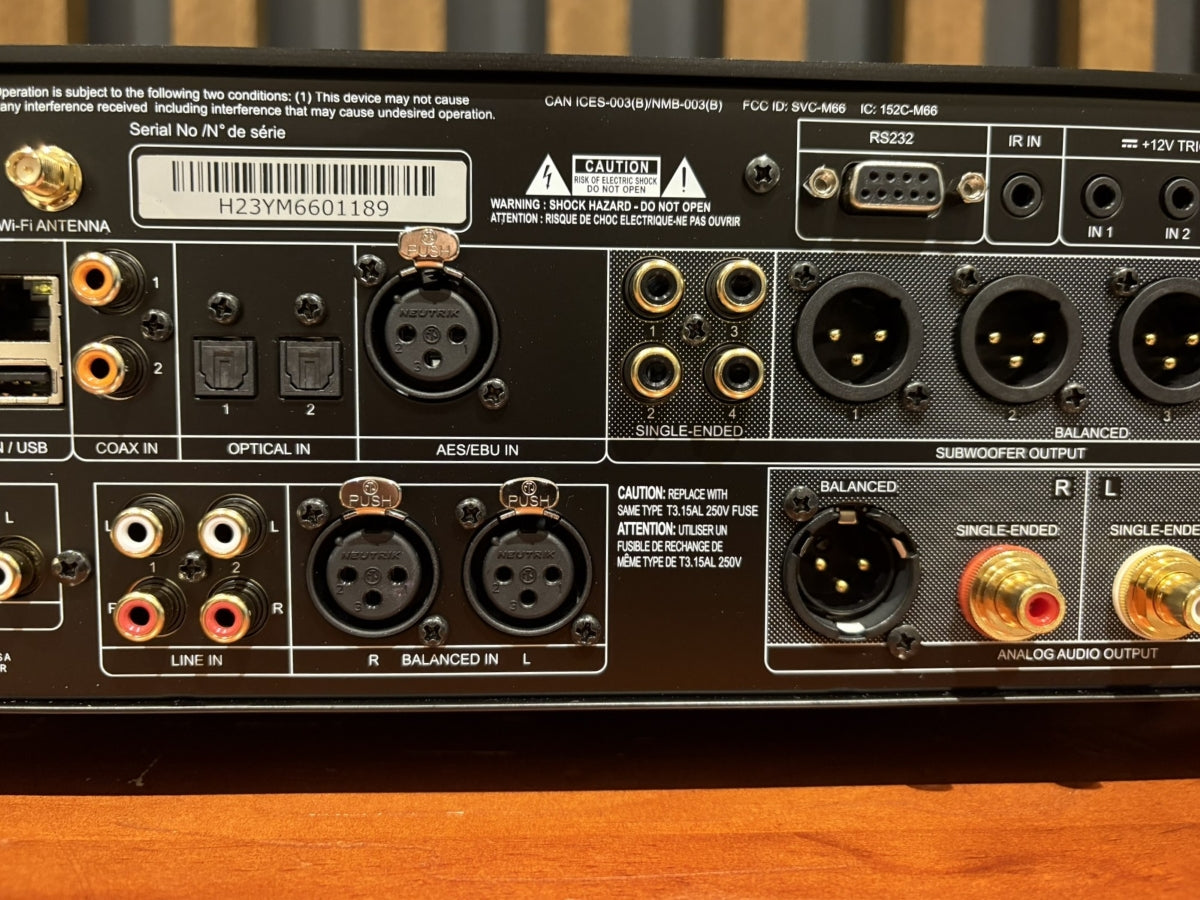

• Two optical and two coaxial S/PDIF inputs
• One AES/EBU balanced digital input
• Two pairs of RCA line-level analogue inputs
• One pair of XLR balanced inputs
• Dedicated headphone amplifier with low output impedance and very high output voltage capability
• Ultra-precise resistor-ladder volume control for analogue signals

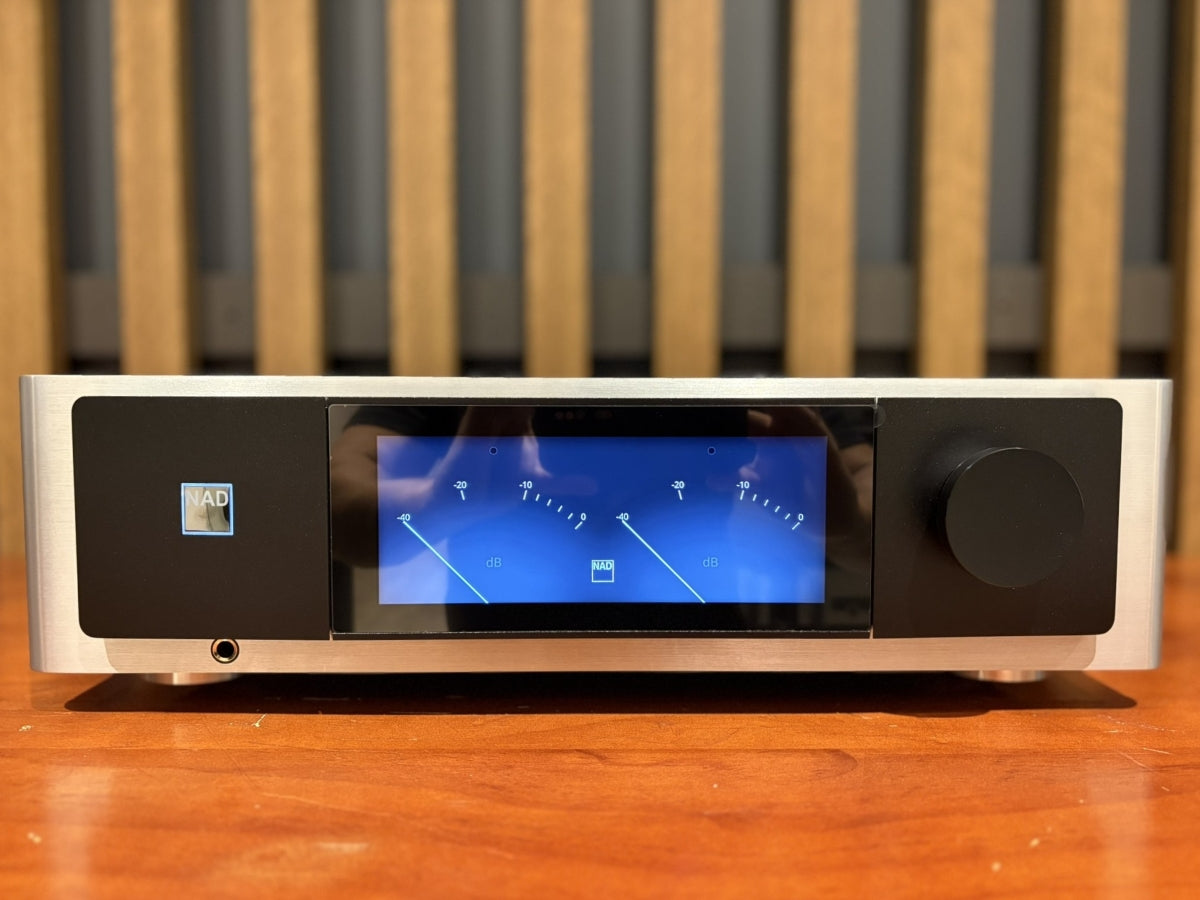

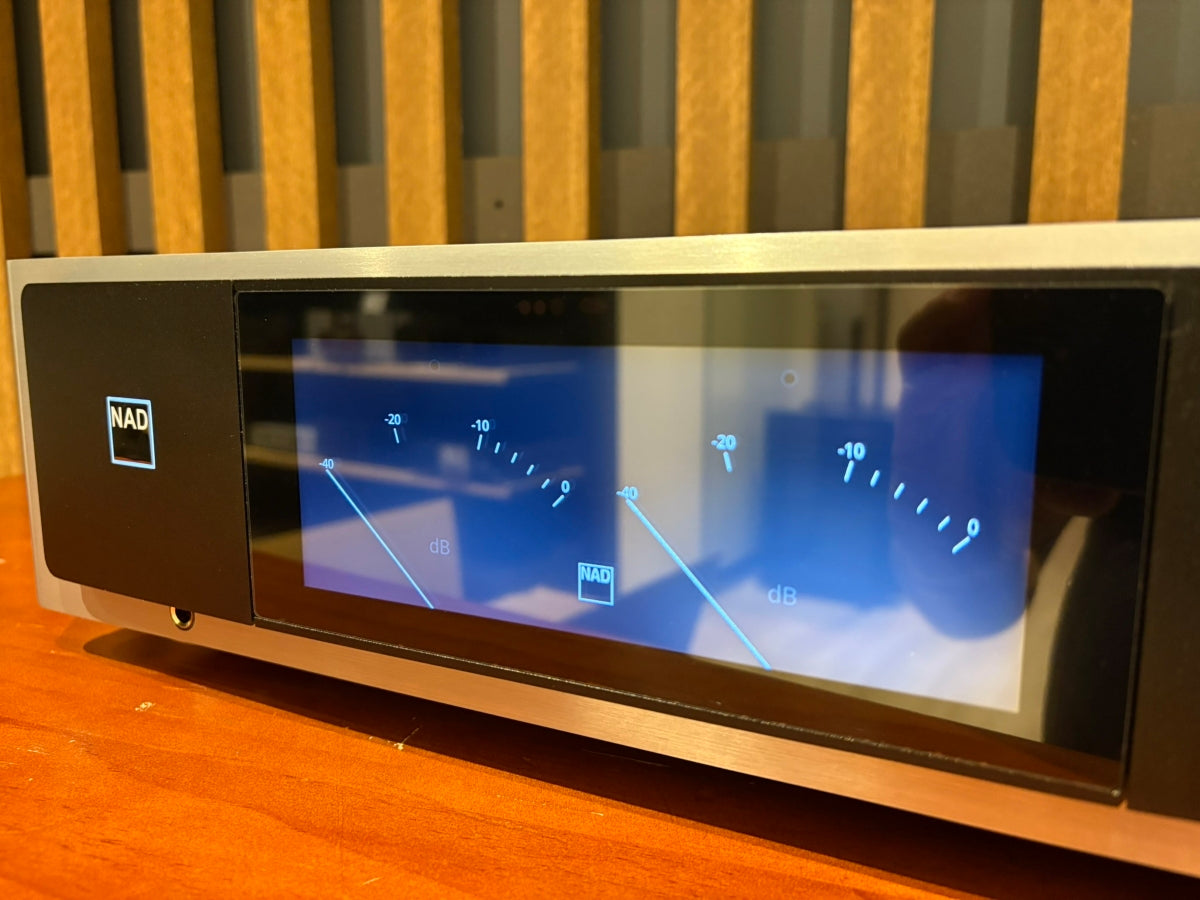

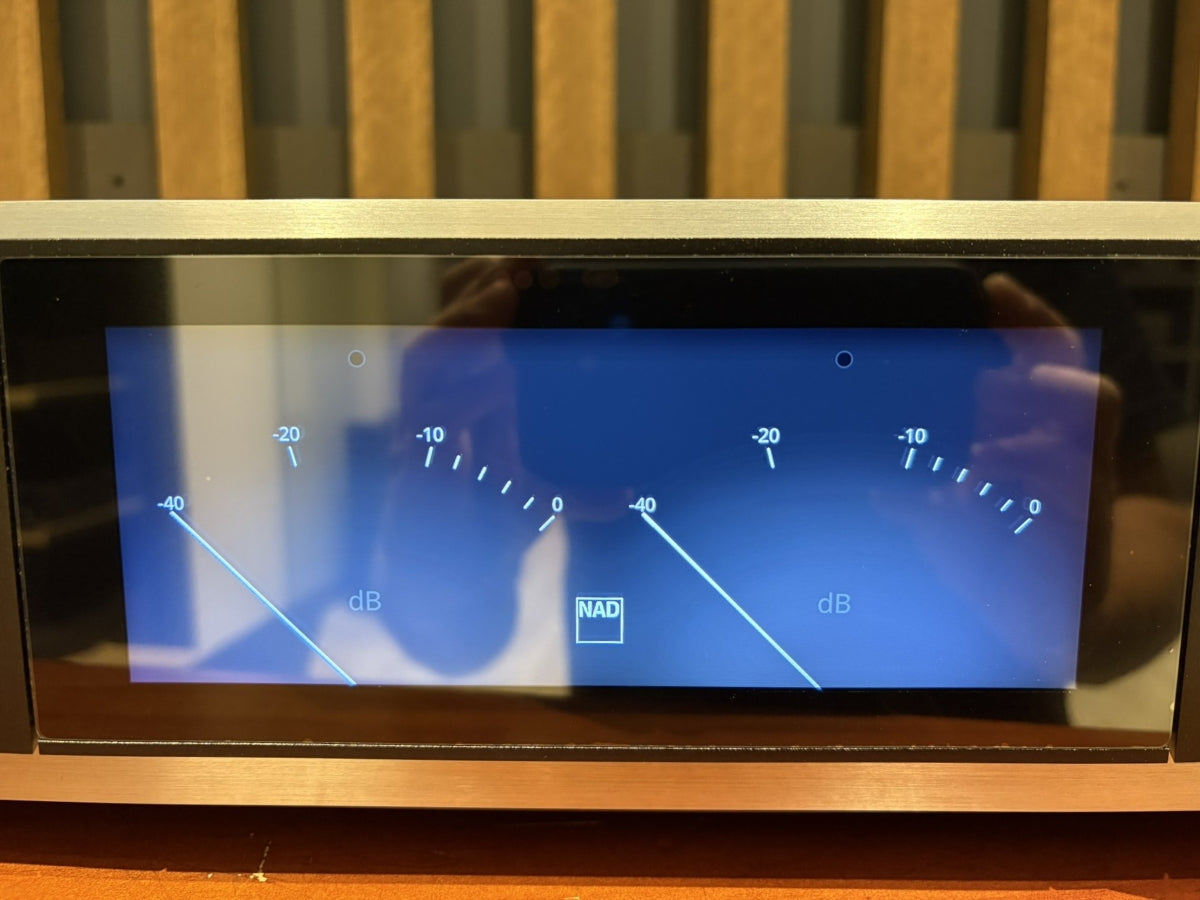

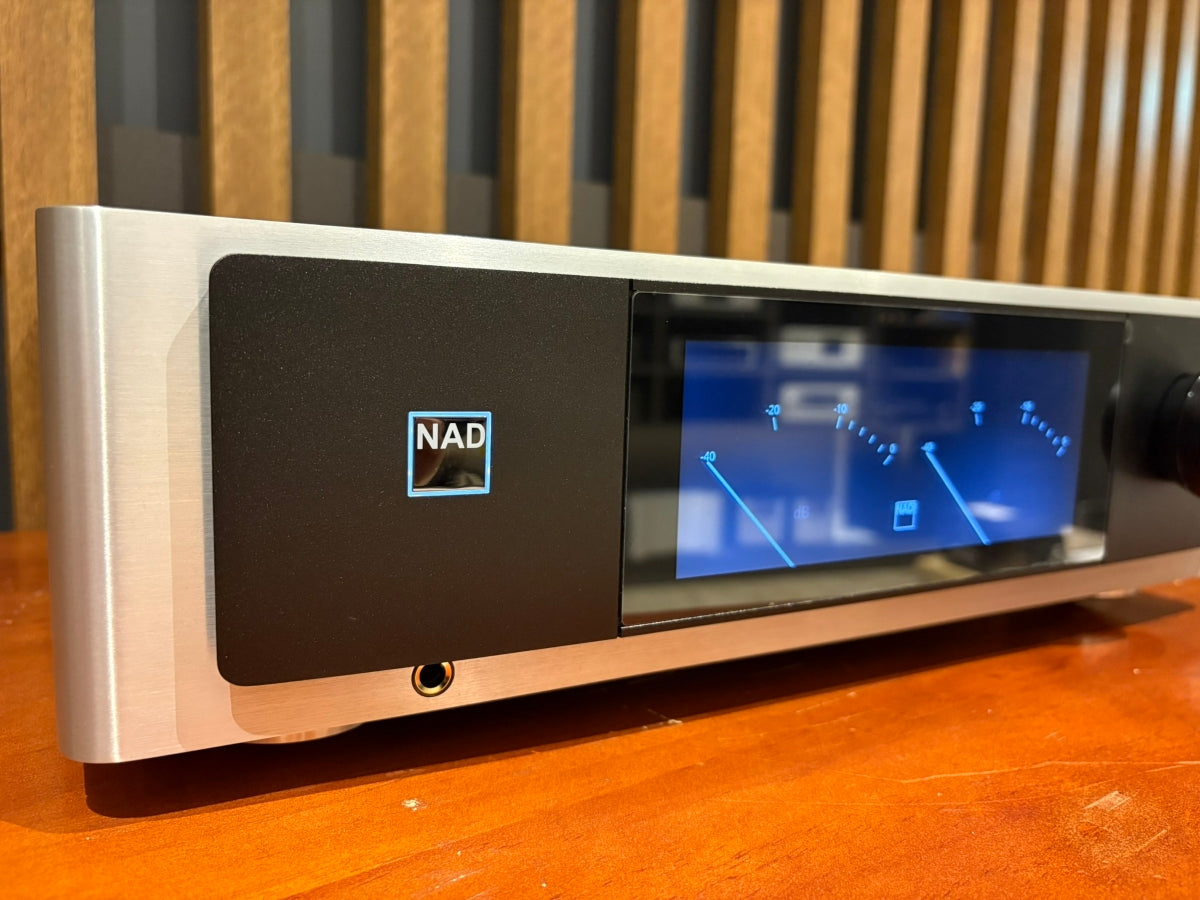

• 7” front-panel touchscreen

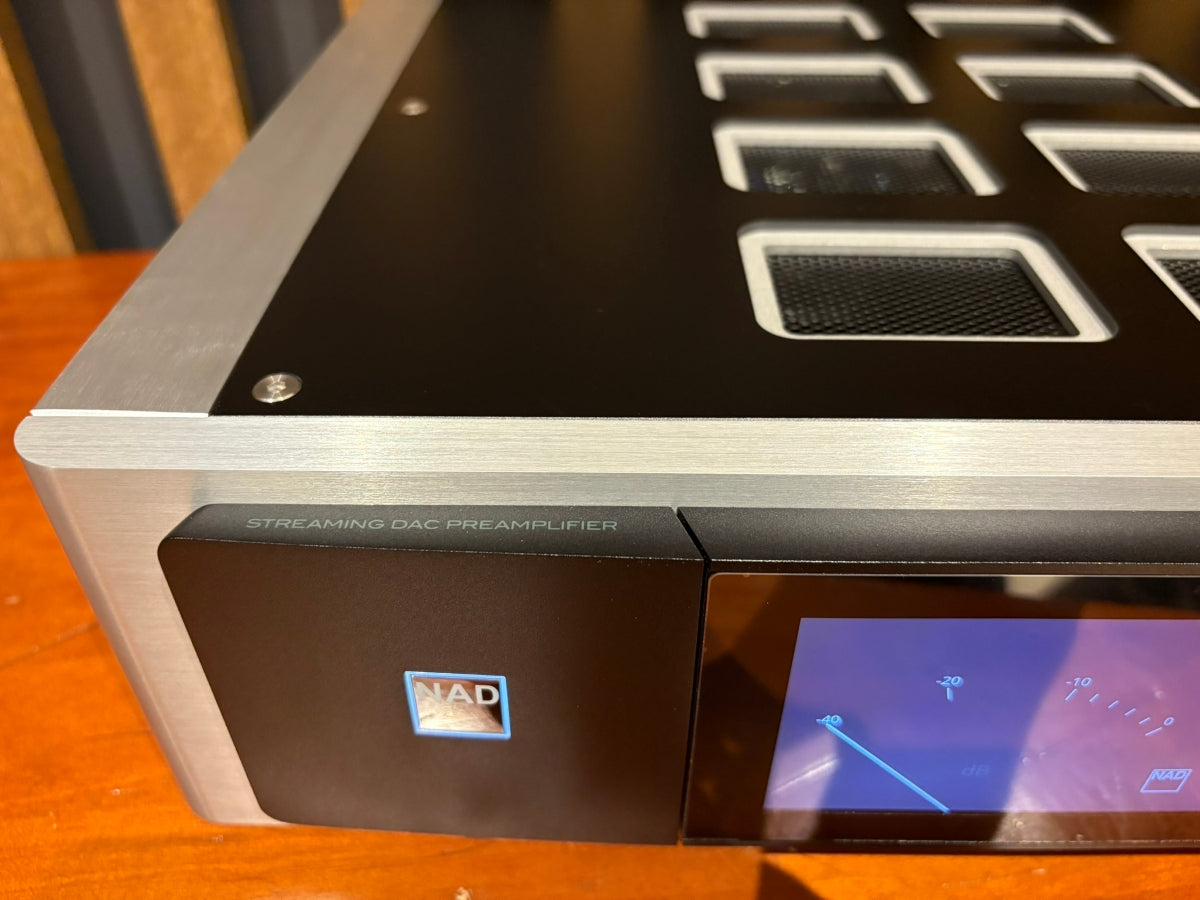

• Elegant aluminium casework

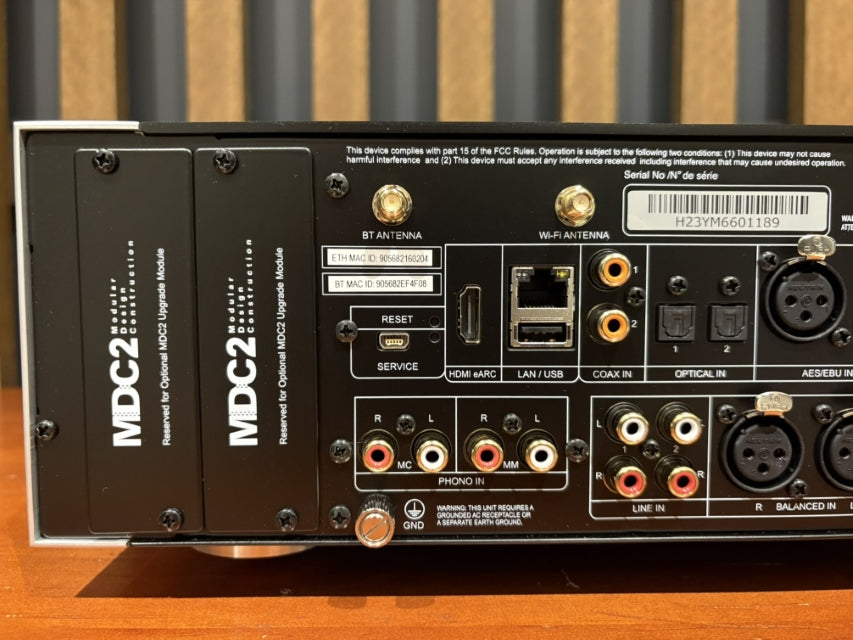

• Two MDC2 expansion slots for adding future capabilities



Specification

Line In, Single-Ended /Analog Audio Output
THD (20Hz – 20kHz)<0.001% at 2V out
Signal-to-Noise Ratio>105dB (IHF; A-weighted, ref. 500mV out, unity gain)
Channel separation>120dB (1 kHz)>108 dB (10 kHz))
Input Impedance (R and C)56 kohms + 100 pF
Maximum input signal>5.6Vrms (ref. 0.1% THD) >8 Vrms (Analog Bypass)
Output impedance: Source Impedance + 22 Ohm
Input sensitivity185mV (ref. 500mV out, Volume maximum)
Frequency response±0.2dB (20Hz – 20kHz) ±0.2dB (Analog Bypass, 20Hz-20kHz)
Maximum voltage output-IHF load >5V (ref. 0.1% THD) >10 V (Analog Bypass, ref. 0.1% THD)

Balanced In, Balanced /Analog Audio Output
THD (20Hz – 20kHz)<0.001% at 2V out
Signal-to-Noise Ratio>105dB (200 Ohm source; A-weighted, ref. 500mV out)
Channel Seperation>120dB (1 kHz)>120 dB (10 kHz)
Input impedance(R and C) 56 kOhms + 100 pF
Maximum input signal>5.6 Vrms (ref. 1% THD) >8 Vrms (Analog Bypass, ref. 1% THD)
Output impedance Source Impedance+ 22 Ohms
Input sensitivity92.5mV (ref. 500 mV out, Volume maximum)
Frequency response±0.2 dB (20 Hz – 20 kHz) ±0.2 dB (Analog Bypass, 20 Hz – 80 kHz)
Maximum voltage output (IHF load)>10 V (ref. 0.1 % THD) >20 V (Analog Bypass, ref. 0.1 % THD)

Digital Source In, Single-Ended /Analog Audio Output
THD (20Hz – 20kHz)<0.0005% at 2V out
Signal-to-Noise Ratio>108 dB (IHF; A-weighted, ref. 500 mV out, unity gain)
Channel separation>126dB at (1kHz)>115dB (10 kHz)
Input sensitivity-20.25 dBFS (ref. 500 mV out (-6 dBV), max Volume
Frequency response±0.2 dB (20 Hz – 20 kHz)
Maximum voltage output-IHF load >5 V (ref. 0.1 % THD)

Digital Source In, Balanced /Analog Audio Output
THD (20 Hz – 20 kHz)<0.0005% at 2V out
Signal-to-Noise Ratio>80 dB (IHF; A-weighted, ref. 500 mV out, unity gain)
Channel Separation>126 dB (1 kHz)>115 dB (10 kHz)
Input sensitivity-26.25 dBFS (ref. 500 mV out(-6 dBV), max Volume
Frequency response±0.2 dB (20 Hz – 20 kHz)
Maximum voltage output (IHF load)>10 V (ref. 0.1 % THD)

Line In, Single-Ended/Subwoofer Output/2subwoofers
THD (20 Hz – 20 kHz)<0.005% at 2V out
Signal-to-Noise Ratio>84 dB (IHF; A-weighted, ref. 500 mV out, unity gain)
Output impedance 480 Ohms
Maximum voltage output-IHF load >5 V (ref. 0.1% THD)

Balanced In, Balanced /Subwoofer Output/2subwoofers
THD (20 Hz – 20 kHz)<0.005% at 2V out
Signal-to-Noise Ratio>80B (IHF; A-weighted, ref. 500 mV out, unity gain)
Output impedance480 Ohms
Maximum voltage output-IHF load >10 V (ref. 0.1 % THD)

Phono Input, Single-Ended /Analog Audio Output (Analog Bypass)
THD (20 Hz – 20 kHz)MM: <0.008% (ref. 2 V out)
MC: <0.02% (ref. 2 V out)Signal-to-Noise RatioMM: >82dB (A-weighted, ref. 500 mV out)
MC: >75dB (A-weighted, ref. 500 mV out)
Input Impedance (R and C)MM: 56 kohms + 100 pF
MC: 100 ohms + 280 pF
Input sensitivity MM: 1.7 mV (ref. 500 mV out, Volume maximum)
MC: 123 μV (ref. 500 mV out, Volume maximum)
Frequency response±0.2 dB (20 Hz – 20 kHz)
Maximum input signal at 1kHzMM: >80 mVrms
MC: >7 mVrms (ref. 0.1 % THD)

Line Input, Headphone Out(Analog Bypass)
THD (20 Hz – 20 kHz)<0.002% (ref. 1V out)
Signal-to-Noise Ratio>98 dB (32 ohms loads; A-WTD, ref. 0.5V out, unity gain)
Frequency response±0.3 dB (20 Hz – 20 kHz)
Channel separation>62 dB at 1kHz
 Output impedance Source Z + 4.7ohmsMaximum input signal at 1kHzMM: >80 mVrms

BluOS
Supported audio file formats: MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS
Supported high- res audio file formats: FLAC, MQA, WAV, AIFF, MPEG-4 SLS
Sampling rateup to 192 kHz
Bit depths: 16 – 24

Ethernet RJ45, Gigabit 1000 Mbps
Wi-Fi Built In: Wi-Fi 5 (802.11ac), dual-bandBluetooth Quality
Bluetooth 5.0 aptX HD
USBType A

Supports bit rate/sample rateup to 24 bit/192 kHz
Frequency band 2.402G- 2.480G
Maximum transmit power (dBm) 7 dBm ± 2 dBm
For supported music service and partners please see bluos.net

Dimensions (W x H x D) 435 x 133 x 387 mm
Net Weight 7.6kg

AUDIO CONNECTION QUALITY GUARANTEE

✔️ Seven day warranty on Consignment*
✔️Passed our checks for functionality
✔️A full inspection noting for any defects
✔️A full completeness check for all included parts and accessories
