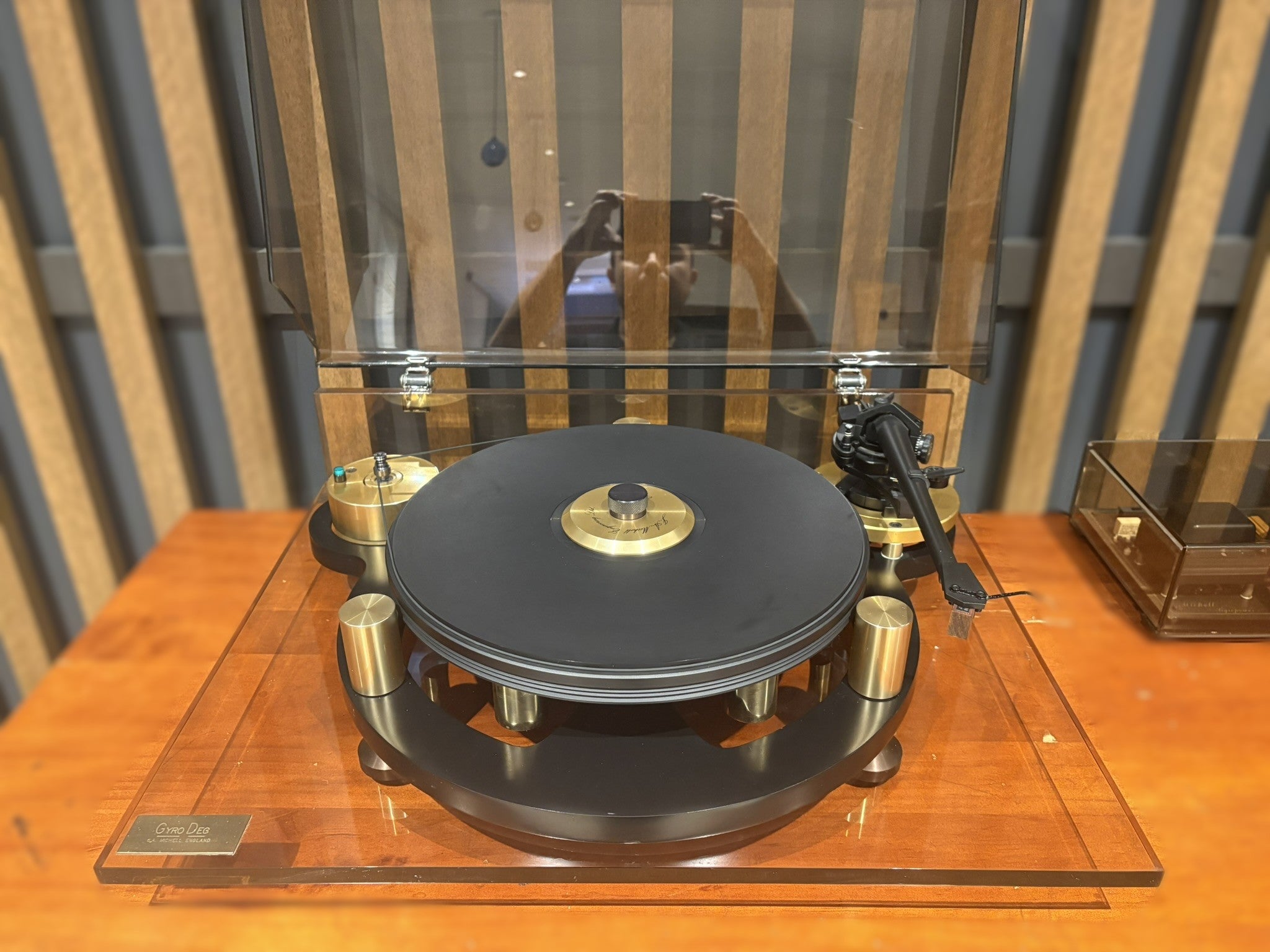

Michell GyroDec Turntable w Gyropower QC Power Supply and SME V Tonearm - Consignment
Pickup available at Audio Connection
Usually ready in 5+ days
Michell GyroDec Turntable w Gyropower QC Power Supply and SME V Tonearm - Consignment
Audio Connection
515 Parramatta Road
Leichhardt NSW 2040
Australia

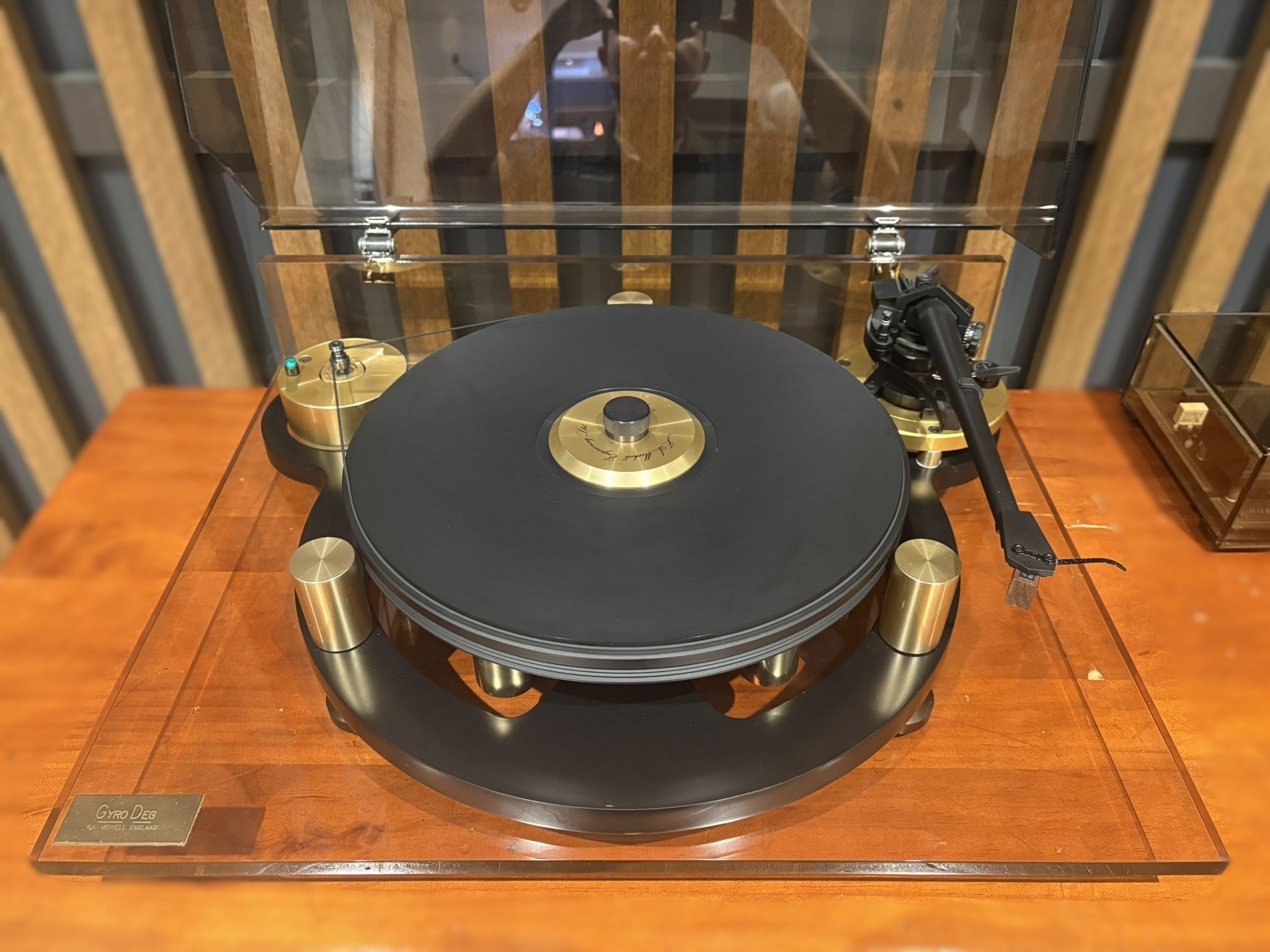

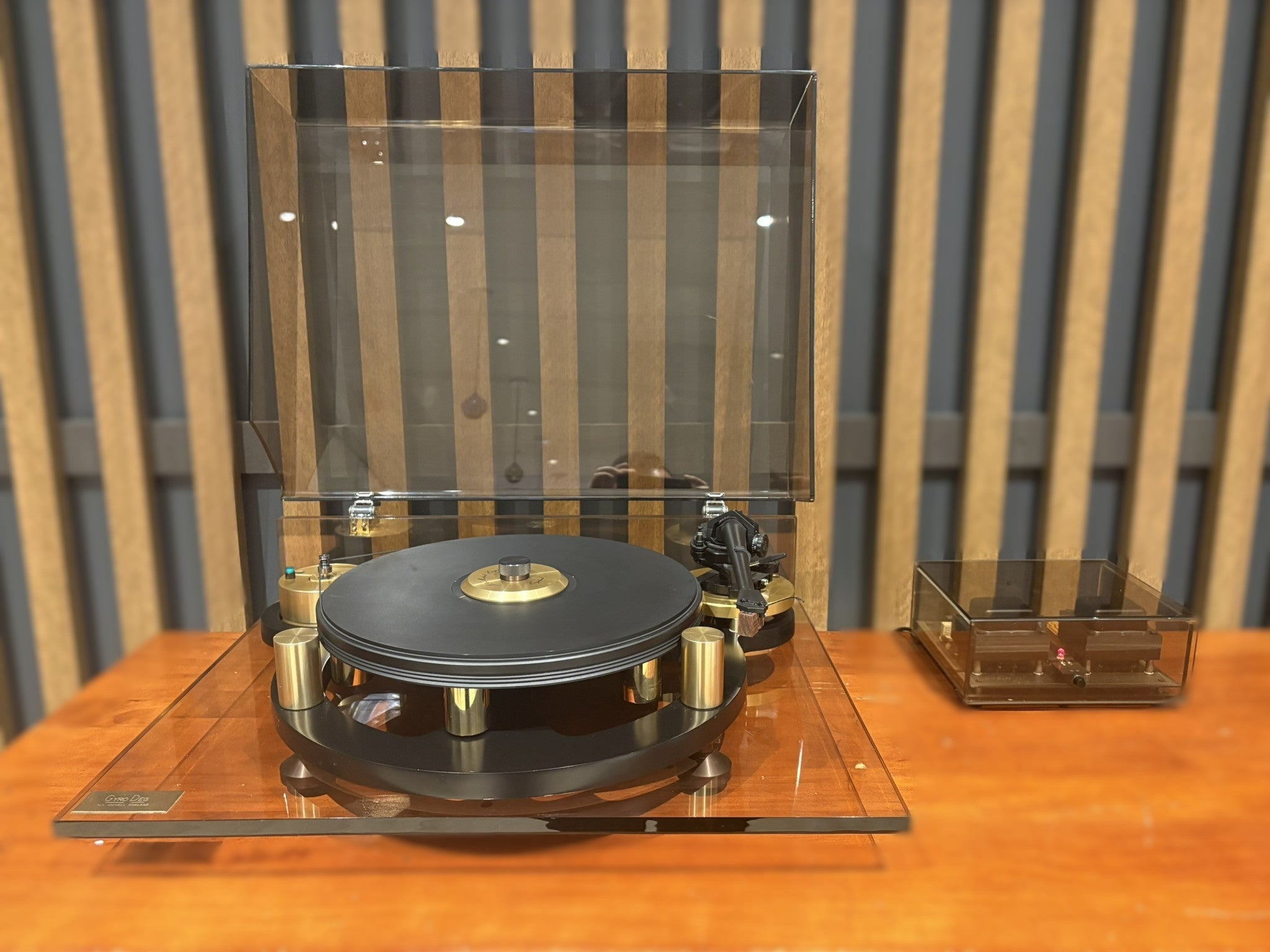

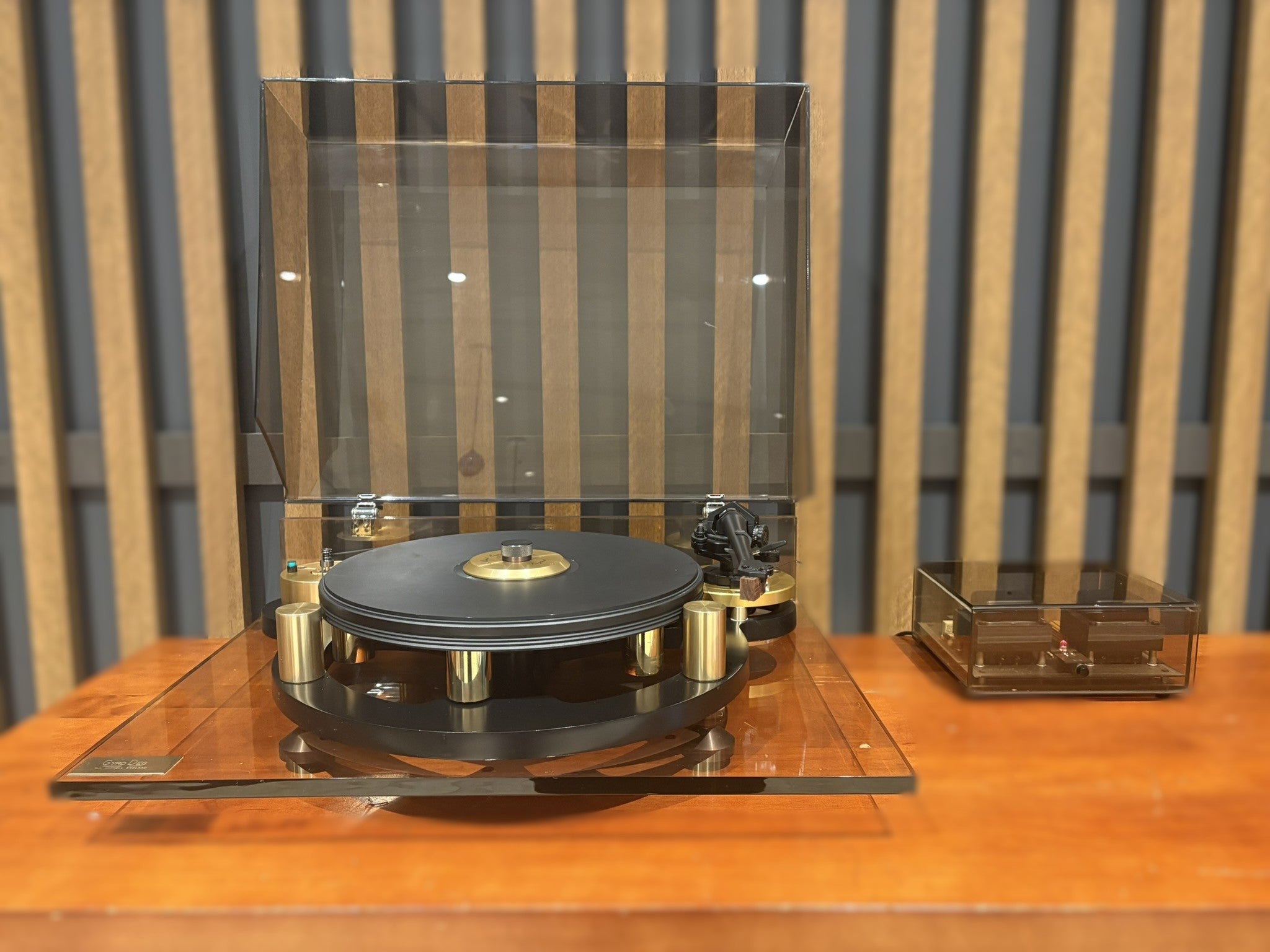

Michell GyroDec Turntable w Gyropower QC Power Supply and SME V Tonearm - Consignment

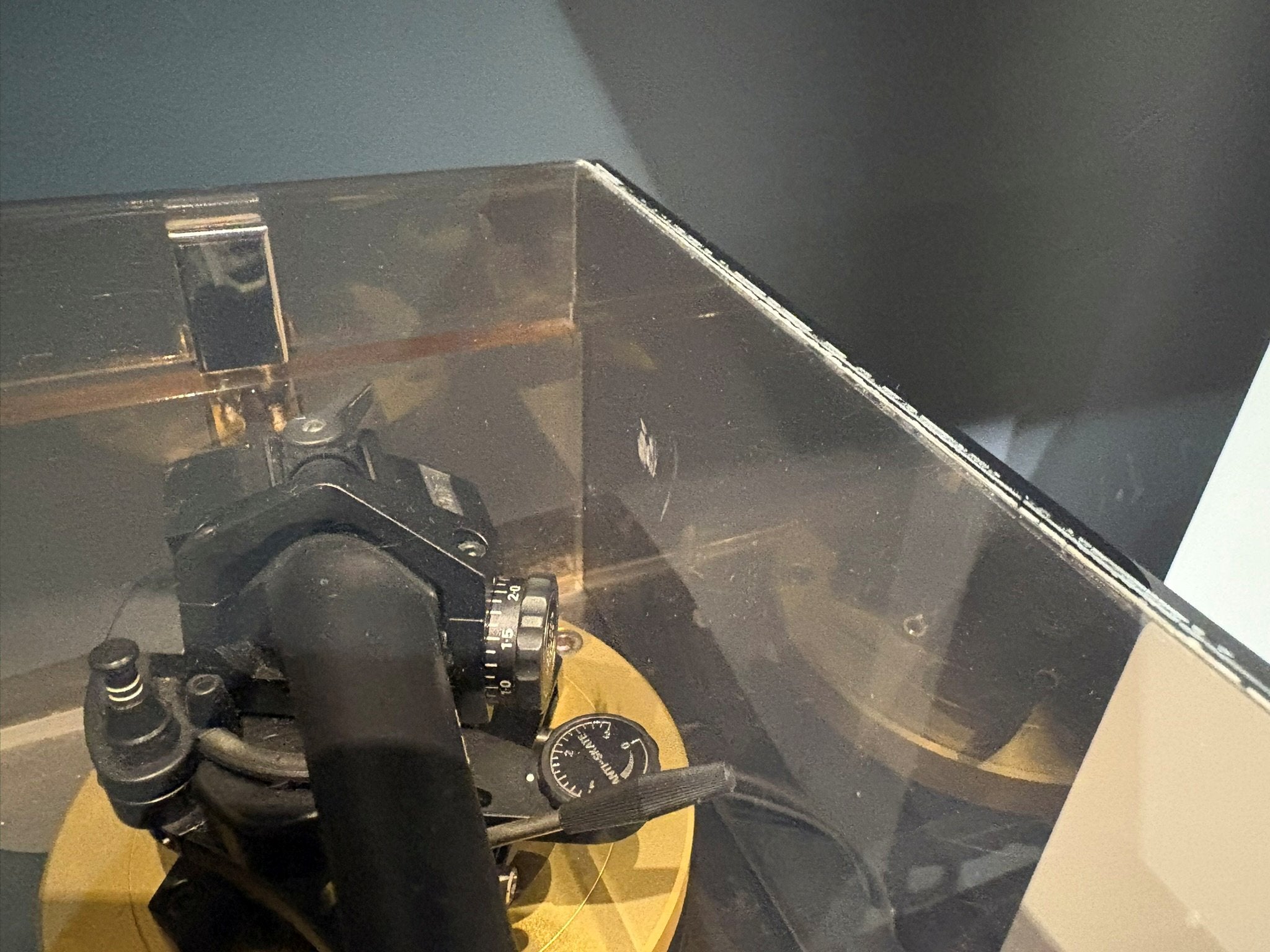

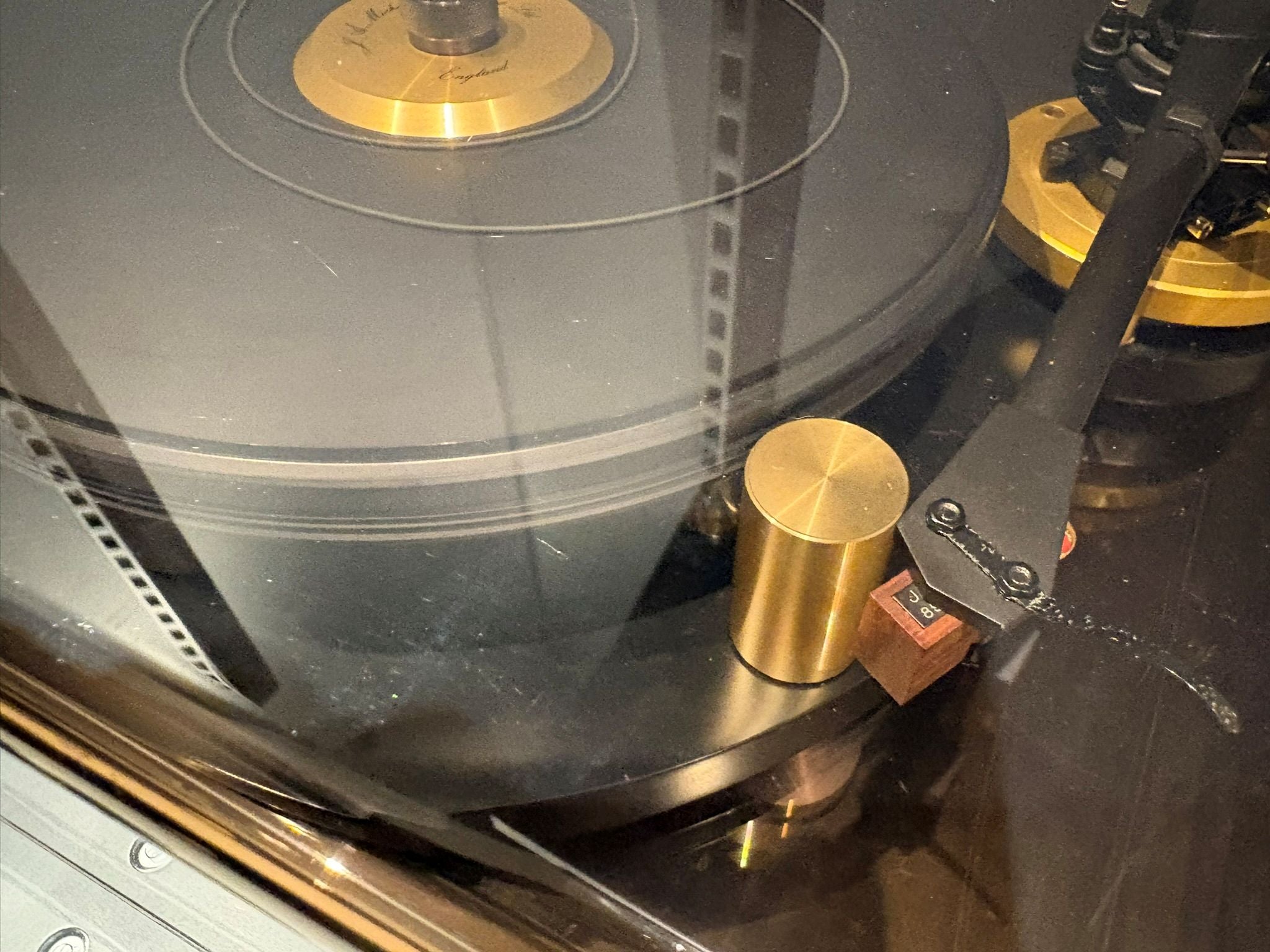

Condition: Used. Good, some marks and scratches (See photos)
Includes: Used Koetsu Red Signature cartridge, Original boxes for GryoDec, GyroPower, SME V and Koetsu cart
SN: 34213
Includes 7 day warranty
Overview
The GyroDec turntable was first introduced in the early 1980s and has influenced turntable design ever since.
This particular unit was purchased new in the mid 1990s, and has had one owner only. It comes fitted with an SME V tonearm, a used Koetsu Red Signature cartridge and upgraded with the Gyropower QC outboard power supply.

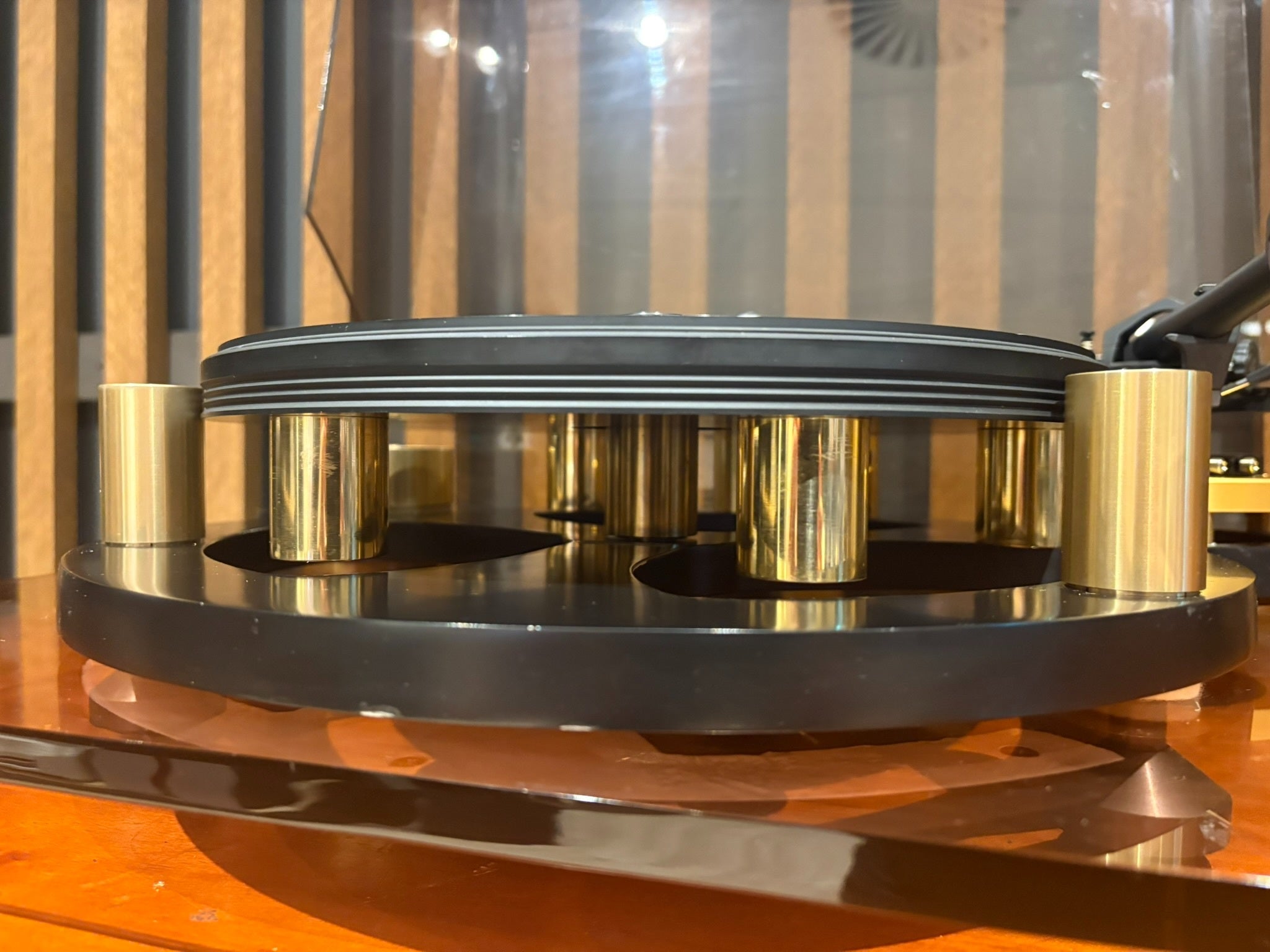

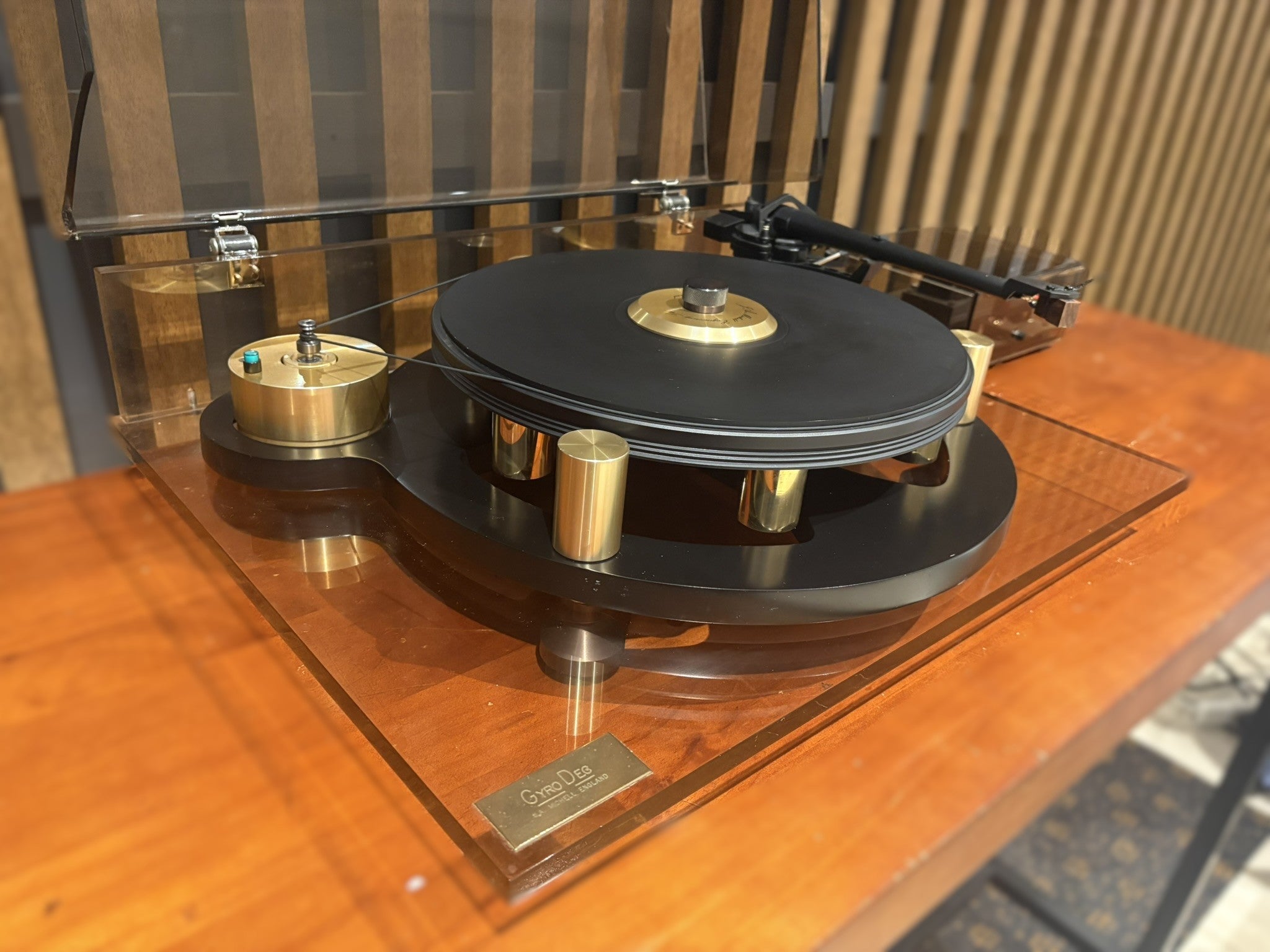

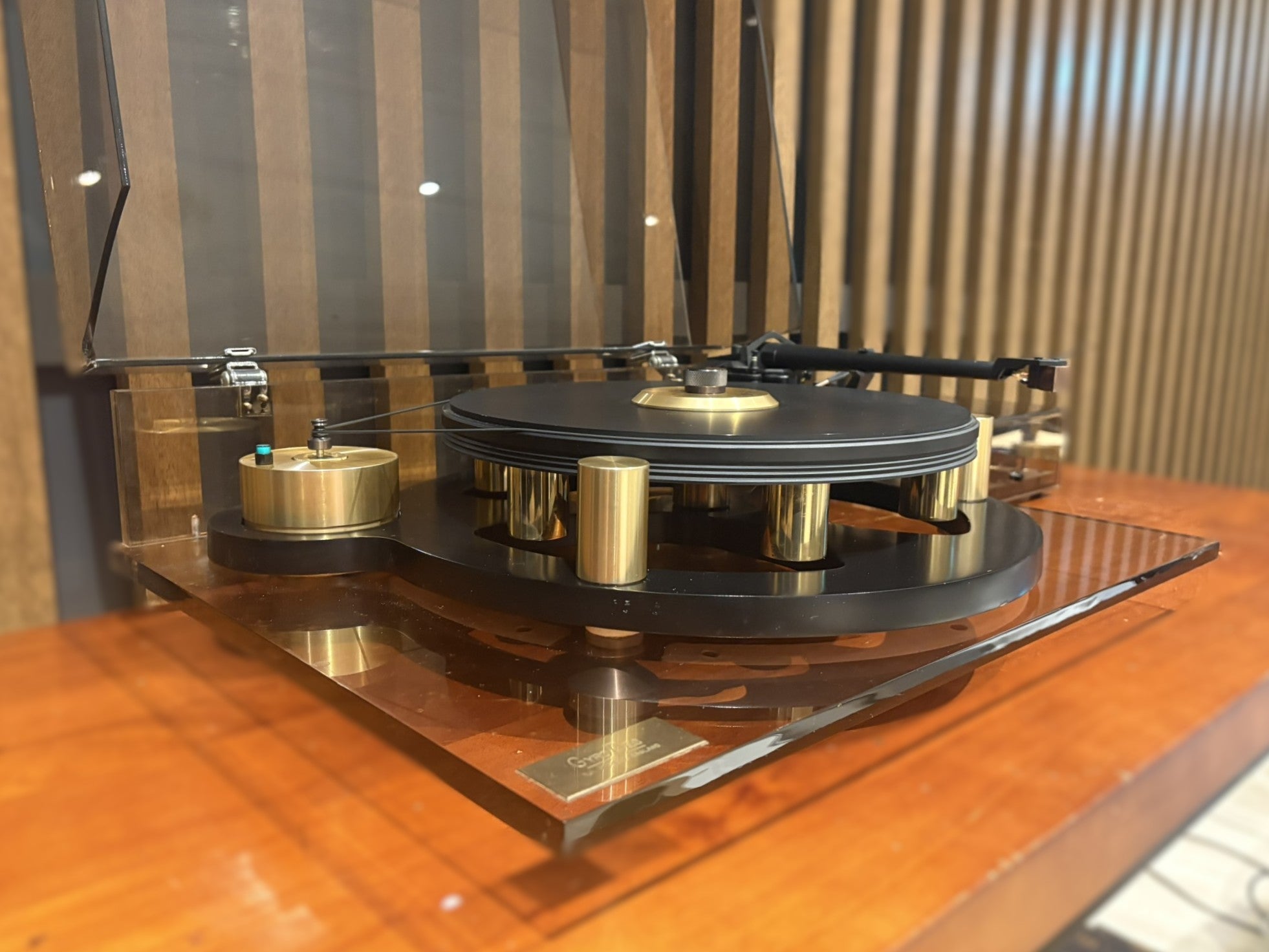

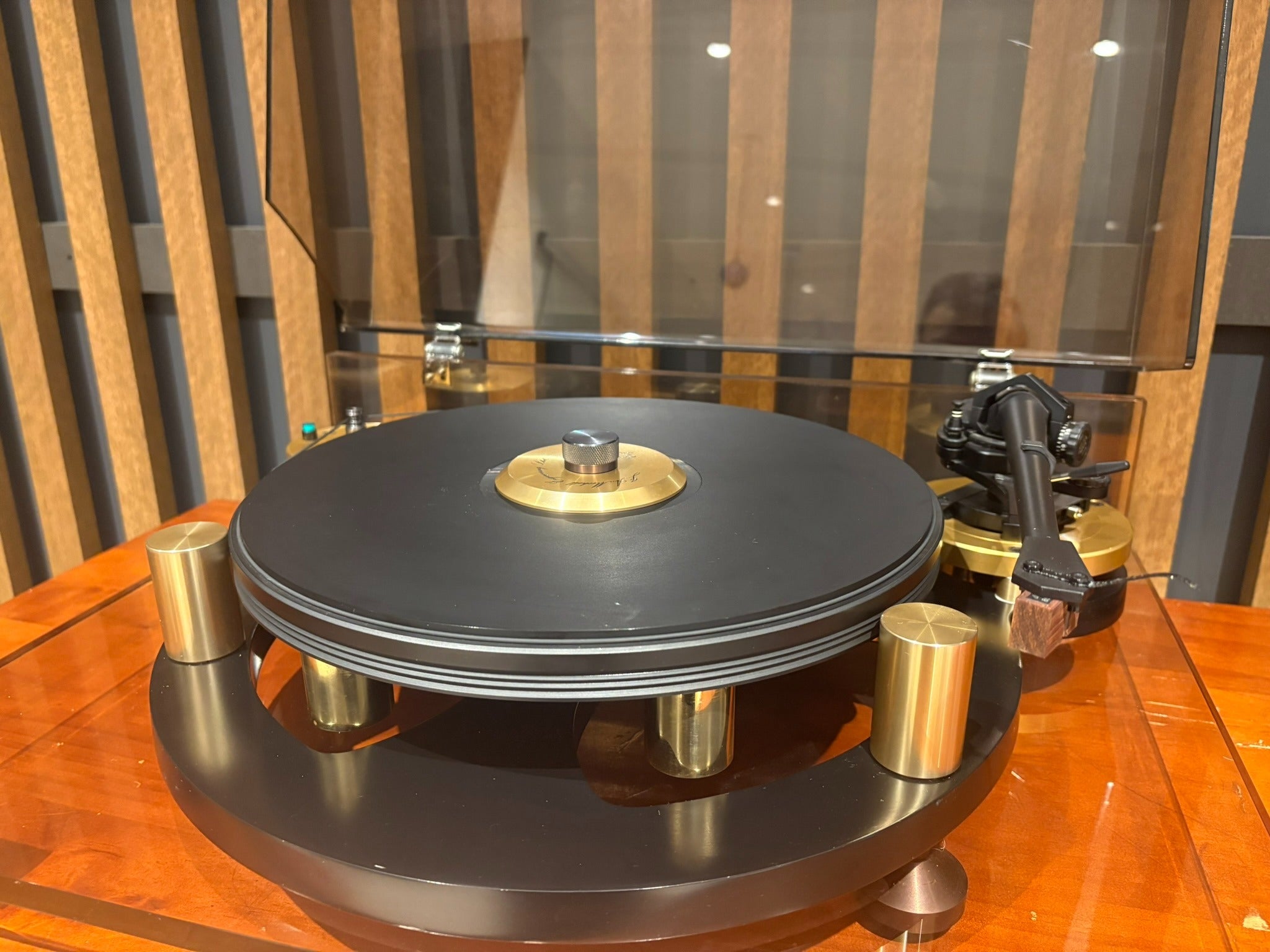

Utilising a hanging pendulum-style sub-chassis with an isolated drive motor, three suspension towers hold the springs in place and provide height adjustment for the sub chassis. The weighted pendulum style sub chassis hangs on the three suspension springs, providing a rigid dense platform to mount the main bearing, platter and tonearm assembly, while also acting as a ‘resonance / vibration sink’ drawing away unwanted vibrations from the sensitive elements of the turntable.
The main bearing has the point of rotation at the top of the assembly, not at the bottom. This orientation fully lubricates the inside of the entire bearing while the platter is turning.
GyroPower QC offers speed-switching between 331/s and 45 rpm. Separate regulated power supplies and crystal oscillators for 33 and 45 ensure speed integrity and pitch stability. Filtered power to the Papst motor helps eliminate 'wind noise' from the vanes.
Specification
GyroDec
Dimensions (Lid Closed): 530 mm wide × 410 mm deep × 190 mm high

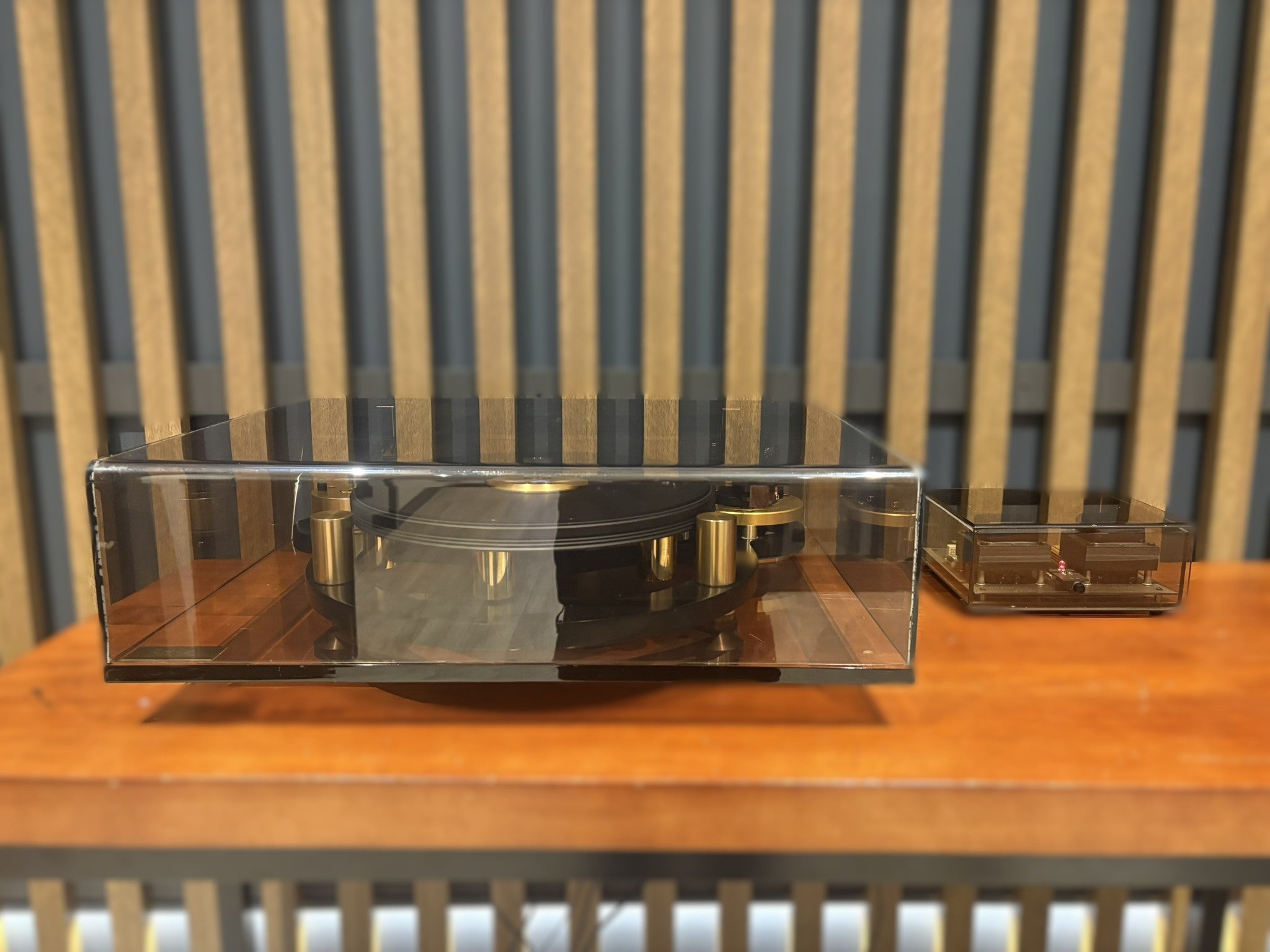

Dimensions (Lid Open): 530 mm wide × 490 mm deep × 550 mm high
Weight: 14 kg
Speeds: Speed change (33.33 / 45 RPM) via GyroPower QC
Drive System: Belt drive with an isolated, free-standing motor unit
GyroPower QC
Surface-mount technology and high-quality components
Polypropylene capacitors in filter section
Two high-precision crystal oscillators dividing down to 50Hz (for 331/s rpm) and 67.6Hz (45 rpm)
Two low pass 36dB/octave filters, one at 0° and the other at 90° phase shift (phase shift kept within ±1°)
Separate regulators for crystal oscillators and filter sections
Low distortion (0.04/0.5%) amplifiers result in two pure sinewaves phase-shifted at 90° for precision
speed control, delivering 19V RMS to the motor for minimum noise
Large-core 100VA toroidal transformer

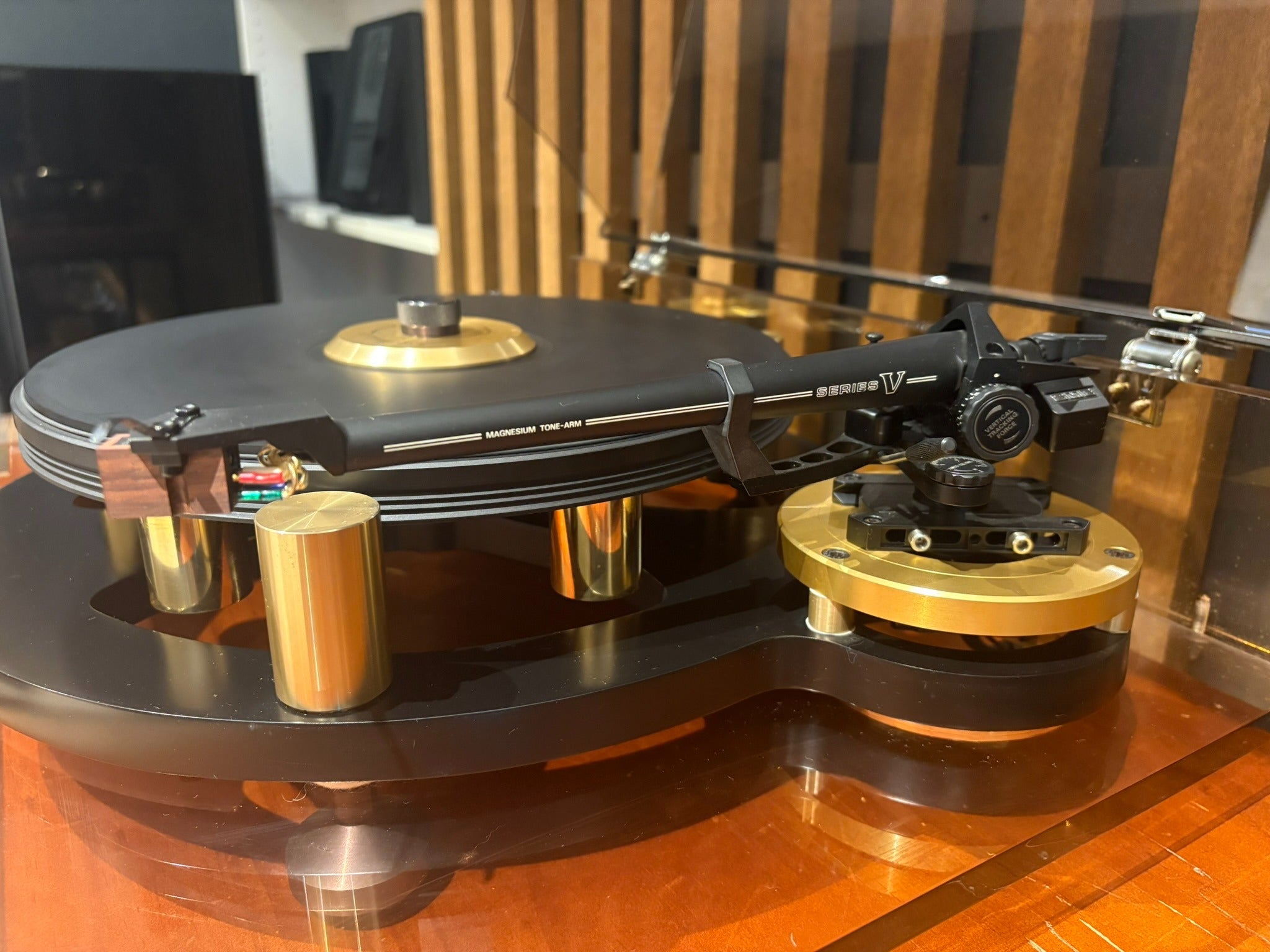

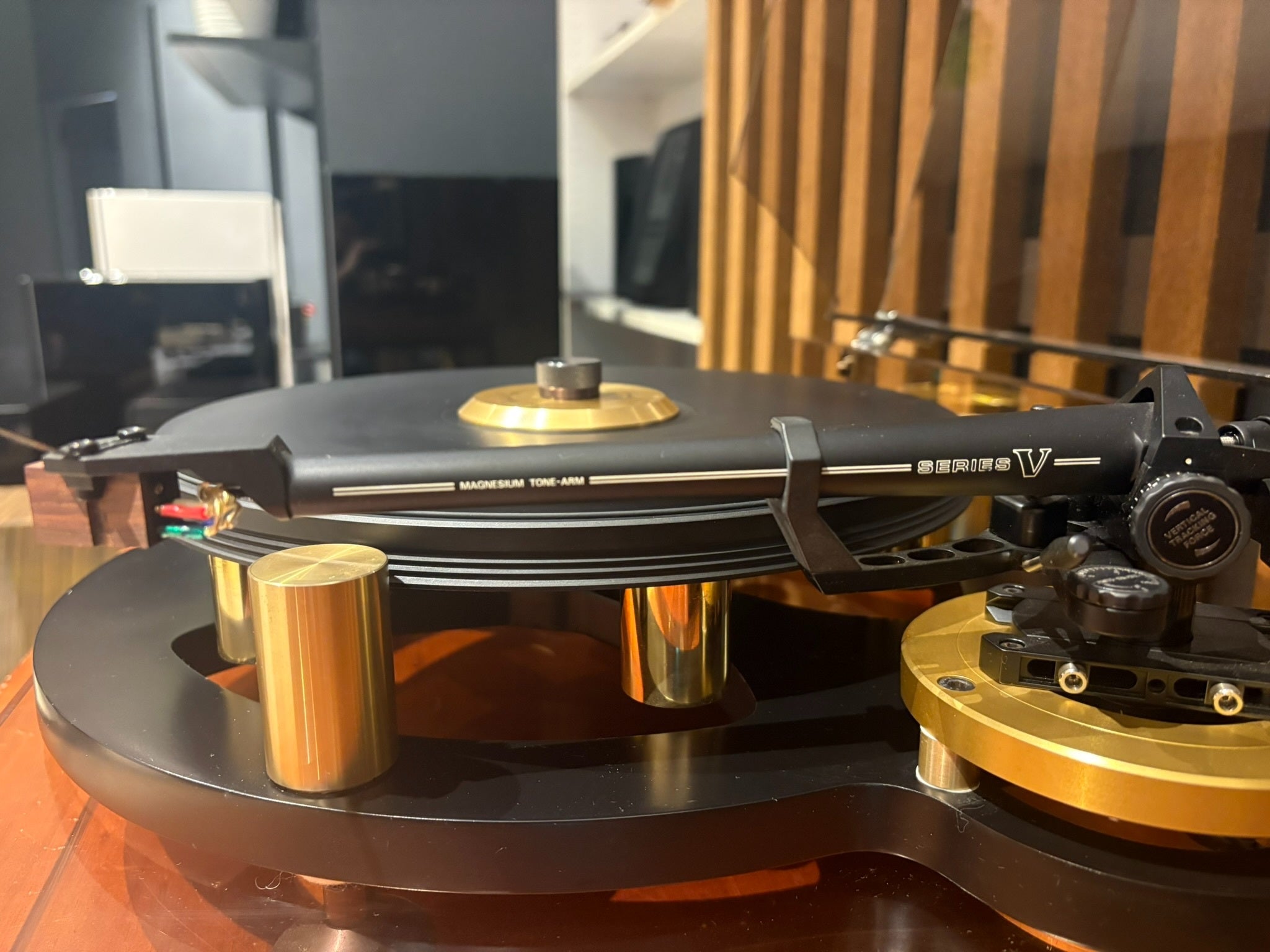

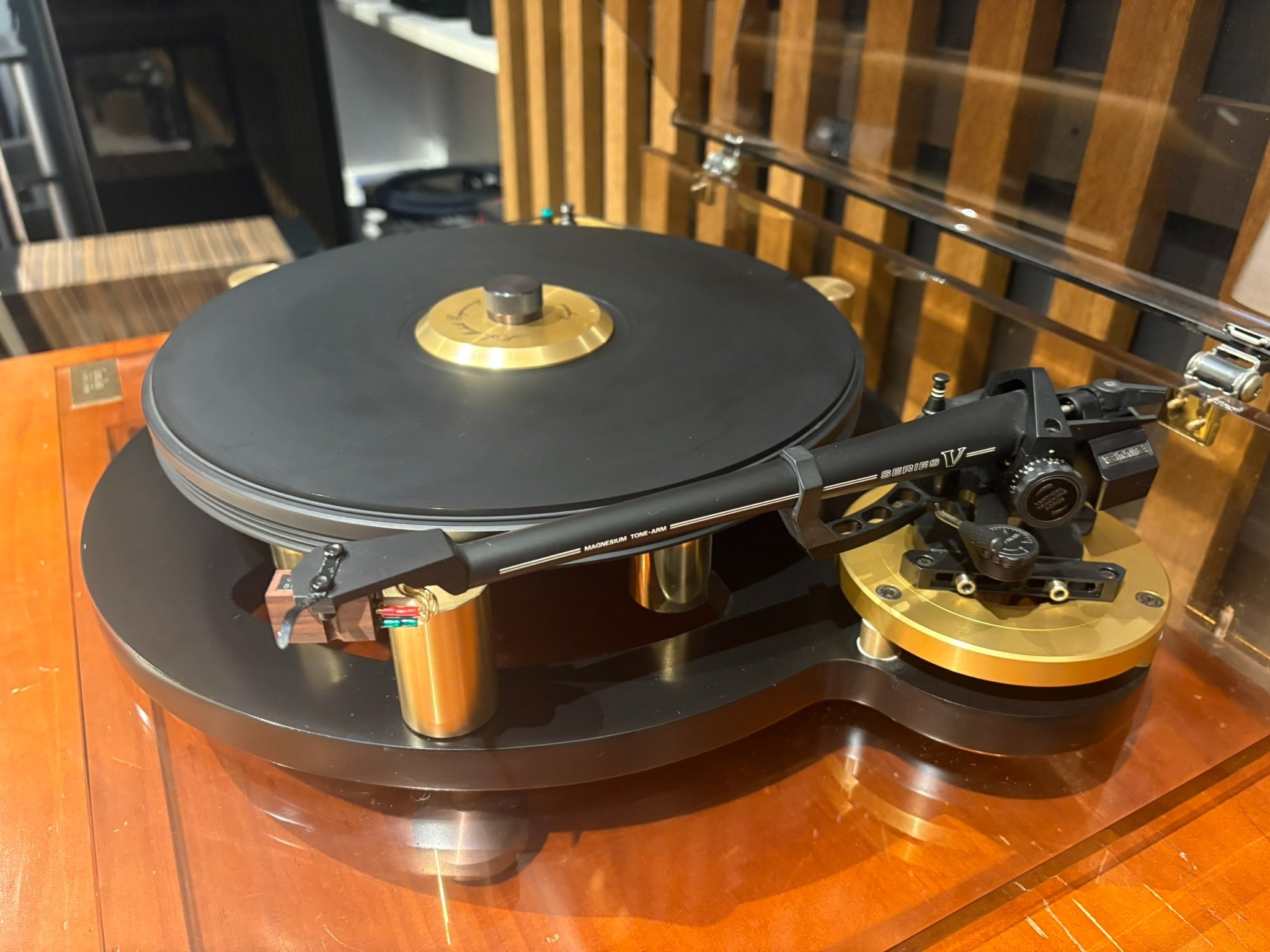

SME V Tonearm
Pivoted, dynamic balance tonearm with fiber-damped, tapered, straight magnesium arm-tube with a fixed headshell, optional viscous pivot damping, spring sidethrust correction, sliding base overhang adjustment, ballrace bearings.
Effective mass: 10–11gm.
Length (pivot to stylus): 233.15mm. (Pivot-to-spindle distance, 215.35mm (8½"); offset overhang, 23 ° 38 minutes; overhang, 17.8mm ±9mm; tracking error, 0.012 °/mm maximum with 0 ° error at 66.04mm and 120.9mm from the record center.)
Cartridge balance range: 0–14gm.
Vertical tracking force: 0–3gm., adjustable to 0.15gm. (tracking weight can be set using both counterweight and an adjustable spring).
Net weight: 720gm.
Internal wiring: silver Litz.
Phono cable: monocrystal silver.
Mounting: standard SME tonearm hole.
