Merging Technology MERGING + NADAC Streamer - As Traded

Merging Technology MERGING + NADAC Streamer - As Traded

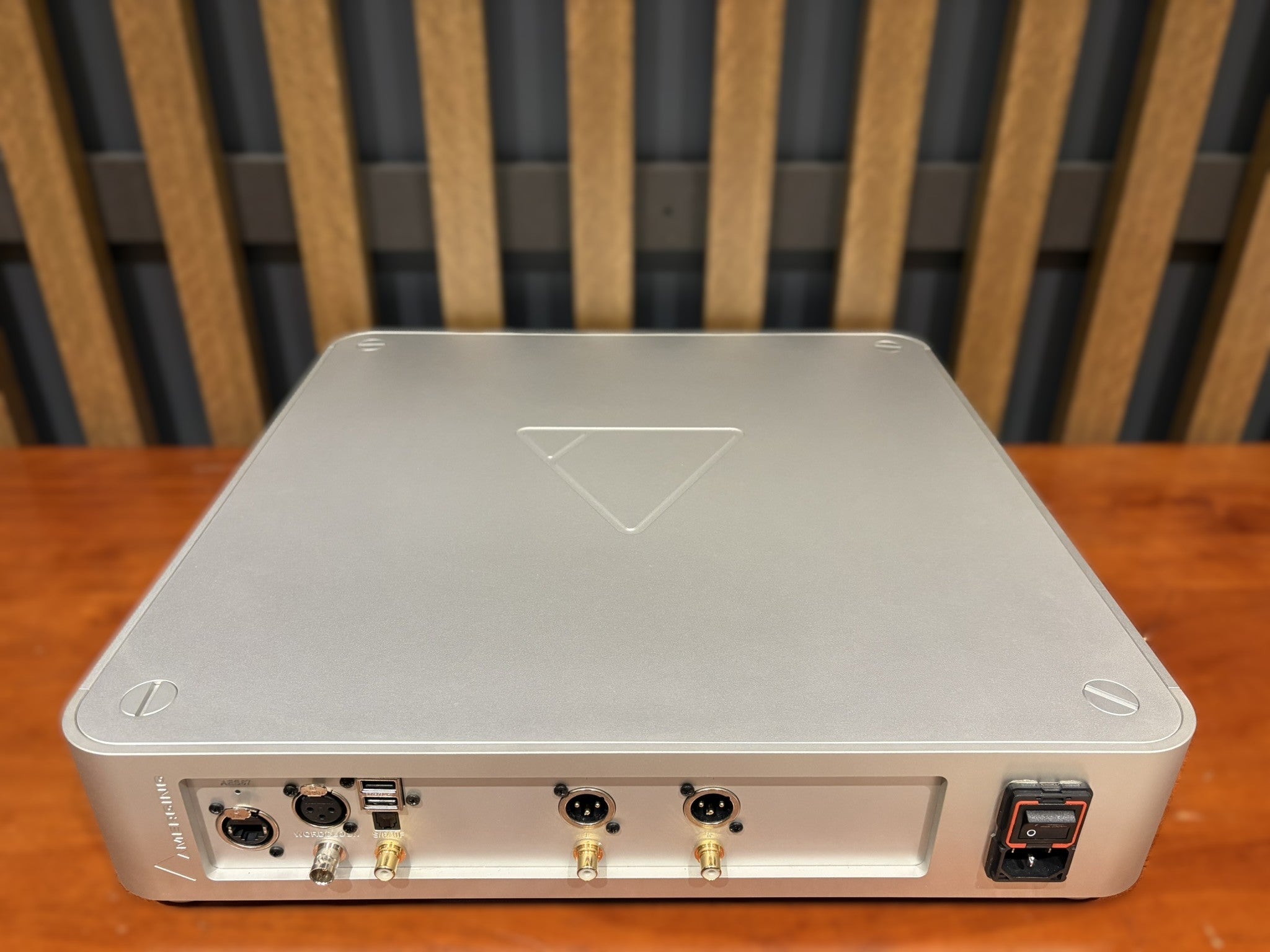

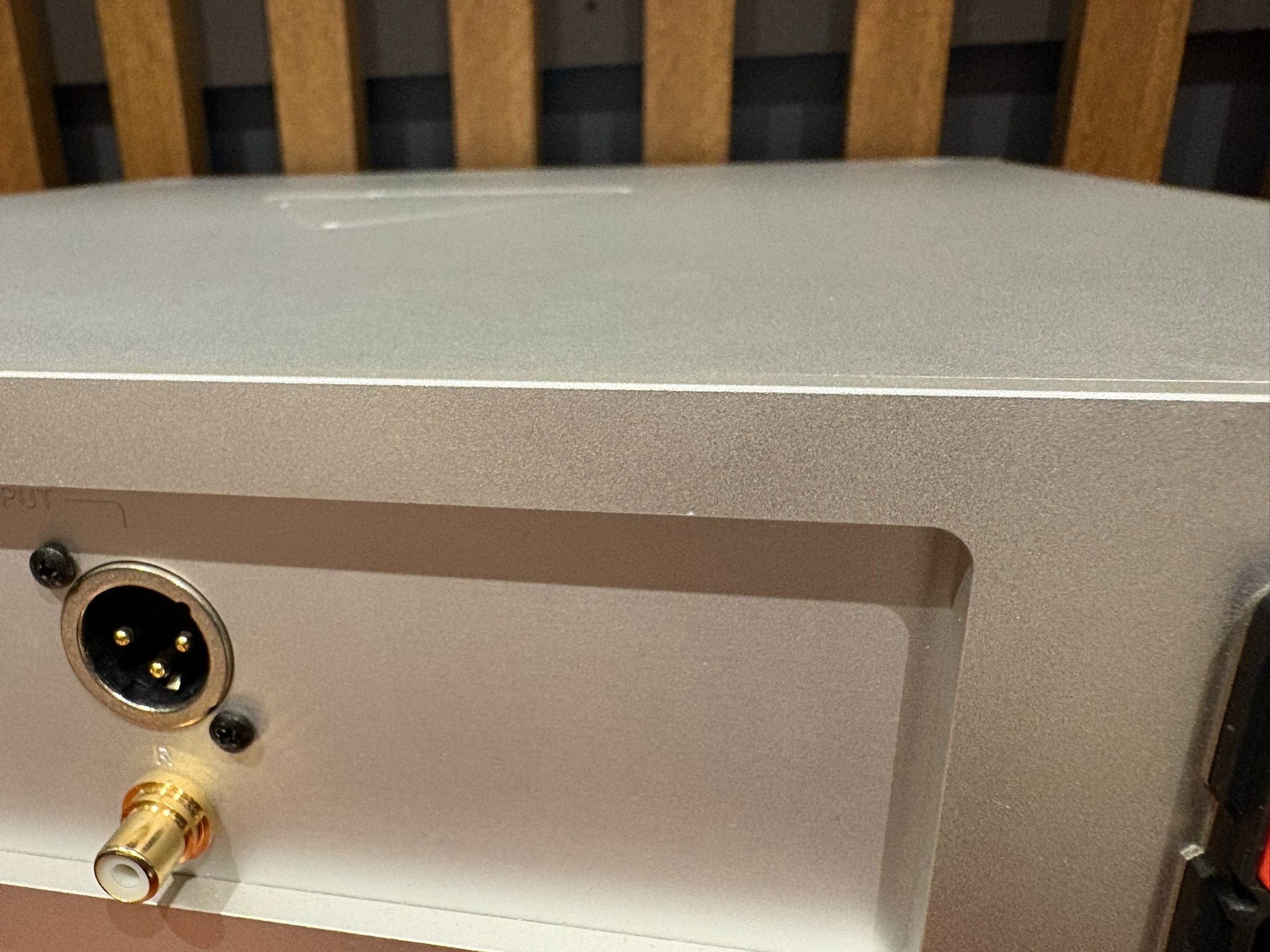

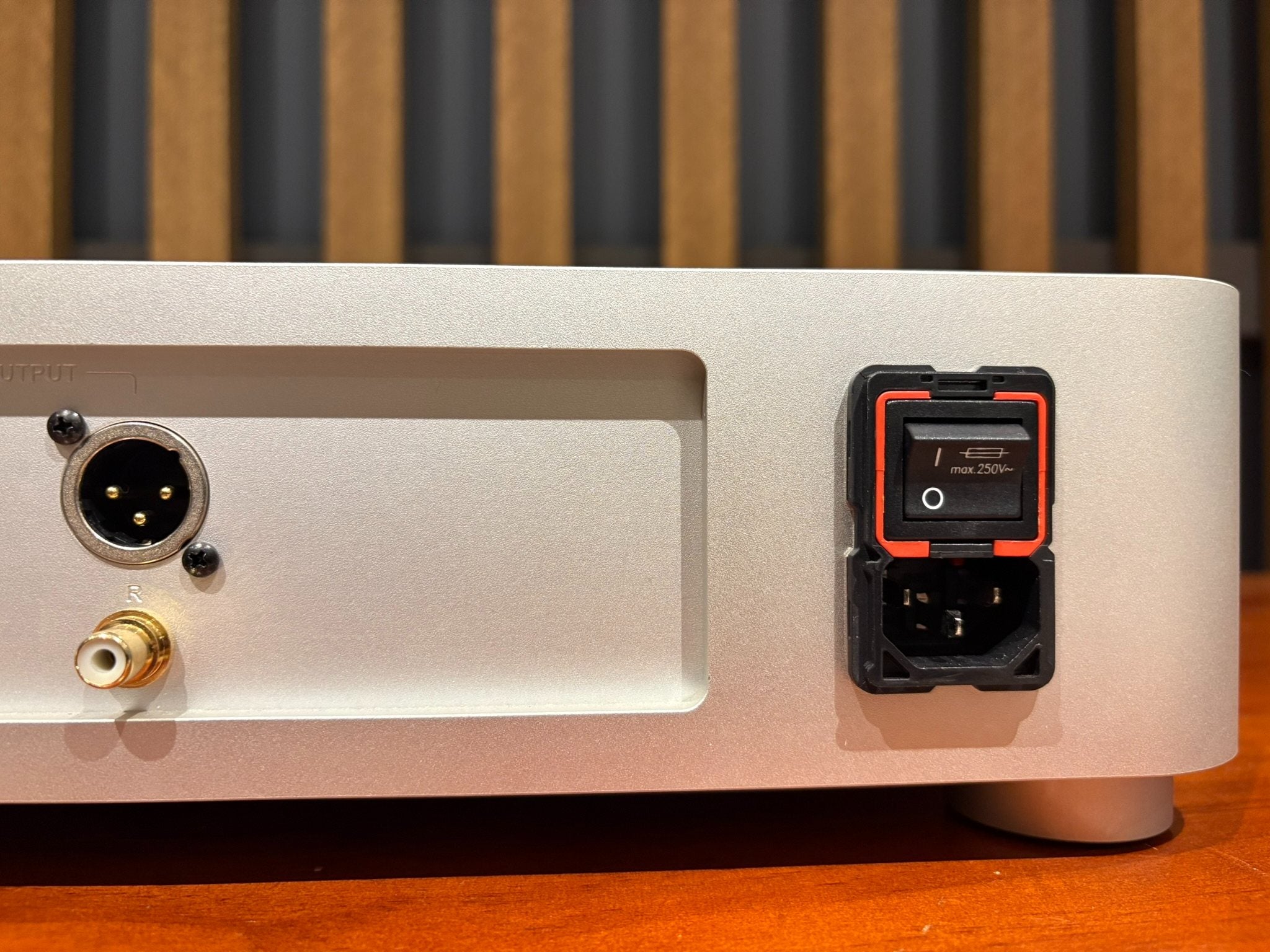

Condition: Used. Excellent, small chip on rear (See photos)

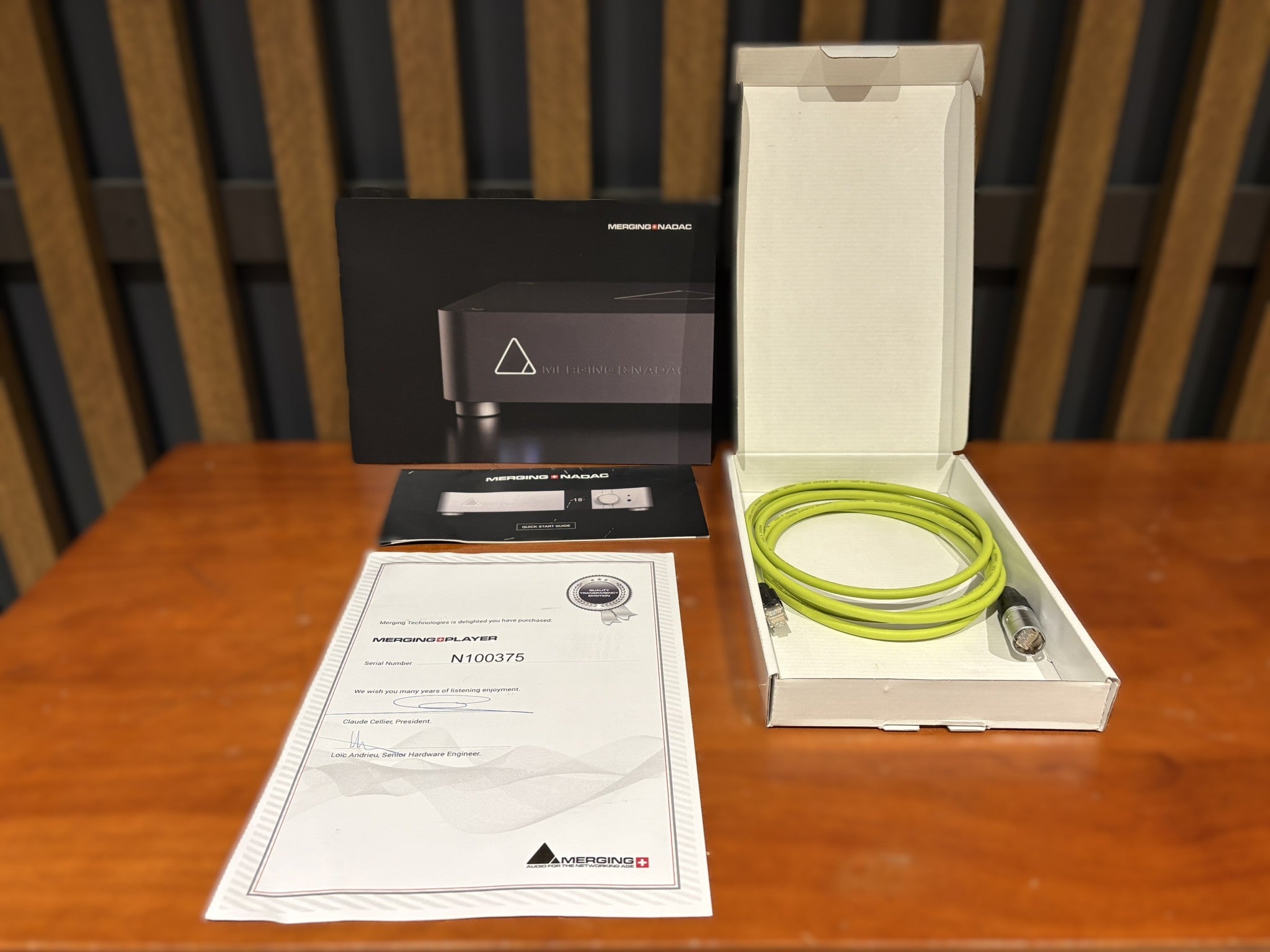

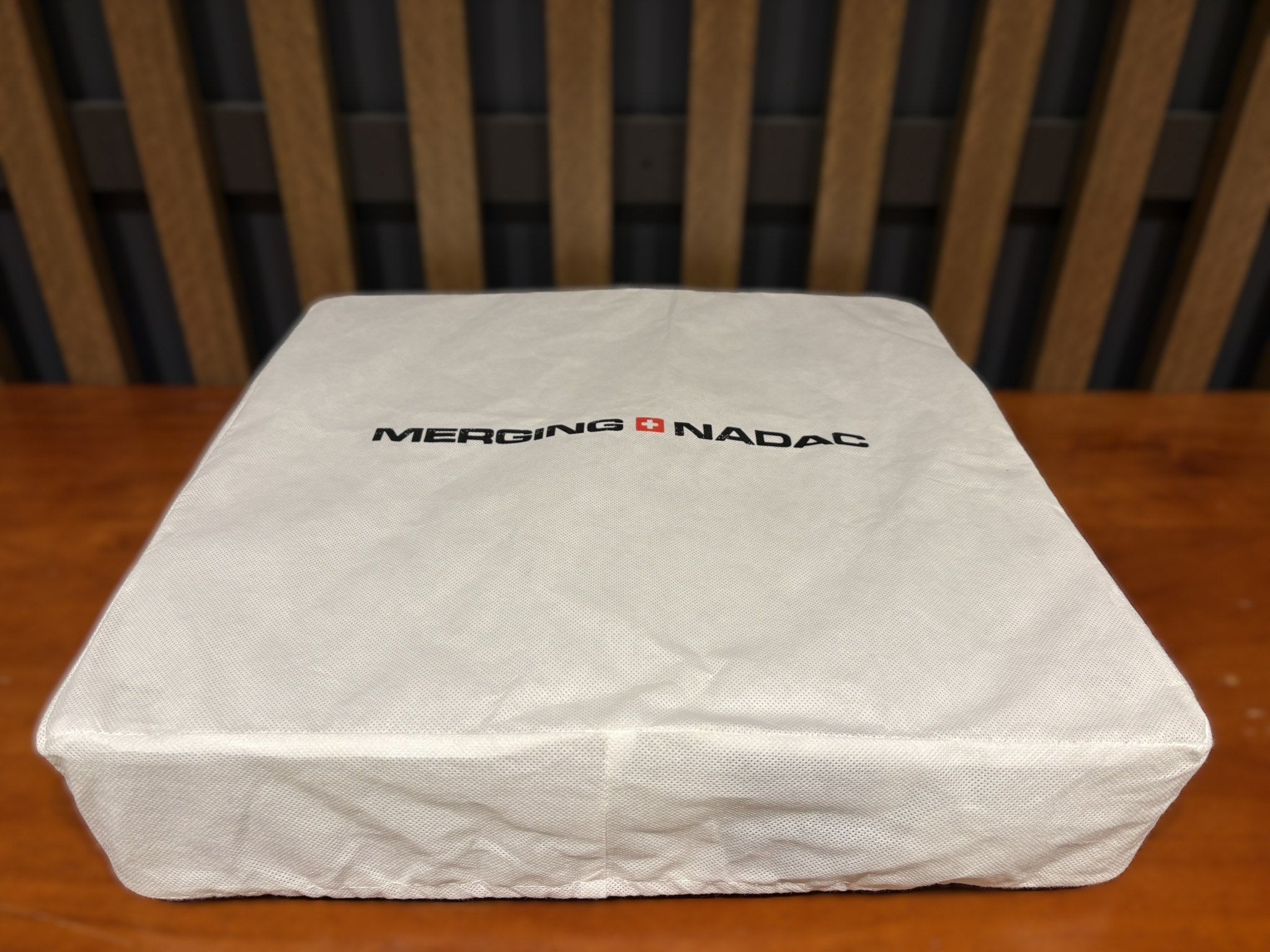

Includes: Original outer and inner box, sleeve, ethernet cable, quickstart guide, power cable

SN: N100375

Warranty: 90 days (3 months)

Overview

Clean and articulate, this first-generation Merging NADAC is derived directly from the company's professional Horus and Hapi converters, which are widely used in recording, mastering, and broadcast environments.

Roon-ready, the unit functions as a streamer but also includes facilities for AES/EBU, coaxial SPDIF and optical input.

RAVENNA/AES67 Audio over Internet Protocol (AoIP) standards are used rather than UPnP and DLNA protocols for networked audio.

NADAC supports PCM (up to 24 bit/384kHz precision), DXD, and DSD 64, 128, and 256 natively, with no upsampling.

A word clock input further allows integration into externally synchronised digital systems.

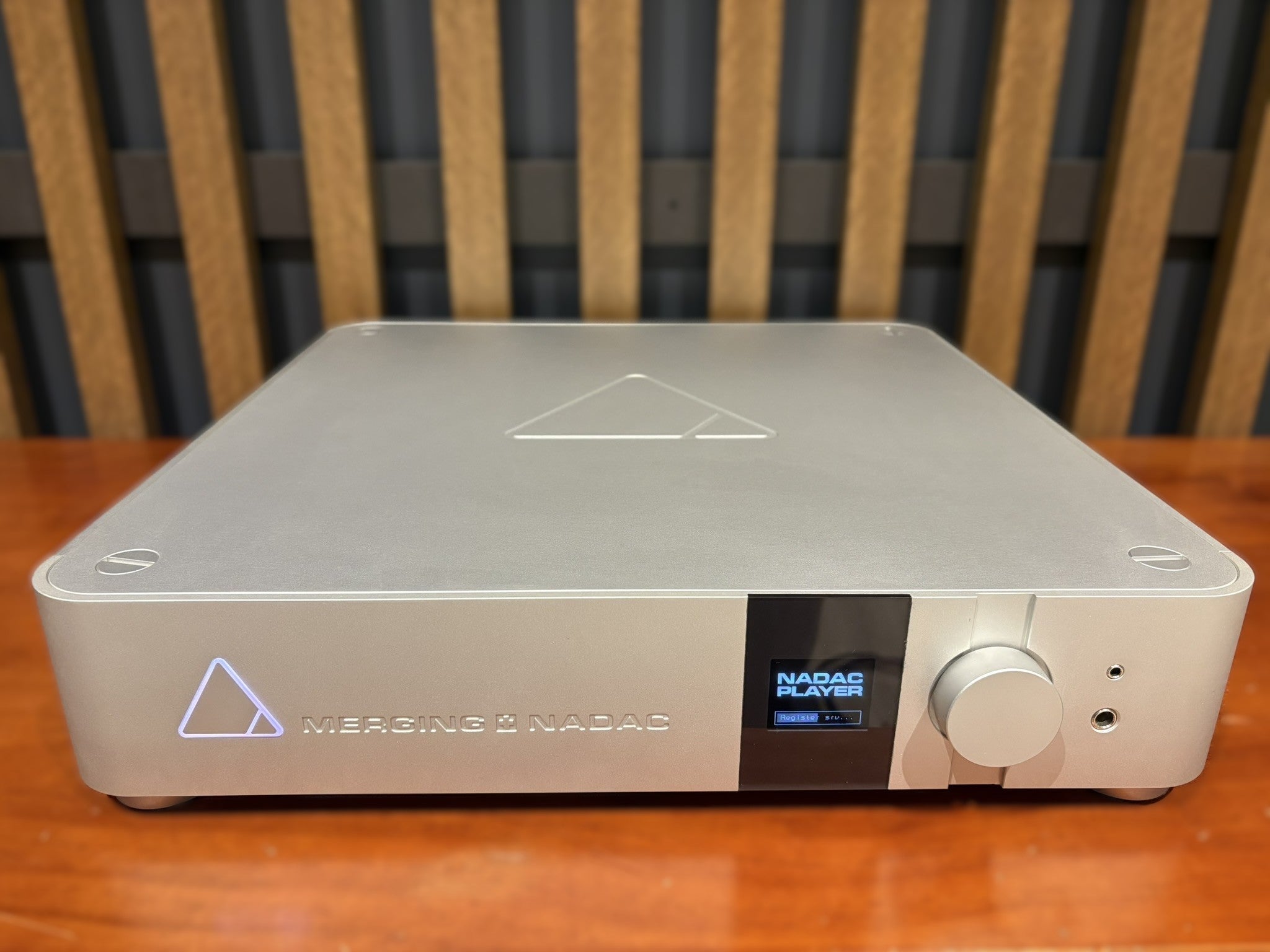

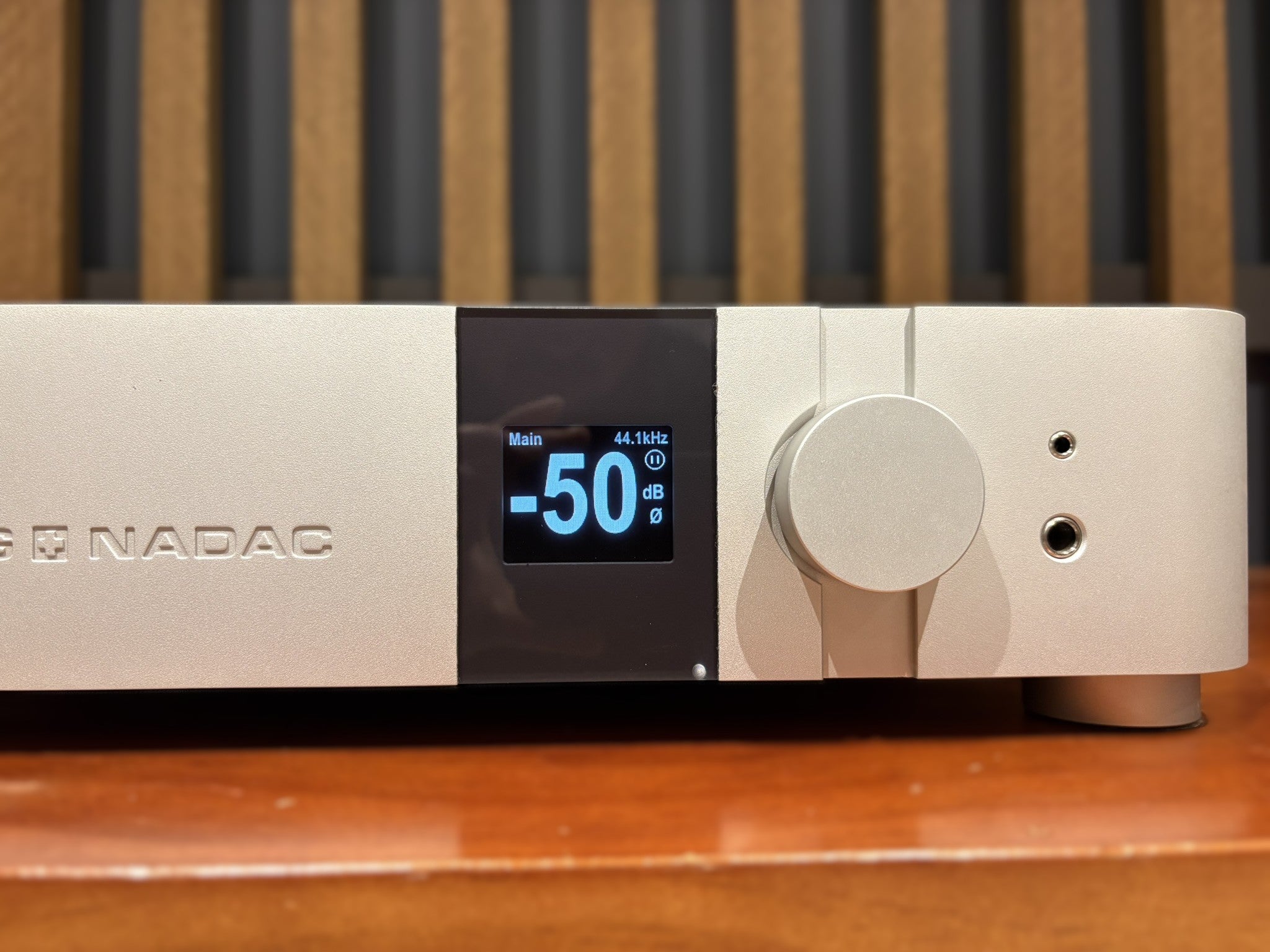

Independent volume control for both the line outputs and integrated headphone amplifier provides considerable flexibility.

Specification

Type: Open-Standard Network Attached DAC

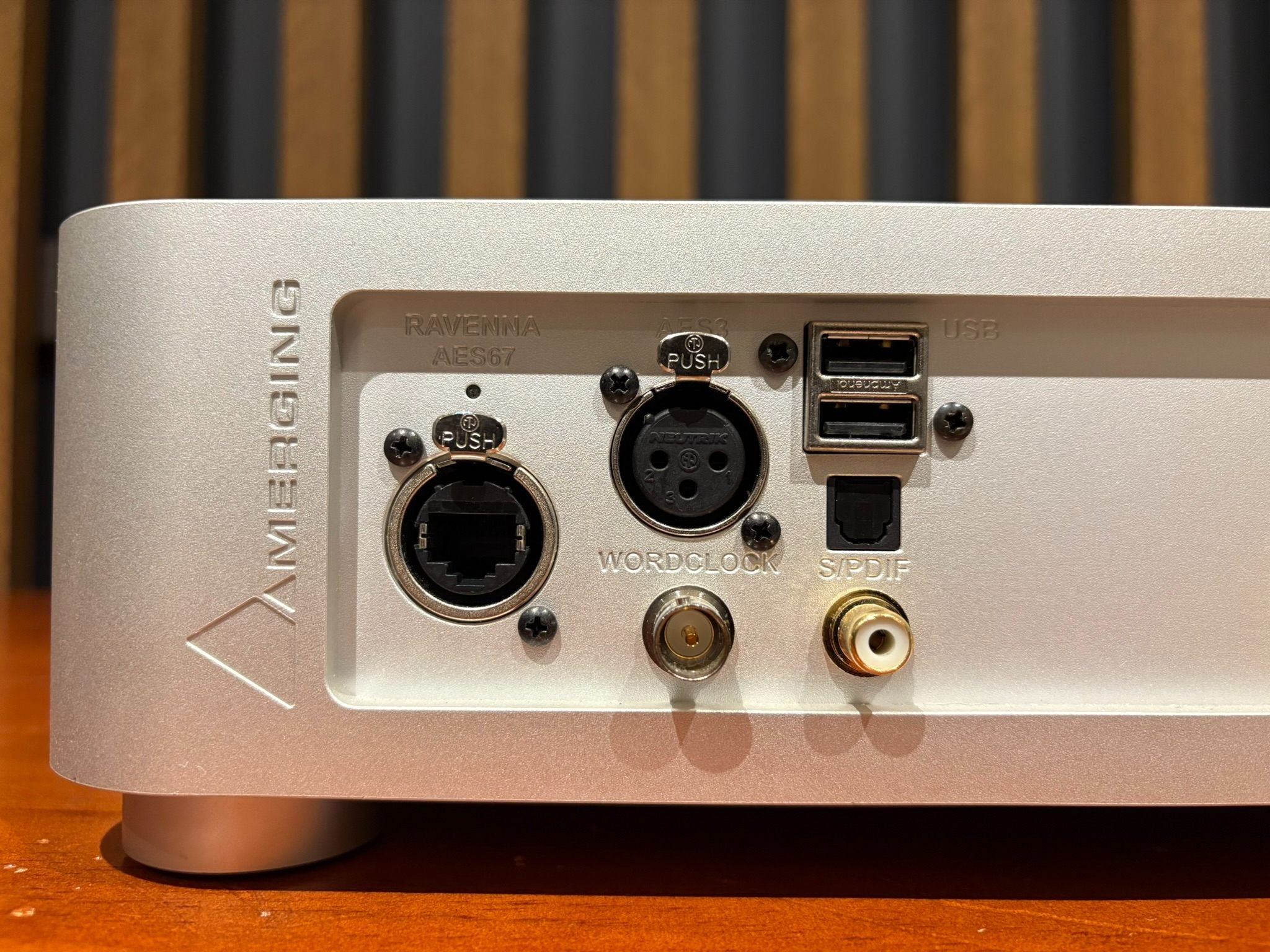

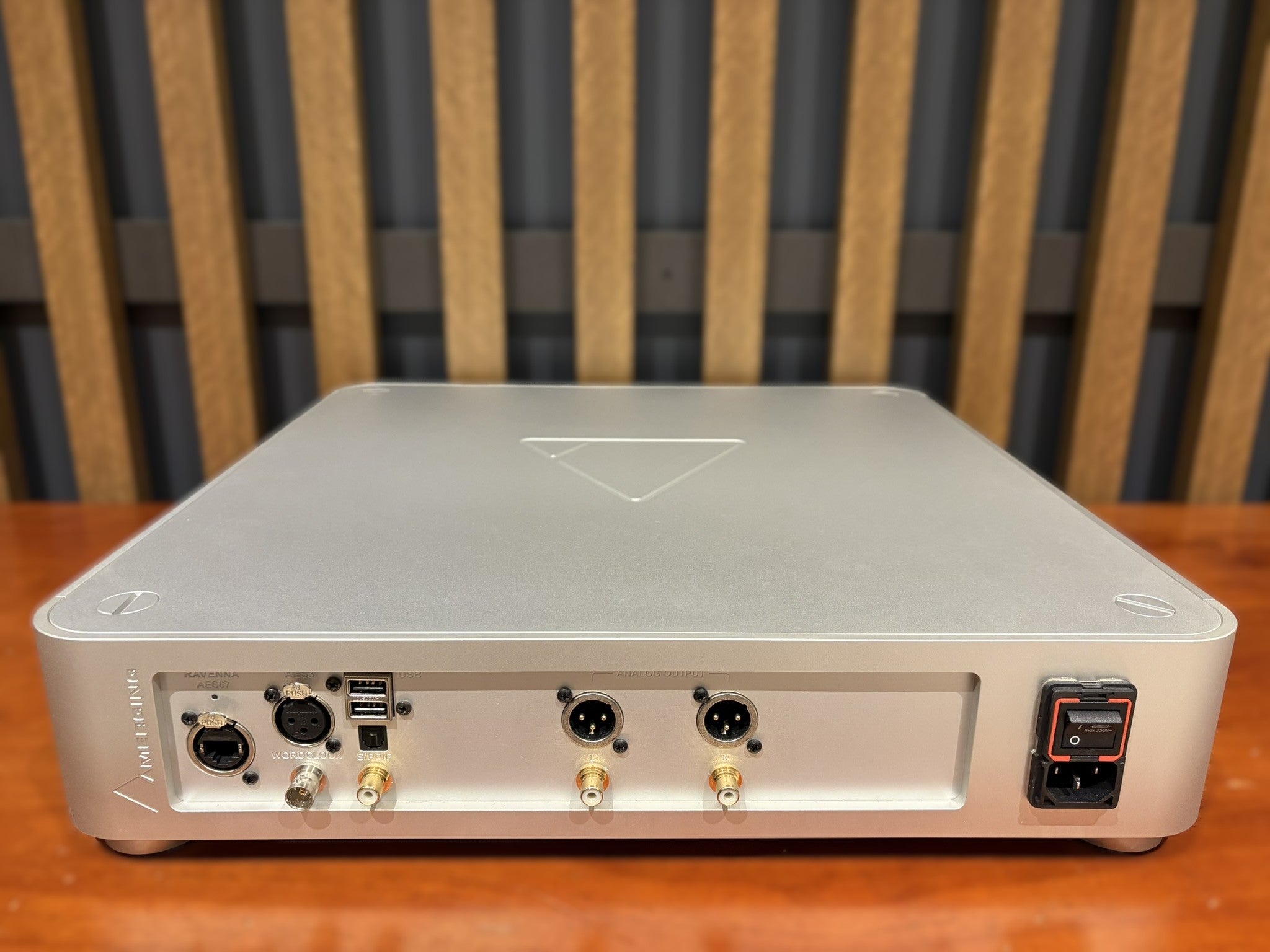

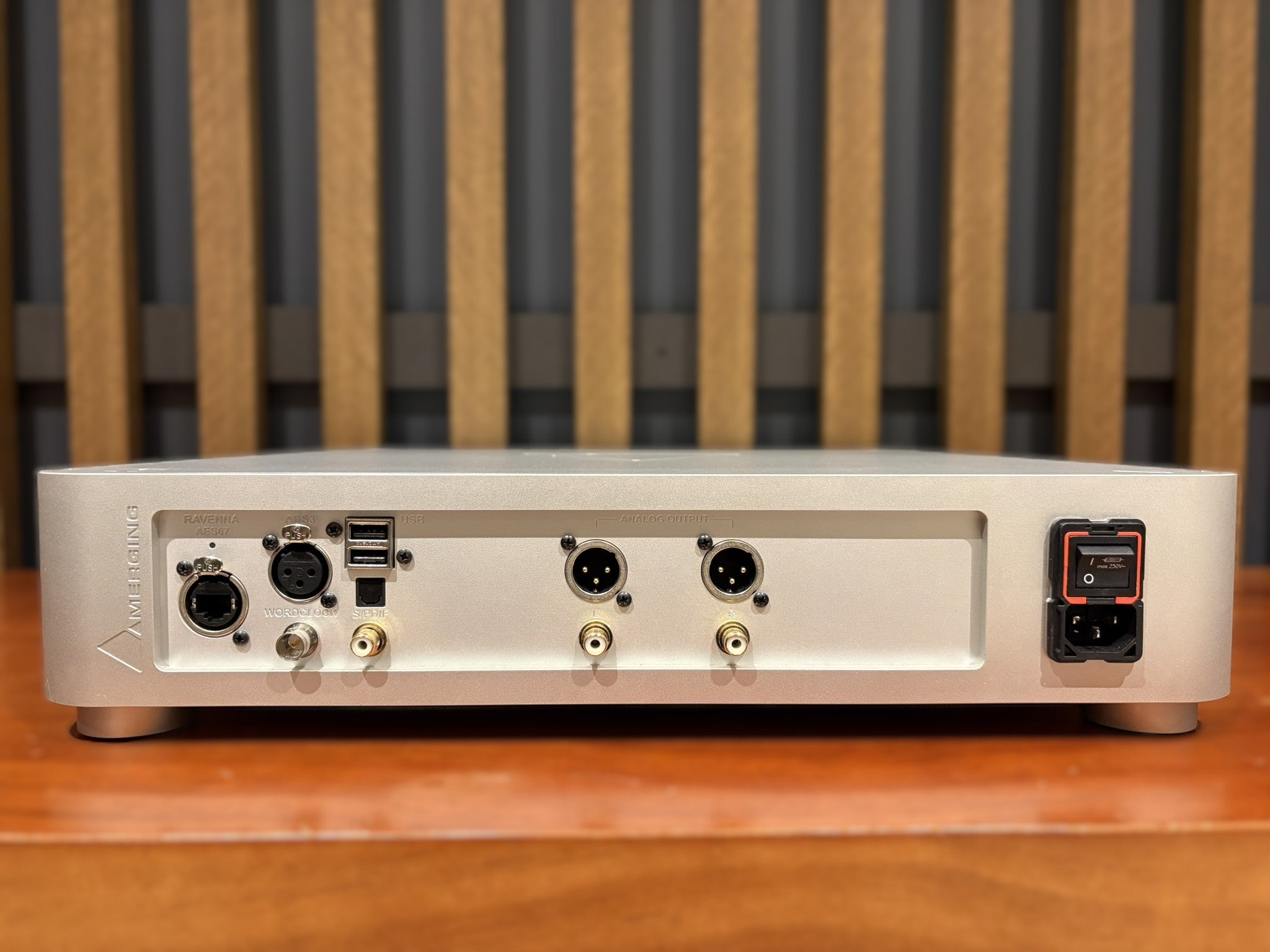

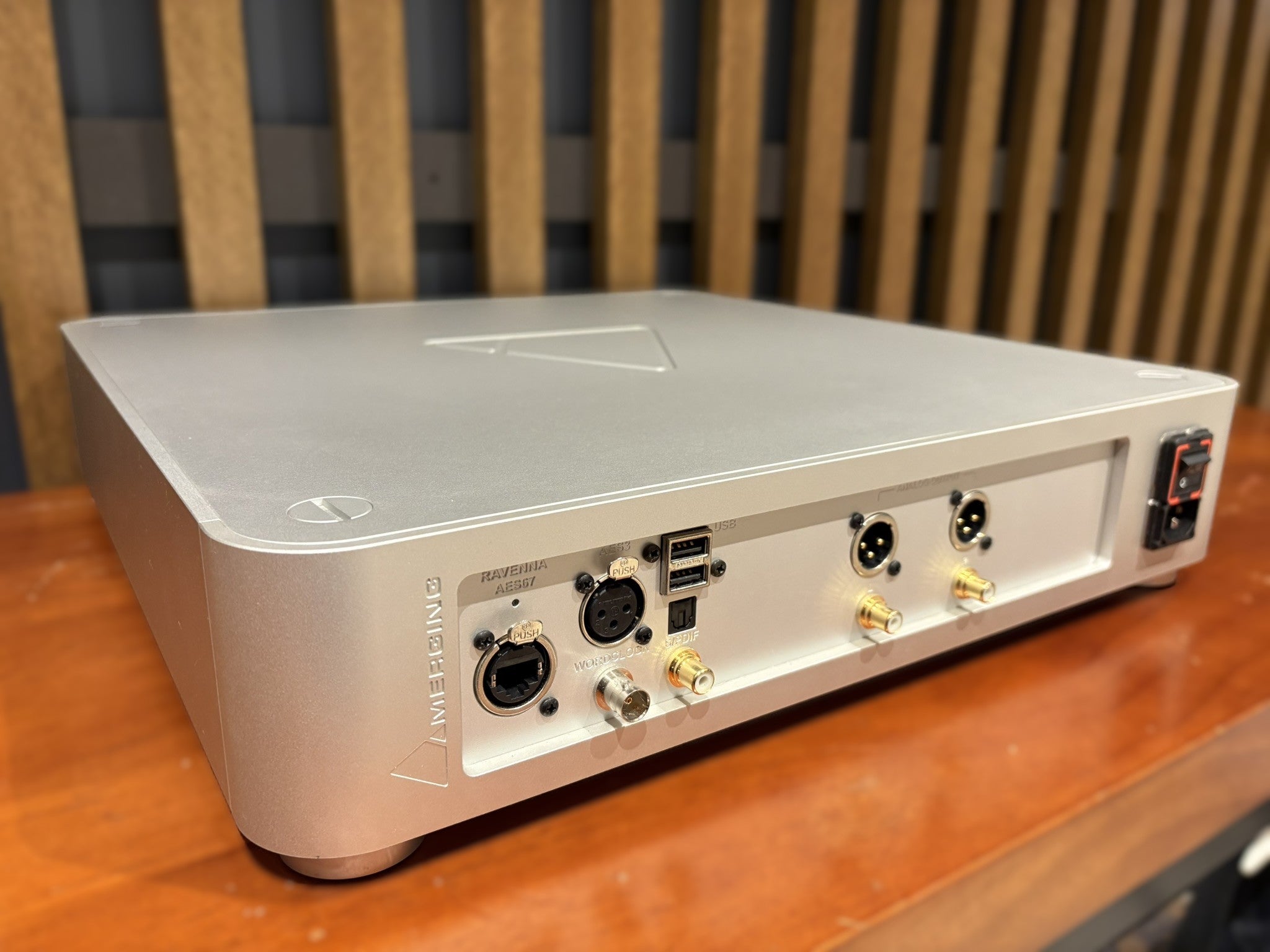

Digital inputs: Ethernet (RAVENNA/AES67) on RJ45 connector, AES/EBU XLR, S/PDIF Toslink and RCA Phono, word clock input on BNC connector

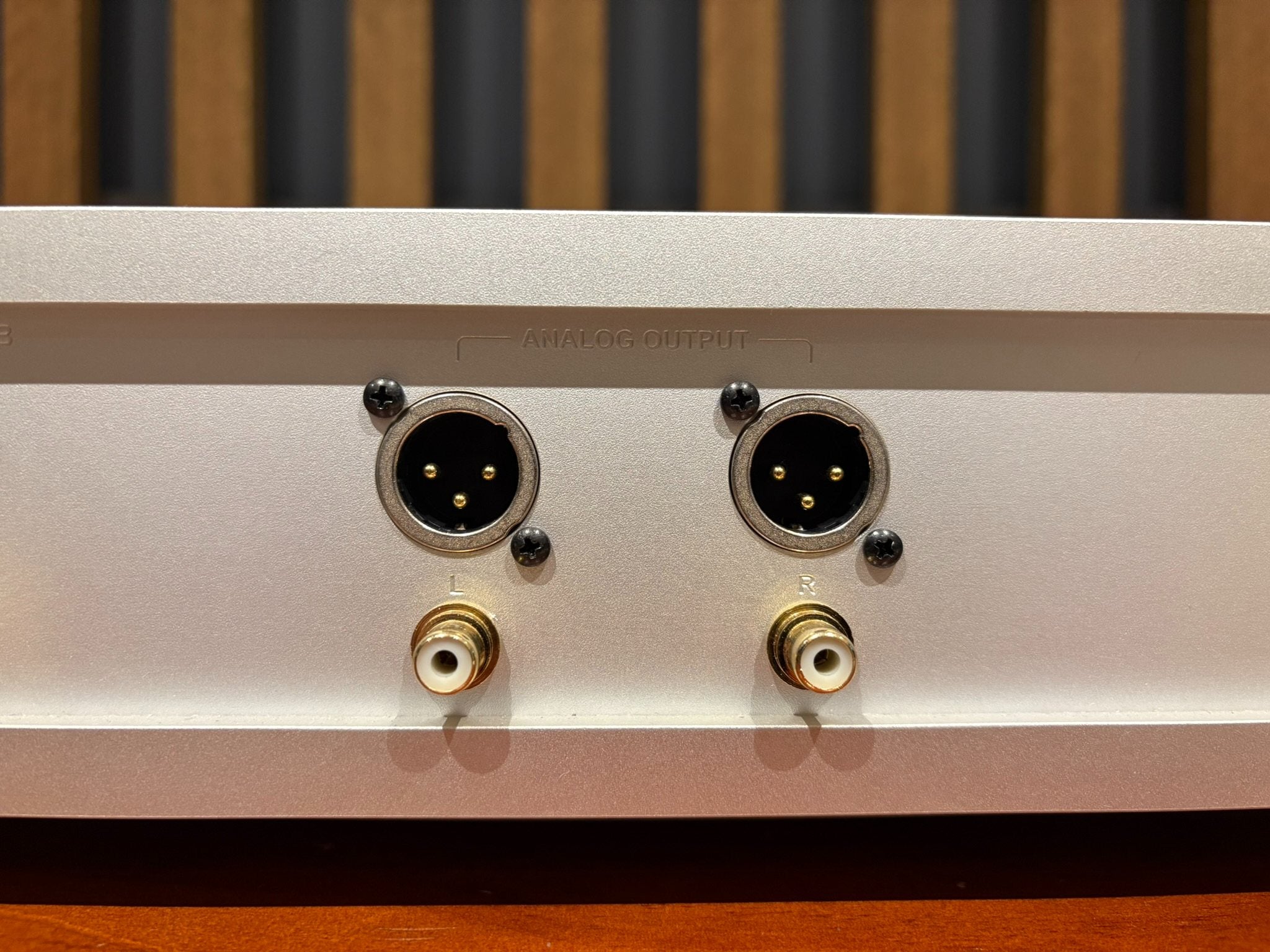

Analogue outputs: 2/8 XLR outputs, 2/8 RCA outputs, ¼” and mini-jack headphone sockets
Precision: S/PDIF to 24 bit/96kHz PCM; AES/EBU to 24 bit/192 kHz PCM; Ethernet to 24 bit/384kHz PCM, DXD and DSD 256 maximum
Formats supported: PCM, DXD, DSD
Impedance: 40Ω (XLR and headphone output), 20Ω (RCA)
Max. output level: 6.1Vrms (XLR), 2.1Vrms (RCA), 4Vrms (headphones)
THD+N: 0.00022% (multichannel XLR and RCA), 0.00016% (stereo XLR), 0.0002% (stereo RCA), 0.00028% (headphones)
Dynamic range: 124dB(A) multichannel XLR, 130dB(A) stereo XLR, 120dB(A) stereo XLR, 123dB(A) stereo RCA and headphones
Dimensions (W×D×H): 43.5×43.5×9.5cm
Weight: 11kg
