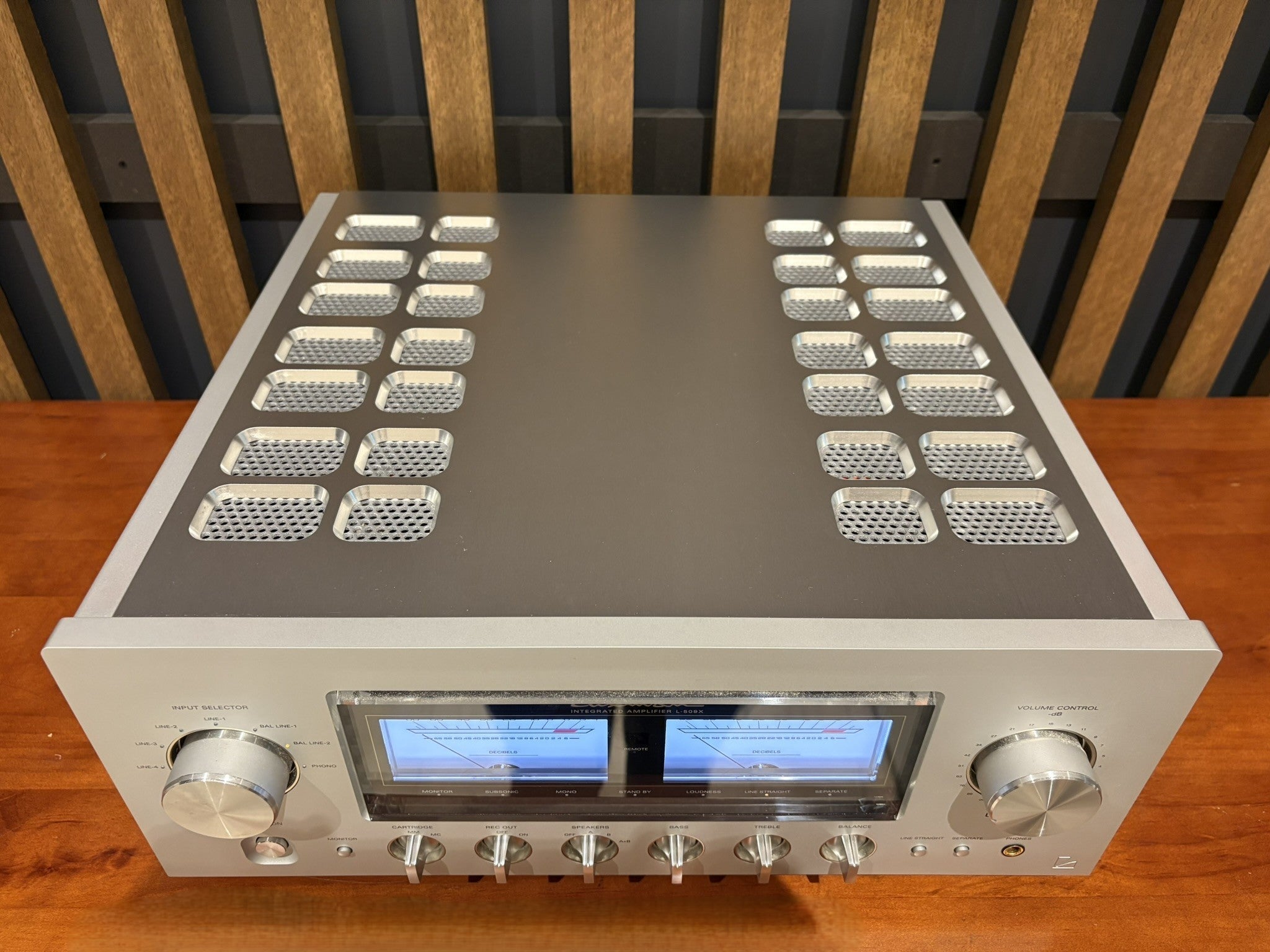

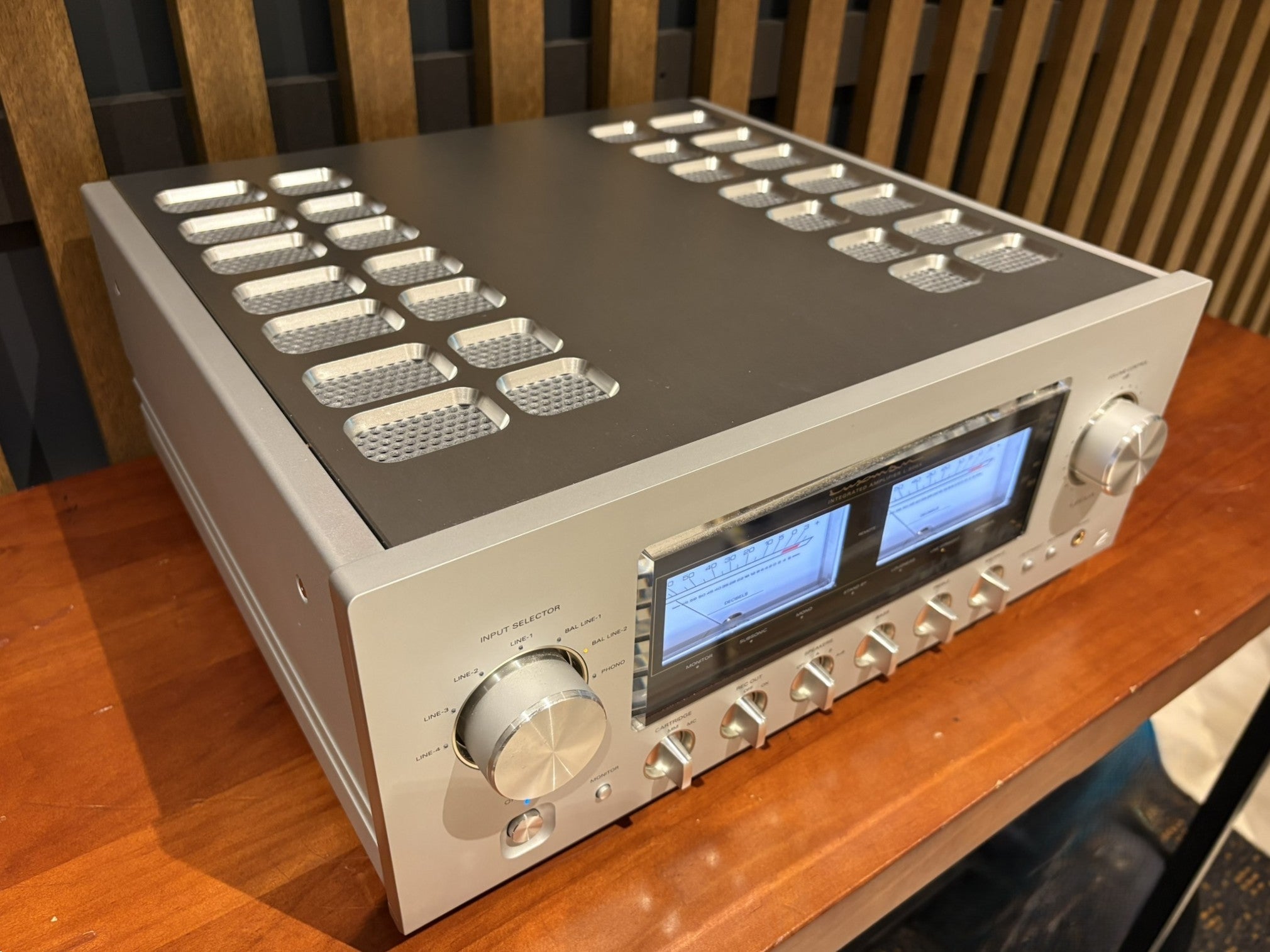

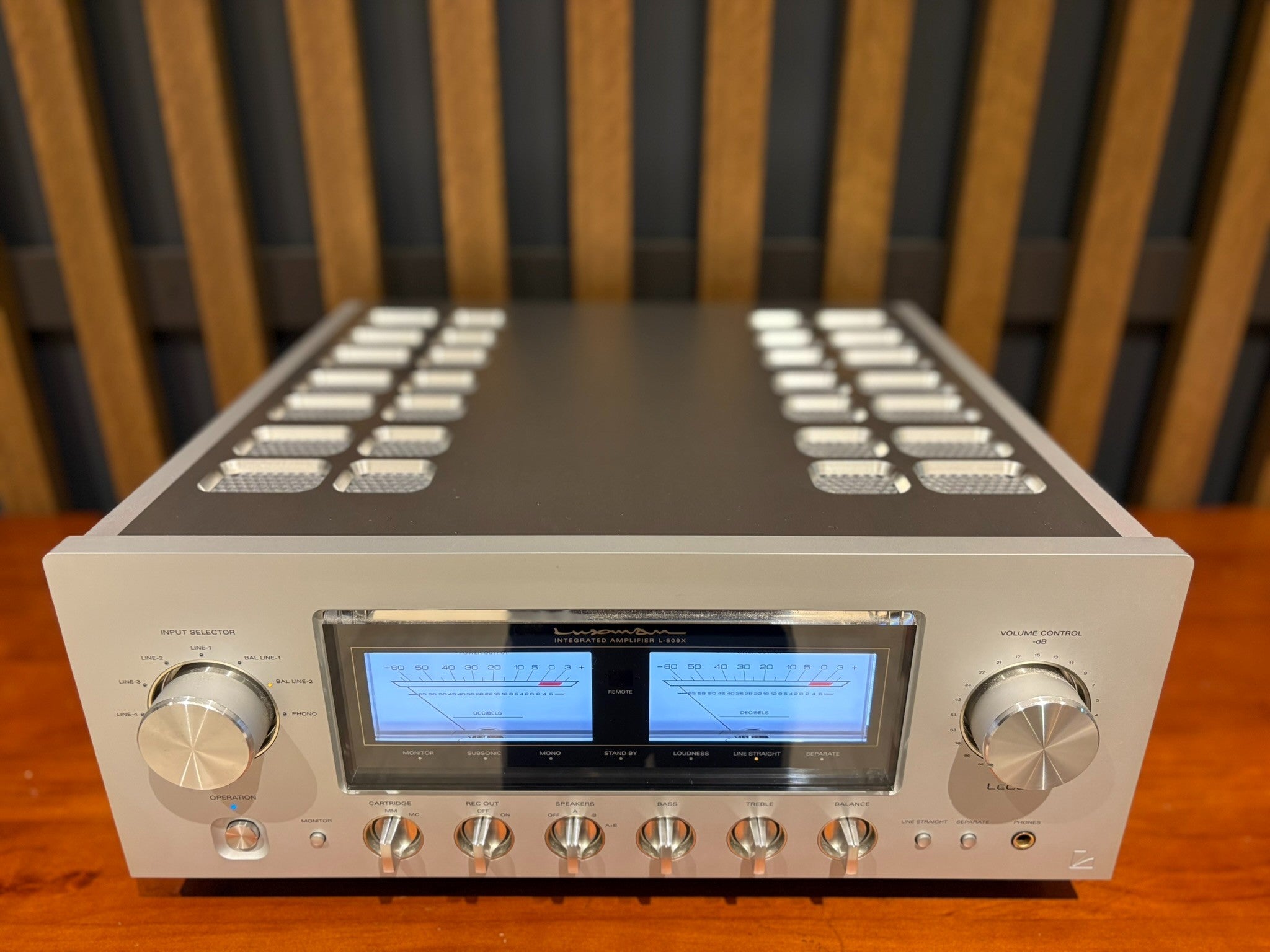

Luxman L-509X Integrated Amplifier - Consignment

Luxman L-509X Integrated Amplifier - Consignment

Condition: Excellent, no obvious damage

Includes: Original Packaging, Remote Control, Manual, Power Cable

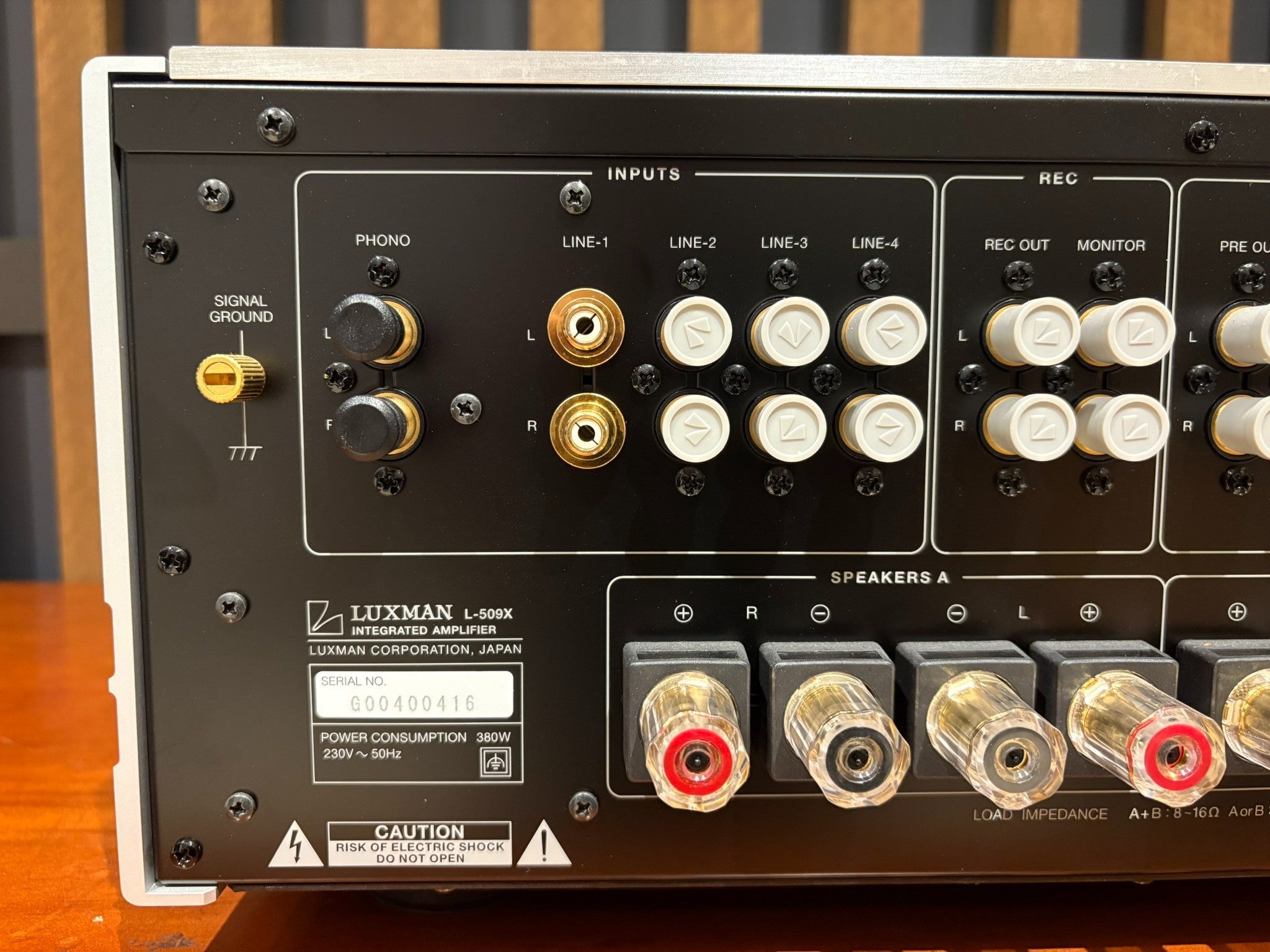

SN: L000400416

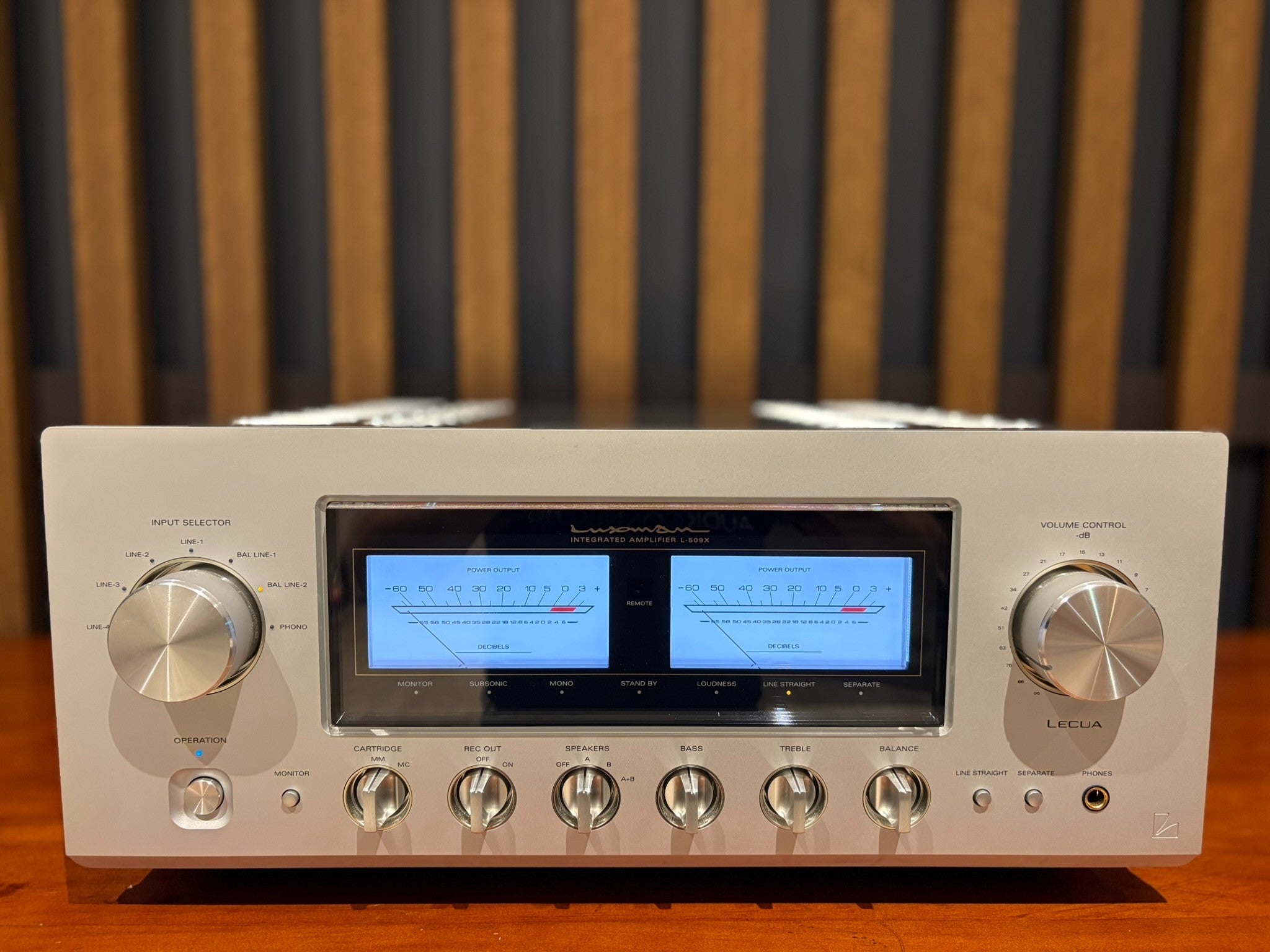

Overview

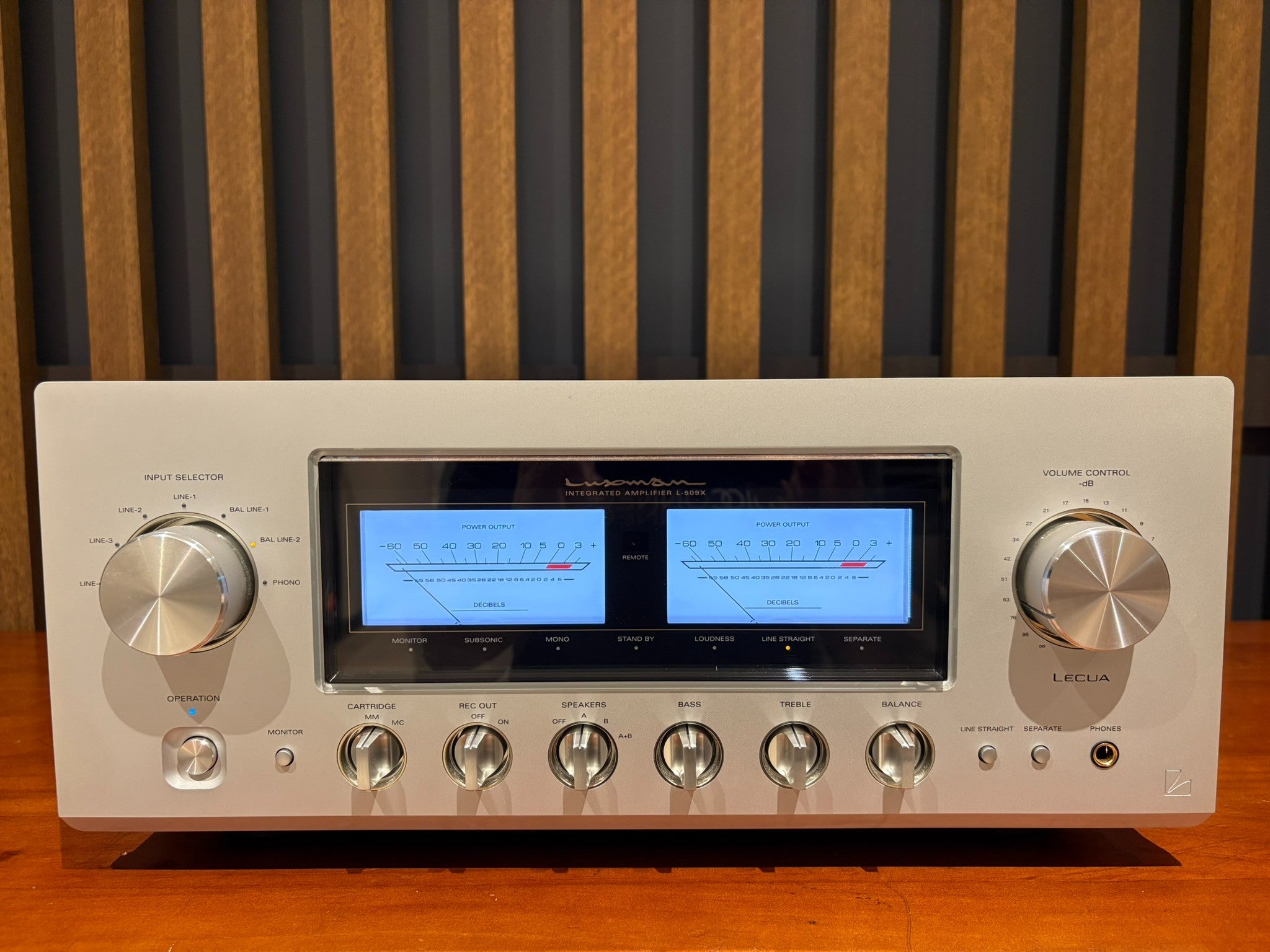

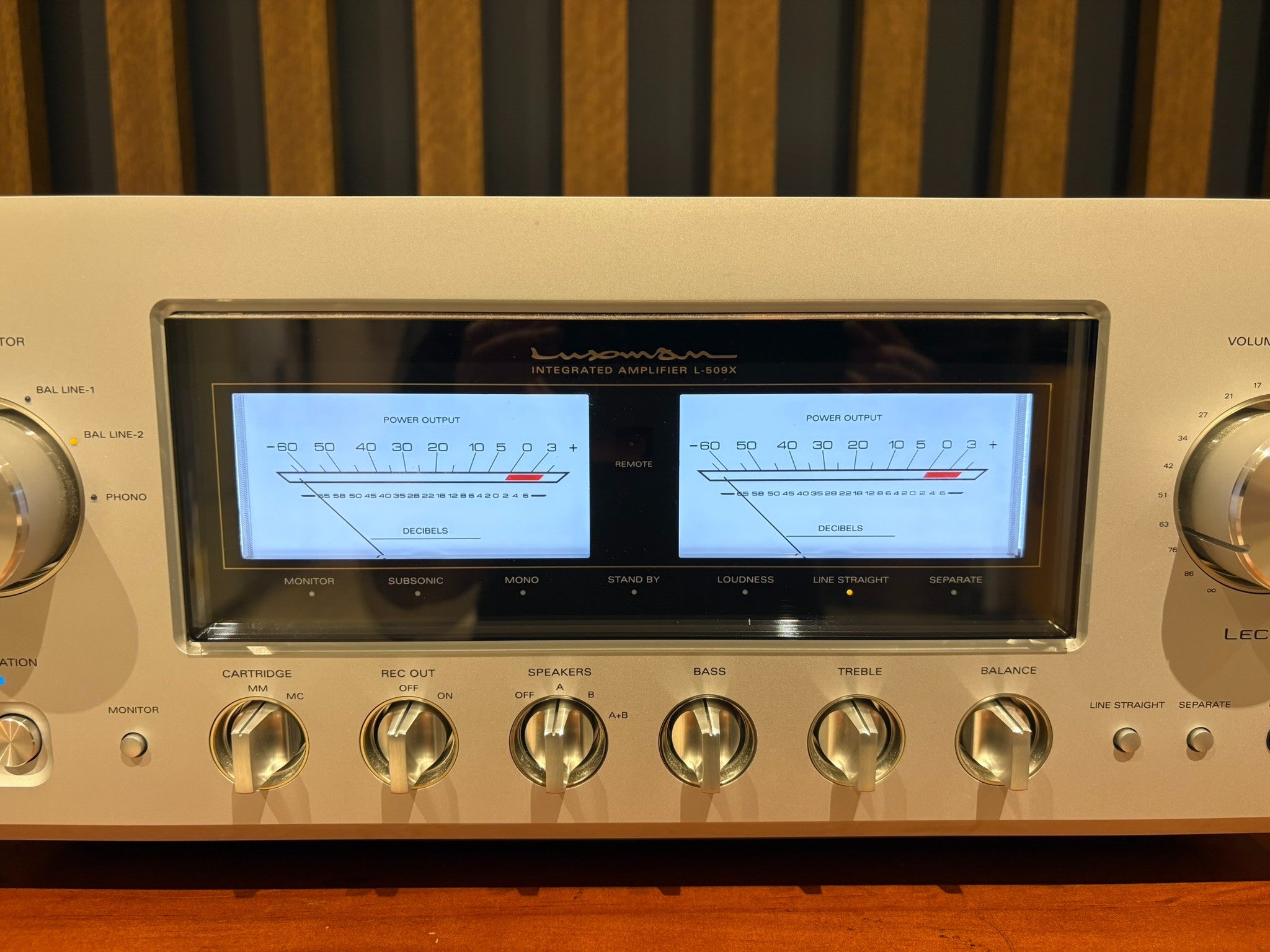

Luxman's L-509X integrated amplifier has a slew of high level technology and design principals, but they're easy to forget when the music starts to play and the true analogue VU-meters start to dance.

Seriously though, Luxman has spared no expense designing and building the 509X, in their own words a "refinement of separates in a single unit". The amplifier section is based on a 3-stage Darlington circuit where only the distorted components of the audio signal from the output of the amplification circuit are fed back.

The unit can be used as a power amplifier bypassing the internal preamp section, or as a preamplifier bypassing the internal power amp output.

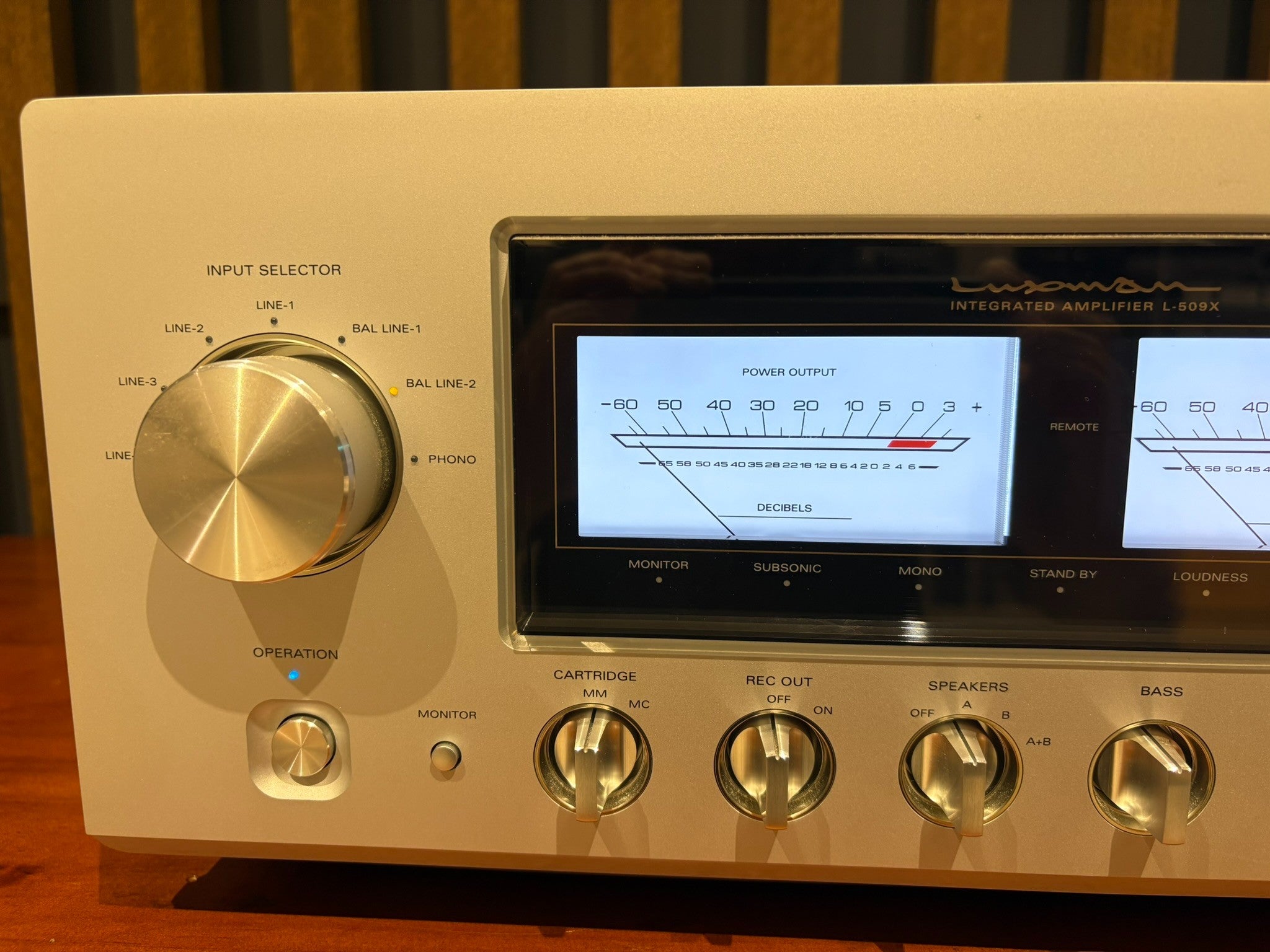

Vinyl enthusiasts are also covered with a single phono input switchable from MM to MC via the front panel.

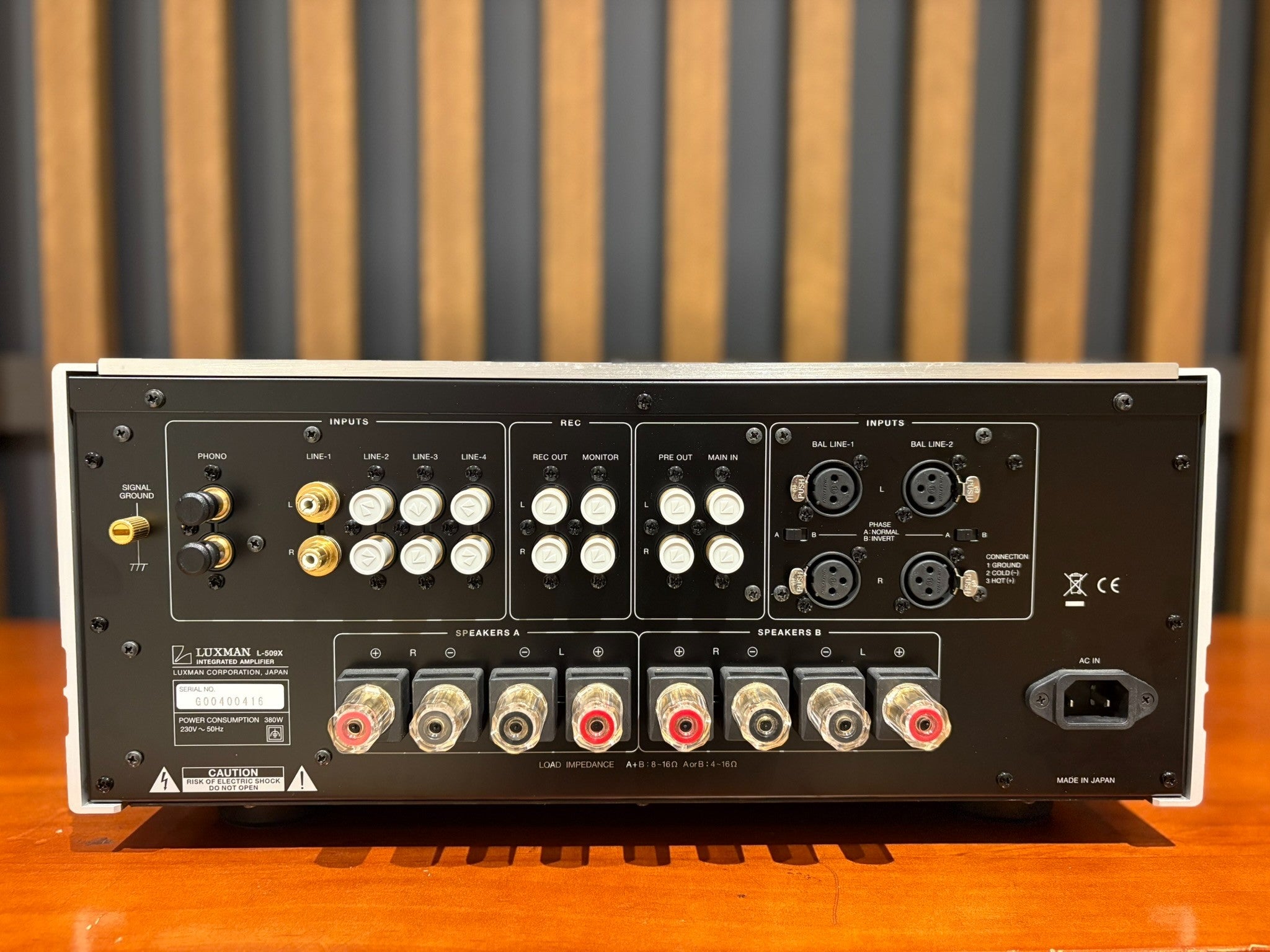

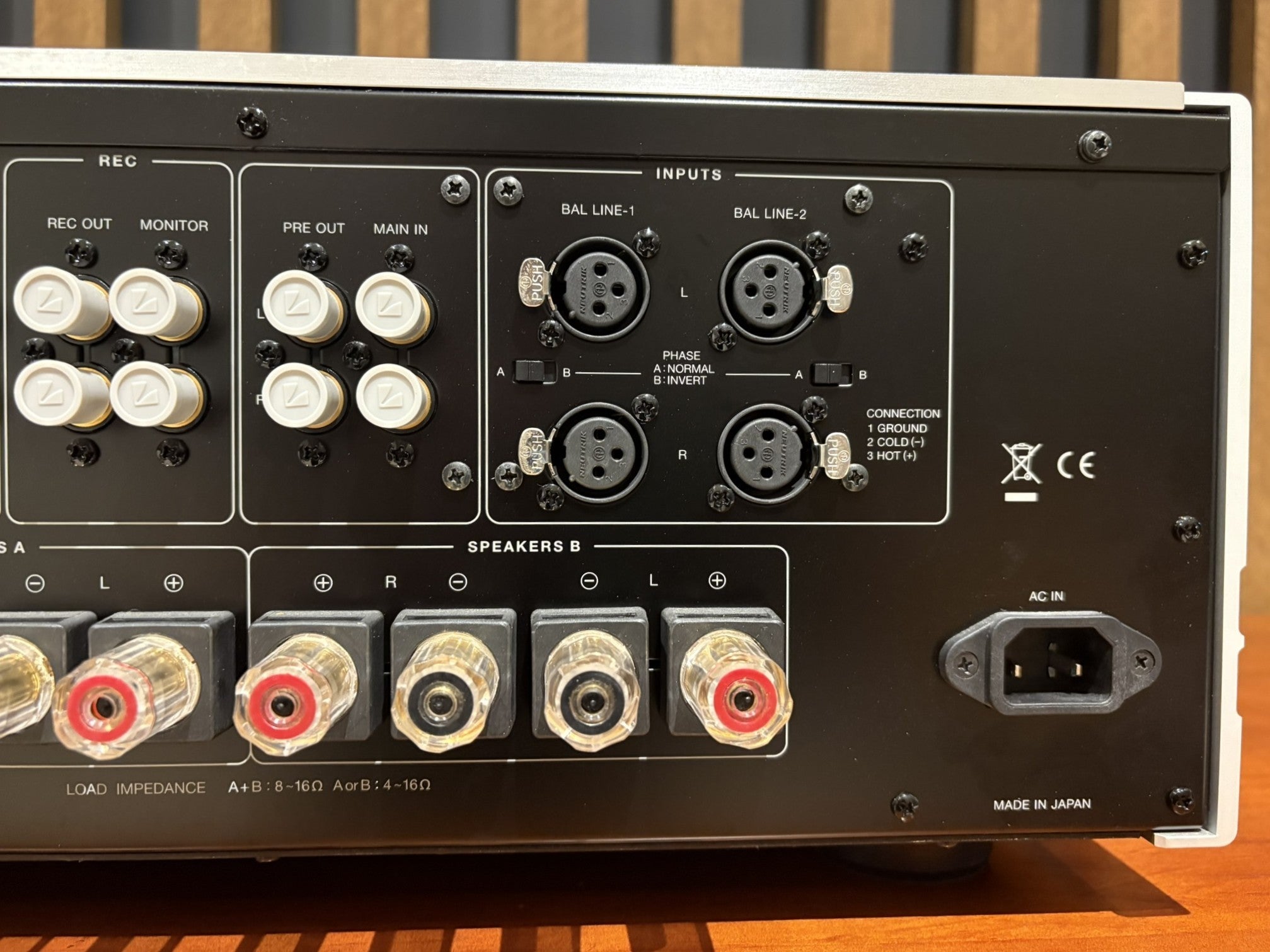

Not one, but two XLR inputs avoid you having to pick which input device to run balanced.

Crack-resistant peel coat PCBs for the amplifier boards feature the non-angled, direct wiring pattern, known as the original LUXMAN Beeline construction.

The power supply features a 600 VA EI-core-type power transformer and independent left and right channel large capacity blocking capacitors with 10,000μFx4 per channel.

• ODNF (Only Distortion Negative Feedback) Version 4.0 innovative amplification feedback circuit
• Copper alloy terminals
• Gradation cast-iron feet
• High stability power supply
• Discrete buffer circuit
• Increased damping factor
• New LECUA (Luxman Electronically Controlled Ultimate Attenuator) 1000 computerized attenuator

Specification

Rated output 120W + 120W (8Ω), 220W + 220W (4Ω)
Input sensitivity/input impedance   
PHONO (MM): 2.5mV/47kΩ
PHONO (MC): 0.3mV/100Ω
LINE: 180mV/47kΩ
BAL.LINE: 180mV/55kΩ
MAIN-IN: 1.1V/47kΩ
Output voltage REC OUT: 180mV, PRE-OUT: 1V

Frequency response      
PHONO: 20Hz to 20kHz (±0.5dB)
LINE: 20Hz to 100kHz (within -3dB)
Total harmonic distortion 0.007% or less (8Ω, 1kHz), 0.06% or less (8Ω, 20Hz to 20kHz)
S/N ratio (IHF-A) 
PHONO (MM): 91dB or more
PHONO (MC): 75dB or more
LINE: 105dB or more

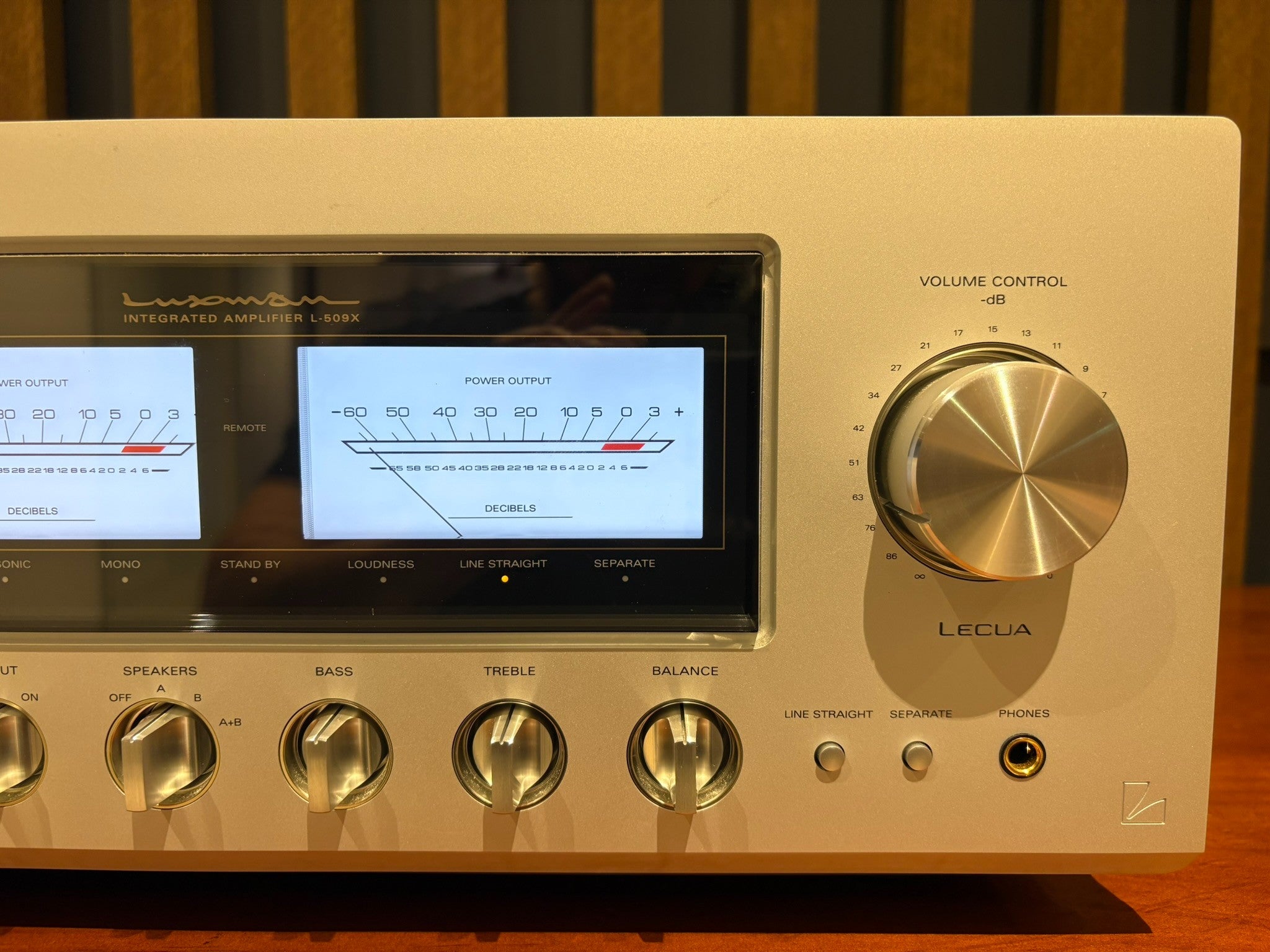

Volume adjustment New LECUA1000
Amplification circuit ODNF 4.0
Output configuration Bipolar 4-parallel push-pull
Damping factor 370
Max. amount of tone control BASS: ±8dB at 100Hz, TREBLE: ±8dB at 10kHz
Power supply 230V~(50Hz)
Power consumption 380W, 150W (under no signal), 0.5W (at standby)
External dimensions 440(W) x 193(H) x 463(D) mm
front side knob of 20mm and rear side terminal of 37mm included in depth
Net weight  29.3kg (main unit)

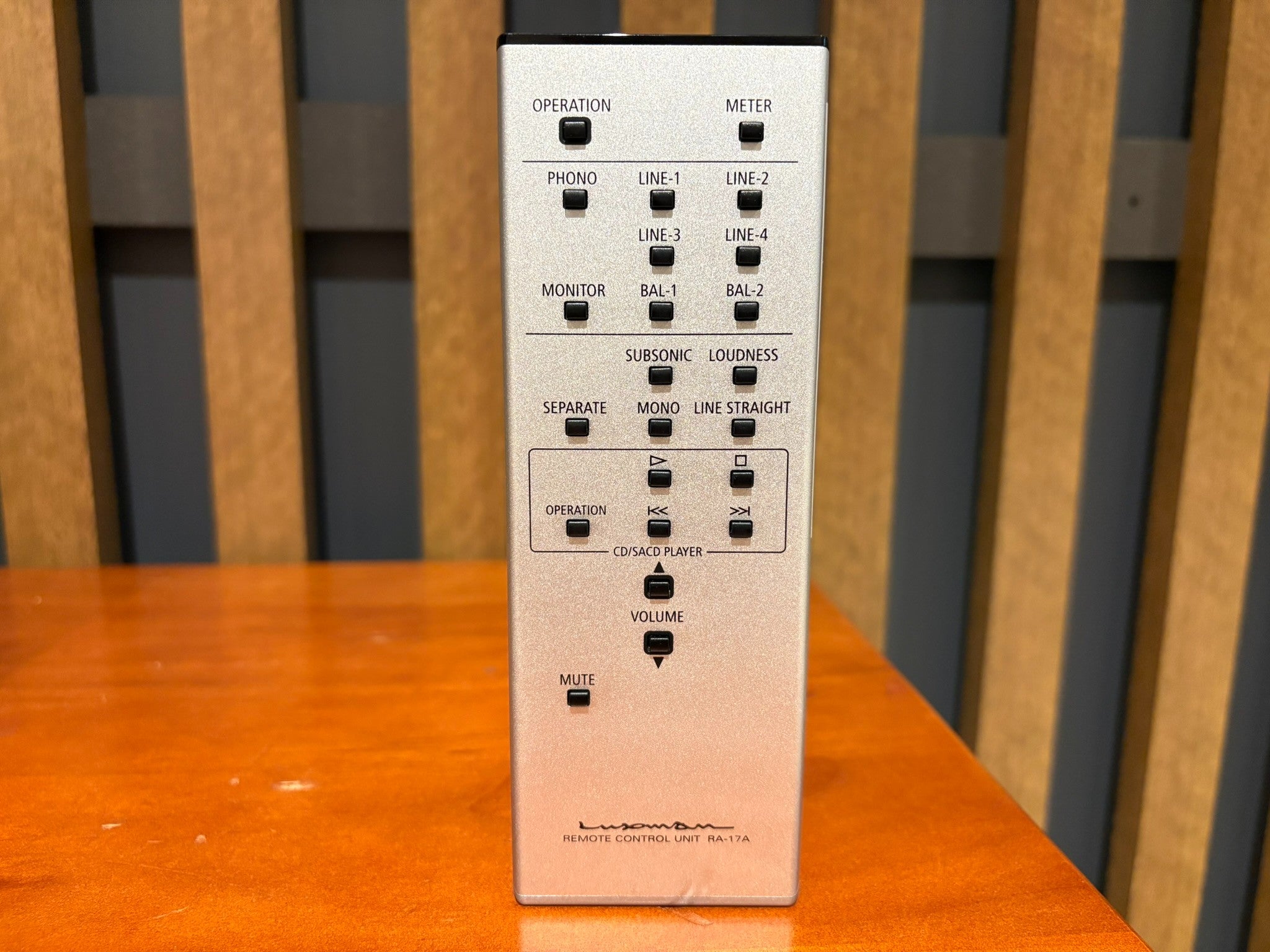

Accessories Remote control (RA-17A)

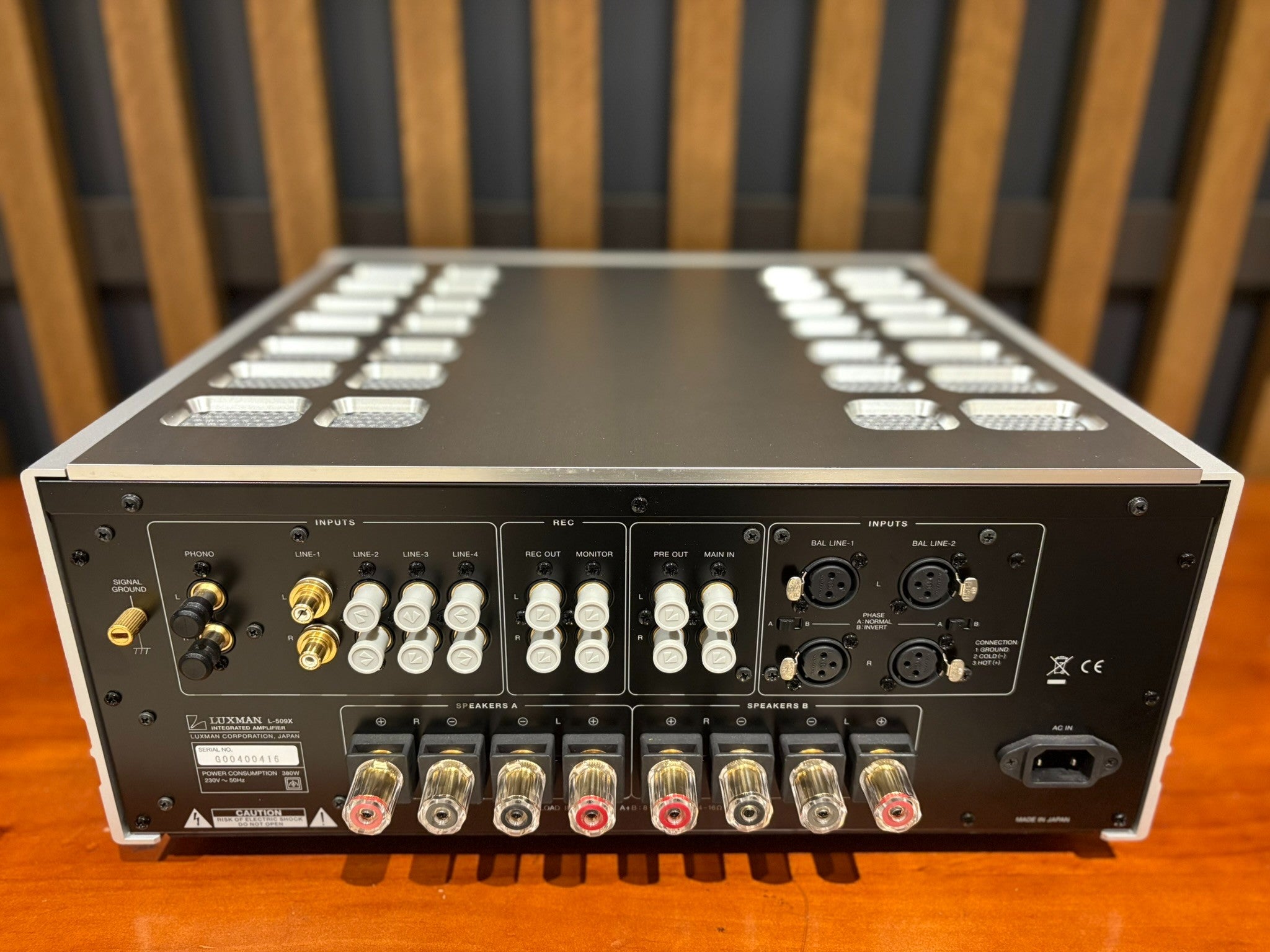

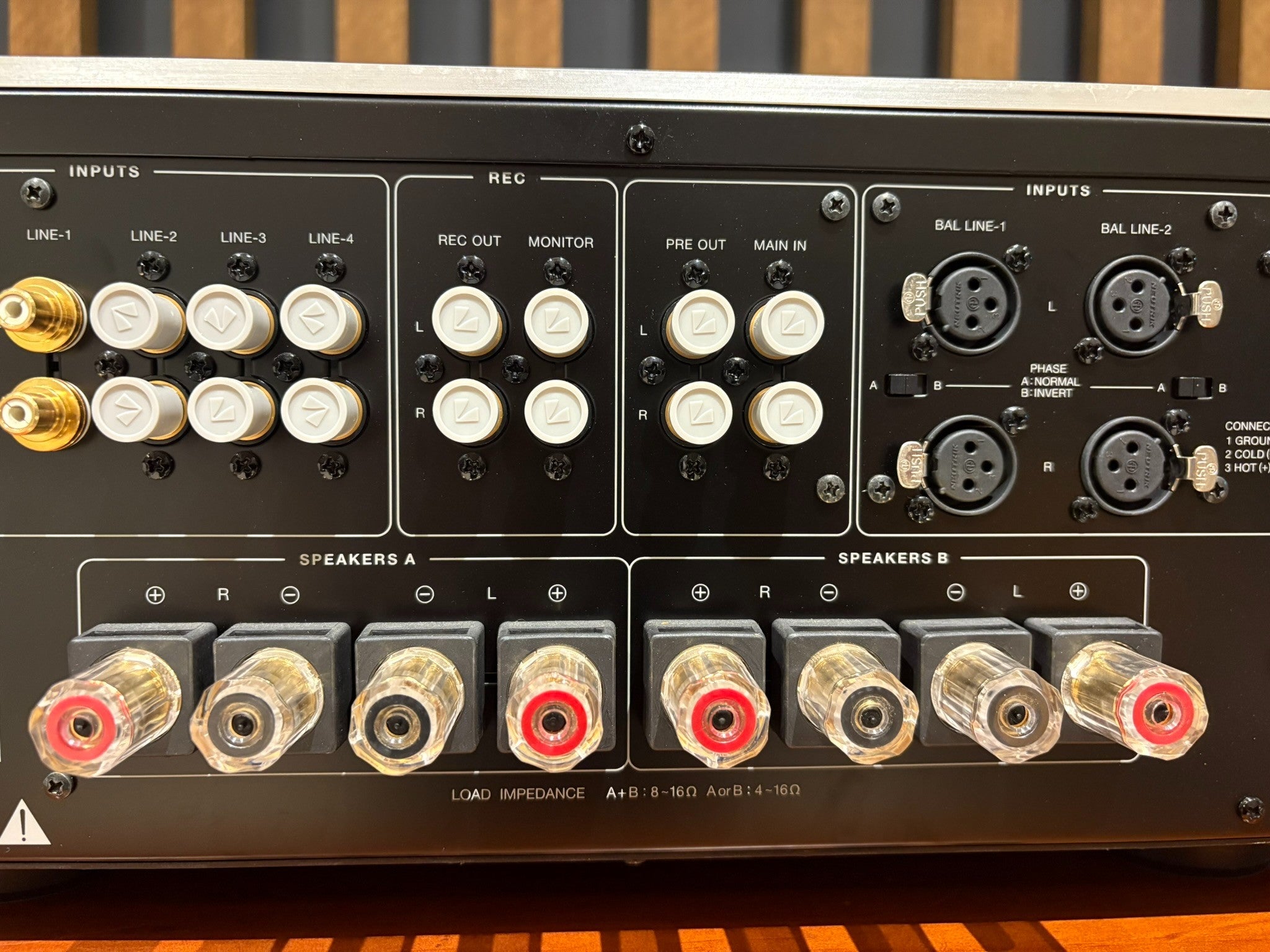

Speaker terminal
Supported Y-lug terminal dimension   
Width of part a: 16mm or less
Width of part b: 7mm or more
* Connection may not be performed depending on the shape of the Y-lug terminal.
