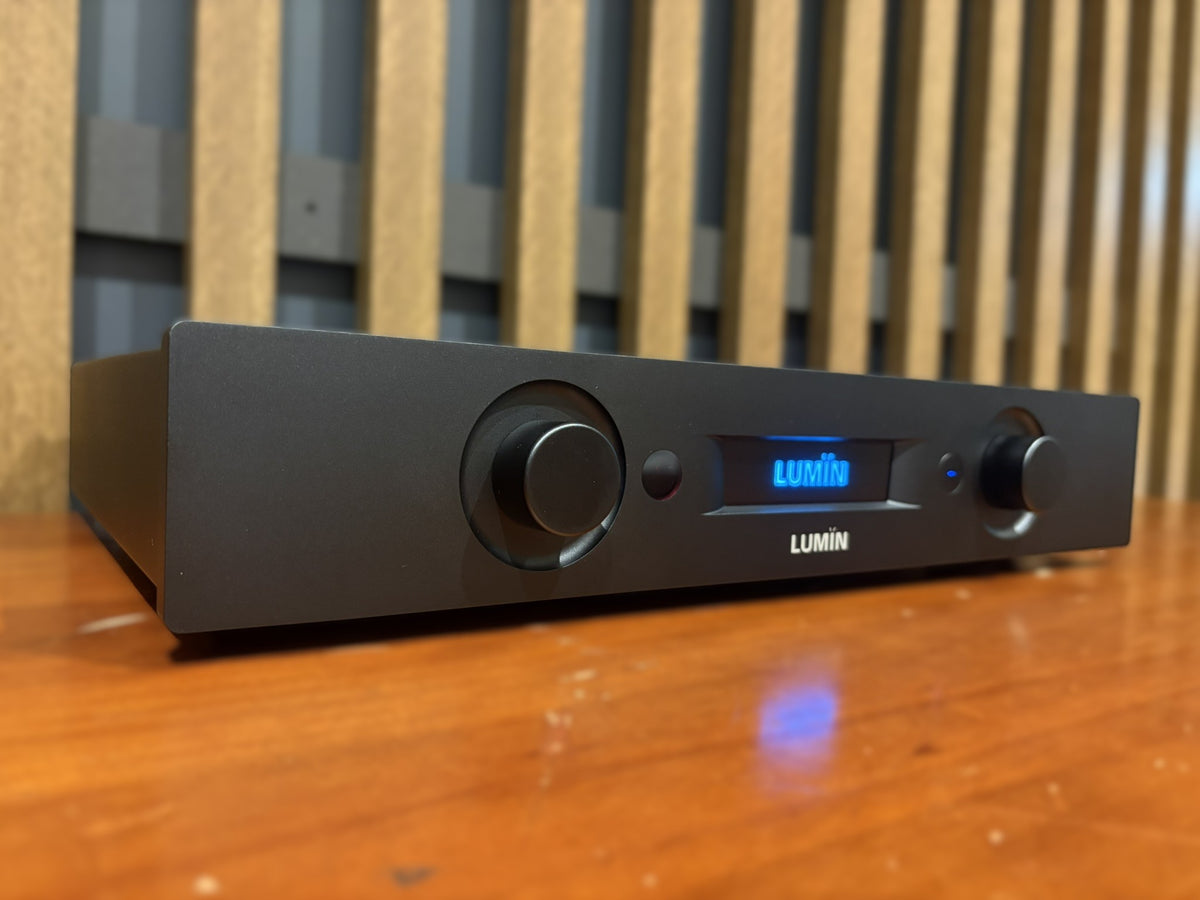

Lumin P1 Mini Network Player, Black - As Traded
Pickup available at Audio Connection
Usually ready in 5+ days
Lumin P1 Mini Network Player, Black - As Traded
Audio Connection
515 Parramatta Road
Leichhardt NSW 2040
Australia

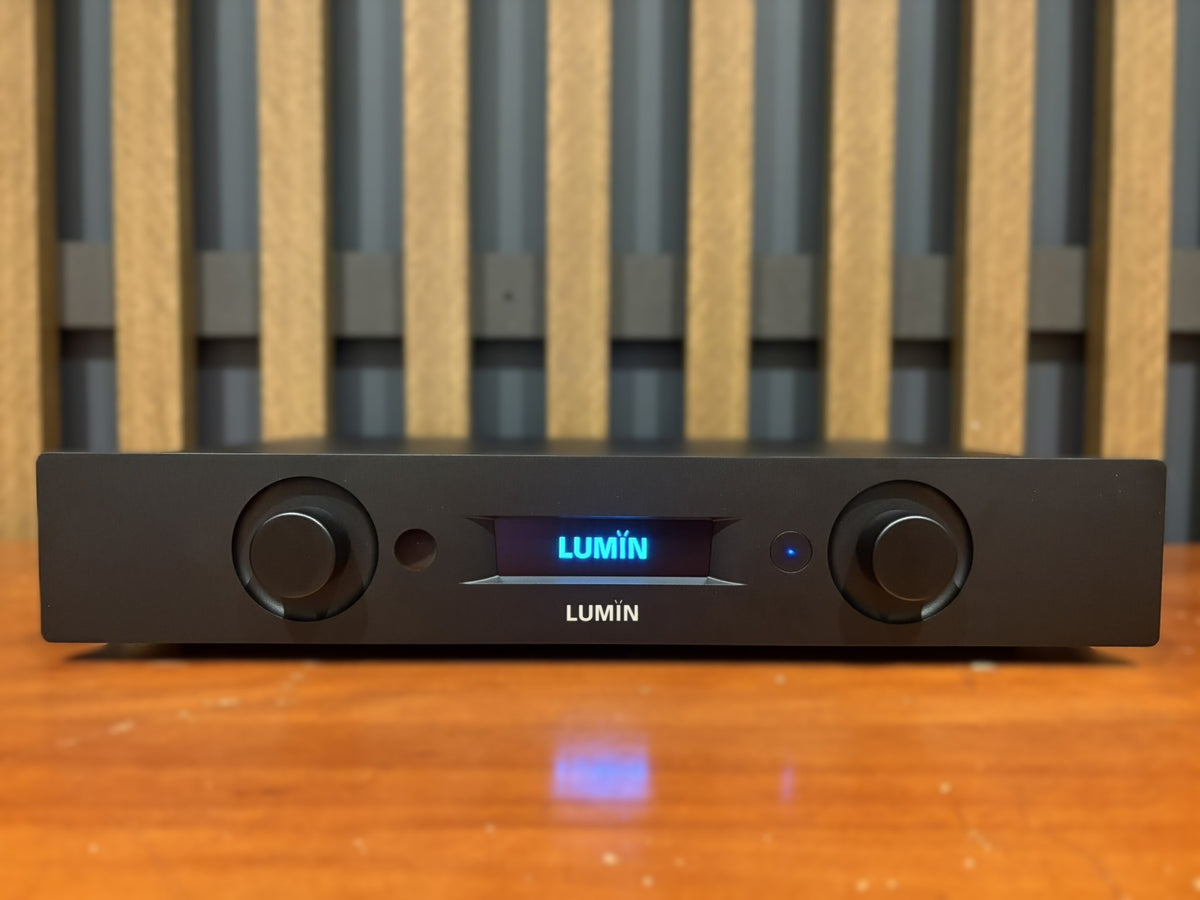

Lumin P1 Mini Network Player, Black - As Traded

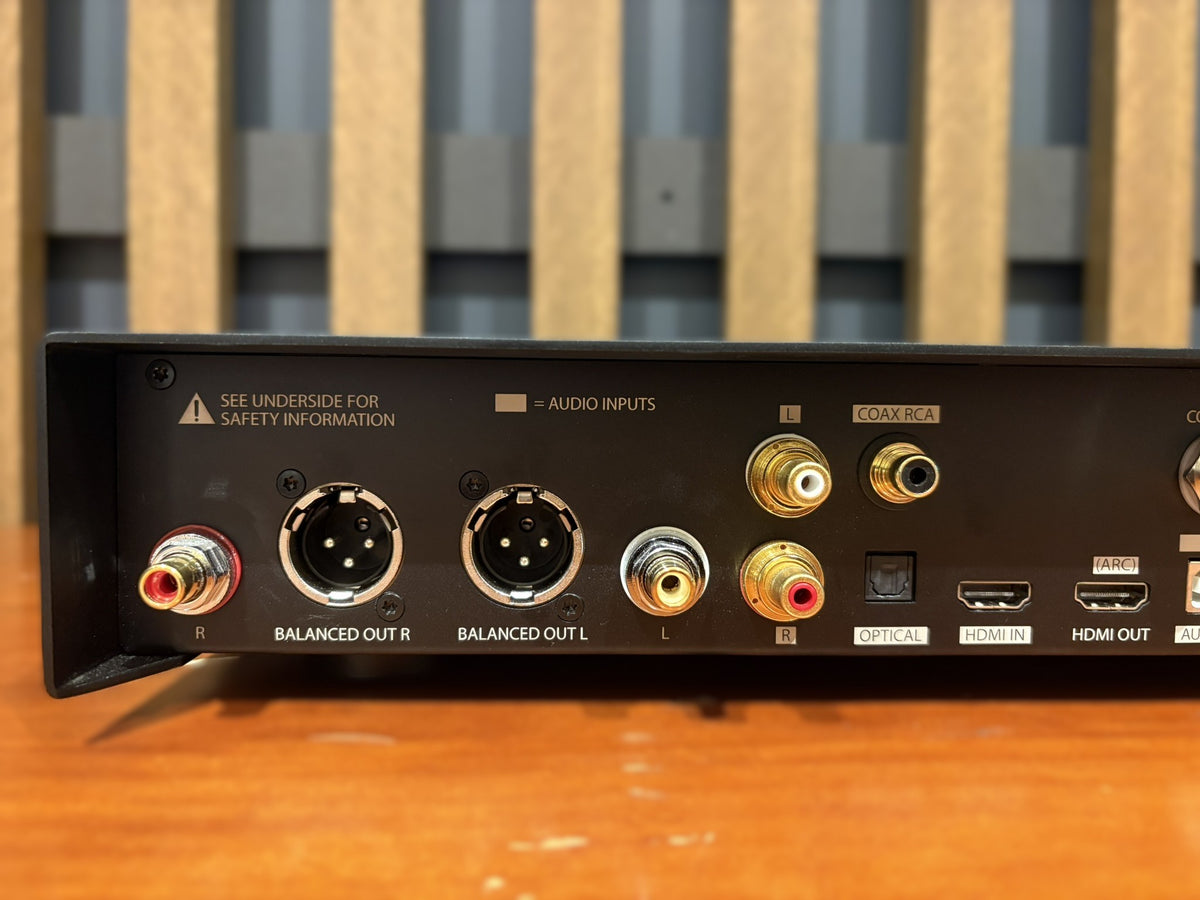

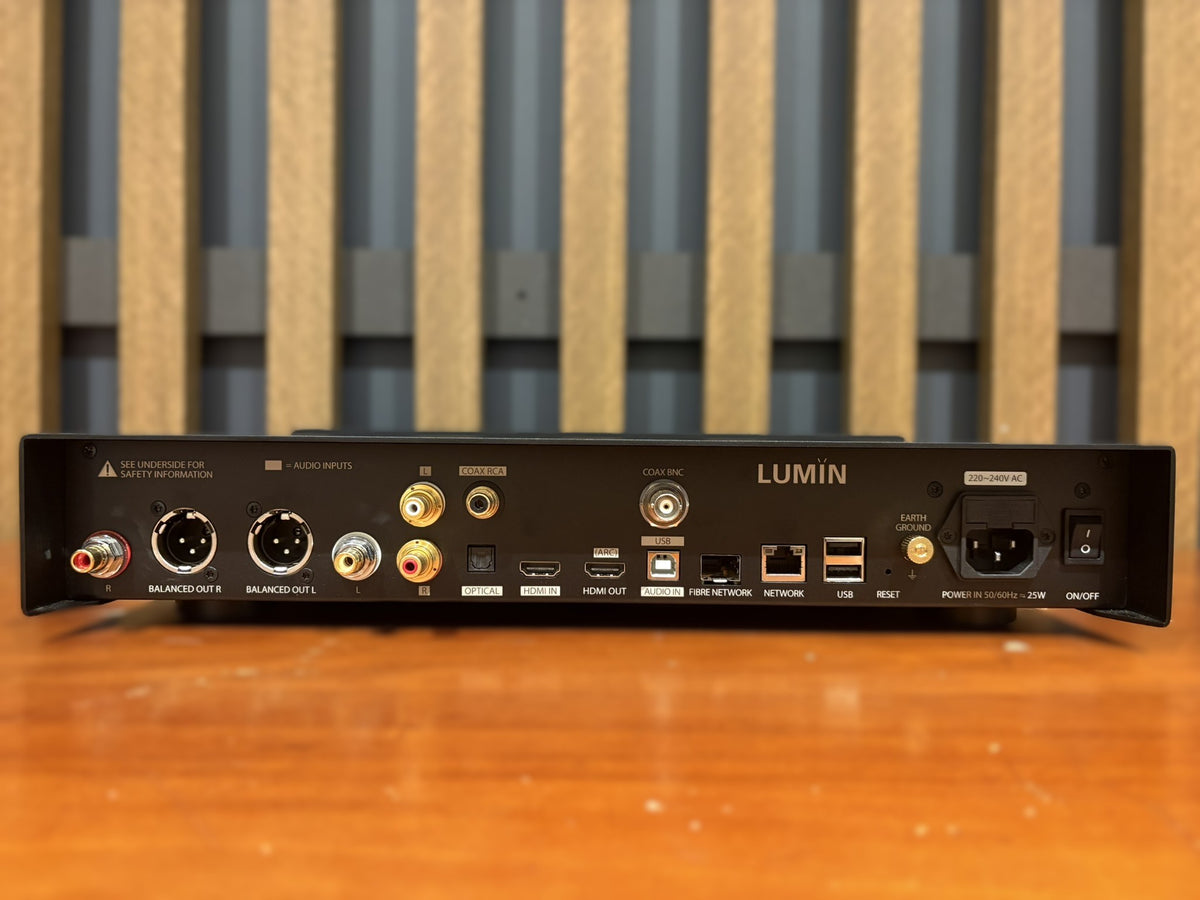

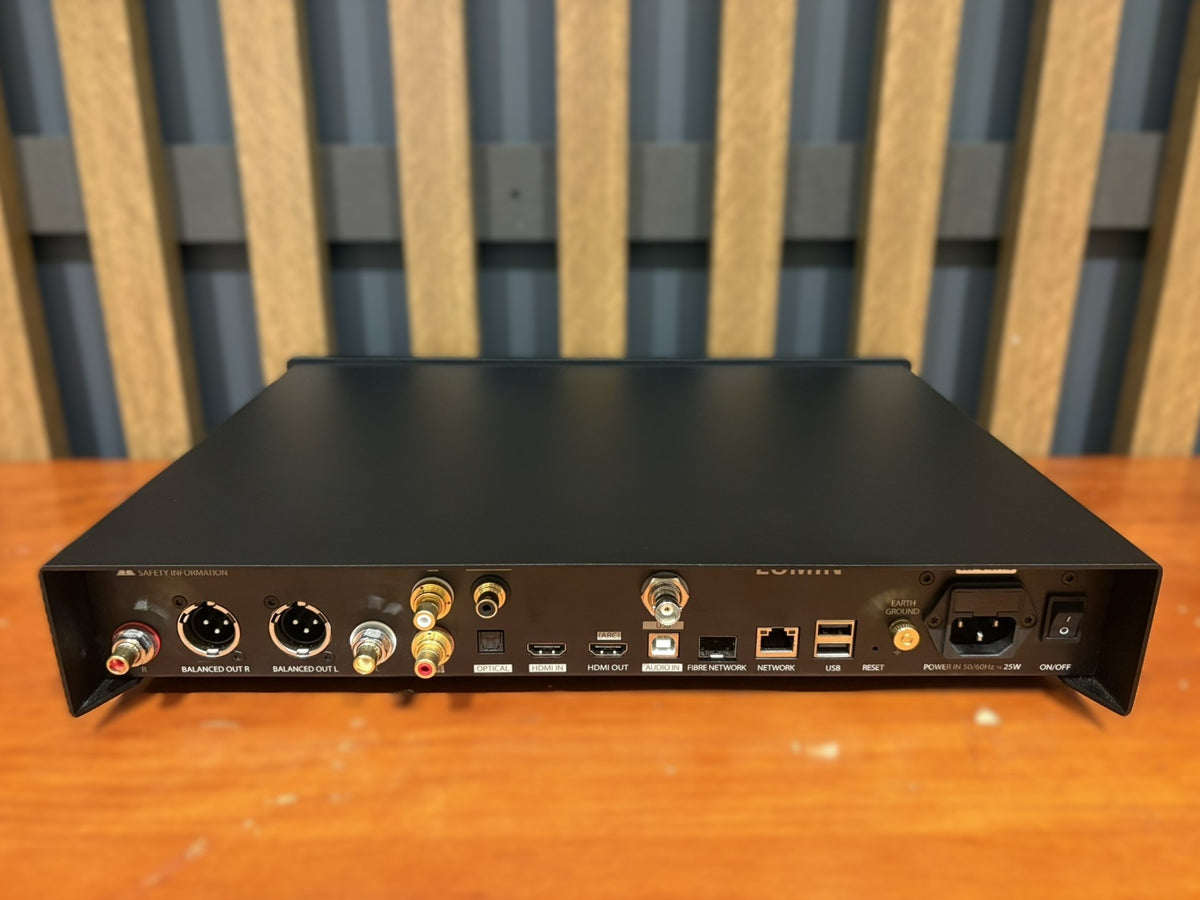

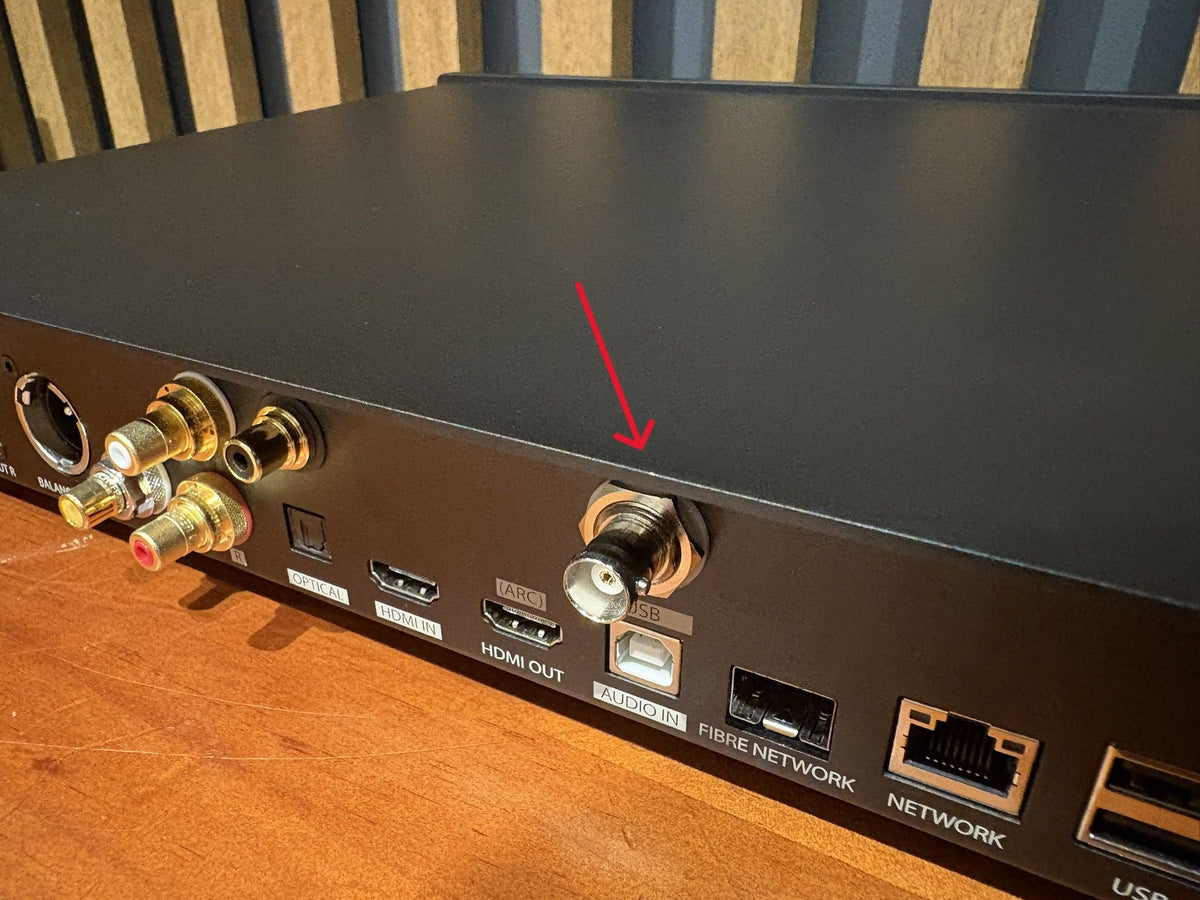

Condition: Used. Very good, one small chip on rear top edge (See photos)

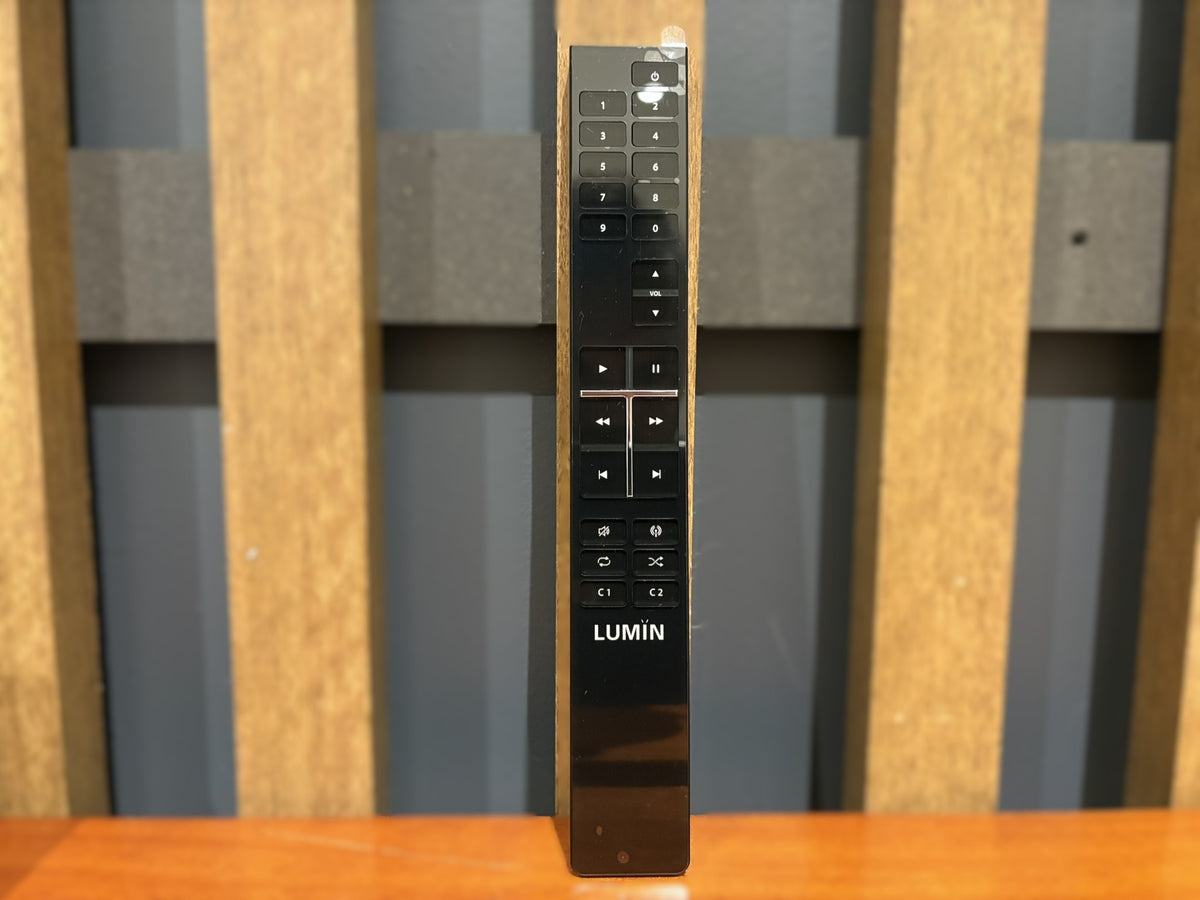

Includes: Remote, manual, power cable, original inner and outer carton
SN: 60240424-09-0837-1000166
Includes 90 day (3 month) warranty
Overview
LUMIN P1 Mini distils flagship features from the outstanding LUMIN X1 including optical networking to provide complete isolation from network noise, dual Femto crystal oscillators and Lumin's proprietary FPGA clock distribution system, and an internal toroidal linear power supply.
P1 combines music streaming, digital-to-analogue conversion and preamplifier functionality in a compact solid aluminium chassis. USB, optical/SPDIF, HDMI ARC and stereo analogue inputs are offered in addition to support of high-resolution music playback through a wide range of streaming services, including TIDAL, Qobuz and Spotify, with Roon integration and AirPlay compatibility.
LUMIN's Leedh Processing lossless digital volume control also allows the P1 Mini to operate directly as a digital preamplifier.
The fully balanced DAC section is built around the dual ES9028PRO devices with XLR and RCA outputs for connecting to a wide range of amplifiers.
- Five inputs including USB, HDMI, SPDIF and Analogue
- HDMI with stereo input + AV Passthrough & ARC
- Dual DAC ES9028PRO
- DSD512 & PCM384
- Femto Clock System with precision FPGA distribution
- New internal toroidal linear power supply
- Dual Network with Optical Fibre Network support
- Leedh Processing lossless volume control
Specification
Network Playback Up to DSD512, Up to 384 kHz, 16–32-bit, Stereo, MQA Full Decoding
Upsampling Rates & Bit Depths DSD128 upsampling option for all files, PCM 384kHz upsampling option for all files
Digital Input – USB USB Audio Class 2 Compatible, WINDOWS 10 (Release 1703 or above) / Mac OSX or above, DoP 128 support, PCM 44.1–384 kHz, 16 / 32-bit, Stereo
Digital Input – Optical/SPDIF PCM 44.1 kHz–192 kHz, 16–24-bit, DSD64 (DoP64, DSD over PCM)
Digital Input – HDMI PCM 2.0 Audio support, 4K Video Passthrough
Digital Output – USB Native DSD512 support, PCM 44.1–384 kHz, 16–32-bit, Stereo
Digital Output – BNC SPDIF PCM 44.1 kHz–192 kHz, 16–24-bit, DSD64 (DoP64, DSD over PCM)
Digital Output – HDMI PCM 2.0 Audio support, 4K Video Passthrough, ARC (Audio Return Channel) support
Analogue Input RCA Stereo x1
Analogue Output Dual ESS SABRE32 ES9028Pro DAC chips, Fully balanced layout with high-quality components, Femto Clock System with precision FPGA distribution
Optical Network Industry-standard Gigabit SFP, 1000Base-T Gigabit Ethernet, Adapter may be needed for your particular switch/cables, Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)
Power Supply Internal toroidal linear, Low-noise linear regulator
LUMIN (Solid Aluminium Chassis) 400mm (W), 314mm (D), 77mm (H), 7kg
Streaming Protocol UPnP AV protocol with audio streaming extension (OpenHome), Roon Ready, TIDAL Connect, Spotify Connect, Flac lossless Radio stations, AirPlay-compatible, Gapless Playback, On-Device Playlist
App Features Native support for TIDAL, MQA, Qobuz and TuneIn Radio, Tidal MAX and MQA icons to identify high-res music, Qobuz high-res icons to identify high-res music, Volume control, High-resolution artwork, Artwork caching, Search, Multiple tag handling, Composer tag support, Album-grouping in playlist, Automatic internet links to artists/album/songs, Saving and restoring of playlists (including Tidal and Qobuz)
Supported Audio File Formats DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD); PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF; Compressed (lossy) Audio: MP3; MQA
Input Gigabit Ethernet Network (1000BASE-T) RJ45, Shared USB port can also be used for storage, flash drive, USB hard disk (Single-partition FAT32, exFAT and NTFS only)
Analogue Audio Outputs XLR balanced, 6Vrms, pin 2 Hot; RCA unbalanced, 3Vrms
Supported Control Devices Apple devices. iOS 11.0 or later (List of supported devices), Android devices. Android 4.0 (Ice Cream Sandwich) or later required, Apple Silicon. macOS 11 or later. (Download the iOS App from the iOS App Store), Chromebook. Google Play Store required.
Other Leedh Processing lossless digital volume control, Programme of Continuous Development – Firmware-upgradable for further features and enhancements
AUDIO CONNECTION QUALITY GUARANTEE✔️Comprehensive three month warranty on Trade In's*
✔️Passed our checks for functionality
✔️A full inspection noting for any defects
✔️A full completeness check for all included parts and accessories
