LINN Turntable Sub-chassis
- Machined from solid aluminium
- Integrated armboard and tonearm collar
- Varying 'pocket' depths for consistent centre of gravity
- Available for Ekos SE & Ekos tonearms

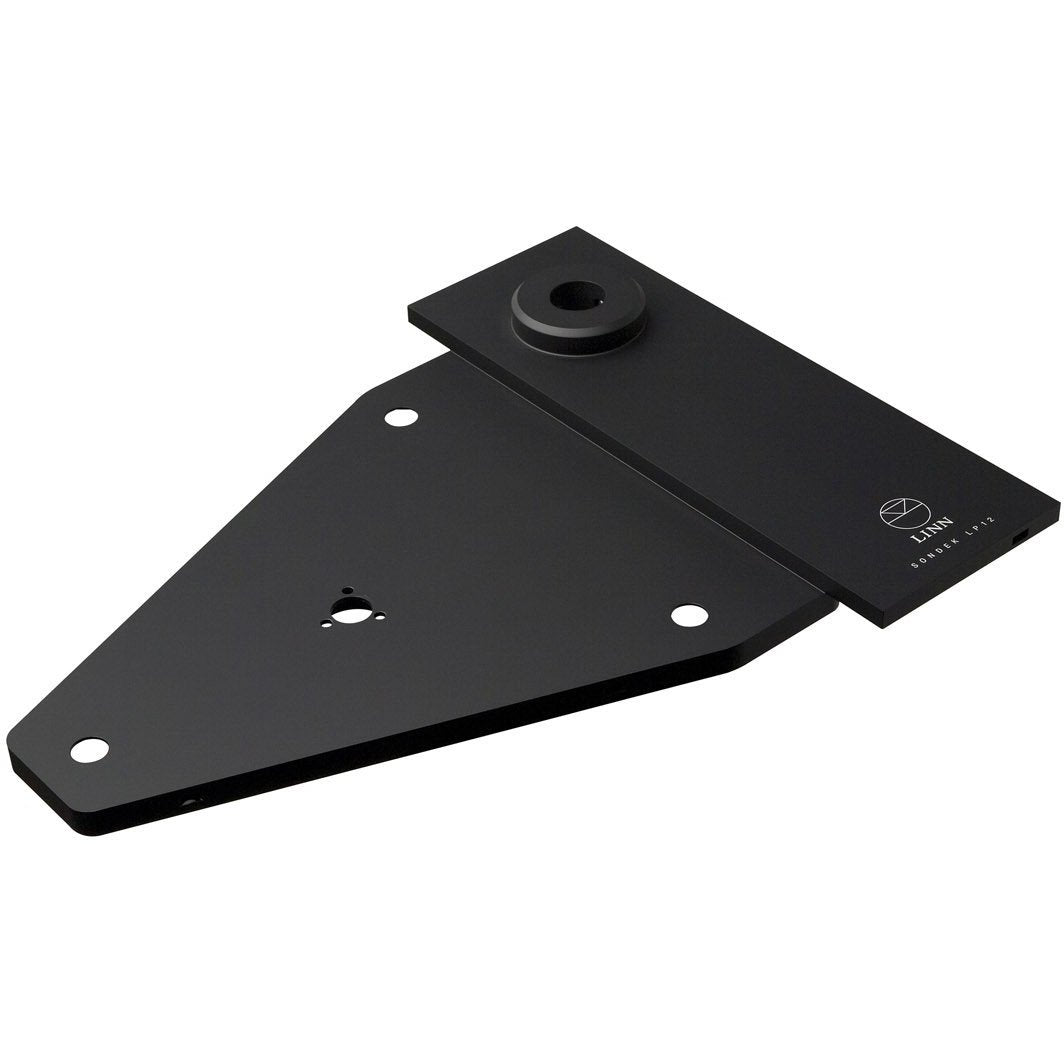

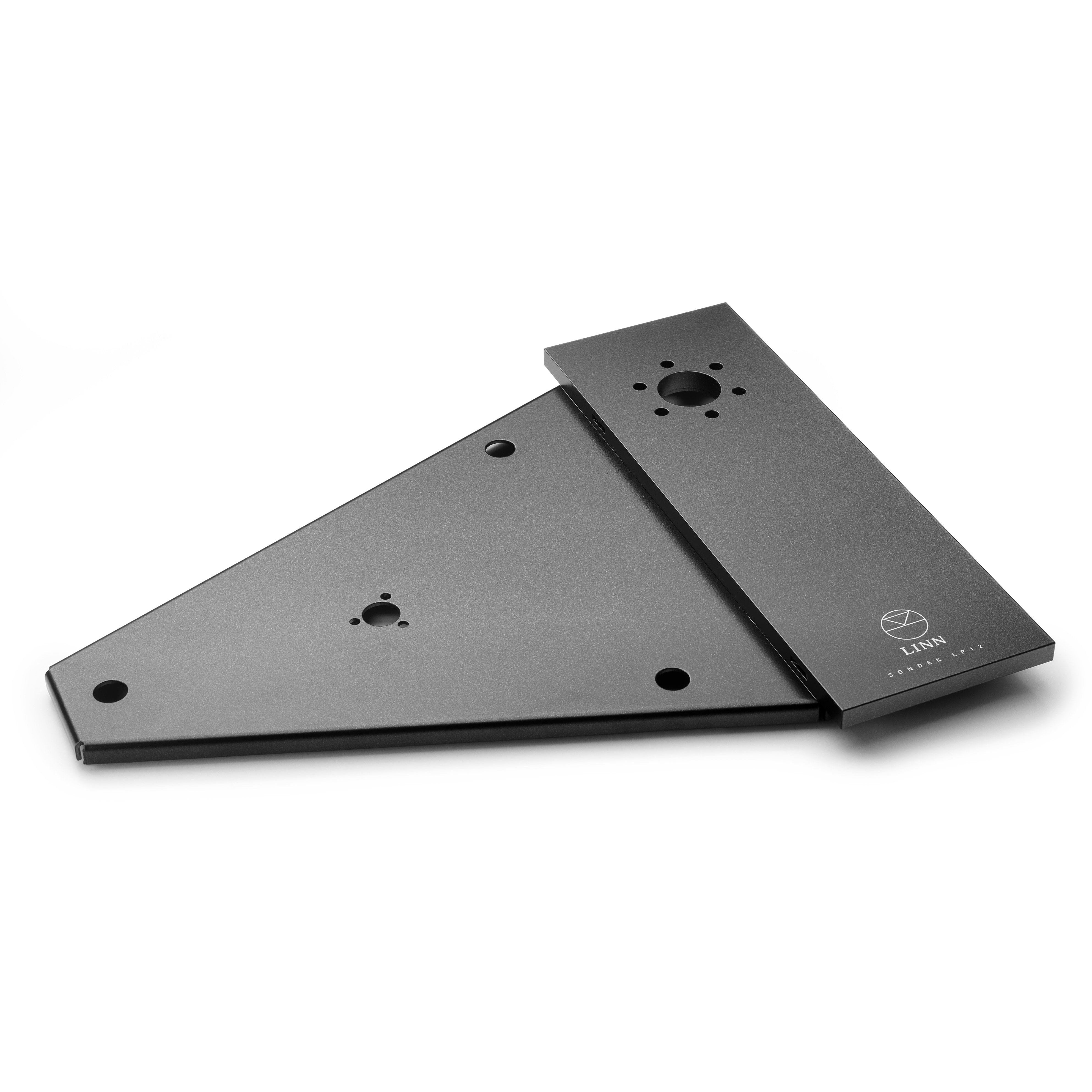

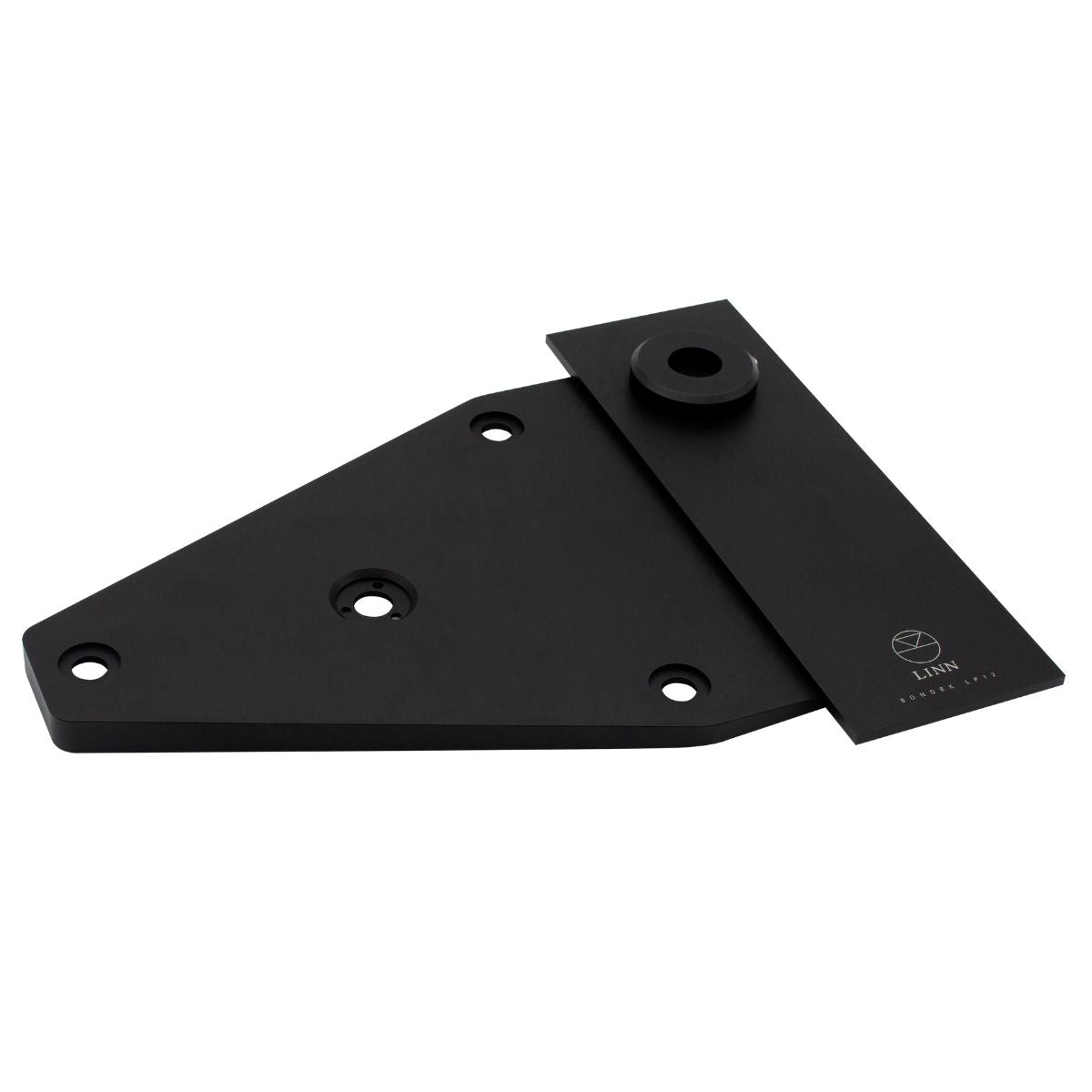

Following the same design philosophy as our flagship Keel, the Kore sub-chassis and armboard is an essential upgrade step for anyone looking to improve their LP12 and bring it up to Akurate-level performance.
Strengthened by a multi-layer, box construction of 1.5mm thick aluminium, the Kore’s sub-chassis is designed for extra rigidity and removal of unwanted damping, ensuring a more faithful reproduction of your vinyl. Three layers are bonded together using a unique Linn-specified adhesive to form an incredibly stiff structure, while keeping the weight low.
The Kore armboard is precisely machined from solid aluminium and further strengthened with ribs on the underside to provide the ultimate rigidity. This is then bonded to the sub-chassis so that the assembly mirrors the valuable properties of a single piece; as the arm collar is bolted directly to the sub-chassis, the arm has a direct connection to the bearing.
- Aluminium subchassis
- Machined-from-solid armboard
- Compatible with Linn Ekos SE, Ekos, Akito, and Ittok tonearms
- Versions also available for Rega, SME & Naim tonearms

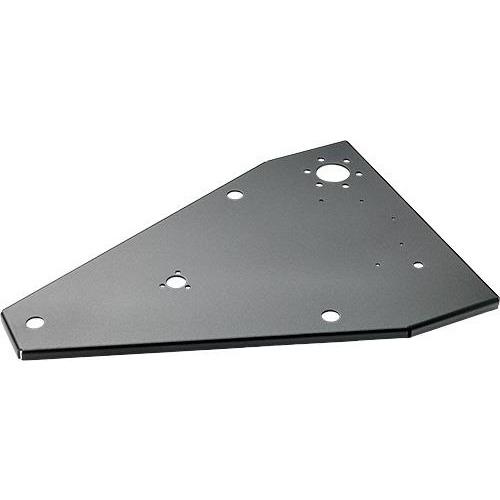

Providing a solid and rigid platform for the LP12, the Majik Sub-chassis is fitted as standard to the Majik LP12 turntable. Also available separately as an upgrade, this latest design offers increased performance for any earlier deck that features the older ‘standard’ sub-chassis design.
The multi-layer box construction of 1.5mm thick aluminium provides strength and rigidity and when teamed up with the LP12’s five-layer laminated armboard, creates a firm and acoustically damp platform for your tonearm.
