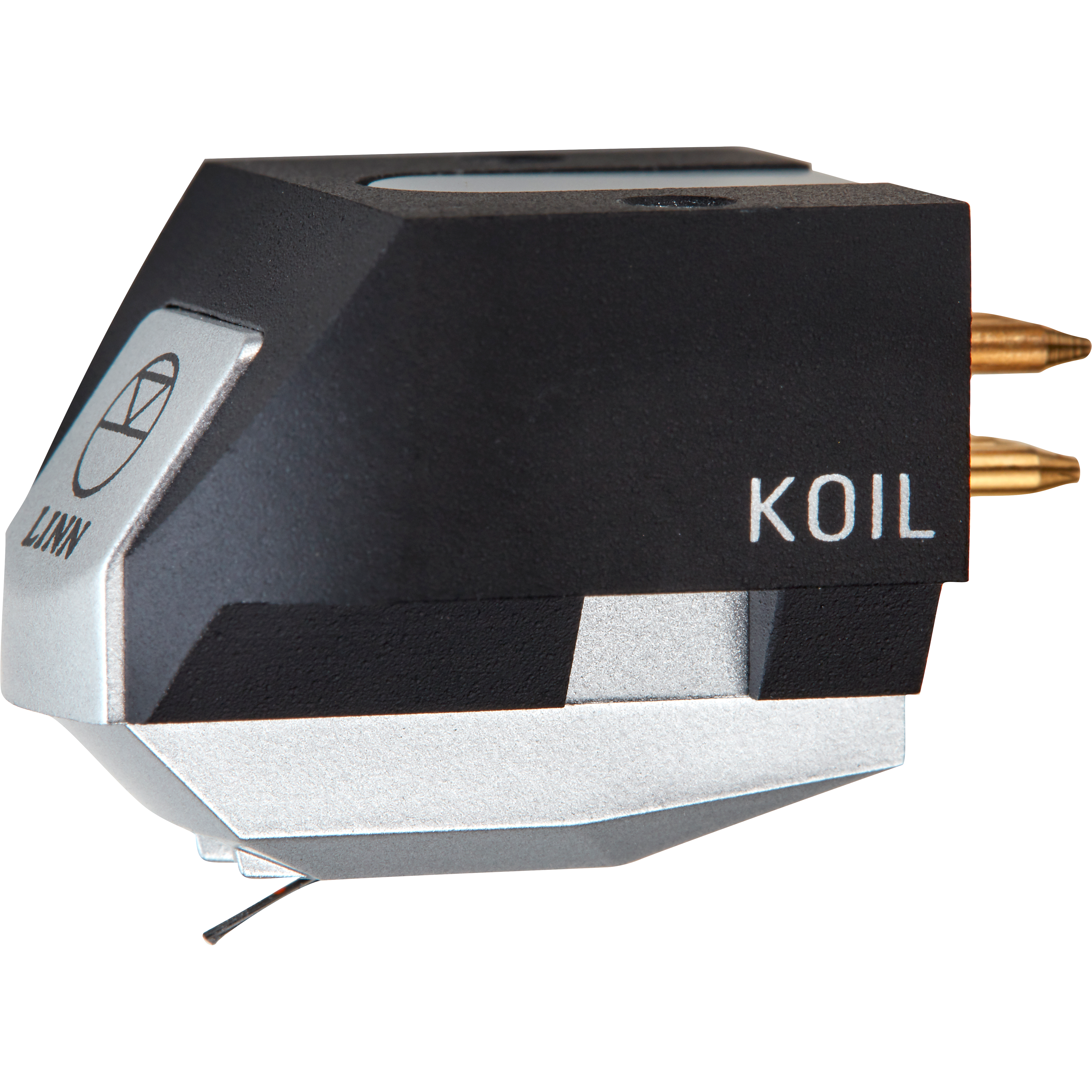

LINN Koil Moving Coil Cartridge

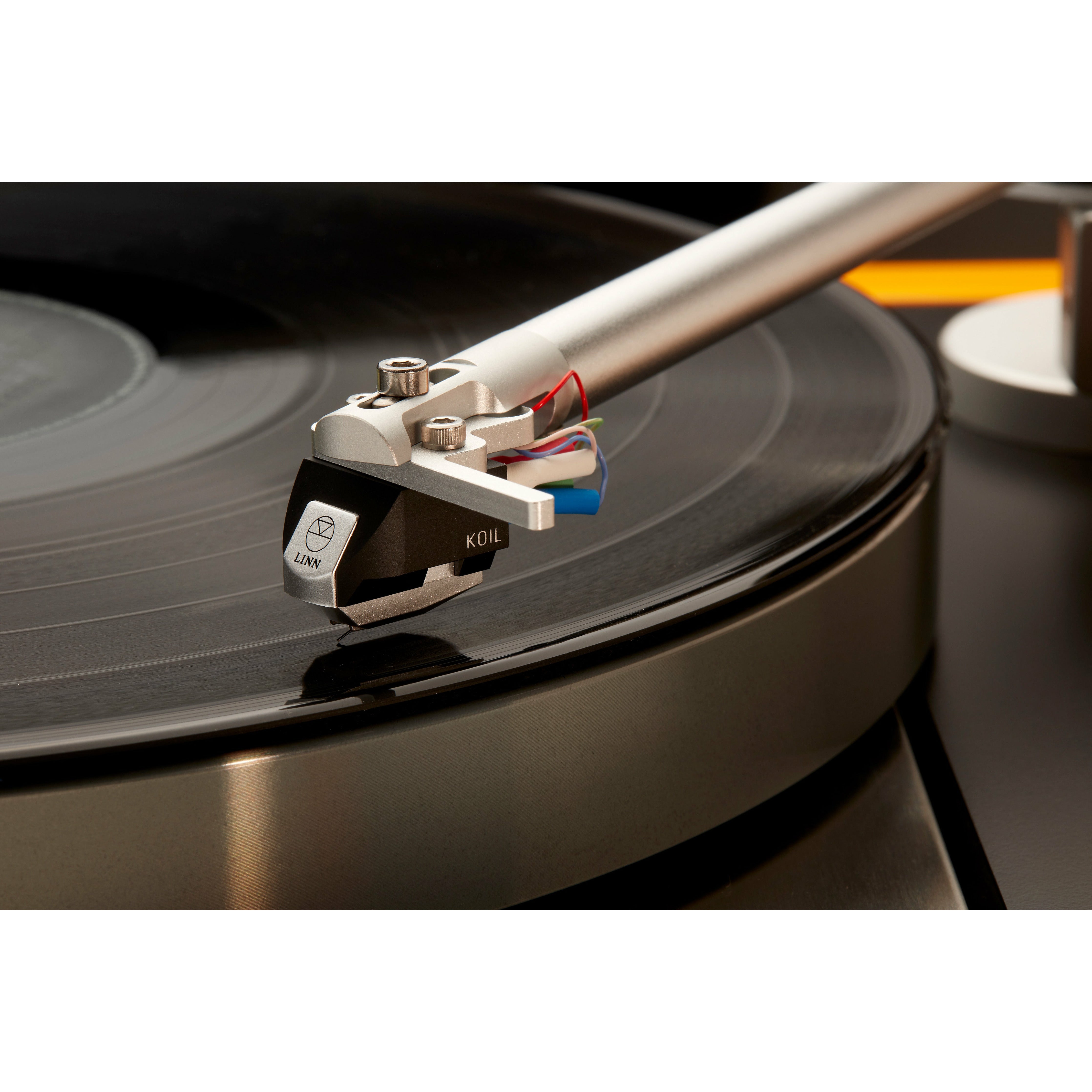

Koil is a superb first step onto the ladder of premium moving coil cartridges. This Majik-level cartridge provides a step up in performance from Adikt; and is available either as an upgrade, or fitted as standard to a new Majik LP12 MC.

Choose Koil if you intend to use your Majik LP12 with a moving coil phono preamplifier. Upgrade from Adikt to progress your journey along the path to vinyl playback perfection.

Key features

  • Moving coil (MC)
  • Nude Microlinear Stylus
  • Low mass boron cantilever

Specifications

Stylus Type Nude Microlinear
Cantilever Boron
Coil Wire Copper
Pin Connection Type 1.2mm gold pin
Mounting Points 2
Output Voltage 0.4mV @ 5cm/s
Channel Balance at 1 kHz 1.0dB
Channel Separation at 1kHz 27dB
Load Resistance 100 Ω
Load Capacitance 100 nF
Tracking Force 1.8-2.2 g (2.0 g nom)
Cartridge Mass 7.6 g
