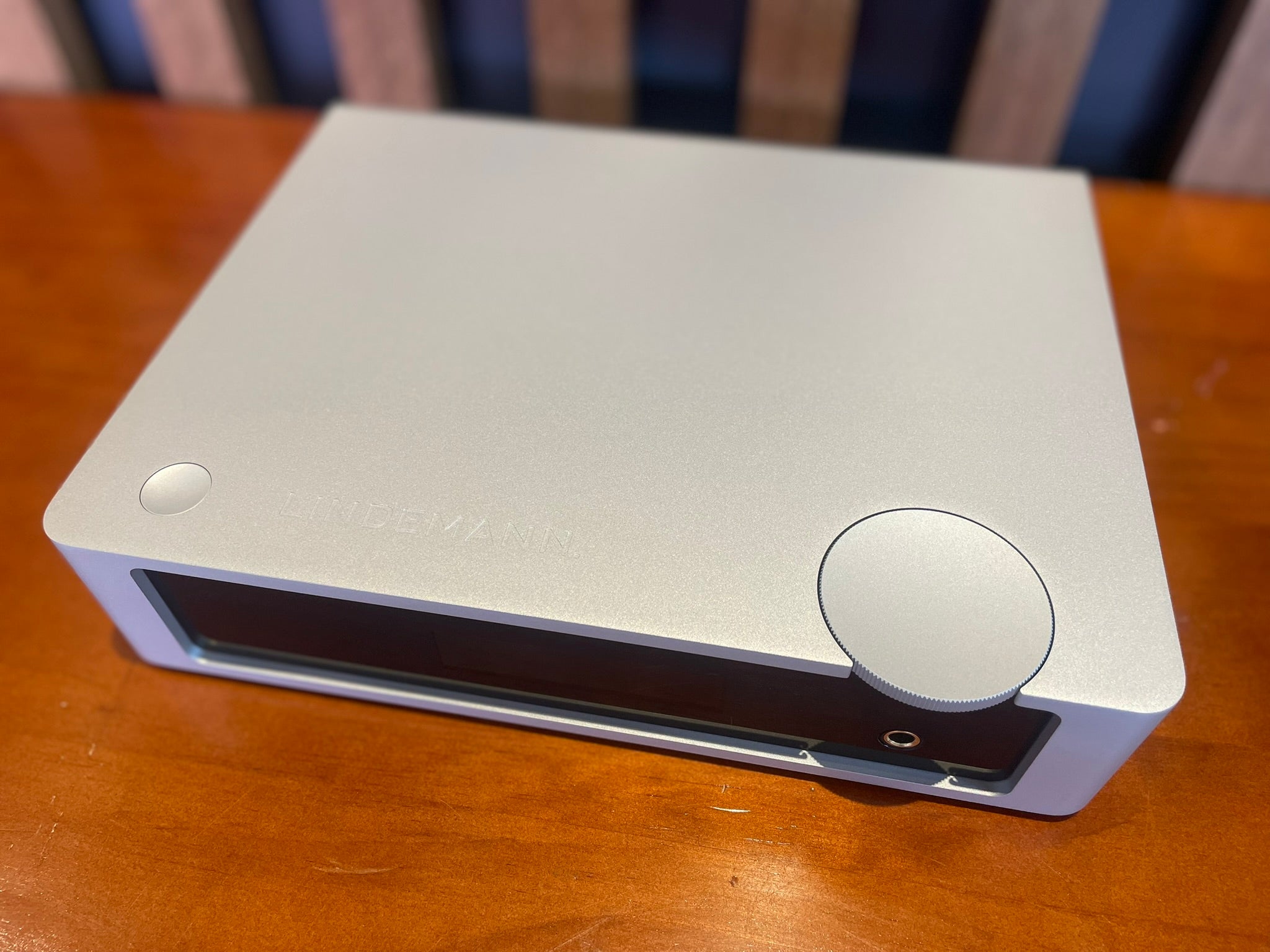

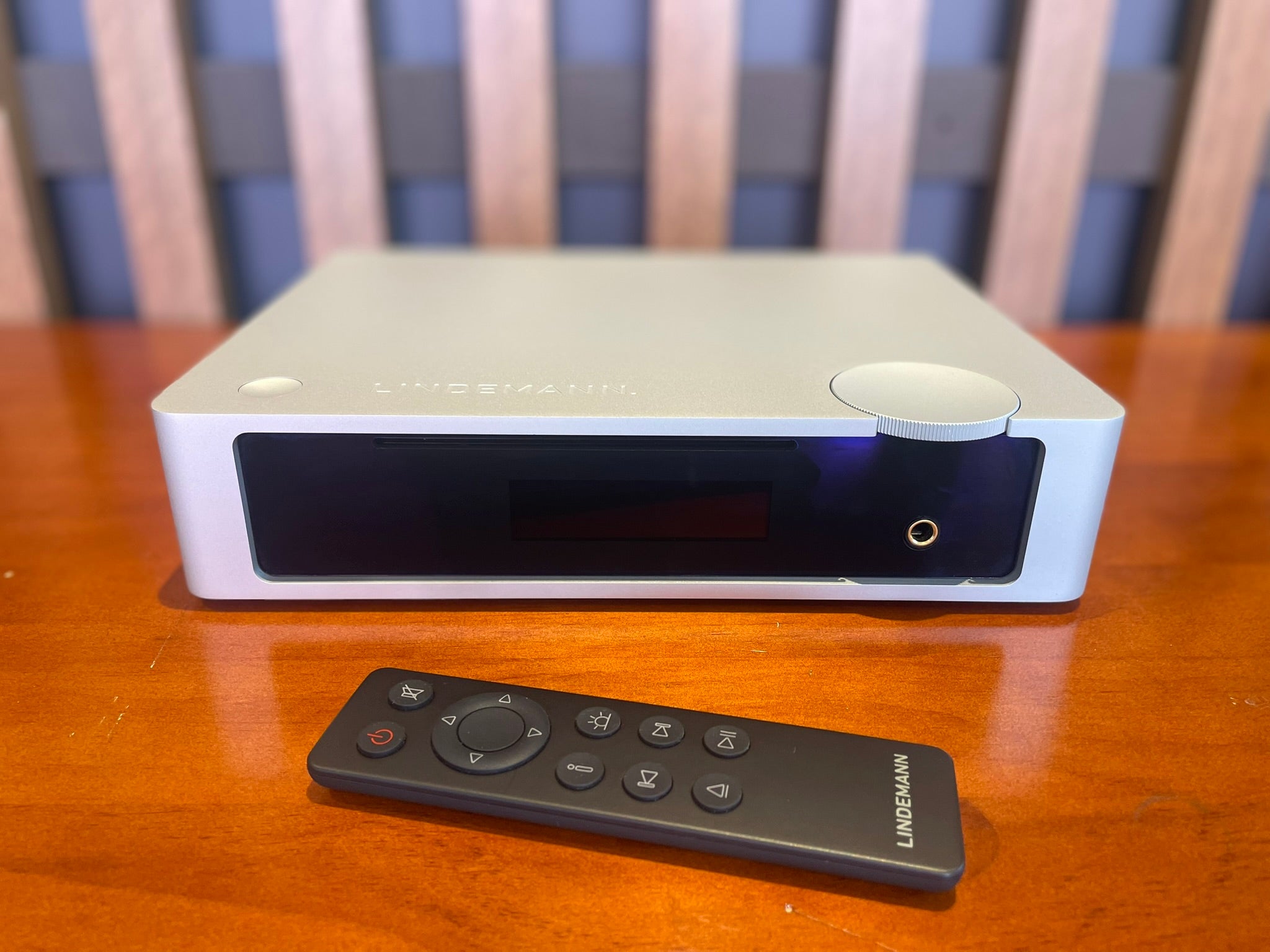

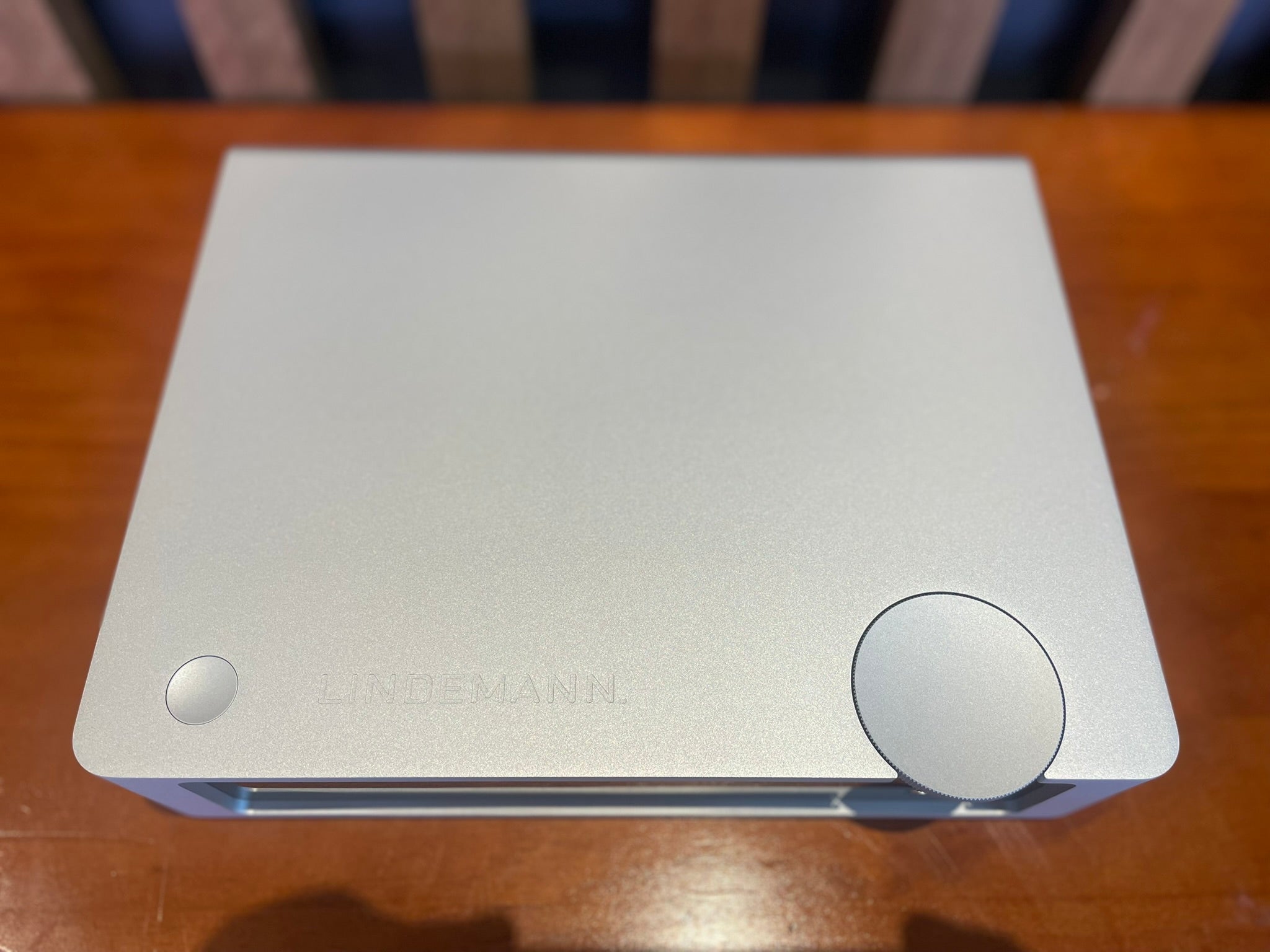

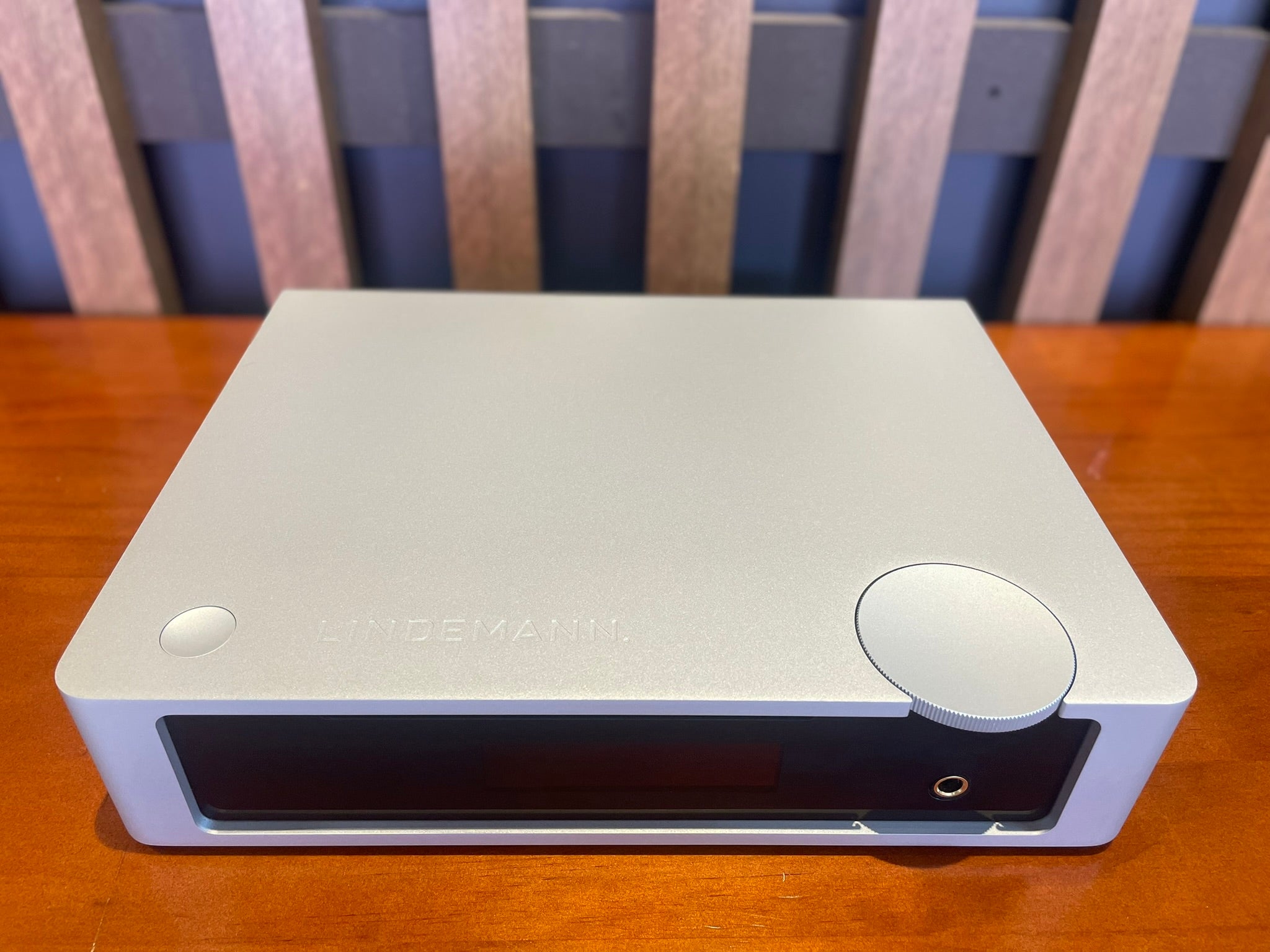

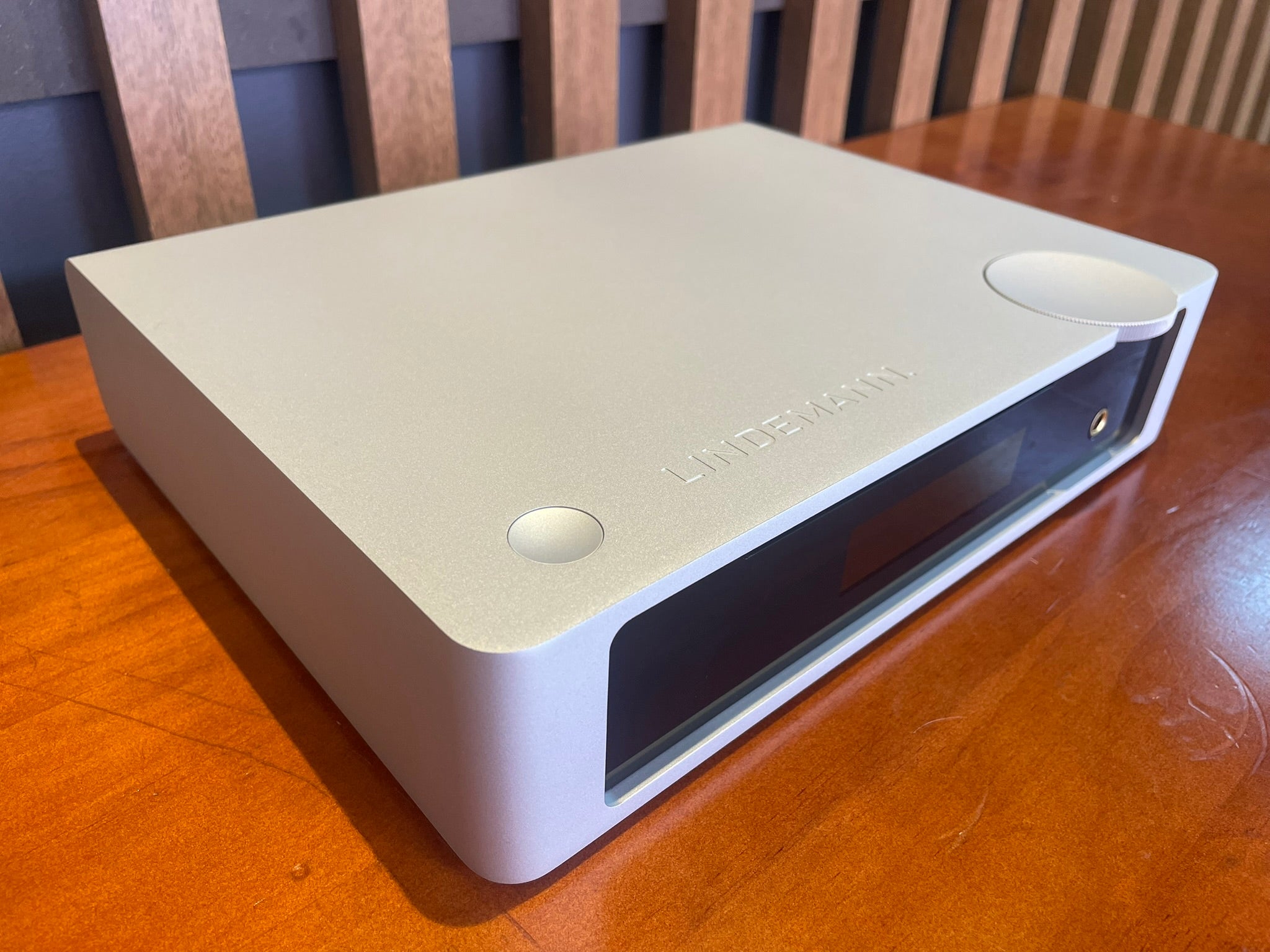

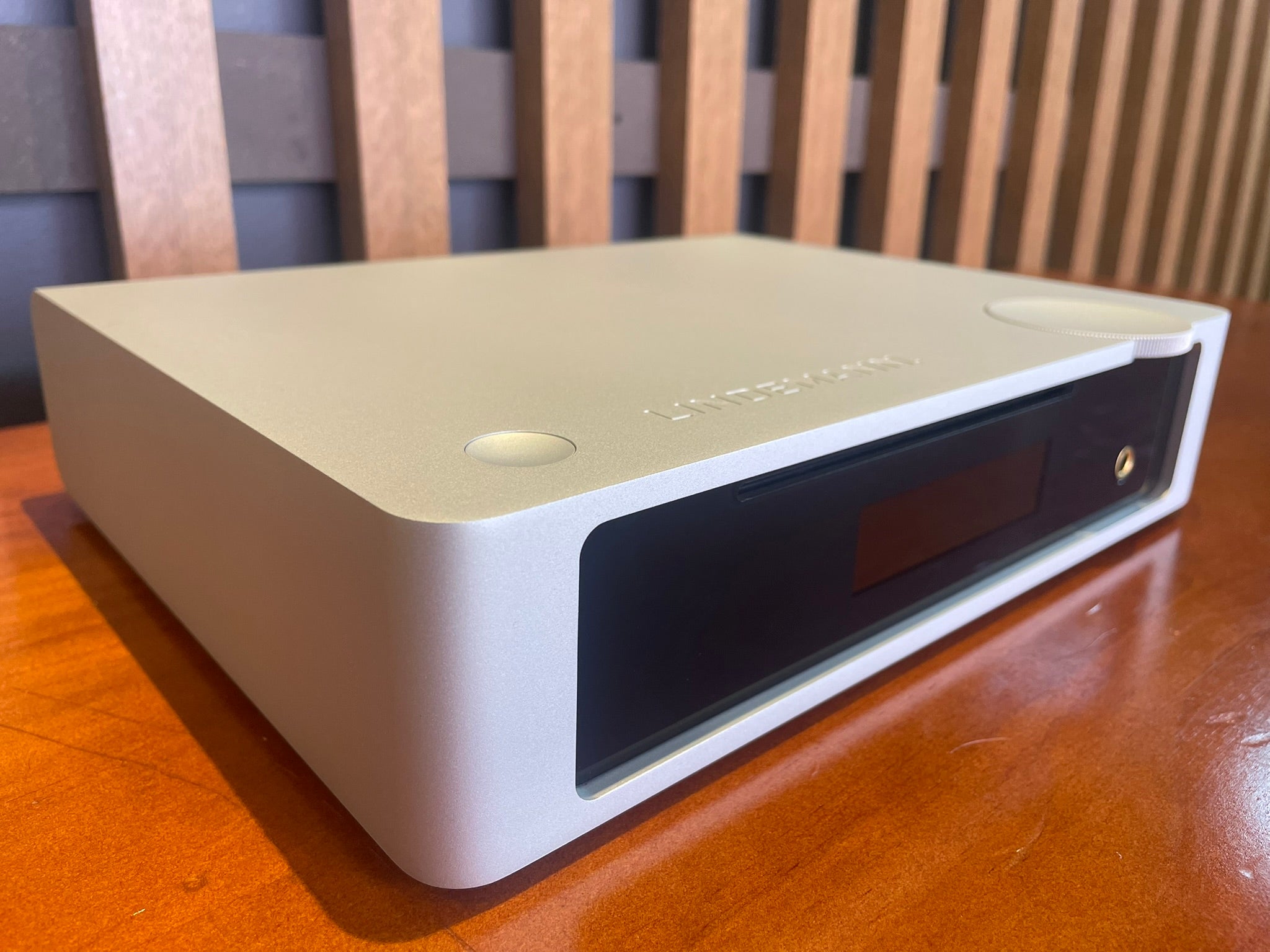

Lindemann Musicbook SOURCE CD - Consignment

Lindemann Musicbook SOURCE CD - Consignment

Condition: Excellent, presents as new

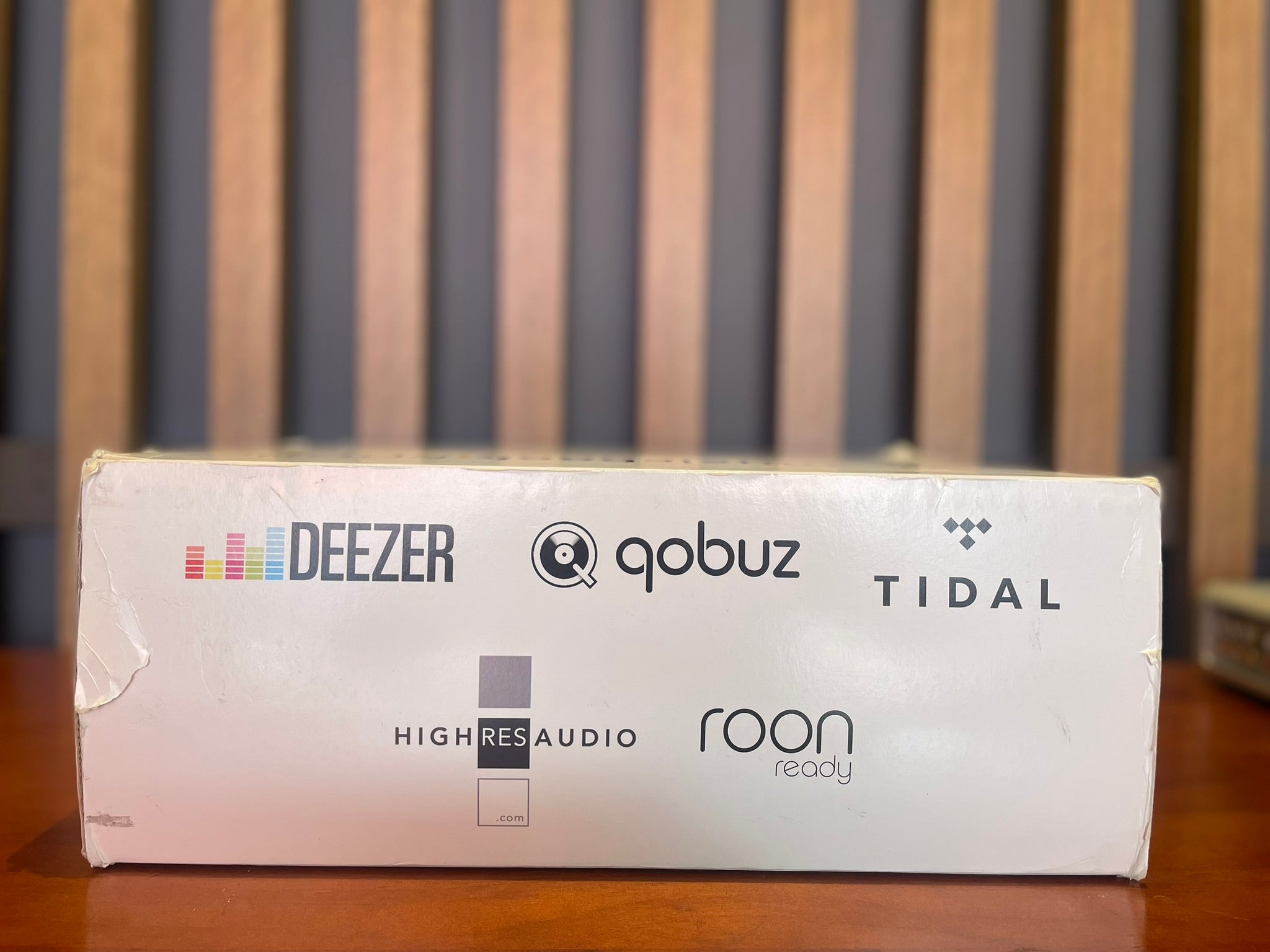

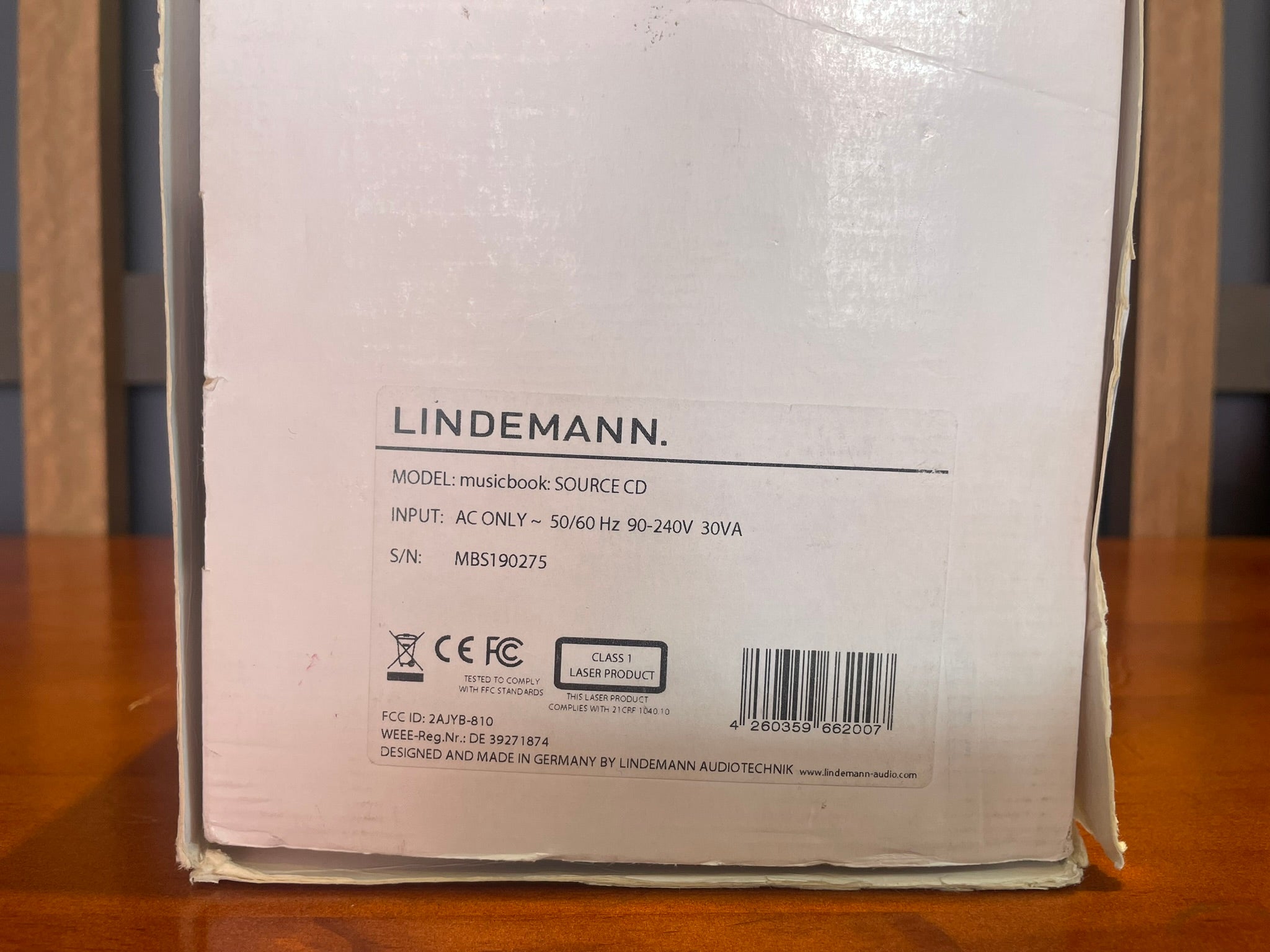

Includes: Original Packaging and all accessories

SN: MBS190275

Overview

A signal source that does it all with true high-end sound

Introducing the Musicbook SOURCE—a highly versatile source designed to meet the highest demands for sound quality. Whether you're streaming music, playing from a server, spinning CDs, or enjoying vinyl, this device handles it all seamlessly. Control is made easy via the app, and headphone enthusiasts will appreciate the built-in Class-A amplifier, which sets new benchmarks. For vinyl lovers, the excellent phono MM input ensures a remarkable turntable experience.

Pair the Musicbook SOURCE with the Musicbook POWER amplifier or active loudspeakers, and elevate your listening experience. Expect rich details, a wide soundstage, and dynamic, emotional performance tailored to every musical style.

Features that redefine streaming

• Streaming 4.0 technology: Experience high-res playback up to 24-bit over WLAN. With WPS, connecting to your router is effortless. The ARM-core processor and web updates ensure future-proof performance.
• LINDEMANN app: Available for Android and iOS, it delivers intuitive control of all functions, offering seamless browsing and settings adjustments.
• Advanced D/A conversion: Converts all digital inputs to DSD for unparalleled audio quality, especially enhancing CD-grade recordings.
• USB CD playback: Connect an external CD-ROM drive to transform the device into a high-quality CD player, plug-and-play with control via the app.
• Class-A headphone amplifier: Drives headphones with 16–200 ohms, delivering exceptional sound with high damping and ultra-short signal paths.
• Bluetooth streaming: Play music wirelessly with A2DP protocol for superior sound quality.
• Built-in CD drive option: Upgrade to include a CD drive, leveraging the top-tier D/A converter for premium playback.
• Phono MM preamp: Exceptional vinyl playback with adjustable sensitivity for MM and high-output MC cartridges.
• Multi-room capability: Stream to multiple devices simultaneously or individually with convenient app control.
• Flexible connectivity: Two SPDIF digital inputs and two analog line inputs support a variety of sources, from TVs to recorders.

Effortless operation

The LINDEMANN app makes controlling the Musicbook SOURCE simple and intuitive, offering:

• Easy control of multiple streaming services like TIDAL, Qobuz, Deezer, and HighResAudio.
• Access to internet radio and podcasts from various providers.
• Multi-room functionality for synchronized or independent playback across devices.

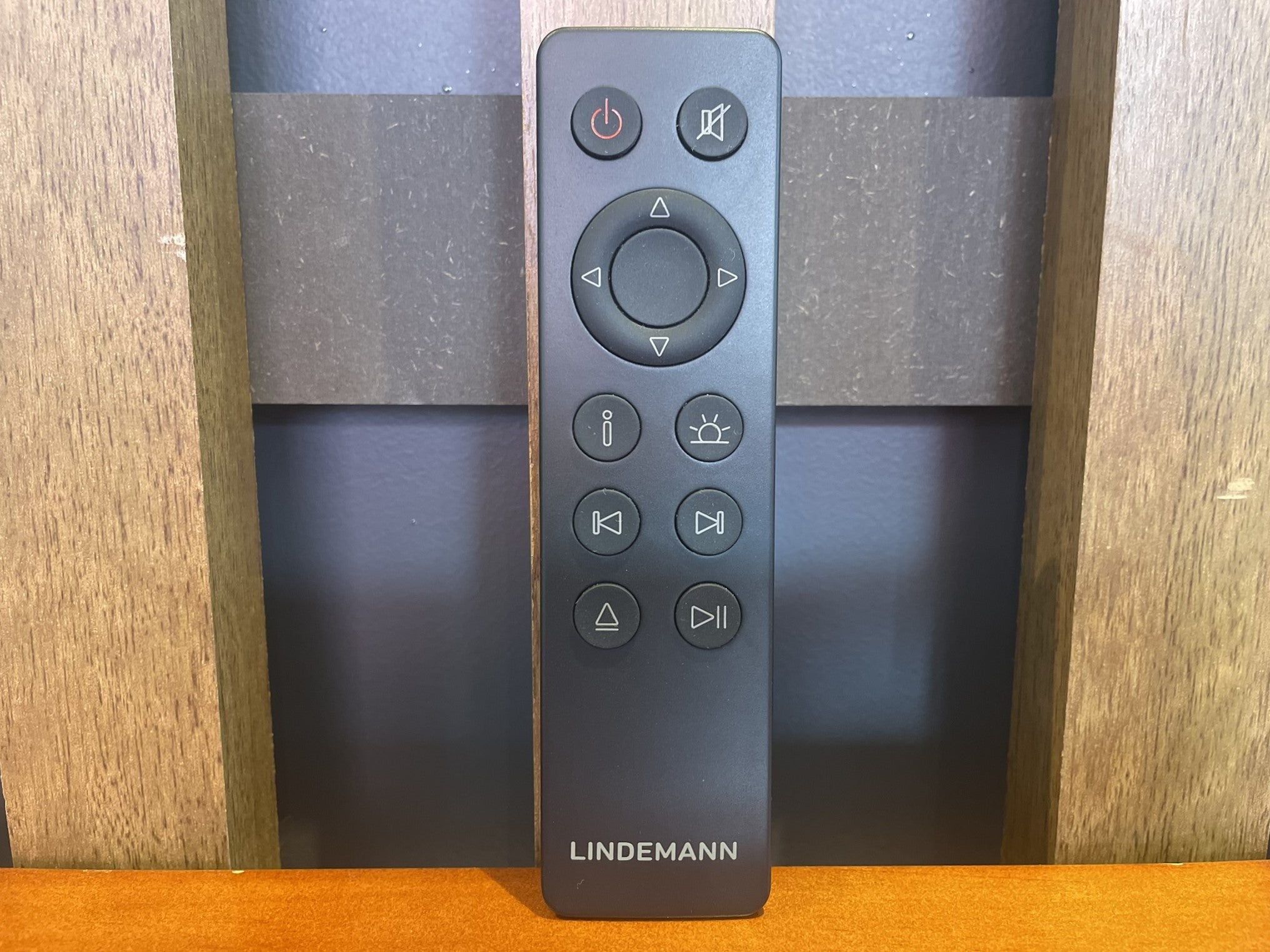

• Optional premium aluminum remote for quick access without the app.

Cutting-edge technology

The Musicbook SOURCE is built around the high-performance AK4493 D/A converter in mono mode, delivering pristine sound with ultra-low distortion and natural timbres. Preceding the conversion, all digital inputs are re-sampled using an MEMS femto-clock for jitter-free data, further refined into a 1-bit DSD signal.

Additional highlights include:

• Analog volume control using the premium MUSES 72320 chip for precise adjustments.
• Ultra low-noise proprietary voltage regulators ensuring interference-free performance across all components.

Unmatched sound quality

The Musicbook SOURCE excels in digital-to-analog conversion, transforming all digital signals into high-resolution DSD 256. With no DSPs involved, volume control and filtering are analog, ensuring a pristine music signal with unparalleled resolution, dynamics, and authenticity.

Designed and engineered in Germany

The Musicbook SOURCE embodies German precision and innovation, offering sublime sound quality in a sleek, modern design.

Specification :

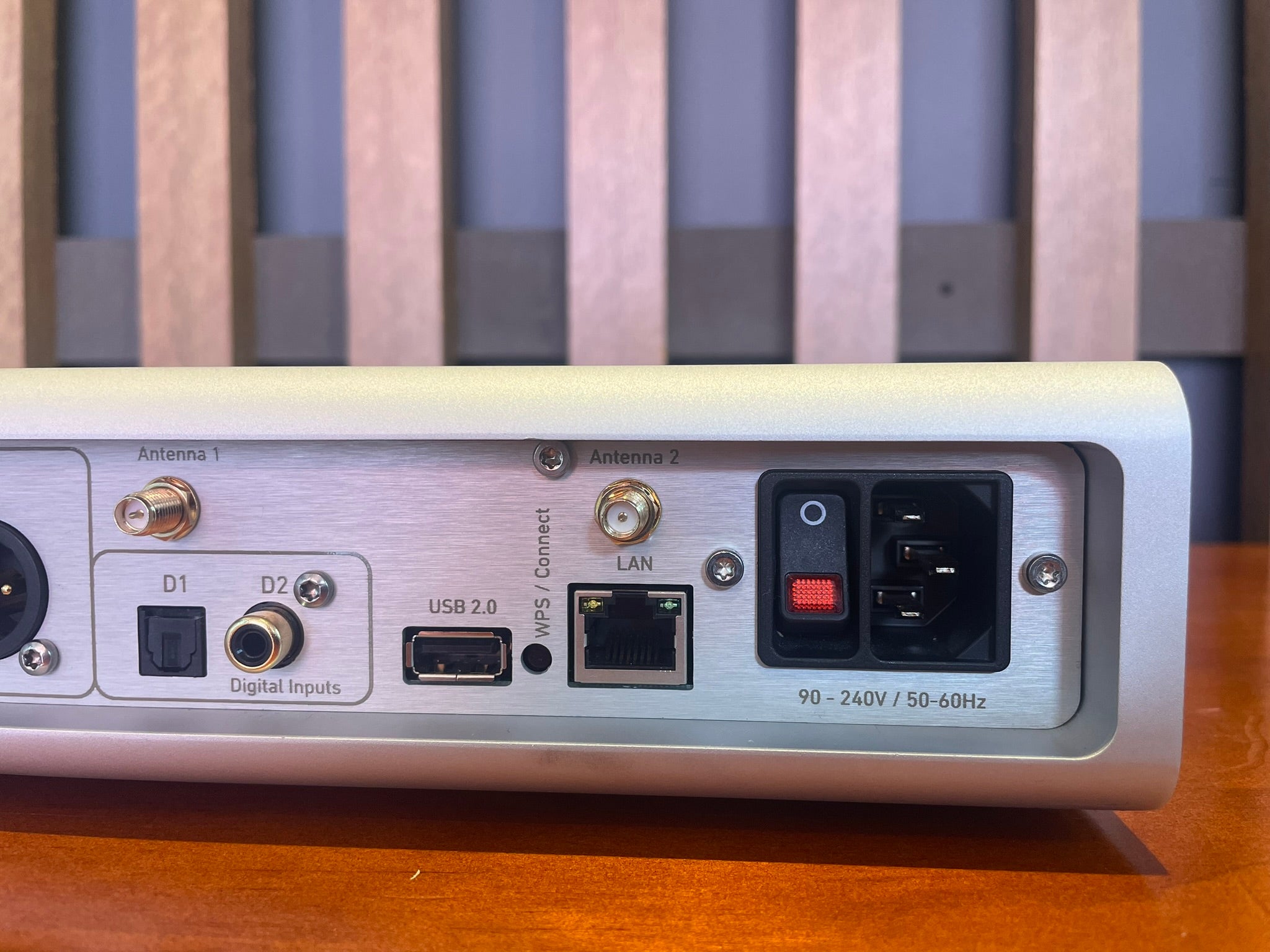

Main connection: 90–240 V 50–60 Hz
Power consumption: 0.2 W standby 8 W operation 18 W max
Dimensions: 280 x 220 x 63 mm
Weight: 3 kg
Resolution: 768 kHz/32 bit and DSD 512
Dynamic range: >125 dB
THD & Noise: <0.001% @ 0 dBFS
Master clock: Ultra-low jitter MEMS femto-clock
Re-sampling: With 180 dB dynamics and 32-bit resolution bit-perfect or DSD
Jitter suppression by re-sampling: >60 dB
Converter architecture: Two AK4493 DACs in dual differential mono mode AK4137 re-sampler
Output voltage: 2.5 V @ 0 dBFS RCA 5 V @ 0 dBFS XLR
Ethernet: 100 Mbit/s
WLAN: Dual-band 802.11a/b/g/n/ac WPS support
Bluetooth: 4.2 A2DP
USB 2.0: High-speed host interface for hard disks USB sticks DVD-ROM drives
Supported codecs: WAV FLAC AIFF ALAC MP3 AAC Ogg Vorbis WMA DSD
UPnP and DLNA support
PCM resolution: 44.1 kHz up to 384 kHz 24 bit WLAN up to 192 kHz
DSD resolution: DSD 64 up to DSD 256 WLAN up to DSD 128
Gapless playback: Supported
Streaming services: TIDAL Qobuz Deezer HighResAudio Spotify
Internet radio and podcast: Supported
Roon Ready: Yes

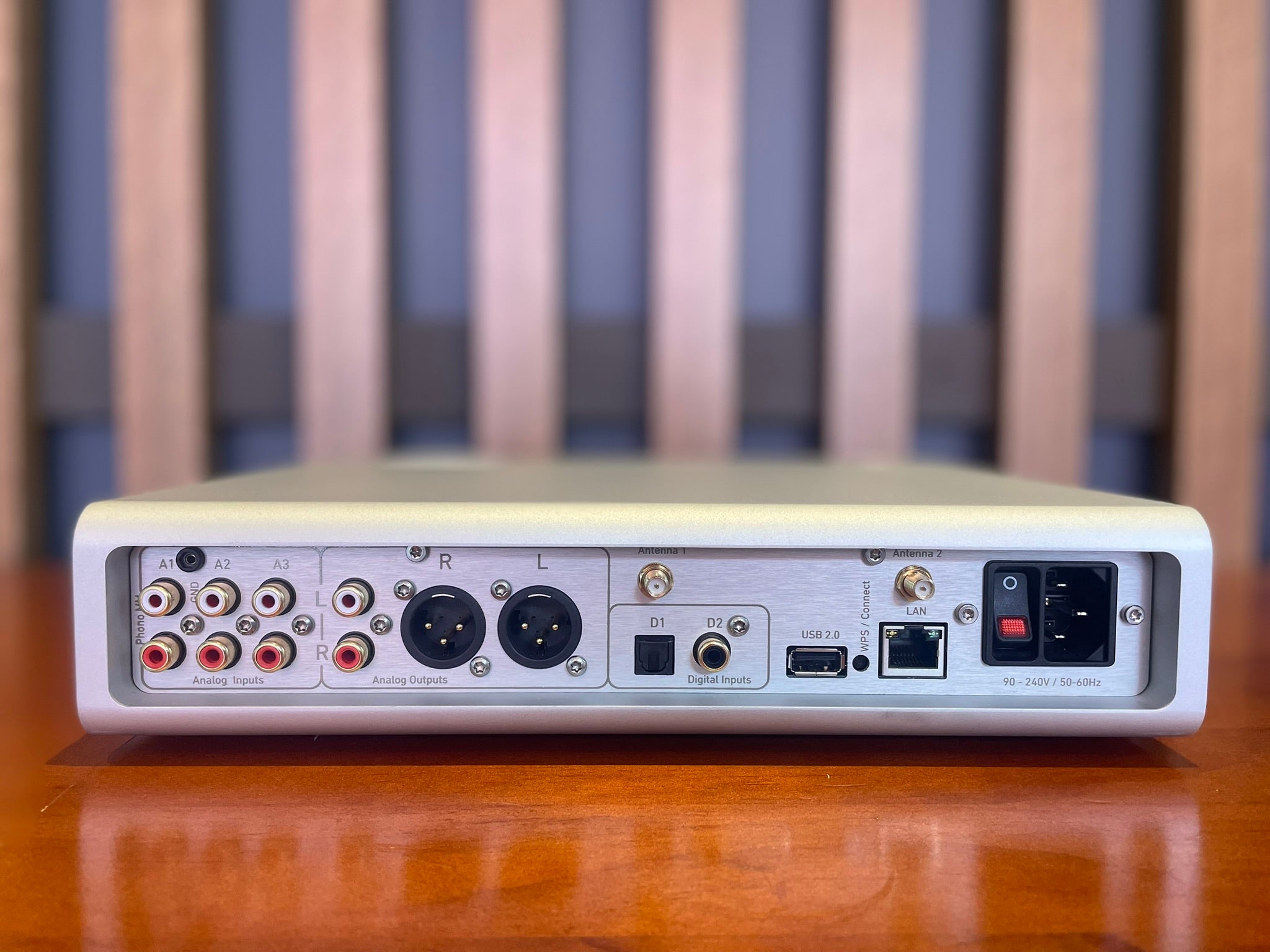

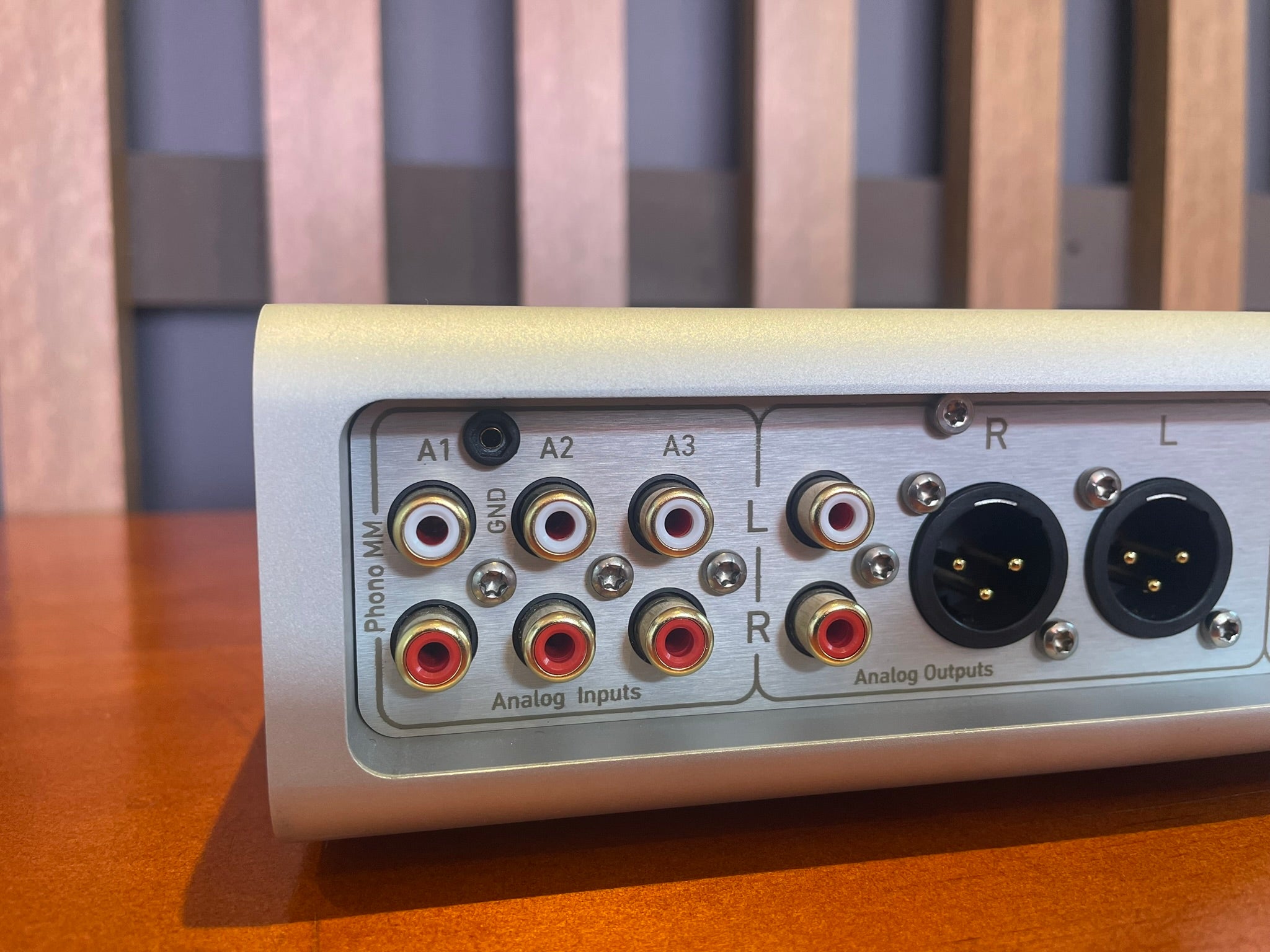

Line inputs: Three analog line inputs with 20 kOhms of input impedance Input sensitivity adjustable via app
Phono MM input: Gain 40 dB Input impedance 47 kOhm/150 pF Input sensitivity adjustable via app Also suitable for high-output MC systems

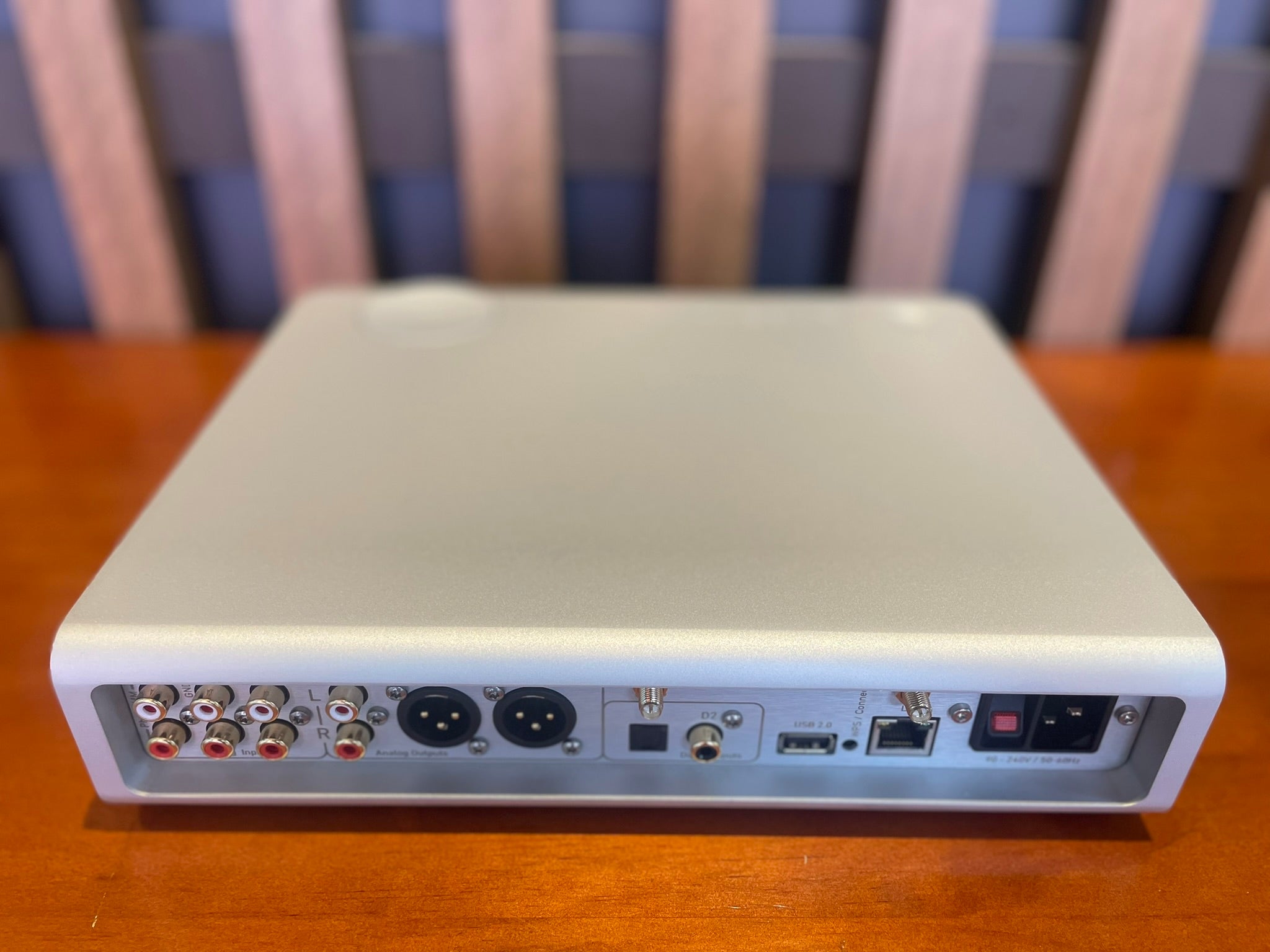

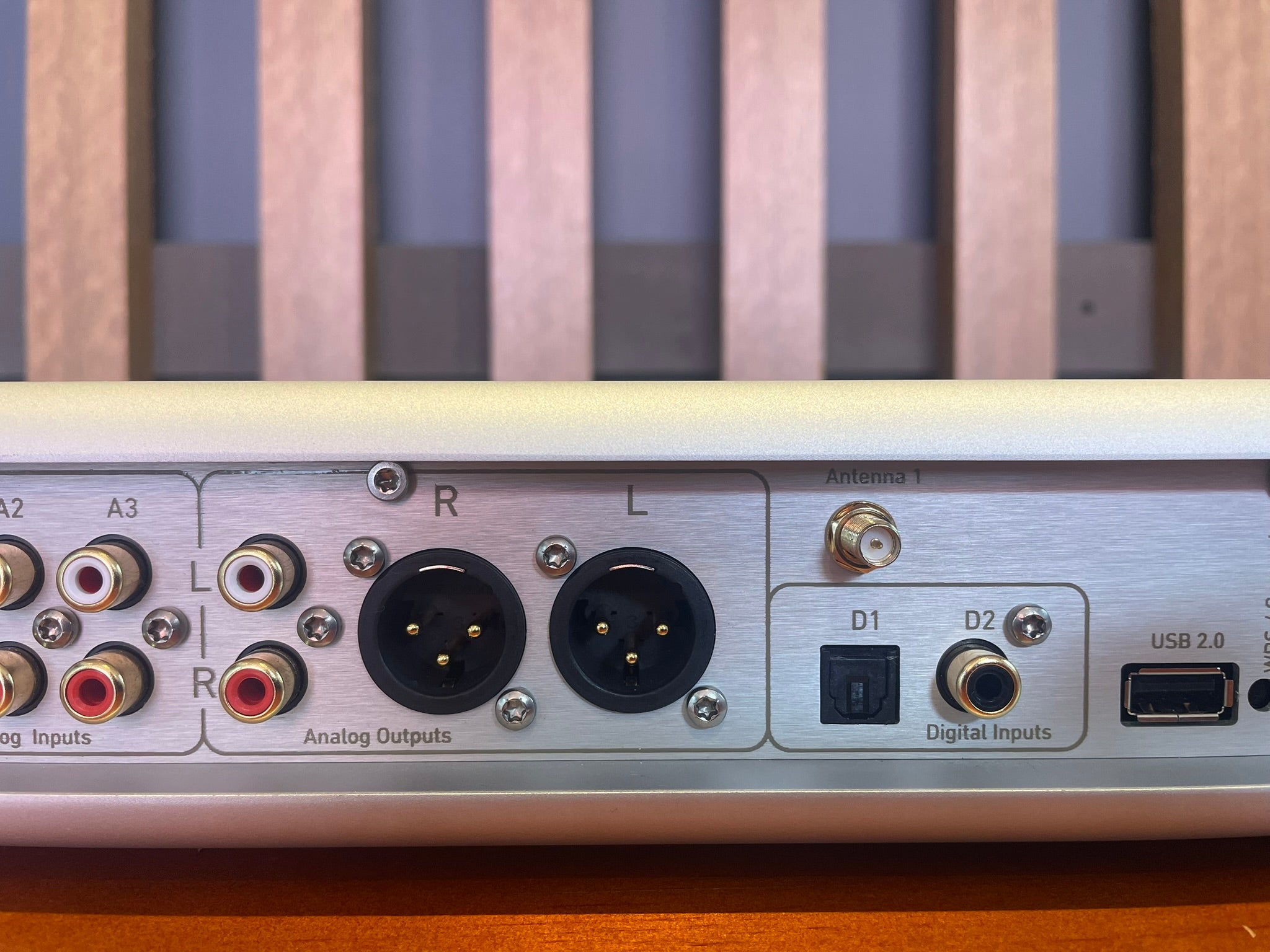

Outputs: One balanced and one unbalanced output The outputs can be used independently Max output voltage 2.5 V unbalanced 5 V balanced
Volume control range: 0 to 99 with 0 to 20 in 2-dB steps 21 to 60 in 1-dB steps 61 to 99 in 0.5-dB steps
Balance control: +/– 6 dB in 1 dB steps
Frequency response: 1–200 kHz -3 dB
Gain: 0 dB 6 dB 12 dB adjustable
THD & Noise: <0.001% @ 2.5 V output

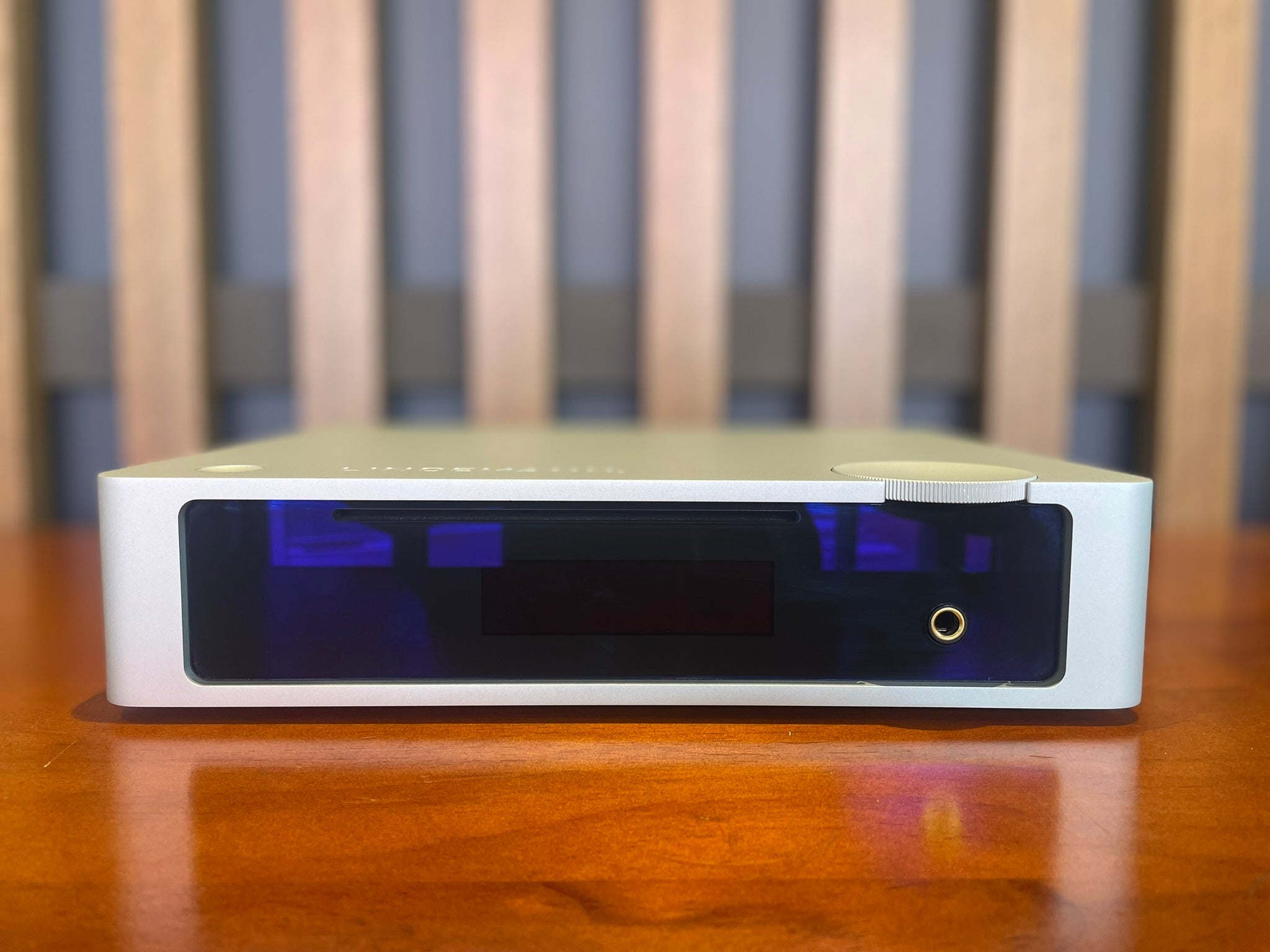

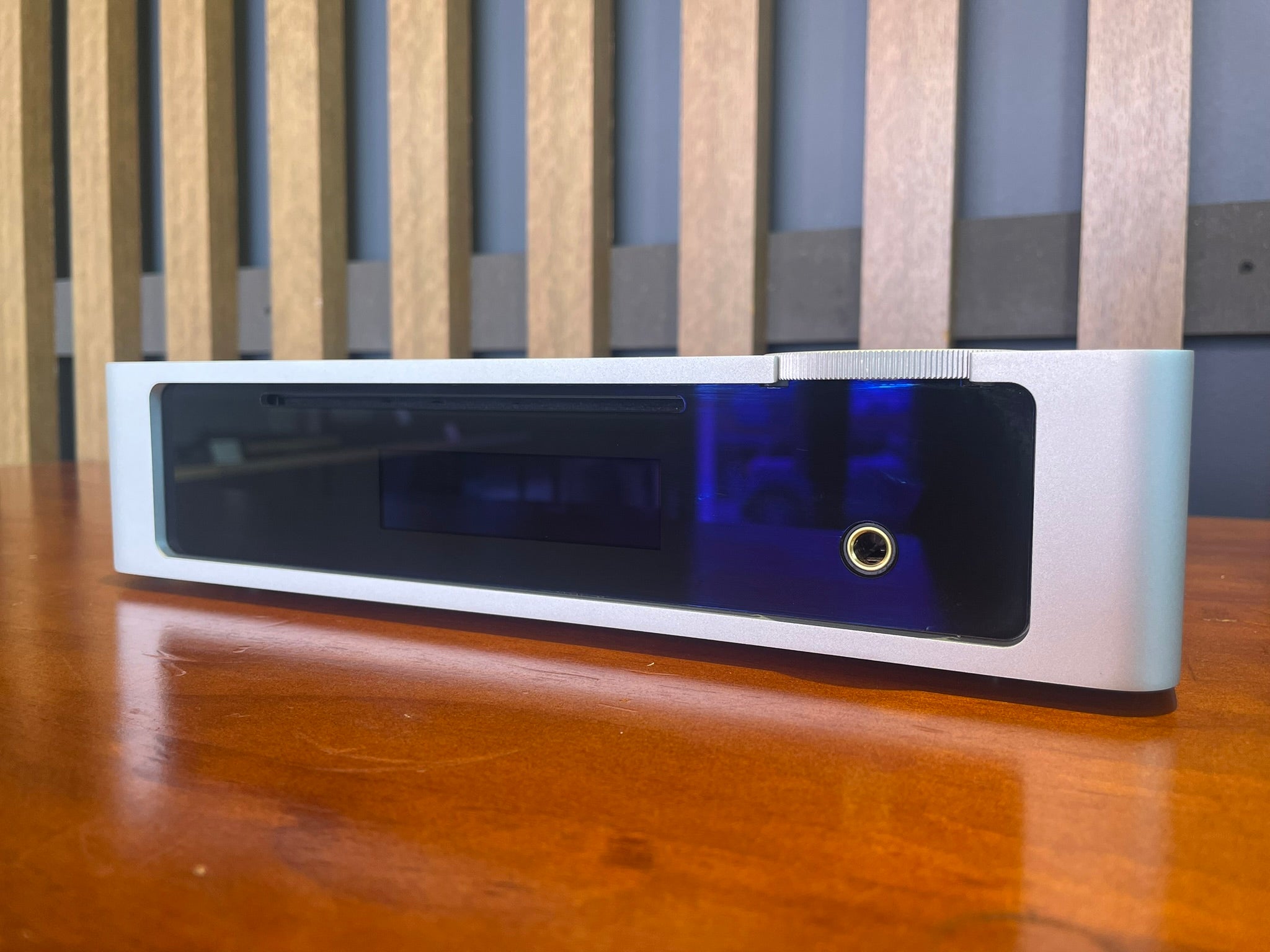

Headphone connector: 6.35 mm jack socket
Headphone gain: 0 dB 12 dB adjustable via app
Recommended headphone impedance: 16–200 Ohm
Damping factor headphone output: >100
