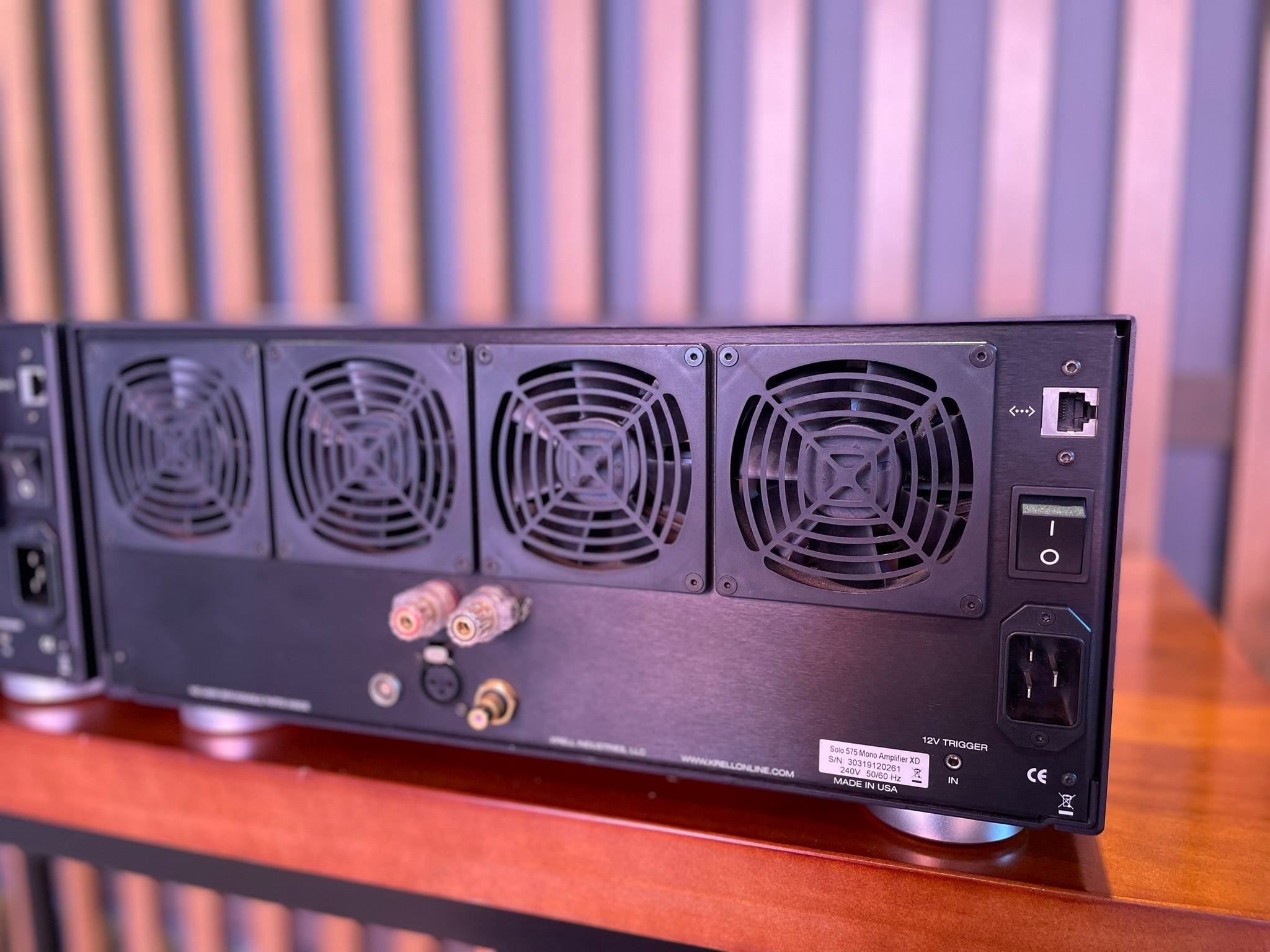

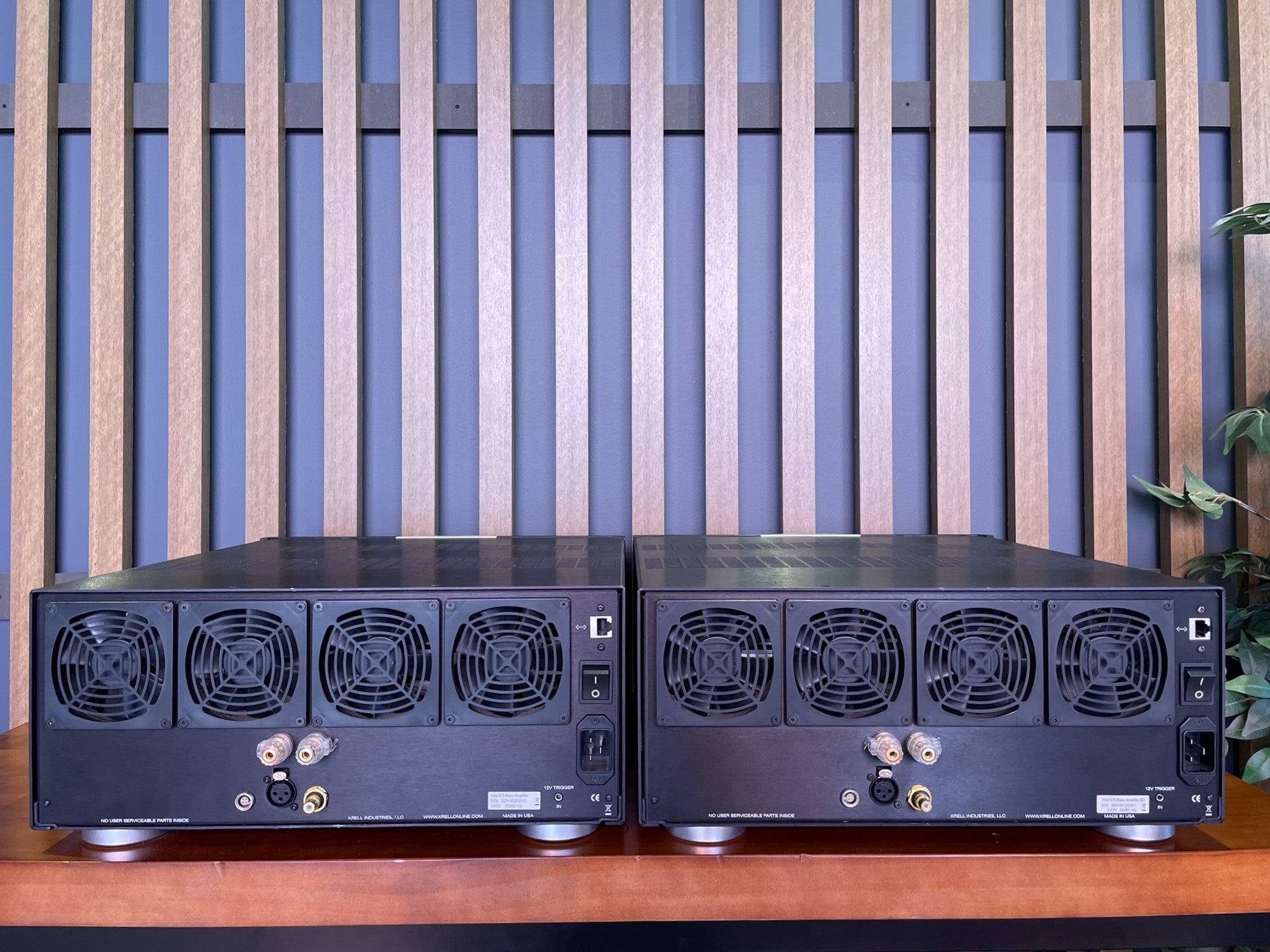

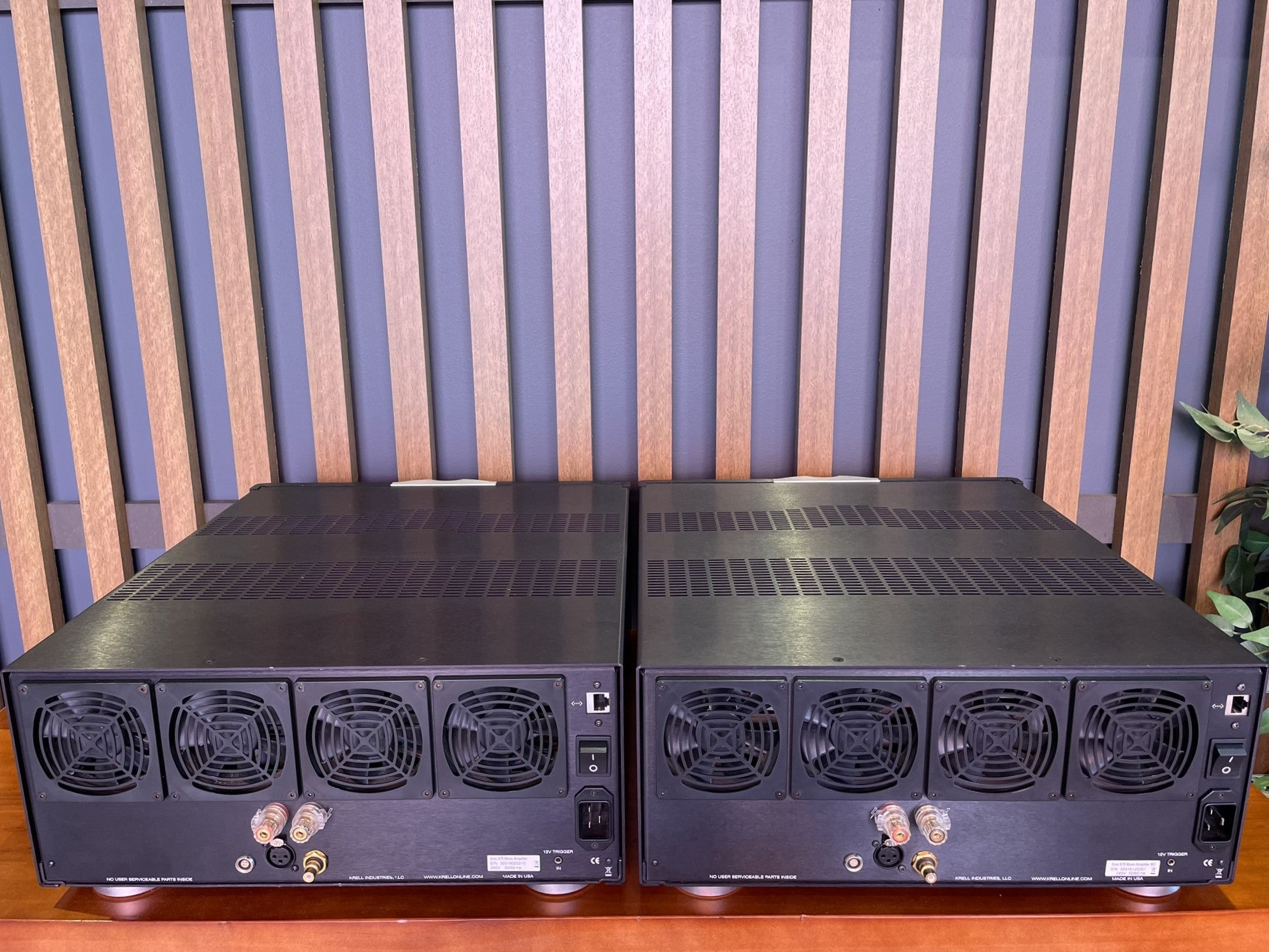

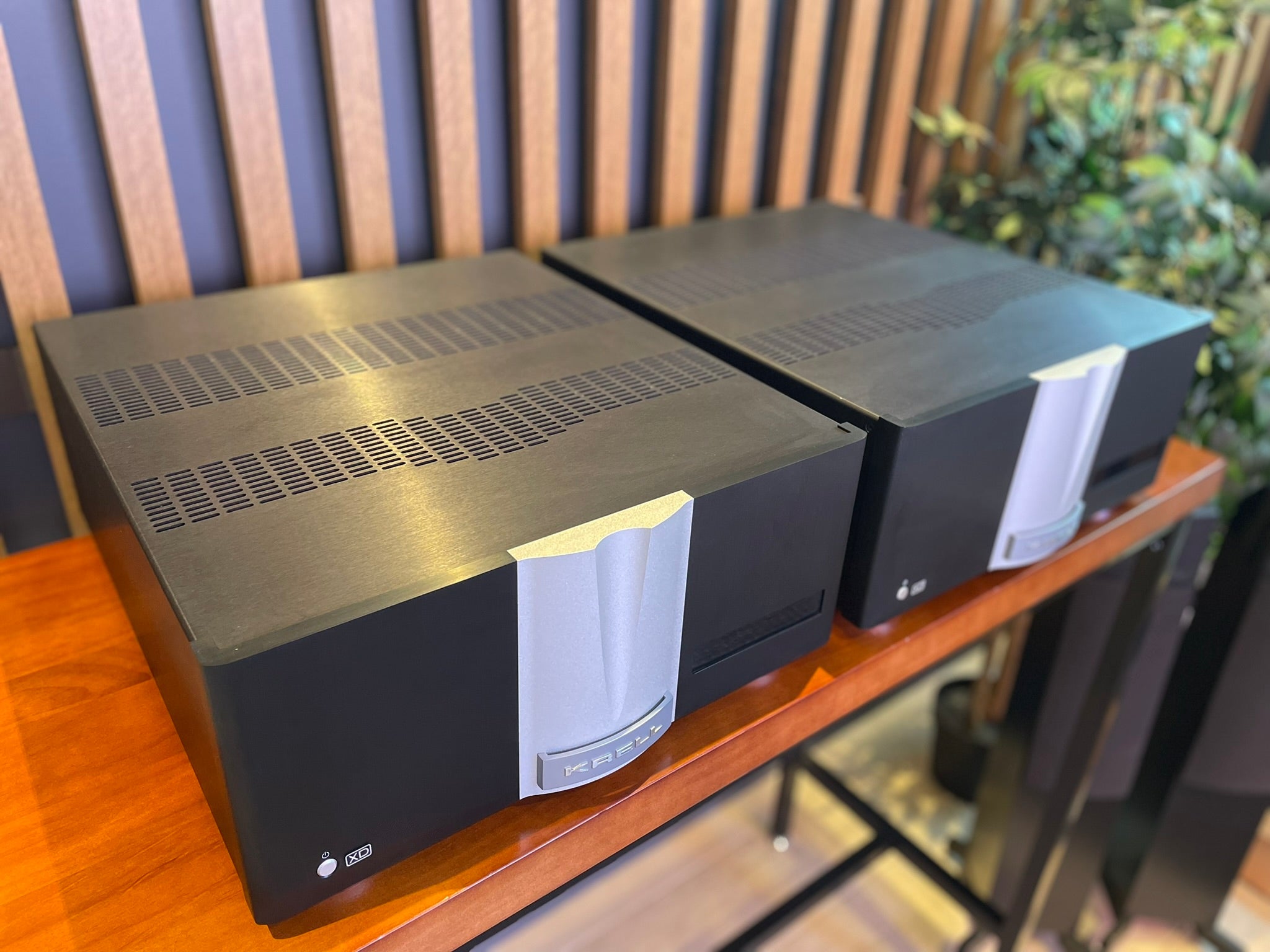

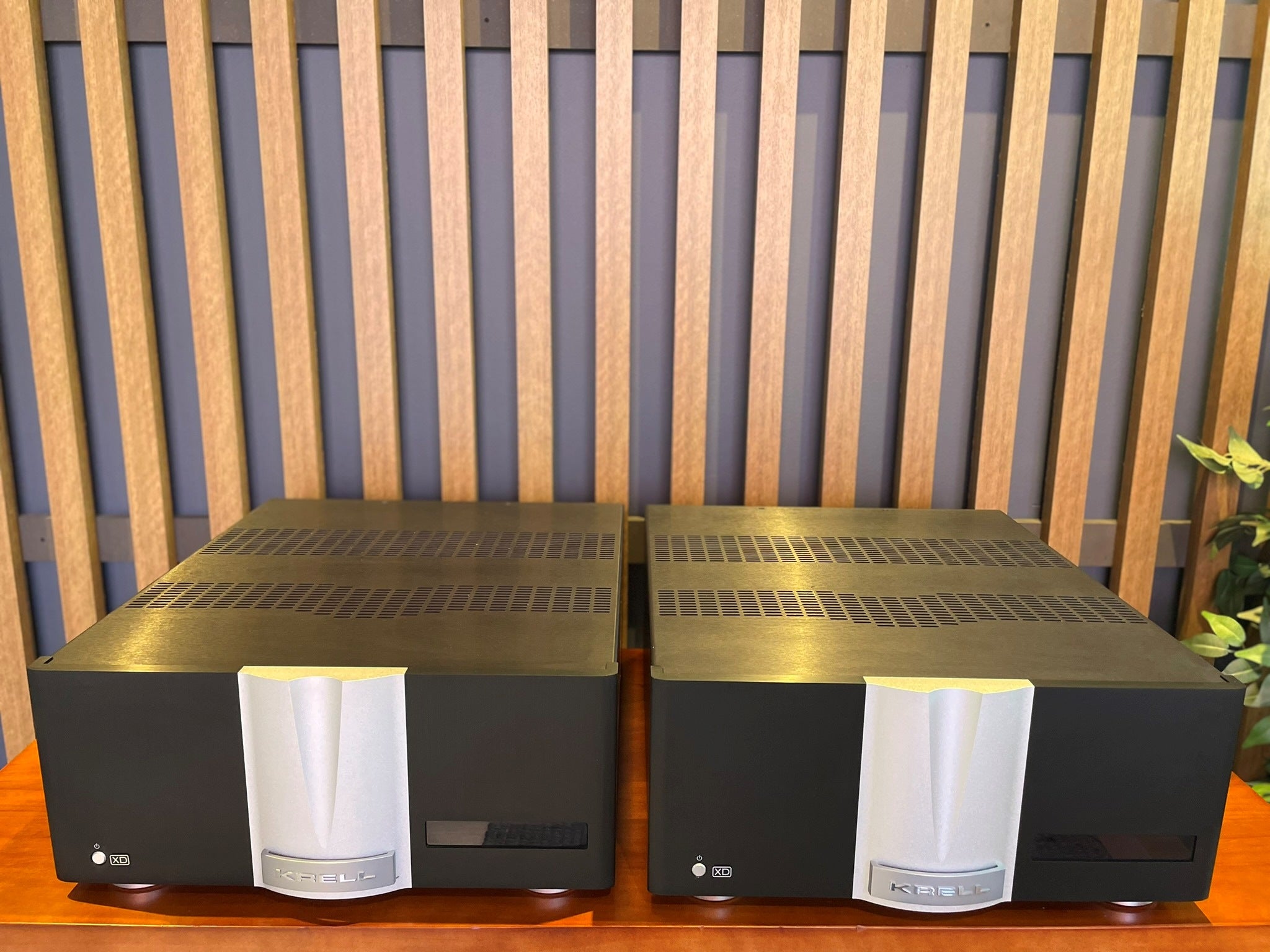

Krell Solo 575 XD Mono Amplifiers Pair - As Traded

Sale price$23,500.00

Pickup available at Audio Connection

Usually ready in 5+ days

Krell Solo 575 XD Mono Amplifiers Pair - As Traded

Krell Solo 575 XD Mono Amplifiers Pair - As Traded

Audio Connection

Pickup available, usually ready in 5+ days

515 Parramatta Road
Leichhardt NSW 2040
Australia

+61295610788
  • Live Chat Support (8am - 8pm)
  • Free Australia Wide Shipping
  • 02 9561 0788. We speak English, Mandarin, Cantonese, Vietnamese
  • Earn 3 KrisFlyer miles, per $1 spent with Kris+ by Singapore Airlines

BUY NOW PAY LATER | INTEREST-FREE REPAYMENTS

  • Split your payments over 2, 6, 12 or 18 months.
  • 0% on your purchase, zero fees.
  • No minimum spend.
  • All you need is a valid credit card (Visa, Mastercard, Amex).
  • Choose "More Payment Options" below and choose "Monthly credit card payments" on the checkout screen.

KrisFlyer members earn 3 KrisFlyer miles with every $1 spent at Audio Connection. Checkout via the Kris+ App Only. Click here for more details.

From now until December 31st, spend $500 or more on a new purchase at Audio Connection and receive a bottle of 'Squid Ink' Shiraz from Thicker Than Water Wines. Click here for more information.

Need Help?

If you have any questions or need advice - give us a call on 02 9561 0788 during business hours or use our live chat service AEST 8am - 8pm everyday (you'll chat with a real person, not a bot!).

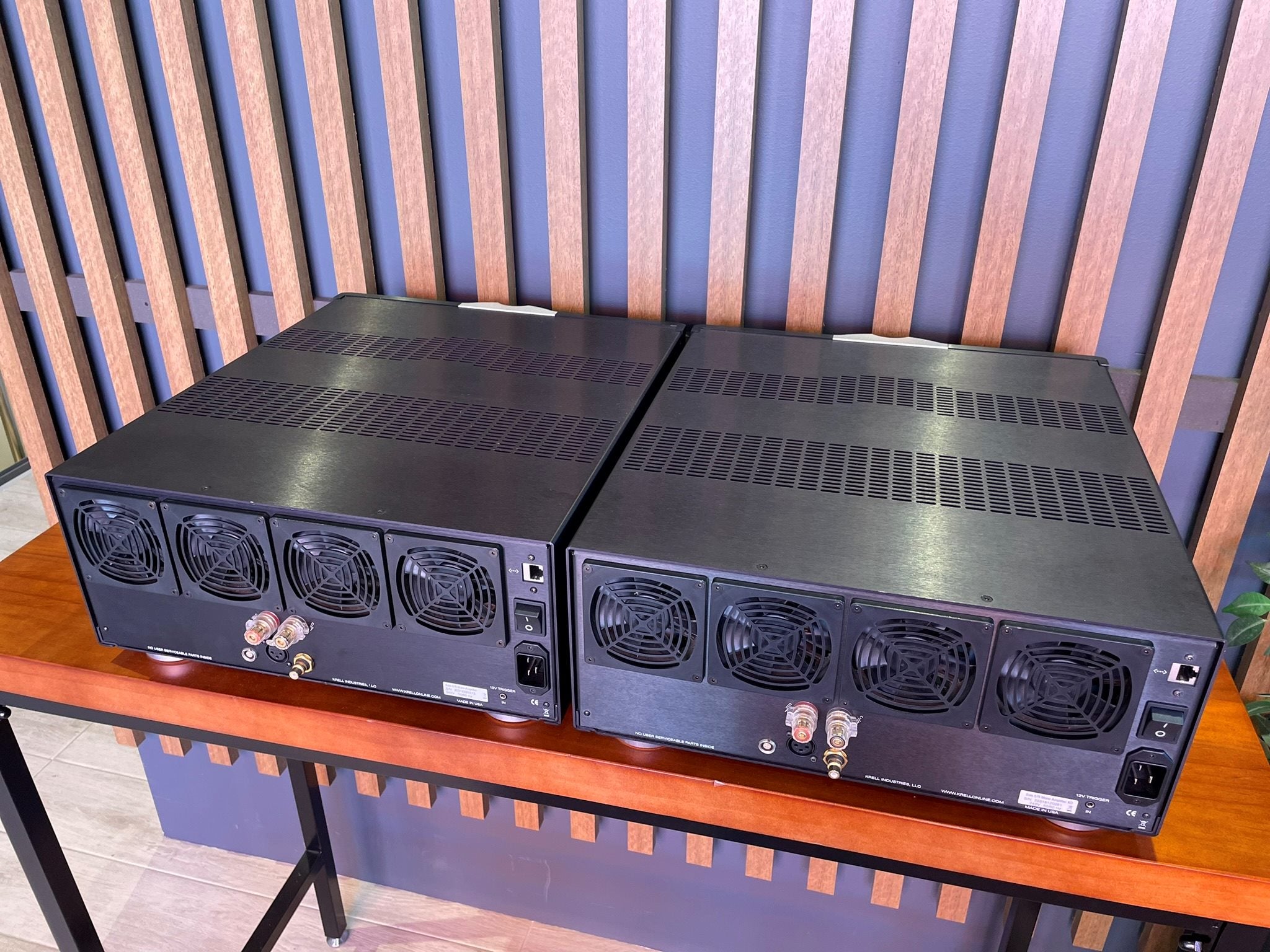

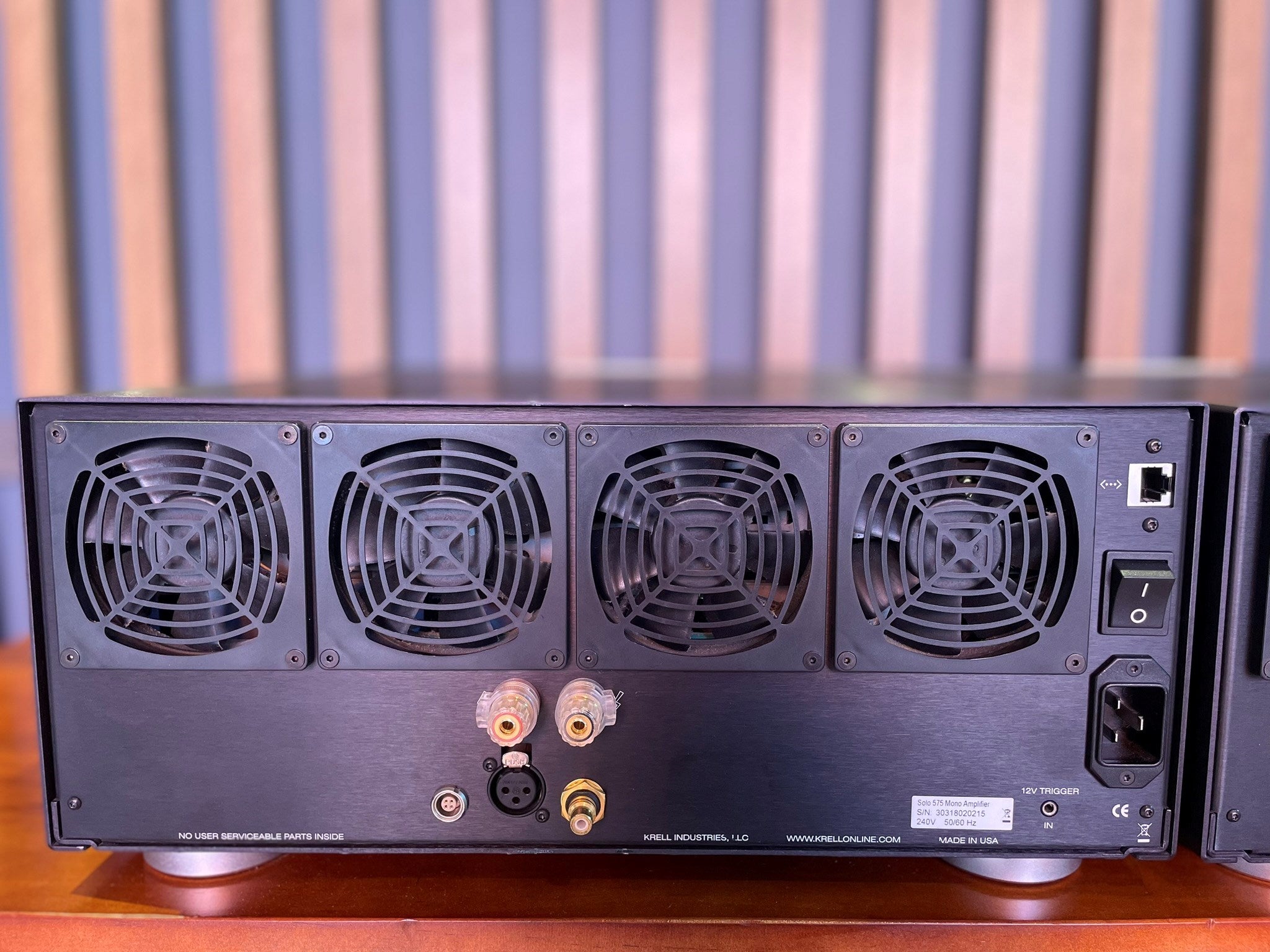

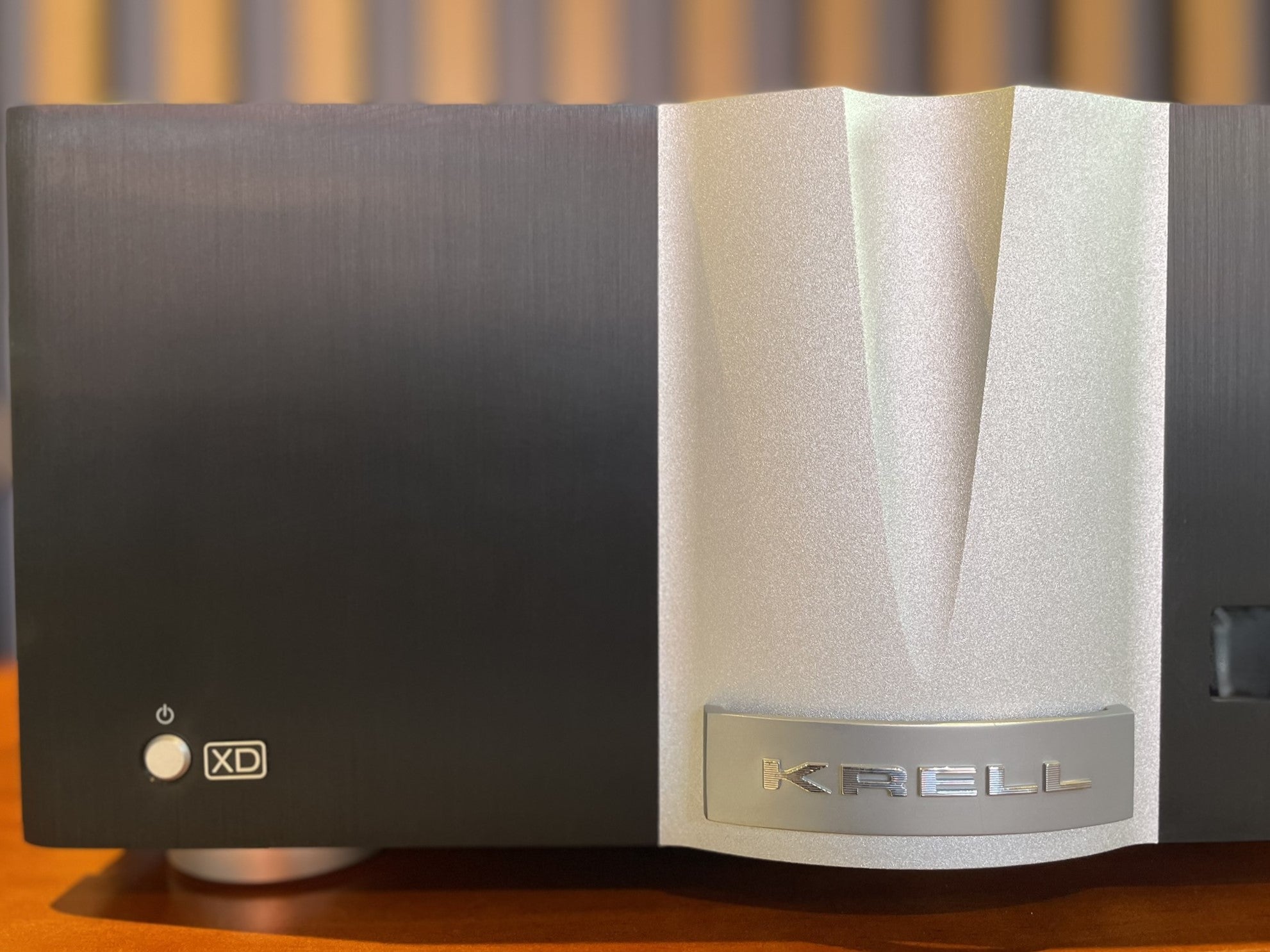

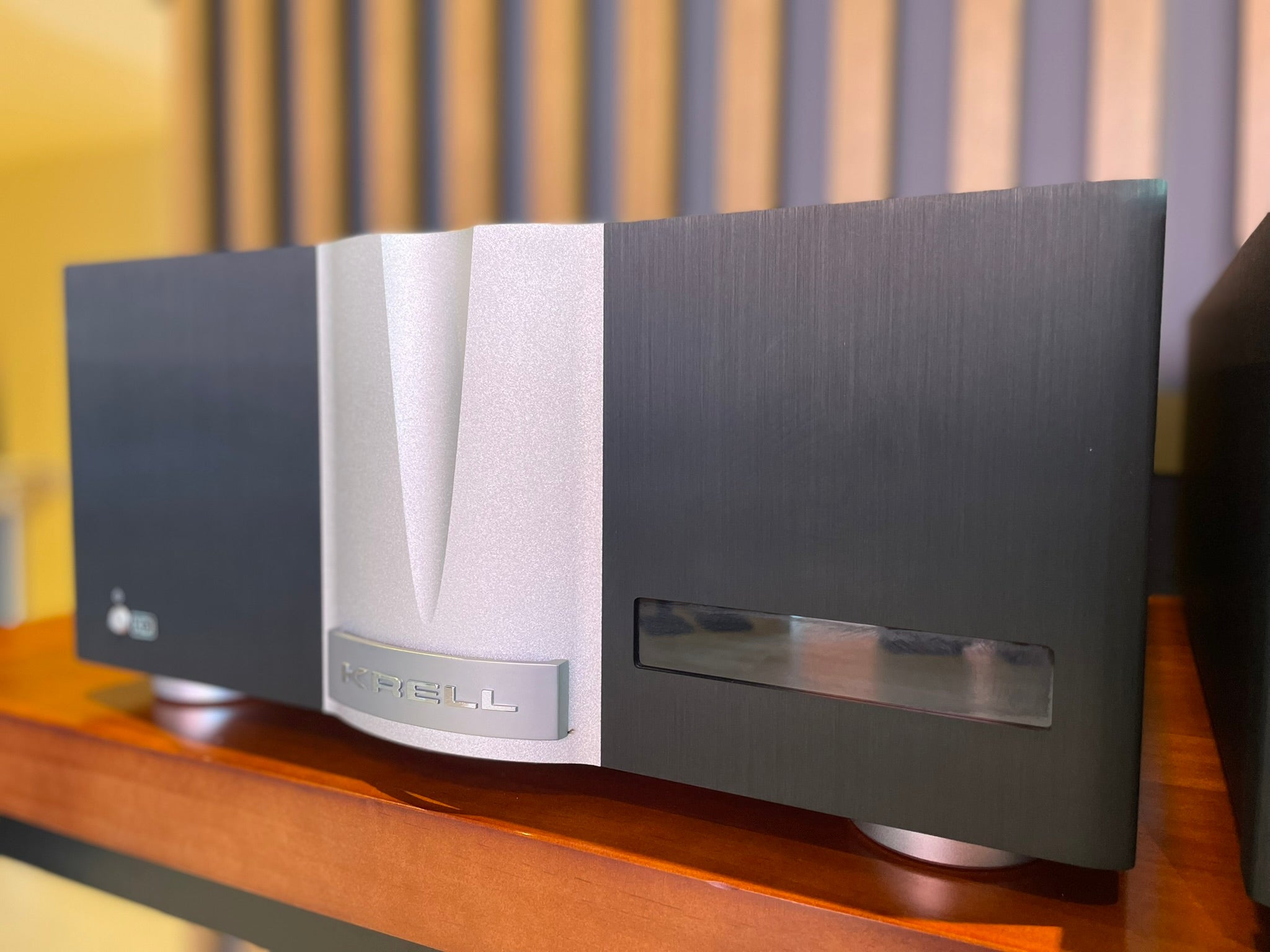

Krell Solo 575 XD Mono Amplifiers Pair - As Traded

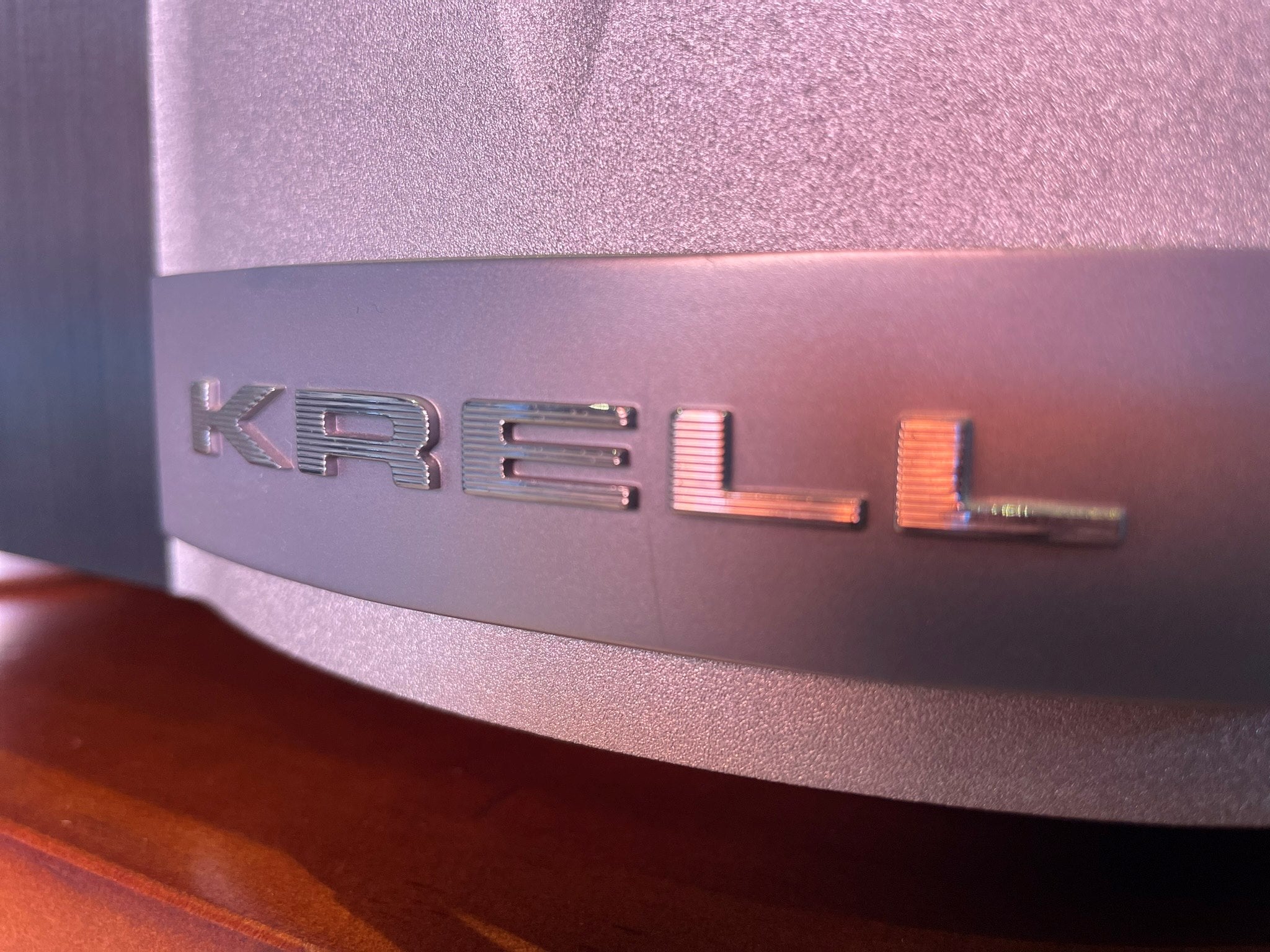

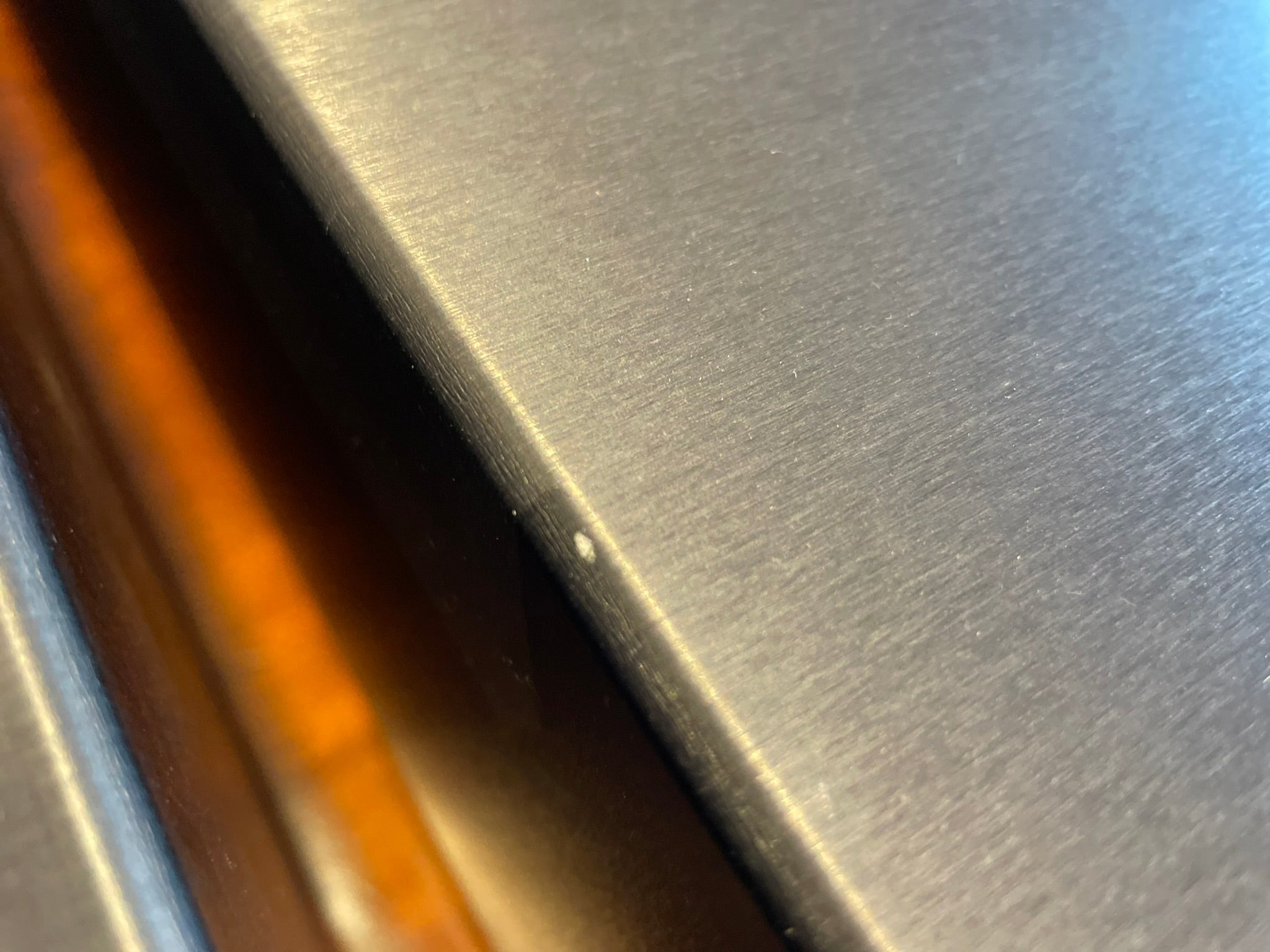

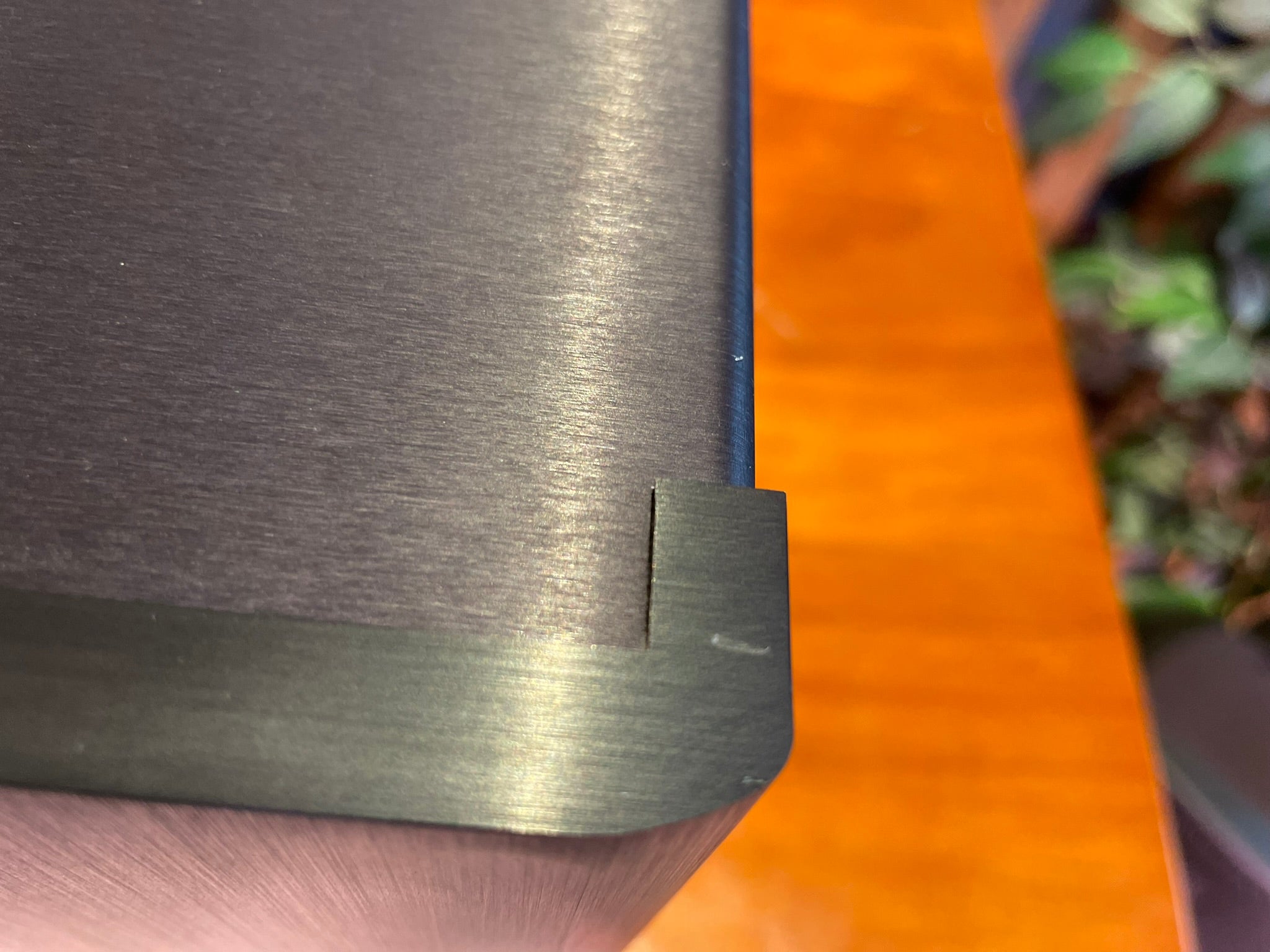

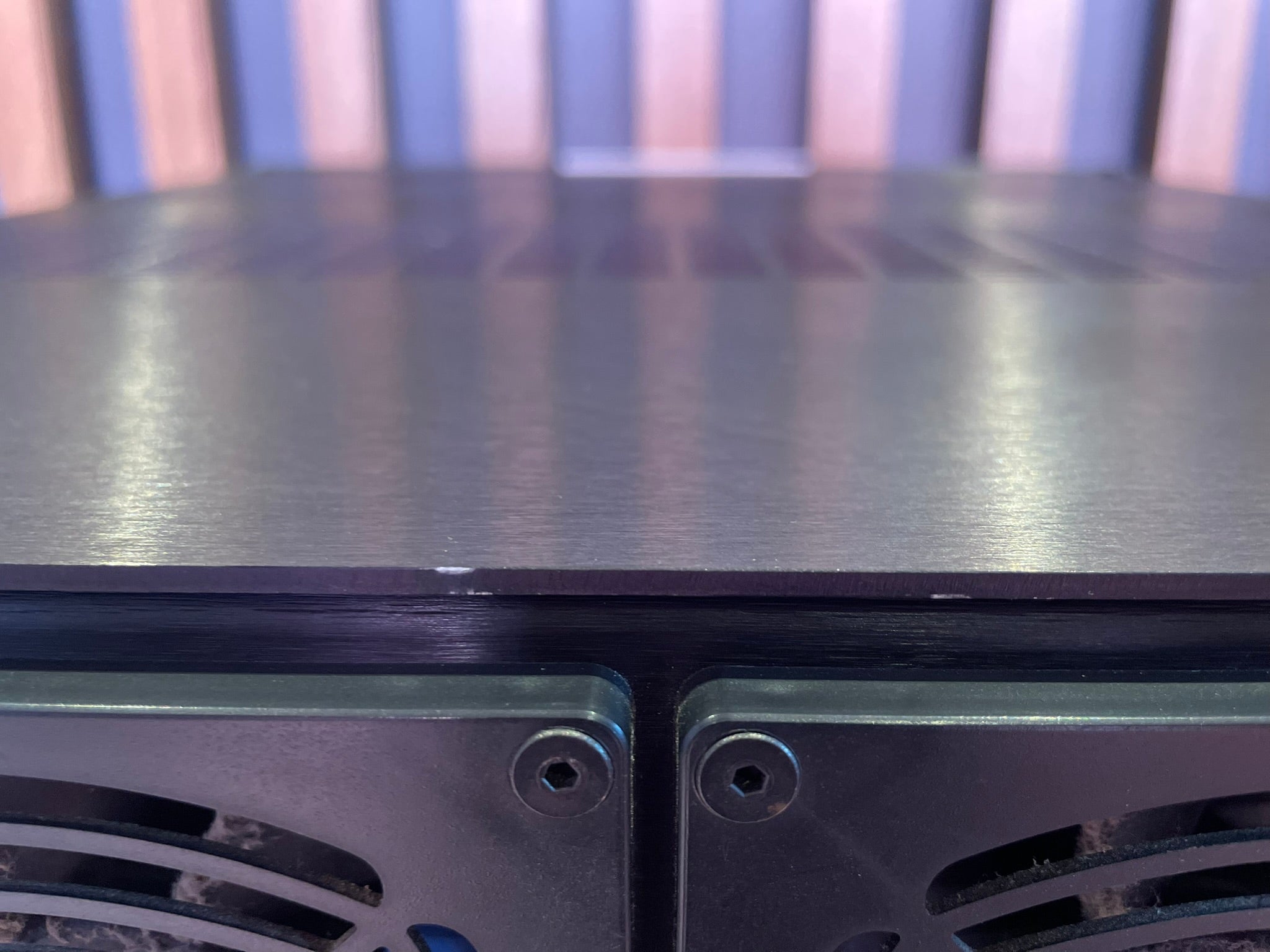

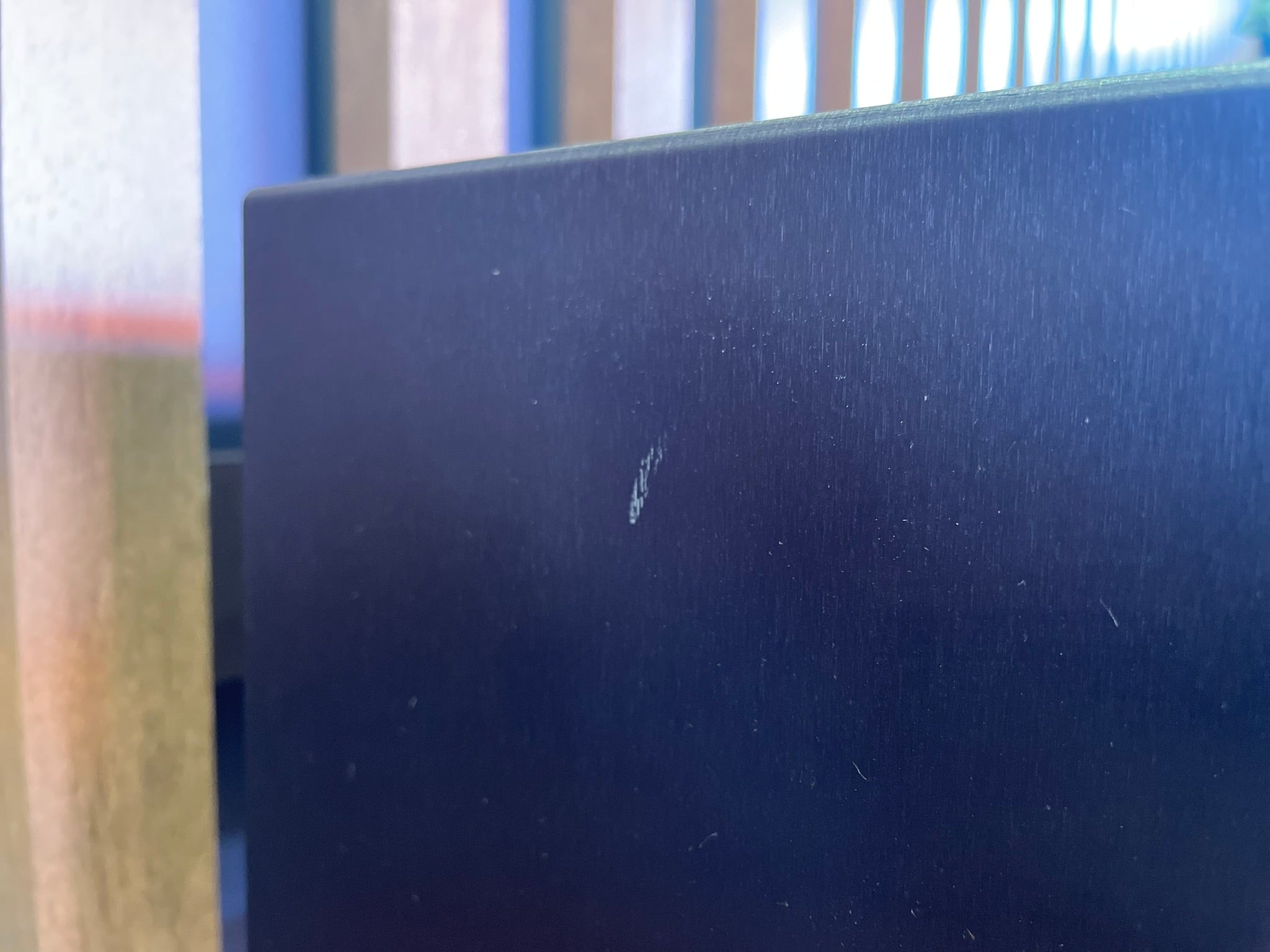

Condition: Good, some dents (see photos)

Includes: Power Cables

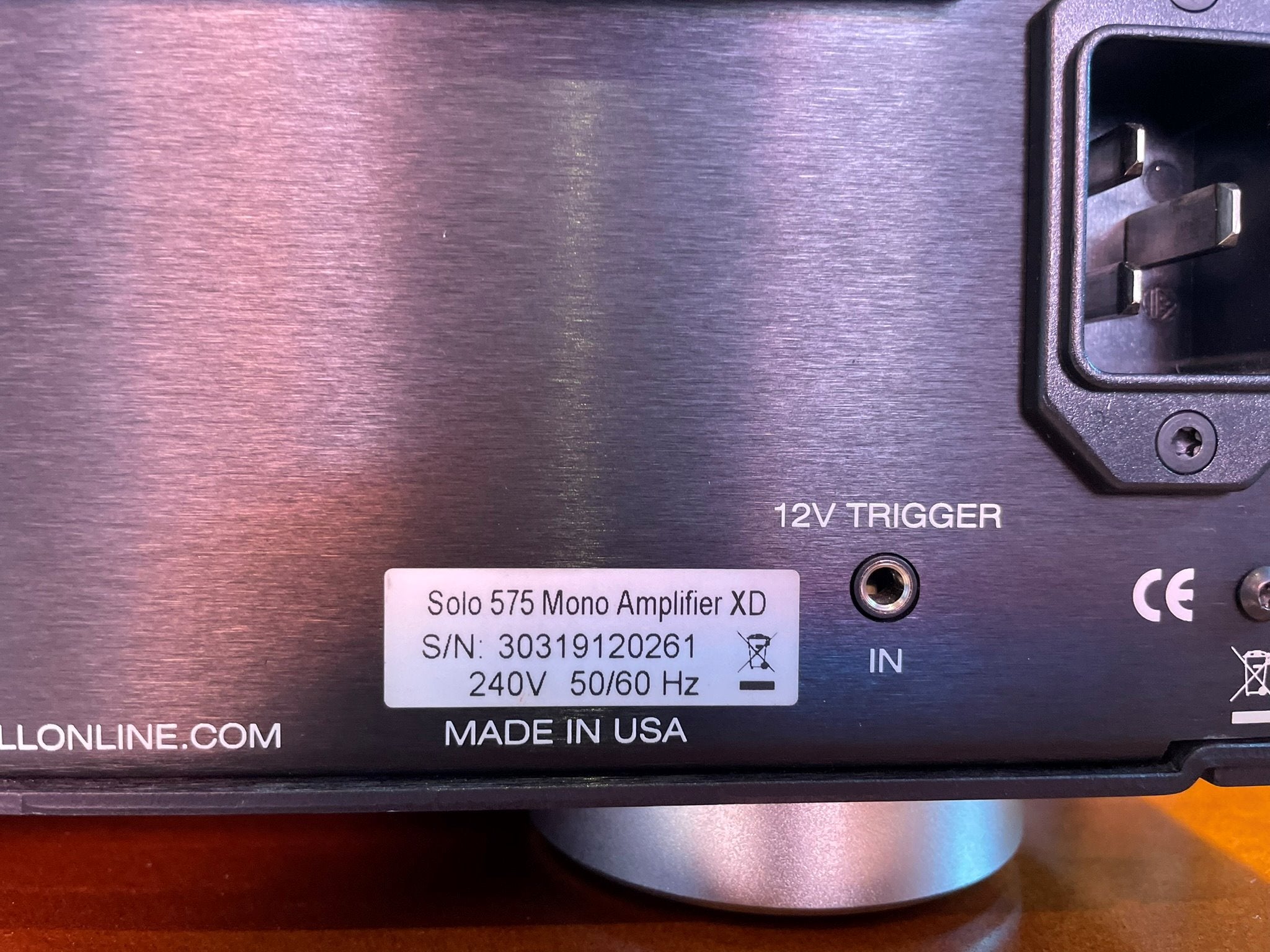

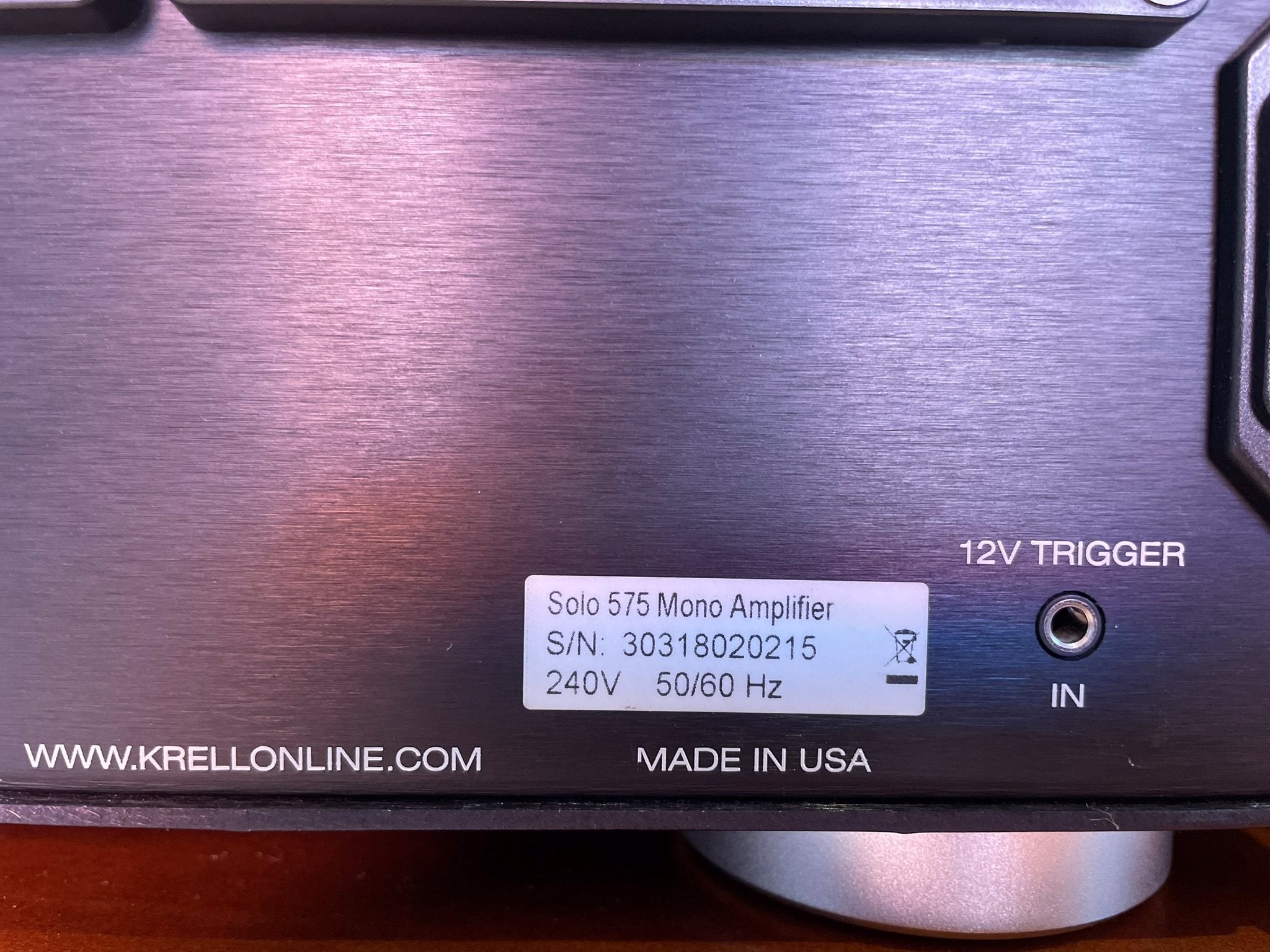

SN: 30318020215 / 30319120261

Made in USA

Overview

Krell's XD (Xtended Dynamics, Dimensionality & Detail) upgrade for the iBias amplifiers elevates an already outstanding amplifier to new heights of performance. XD exemplifies Krell's commitment to continuous research and development, yielding improvements across various product lines. Through the development of the K-300i Integrated Amplifier, we discovered significant sonic enhancements by reducing the output impedance below traditional standards. When this technique was applied to our existing amplifier lineup, the resulting improvement was so remarkable that it warranted its own unique designation—XD.

However, lowering the output impedance was not a straightforward task. It significantly impacts the amplifier's stability and transient response, requiring each stage prior to the output stage to be meticulously retuned to synergize optimally with the lower output impedance. This reduction in output impedance grants greater control over the speaker drivers and effectively suppresses unwanted vibrational modes, resulting in a more faithful reproduction of the original signal.

Krell Class A iBias™ Technology represents a leap forward in amplifier design, combining the hallmark qualities of Krell's legendary Class A amplifiers with innovative efficiency. Featuring a patent-pending circuitry, these amplifiers deliver true Class A operation without the heat and energy inefficiencies associated with conventional designs.

The power supply of Krell iBias Class A amplifiers is meticulously optimized for use with the iBias circuit. Multiple toroidal transformers, depending on the model, supply power to amplifier modules mounted on individual heat sinks, minimizing electrical path length and impedance. This design enhances speed and speaker control, resulting in superior audio reproduction.

Unlike traditional Class A amplifiers, iBias amps boast a compact design suitable for rack-mounting, facilitated by thermostatically controlled ventilation fans. These fans operate quietly and activate only during peak energy demand, ensuring an unobtrusive user experience.

The amplifiers feature RJ 45 Ethernet connectivity, enabling convenient monitoring and control via smartphones, tablets, or laptops. Configuration options include display settings and energy-saving presets. Advanced protection systems monitor various parameters in real time, with automatic email notifications in case of faults.

The iBias circuitry employs proprietary Krell technologies for signal gain, maintaining signal integrity in the current domain throughout the amplifier. The use of specialized transistors in the final gain stages enhances power handling and minimizes distortion, ensuring accurate and detailed sound reproduction.

Notably, Krell amplifiers are fully direct-coupled, eliminating coupling capacitors in the audio path for improved speaker control and extended low-frequency response. The inclusion of Krell CAST™ inputs and circuitry further enhances sonic performance by unifying interconnected components and preserving the original signal integrity.

These amplifiers offer the musicality of Class A operation, dynamic range of classic Krell designs, and efficiency of Class G and H amplifiers. By eliminating crossover distortion, they reveal intricate details and microdynamics in audio recordings, delivering an expansive soundstage with pinpoint imaging.

In essence, Krell iBias Class A amplifiers provide audiophiles and home theater enthusiasts with unparalleled performance, combining power, control, and musicality in a groundbreaking amplifier design.

Specification

Frequency response 20 Hz to 20 kHz +0, –0.15 dB
<0.5 Hz to 100 kHz +0, –3 dB
Signal-to-noise ratio >108 dB, wideband, unweighted, referred to full power output
>115 dB, “A”-weighted
Gain 27 dB
Total harmonic distortion <0.03% at 1 kHz, at 575 W, 8 Ω
<0.19% at 20 kHz, at 575 W, 8 Ω
Input Impedance Single-ended: 100 kΩ
Balanced: 200 kΩ
Input sensitivity Single-ended or balanced: 3.03 V RMS
Output power 575 W RMS at 8 Ω
900 W RMS at 4 Ω
Output voltage 192 V peak-to-peak
68 V RMS
Output current 22 A peak
Slew rate 40 V/μs
Output impedance <0.015Ω, 20 Hz to 20 kHz
Damping factor >530, 20 Hz to 20 kHz, referred to 8

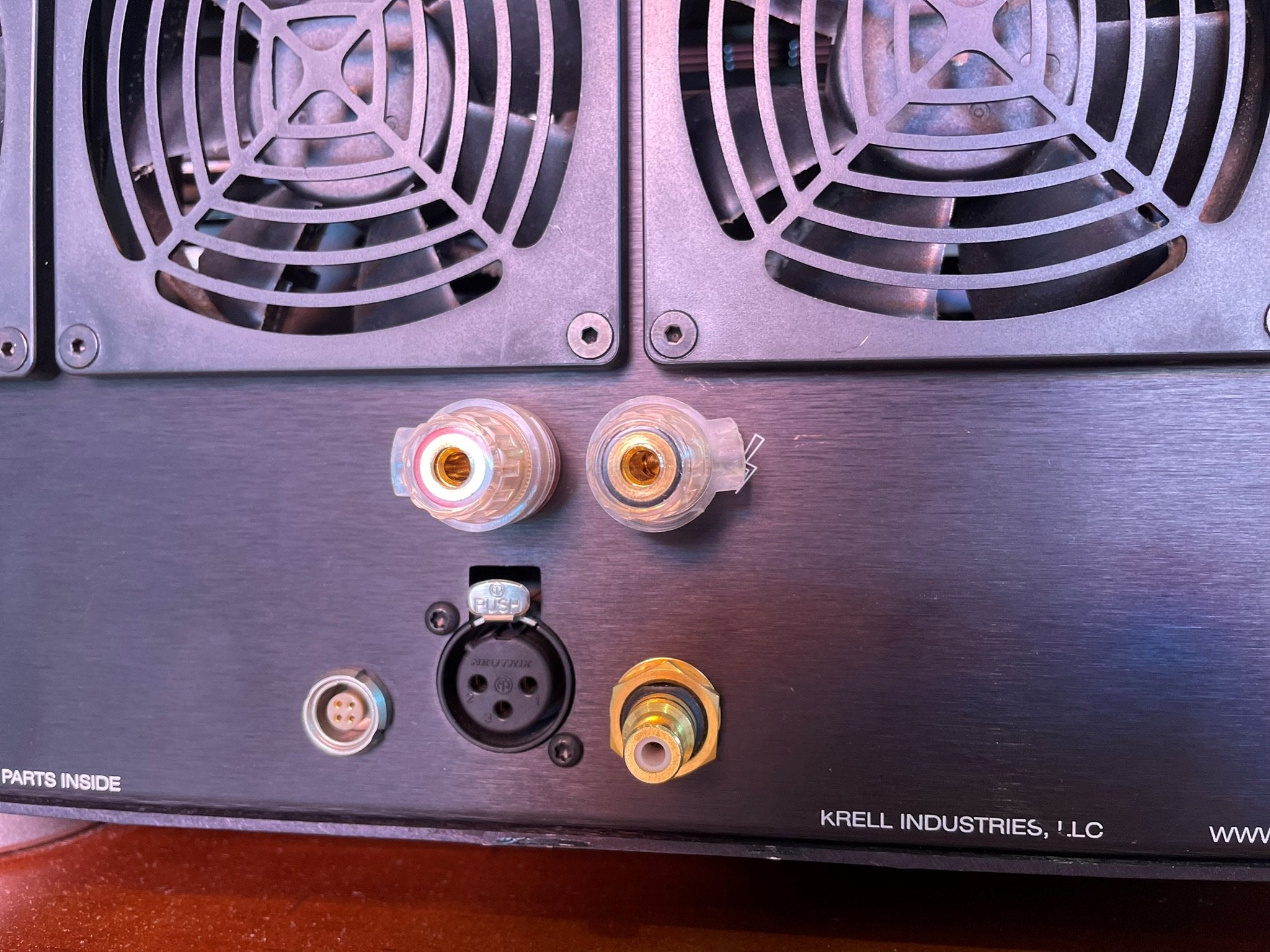

Inputs 1 single-ended via RCA connector
1 balanced via XLR connector
1 CAST
Outputs 1 pairs binding posts
Dimensions 434 mm W x 194 mm H x 536mm D
Weight 36.4 kg (shipping), 31.8 kg (unit only)
