Krell KAS (Krell Audio Standard) Monoblock Power Amplifiers - Consignment

Krell KAS (Krell Audio Standard) Monoblock Power Amplifiers - Consignment

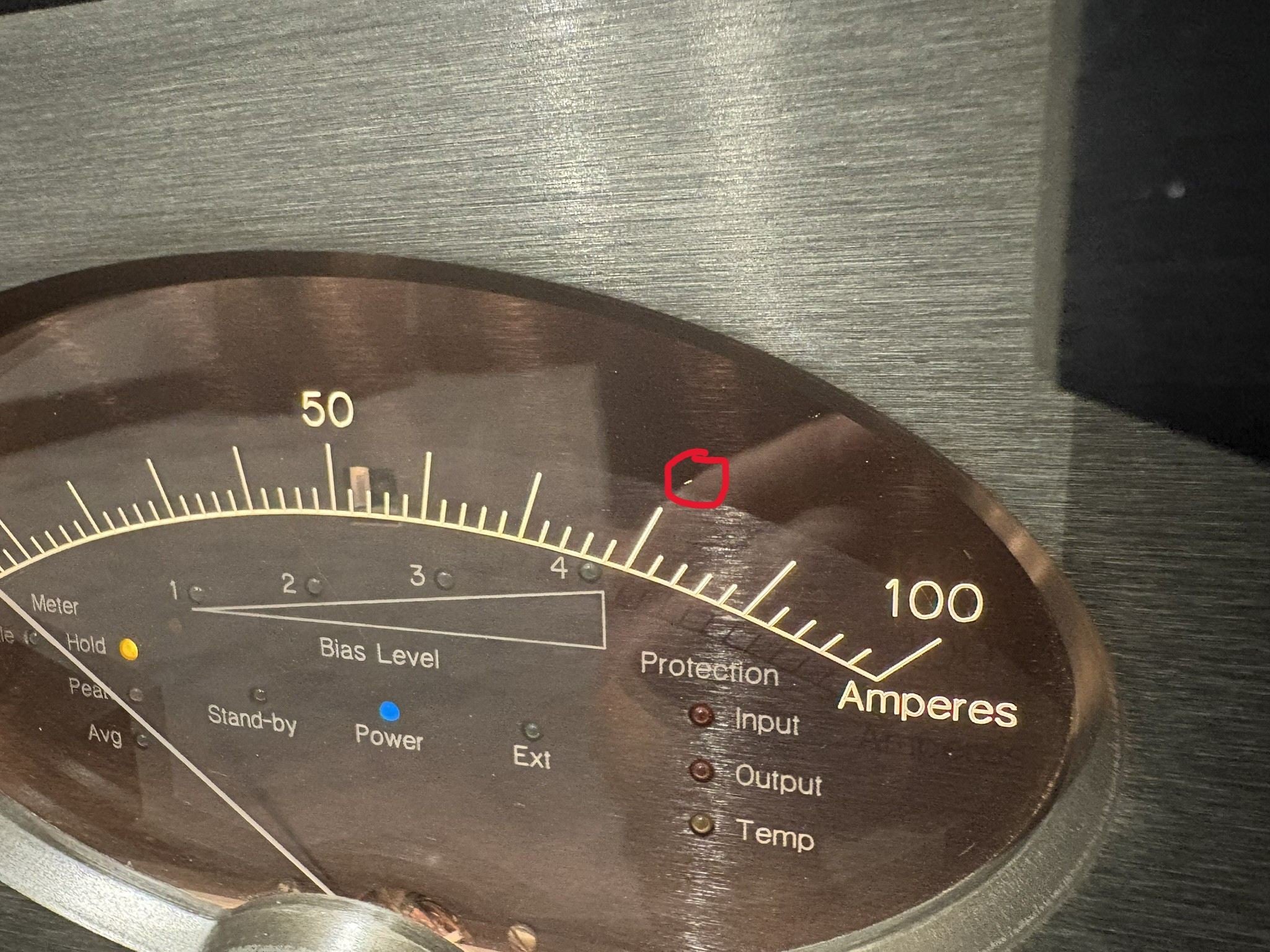

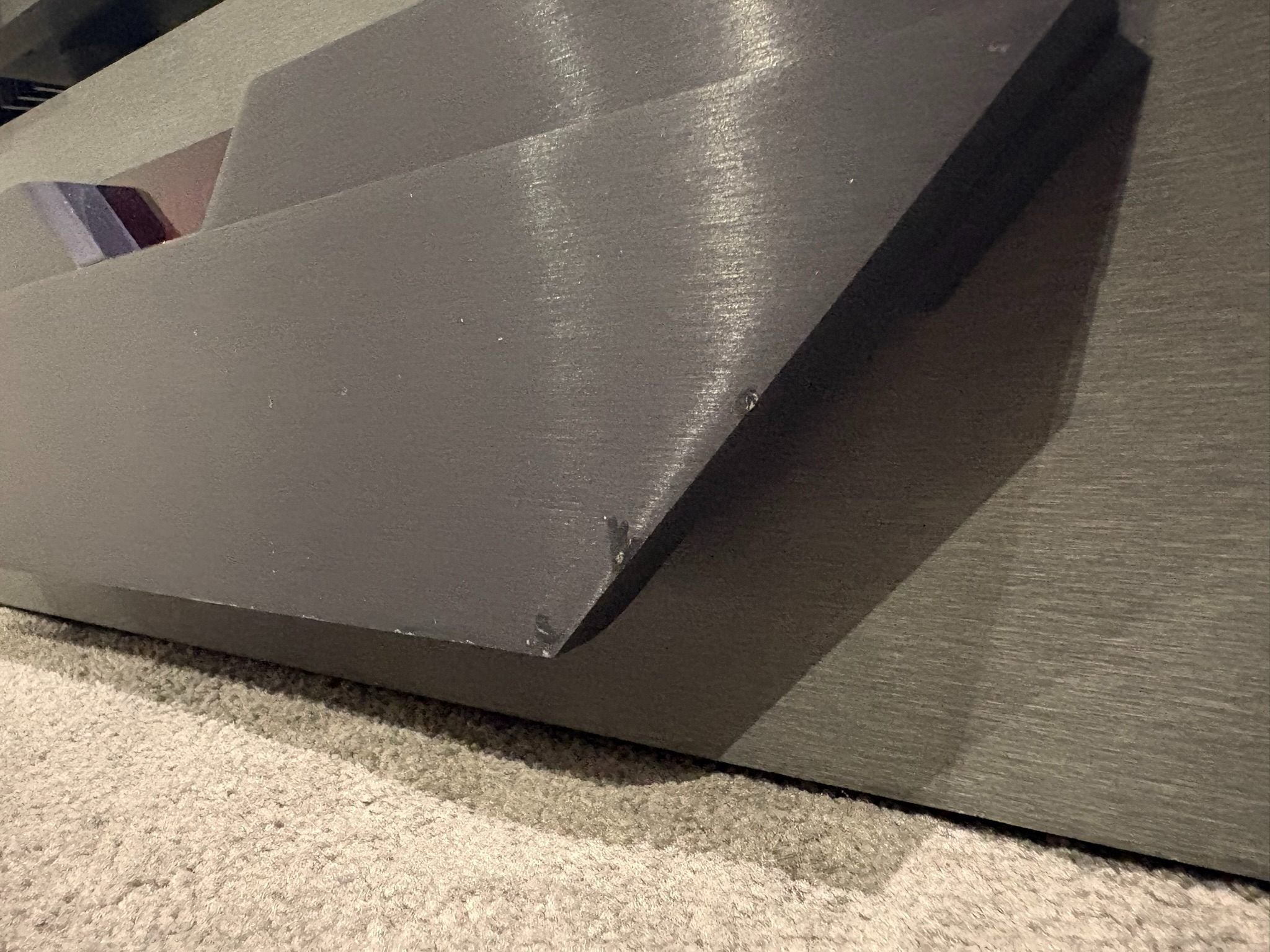

Condition: Used. One minor chip to metalwork on chassis front, one small chip on meter display (See photos)

Includes: Power cables only (No box)

SN: 24-86367 / 24-86455

Includes 7 day warranty

Local Sydney Metro Delivery Only, Contact for Freight Quote

Overview

The "Krell Audio Standard" is a dual-chassis monoblock with a regulated power supply separated from the audio circuitry.

The regulated power supply features Krell's "Anticipator" circuit that senses input at a high speed of 1,800 V / μ a second and sets the bias, which avoids the reduction of instant dynamics that is typical of regulated power supplies.

Krell's Sustained Plateau Bias system also monitors the input signal to determine the bias level required to maintain pure class-A operation, using five discrete bias levels, each equivalent to a class-A amplifier of increasing power capability, keep power consumption and heat dissipation to a minimum. The amp actually maintains the higher output level for 90 seconds before changing back to a lower level.

Produced in cooperation with Motorola, 48 TO-3 can-type output transistors, are each fed by 48 matching regulator transistors offer extremely stable voltage and current, even at 1 Ω load output.

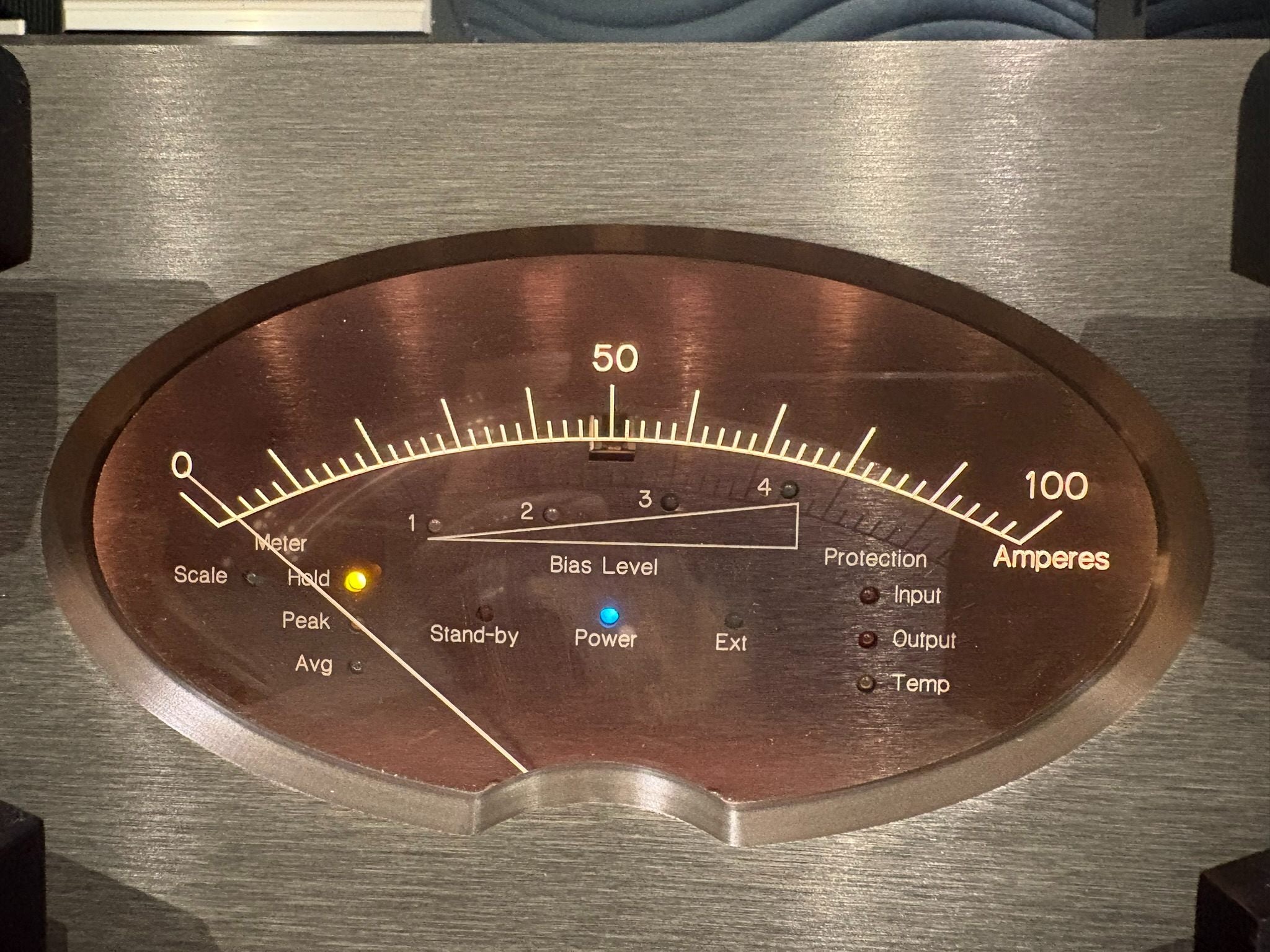

The result is effortless power delivered against an almost unnoticeable background, obviously capable of driving the most demanding loudspeakers. Also, the backlit meters are a pleasure to enjoy in low light.

Specification

Power Output :
8Ω - 380 Watts
4Ω - 760 Watts
2Ω - 1520 Watts
1Ω - 3040 Watts
Gain: 26 dB
S/N A-Weighted: 120 dB
Damping Factor: 1000
Distortion: 0.1%
Input Sensitivity / Impedance 2.6V/47k
Power consumption 150W (idle), 1,600W/ch (8 Ω max)
Dimensions - Each: 46 x 34 x 63.5 cm
Weight, Each: 98 kg
