KEF Ci5160REFM-THX In-Wall Speaker (each)

KEF’s first THX® Certified Dominus speaker

The in-wall Ci-Reference architectural speaker Ci5160REFM-THX is KEF's first in-wall speaker to be THX® Certified Dominus among the very few that can achieve this ultimate standard worldwide. Together with a 12th generation Uni-Q driver array with Metamaterial Absorption Technology (MAT), Ci5160REFM-THX delivers an immersive, high-fidelity soundstage with unmatched sonic excellence even for the most extensive home theatres and living rooms.

Key features

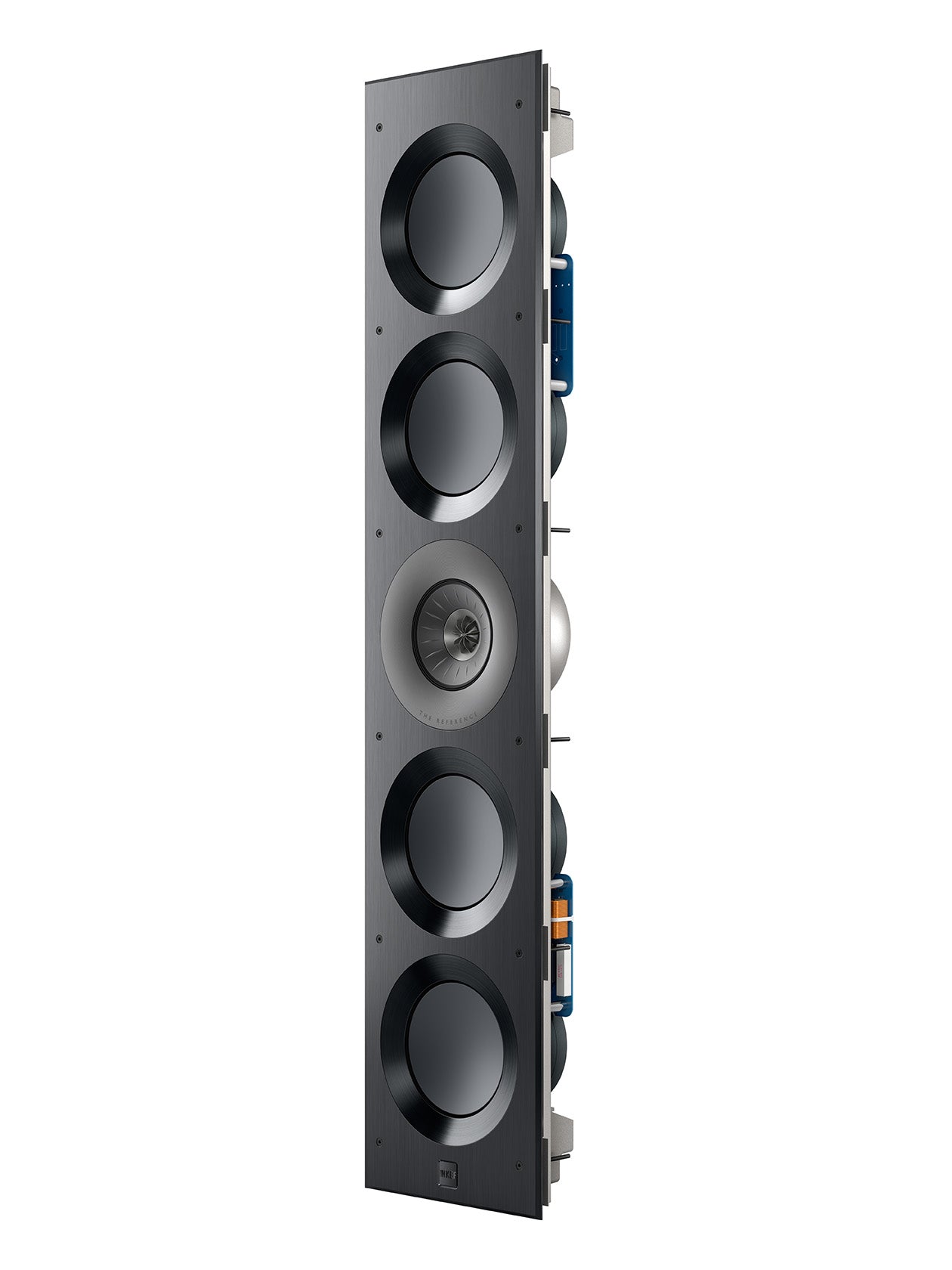

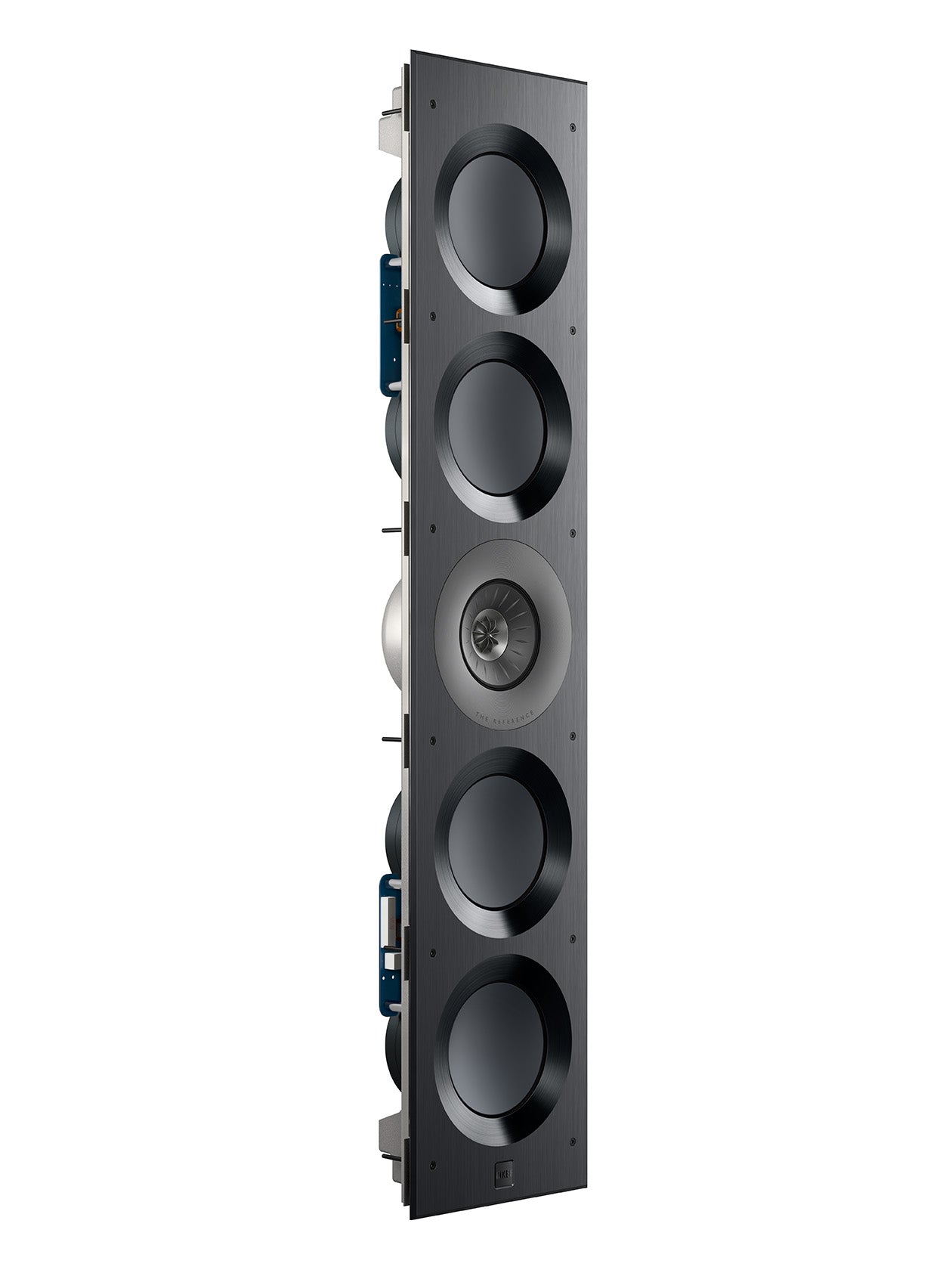

Realistic, high-fidelity sound  Featuring four 160mm (6.5in.) bass drivers, Ci5160REFM-THX delivers a clean, rich and highly articulate bass response down to 32Hz. Together with the massive, vented motor system that was designed specifically for an in-wall environment, making Ci5160REFM-THX disappear into the room to leave an awe-inspiring, immersive experience.

THX® Certified Dominus  Ci5160REFM-THX is THX® Certified Dominus – the largest and most powerful THX® performance class, which is the closest approximation to a public cinema experience that one can achieve at home.

Metamaterial Absorption Technology  Absorbs 99% of the unwanted sound

Handcrafted in UK  As our high-end speakers, Ci-Reference is designed, engineered, and hand-built in Maidstone, UK

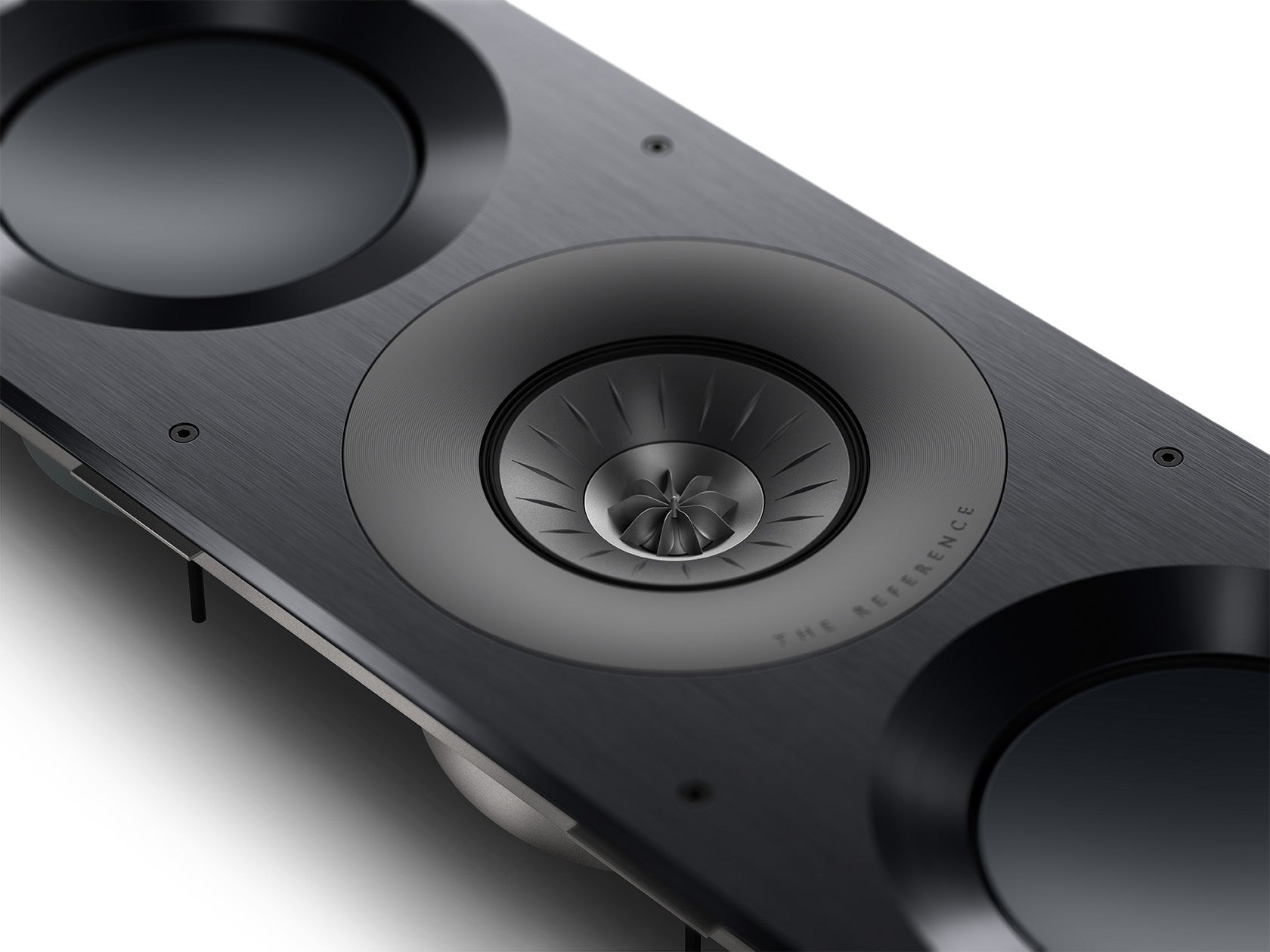

Uni-Q®  Acts as a single point source to enlarge the 'sweet spot' and disperse sound more evenly.

Finished to perfection  Available in Aluminium Black/Grey, a hairline finished aluminium baffle in black, with the Uni-Q driver array in grey.

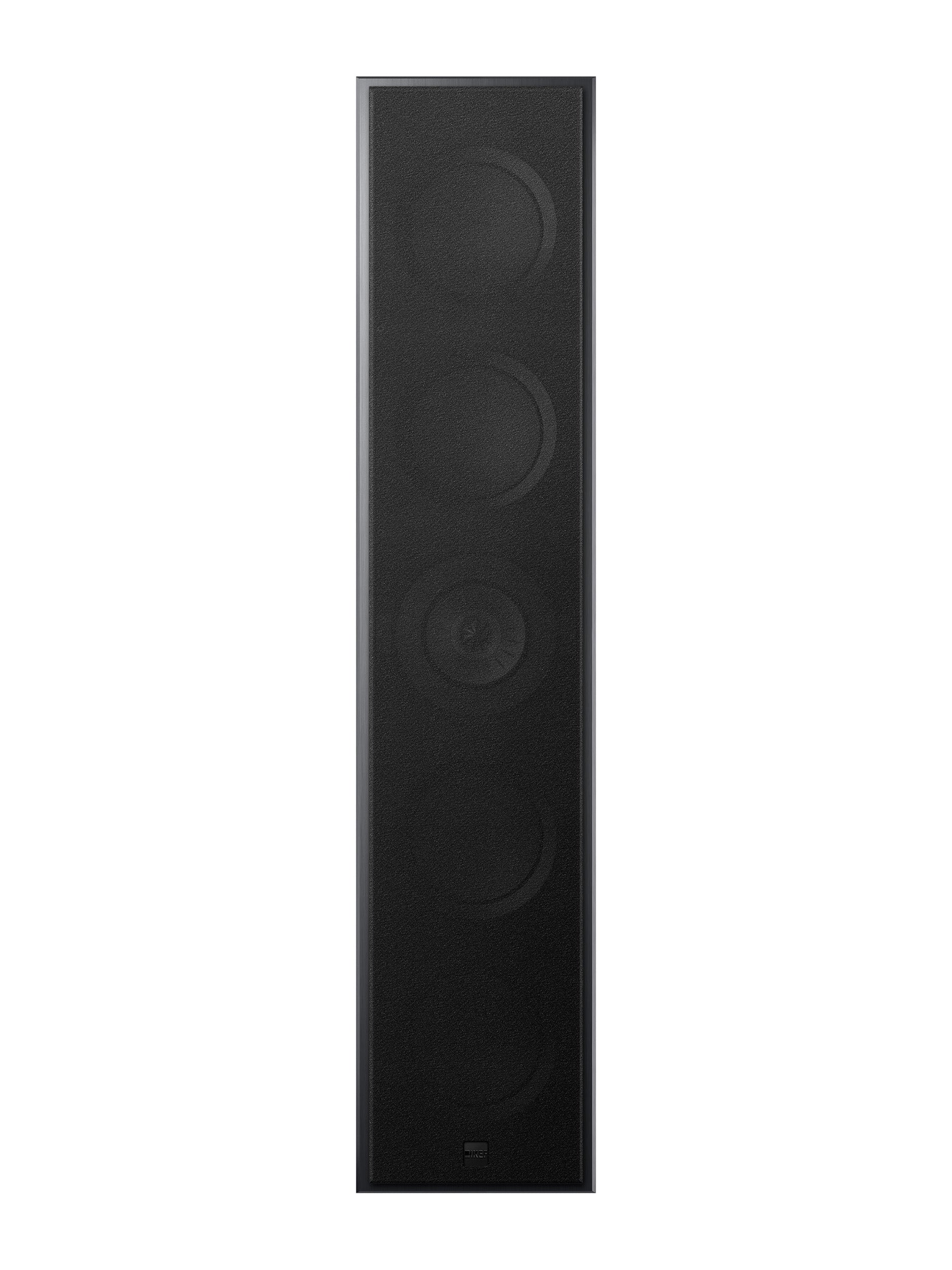

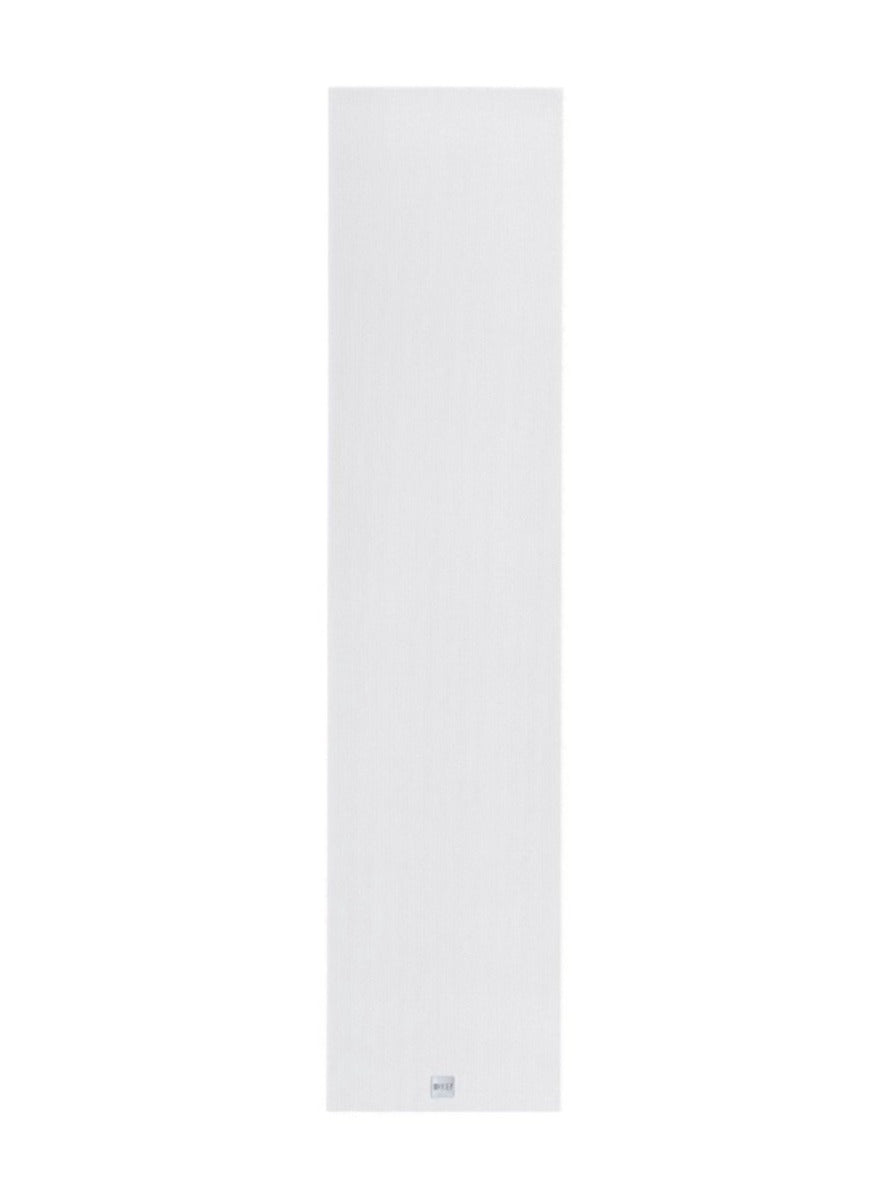

Hide your speakers, not your sound  The paintable magnetic metal grille and optional black cloth grille ensure the speaker seamlessly blends into the environment.

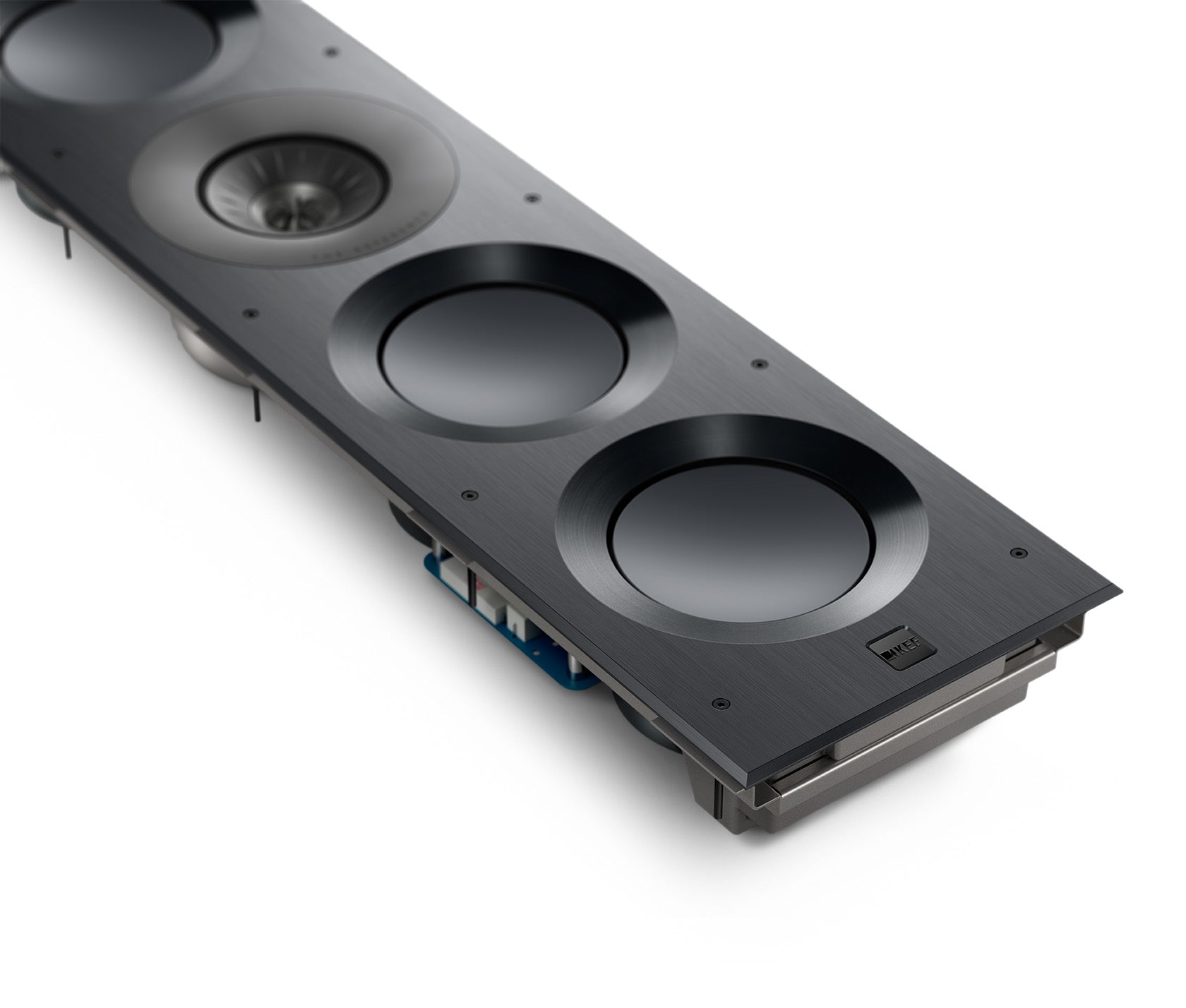

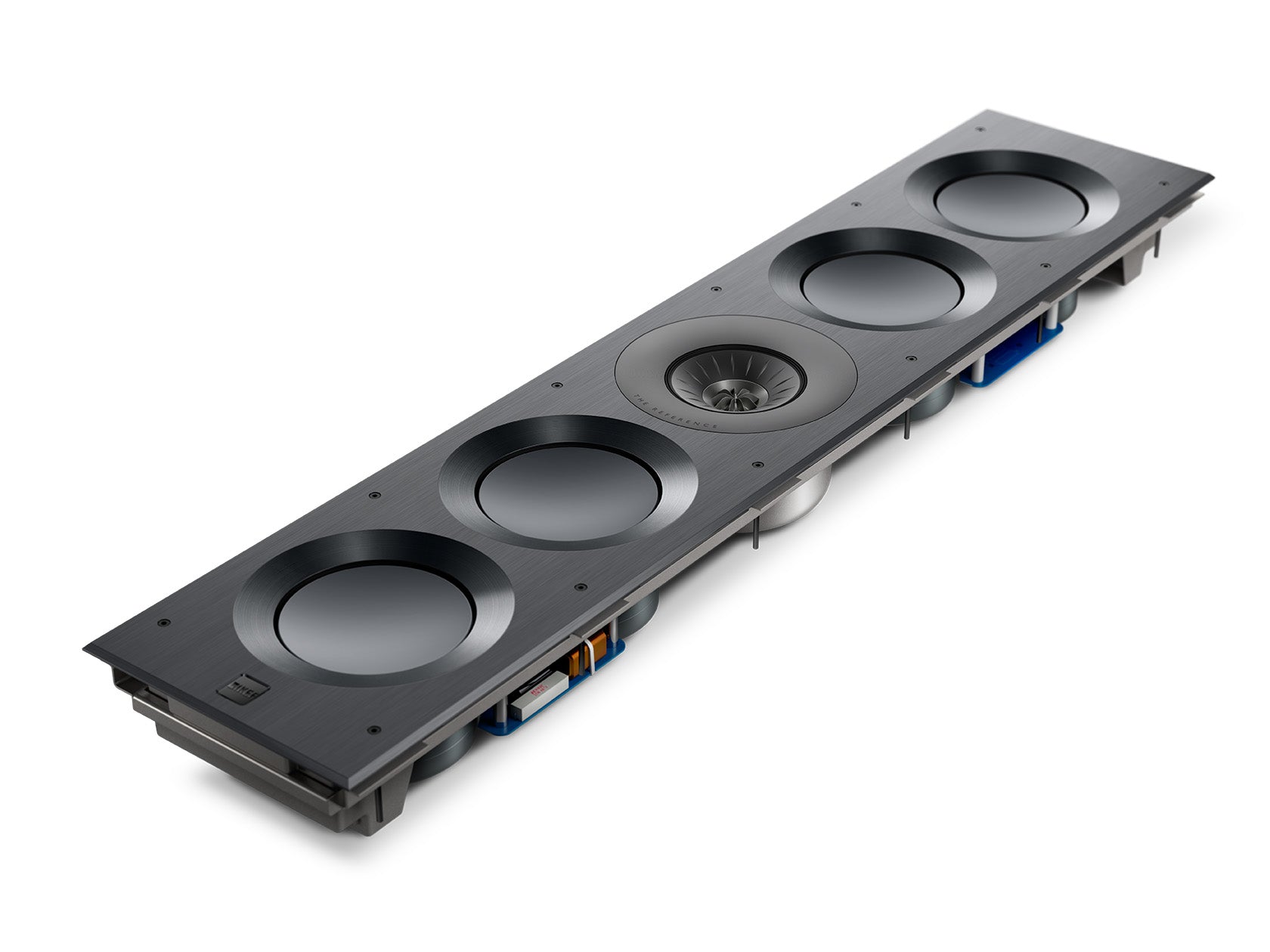

Total attention to detail  The 11mm thick precision-machined aluminium baffle is engineered to eliminate vibration and provides a stoic platform for the powerful drivers to perform at their best.


Nominal Impedance
Sensitivity (2.83V/1m)  92dB
Frequency Response (±6 dB) open-backed  40 - 28kHz
Frequency Range (-10 dB)  32 - 45kHz
Nominal Coverage (degrees)  150°
Crossover Frequency  600Hz, 3000Hz
Drive Units
LF: 4 x 160mm (6.5in.)
MF: 125mm (5.25in.) Uni-Q
HF: 25mm (1in.) vented aluminium dome with Metamaterial Absorption Technology
Recommended Amplifier Power  50 - 500 W
Recommended High-pass Filter (Hz)  35Hz - 80Hz
Product External Dimensions (H X W X D)  1070 x 230 x 105.7mm (42.13 x 9.06 x 4.16in.)
Cut-out Dimensions (H X W)  1052 x 209mm (41.42 x 8.23in.)
Net Weight  21.7kg (47.8lbs.)
Mounting Depth From Surface  99mm (3.9in.)
Optional Rough In Frame  RIF5160L
Ideal Rear Volume (L)  90
Minimum Rear Volume (L)  40
Max SPL (dB)  116dB
Certification  THX Certified Dominus
Wall Thickness (Maximum)  40mm (1.58in.)
Wall Thickness (Minimum)  6mm  (0.24in.)

*This product may take 12 -14 weeks for delivery.
