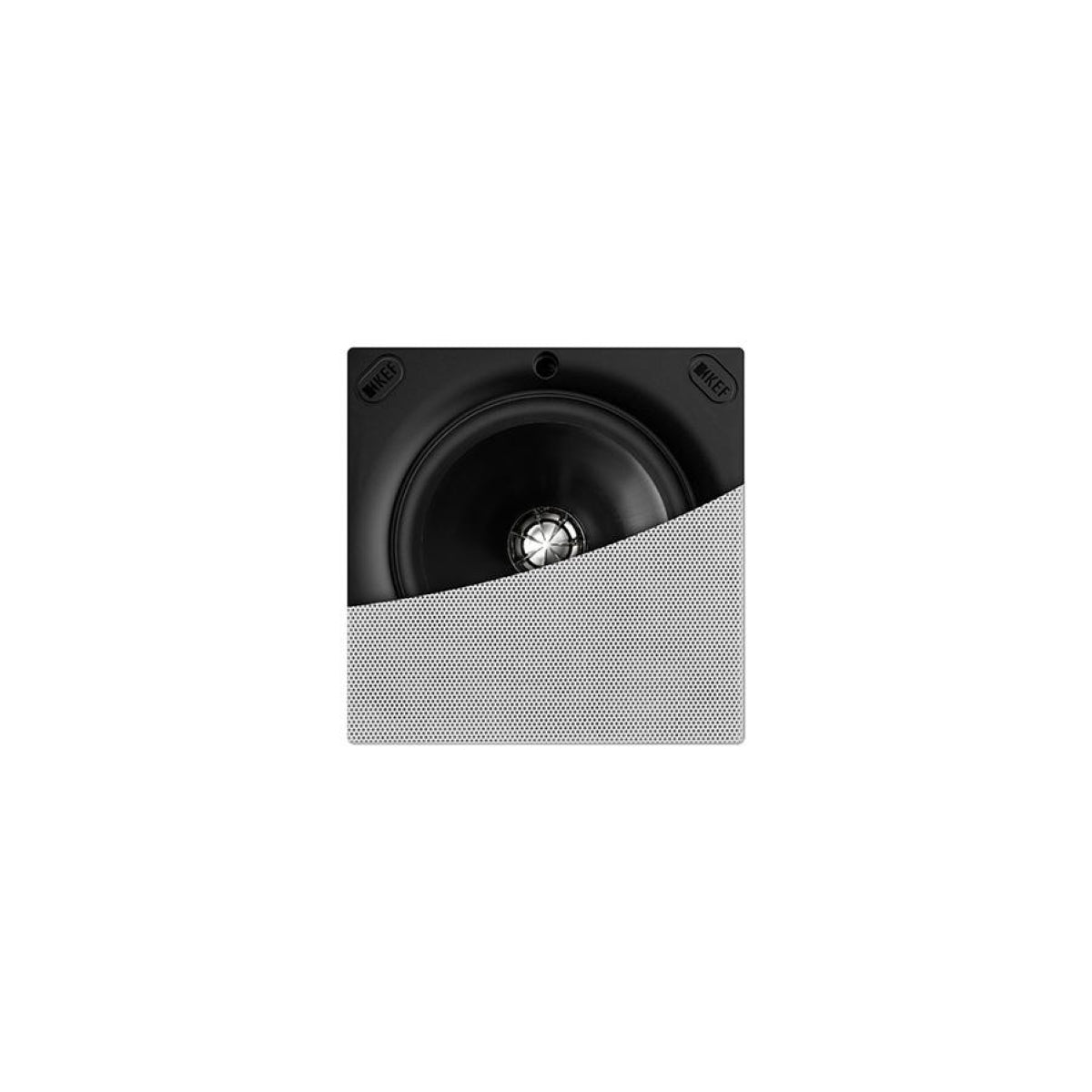

KEF Ci130QSfl In-Wall Flush Mount Speaker (each)

The KEF Ci130QSfl is a flush-mounted frameless architectural speaker engineered for high-quality sound and simple installation. Designed for both new builds and retrofitting, Ci130QSfl sits flush with the wall or ceiling, making it ideal for properties with clean lines and minimalist features.

Part of the Ci-Q Series, Ci130QSfl is built around KEF’s signature Uni-Q array so it acts as a single point source, which combined with Tangerine Waveguide technology, disperses pristine sound throughout a room. The Ci130QSfl is a square loudspeaker, while the Ci130QRfl features identical drivers in a round format.

Ci130QSfl is engineered to be easy to install. Designed for both new construction and retrofitting, Ci130QSfl can be installed as part of the plastering process, and thanks to its frameless design it sits completely flush with the wall or ceiling for an incredibly clean finish.

Nominal Impedance: 8 Ohms

Sensitivity: 87dB (2.83V/ 1m)

Frequency Response (±6DB)

Open-Backed: 45Hz - 34kHz

Frequency Range (-10DB): 38Hz-30kHz

Nominal Coverage: 130

MAX SPL (DB): 103

Crossover Frequency: 3.8kHz

Drive Units

LF: 130mm (5.25in.) Uni-Q

HF: 19mm (0.75in.)

Recommended Amplifier Power: 10-100W

Recommended High-Pass Filter (HZ): 50Hz

Product External Dimensions: 200.5 x 200.5 x 103.6 mm

Cut-Out Dimensions: 158 x 158 mm

Mounting Thickness

Ceiling Thickness (Maximum): 31mm (1.220in.)

Ceiling Thickness (Minimum): 8mm (0.315in.)

Net Weight: 1.6kg (3.53Ibs.)

Mounting Depth From Surface: 101mm (3.98in.)

Optional Rough In Frame: NA

Optional Rear Enclosure: NA

Ideal Rear Volume(L): 15

Minimum Rear Volume(L): 10

Safety And Regulatory Compliance: NA
