KEF BTS30 Bluetooth Keypad and Compact Amplifier System

KEF BTS30 Bluetooth Keypad and Compact Amplifier System

Stock expected December 2026 - Pre-order now!

The KEF BTS30 is capable of delivering Hi-Fi quality audio to a pair of loudspeakers

Flexible enough to deliver sound to systems in other rooms, Ideal for use in a wide variety of applications including homes, hotels, bathrooms and kitchens.

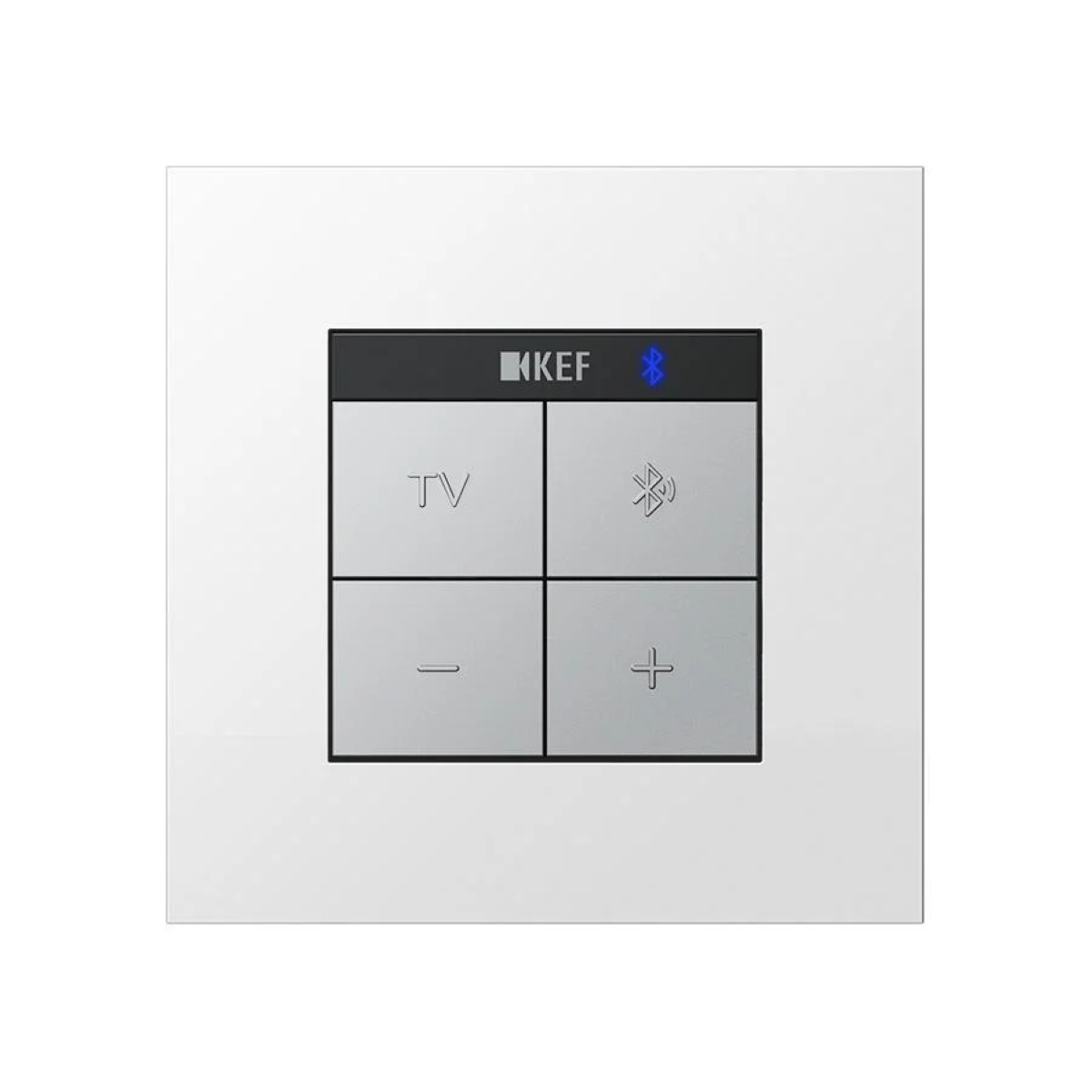

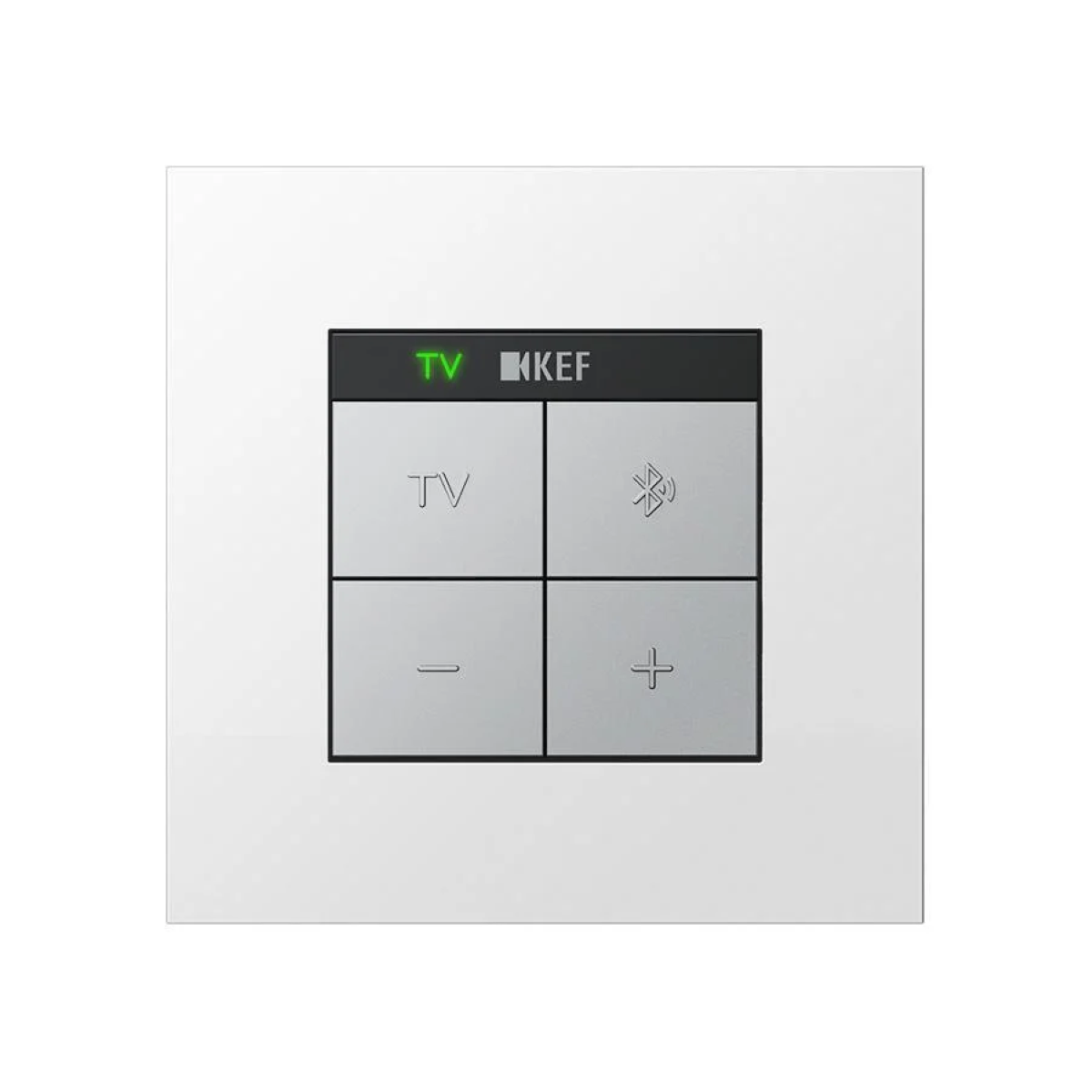

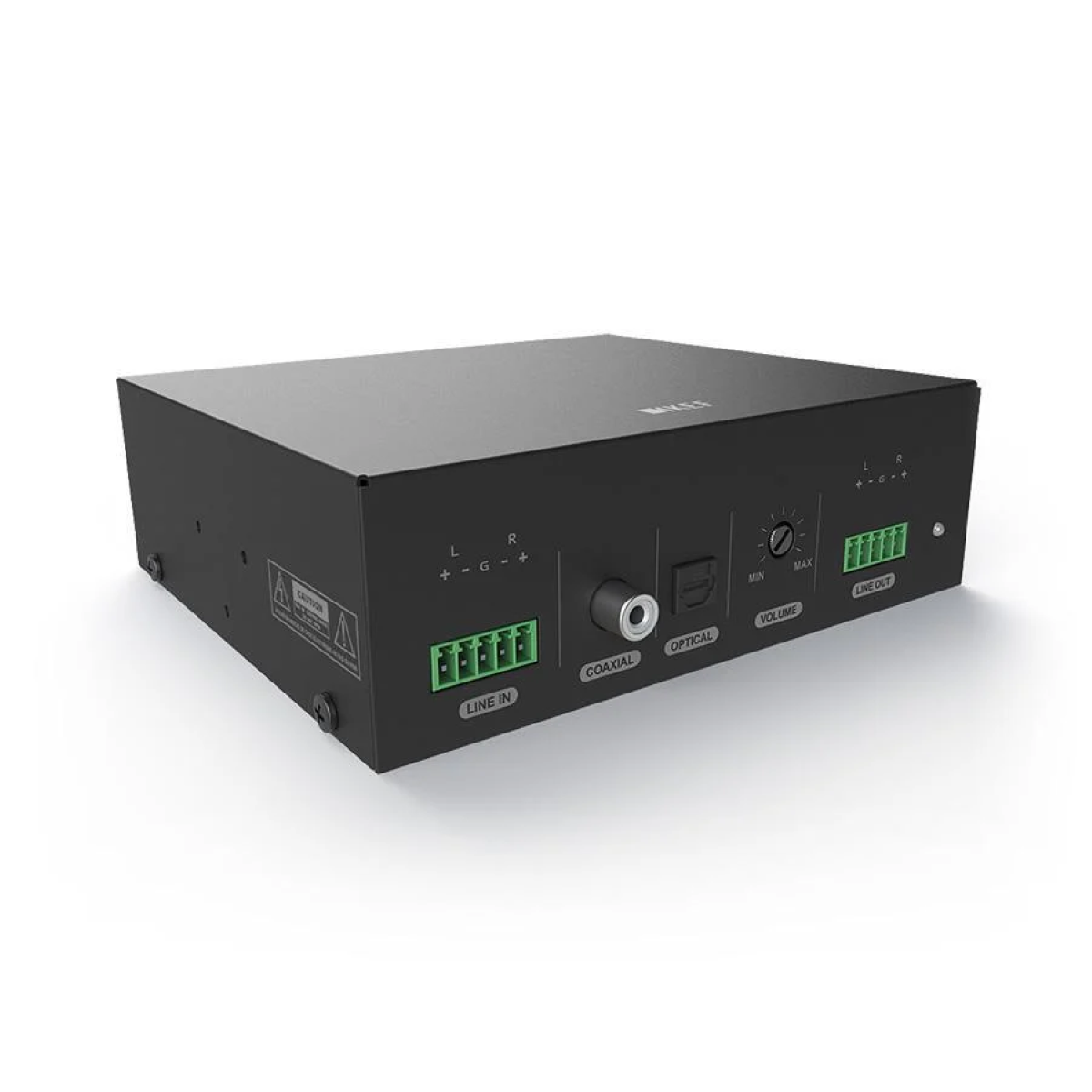

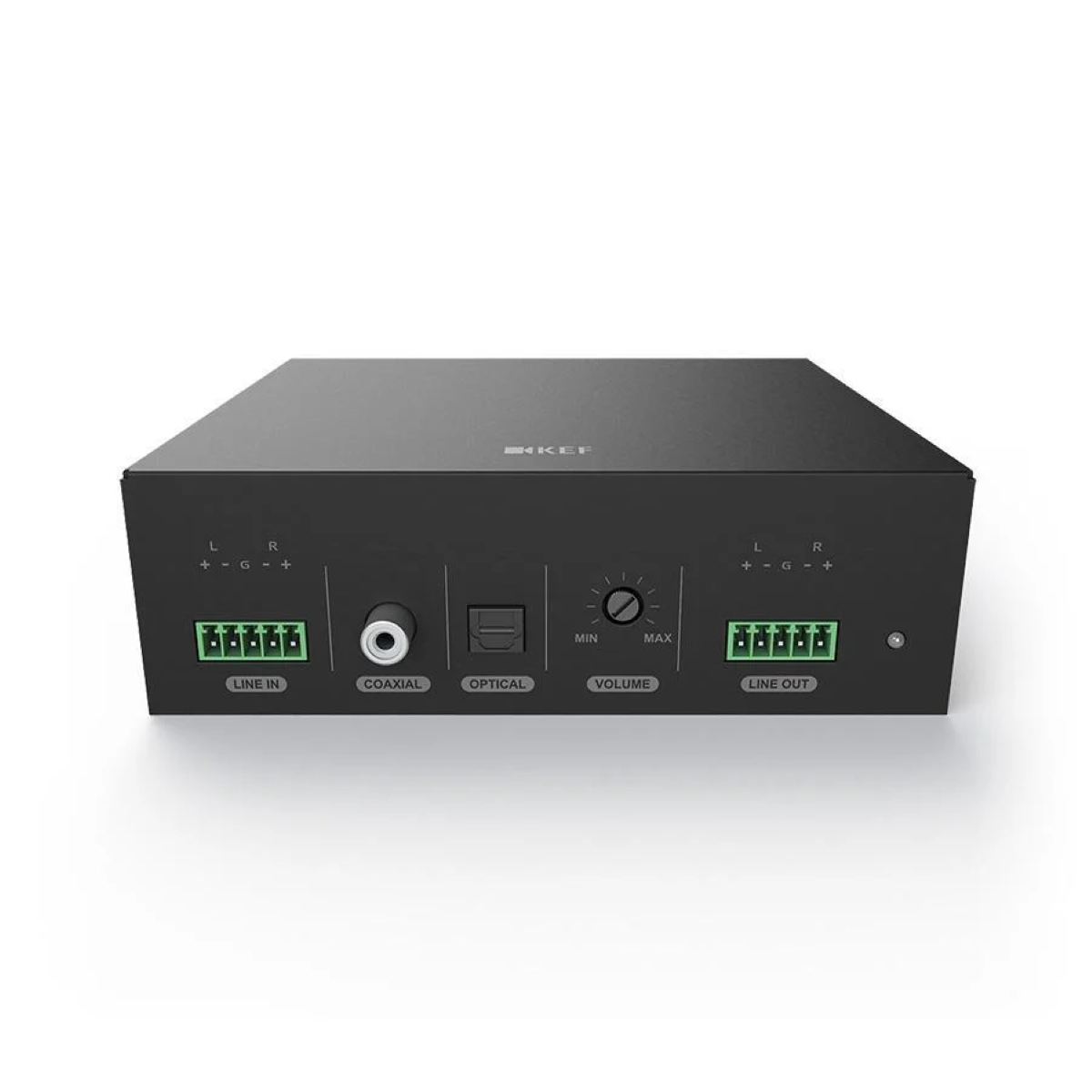

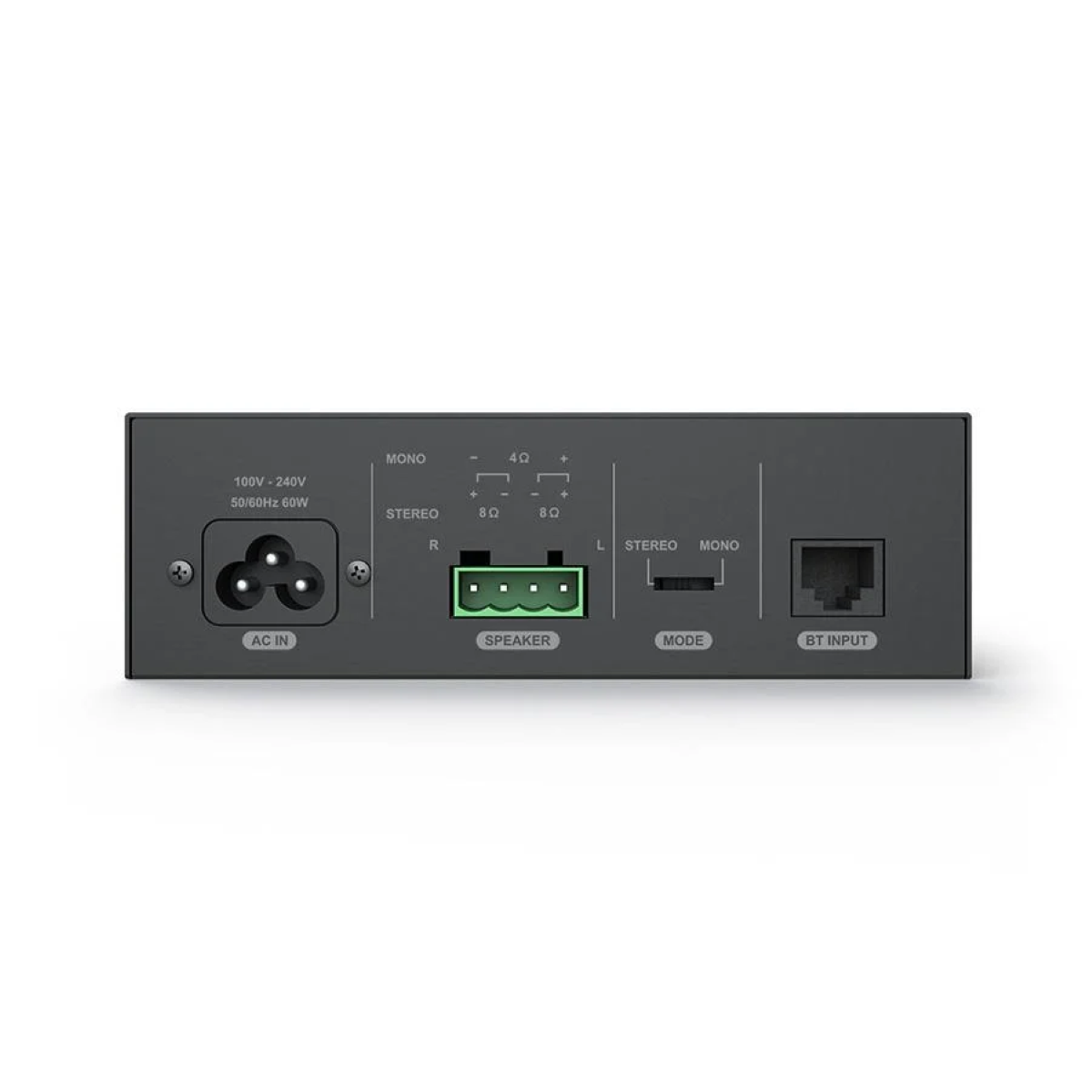

BTS30 comprises two elements: a Bluetooth-enabled wall-mountable keypad unit and a highly compact class D amplifier. It is capable of delivering Hi-Fi quality audio to a pair of loudspeakers, and is flexible enough to deliver sound to systems in other rooms. Ideal for use in a wide variety of applications including homes, hotels, bathrooms and kitchens.

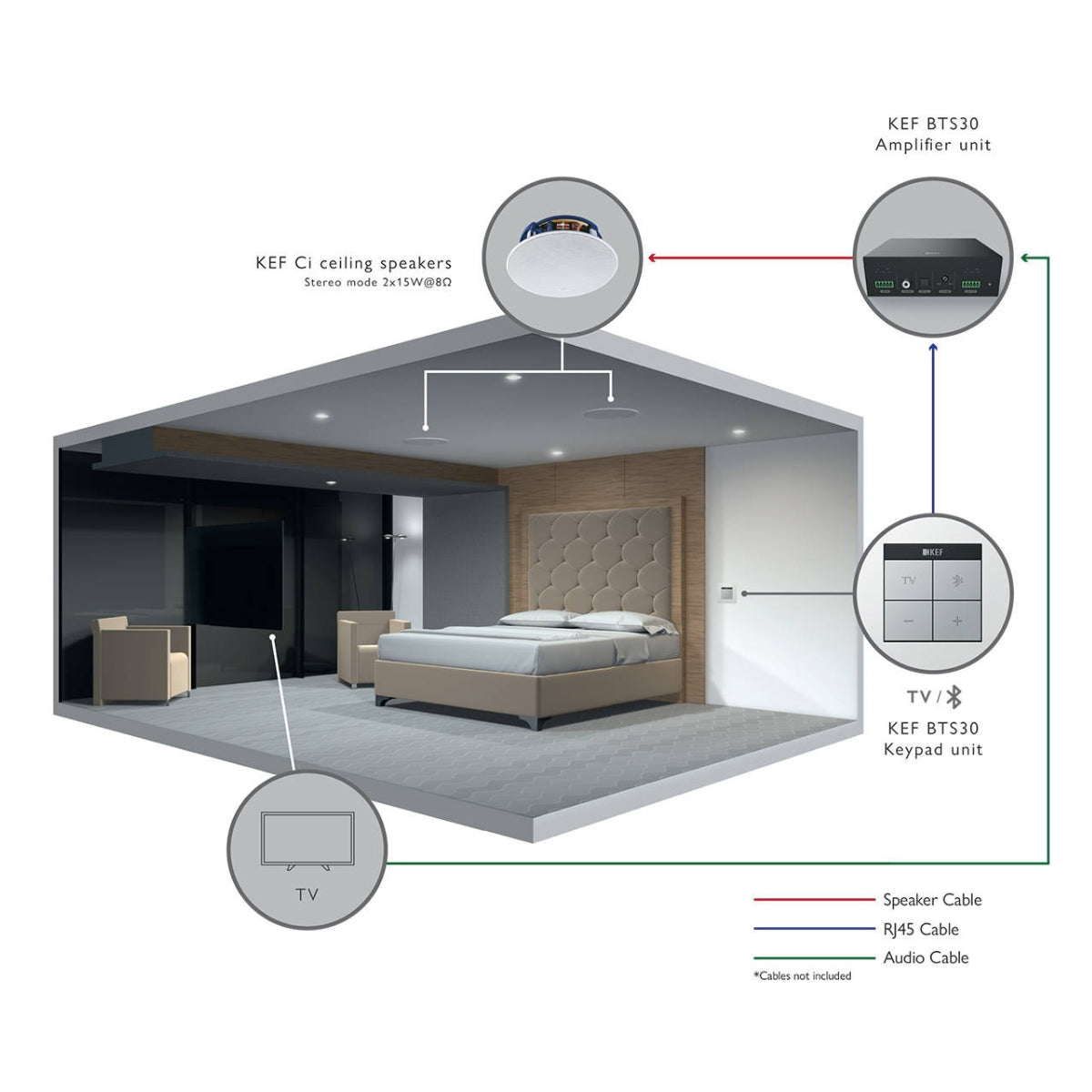

BTS30 is not only designed to deliver great sound, but also to be installer friendly and attractive for commercial use. The amplifier and keypad units are connected via RJ45 terminated twisted pair cables, with a maximum length of 20 metres, making positioning in more difficult installations a breeze. With IP64 certified keypad unit, and UL2043 approved amplifier unit allows for installation in bathrooms and air handling spaces respectively. Customers can even decide whether to utilise mono or stereo output, and set a maximum volume.

Specification

Inputs:
Bluetooth 4.2 with Qualcomm® aptX™ codec
Line-in
Coaxial
Optical
Output:
Stereo Mode 2 X 15w @ 8 Ohms
Mono Mode 30w @ 4 Ohms
Line-out
Bluetooth Range: 10m
Bluetooth Capacity: 8 Devices
Bluetooth Frequency: 2.4GHz
Bluetooth Power: 2.5mW For Class 2
Operation Voltage: 100-240-vac
Frequency Response: 20Hz-20KHz
EQ Frequency: 100Hz +6dB, 10KHz - 1dB
Signal To Noise: 90db
Speaker Output Short Circuit Protection: Yes
Dimension ( H X W X D )
Amplifier Unit: 45 x 143 x 125mm
Keypad Unit: 45 x 45 x 40mm
Metal Frame: 1 x 71 x 71 mm
Weight:
Amplifier Unit: 530g
Keypad Unit: 40g
Metal Frame: 28g
