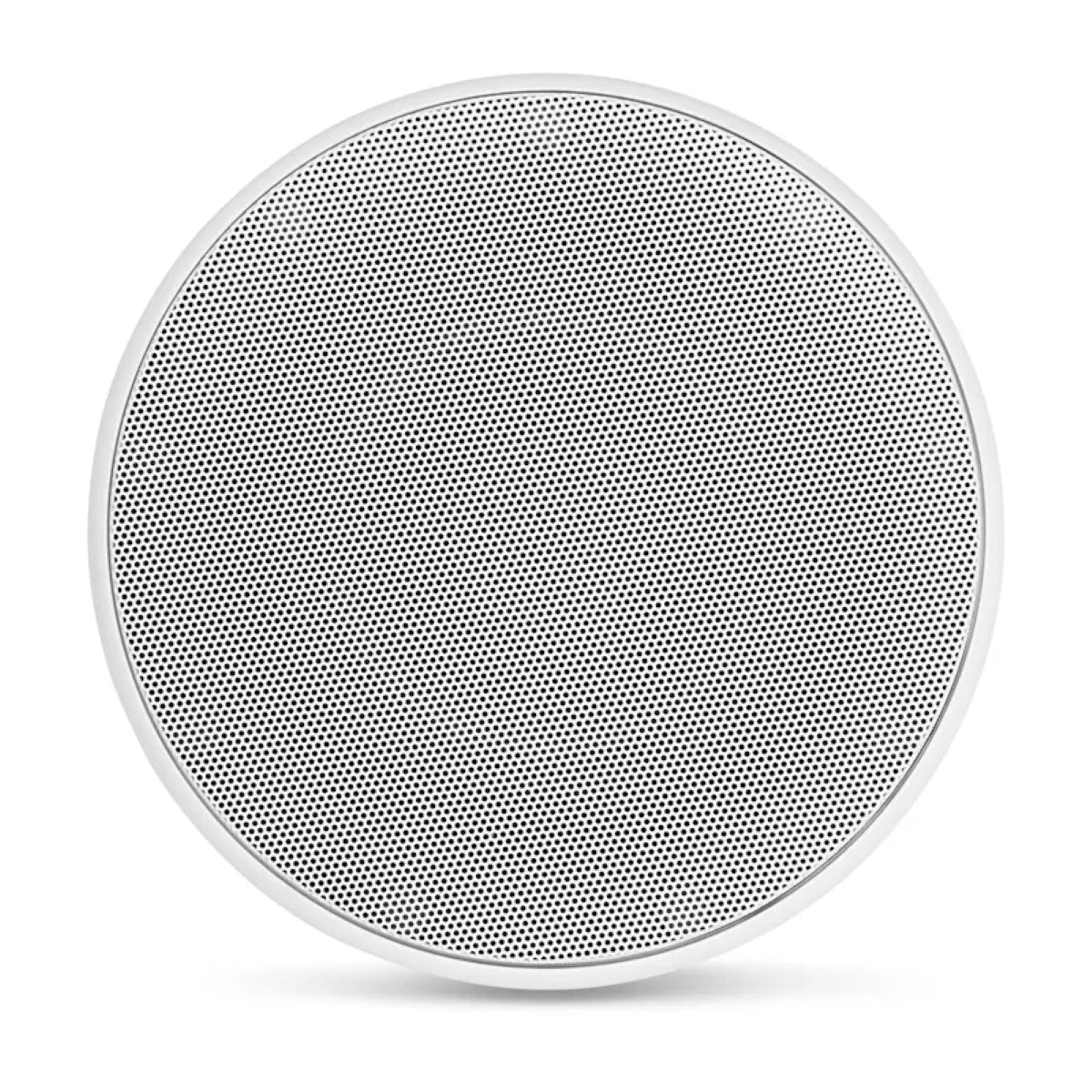

JL Audio Pavilion Outdoor In-Ceiling Speaker 7.7" (Pair), White - Ex Demo
Pickup available at Audio Connection
Usually ready in 5+ days
JL Audio Pavilion Outdoor In-Ceiling Speaker 7.7" (Pair), White - Ex Demo
Audio Connection
515 Parramatta Road
Leichhardt NSW 2040
Australia
- Live Online Chat Support (8am - 8pm) or give us a call on 02 9561 0788 during business hours
- Free Australia Wide Shipping
- We speak English, Mandarin, Cantonese & Vietnamese
- Earn 10 KrisFlyer miles per $1 spent with Kris+ by Singapore Airlines
BUY NOW PAY LATER | INTEREST-FREE PAYMENT PLANS
- Split your payments over 2, 6, 12 or 18 months & 0% on your purchase, zero fees.
- Choose "More Payment Options" below and choose "Monthly credit card payments" on the checkout screen.
JL Audio Pavilion Outdoor In-Ceiling Speaker 7.7" (Pair), White - Ex Demo
A Perfect Fit
For ease of installation, all speakers utilise an innovative mounting system that permits a rock-solid installation in a wide range of ceiling materials. The fine-mesh grille securely attaches with embedded magnets and is paintable to further blend in with your décor.
Crystal-Clear Sound
This speaker features a dma-optimised, long-excursion woofer design to ensure excellent power handling. It also includes a pure silk dome tweeter, treated to withstand the harshest outdoor environments while delivering remarkable high-frequency sound — even at higher volume levels.
DMA-Optimised
Proprietary motor, suspension and cone modeling systems are used to achieve long, linear excursion capabilities with low distortion and powerful sound output.
Real-World Certified
Pavilion speakers meet or exceed astm standards for salt fog exposure as well as uv exposure. They utilise marine-grade materials and components specifically designed for harsh environments.
Flush-Mount Grille
The ultrathin fine-mesh design attaches magnetically for a discreet visual appearance. Colours are available in satin white and satin black.
- Onboard, true two-way passive crossover
- Requires 30 to 120 watts of power per channel
- Outdoor-rated design
- Two-way coaxial speaker with silk dome tweeter
- Paintable, low-profile grille
Specification
Size 7.7″
Colour: Satin Black or Satin White
Physical dimensions (Diameter)
7.7″: 212 mm (8.34″)
Physical dimensions (Depth)
7.7″: 112 mm (4.4″)
Weight
7.7″: 2.43 kg (5.35 lbs)
Speaker type Coaxial
Continuous power handling (RMS)
7.7″: 80 W
Sensitivity (SPL @ 1 W/1 m)
7.7″: 91 dB
Frequency response (+/- 3 dB)
7.7″: 45 Hz-25 kHz
Nominal impedance 4 Ω
Recommended amplifier power (RMS)
7.7″: 40-160 W/Channel
Cone material Injection-molded, mica-filled polypropylene
Tweeter type Silk dome
Tweeter size
7.7″: 25 mm (1″)
Warranty 2 years
Connections
Speaker connections Spade Connectors
Mounting Dimensions
Mounting diameter clearance 8.8″: 260 mm (10.25″)
Mounting depth clearance
7.7″: 108 mm (4.26″)
Frontal grille protrusion
7.7″: 10 mm (0.38″)
Mounting hole
7.7″: 194 mm (7.625″)
Bolt hole circle
7.7″: 208 mm (8.18″)
