JL Audio Pavilion Outdoor In-Ceiling Speaker 6.5" (Each)
A Perfect Fit
For ease of installation, all speakers utilise an innovative mounting system that permits a rock-solid installation in a wide range of ceiling materials. The fine-mesh grille securely attaches with embedded magnets and is paintable to further blend in with your décor.
Crystal-Clear Sound
This speaker features a dma-optimised, long-excursion woofer design to ensure excellent power handling. It also includes a pure silk dome tweeter, treated to withstand the harshest outdoor environments while delivering remarkable high-frequency sound — even at higher volume levels.
DMA-Optimised
Proprietary motor, suspension and cone modeling systems are used to achieve long, linear excursion capabilities with low distortion and powerful sound output.
Real-World Certified
Pavilion speakers meet or exceed astm standards for salt fog exposure as well as uv exposure. They utilise marine-grade materials and components specifically designed for harsh environments.

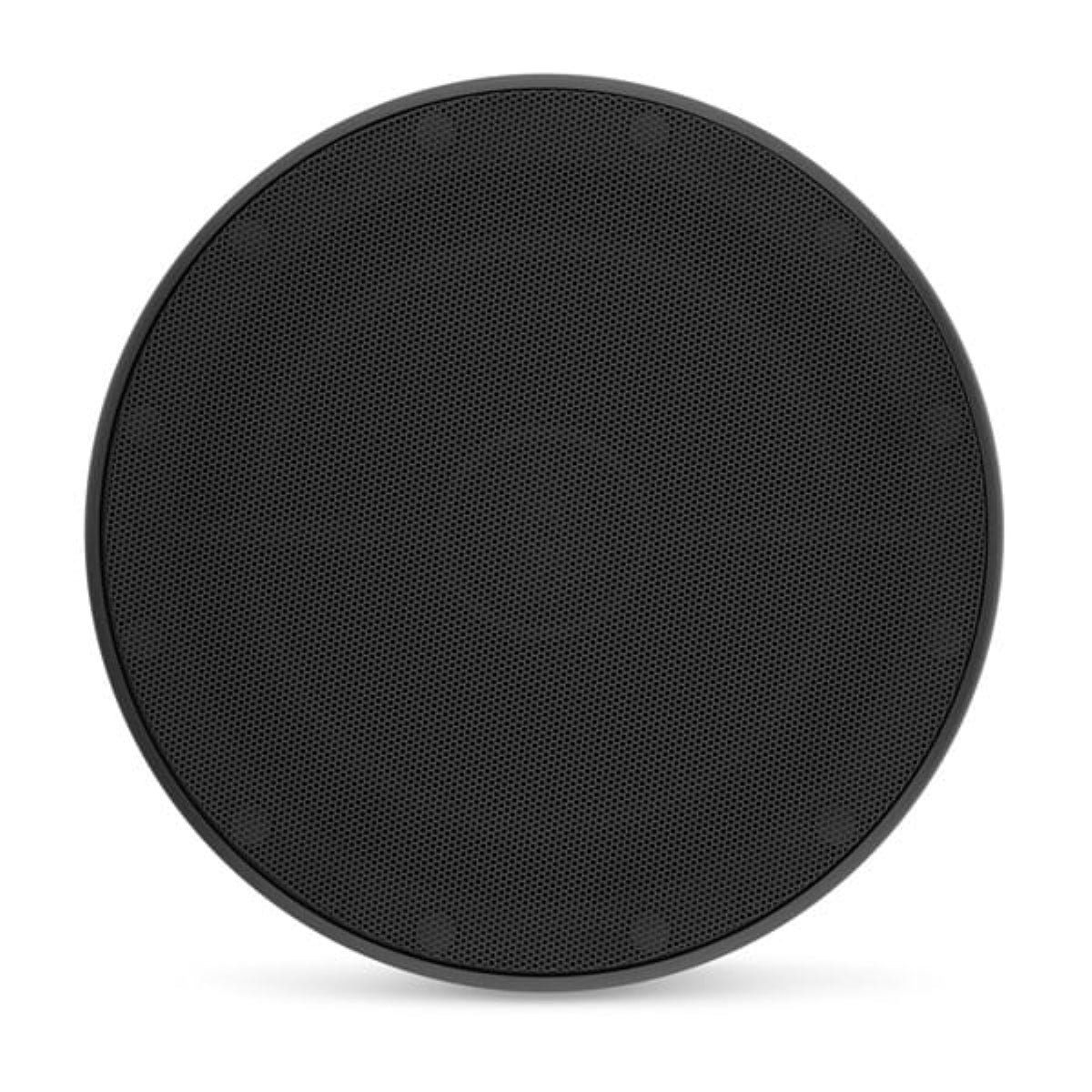

Flush-Mount Grille
The ultrathin fine-mesh design attaches magnetically for a discreet visual appearance. Colours are available in satin white and satin black.
- Onboard, true two-way passive crossover
- Requires 30 to 120 watts of power per channel
- Outdoor-rated design
- Two-way coaxial speaker with silk dome tweeter
- Paintable, low-profile grille
Specification
Size 6.5″
Colour: Satin Black or Satin White
Physical dimensions (Diameter)
6.5″: 196 mm (7.70″)
Physical dimensions (Depth)
6.5″: 102 mm (4.02″)
Weight
6.5″: 1.45 kg (3.21 lbs)
Speaker type Coaxial
Continuous power handling (RMS)
6.5″: 60 W
Sensitivity (SPL @ 1 W/1 m)
6.5″: 89.5 dB
Frequency response (+/- 3 dB)
6.5″: 55 Hz-25 kHz
Nominal impedance 4 Ω
Recommended amplifier power (RMS)
6.5″: 30-120 W/Channel
Cone material Injection-molded, mica-filled polypropylene
Tweeter type Silk dome
Tweeter size
6.5″: 20 mm (0.8″)
Warranty 2 years
Connections
Speaker connections Spade Connectors
Mounting Dimensions
Mounting diameter clearance 8.8″: 260 mm (10.25″)
Mounting depth clearance
6.5″: 98 mm (3.87″)
Frontal grille protrusion
6.5″: 9 mm (0.37″)
Mounting hole
6.5″: 175 mm (6.875″)
Bolt hole circle
6.5″: 188 mm (7.39″)
