Jadis Orchestra Reference Tube Integrated Amplifier (Tone Control)
SPECIFICATIONS
| Type | Integrated amplifier with optional remote control |
|---|---|
| Bias | fixed - has to be adjusted when tubes are changed |
| Power | 40W class-B |
| Input type | 5 line input |
| Bandwidth | 5Hz to 60kHz @-3dB |
| Sensibility | 250mV |
| Number of blocks | 1 |
| Tubes list | 4 x EL34 2 x ECC83 |
| Dimensions | 53x27x20 cm |
| Weight | 20 kg |
| Consumption | 300W |
DESCRIPTION

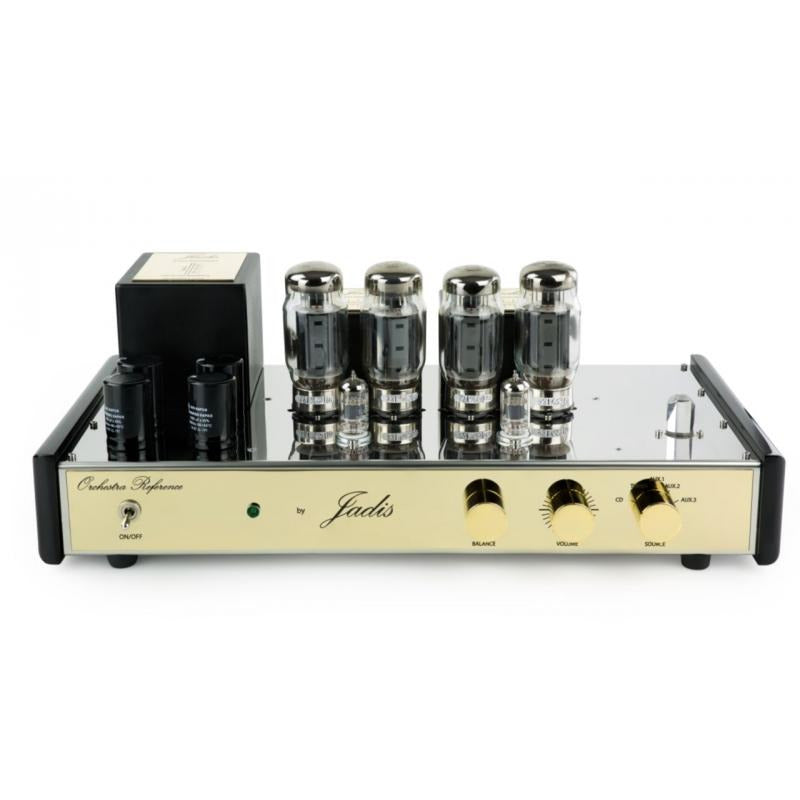

The Orchestra displays stainless steel chassis with tubes mounted on ceramic sockets with golden pins. It has 4 EL34 tubes mounted in push-pull which are driven by 2 ECC83.
This is the result of a very thorough study undertaken by Jadis with one main objective: to make a product with all the essential qualities of a high-end device at a reasonable price.
The JADIS REFERENCE version provides a golden finish for front and top plates also, tone controls can be added.
