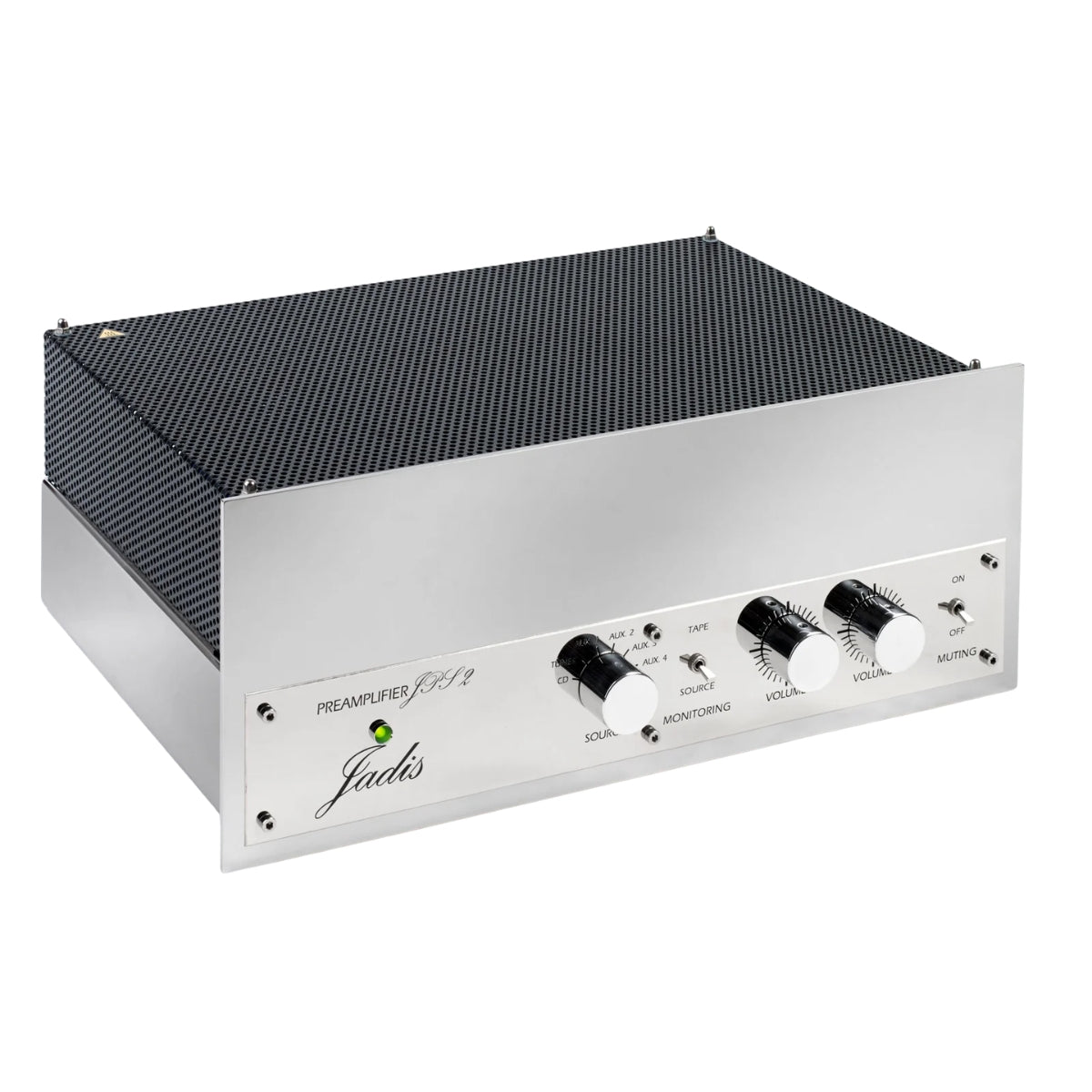

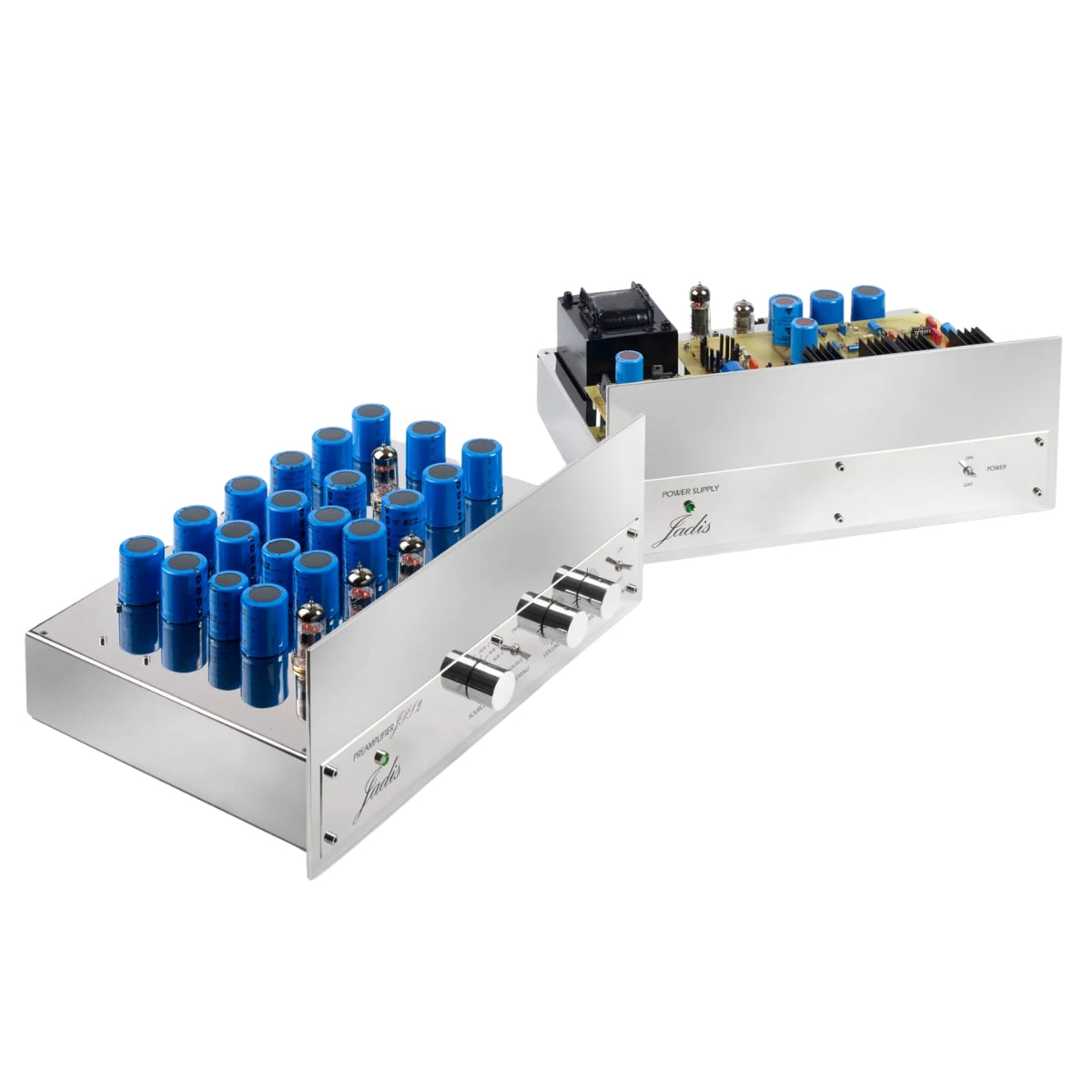

Jadis JPS2S Tube Preamplifier
The Jadis JPS2 is a balanced line preamplifier which uses 3 ECC83 for the line function plus a ECC82 tube to adapt the impedance on the CD entry. Its specific power supply recreates a voltage for the module with a 80 Hz frequency in order to avoid problems that can occur due to the 50 or 60 Hz frequency from the mains supply.
The high voltage is regulated by two tubes: 1 x EF86 and 1 x EL84.
Golden connector and further connections are in copper and silver which assure the faithful broadcast of the audio signal.
The "point-to-point" wiring gives to the sound stage plenty of aeration and dimension.
The choice of the electronic components and the extremely careful fabrication method gives the signature JADIS to this device.
Specification
| Type | Line preamplifier with separated power supply |
|---|---|
| Gain | line 24dB - CD input 18dB |
| Input type | 5 line XLR, 2 output XLR, 1 tape monitoring |
| Bandwidth | 20Hz to 740kz @-3dB |
| Number of blocks | 2 |
| Tubes list | ECC82 X 1 ECC83 X 3 EF86 X 1 EL84 X 1 |
| Dimensions | 430 x 345 x 175 mm each |
| Weight | 31Kg |
| Consumption | 60W |
