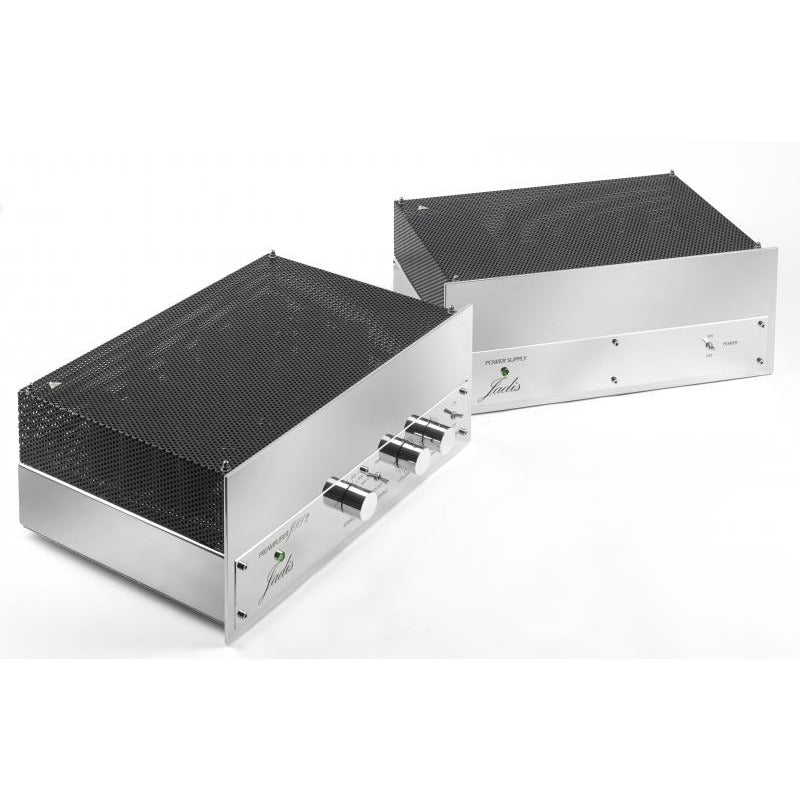

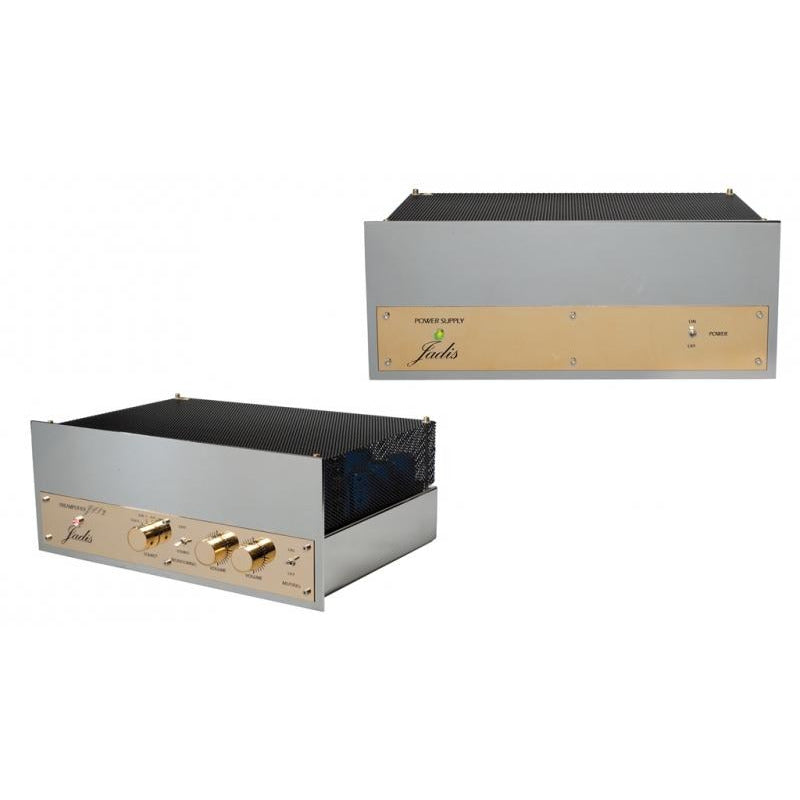

SPECIFICATIONS
| Type | Line preamplifier with separated power supply |
|---|---|
| Gain | line 24dB - CD input 18dB |

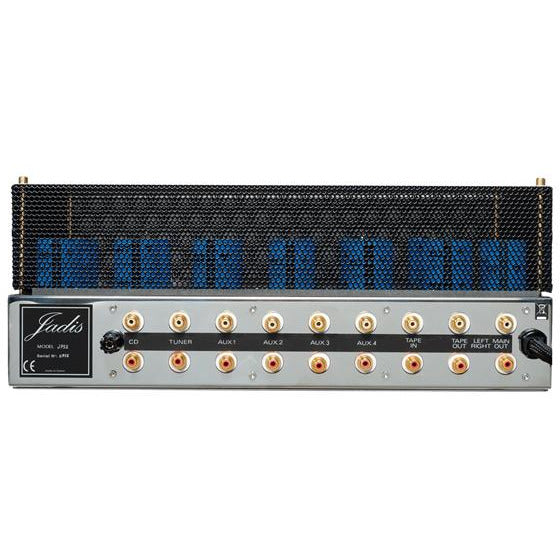

| Input type | 5 line, 2 output, 1 tape monitoring |
| Bandwidth | 20Hz to 740kz @-3dB |
| Number of blocks | 2 |
| Tubes list | ECC82 X 1 ECC83 X 3 EF86 X 1 EL84 X 1 |
| Dimensions | 430 x 345 x 175 mm each |
| Weight | 31Kg |
| Consumption | 60W |
DESCRIPTION
Available in balanced (JPS2S) or unbalanced (JPS2) version.
The Jadis JPS2 is a line preamplifier which uses 3 ECC83 for the line function plus a ECC82 tube to adapt the impedance on the CD entry. Its specific power supply recreates a voltage for the module with a 80 Hz frequency in order to avoid problems that can occur due to the 50 or 60 Hz frequency from the mains supply.
The high voltage is regulated by two tubes: 1 x EF86 and 1 x EL84.
Golden connector and further connections are in copper and silver which assure the faithful broadcast of the audio signal.
The "point-to-point" wiring gives to the sound stage plenty of aeration and dimension.
The choice of the electronic components and the extremely careful fabrication method gives the signature JADIS to this device.
