SPECIFICATIONS
| Type | Dual mono line preamplifier with separate power supply |
|---|---|
| Gain | 20dB |
| Input type | 5 line balanced or unbalanced |
| Bandwidth | 15Hz to 27 KHz @-3dB |
| Sensibility | 120 mV |
| Number of blocks | 4 |
| Tubes list | 6 x ecc82 / 2 x ecc83 / 6 x EL 84 / 2 x EF 86 |
| Dimensions | 440x 330x 210mm each |
| Weight | 60Kg |
| Consumption | 250W |
DESCRIPTION

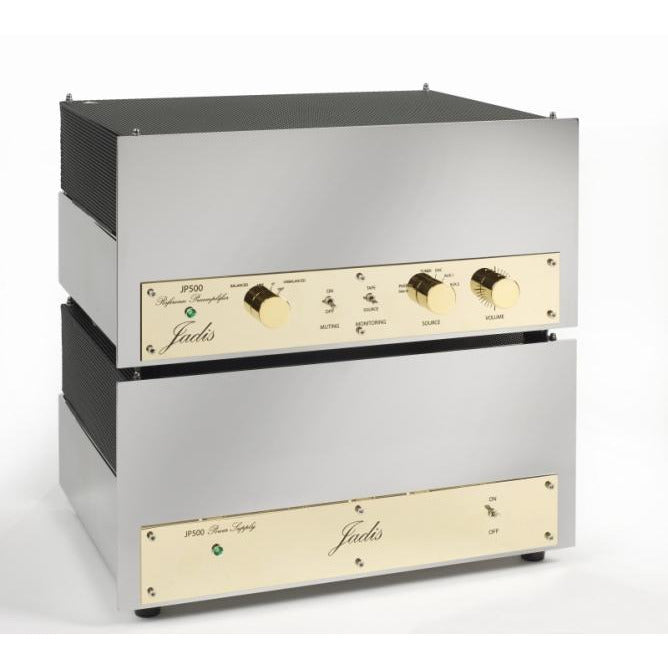

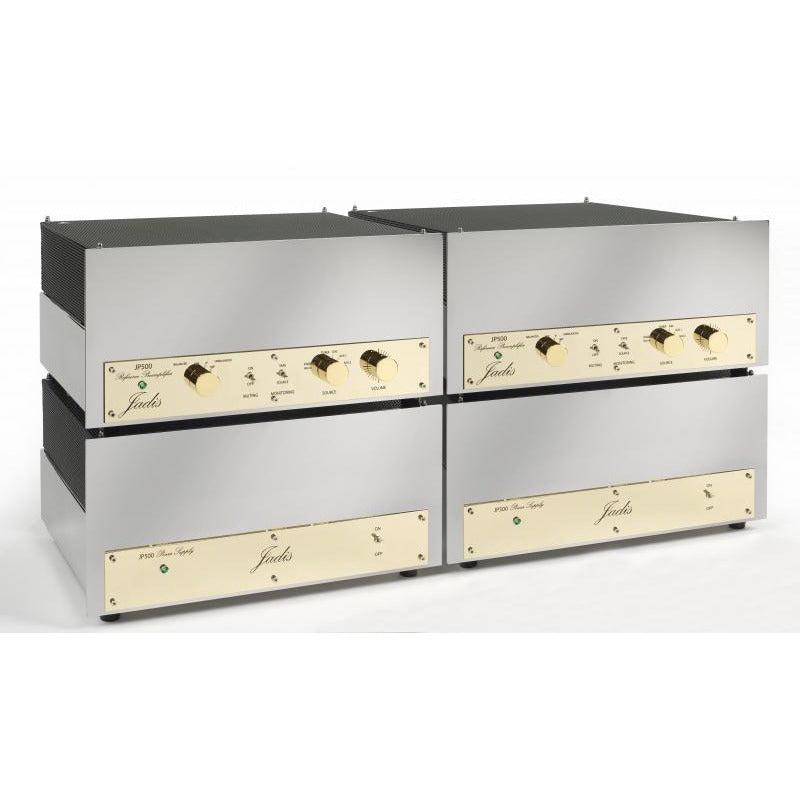

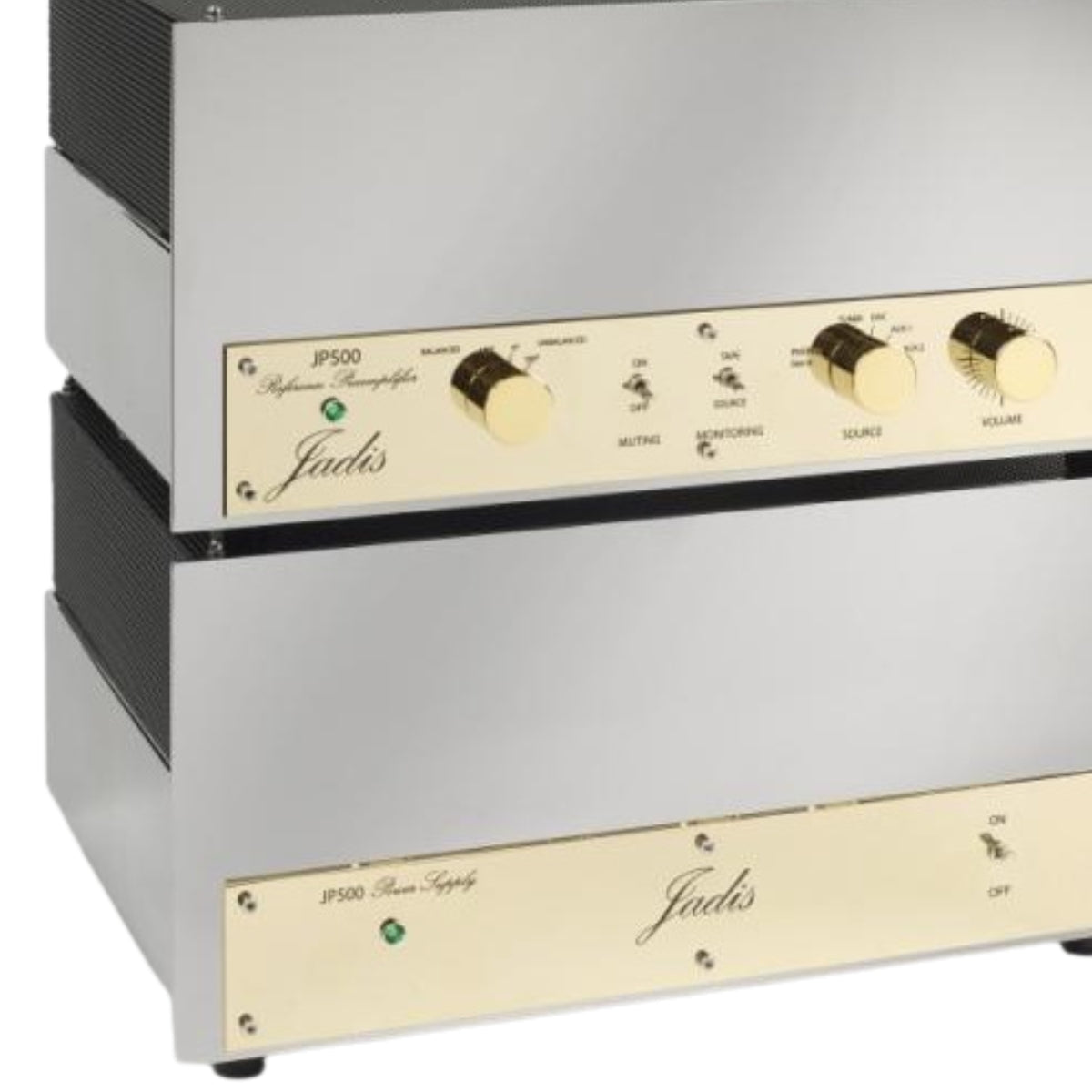

The ultimate expression of the art. Line pre-amplifier with output transformer.The JP500 is an absolitly no compromise unit at the service of music reproduction. Built-in balanced and unbalanced capability. 14dB of gain, 6 line inputs, 2 outputs. Bandwidth 20 Hz - 50kHz. Tube complement: 6 ECC82, 2 ECC83, 2 EF86, 6 EL84. A switch allows the user to change the abolute phase to his convenience.
