SPECIFICATIONS
| Type | Dual mono line/MM/MC preamplifier with separated power supply |
|---|---|
| Gain | 25dB(line)/59dB(MM)/66dB(MC)@1KHz |
| Input type | 4 line, 1 MM, 1 MC, 1 tape monitor |
| Bandwidth | 20Hz to 50 (line) RIAA (phono) |
| Number of blocks | 4 |
| Tubes list | 6 x ECC83, 2 x 6922 Power supply 1 x EF86, 1 x EL84 |
| Dimensions | 43 x 34.5 x 17.5 cm |
| Consumption | 74 W |
DESCRIPTION

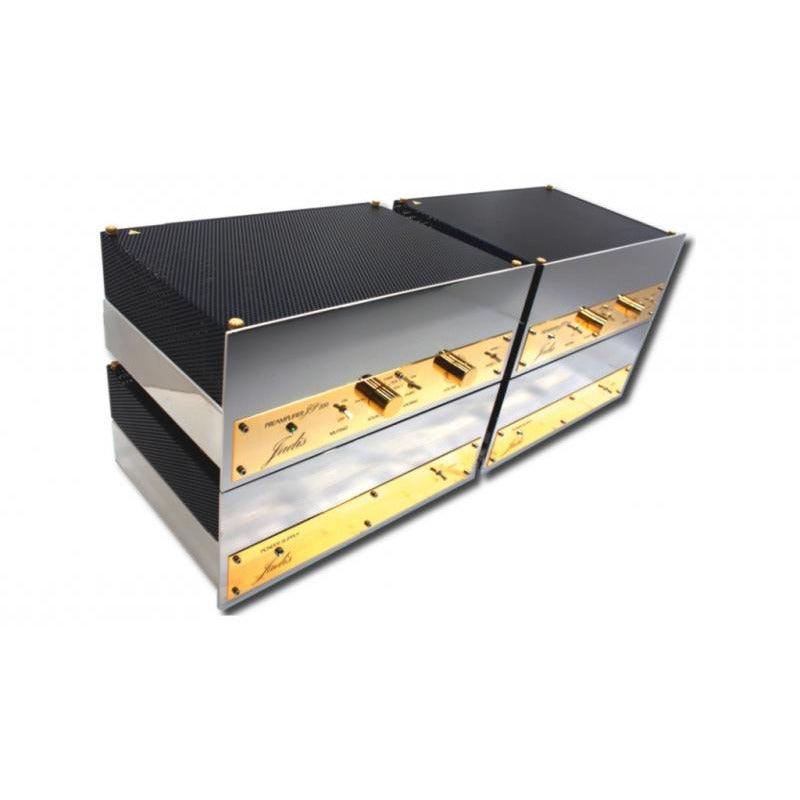

Built with 4 line, 1 MM and 1 MC input the JP200MC will allow you to connect all the analog sources you migh want to use. The phono stage will accept any cartriges even the ones with a very low impedance. Moreover this is a 4 blocks unit, with separatedand over sized power supply and a switch that allows the user to switch the phase to his convenience. The JP200MC include all the ingredient that make great sounding preamplifier.
