Jadis JA200 MKII Tube Mono Power Amplifier
SPECIFICATIONS
| Type | Monoblock pure class A power amplifier |
|---|---|
| Bias | Automatic |
| Power | 160 W |
| Bandwidth | 20Hz to 30 kHz |
| Sensibility | 1.2 V |
| Number of blocks | 4 |
| Tubes list | POWER TUBES X 20 ECC82/12AU7 X 2 ECC83/12AX7 X 2 |
| Dimensions | 625 x 260 x 240 each block |
| Weight | 125Kg |
| Consumption | 440 W per channel |
DESCRIPTION
Based on the same general design as the JA80, this masterpiece of equipment offers the same sound quality with an unbelievable capability to drive the most difficult existing loads.
Capable of 160 watts per channel in pure Class A and 200W with the KT150, its unique power capability and dynamic behaviour are combined for the first time in vacuum-tube amplifier history, with the ultra low distortion and transparency of the best low-power exotic Class A designs.
Its low frequency performance is unequalled. Built with the same standard as the now famous JA80, the JA200 shares its sound consistency and unmatched reliability year after year.

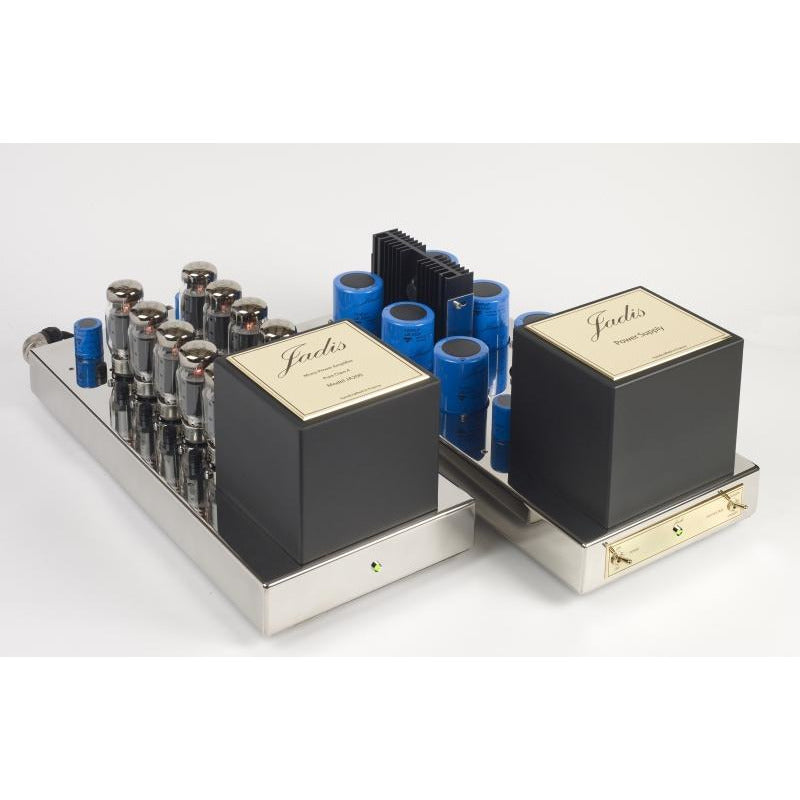

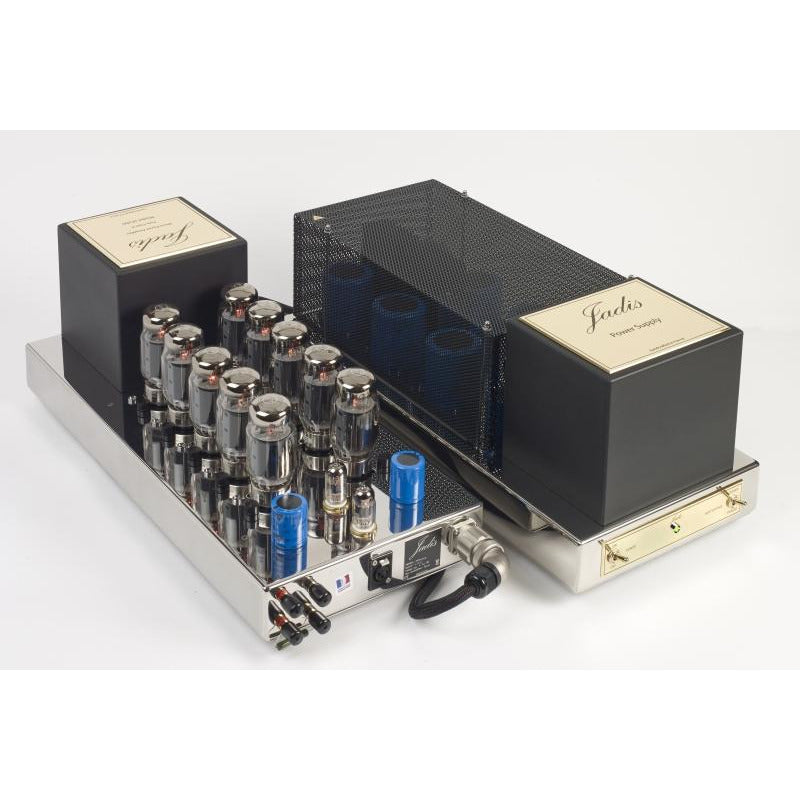

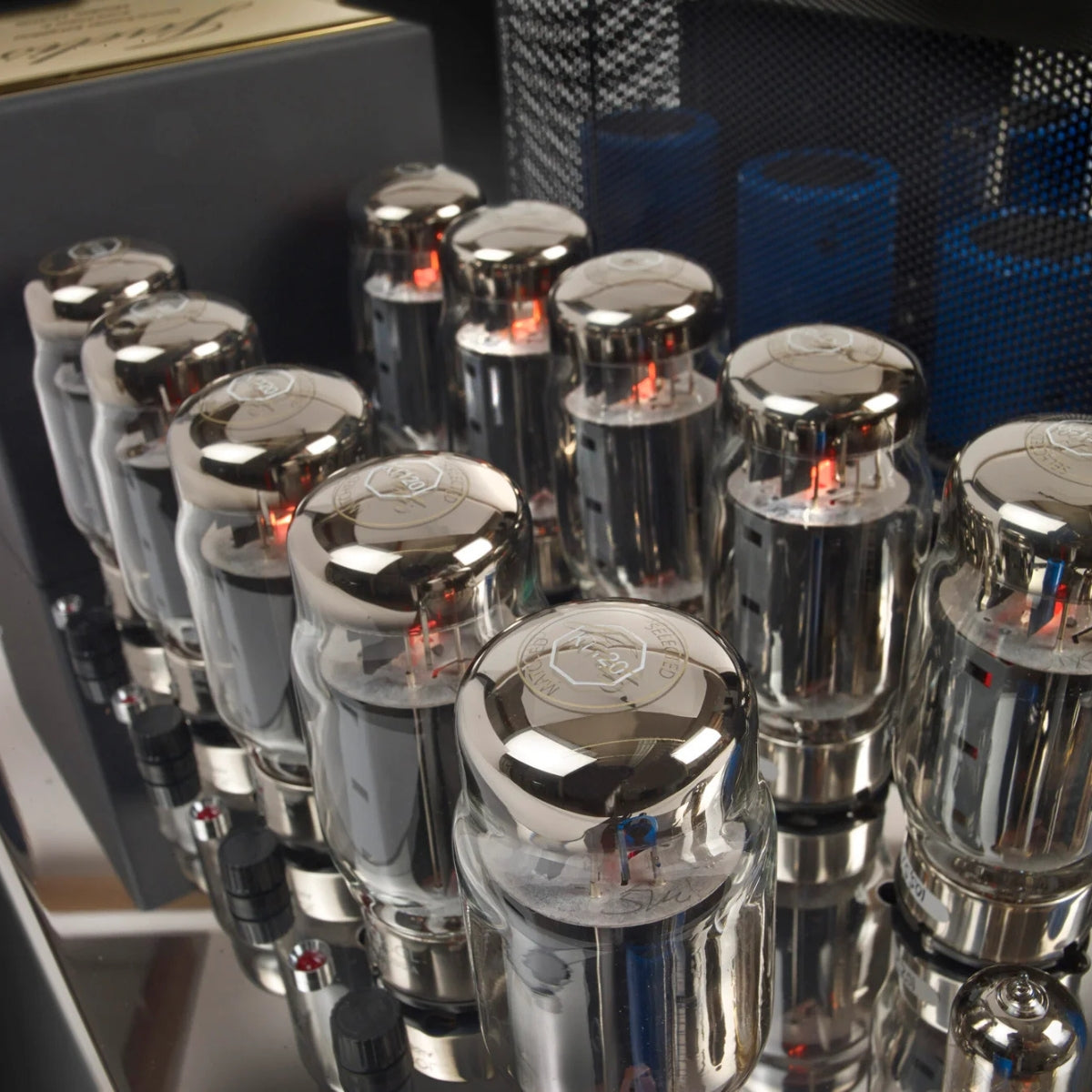

The output stage of the JA200 uses 10 KT88 on each mono amp. For thermal dissipation reasons, the JA200 is built on four chassis : two amplifiers and two power supplies. Each chassis is the size of a JA80 mono amp.
The JA200 will take you where very few have gone before; 160 watts of pure class A power. This four box set of ultimate musicality features two mono-block amplifiers each with its own separate power supply. Probably the last amp you'll ever buy...
