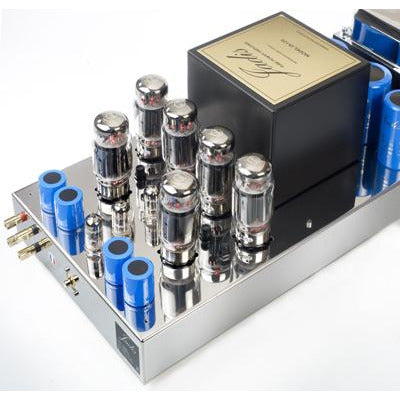

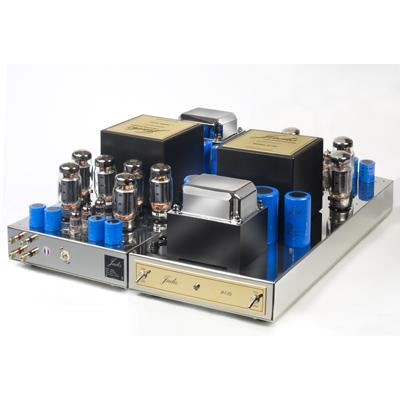

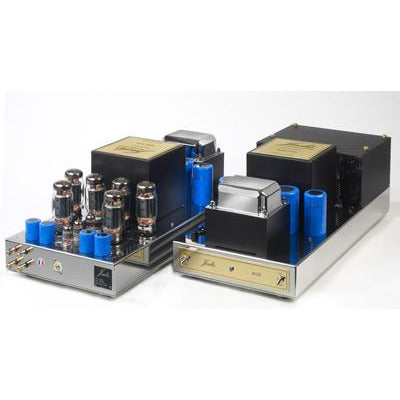

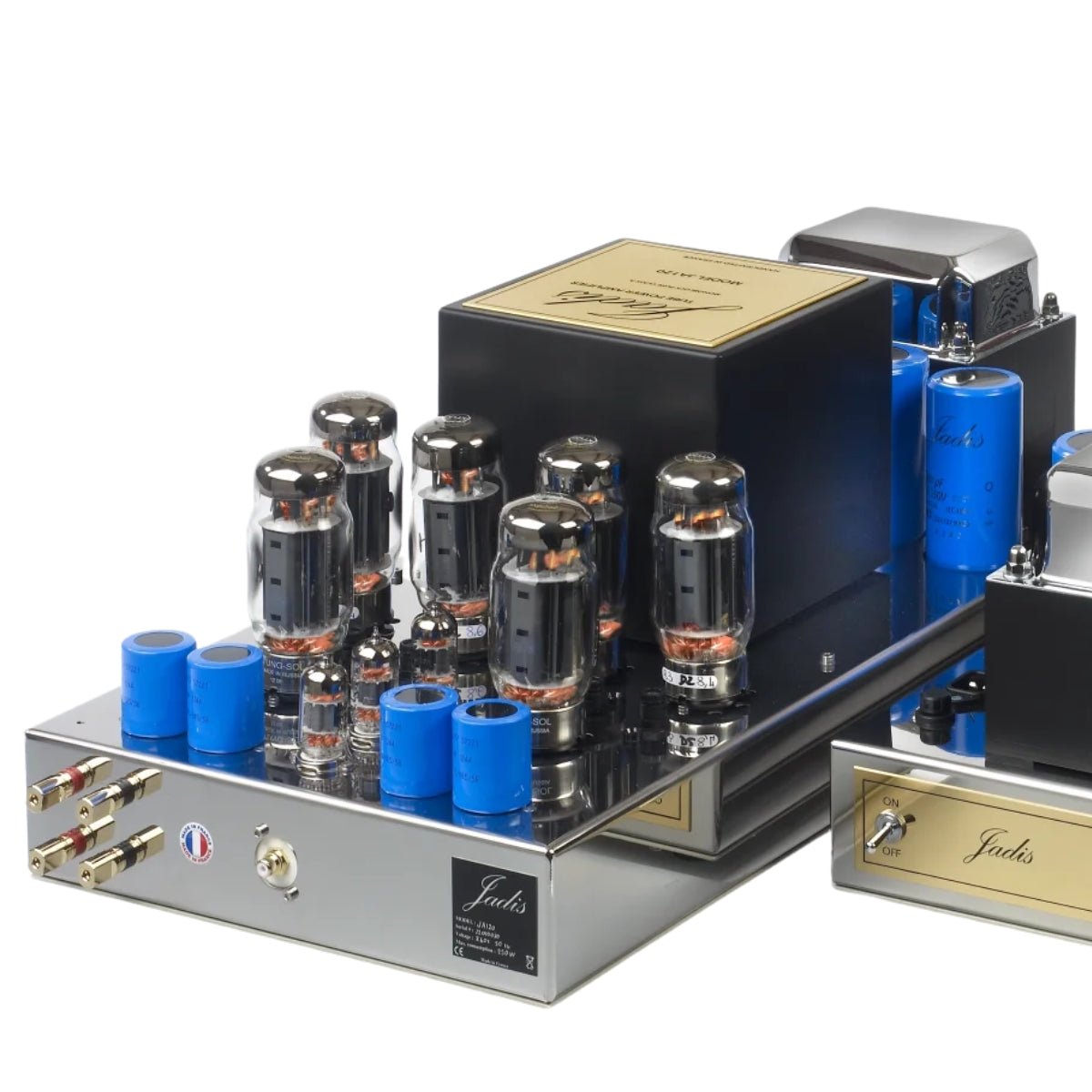

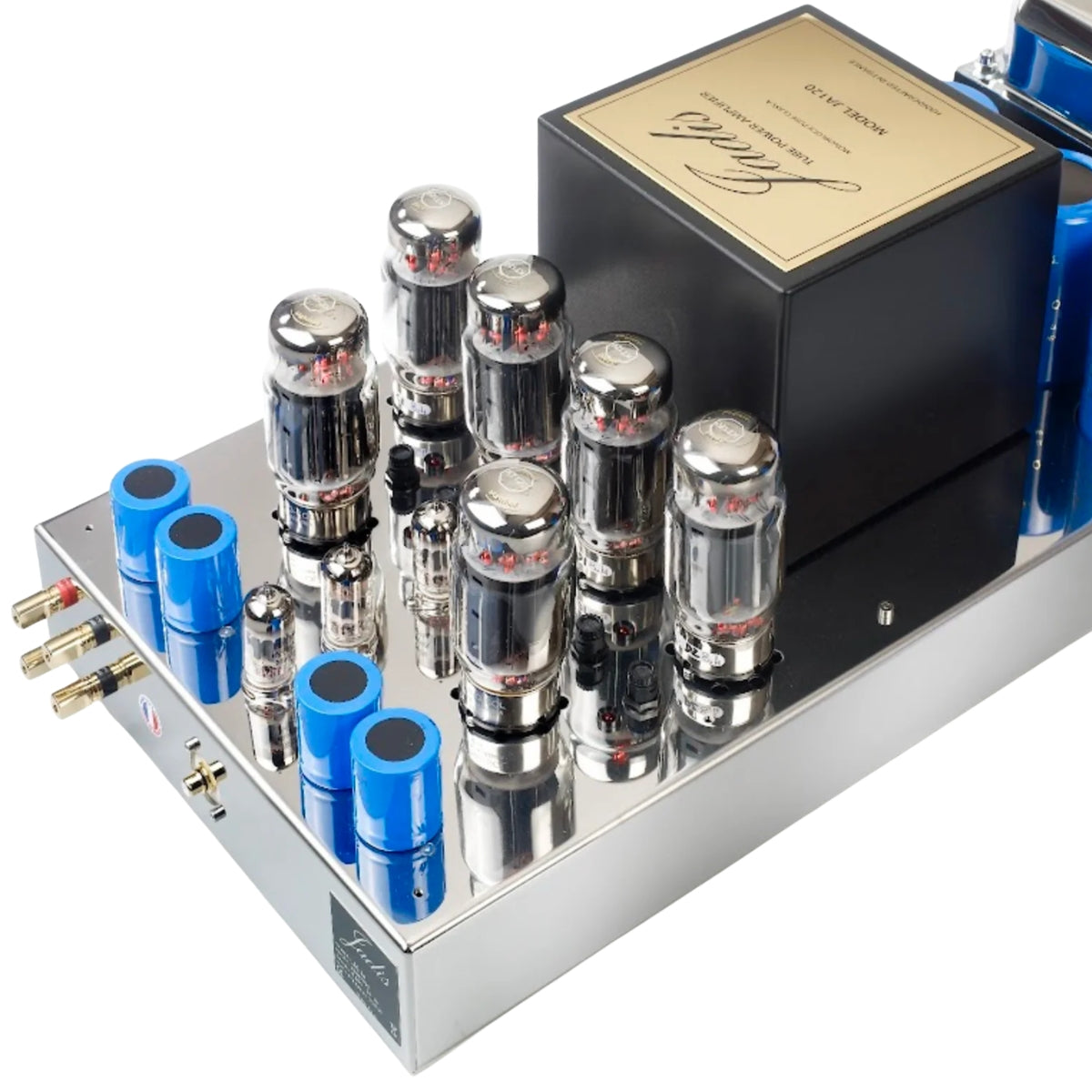

Jadis JA120 Tube Mono Power Amplifer
SPECIFICATIONS
| Type | Monoblock power amp Pure class A (Balanced or Unbalanced) |
|---|---|
| Bias | Automatic |
| Power | 100W |
| Bandwidth | 15Hz to 38kHz |
| Sensibility | 560mV |
| Number of blocks | 2 |
| Tubes list | 12 X KT120, KT88, KT90, 6550, 6CA7, EL34 / 2 X ECC83/12AX7 4 X ECC82/12AU7 |
| Dimensions | 71 x 30 x 26 cm |
| Weight | 45 Kg per bloc |
| Consumption | 250W per bloc |
DESCRIPTION
These amplifiers work in "push-pull" configuration, triples load and autobias.
They can work with various types of penthodes: KT120, KT90, KT88, 6550, 6CA7 or EL34.
A balanced version is also available.
The function phase shifter is assured by a triode double ECC82 and the function driver by an ECC83. The output transformers, guaranteed for life, allow an adaptation of impedance from 1 to 16 ohms.
The power transformer is oversized for a better dissipation of heat and vibrations.
The cathode circuit is protected by individual fuses.
The filtering of the high voltages is ensured by high capacity capacitors.
The tubes are heated by alternate current with balance and noise reduction.
Two output terminals allow bi-wiring.
Gold connections ensure a faithful broadcast of the signals.
These devices are assembled using "point to point" wiring with silver / copper solder.
The frame is made of non-magnetic stainless steel which protects the device from external disturbances.
