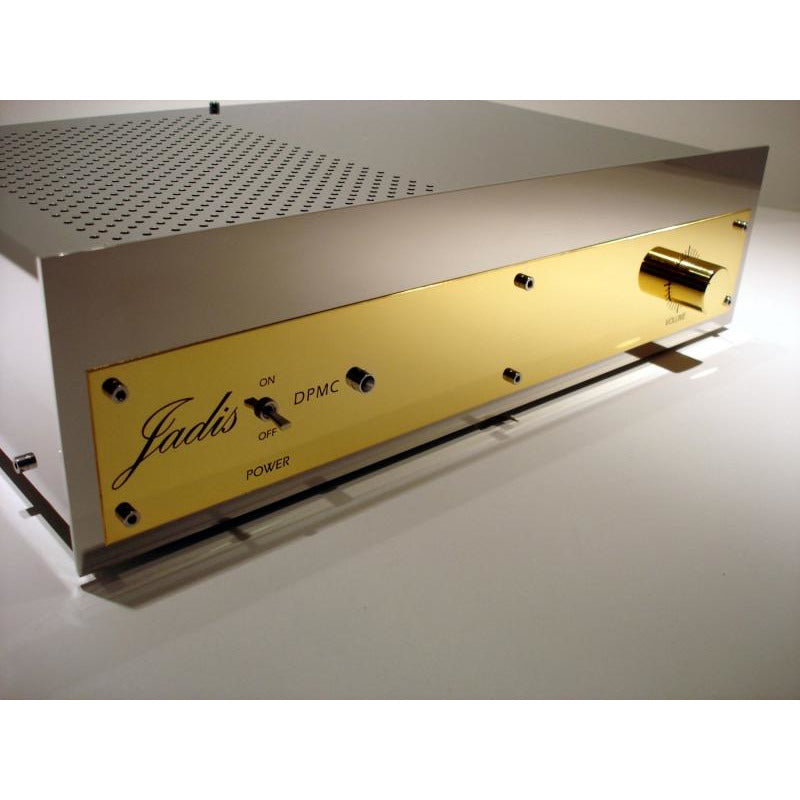

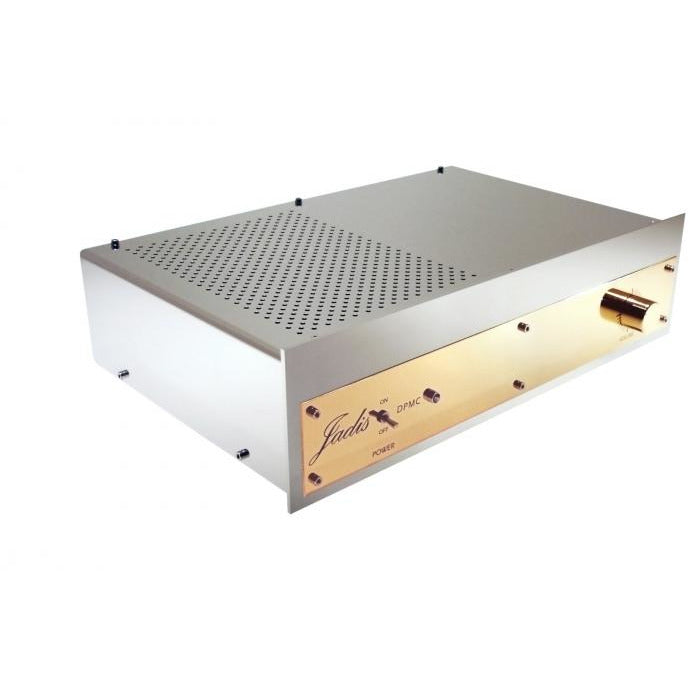

Jadis DPMC MKII Phono Preamplifier
Pickup available at Audio Connection
Usually ready in 5+ days
Jadis DPMC MKII Phono Preamplifier
Audio Connection
515 Parramatta Road
Leichhardt NSW 2040
Australia
- Live Chat Support (8am - 8pm)
- Free Australia Wide Shipping
- 02 9561 0788. We speak English, Mandarin, Cantonese, Vietnamese
- Earn 3 KrisFlyer miles, per $1 spent with Kris+ by Singapore Airlines
BUY NOW PAY LATER | INTEREST-FREE REPAYMENTS
- Split your payments over 2, 6, 12 or 18 months.
- 0% on your purchase, zero fees.
- No minimum spend.
- All you need is a valid credit card (Visa, Mastercard, Amex).
- Choose "More Payment Options" below and choose "Monthly credit card payments" on the checkout screen.
OCTOBER 2024 ONLY!
You can now earn 10 KrisFlyer Miles per $1 spent at Audio Connection until October 31st 2024.
KrisFlyer members earn 3 KrisFlyer miles with every $1 spent at Audio Connection. Checkout via the Kris+ App Only. Click here for more details.
Need Help?
If you have any questions or need advice - give us a call on 02 9561 0788 during business hours or use our live chat service AEST 8am - 8pm everyday (you'll chat with a real person, not a bot!).
Jadis DPMC MKII Phono Preamplifier
SPECIFICATIONS
| Type | Phono MM/MC |
|---|---|
| Gain | 66 dB |
| Input type | 1 MC/MM input (48KΩ, 1KΩ, 300Ω, 100Ω) |
| Bandwidth | RIAA |
| Number of blocks | 1 chassis |
| Tubes list | ECC83 X 4 EL84 X 1 EF86 X1 |
| Dimensions | 455 x 320 x 125 mm |
| Weight | 11 Kg |
| Consumption | 30 W |
DESCRIPTION
The DPMC is an MM/MC phono preamplifier with a level control. It uses 4 ECC83 for the preamp and for the RIAA correction. Tube regulated power supply ensures stability of this unit. The MkII version feature a new internal layout for better isolation and also allows the input impedance to be switched between 48KΩ, 1KΩ, 300Ω, 100Ω for a better match with your cartridge. This unit is ideal to equip an integrated amplifier with a state-of-the-art phono stage that will allow you to rediscover your records collection. The DPMC is also available without volume control.
