Innuos ZENith Next-Gen Streamer and Server

Limited stock available May 2026 - please enquire for availability

Feel the presence of your music

The digital source has become a known sight on Hi-Fi systems for its convenience. Almost all music can now be accessible at the touch of a button. But playing sound is one thing and playing music is another. To get the true essence of the recording, your digital signal must be as pristine and well-timed as possible so your DAC can play at its best. Feed it with a noisy signal and that will just be amplified along the chain.

A pristine digital signal requires a dedicated digital source, with meticulous detail starting from the ultra-low noise power supplies, through a custom mainboard and all the way to specific software development minimizing power noise during operation.

The ZENith Next-Gen takes our innovations such as the PreciseAudio mainboard, NGaN regulator and AudioCore technology to new heights compared to the ZEN Next-Gen. First, the ARC6 NGaN Power Supply, trickled-down from the power supply of the acclaimed STATEMENT Next-Gen with its Active Rectification, 300VA Audio Grade Transformer, high-performance choke and 130000uF of Mundorf capacitors, provide all the current the system needs with very low impedance so that no transient is missed.

The ZENith Next-Gen upgrades the ZEN Next-Gen with a Core i7 Embedded processor with 8 performance cores, providing further core separation for AudioCore whilst maintaining excellent overall performance for a responsive system at all times.

The ZENith Next-Gen also features a pSLC (pseudo Single-Level Cell) industrial-grade SSD for the OS, powered independently, is added directly to the PreciseAudio board. As pSLC contains simplified controllers, they generate much less EMI compared to standard SSDs. Being the OS SSD that bears most of the system work, this results in a considerably lower operating noise with direct impact on sound quality.

This combination brings a new dimension to the ZENith Next-Gen. It's no longer about the frequencies, pace or even the size of the soundstage. Details in music now emerge as if by revelation. The breathiness of a voice, the vibrations on a drum's skin, the presence of fingers sliding down a guitar neck. They are presented with a transparency that starts feeling like a live presence.

It's hard to put into words but if you listen, you'll know.

Innuos ARC6 NGaN PSU
Combining the trickled-down version of the ARC6 Active Rectification board with a 300VA Audio Grade Transformer, high-performance choke and over 130000uF of Mundorf capacitors with the cutting-edge Gallium Nitride Innuos NGaN Regulation stage results in a marked improvement in sound transparency and realism compared to the ZEN Next-Gen.

Innuos PreciseAudio Mainboard
An all-new custom server-grade mainboard, ultra-tuned for low processor latency, power noise and EMI emissions; further improved by enhanced power regulators and solid capacitors.

High Performance, Low Power
New generation of Intel Core i7 with 8 physical cores for enhanced Innuos AudioCore performance, providing separate cores dedicated only to audio processes. Supported with 16GB of industrial-grade low-noise DDR4 RAM allowing to cache more databases and files for a speedy response.

Modular Architecture
You can configure the ZENith Next-Gen as a Music Server/Streamer, Server-only or Streamer-only easily. Choose to have no internal drives, or up to a maximum of 16TB SSD storage. Leverage the ZENith Next-Gen as a premium streamer through an optional Digital Audio Output slot for different modules such as PhoenixUSB, PhoenixI2S, or SPDIF boards.

pSLC OS SSD
Superior industrial-grade pSLC SSD for the OS for even lower operating noise, independently powered and with power-loss protection for extra resiliency and durability.

Innuos XSM
High Performance Expandable Storage Management System (XSM) allows a single pool of storage from multiple drives. The ZENith Next-Gen supports an internal, high performance NVMe PCIe drive up to 8TB with an additional externally accessible M.2 NVMe slot for up to 8TB for a total 16TB of seamless storage. Intelligent management and data protection provided through Sense.

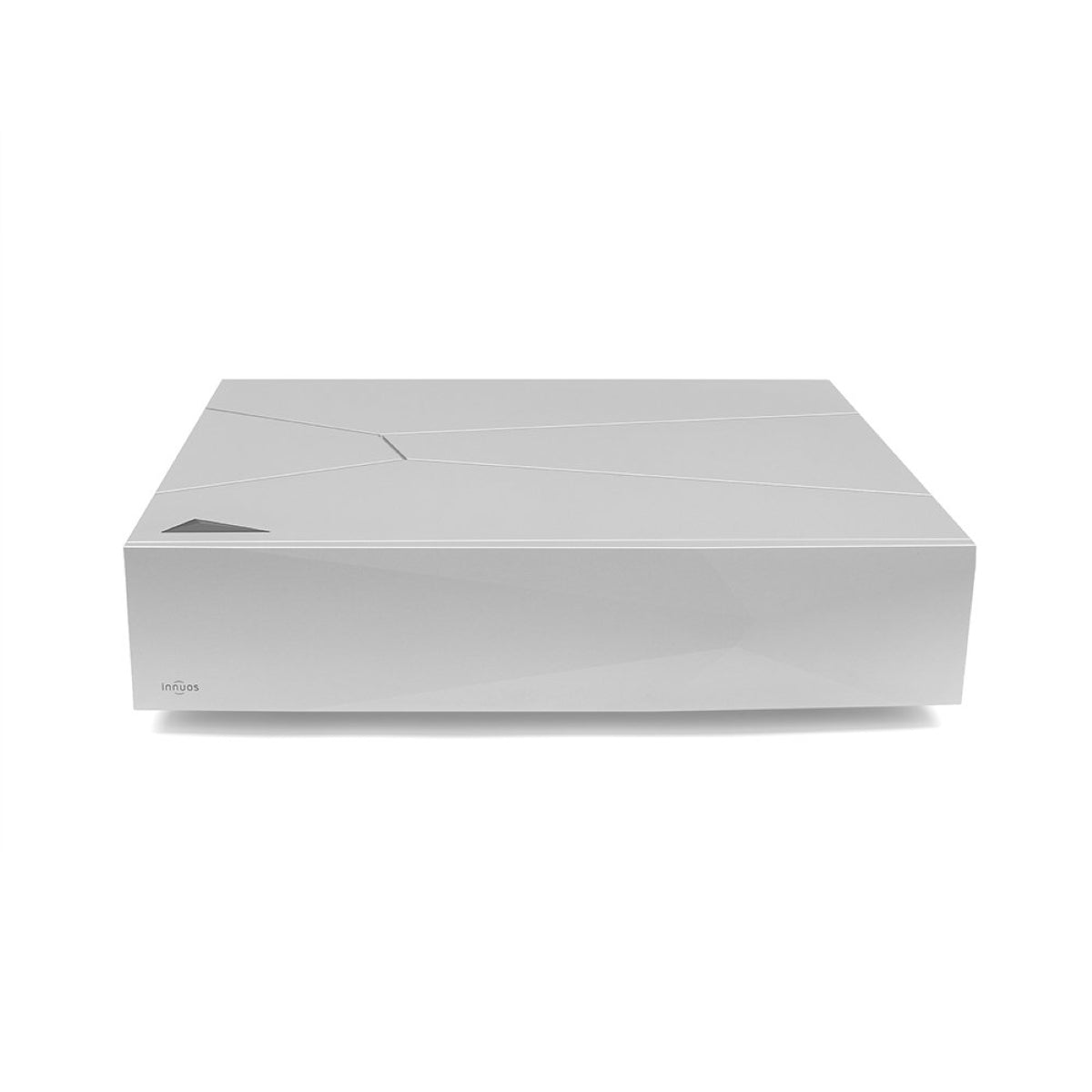

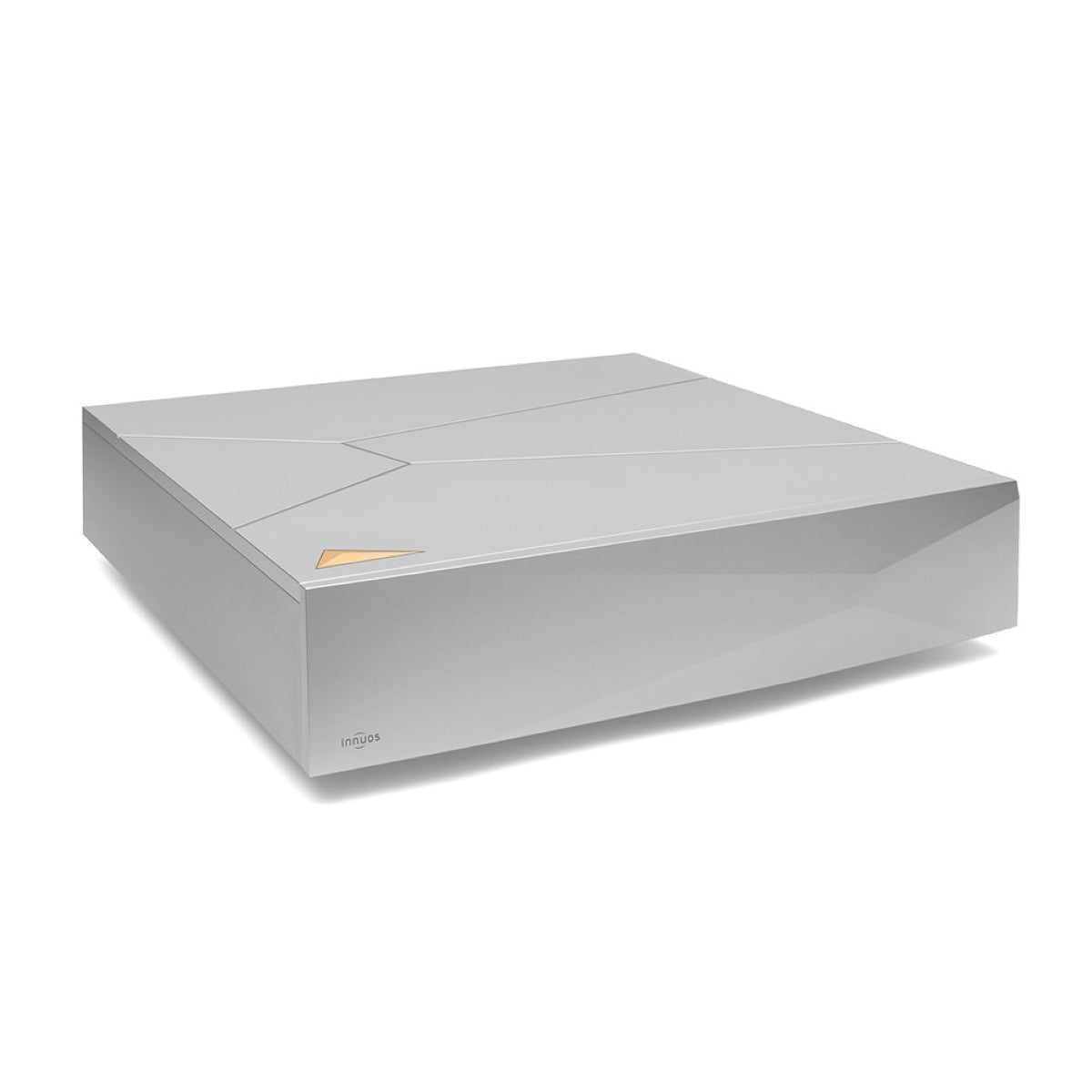

Premium Chassis
Newly-designed 10mm thick CNC-machined bead-blasted and anodized aluminium chassis, containing new vibration-dampened toroidal platform and with Chassis Ground port connection.

Sense 3
Unique benefits for the ZEN Next-Gen and ZENith Next-Gen through Sense 3, including new Real-Time Kernel, lowering latency even further for the core Operating System, AudioCore for audio process to run in dedicated physical cores, Expandable Storage Management interface, and new CD-ripping via external USB drives with drive-head alignment for accurate ripping.

Controlled via the Innuos Sense App
Navigating your music collection is now more intuitive and responsive, offering a premium experience whether you’re ripping CDs, creating playlists, importing files, or exploring streaming services. Sense delivers optimal music playback with the following features: Seamless and automatic ripping of CDs on Innuos music servers. Navigating streaming services like Qobuz, Tidal, Deezer, HighResAudio or IDAGIO with ease. TIDAL Connect and MAX resolution supported, with more streaming services to come. Fully unified library combining music stored locally (on Innuos music servers) or on a NAS with music from Qobuz and TIDAL, blending related artists and discographies. Internet Radio with easy preset creation. Dedicated Podcast section. Radio Paradise, a popular internet-radio service available in CD-quality FLAC. Easy creation of mixed playlists plus support for Qobuz collaborative playlists, with fast universal searches across multiple streaming services and music stored locally or on NAS drives. Curated and configurable Smart Mixes based on your music. Home Screen widgets allow you to customize and access your favorite features at the touch of a button. Seamless and automatic ripping of CDs including via external USB drives with Sense 3 Innuos Multiroom grouping, Refined Sense UPnP and 'Now Playing' TV Casting

Optional Digital Output Modules

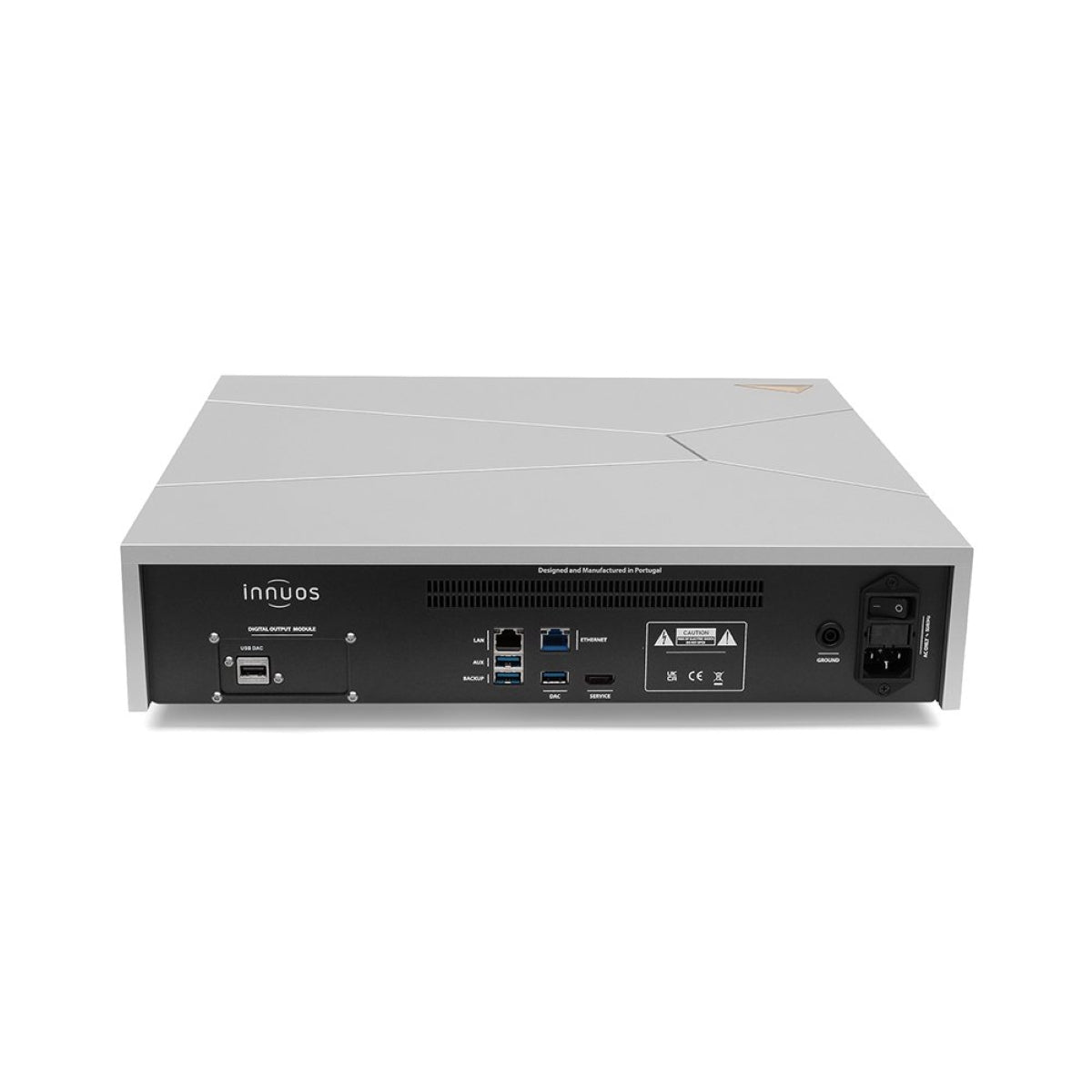

PhoenixUSB Board
Regenerated and Reclocked USB signal to your Class 2 USB DAC, greatly increasing sound quality
High-precision 3ppb 24MHz OCXO clock for greatly improved timing and signal integrity
Ultra-low noise LT3045 linear regulators for each independent voltage, no switching regulators on main USB chip
Provides a pristine 5V line for the USB connection on your DAC

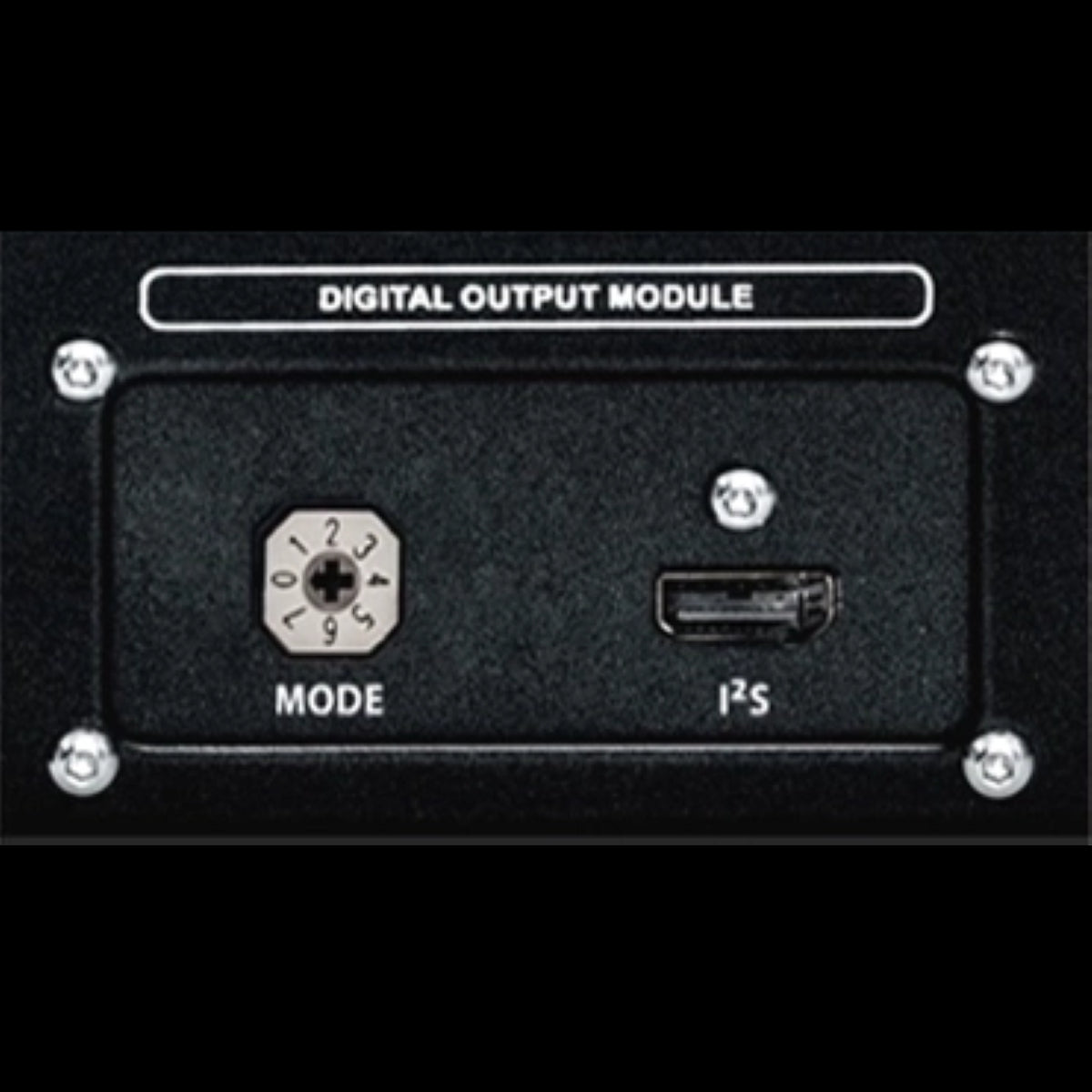

PhoenixI2S Board
Bypass conversion stages with a direct connection straight to your DAC chip
3ppb 24Mhz main clock, with two premium FemtoClocks
HDMI connector with 8 pin-configurations.
Ensure maximum audio resolution compatibility up to DSD1024

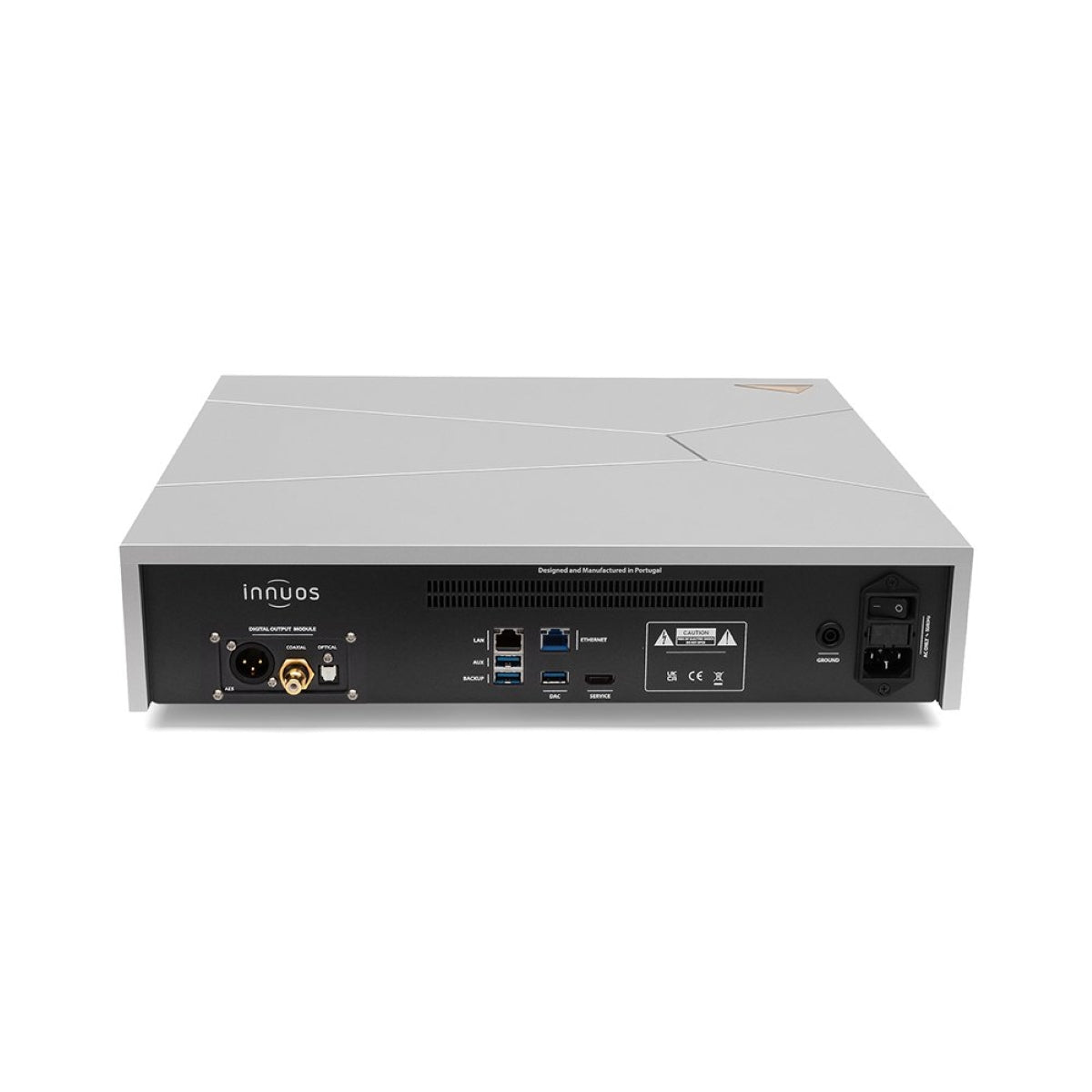

SPDIF Board
Provide a superior SPDIF Coaxial, Optical and AES outputs for your DAC
Supports PCM up to 24bit/192KHz
Optimised power supply for ultra-low noise
High-Quality Gold-plated Connectors

Specification

File Formats: WAV, AIFF, FLAC, ALAC, AAC, MP3, DSF, DFF, MQA Supported
Sample Rates: PCM: Up to 32bit/768KHz, DSD: Up to DSD256 via DoP, up to DSD512 via Native DSD (24bit/192KHz maximum output on SPDIF module)

Connectivity:
USB (for DACs, Imports, Backups, USB Drive playback)
3 x USB 3.2

Network
2 x Gigabit Ethernet, Bridged (wired only)

Other

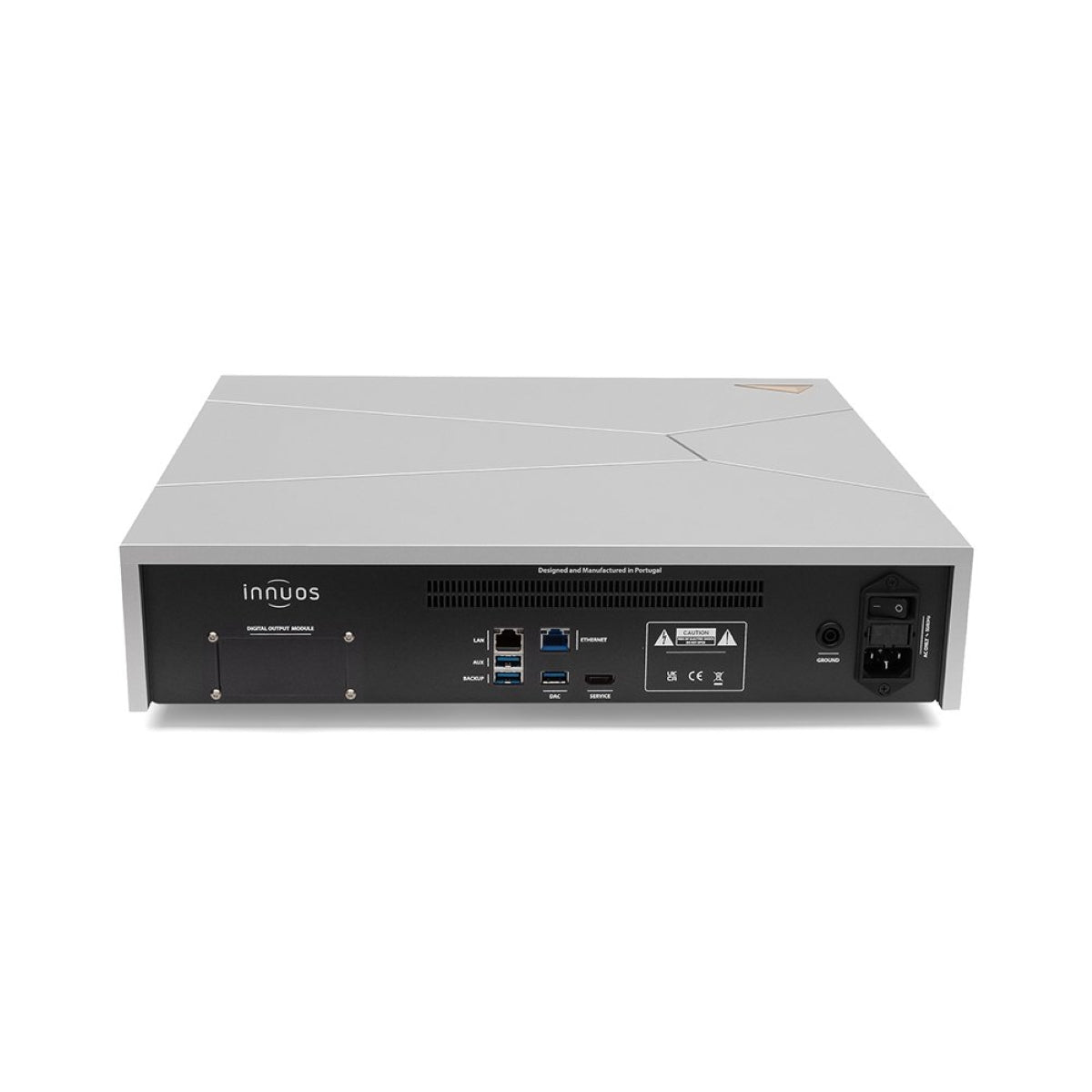

1 x Digital Output Module Bay
1 x Storage Expansion Bay (1 x M2 nVME SSD)
1 x HDMI (service only)
1 x AC Power Inlet

Streaming Services*:
Qobuz
TIDAL
Deezer
HighResAudio
IDAGIO
Spotify Connect
TIDAL Connect
Qobuz Connect
Internet Radio & Podcasts
Radio Paradise FLAC and Interactive services
Local Music Files
Internal M2 NVMe SSD + PCI-E SSD drives
NAS Drives/Servers
USB Drives**
*Premium subscription required
**’Folder View’ only, full library integration unavailable

CD Ripping
Available via external USB Optical Drive + installed SSD storage
Metadata Sources: Discogs, FreeDB, GD3, Musicbrainz
Ripping format options: FLAC or WAV

Control Software & Integrations
Innuos Sense App for iPadOS/iOS v16.6 (or later)
Innuos Sense App for Android 7 (or later)
Innuos Sense App for Amazon Fire OS 7 (or later)
Any web browser via my.innuos.com or IP address.

Optional:
Roon (Core and Endpoint modes supported)
HQPlayer (NAA Endpoint mode only)
AssetUPnP (UPnP Server mode only)

Power: 230V AC / 115V AC
Dimensions: 420mm x 365mm x 105mm (W x D x H)
Weight: 14.3 kg

Contents:
ZENith Next-Gen
AC Power Cable (2.0m)
Ethernet Cable (2.0m)
Quick Start Guide
