Innuos STREAM1 Music Streamer and Server

The STREAM1 is Innuos' entry-level Hi-Fi music streamer and server that does not compromise on functionality. Their most versatile gateway product yet, you can tailor the STREAM1 in different configurations to meet your needs thanks to modular storage and output options, able to flexibly fill both music streamer and server duties. Enjoy it as a fully-loaded music player, streaming transport, a storage server or a combination of them all – the choice is yours.

Whether you’re a seasoned audiophile with a meticulously curated system or a listener seeking a simple but elegant solution, this music source promises to be the driving force behind your audio experience.

At Innuos, they craft both hardware and software in-house, fine-tuning every detail for unmatched synergy. From precision clocking to advanced noise reduction through power supply architecture and customized firmware, every detail is engineered to allow you to reconnect with your music

Designed to grow with you, STREAM1 isn’t just an introduction to Hi-Fi streaming — it’s the foundation of an evolving system. With upgrade paths and modular design, it offers an accessible yet powerful step into superior audio performance. Build your ideal STREAM1 solution with options including:

– LPS1 Linear Power Supply upgrade

– Optional output modules: StandardDAC Board, PerformanceDAC Board, SPDIF Board, or PhoenixUSB Board

– 2TB or 4TB of pre-fitted M2 nVME storage – or install your own.

–  Optional Remote Control: exclusive to the STREAM Series, it delivers immediate, tactile control and instant access to favourite music via numbered presets pre-configured through the Sense App.

Whether you already own a DAC or prefer a fully connected streamer, exclusively stream, or wish to build a library of all your local files, this product is designed to be the digital heart of your system. Flexible but uncompromising in sound quality, STREAM1 is a gateway to rediscovering your music collection.

CX Power

Enjoy superior sound quality thanks to the CX Regulator designed in collaboration with Dr Sean Jacobs. Independent and low-noise power is supplied directly to the Output Module stage, ensuring a clear, rich and precise audio signal. Power the overall system with the included medical-grade filtered SMPS, or upgrade with the dedicated LPS1.

Storage

Add M2 NMVe SSD storage and create a home to maximize all your digital files and enjoy even more library management features in Sense app with the full scope of a music server. Choose from 2TB or 4TB of factory pre-fitted storage – or simply add your own instead.

LPS1 Optional Power Supply

Take the sound quality of STREAM1 significantly further with the partnering LPS1, a perfectly matched linear power supply with a 150VA toroidal transformer and premium Mundorf capacitors for even greater clarity in sound. Leverage a second Nichicon-regulated DC output to power accessories such as external DACs and network switches.

Small but mighty, the STREAM1 makes no compromises on features despite its compact, half-width design. Enjoy the full scope of all Sense has to offer in a small footprint design, with 10mm CNC-machined Aluminium front fascia and a continuous design with LPS1, whether stacked or placed side-by-side.

Powerful Performance

Enjoy a smooth and responsive system thanks to the new Stream series mainboard, using 13th Gen Intel Quad-Core processing and 8GB of industrial-grade DDR5 RAM for a fast yet efficient platform that exceeds 200% faster processing than its predecessor. Hear the benefits of a low-latency system with the OS carried on a dedicated TLC power-loss protected SSD, featuring Real-Time Kernel technology trickled down from the ZEN Next-Gen series.

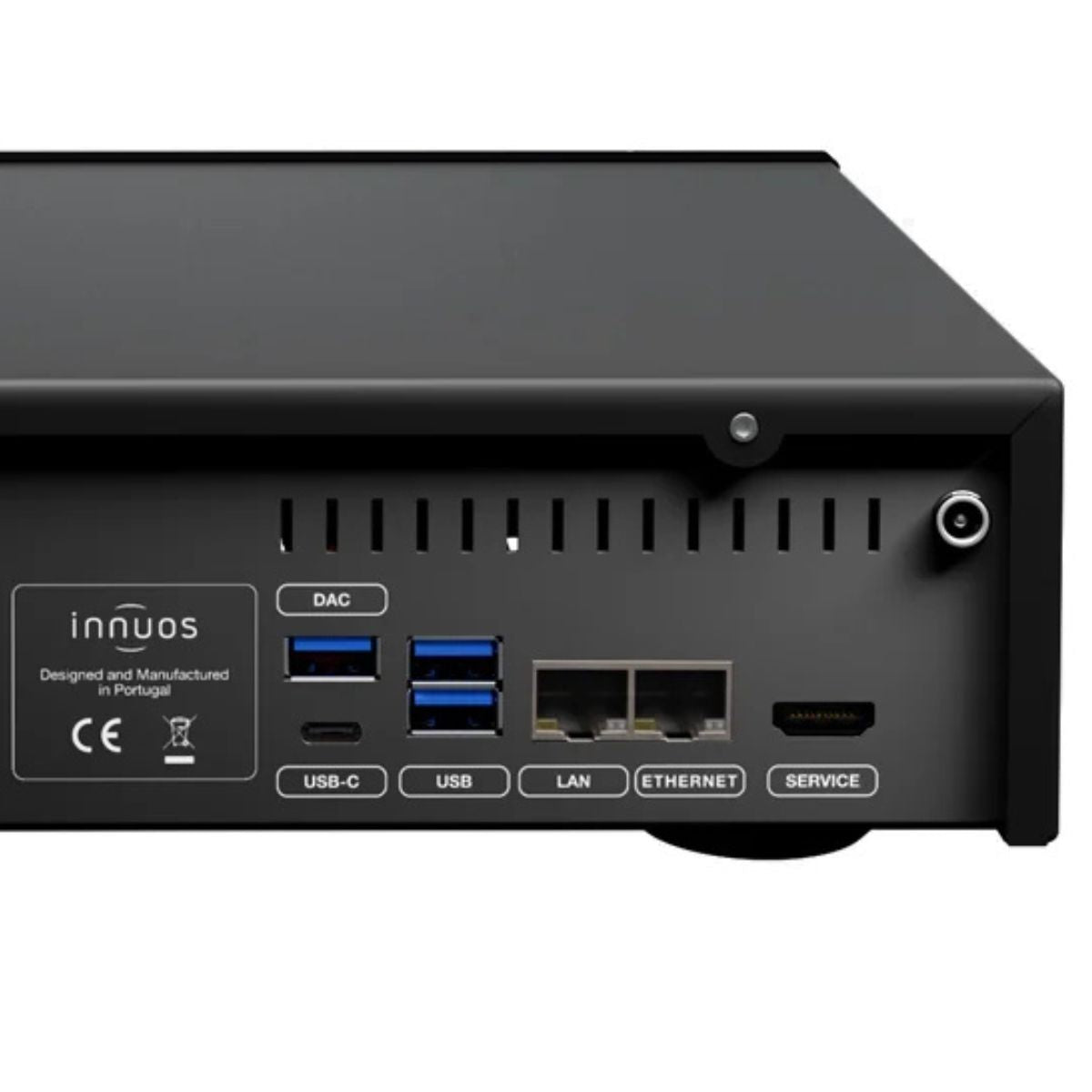

Connectivity

STREAM1 is ready for the latest changes in connectivity, equipped with USB-C for the latest high-speed USB drives, DACs, or for charging smart devices.

Still want to rip CDs to the internal storage? Add your own USB Optical Drive and begin ripping in seconds through using intuitive customised ripping engine. Connect to super-fast network speeds through the new 2.5gb Ethernet ports, with a bridged ‘Streamer’ output to connect another network device to.

Sense App
Sense, in-house developed, delivers optimal music playback with features like: Seamless and automatic ripping of CDs on Innuos music servers or via external drive. Navigating streaming services like Qobuz, Tidal, Deezer, HighResAudio or IDAGIO with ease. Qobuz Connect, TIDAL Connect and MAX resolution supported, with more streaming services to come. Easy creation of playlists or fast integrated searches from multiple streaming services and music stored locally or on one of more NAS. Internet Radio, dedicated Podcast section, Smart-Q, Presets.

Optional Output Modules
The STREAM1 comes with a range of optional output modules, allowing you to choose the one that best suits your system requirements, and to ensure the very best audio performance from that specialized output choice. It also gives you scope to change this module as your needs may change when connecting to your choice of DAC, amplifier, active speakers, or more.

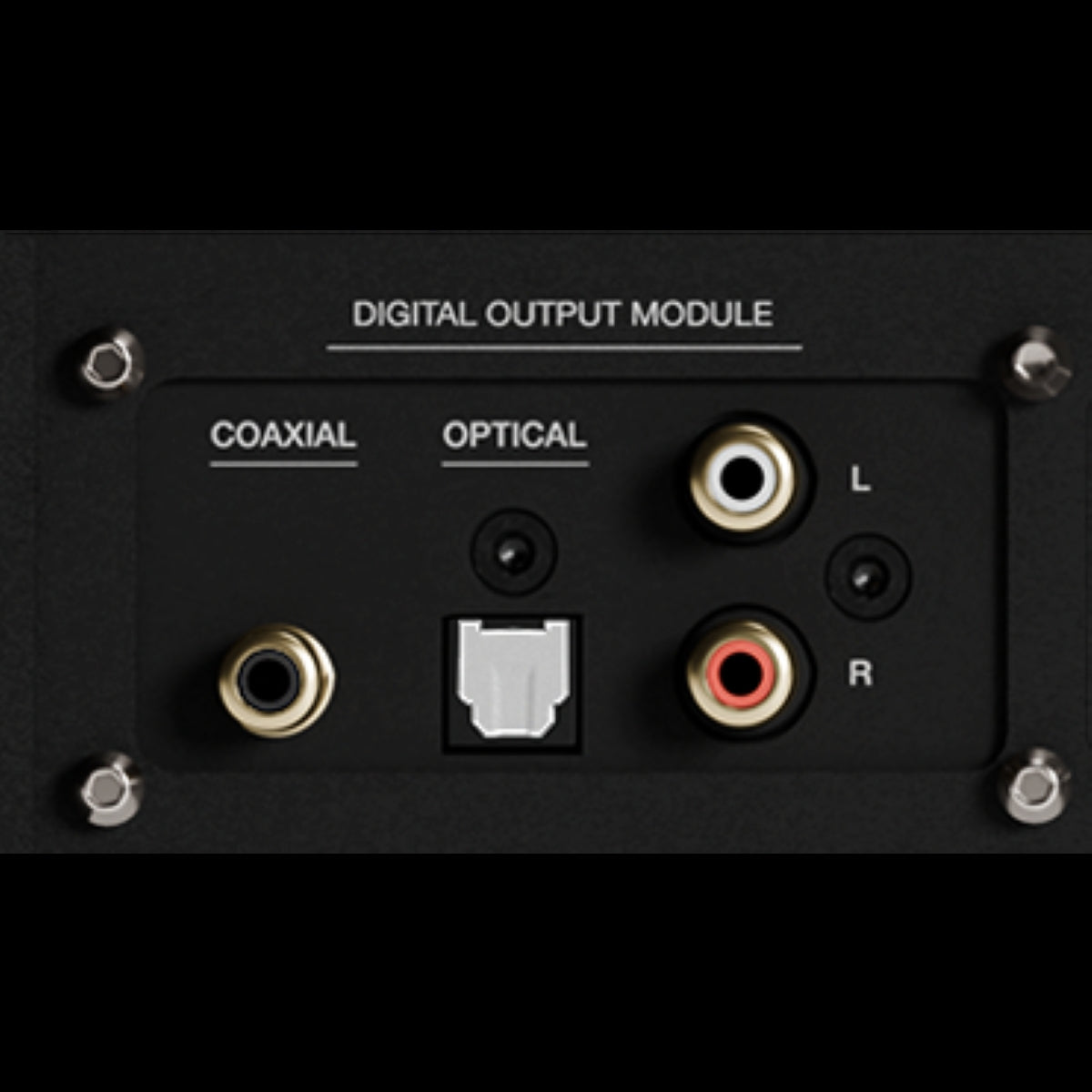

StandardDAC Board
Add RCA analogue output, plus optical and coaxial SPDIF outputs
Supports PCM up to 24bit/192KHz

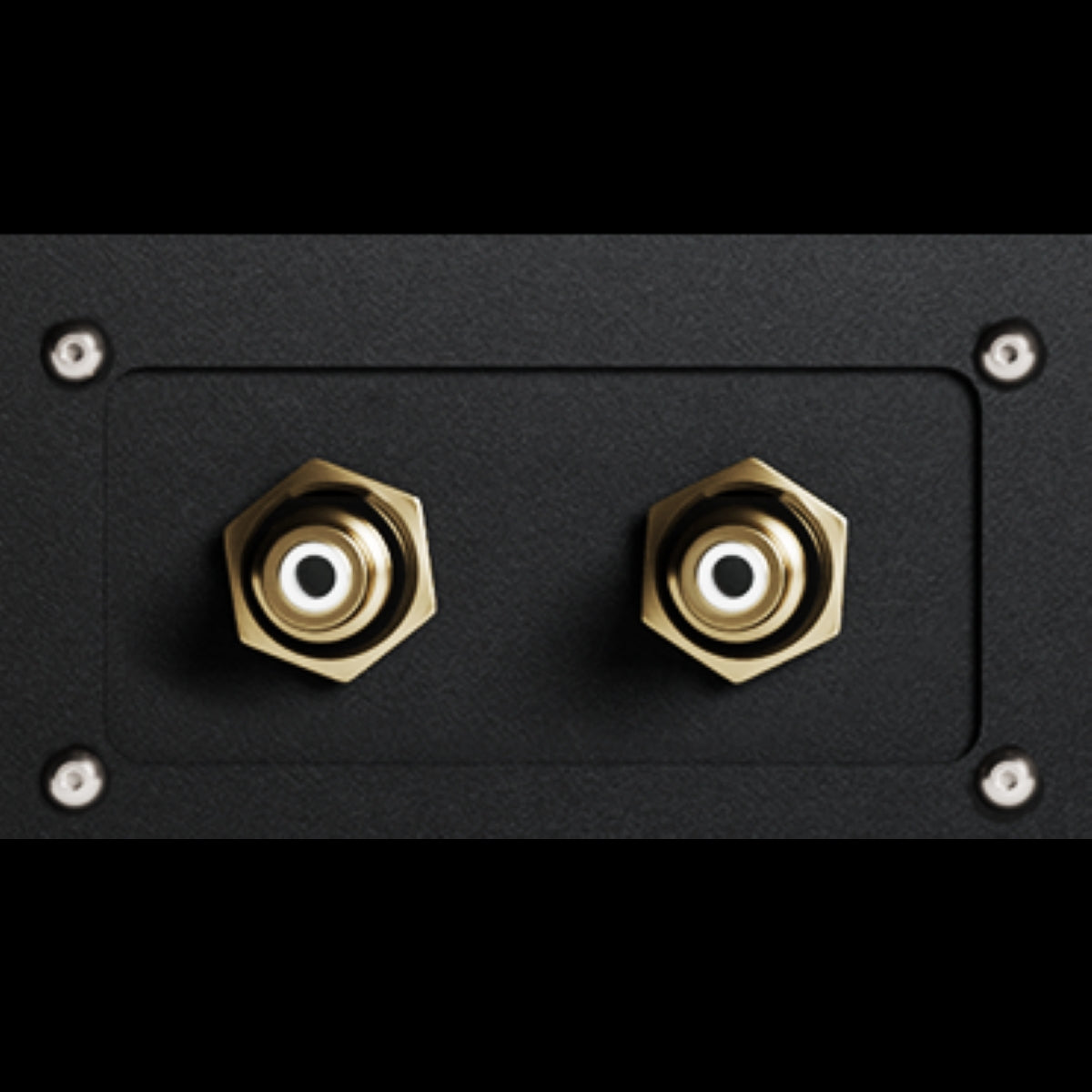

PerformanceDAC Board
Latest AKM DAC chip and high-quality TCXO clocks
Support PCM up to 32bit/768KHz, Native DSD up to DSD512
Independent power supplies for digital and analogue stages
High-Quality Gold-plated RCA Connectors

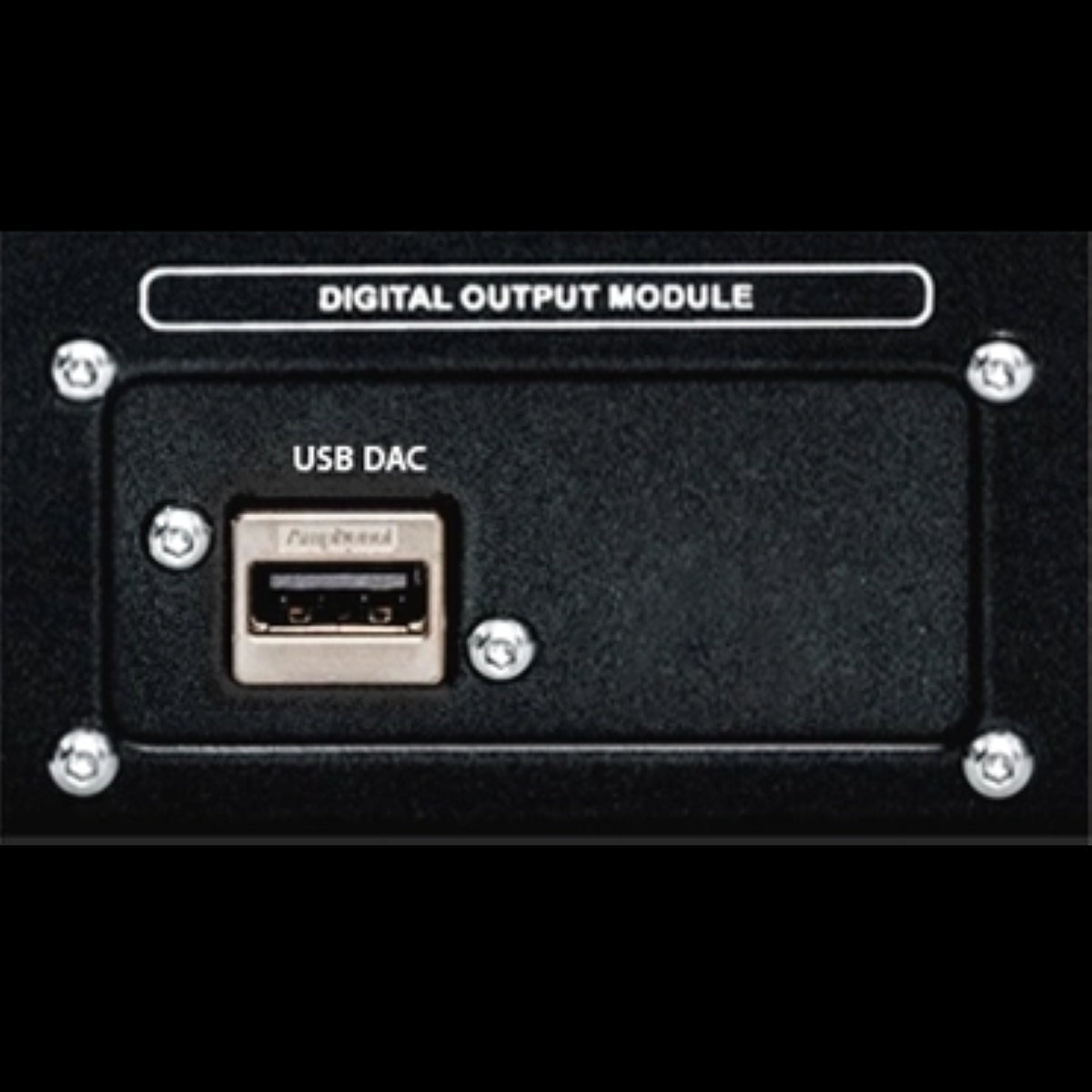

PhoenixUSB Board
Regenerated and Reclocked USB signal to your Class 2 USB DAC, greatly increasing sound quality
High-precision 3ppb 24MHz OCXO clock for greatly improved timing and signal integrity
Ultra-low noise LT3045 linear regulators for each independent voltage, no switching regulators on main USB chip
Provides a pristine 5V line for the USB connection on your DAC

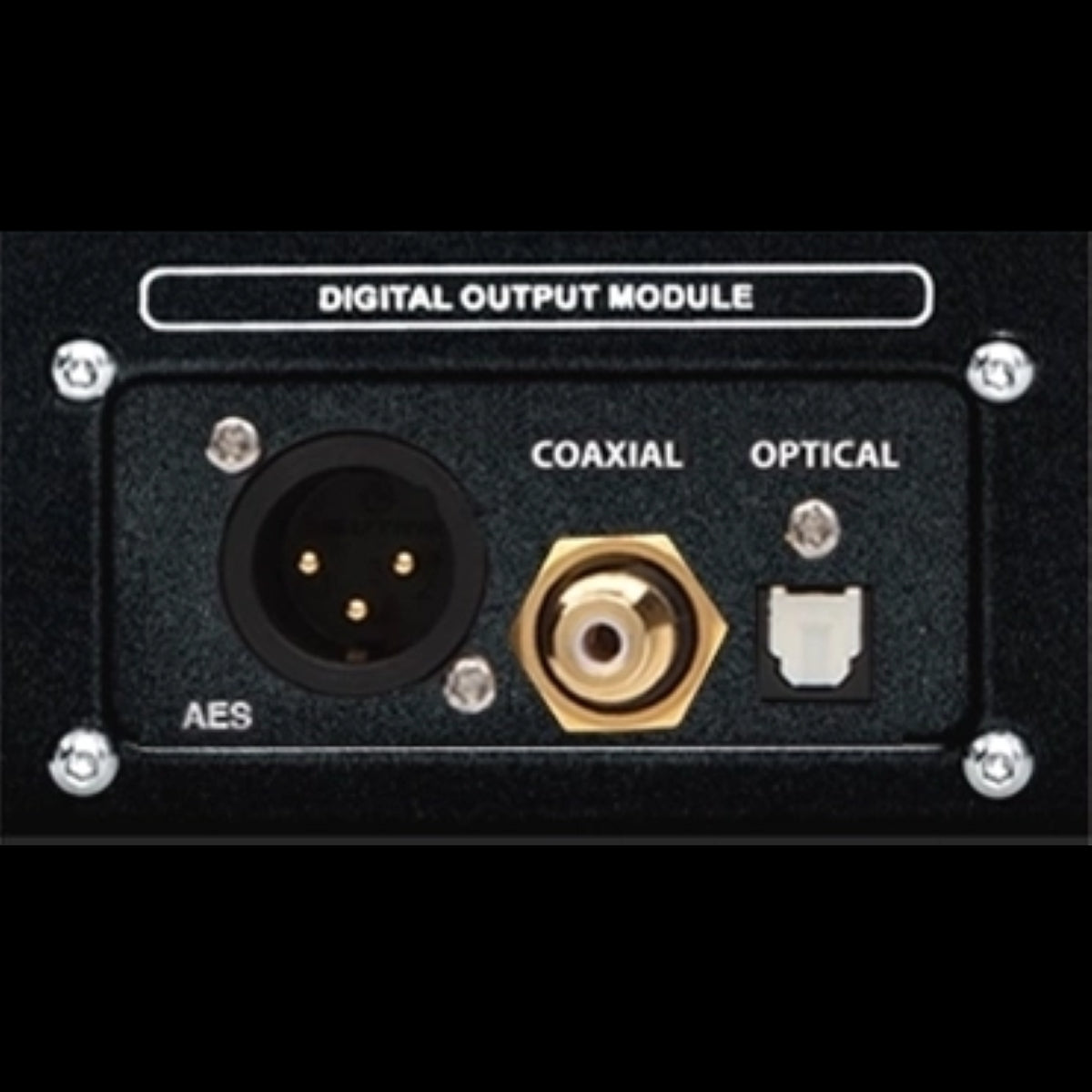

SPDIF Board
Provide a superior SPDIF Coaxial, Optical and AES outputs for your DAC
Supports PCM up to 24bit/192KHz
Optimised power supply for ultra-low noise
High-Quality Gold-plated Connectors

Specification

File Formats: WAV, AIFF, FLAC, ALAC, AAC, MP3, DSF, DFF, MQA Supported

Sample Rates: PCM: Up to 32bit/768KHz, DSD: Up to DSD256 via DoP, up to DSD512 via Native DSD (24bit/192KHz maximum output on SPDIF; StandardDAC modules)

Connectivity
USB (DACs, Imports, Backups, USB Drive playback)
3 x USB 3.2
1 x USB-C

Network
2 x 2.5gb Ethernet, Bridged (wired only)

Other
1 x Digital Output Module Bay
1 x Storage Expansion Bay (1 x M2 nVME SSD)
1 x HDMI (service only)
1 x DC Power Inlet

Streaming Services*
Qobuz
TIDAL
Deezer
HighResAudio
IDAGIO
Spotify Connect
TIDAL Connect
Qobuz Connect
Internet Radio & Podcasts
Radio Paradise FLAC and Interactive services

Local Music Files
Internal M2 NVMe SSD
NAS Drives/Servers
USB Drives**
*Premium subscription required
**’Folder View’ only, full library integration unavailable

CD Ripping: Available via external USB Optical Drive + installed SSD storage
Metadata Sources: Discogs, FreeDB, GD3, Musicbrainz
Ripping format options: FLAC or WAV

Control Software & Integrations:
Innuos Sense App for iPadOS/iOS v16.6 (or later)
Innuos Sense App for Android 7 (or later)
Innuos Sense App for Amazon Fire OS 7 (or later)
Any web browser via my.innuos.com or IP address.

Optional:
Roon (Core and Endpoint modes supported)
HQPlayer (NAA Endpoint mode only)
AssetUPnP (UPnP Server mode only)
Power: 19v DC Input, external Switch-Mode Power Supply (Optional LPS1 upgrade available)

Dimensions: 240mm x 200mm x 80mm (W x D x H)
Weight: 2.4 Kg

Contents:
Innuos Stream 1
Switch Mode Power Supply
AC Power Cable (2.0m)
Ethernet Cable (2.0m)
Quick Start Guide
